Universal T70 Turbo Turbocharger T3 .82 A/R + Oil Drain Return FEED Line Kit

Application

for all 3.0L and up engines

Specification

-Exhaust (Turbo Manifold) Flange: Standard T3 Flange
Exhaust (Downpipe) Flange: V-Band Flange
Cooling Type: Oil Cooled
Horse Power: Boost Horse Power up to 600BHP
-Compressor:
Trim: 57
Inducer Diameter: 56.6 mm
Exducer Diameter: 75 mm
A/R: 0.7
-Turbine
Trim: 62
Inducer Diameter: 74.4 mm
Exducer Diameter: 58.4 mm
A/R: 0.82

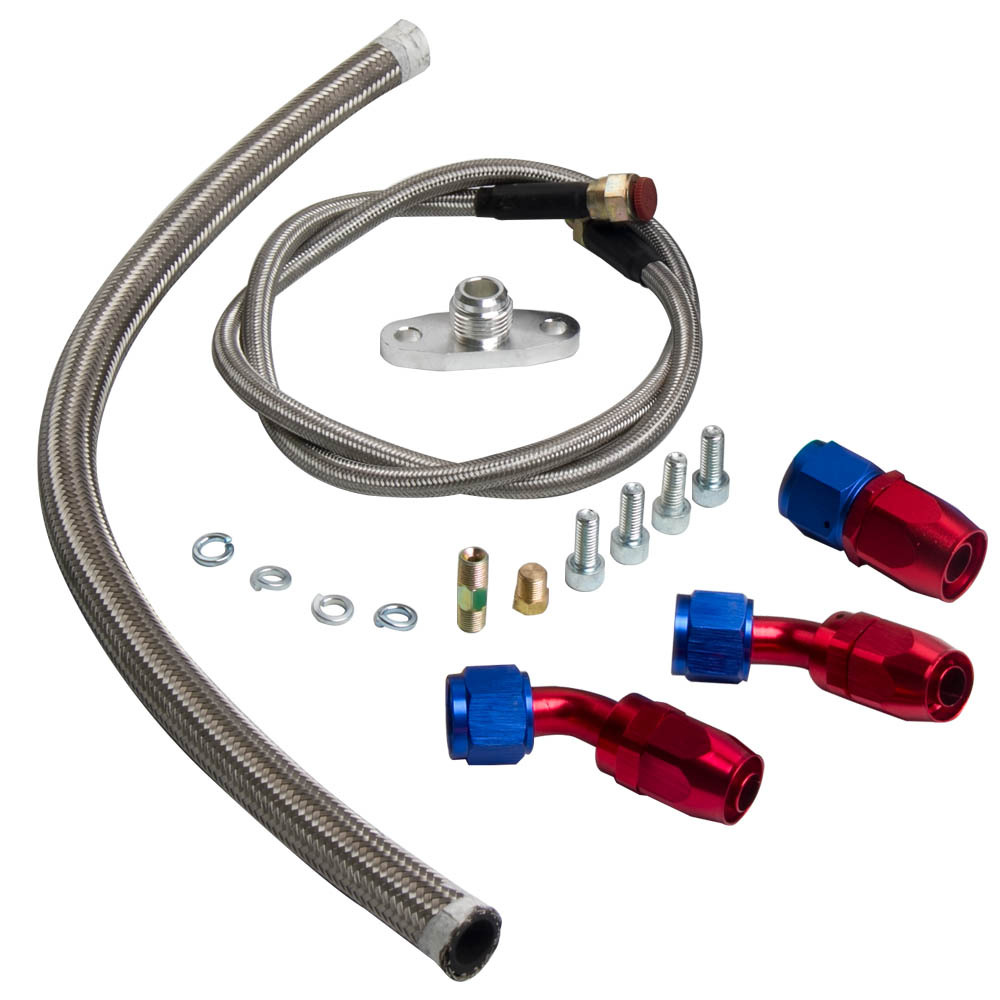

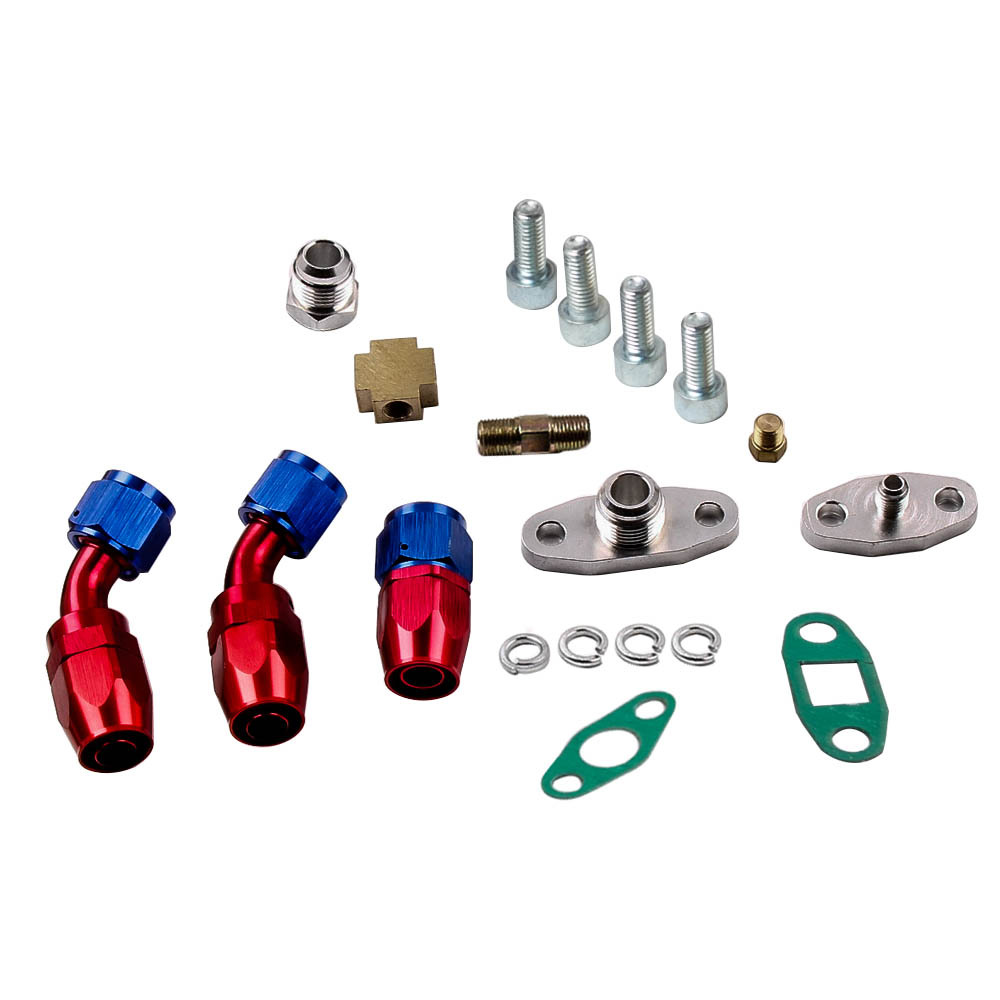

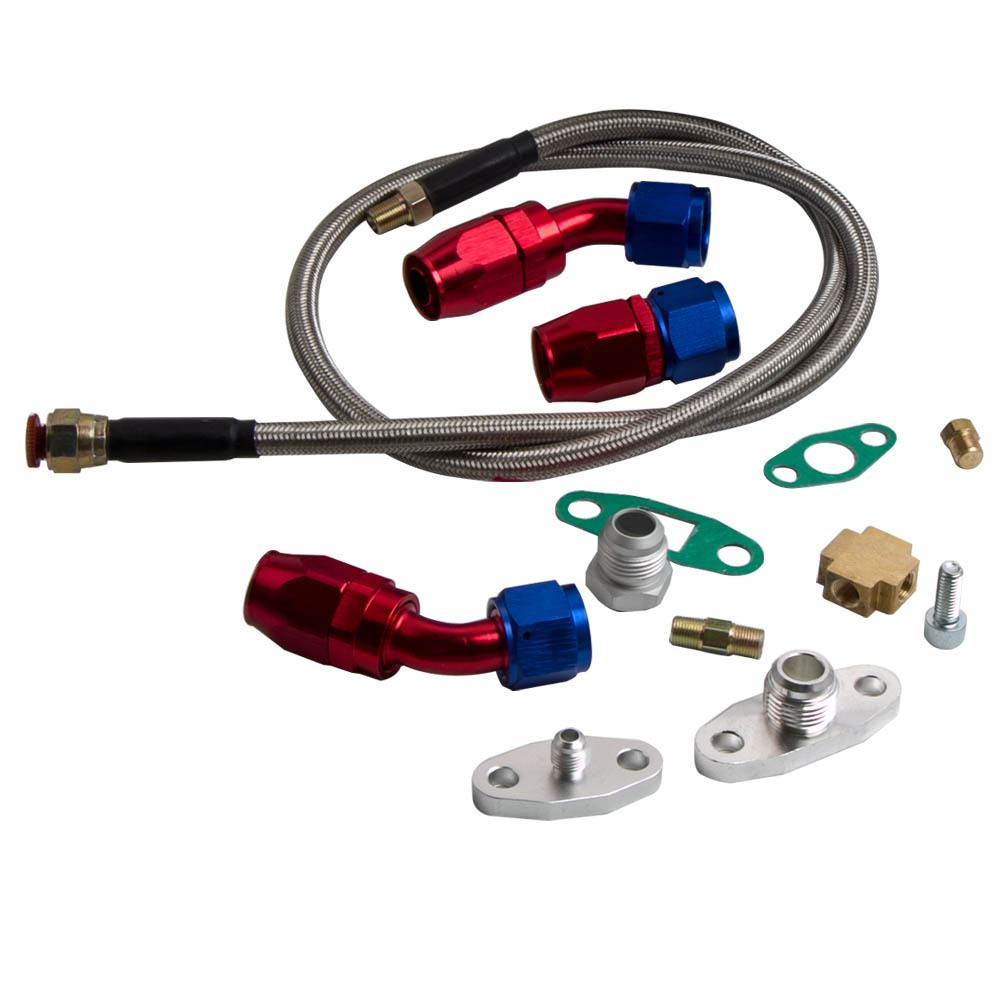

-Oil Specifications:
OIL RETURN LINE: Length: 550mm || Inner Diameter: 21mm
​OIL FEED LINE: Length: 1000mm || Inner Diameter: 14mm
Oil Inlet: M12*1.25 & 2*M8*1.25
Oil Outlet: 2*M8*1.25
-Condition: New
Bearing Type: Journal Bearing
Warranty: one year warranty for any manufacturing defect.
Accessories: You will get exactly as shown in the picture above

Note

-Professional installation is highly recommended (No Instruction Included).
-For any needs please contact us.
-This is universal application turbo, so modification might be required for some vehicles.

* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.

* Make sure the oil drain line is lower than the turbo itself.

* Gasoline car must install a water cooling device to avoid overheating.

* Ensure exhaust outlet are well sealed by welding.
