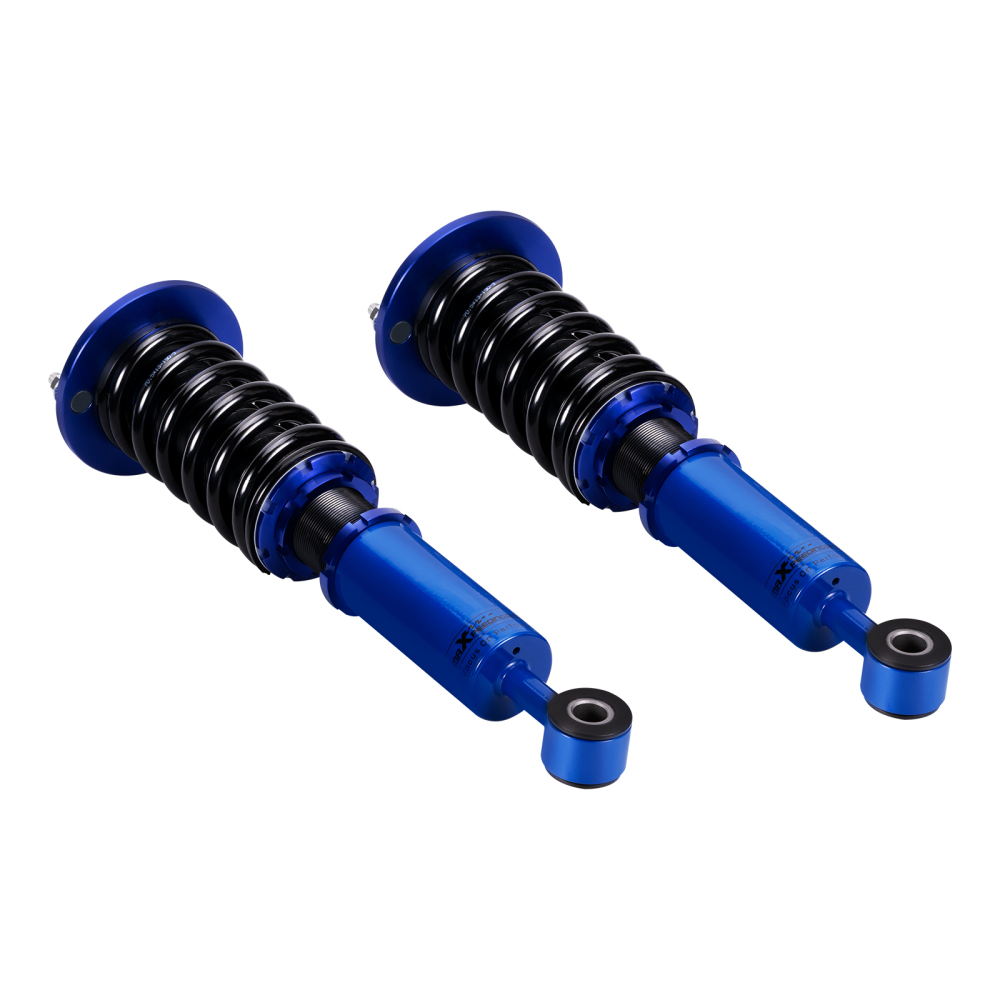

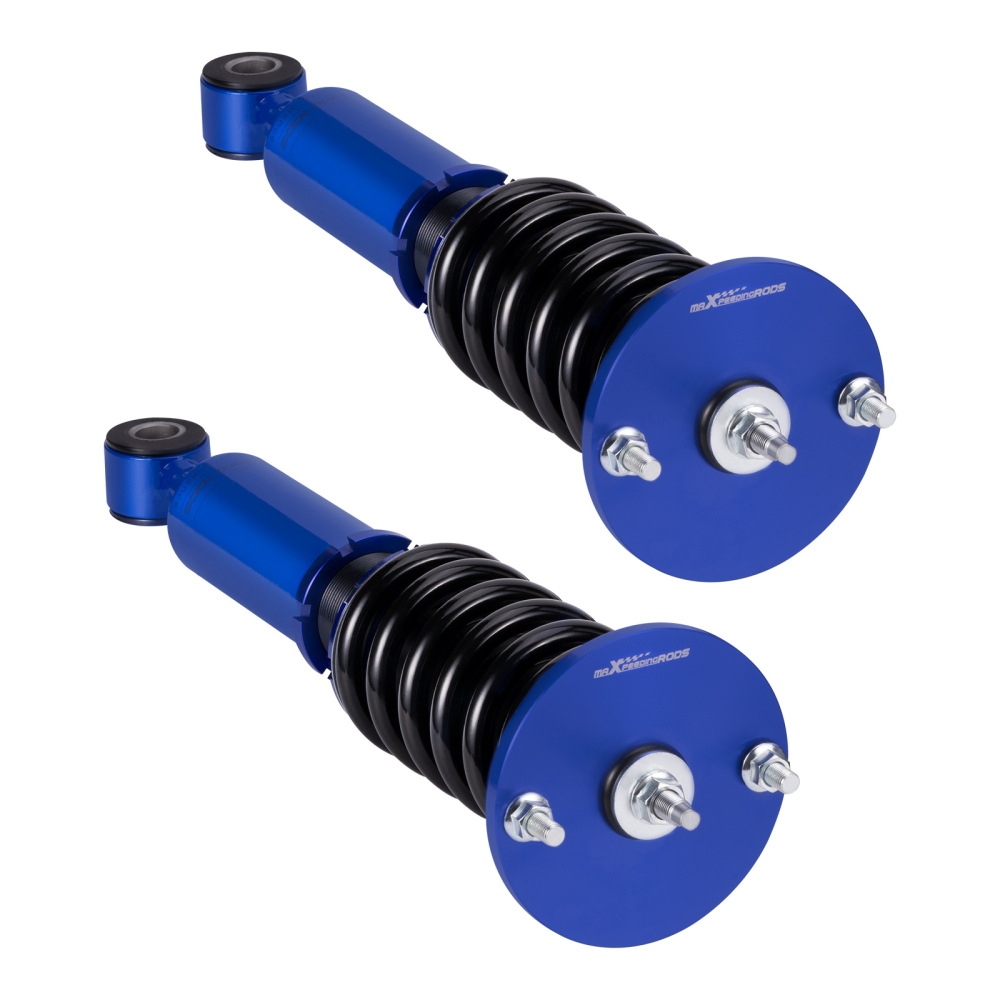

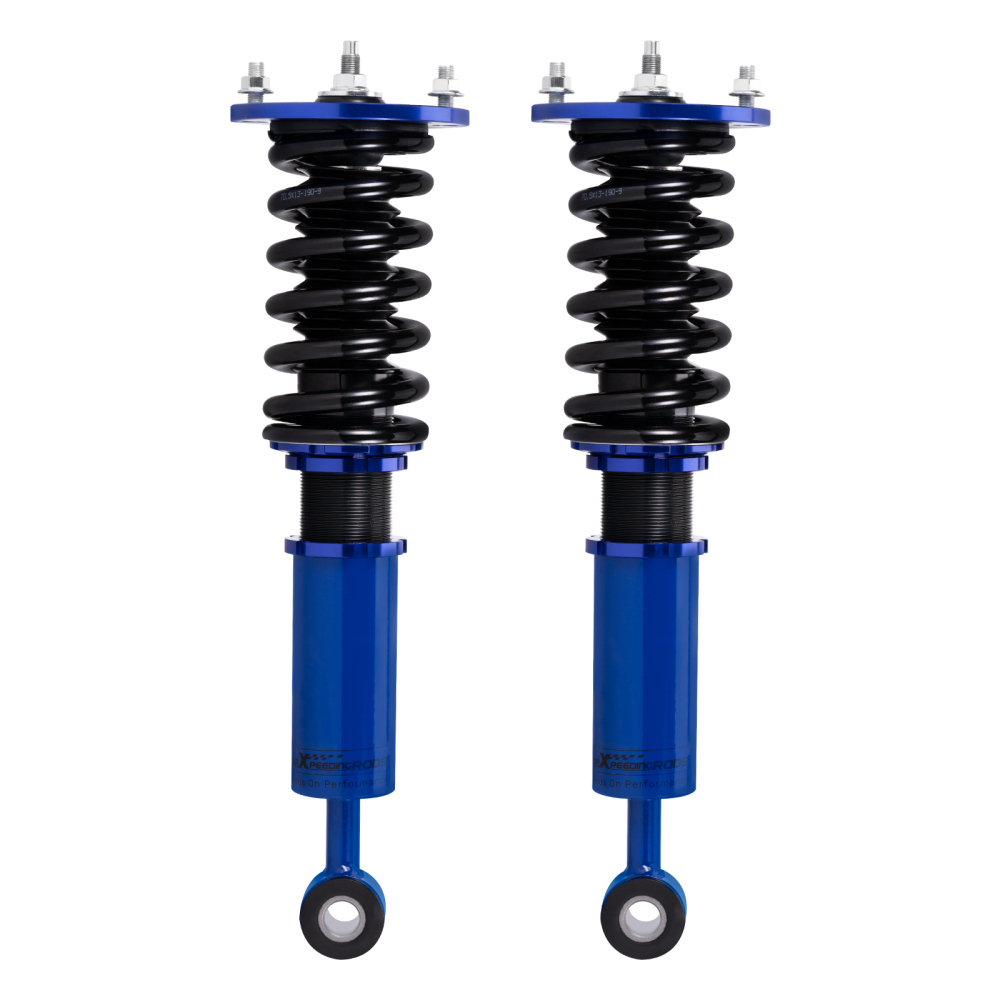

Compatible for Mitsubishi Eclipse 95-99 Galant 94-98 Adj Height Coilovers Suspension Kit

Introduction

MXR-SNA coilovers are designed as an entry level for street use. It features with full length height adjustable and adjustable camber plates (applicable for some vehicles), which offers you a lowered stance, improved performance for your daily use vehicle.

Application

Compatible for MITSUBISHI ECLIPSE 1995-1999USA D38A CONVERTIBLE, 4CYL/TURBO
Compatible for MITSUBISHI ECLIPSE 1995-1999USA D33A 4CYL/TURBO
Compatible for MITSUBISHI ECLIPSE 1995-1999USA D32A 4CYL/TURBO
Compatible for MITSUBISHI ECLIPSE 1995-1999USA D31A 4CYL/NON TURBO

Specification

Top mount: front camber plate; rear rubber
Front Spring Rate: 12kg/mm (672 lbs/in)
Rear Spring Rate: 9kg/mm (504lbs/in)
Spring length Front: 190mm
Spring length Rear: 190mm
Coilover overall length Front: 445mm-495mm
Coilover overall length Rear: 485mm-575mm
Adjustable height: Yes lowering 1" to 3"
Spring Preload: 7-10 mm
Shock type：Twin tube
Color: blue body with black spring

Package included

Complete coilovers assembly 2 front and 2 rear
A pair wrench for height adjustment

Dimension

Package dimension : 63*51*21
Weight: 25560g

Feature

1.Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance.
2.Camber plate top mounts help to eliminate the need for a separate camber kit.
3.Twin-Tube structure allows sufficient stroke within the shock absorber.
4.Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.
5.Separate height adjustment does not affect damper stroke and height can be adjusted with coilovers installed on the vehicle.
6.High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.
7.Most pieces in our coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components.
8.Steel shock bodies with special surface treatment to improve the durability.
9.Full rebuildable
