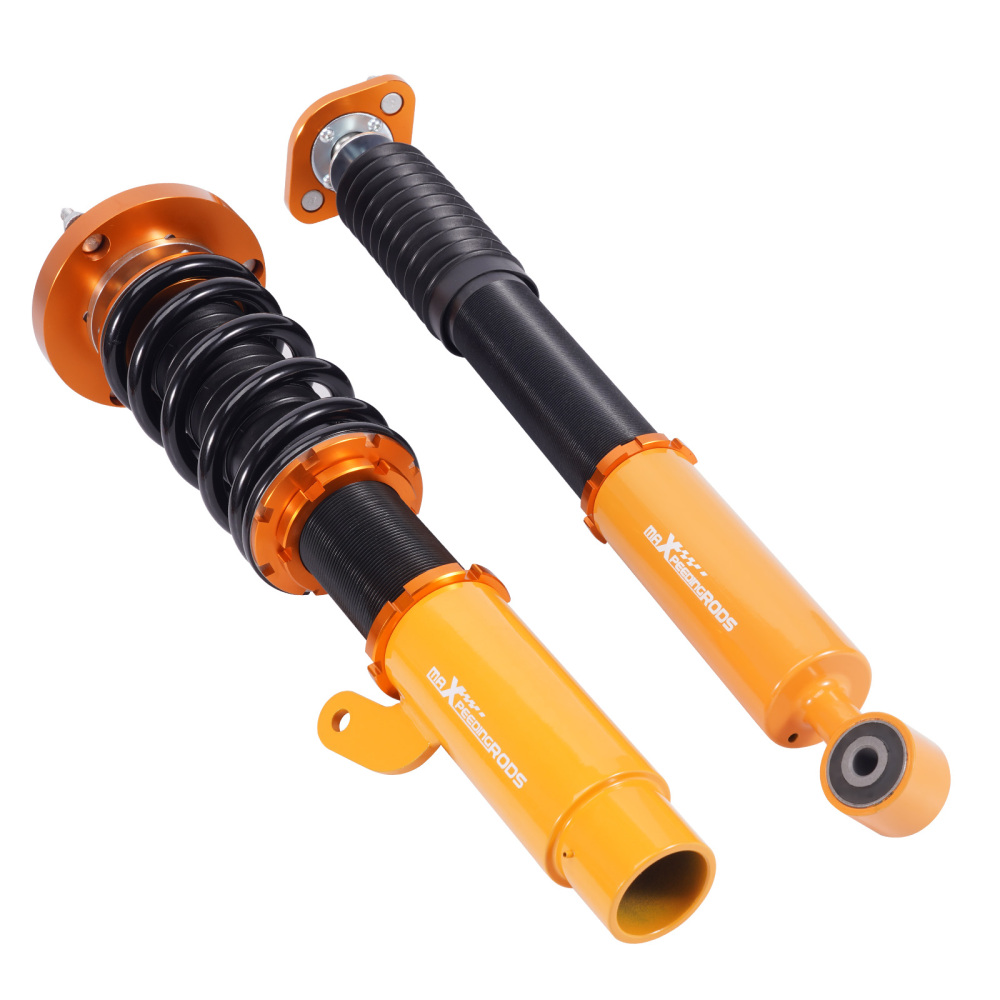

For BMW E46 3-Series 1998-2005 4pcs 24 Damper Adjustable Suspension Coilovers Shock Absorber kits

  • * Fitment: The shock absorbers are compatible for BMW E46 3-Series Models ONLY
  • * High Tensile Strength Performance Spring: Front: 8 kg/mm (448 lbs/in), Rear: 7 kg/mm (392 lbs/in); Tested under a 600,000 time continuous compression test, the spring distortion was less than 0.04%
  • * Adjustable Performance: Able to lower ride height by 1''-3''; 24 ways Adjustable Damper
  • * Twin-Tube Shock Design: Used for low internal frictional resistance in order to increase efficiency and keep shock temps low
  • * Al6061-T6 Material: Most components of the suspension parts are made from 6061-T6 aluminum to increase strength and rigidity
Item Number 3002103752
Stock In Stock

Combination offer

  • A
  • B
  • C
  • D
  • E
  • F
  • G
CO-E46-G-LC-VG3
CO-E46-G-LC-VG3
1.Adjustable Damper & Height
1.Adjustable Damper & Height
24-way adjustable damper force allows the user the ability to dial in your coilovers to any driving needs
2.High Quality Components
2.High Quality Components
Most components of the suspension parts are made from 6061-T6 aluminum to increase strength and rigidity
3.High Tensile Strength Spring
3.High Tensile Strength Spring
Tested under a 600,000 time continuous compression test, the spring distortion was less than 0.04%
4.Twin-tube Construction
4.Twin-tube Construction
Twin-Tube shock design is used for low internal frictional resistance and dust boot protects damper seal

Application

Compatible For BMW 3 (E46) 4-door sedan 330i; 325i; 328i; 318d; 320d; 320i,325i ;330d (02/1998-04/2005)
Compatible For BMW 3 2-door Convertible (E46) 318ci; 330ci; 325ci;323ci; 320cd,330cd (04/2000-12/2007)
Compatible For BMW 3 2-door Coupe (E46) 320ci; 325ci; 330ci;320cd; 330cd; (02/1999-12/2006)
Compatible For BMW 3 Touring 5-door wagon/estate (E46) 316i; 325i; 328i; 330i; 323i; 325i; 318d; 320d; 330d; (10/1999-05/2005)
note: not for Xi/xd 4 wheel drive

Specification

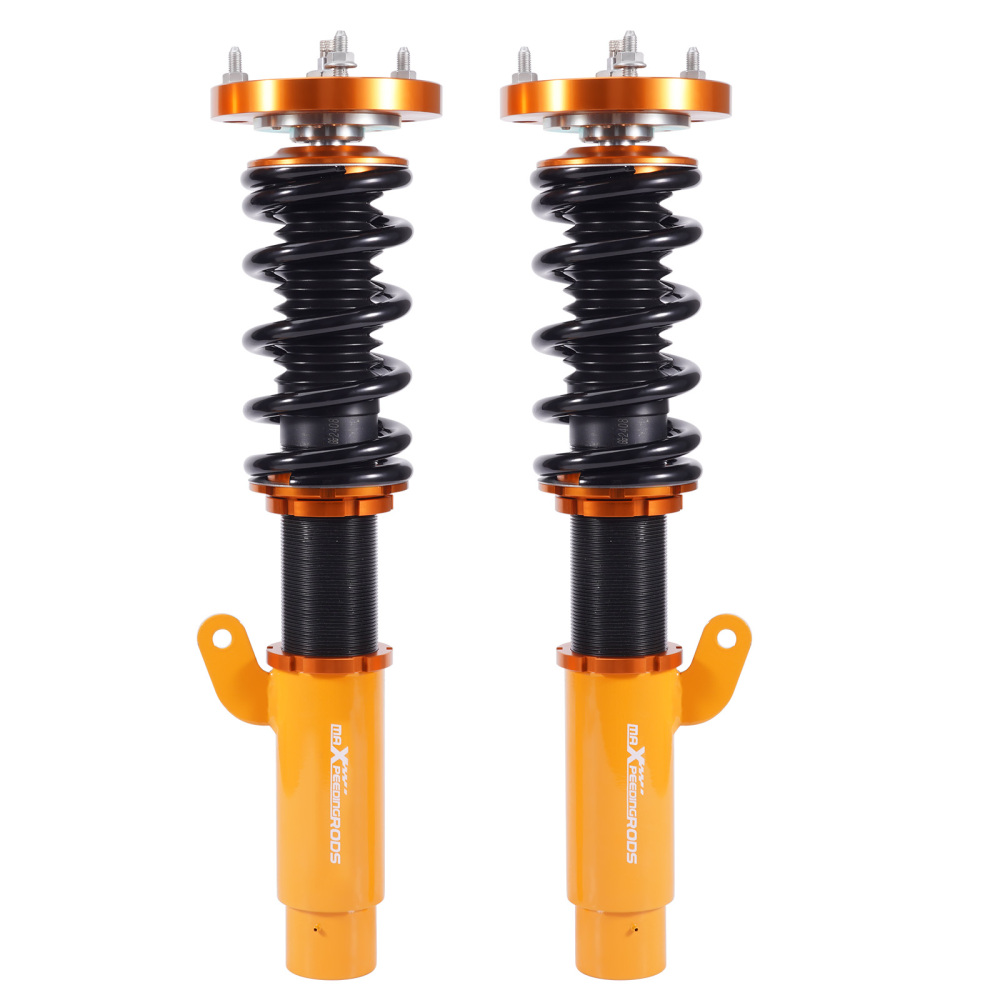

Top mounts: front pillow ball top mounts with camber plate

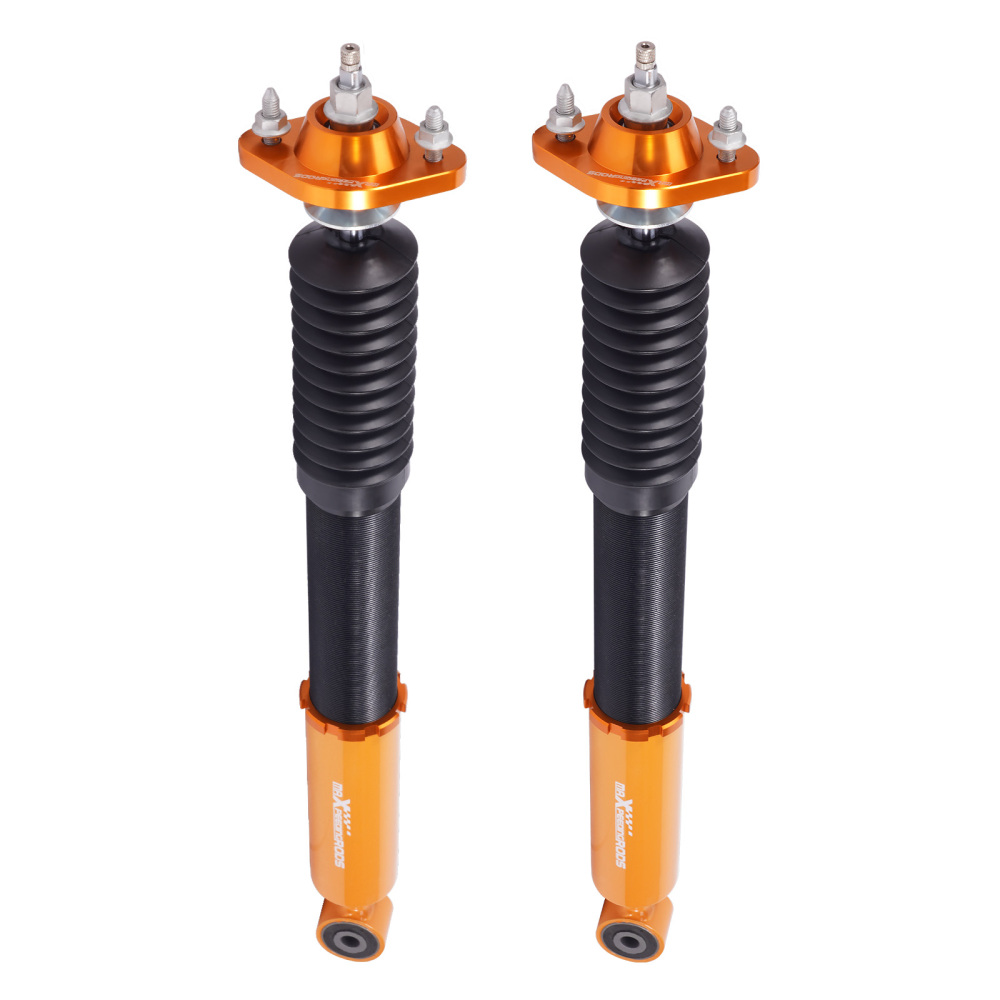

rear pillow ball top mounts

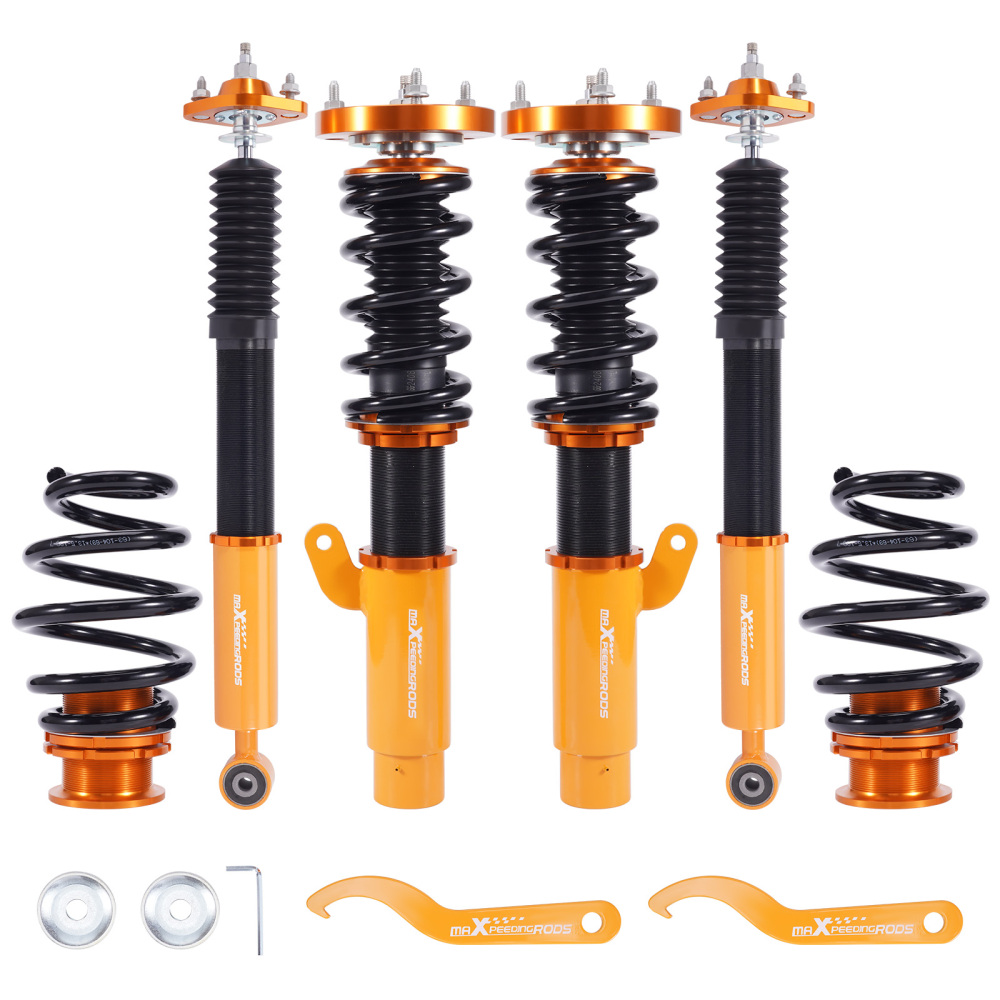

Quantity: 2 piece front + 2 pieces rear,a pair wrench for height adjustment
Front Spring Rate: 8 kg/mm (448 lbs/in)
Rear Spring Rate: 7 kg/mm (392 lbs/in)
Color: Gloden
Adjustable damper: 24 ways adjustable damper force
Adjustable height: Yes lowering 1'' to 3''
Shock type: Twin tube
Spring Preload: 7-10 mm
Warranty: 1 year warranty for any manufacturing defect

Feature

- Able to lower ride height by 1''-3''; allows user to have a more aggressive stance.
- Coilovers are 24-way adjustable. Rebound and Dampening adjustment which allows the user the ability to dial in your coilovers to any driving needs. The user can enjoy a comfortable riding experience in all road conditions.
- Pillow ball top mount for sharpening steering response.
- Twin-Tube Shock design is used for low internal frictional resistance in order to increase efficiency and keep shock temps low.
- Height adjustment does not sacrifice damper stroke length.
- These coilovers are able to have their height adjusted without being taken out of the car.
- High Tensile strength performance spring---Tested under a 600,000 time continuous compression test, the spring distortion was less than 0.04%. Plus, the special surface treatment improves the durability and performance.
- Adjustment tools included in the kit.

Notice

- Please double confirm before placing order.
- No instruction included; Professional installation is highly recommended.
- Please check our store for other auto parts you may be interested in.
- Please feel free to contact us for whatever we can help.

Write a review

Add photos(0/4)

Note: HTML is not translated!
    Bad           Good

Enter your destination to get a shipping estimate.


CONTINUE
*

*Please select a category!

BMW E46 Adjustable Coilovers Install Guidance


DISCLAIMER: This install guidance was authorized by Antares Cam and this install guidance is for reference purposes only. Always follow professional instructions on how to set this up correctly, MaXpeedingRods is not responsible for any damage caused by inappropriate installation.

Step 1. Lift car and secure with jack stands using designated jack points

Step 2. Remove Wheels (Rear)

Step 3. Remove push pins to free trim from trunk to expose two 13 mm nuts securing strut

Step 4. Remove lower18mm strut bolt  to free strut from hub assembly

Step 5. Press down on hub assemble to remove spring

Step 6. Remove upper 13mm strut bolts and remove strut

Step 7. Repeat for opposite side and prepare struts with matching dampening settings and height as well as the spring mounts

Step 8. Reuse upper spring pad and place supplied washer at the base of the spring mounting location

Step 9. Press down on hub assembly and insert new spring and base.

Step 10. Secure spring base with plate washer and bolt

Step 11. Remember to set dampening with adjustment on top of the strut with audible clicks.

Step 12. Secure new strut with upper 13 mm bolts in mounting space in trunk and use jack to raise hub assembly to secure lower 18mm bolt

Step 13. Tighten all collars (on strut and spring base) with provided wrenches to ensure retained settings

Step 14. Raise hood and remove front wheel to access strut and bolts remove sway bar link with 16mm socket

Step 15. Remove lower 18mm strut bolt to release hub assembly from strut

Step 16. Remove 2 upper 13 mm strut nuts to release strut and remove from the car

Step 17. Place new coilover in place within hub assemble and use jack to positon coilover and hub assembly back in factory position

Step 18. Position sway bar link bracket in correct position on coilover and insert sway bar link securing with stock nut

Step 19. Secure hub assembly with 18mm strut bolt and tighten

Step 20. Replace top hat 13mm nuts to secure top of coilover

Step 21. Tighten all adjustment collars, replace wheels, and lower car.

Antares Cam made a video about how he managed to get MaXpeedingRods adjustable coilovers on his BMW E46.
