- * Fitment: The shock absorbers are compatible for Mitsubishi Eclipse 1995-1999 2ND Gen compatible for Eagle Talon,Compatible for Mitsubishi Galant 1994-1998
- * High-quality Spring: Front: 12 kg/mm (672 lbs/in), Rear: 9 kg/mm (504 lbs/in); The spring distortion is less than 0.04% under 600,000 times continuously tests
- * Adjustable Performance: Adjustable ride height (lowering 1''-3''); Adjustable pre-load spring tension;
- * Increased Hardness: Most components of the suspension parts are made from 6061 aluminum with T6 for increased strength and rigidity

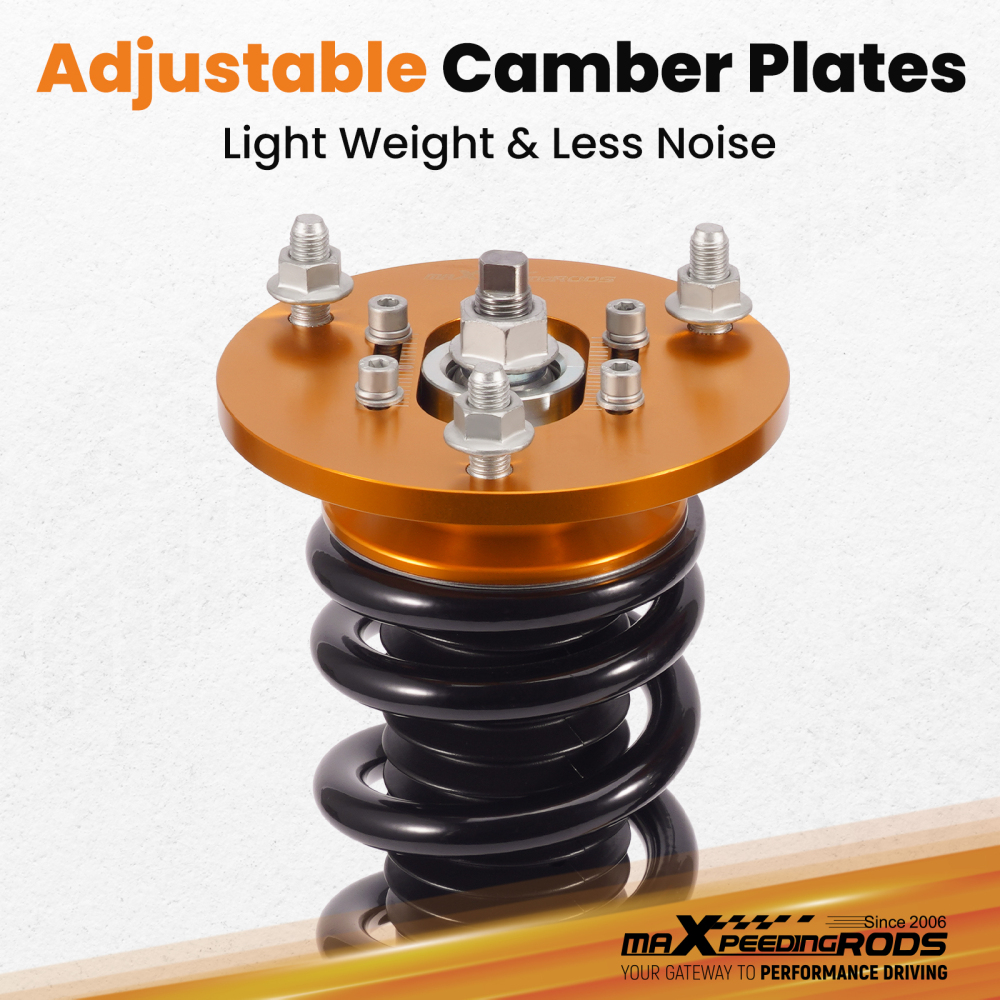

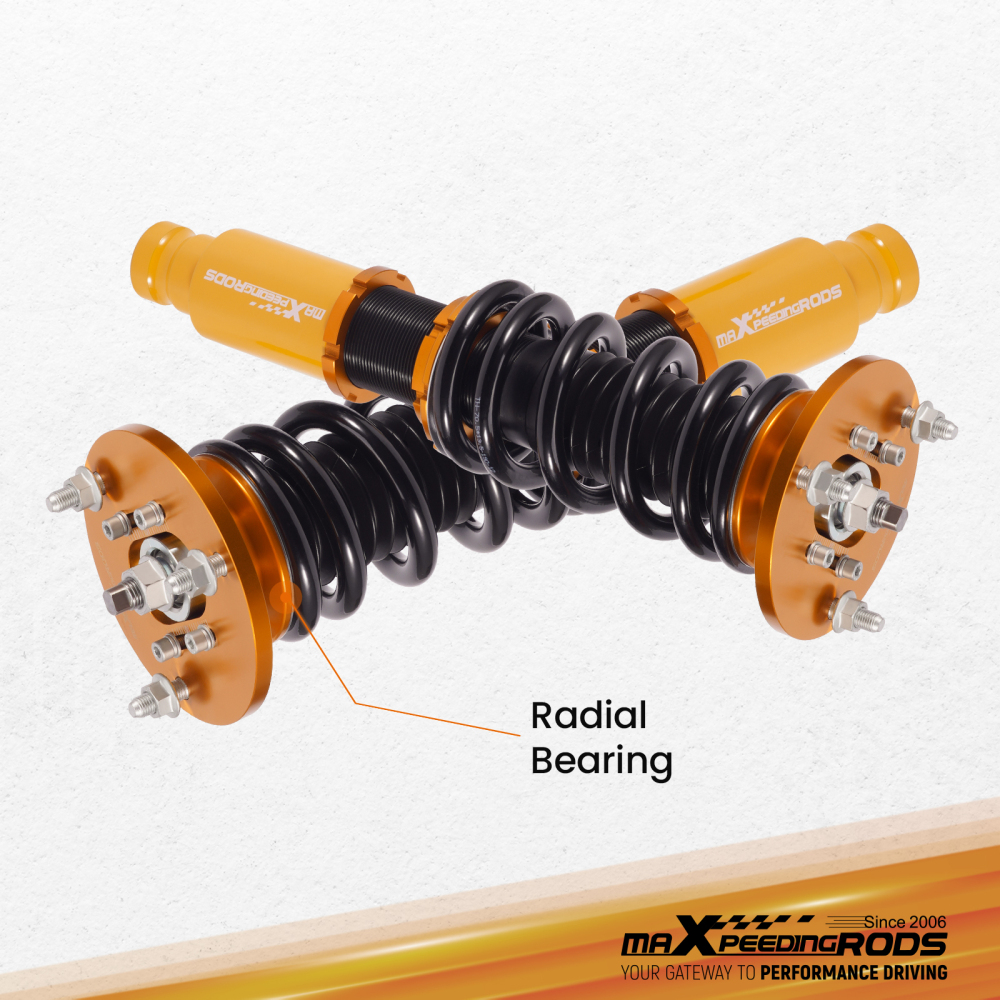

- * Pillow ball top mount: Pillow ball bearing top mounts for camber adjustment are designed to combat noise while tuning and offer greater feed back
- * Notice: Please confirm your car model, model year and car chassis before purchase the coilover. If you have any question, please feel free to contact us

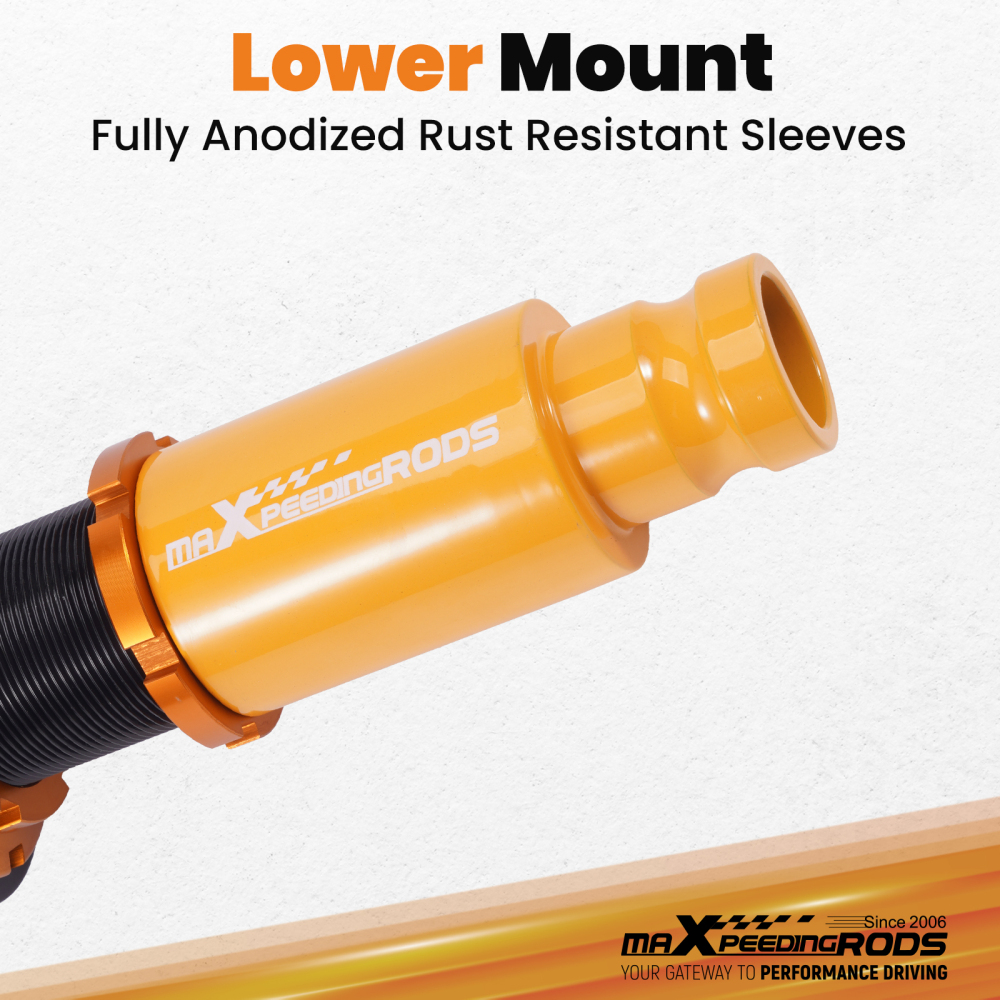

Adjustable lower mount allows maximum suspension travel
Pillow ball top mount is designed for improving Steering feel and response
Twin-tube shock design reduces oil leakage problems
FA Synthetic Shock Oil increase damper performance
MXR-SNA coilovers are designed as an entry level for street use. It features with full length height adjustable and adjustable camber plates (applicable for some vehicles), which offers you a lowered stance, improved performance for your daily use vehicle.
Compatible for MITSUBISHI ECLIPSE 1995-1999USA D38A CONVERTIBLE, 4CYL/TURBO
compatible for MITSUBISHI ECLIPSE 1995-1999USA D33A 4CYL/TURBO
compatible for MITSUBISHI ECLIPSE 1995-1999USA D32A 4CYL/TURBO
compatible for MITSUBISHI ECLIPSE 1995-1999USA D31A 4CYL/NON TURBO
Top mount: front camber plate; rear rubber
Front Spring Rate: 12kg/mm (672 lbs/in)
Rear Spring Rate: 9kg/mm (504lbs/in)
Spring length Front: 190mm
Spring length Rear: 190mm
Coilover overall length Front: 445mm-495mm
Coilover overall length Rear: 485mm-575mm
Adjustable height: Yes lowering 1" to 3"
Spring Preload: 7-10 mm
Shock type：Twin tube
Color: gold body with black spring

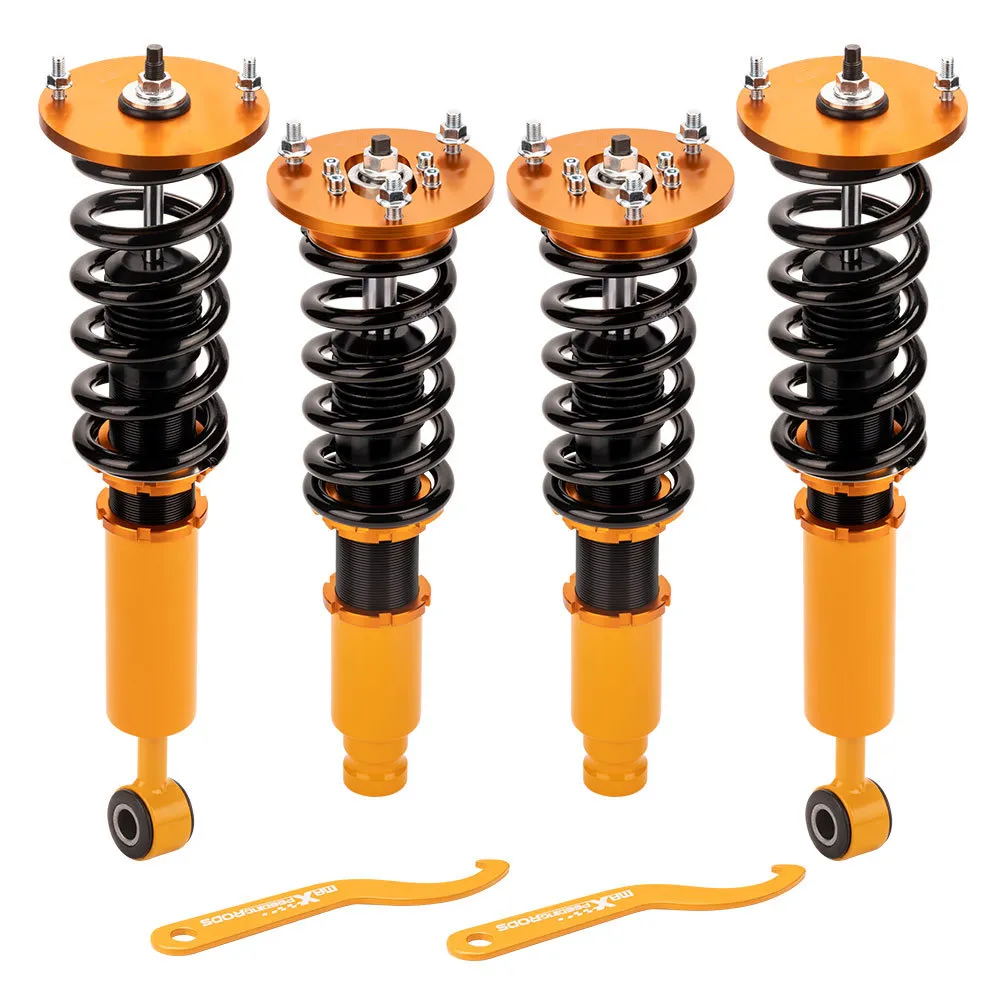

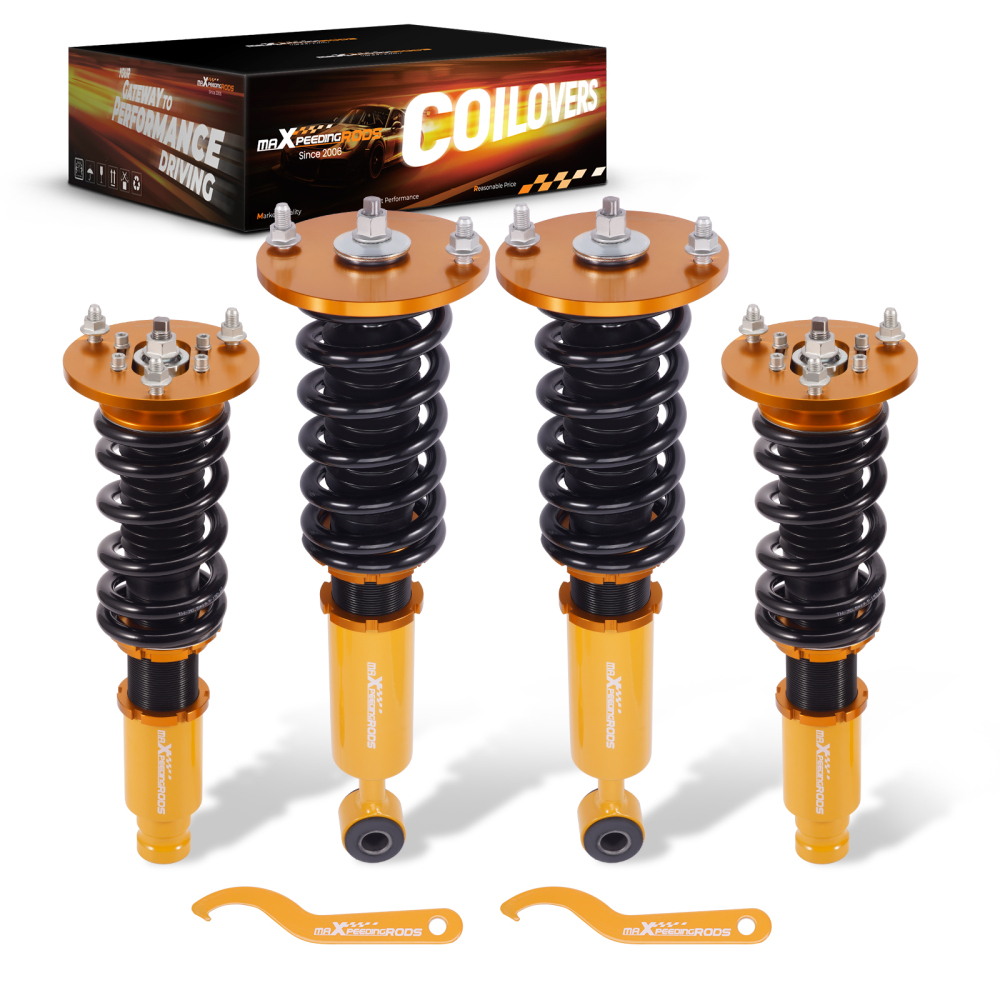

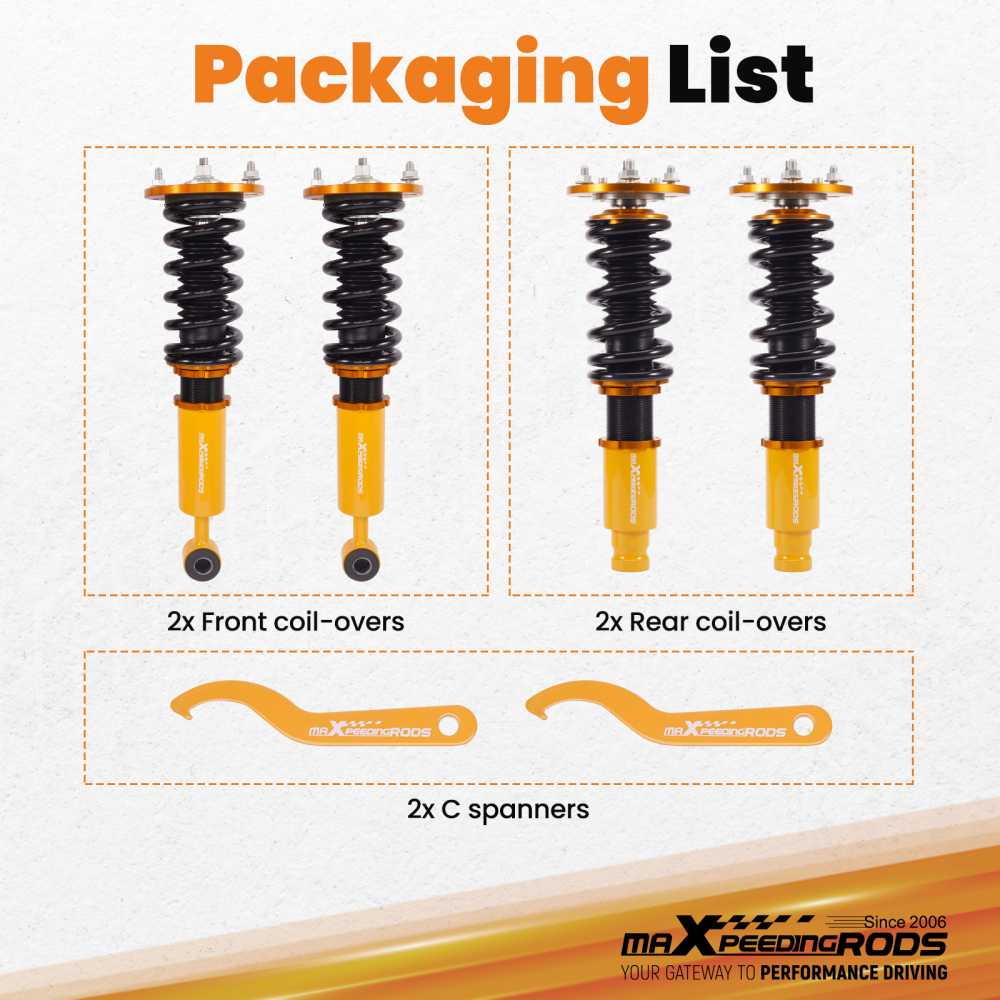

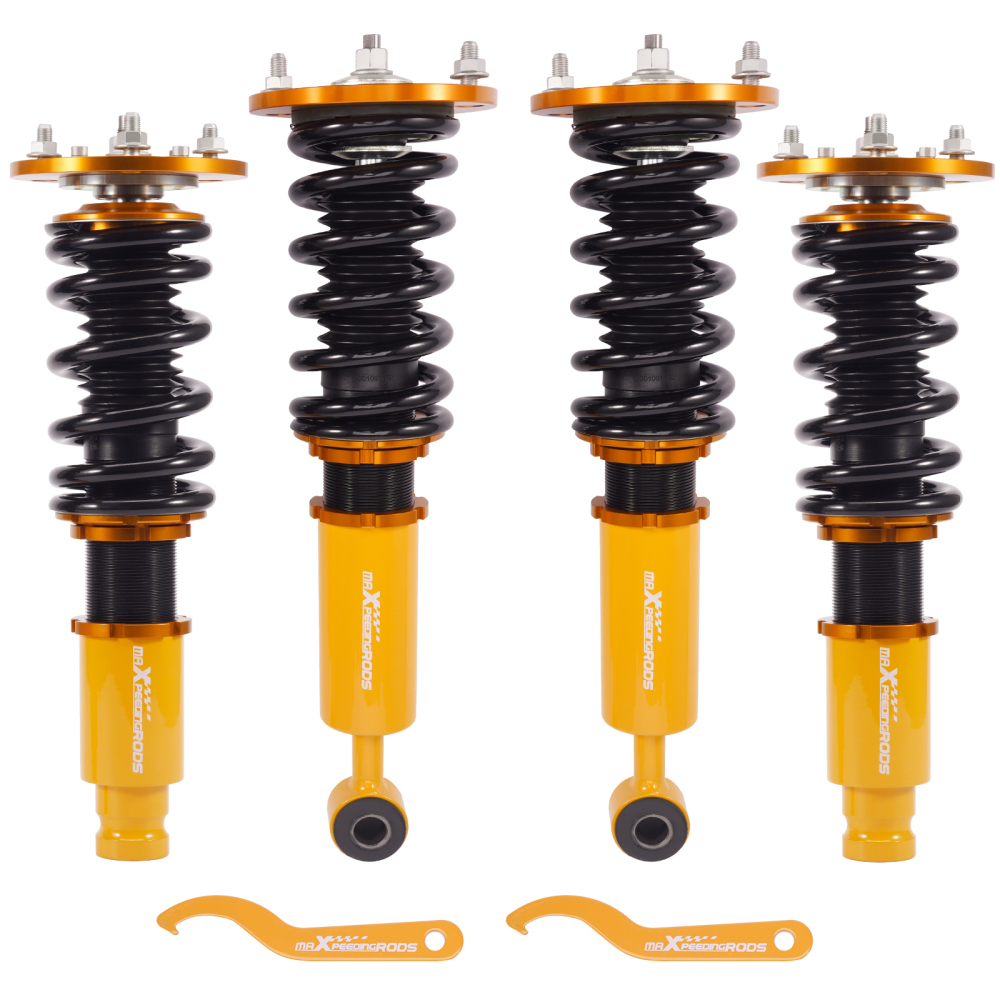

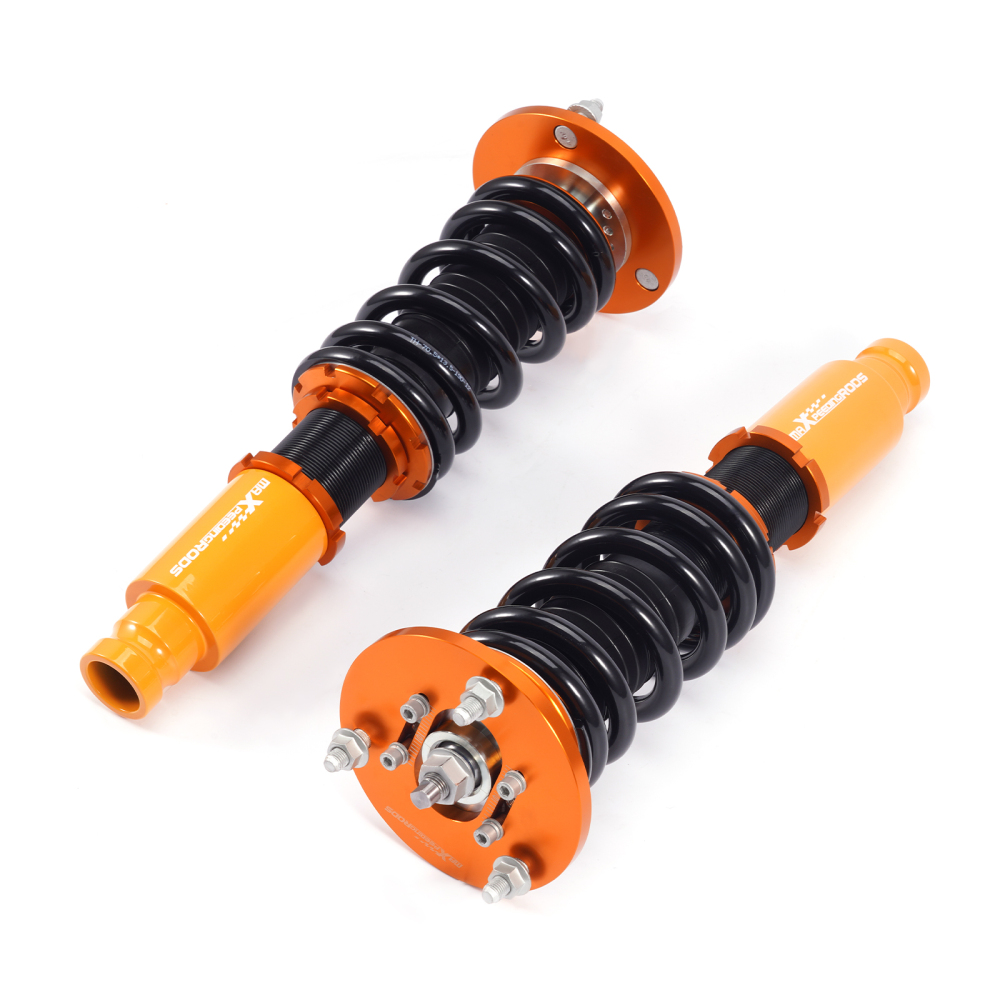

Complete coilovers assembly 2 front and 2 rear
A pair wrench for height adjustment
Package dimension : 63*51*21
1.Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance.
2.Camber plate top mounts help to eliminate the need for a separate camber kit.

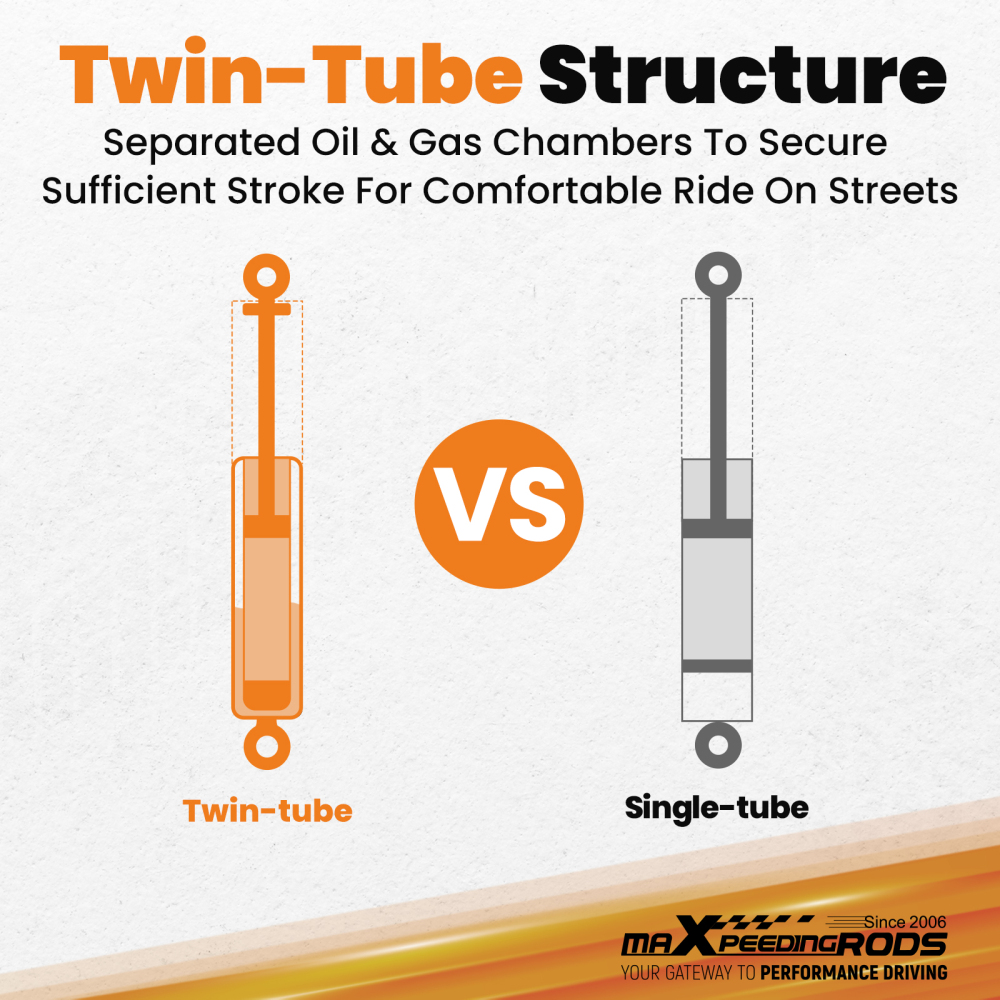

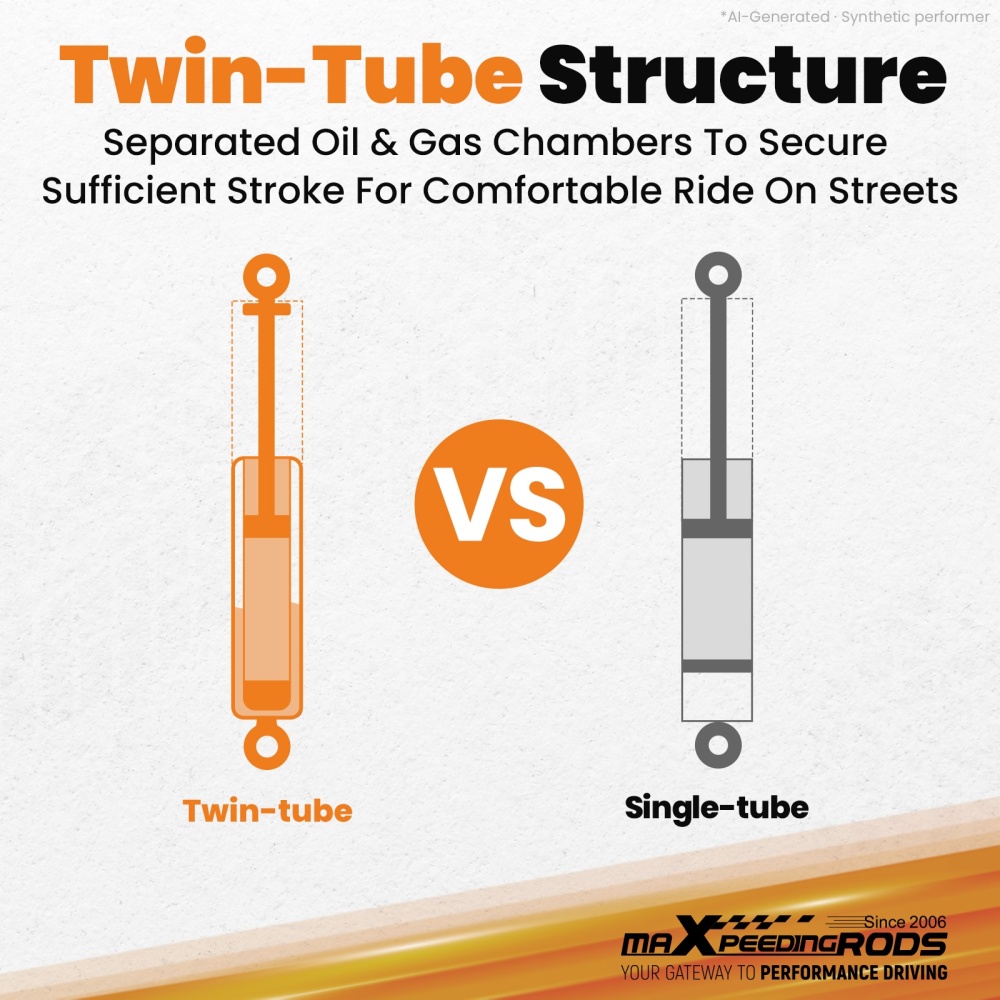

3.Twin-Tube structure allows sufficient stroke within the shock absorber.
4.Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.

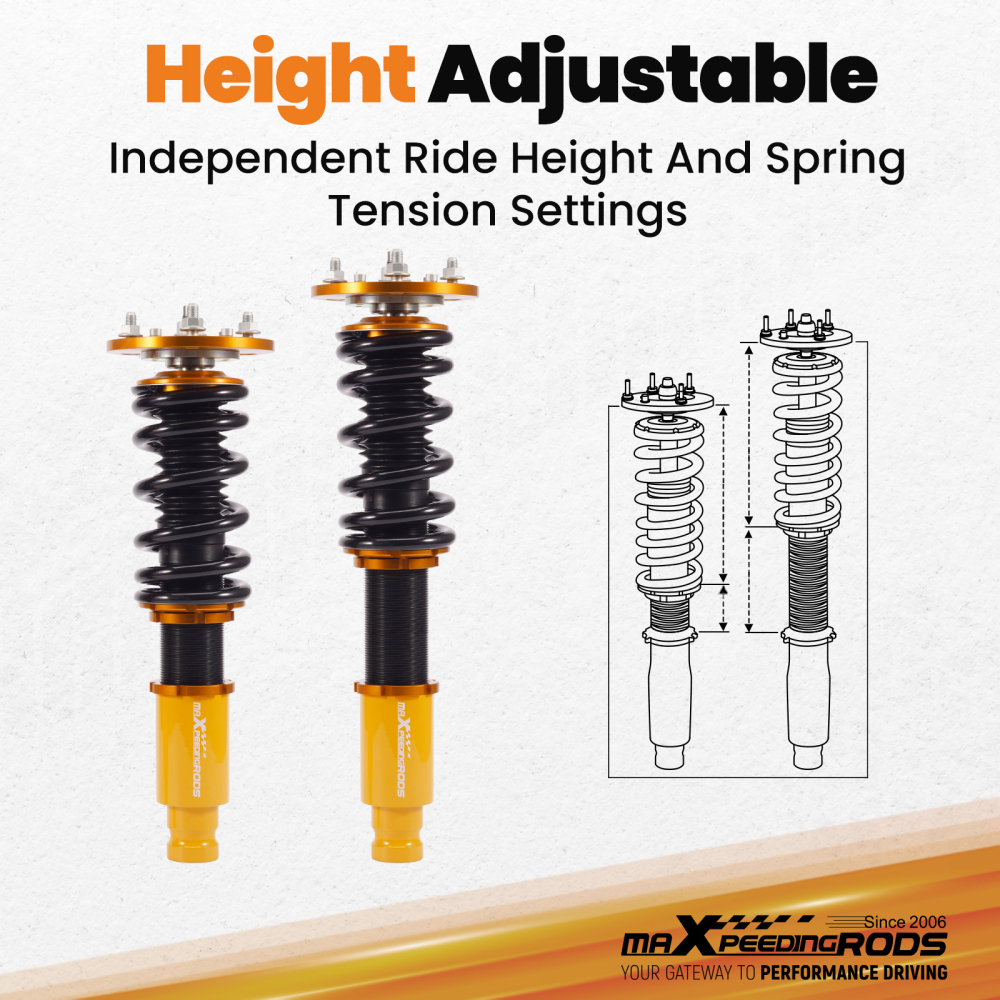

5.Separate height adjustment does not affect damper stroke and height can be adjusted with coilovers installed on the vehicle.
6.High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.

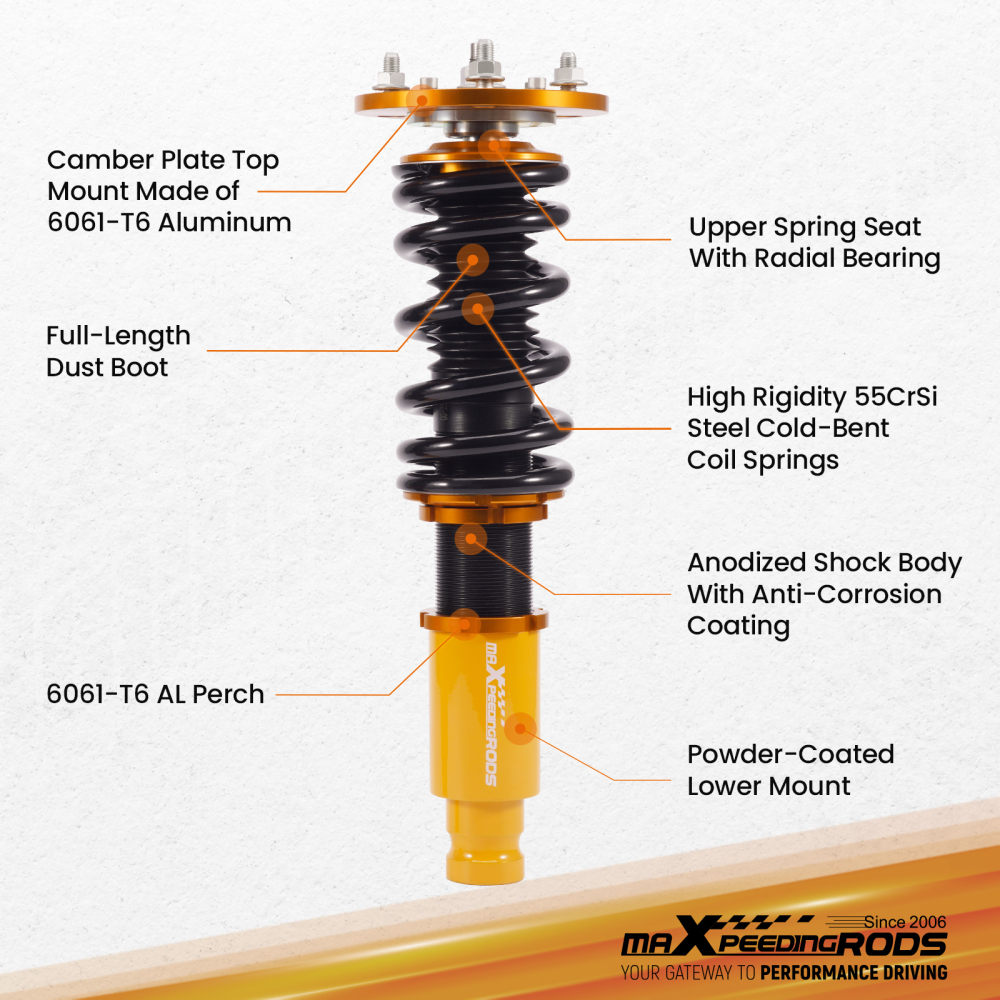

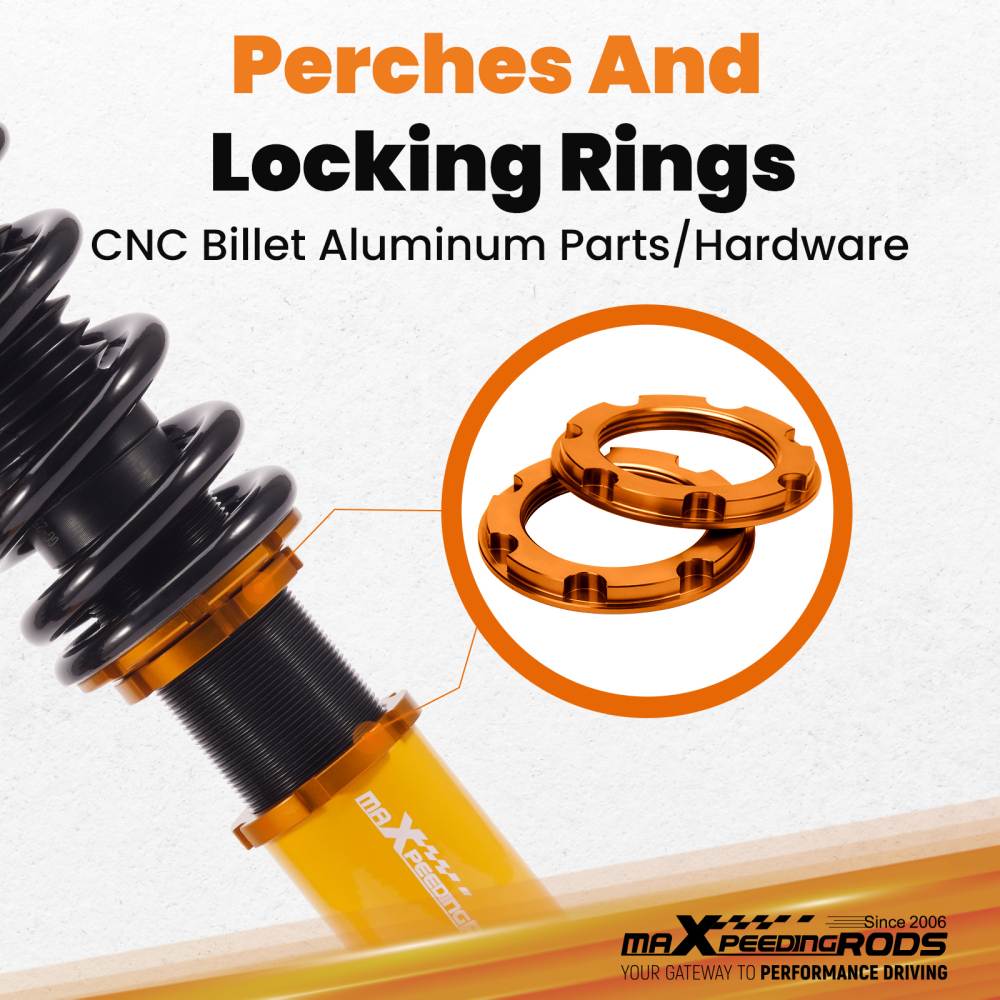

7.Most pieces in our coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components.
8.Steel shock bodies with special surface treatment to improve the durability.
