Coilover Lowering Kit compatible for Chevrolet Cobalt 2005-10 Adjustable Height

Introduction

MXR-SNA coilovers are designed as an entry level for street use. It features with full length height adjustable and adjustable camber plates (applicable for some vehicles), which offers you a lowered stance, improved performance for your daily use vehicle.

Application

Compatible for Chevrolet Cobalt Base/LS/LT/LTZ/Sport/SS 2005-2010

Specification

Top mounts: Pillow ball top mount with camber plate
Adjustable camber plate: Only front
Damping: Not available
Spring rate Front: 7 kg/mm (392 lbs/in)
Spring rate Rear: 7 kg/mm (392 lbs/in)
Spring length Front: 200mm
Spring length Rear: 160mm
Adjustable height: lowering 1-3 inch
Coilover overall length Front: 345mm-465mm
Coilover overall length Rear: 385mm-420mm
Shock type: Twin tube
Spring preload: 7-10 mm
Color: Golden

Package included

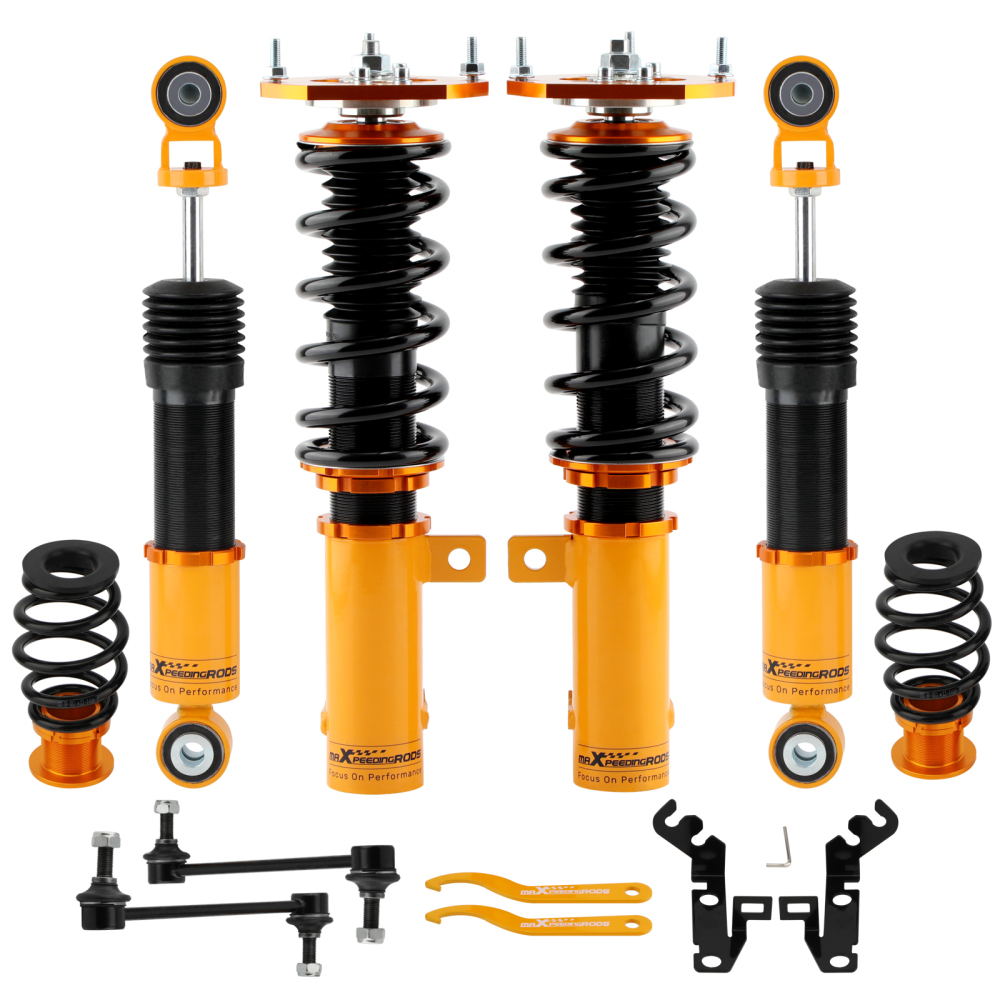

product included: 2 piece front + 2 pieces rear + 2 sway bar end links + 2 spanners + hardwares as pictures show

Dimension

Size: 63*51*21 cm
Weight: 24.00 kg

Feature

Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance
Twin-Tube structure allows sufficient stroke within the shock absorber.
Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.
Separate height adjustment does not affect damper stroke.
Height can be adjusted with coilovers installed on the vehicle.
High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.
Height Adjustment tools included.
Camber plate top mounts help to eliminate the need for a separate camber kit.
Pillow ball top mount - It improves the steering feel and response.
Most pieces in our Coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components.
Full rebuildable.
