For BMW E46 M3 All Models 1998-2005 4pcs 24 Damper Adjustable Suspension Coilovers Shock Absorber kits

Item Number 3002103665
Stock In Stock

Combination offer

  • A
  • B
  • C
  • D
  • E
  • F
  • G


Compatible for BMW 3 (E46) 4-door sedan 318i; 330i; 325i; 328i; 318d; 320d; 320i,325i ;330d (02/1998-04/2005)

Compatible  for BMW 3 2-door Convertible (E46) 318i; 330ci; 325ci;323ci; 320cd,330cd (04/2000-12/2007)

Compatible for BMW 3 2-door Coupe (E46) 318i; 320ci; 325ci; 330ci;320cd; 330cd;  (02/1999-12/2006)

Compatible for BMW 3 Touring 5-door wagon/estate (E46) 316i; 318i; 325i; 328i; 330i; 323i; 325i; 318d; 320d; 330d; (10/1999-05/2005)

Note: not for Xi/xd  4 wheel drive, not for M3 model either

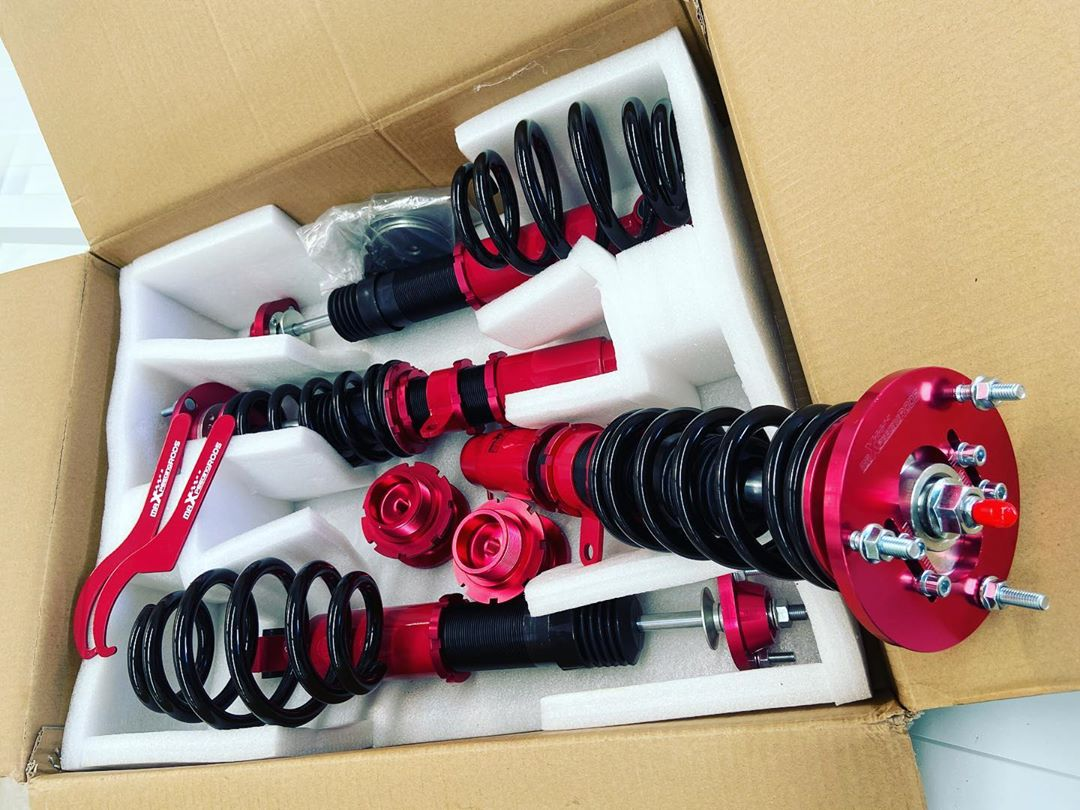

Quantity: 2 piece front + 2 pieces rear

Front Spring Rate: 8 kg/mm  (448 lbs/in)

Rear Spring Rate: 7 kg/mm (392 lbs/in)

Color: Red

Adjustable damper: 24 ways adjustable damper force

Adjustable height: Yes

Adjustable camber plate: Yes(front only),with pillow ball

Adjustable pre-load spring tension. Advise professional installation.

Warranty: one year warranty for any manufacturing defect


- Able to lower ride height by 1''-3''; allows user to have a more aggressive stance.

- Coilovers are 24-way adjustable. Rebound and Dampening adjustment which allows the user the ability to dial in your coilovers to any driving needs. The user can enjoy a comfortable riding experience in all road conditions.

- Pillow ball top mount for sharpening steering response.

- Twin-Tube Shock design is used for low internal frictional resistance in order to increase efficiency and keep shock temps low.

- Height adjustment does not sacrifice damper stroke length.

- These coilovers are able to have their height adjusted without being taken out of the car.

- Most components of the suspension parts are made from 6061-T6 aluminum to increase strength and rigidity.

- High Tensile strength performance spring---Tested under a 600,000 time continuous compression test, the spring distortion was less than 0.04%. Plus, the special surface treatment improves the durability and performance.

- Adjustment tools included in the kit.


- Please double confirm before placing order.

- No instruction included; Professional installation is highly recommended.

- Please check our store for other auto parts you may be interested in.

- Please feel free to contact us for whatever we can help.
