Compatible for Mitsubishi Lancer/Mirage compatible for FWD 02-06 Full Suspension Coilover Coilovers Kits Lowering Kit

Introduction

MaXpeedingRods-SLC based on MaXpeedingRods-SNA coilovers, which is also height adjustable but adds damping adjustment ability by a knob the top of the shaft. They are also made for street use, but the 24 level rebound damping control allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.

Application

Compatible for MITSUBISHI LANCER ES CS6A compatible for FWD 2002-2006
Compatible for MITSUBISHI LANCER OZ RALLY CS6A compatible for FWD 2002-2006
Compatible for MITSUBISHI LANCER RALLIART CS7A compatible for FWD 2004-2006
Platform: 4G94/ 4G69
NOTE: Please note It will not Fit Evolution / Lancer Evo 4G63 version/Not for Mitsubishi CE model

Specification

Top mount: front camber plate; rear rubber
Damping: 24 levels rebound damping adjustable
Spring rate Front: 7 kg/mm (392 lbs/in)
Spring rate Rear: 6 kg/mm (336 lbs/in)
Spring length Front: 200mm
Spring length Rear: 160mm
Coilover overall length Front: 430mm-515mm
Coilover overall length Rear: 390mm-430mm
Adjustable height: Yes lowering 1" to 3"
Spring Preload: 7-10 mm
Shock type：Twin tube
Color: gold body with black spring

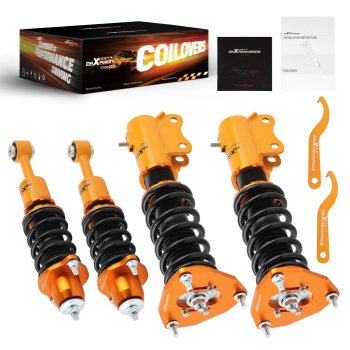

Package included

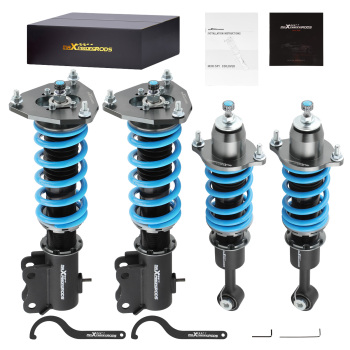

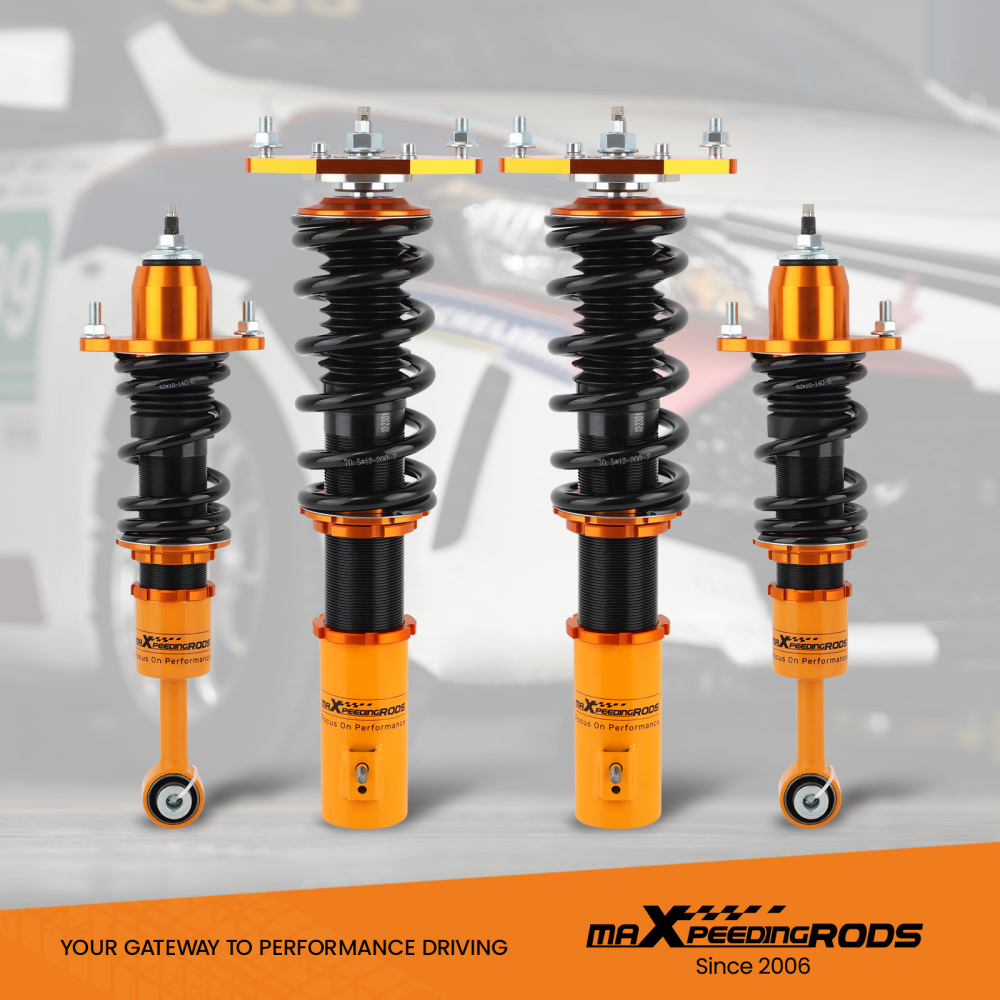

Complete coilovers assembly 2 front and 2 rear
A pair wrench for height adjustment

Dimension

Package dimension : 64*50*20
Weight: 23280g

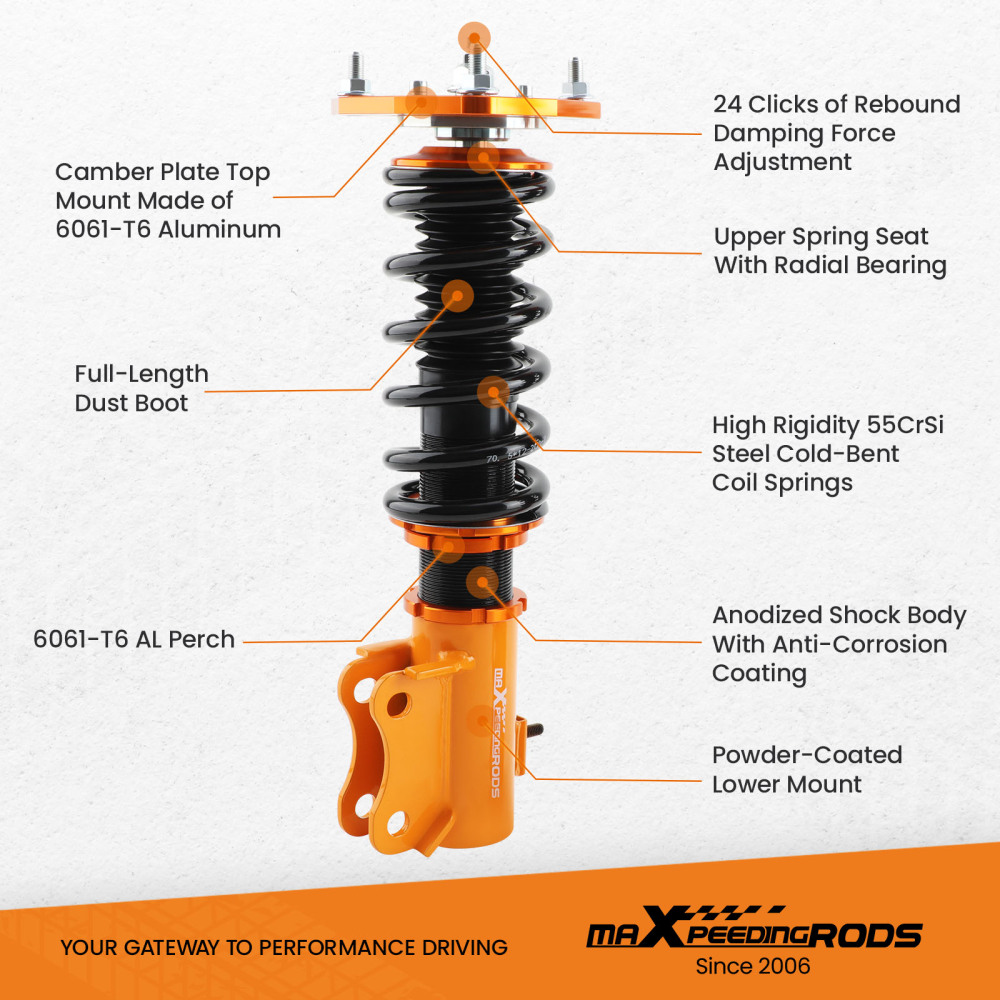

Feature

1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance.
2. A 24 rebound damping adjustment level allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.

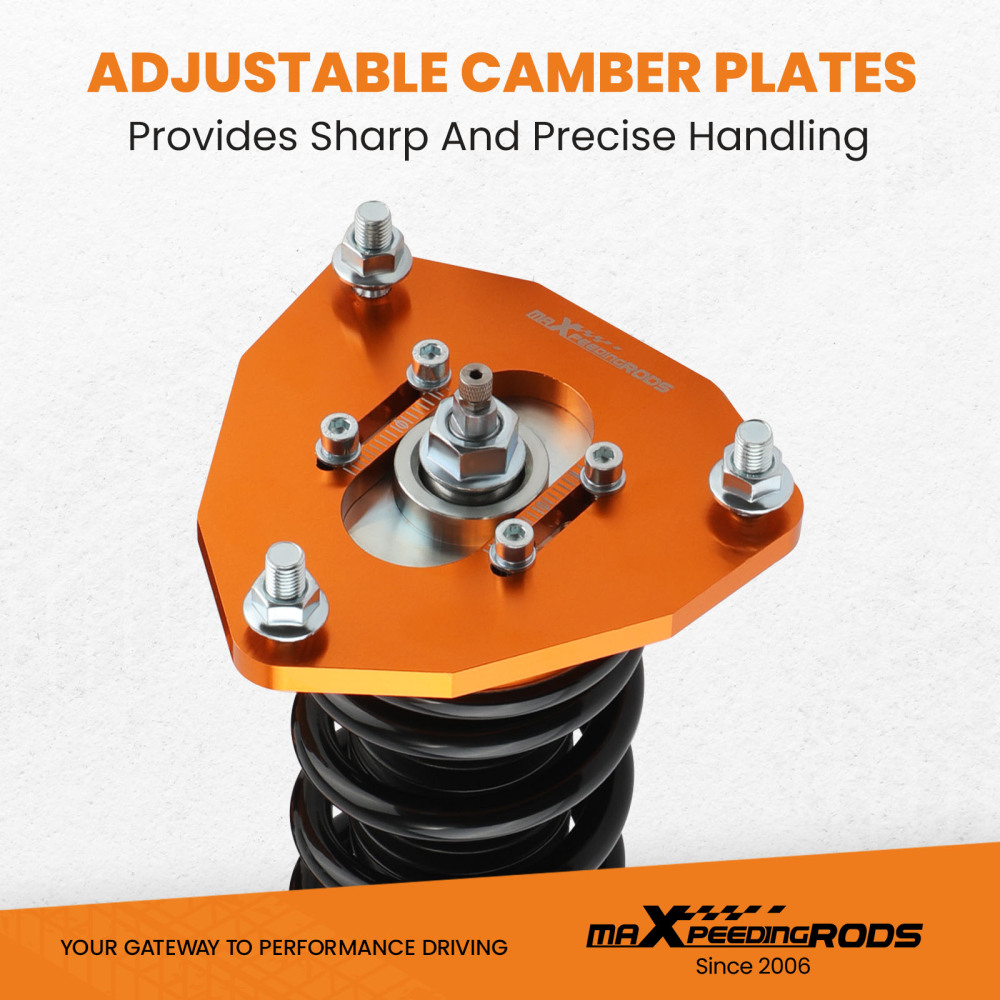

3.Camber plate top mounts help to eliminate the need for a separate camber kit.
4.Twin-Tube structure allows sufficient stroke within the shock absorber.
5.Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.
6.Separate height adjustment does not affect damper stroke and height can be adjusted with coilovers installed on the vehicle.
7.High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.

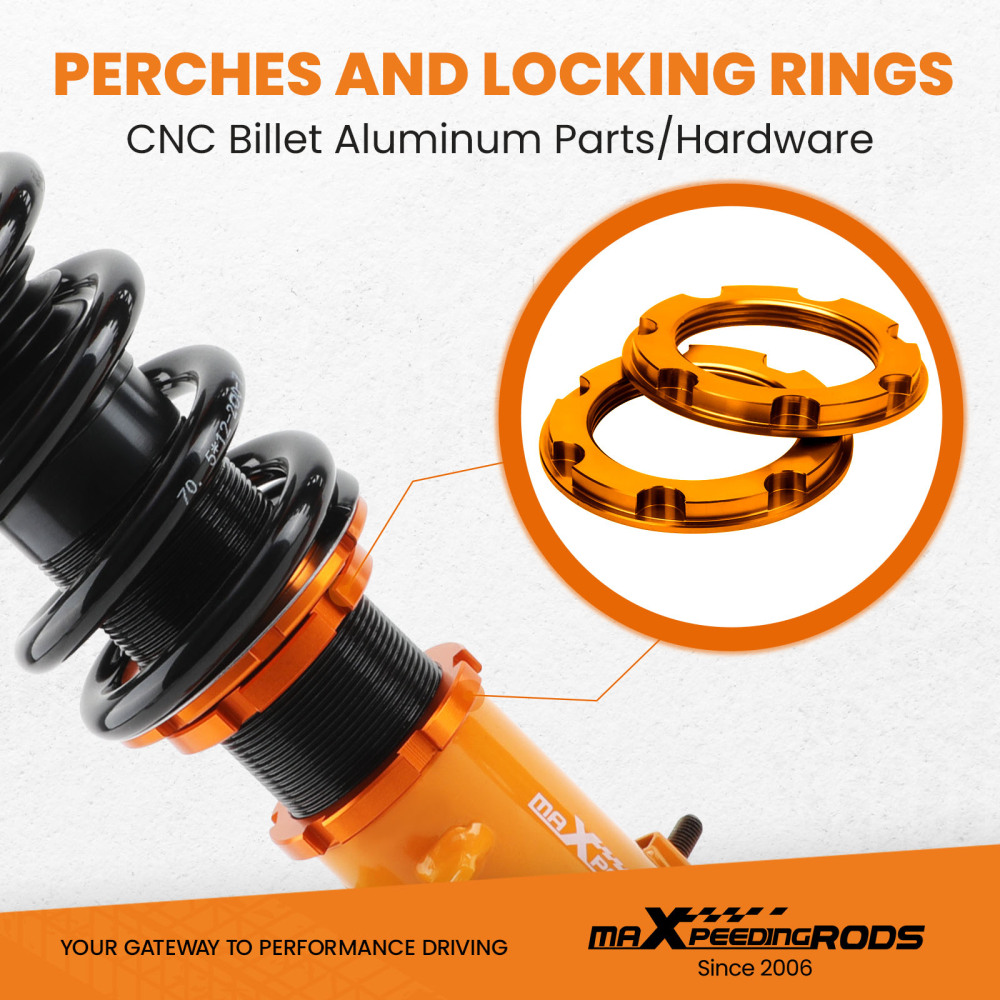

8.Most pieces in our coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components.
9.Steel shock bodies with special surface treatment to improve the durability.
10. Full rebuildable
