Coilover Shock Absorber Struts Height Adjustable Kit 1998 compatible for BMW E36 3 Series

Introduction

MXR-SNA coilovers are designed as an entry level for street use. It features with full length height adjustable and adjustable camber plates (applicable for some vehicles), which offers you a lowered stance, improved performance for your daily use vehicle.

Application

Compatible for BMW 3 (E36) 4-door sedan 316i; 318i; 318is; 320i; 323i; 325i; 325is; 328i; 318tds; 325td; 325tds; (09/1990-12/1998)
Compatible for BMW 3 (E36) 2-door coupe 318is; 316i; 320i; 323i; 325i; 328i; 328is (09/1991-04/1999)
Compatible for BMW 3 Convertible (E36) 318i; 320i; 323i; 325i; 328i; (03/1993-04/1999)
Compatible for BMW 3 Touring (E36) 5-door wagon 316i; 318i; 318tds; 320i; 323i; 325tds; 328i (08/1994-12/1999)

Specification

Top mounts: pillow ball top mounts with camber plate
Damping: not available

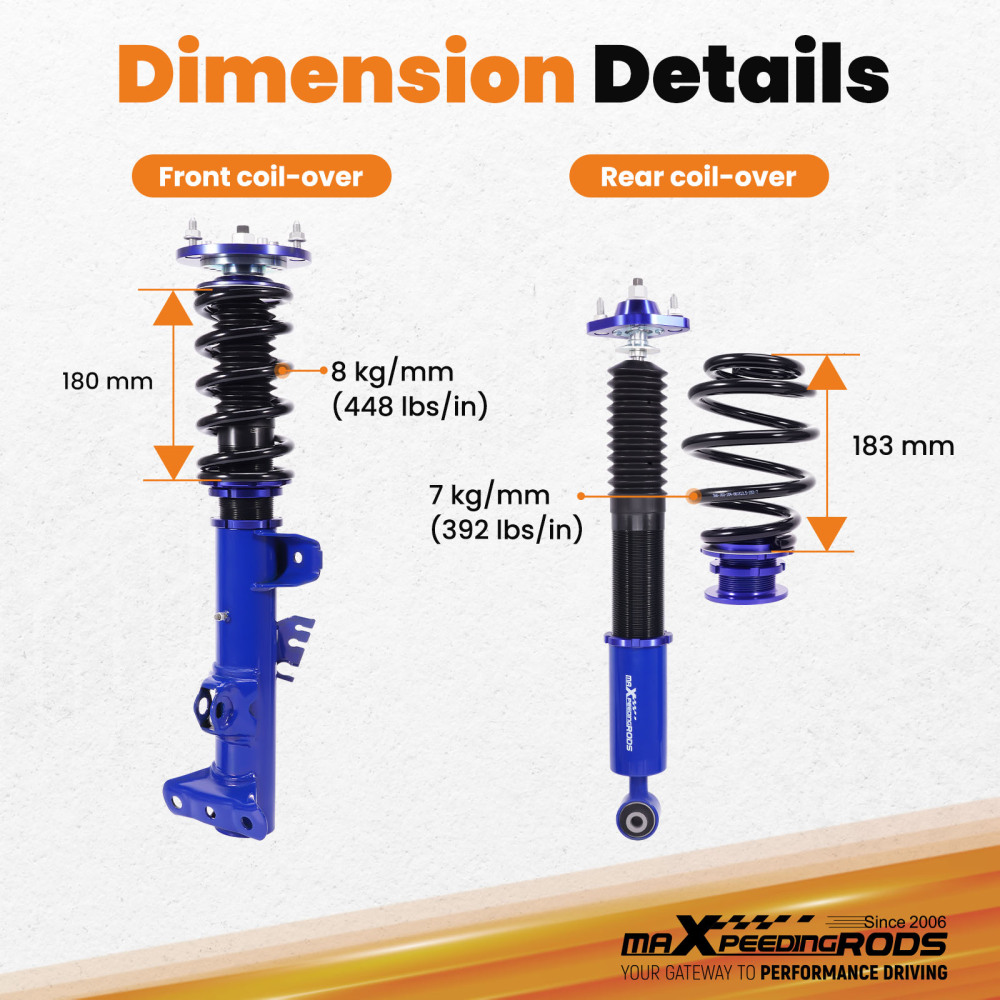

Spring rate Front: 8 kg/mm (448 lbs/in)
Spring rate Rear: 7 kg/mm (392 lbs/in)
Spring length Front: 180mm
Spring length Rear: 183mm
Adjustable height: lowering 1-3inch

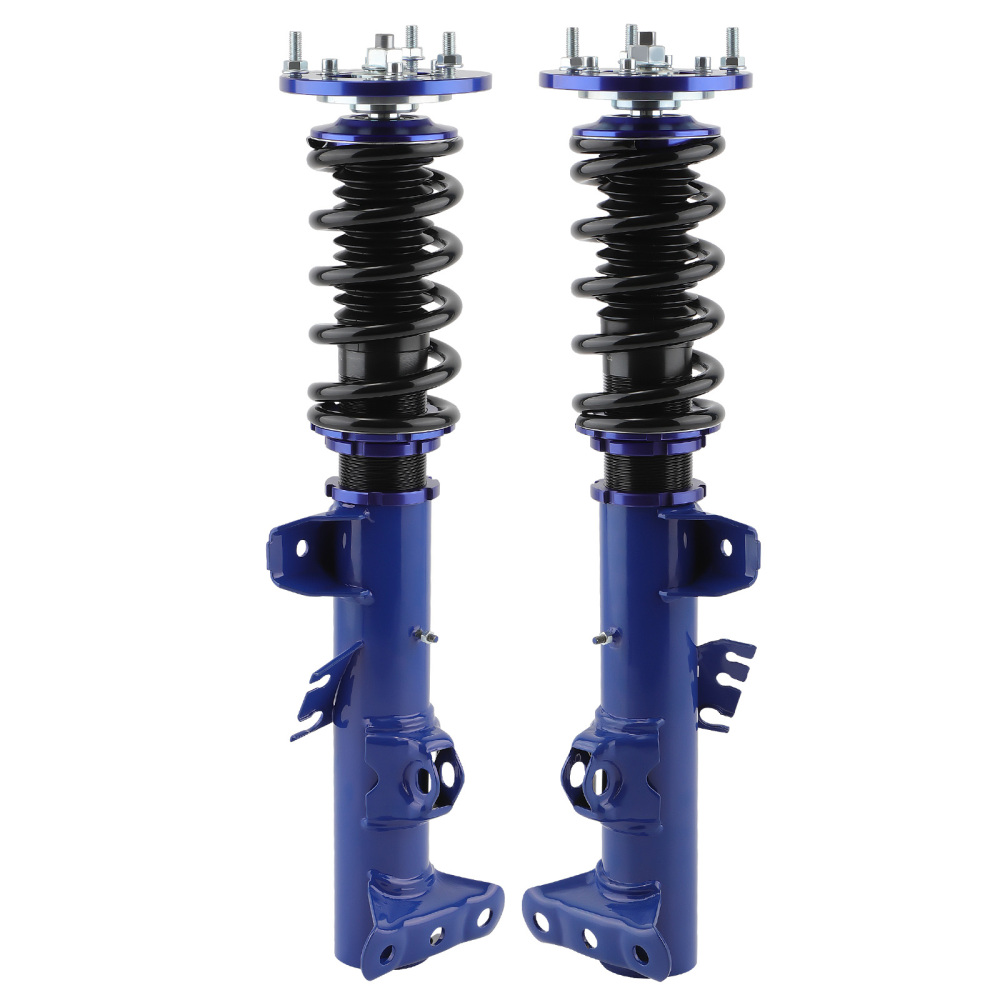

Coilover overall length Front: 560mm-683mm

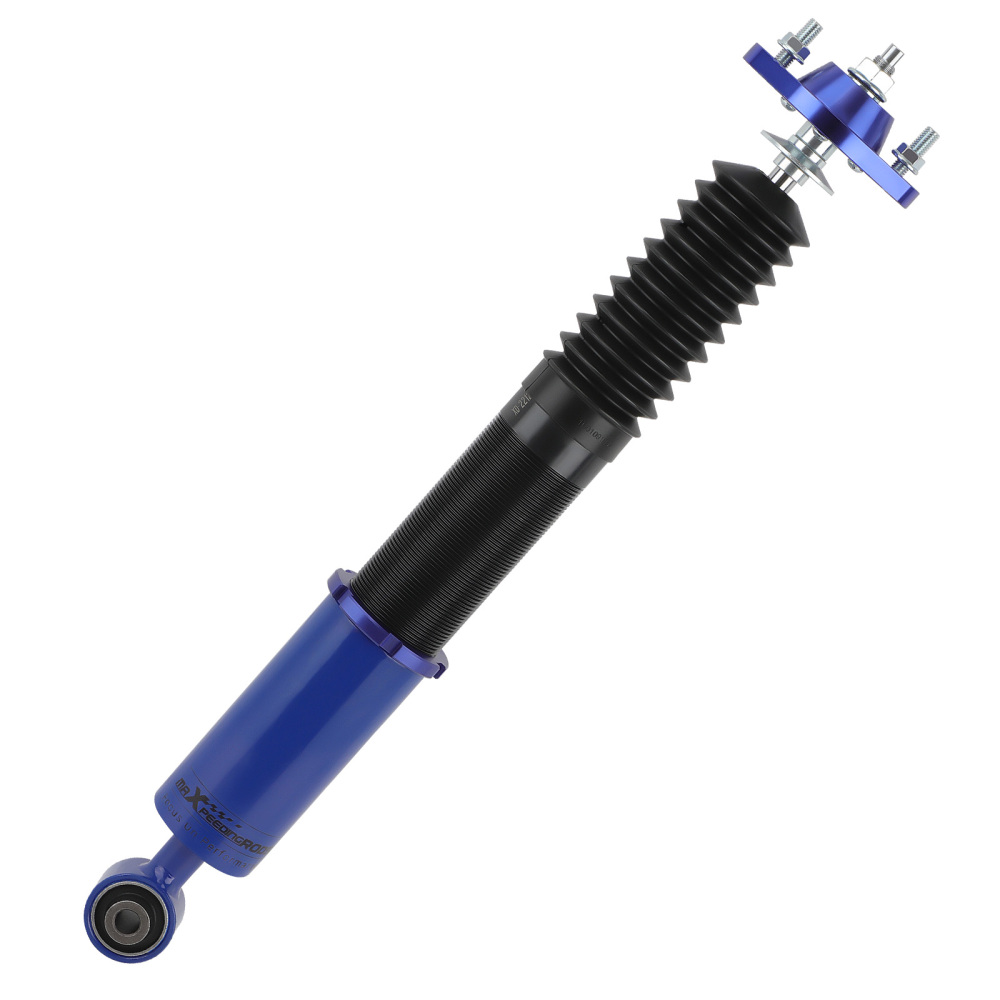

Coilover overall length Rear: 450mm-535mm

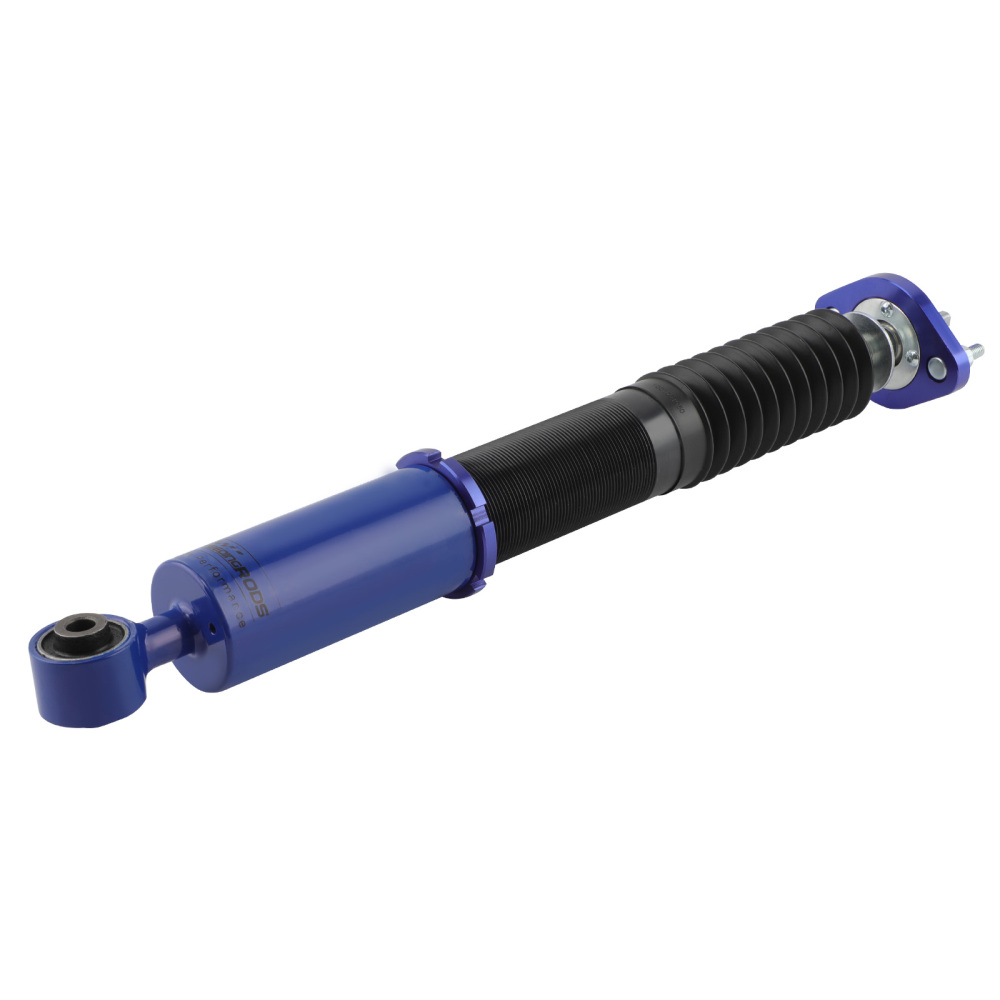

Shock type: Twin tube
Spring Preload: 7-10 mm
Color: blue

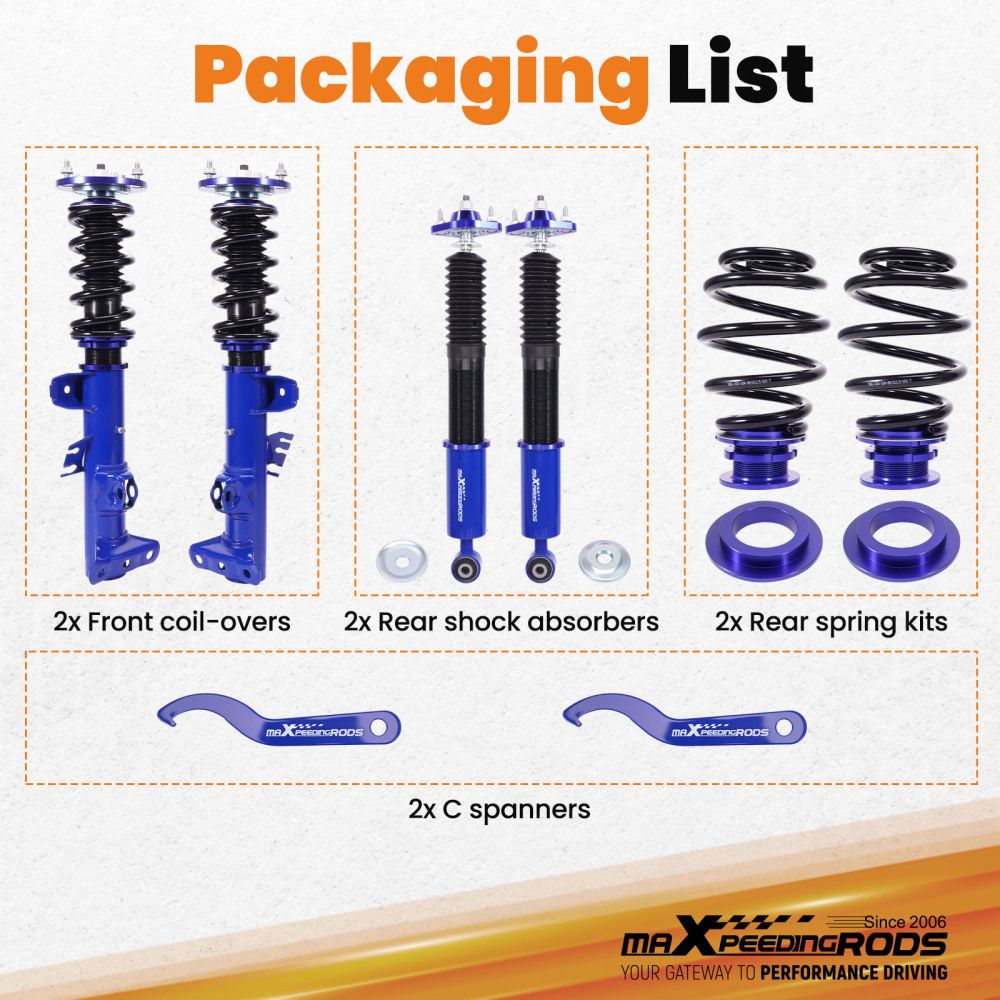

Package included

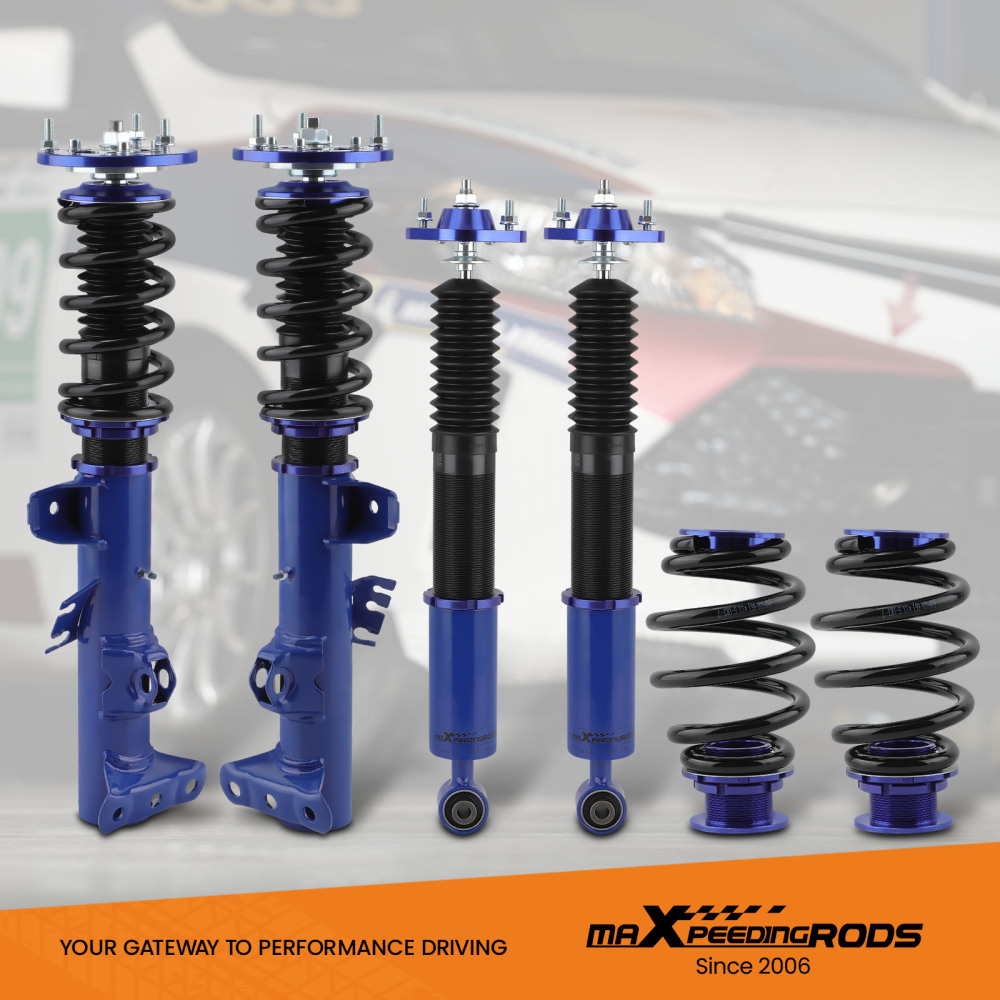

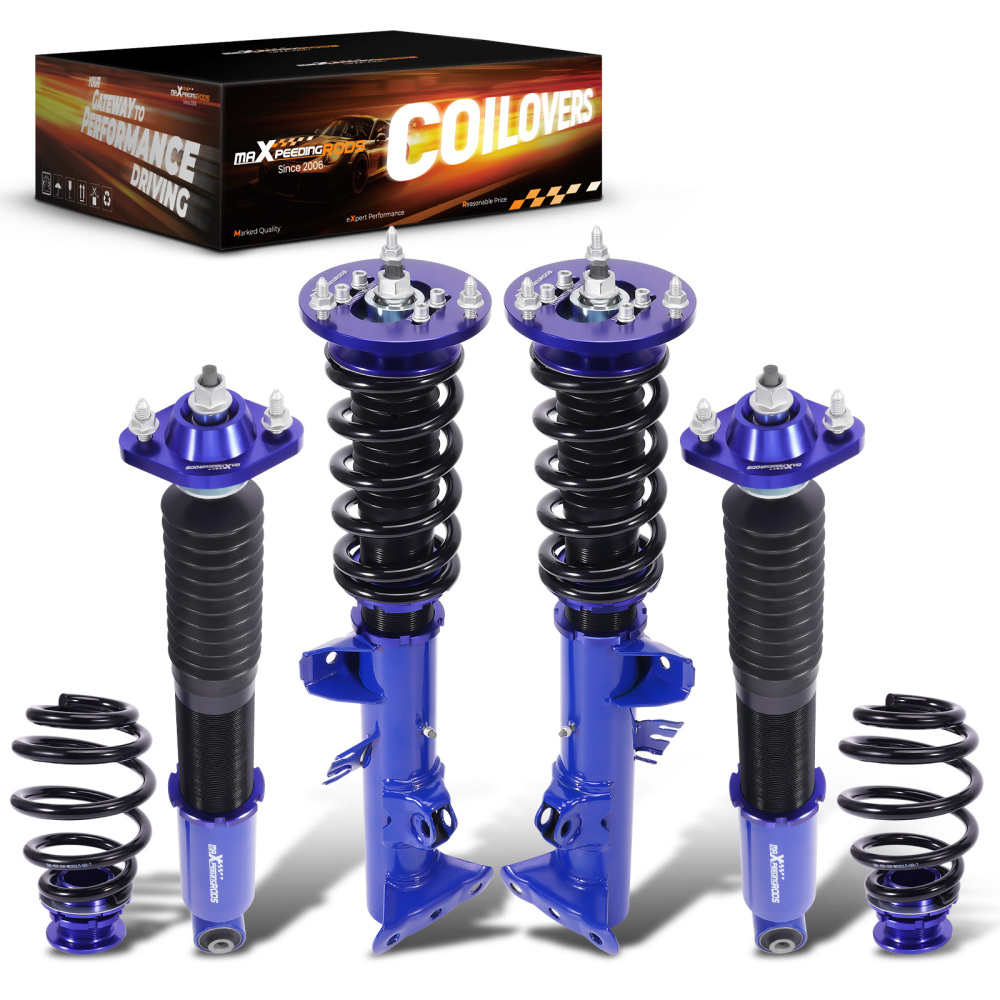

product included: complete coilovers 2 front and 2 rear
a pair wrench for height adjustment

Dimension

weight: 27040g
size: 71*51*21 cm

Feature

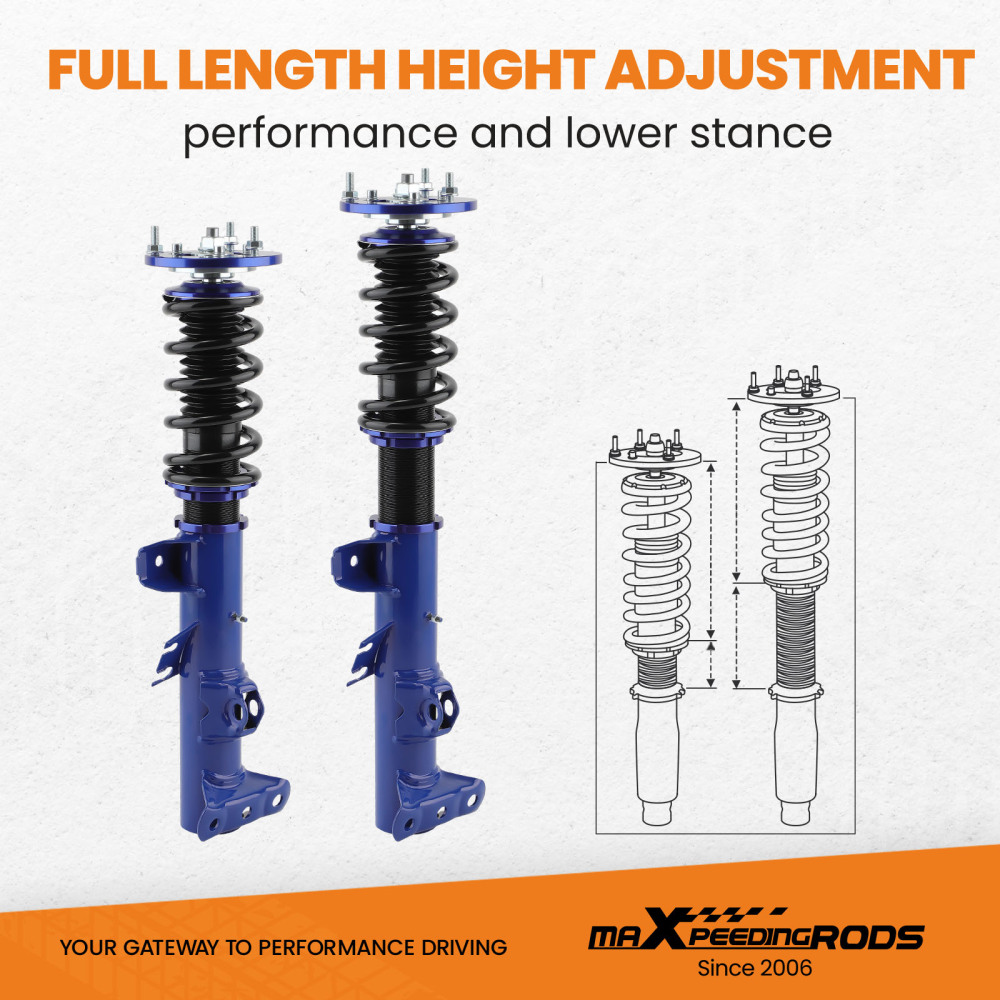

1. Lowered height adjustment from 1''-3'' which allow lower center of gravity and also add a more aggressive stance
2. Twin-Tube structure allows sufficient stroke within the shock absorber

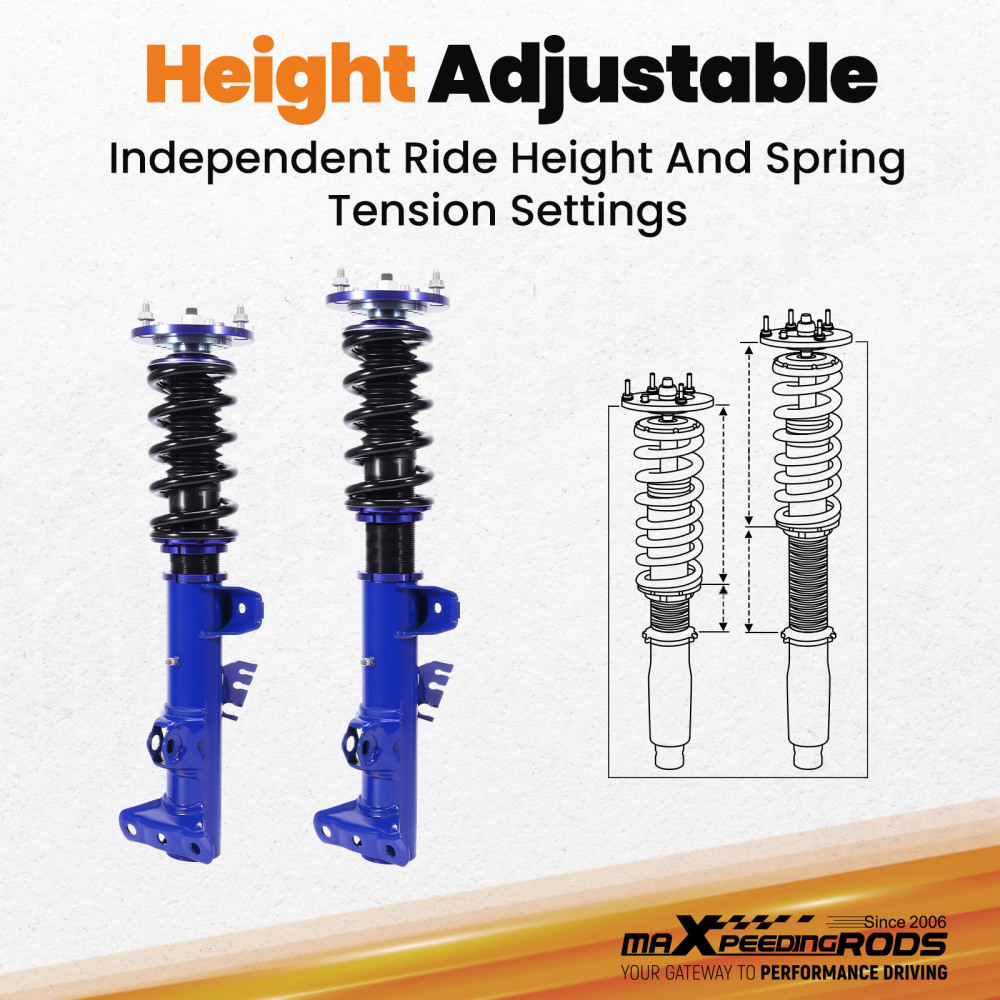

3. Separate height adjustment does not affect damper stroke

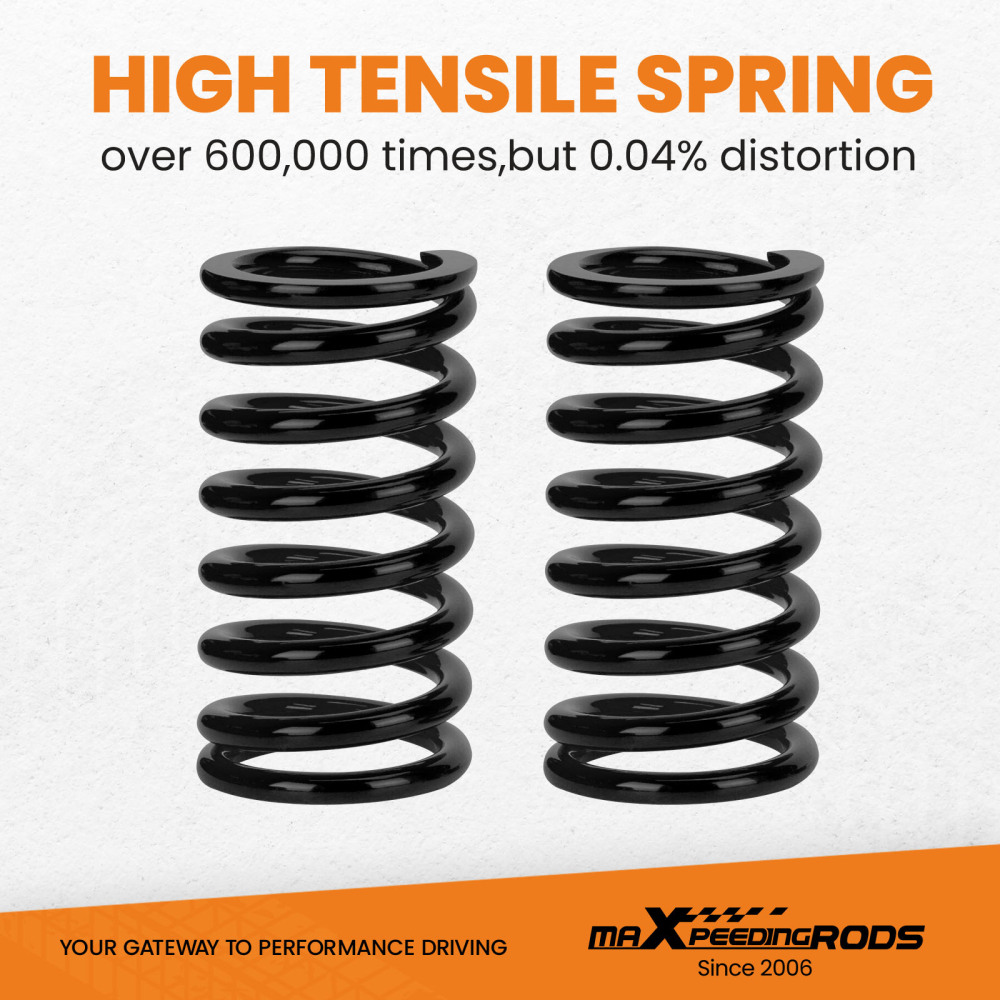

4. High Tensile performance spring – STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.
5. Height Adjustment tools included

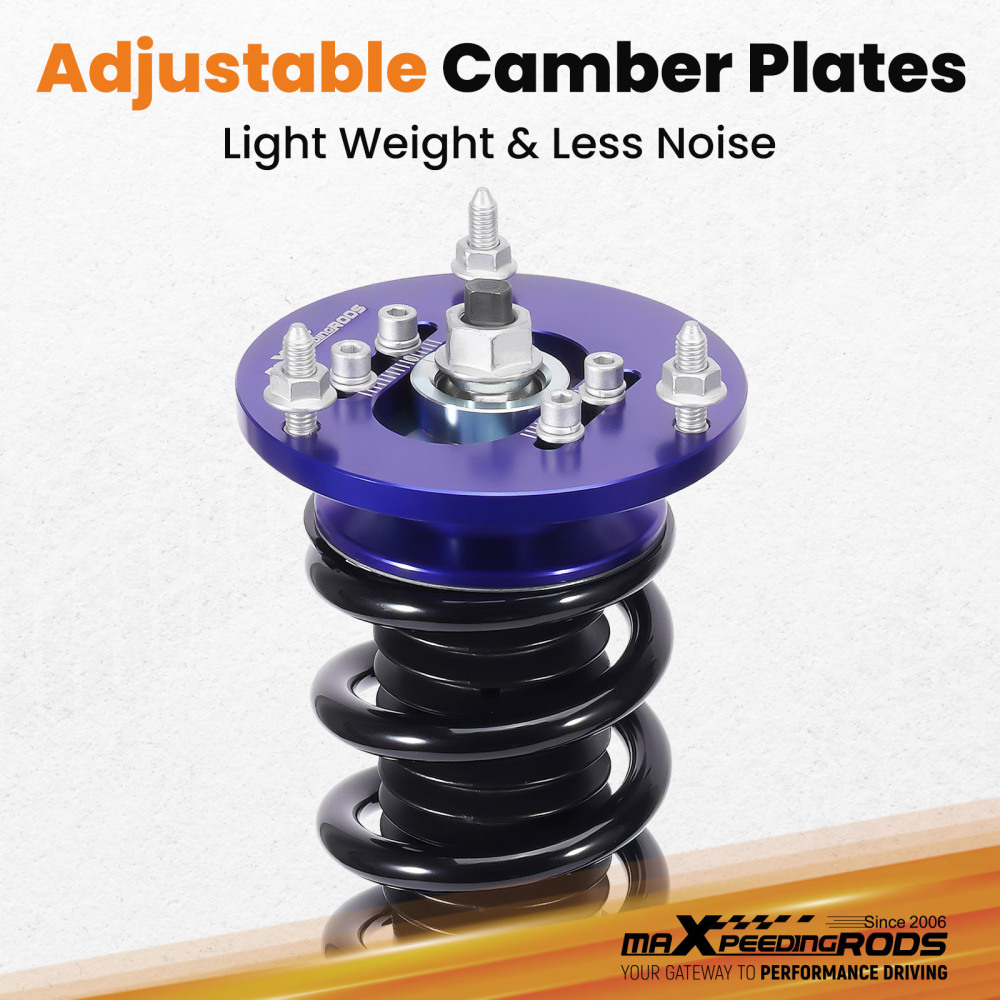

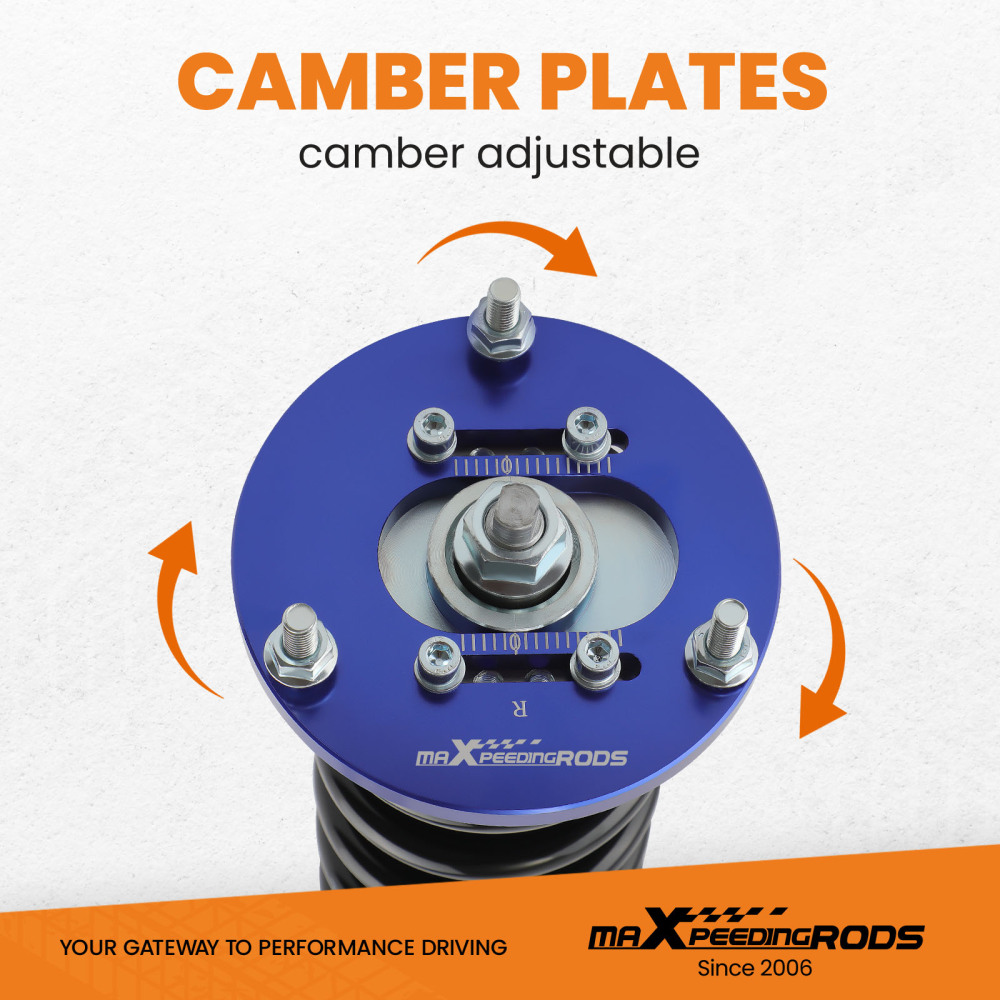

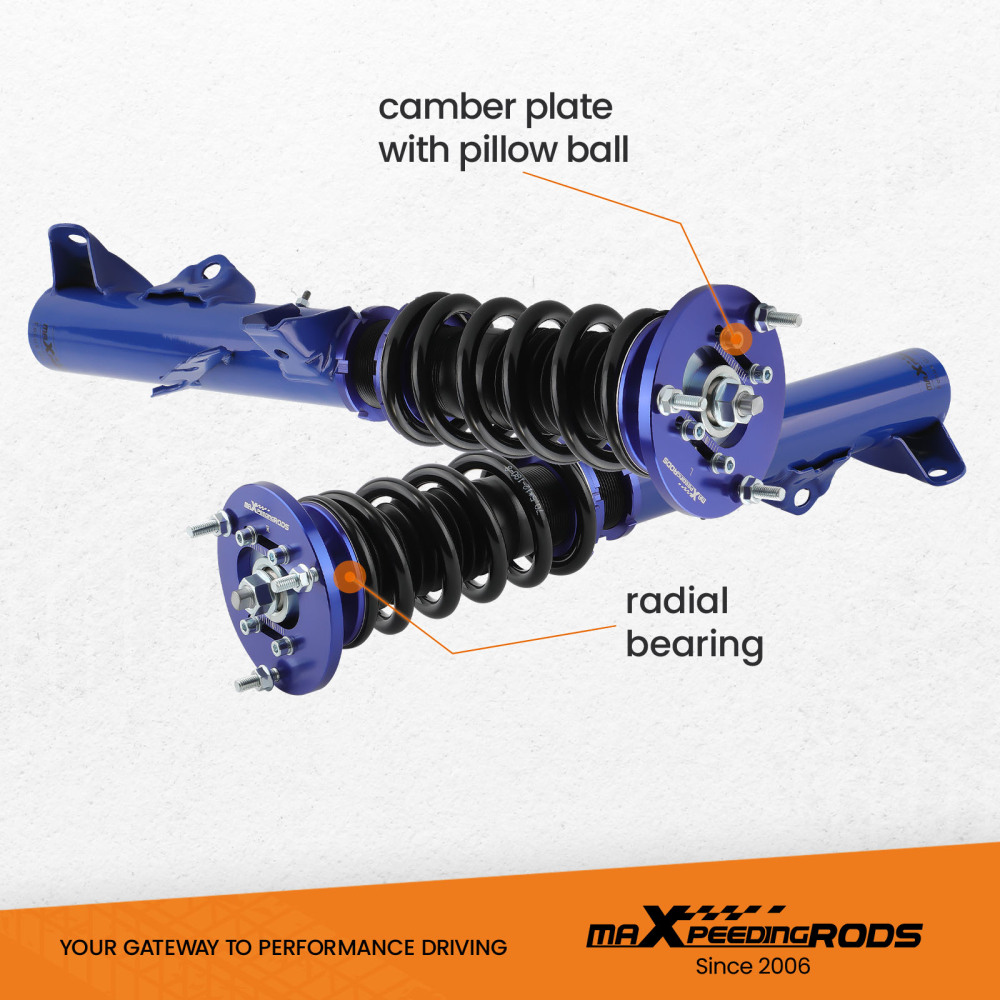

6. Camber plate top mounts help to eliminate the need for a separate camber kit

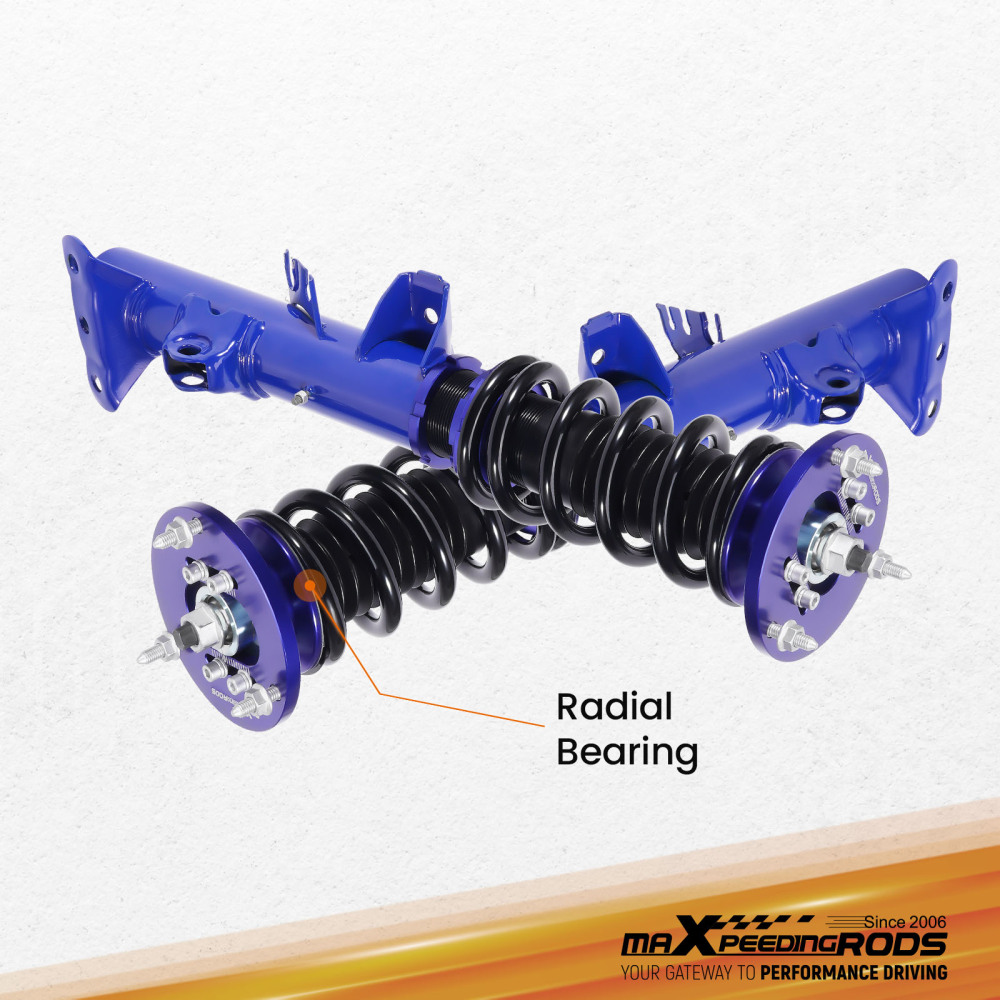

7. Pillow ball top mount - It improves the steering feel and response

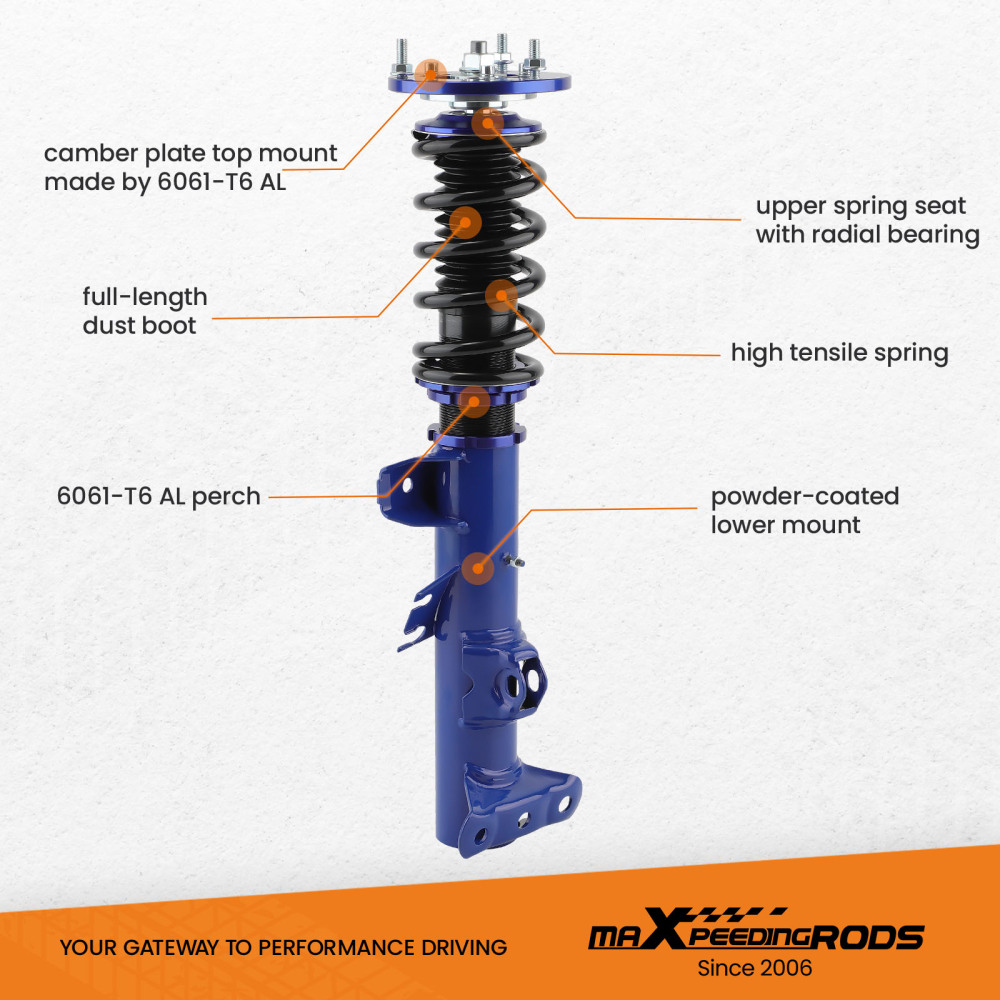

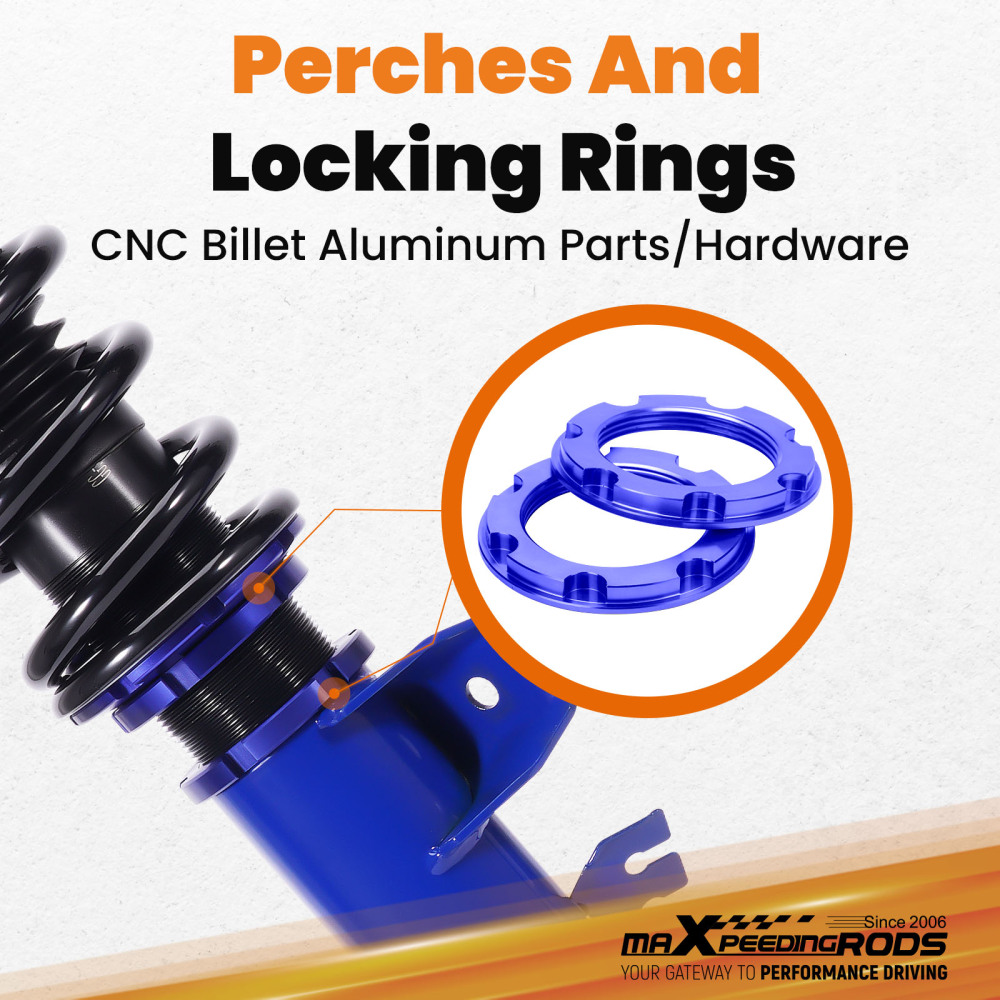

8. Most pieces in our Coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components.
9. Full rebuildable
