8 PCS Turbo Kit + Manifold compatible for Honda D15 D16 D15Z1 D16Z6 D16Y7 D16Y5 D16Y8

Application

Compatible for Honda Civic VX 1.5L SOHC VTEC-E I-4 92HP D15Z1  92-95

Compatible for Honda Civic DX/LX 1.6L SOHC I-4 106HP D16Y7 96-00

Compatible for Honda Civic HX 1.6L SOHC VTEC-E I-4 115HP D16Y5 96-00

Compatible for Honda Civic EX 1.6L SOHC VTEC I-4 127HP D16Y8 96-00

Compatible for Honda Civic CX 1.5L SOHC I-4 70HP D15B8 92-95

Compatible for Honda Civic DX/LX 1.5L SOHC I-4 102HP D15B7 92-95

Compatible for Honda Civic EX/Si 1.6L SOHC VTEC I-4 125HP D16Z6 92-95

Compatible for Honda CRX DX 1.5L SOHC I-4 92HP D15B2 88-91

Compatible for Honda CRX HF 1.5L SOHC I-4 70HP D15B6 88-91

Compatible for Honda CRX Si 1.6L SOHC I-4 108HP D16A6 88-91

Compatible for Honda Del Sol S 1.5L SOHC I-4 102HP D15B7 93-95

Compatible for Honda Del Sol Si 1.6L SOHC VTEC I-4 125HP D16Z6 93-97

Compatible for Honda Del Sol S 1.6L SOHC I-4 106HP D16Y7 96-97

Specification

1x T3/T4 Turbocharger:

Horse Power: Up to 400 HP
Compressor Inlet Diameter: 72mm(2.8")
Compressor Outlet Diameter:  53mm（2"）
Oil Inlet: 1/8 NPT
Exhaust Inlet (Turbo Manifold) Flange: T3 T4 4 bolt Flange Patterns
Exhaust Outlet (pipe) Flange: 5 bolt Flange
Turbine Trim: 74.2
Turbine Inducer Diameter:  64.8 mm
Turbine Exducer Diameter: 55.8mm
Turbine A/R: 0.63
Compressor Trim: 48.1
Compressor Inducer Diameter: 52.7mm
Compressor Exducer Diameter: 76 mm
Compressor A/R: 0.5
Bearing: Wet Float Bearing
Turbocharger Overall size: 270*220*220
1x Exhaust Manifold:
Material: Cast Iron
Inlet diameter: 38mm
1x Intercooler:
Intercooler:
Inlet size is 2.5 inch.
core size:  21*7*2.5.
Overall Size 27'' x 7'' x 2.5'' inch.
Support up to 350 hp for this small intercooler size - tube and fin style .
1x Type-S Blow Off Valve: CNC Billet Aluminum Type RS Style Blow off Valve and 2.5" Inch Type S/Rs Flange Pipe.  25PSi Boost! Can hold up to 1000+ HP.
1x 35/38MM Wastegate: 35/38mm External Waste Gate Kit
1x Turbo Boost Gauge: 2" (52mm) Turbo Boost Meter Gauge. Red LED Illuminated Needles. Comes with All the Wiring Necessary for Installation. All Accessories are Included for Installation.
1x Oil Catch Can
1x Turbo Oil Return / Feeding Line Kit: Turbo Oil Feed + Return Drain Line Kit Combo. It helps circulate oil from the turbocharger to the oil pan. The kit provides a anodized look, and gives a best cooling on your turbo and long lasting life.
Material: Stainless Steel Braided

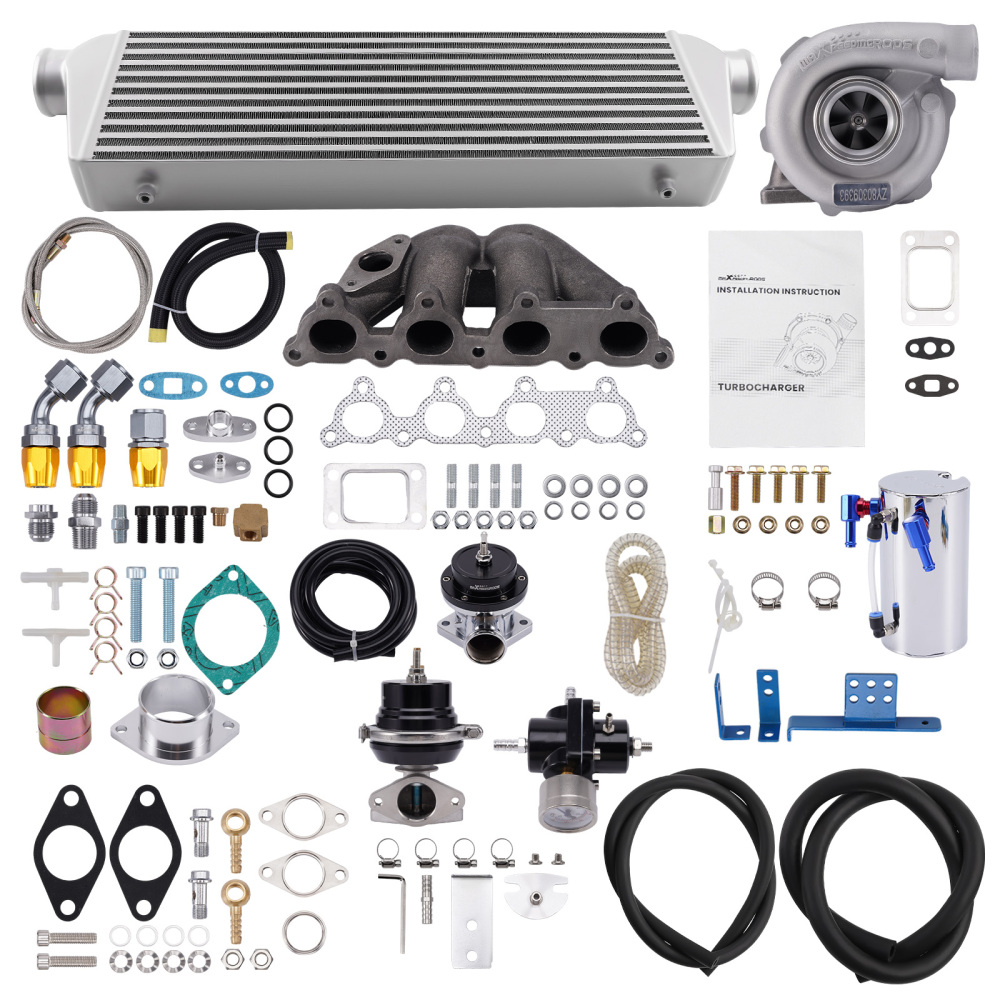

Package Include

1x T3/T4 Turbocharger
1x Intercooler
1x Oil Feed / Return Line
1x 35/38mm Wastegate
1x Type-S Blow Off Valve
1x Oil Catch Can
1x Turbo Boost Gauge
1x Exhaust Manifold
(You will get exactly as shown in the picture)

Features:

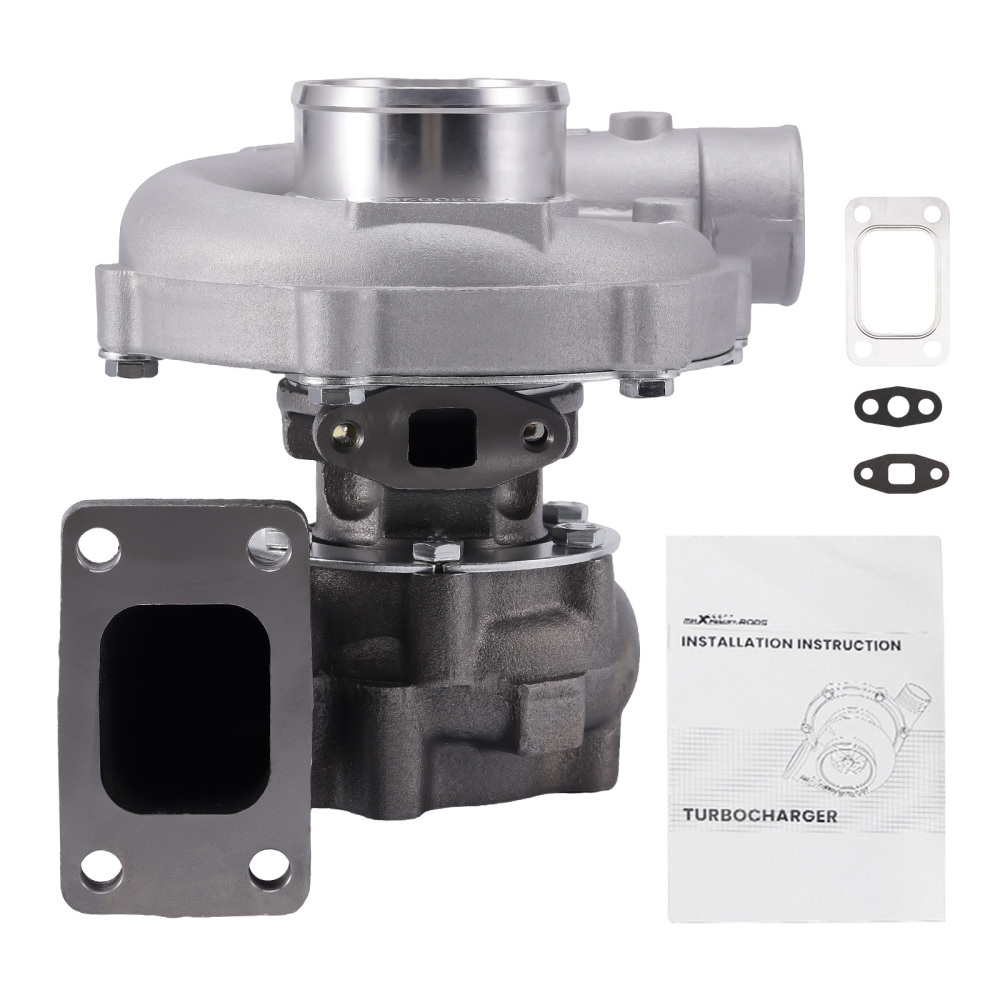

1. Turbocharger:
* Capable of Boosting Horse Power up to 400+ HP
* Turbine housing uses ductile iron QT450-10 Can withstand temperatures up to 700 ℃
* Steel Turbine Wheel made from the special K418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900 ℃
* Cast aluminium blades with good gas tightness and corrosion resistance.

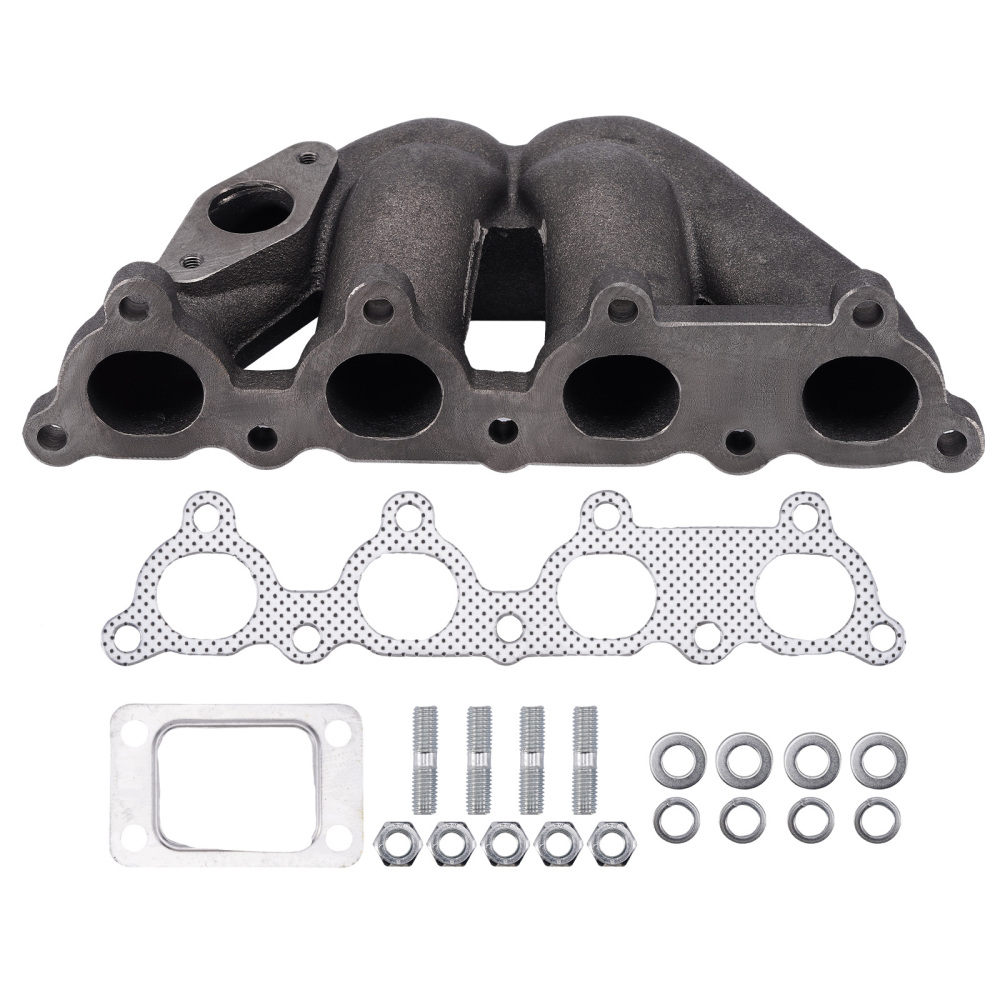

2. Exhaust Manifold
*Direct replacement
*Replaces original manifolds that are cracked from thermal expansion and contraction

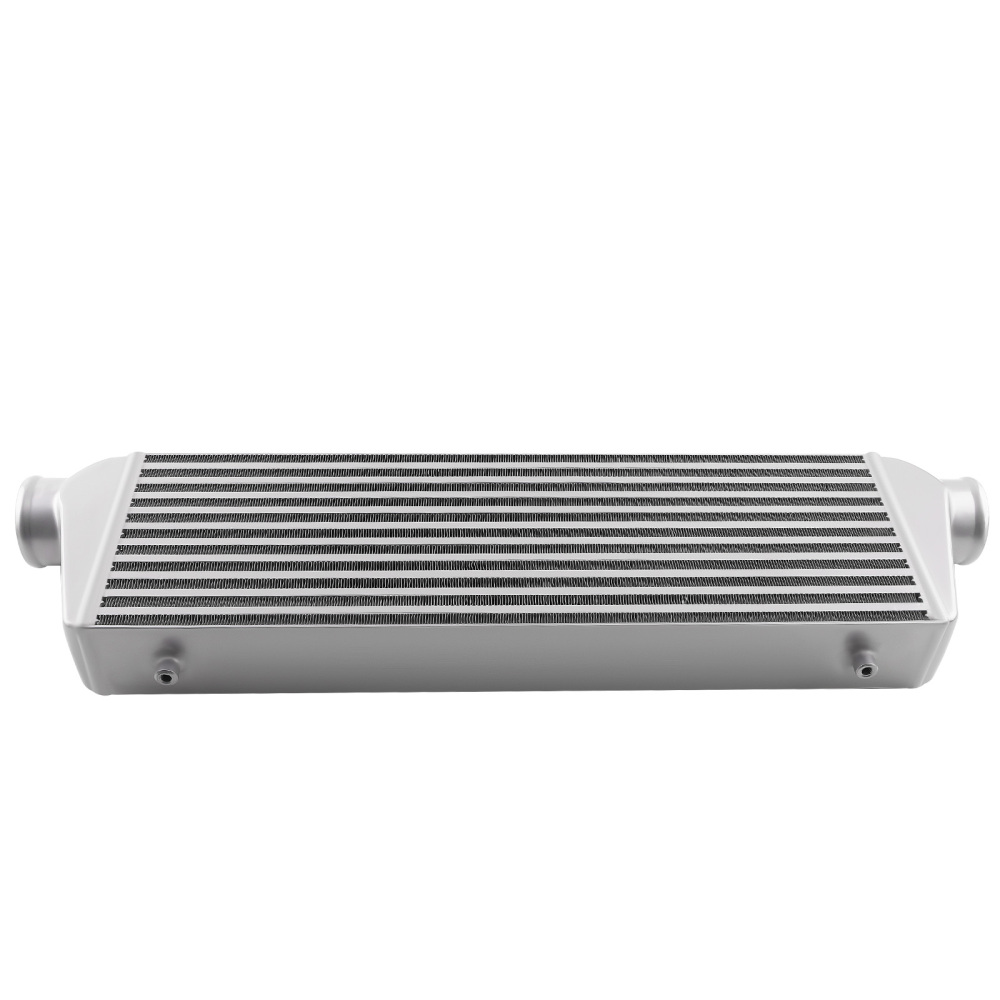

3. Intercooler
 * Core size:21*7*2.5 cools down the turbocharged air efficiently
 * Lightweight aluminum racing intercooler，
 * Strong TIG welds will support high PSI levels

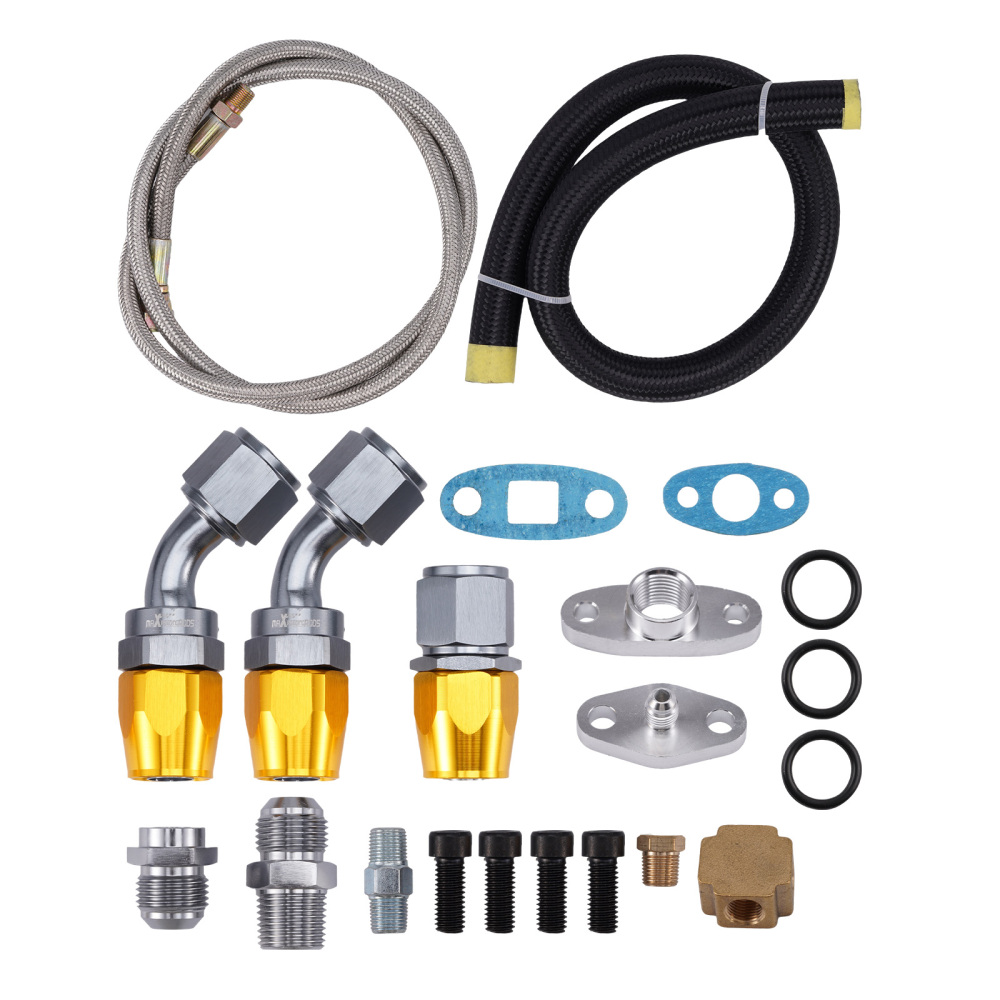

4. Turbo Oil returen /Feeding line kit
 * Stainless Steel Braided
 * Includes complete install kit
 *  It helps circulate oil from the turbocharger to the oil pan.
 * The kit provides a anodized look
 * gives a best cooling on your turbo and long lasting life.

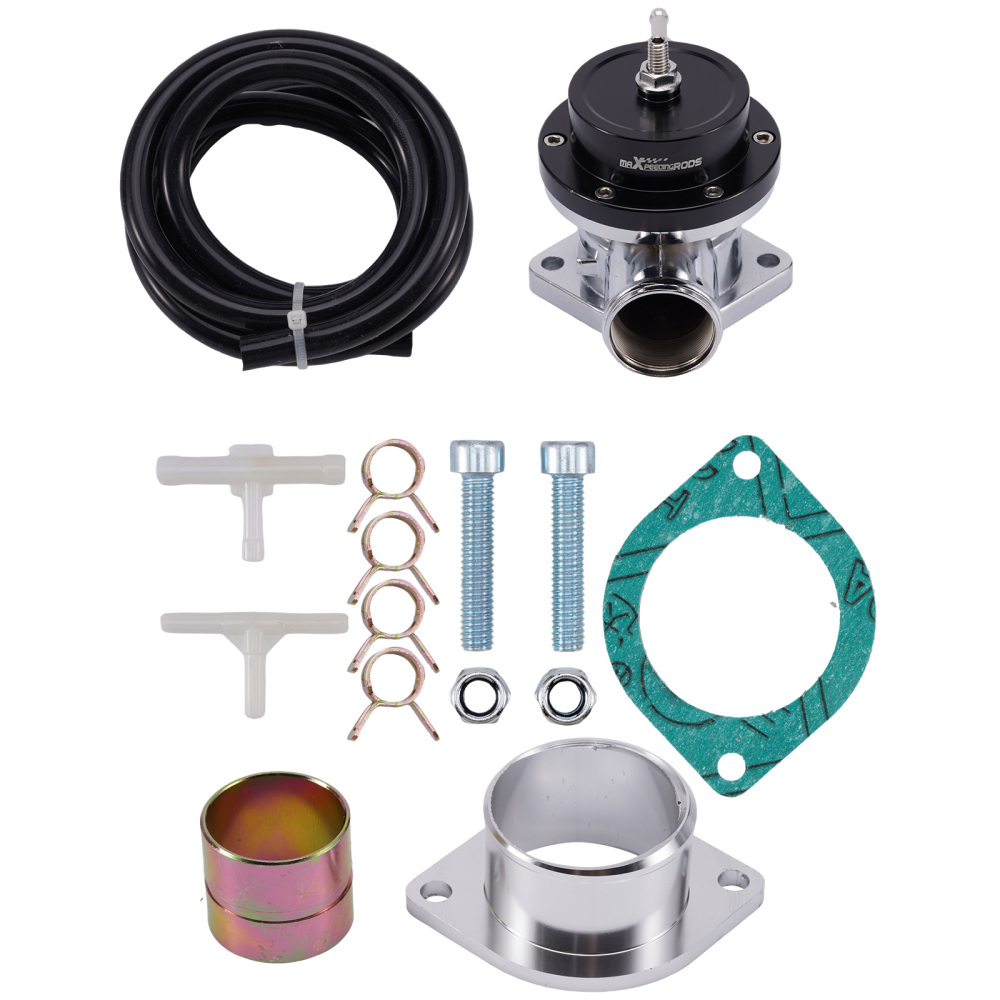

5. Blow Off Valve Kit
 * CNC Billet Aluminum Type RS Style Blow off Valve
 * Easy Mount Piping Set Included For Bolt-On.
 * Including all necessary hardwares.
 * easily adjustable to prevent both permature boost leakage and compressor surge.
 * Fast response One For Low And High Boost Pressure.
 * Quality design will not leak under high boost conditions
 * Flanges can be installed at user discretion
6. 38MM Wastegate
 * Most reliable wastegates For competition vehicles.
 * accurate boost control
 * high quality appearance features Dual port design
 * comes with waste gate spring (fully adjustable, up to 15 psi), allow you to add the spring to get desired high psi.

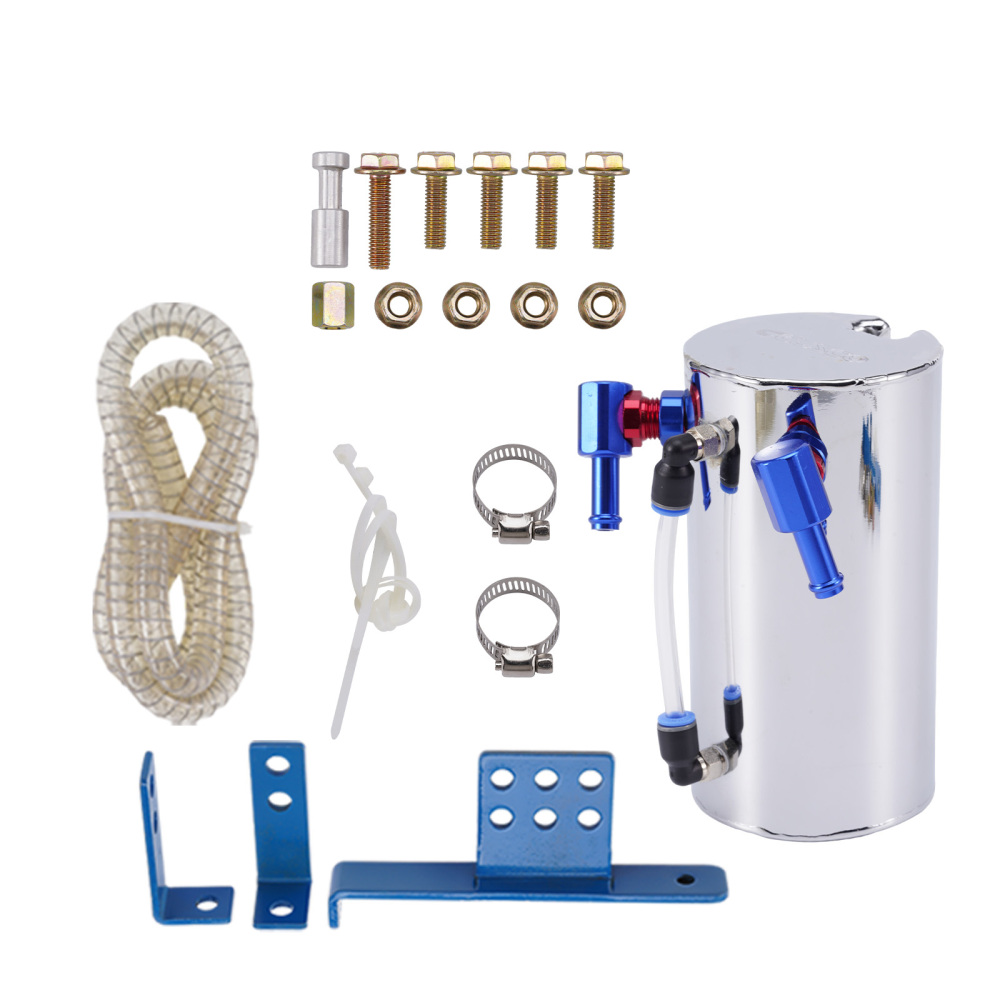

7. Oil catch can
 * Made with High Quality Aluminum for Enhanced Strength and Durability
8. Turbo Boost Gauge
 * Red LED Illuminated Needles.
 * Comes with All the Wiring Necessary for Installation.
 * All Accessories are Included for Installation.
 * Accurately monitor boost pressures from the turbo system
 * Back lit for use at night time

Note:

*Condition: 100% Brand New

* Need modifications - Professionals ONLY (This is an aftermarket universal turbo kit for DIY purpose, and it's recommended to advanced players but not for beginners. )
