4 Link Kit Brackets 2500 Bags Air Ride Suspension 2.75 Triangulated Tube Mounts

Application

for Universal Rear Weld-On Triangulated 4 Link Suspension Kit with Two 2500 Air spring Bags & Rear Air spring Bag Mounts;
Compatible for Ford F150/F250, compatible for GMC Sierra；
Compatible for Chevrolet Silverado;
Compatible for Dodge Ram 1500 2500 3500, etc;

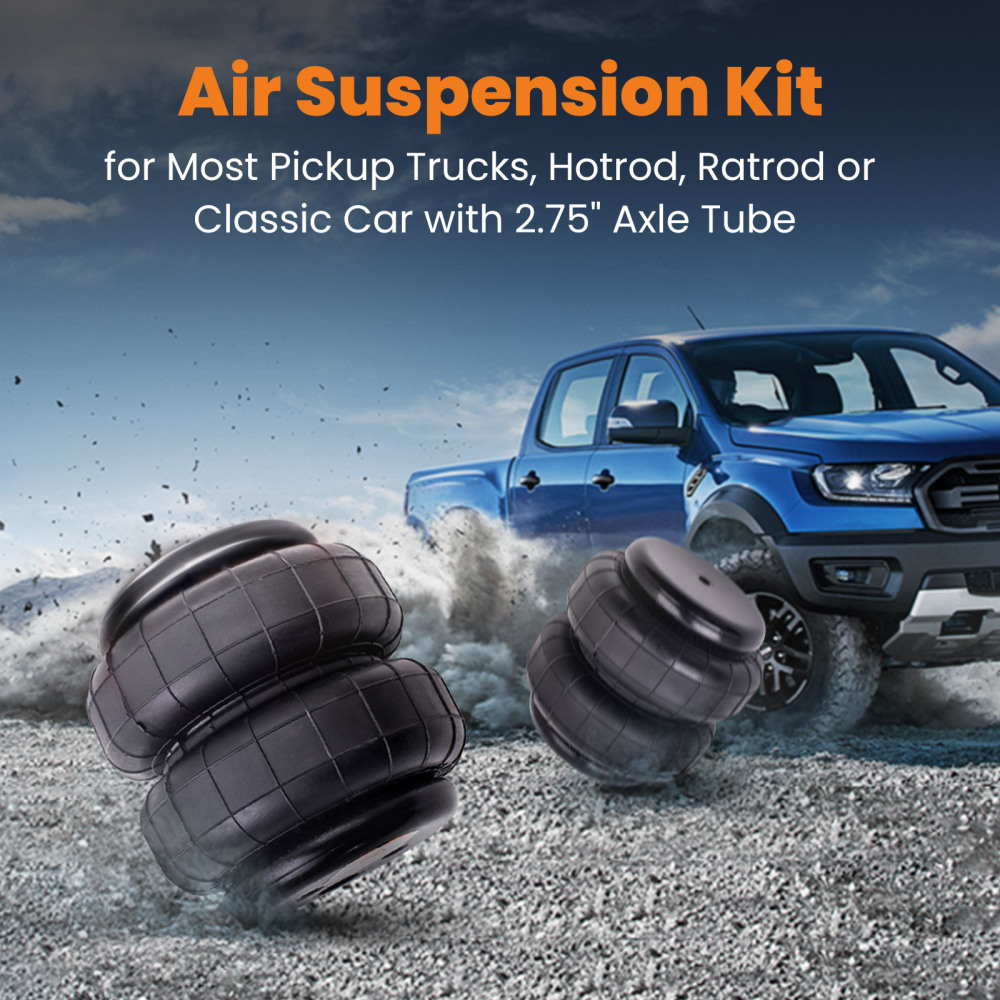

for Most Pickup Trucks, Hotrod, Ratrod or Classic Car with 2.75" Axle Tube.

Specification

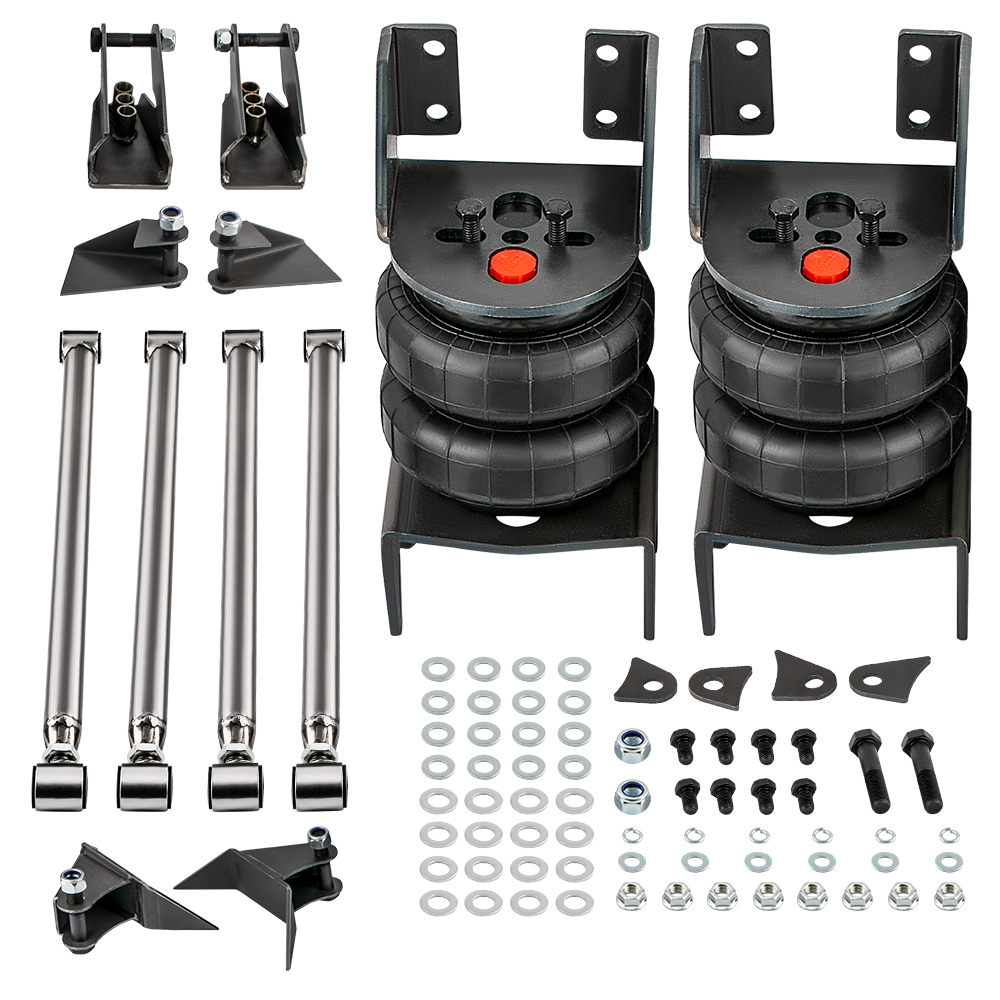

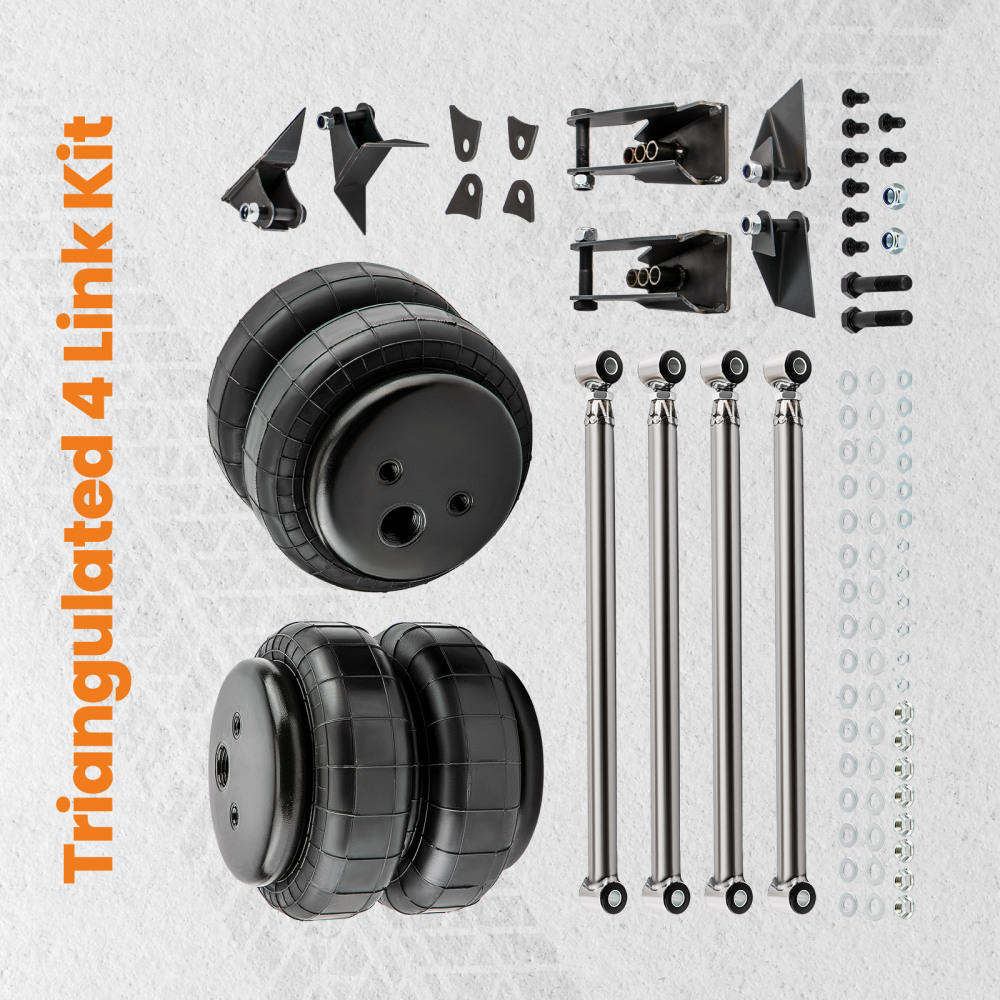

Package Includes:
4 x Heavy Duty Steel Bars
4 x Zinc Plated Steel Rod Ends W/ Urethane Bushings
2 x Steel, Weld-On Triangulated Frame Mounts
2 x Steel, Weld-On Lower Axle Tube Mounts
4 x Steel, Weld-On Center Link Axle Mounts
2 x Steel, Weld-On Side Frame Mounts
8 x Button Head Bolts with Nyloc Nuts
2 x Weld-On Lower Axle Bag Mount
2 x Weld-On Upper Frame Bag Mount
2x Standard 2500 Single 1/2"npt Port Air Bags

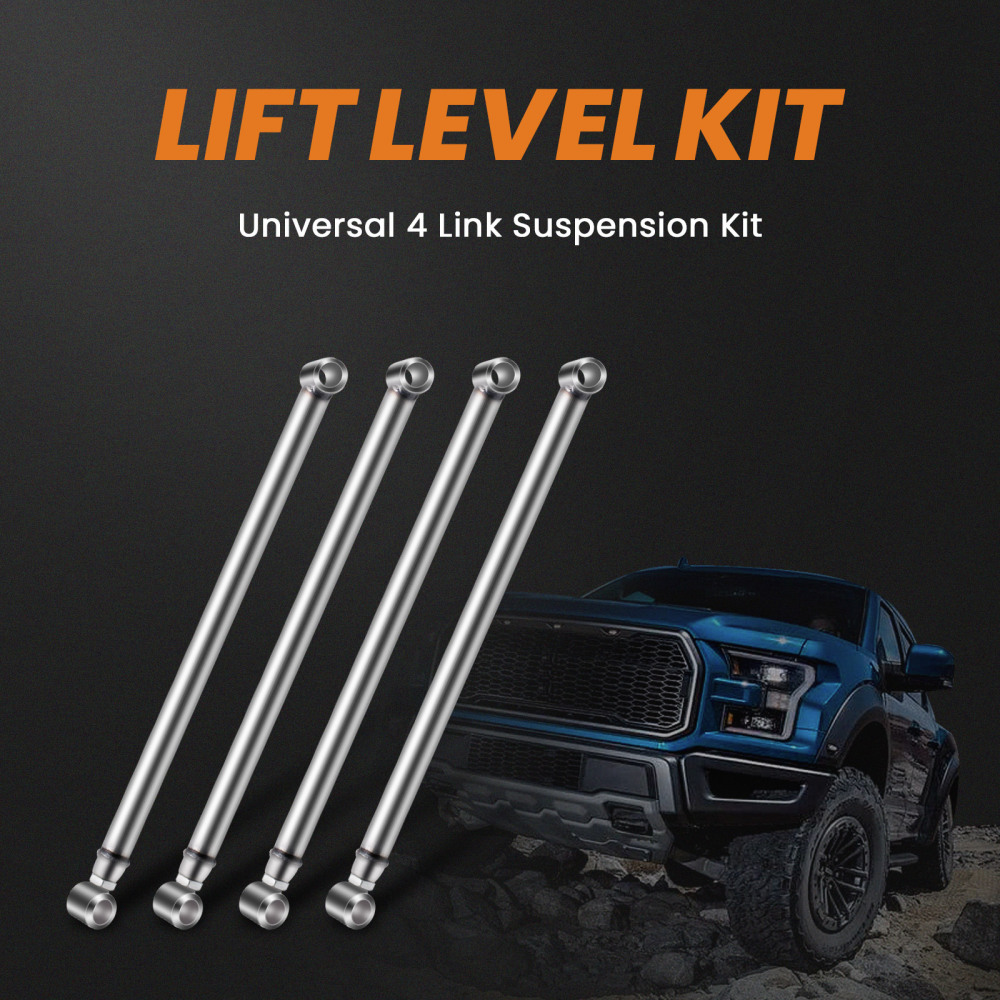

4 Link Bar Dimensions:
Tubing Outside Diameter :1.25"
Tubing Thick Wall :156"
All Four Bars :24.00"
(Center To Center Adjusted All The Way In)

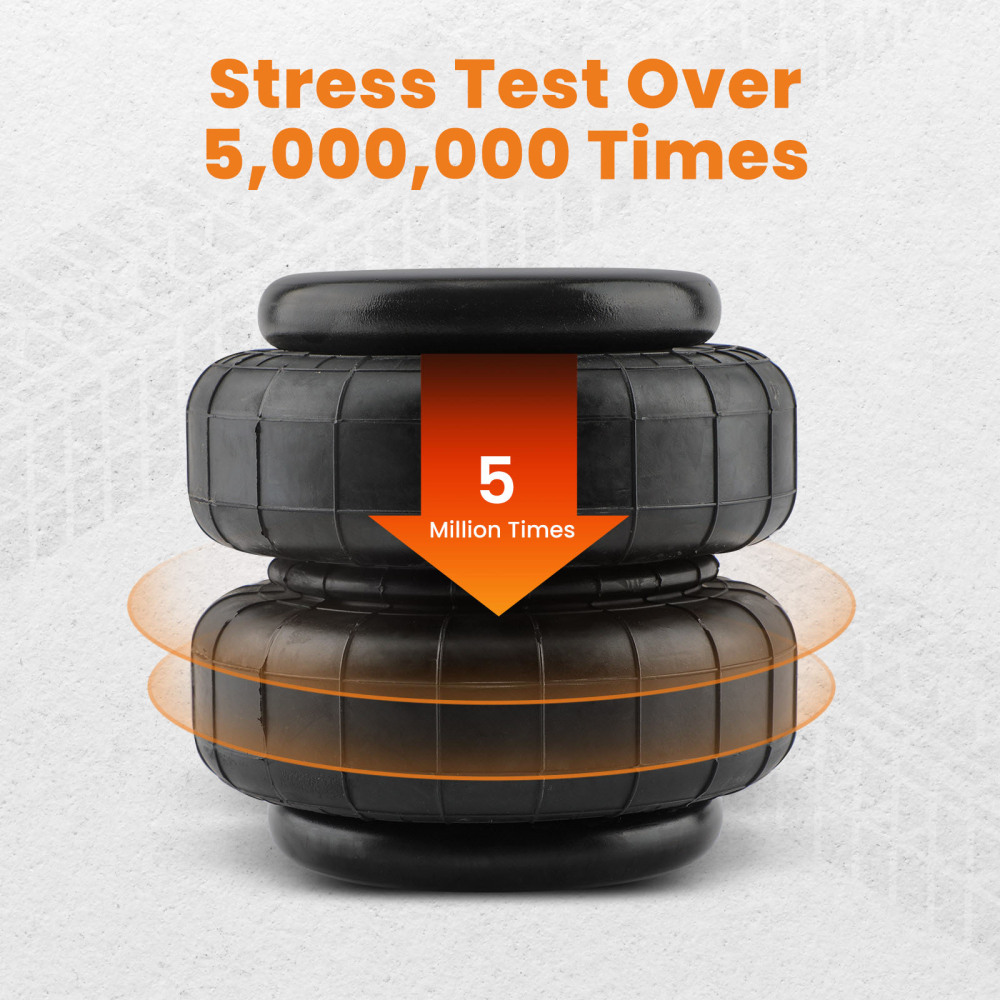

Specs of bag:
Diameter: 6"
Extended:8"
Closed:2.75"
Air spring bag capacity: 2500LBS
2 smaller bolt holes diameter: 0.3"
1 bigger bolt hole diameter: 1/2"NPT
Two Top Mounting Holes : Approx 1-3/4" from Eye to Eye
Bottom has One Mounting Hole in Center
All mounting holes are 3/8"-16 UNC

Feature

Provide better handing and comfort ride for you.
Design for comfort suspension
Heavy duty double convoluted crimped

Note

Instructions Are Not Included
We Recommend Professional Installation
