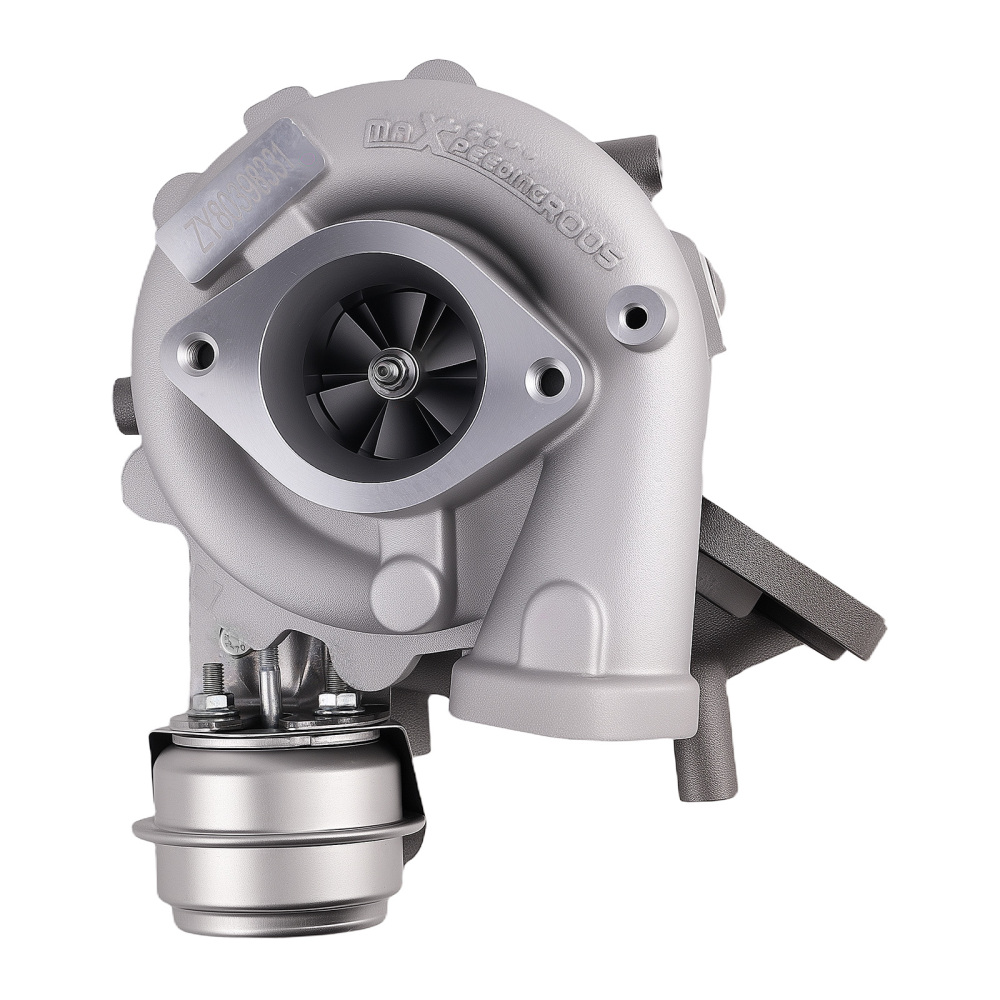

Water Cooled Turbocharger 769708 Compatible for Nissan Navara 2.5L YD25DDTI 2006-

Application

Compatible for Nissan Navara 2.5L YD25DDTI 2006-
Compatible for Nissan Pathfinder 2.5L YD25DDTI 2006-

*Notice:
1.Please Carefully distinguish this Turbo with 14411-EB300.

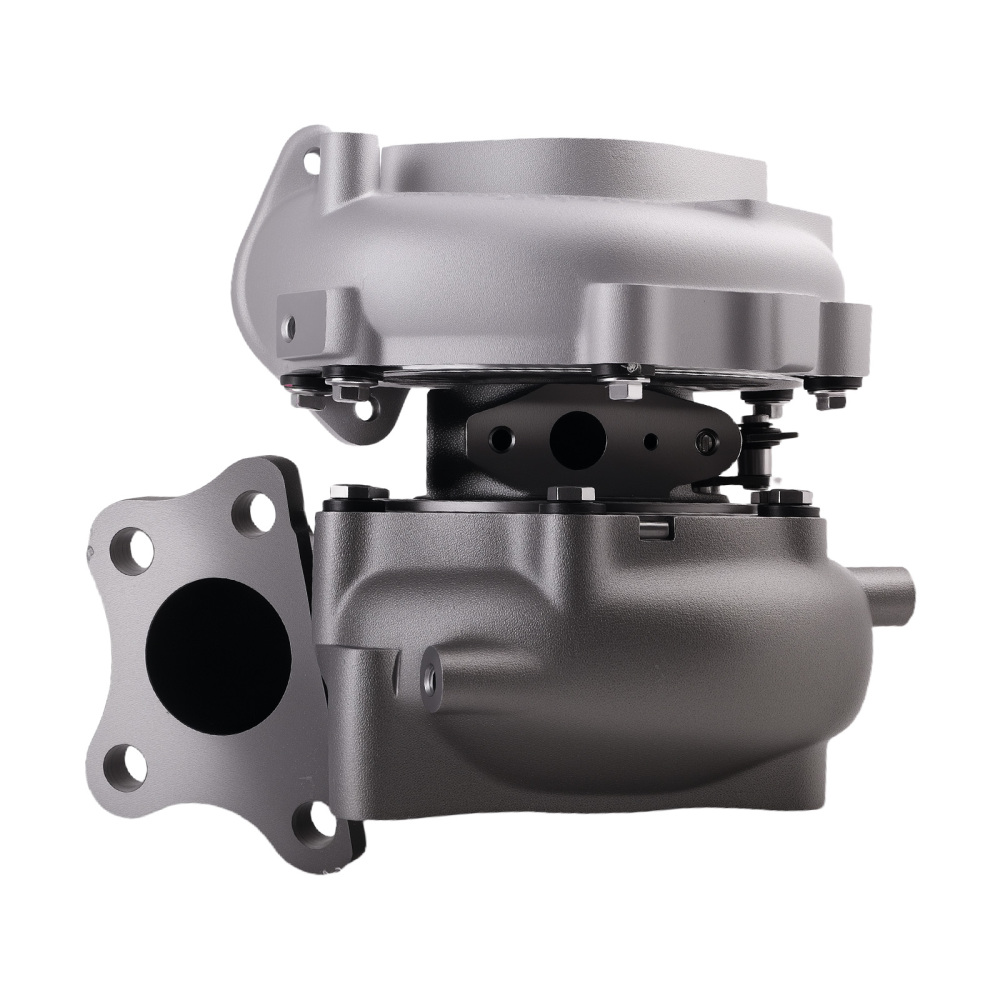

This turbo have 4 bolt exhaust inlet flange which connect with the manifold, but the inlet flange of 14411-eb300 only have 3 bolts.
2.DO NOT for 14411-5X01A which equipped with elctric actuator.

OE/Part number

769708,
769708-1,769708-0001, 769708-5001S,
769708-2,769708-0002, 769708-5002S,
769708-3,769708-0003, 769708-5003S,
769708-4,769708-0004, 769708-5004S,
767720,
767720-1,767720-0001, 767720-5001S,
767720-2,767720-0002, 767720-5002S,
767720-3,767720-0003, 767720-5003S,
767720-4,767720-0004, 767720-5004S,
767720-5,767720-0005, 767720-5005S,
767720-6,767720-0006, 767720-5006S,

14411EB70A, 14411-EB70A, 14411EB70B, 14411-EB70B,
14411EB70C, 14411-EB70C, 14411EB70D, 14411-EB70D,
14411EC00A, 14411-EC00A, 14411EC00B, 14411-EC00B,
14411EC00C, 14411-EC00C, 14411EC00E, 14411-EC00E,

Specification

Turbo Model: For GT2056V, GTA2056LV
Eingine code: YD25DDTI
Cooling Type: Water & Oil Cooled
Bearing Type: Journal Bearing / Floating Bearing
Thrust bearings: 270 Degrees
Hosepower: Up to 171HP
Actuator Type:Vacuum actuator
Turbo Type:Individual/VNT
Universal Fitment: No
Finish: Matte
Condition: New
Accessories: You will receive the parts exactly as shown in the picture above
Package Size:25*24*23cm
Package Weight: :7940g

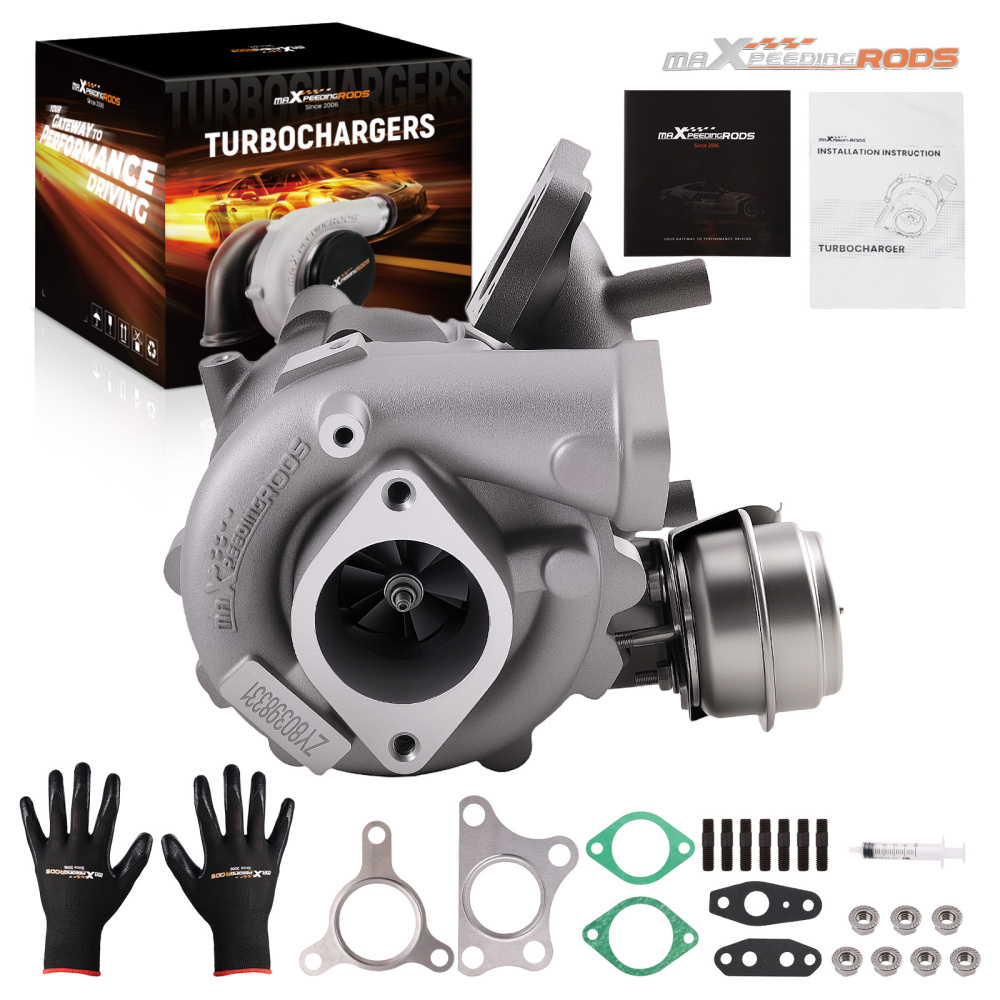

Package included

1xTurbocharger
2xFlange gaskets
2xOil/Water port gaskets
7xBolts
8xNuts
1xManual
1xBrochure
1xSticker

Feature

* Product Material

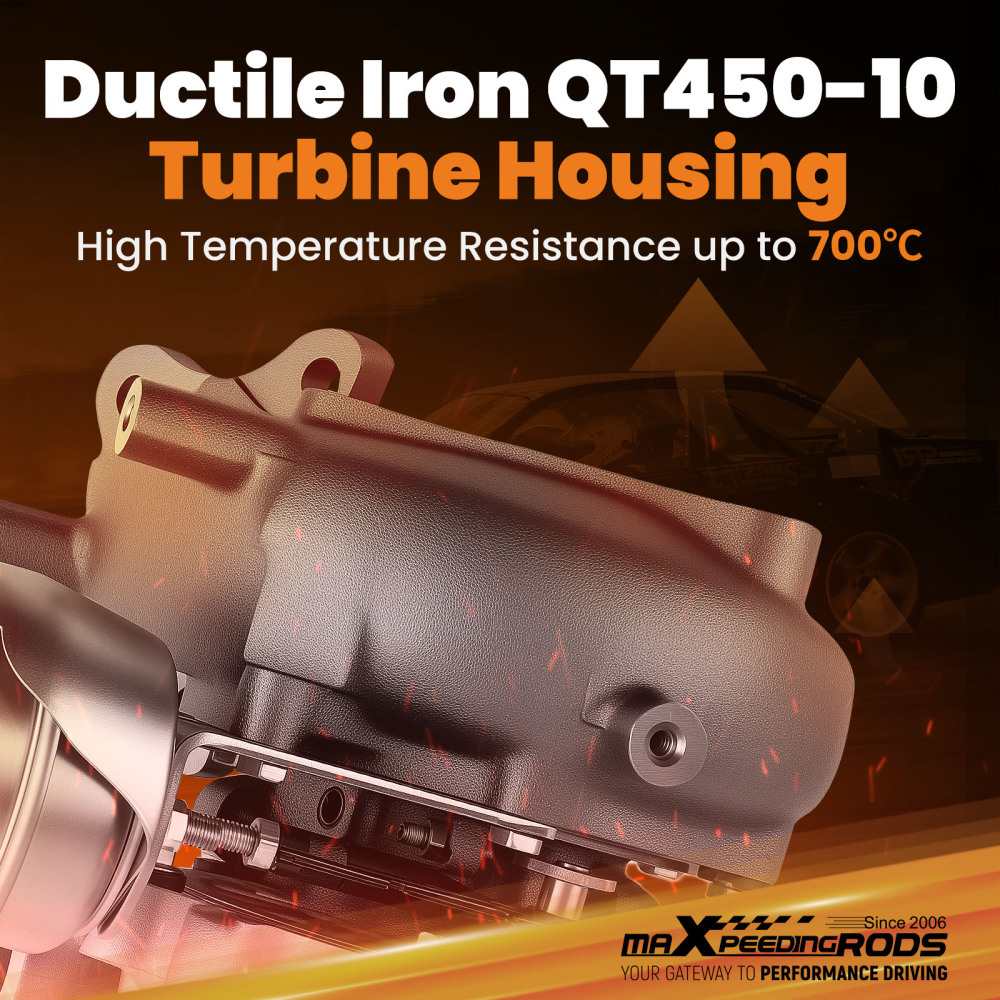

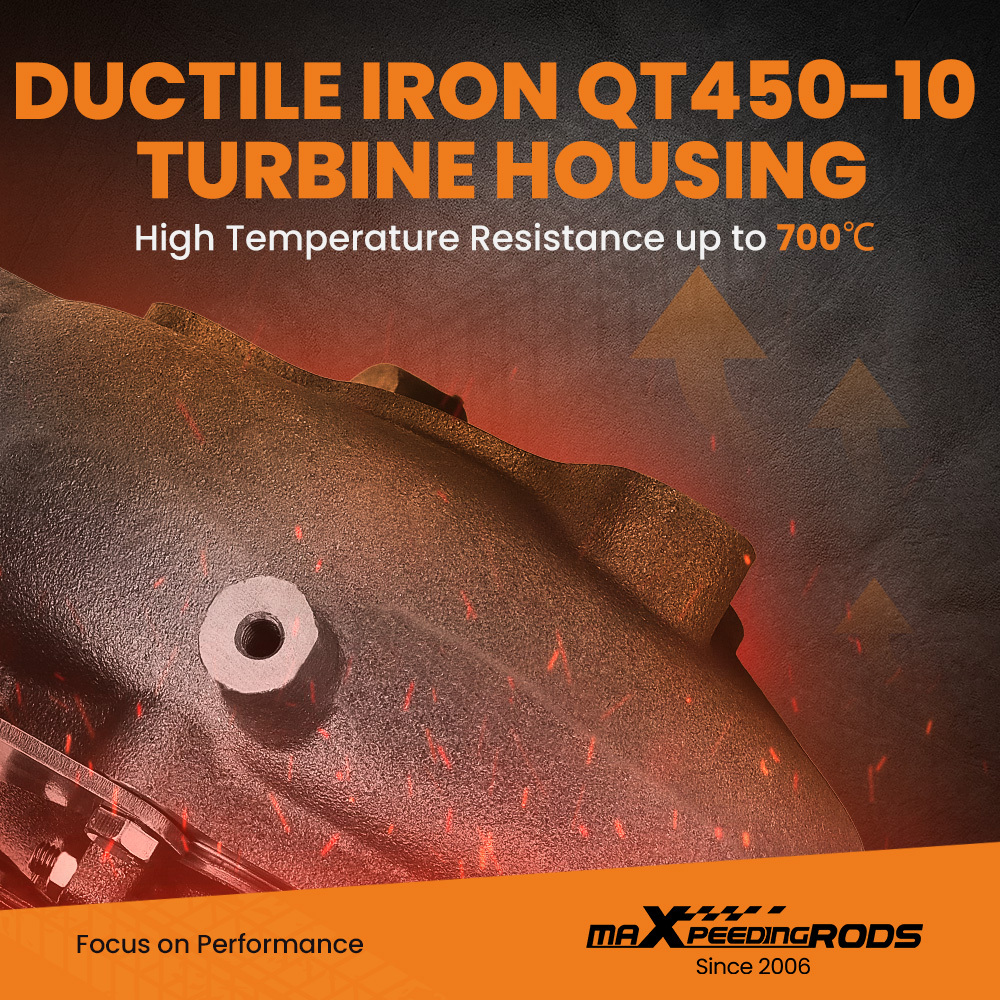

1. Turbine housing ：Ductile iron QT450-10- temperature resistant up to 700℃

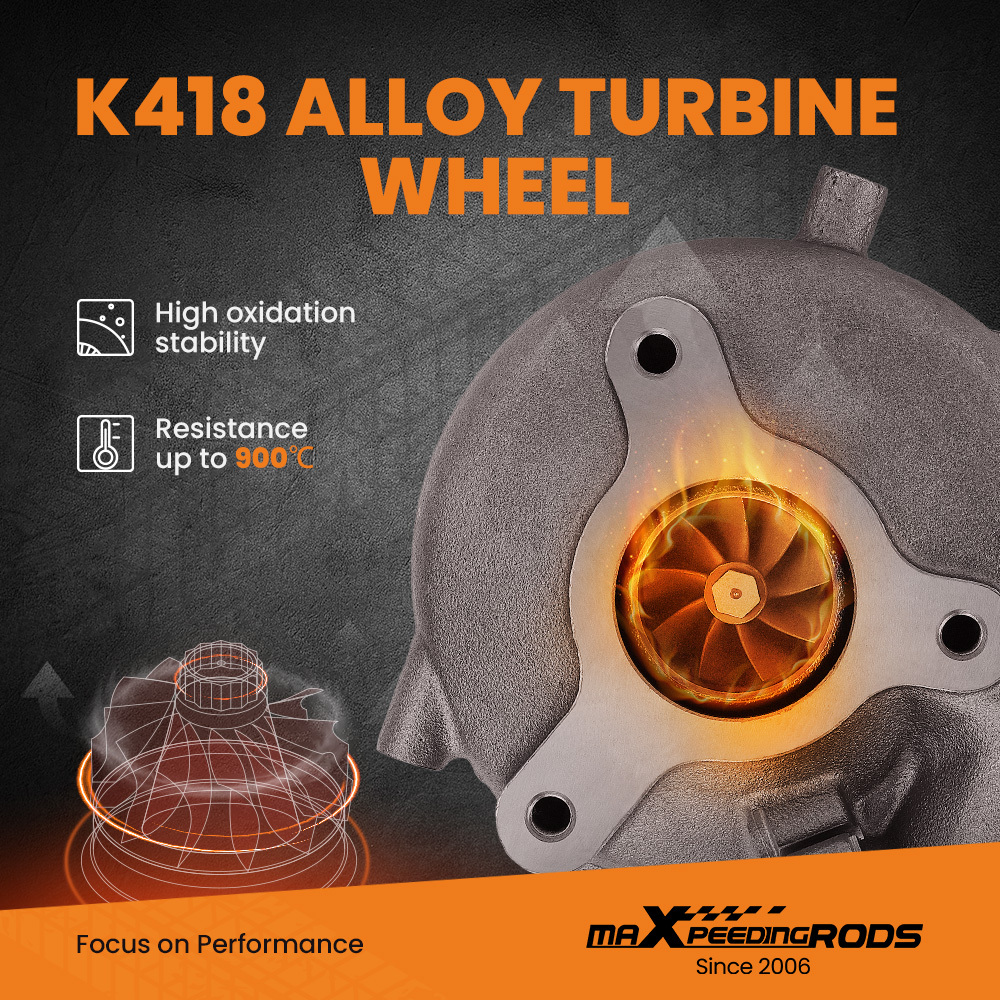

2. Steel turbine wheel：K418 alloy - high oxidation stability and resistance up to 900℃

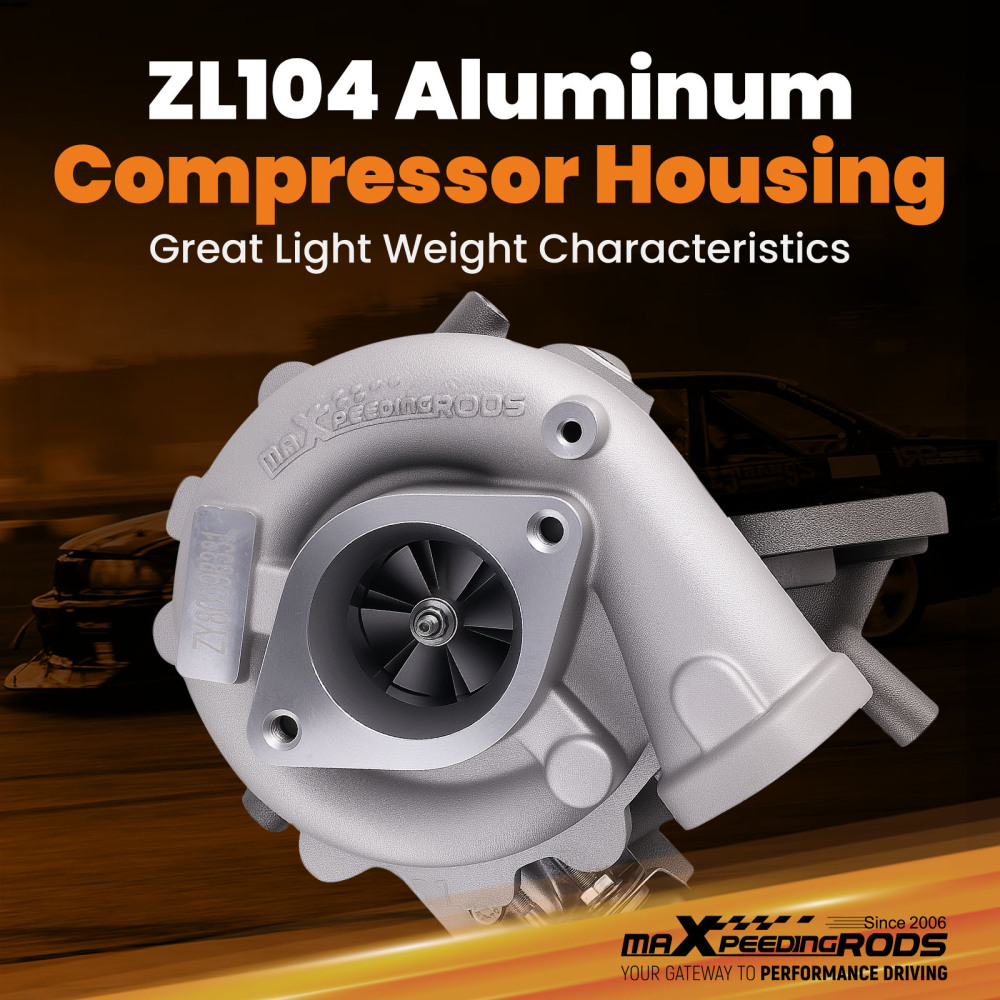

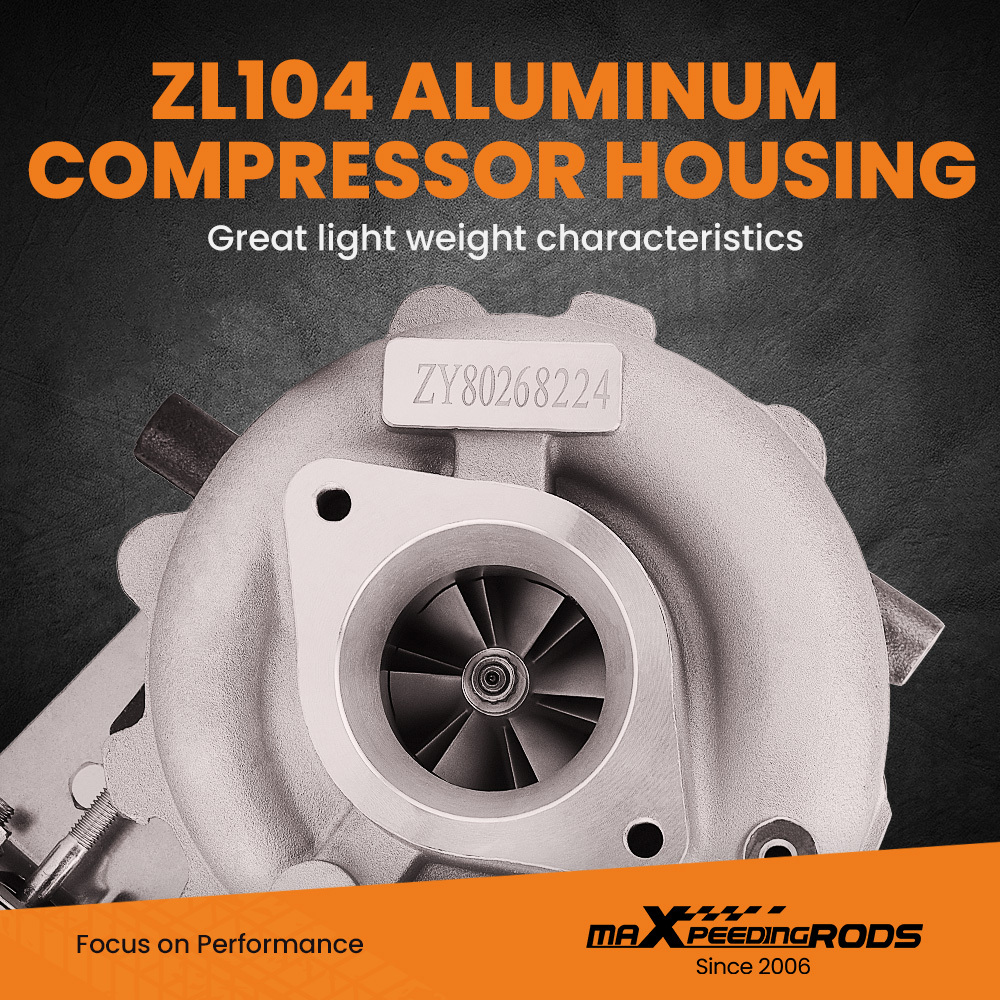

3. Compressor housing：ZL104 aluminum with lightweight

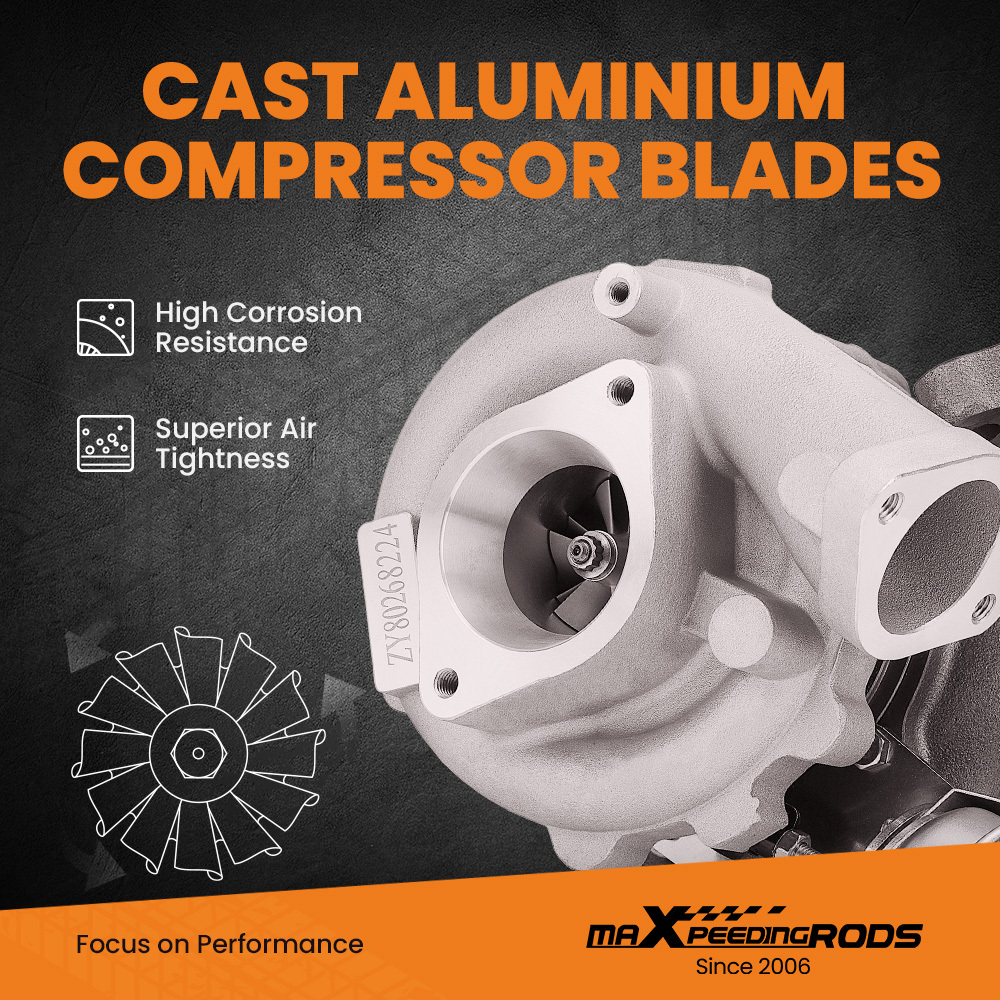

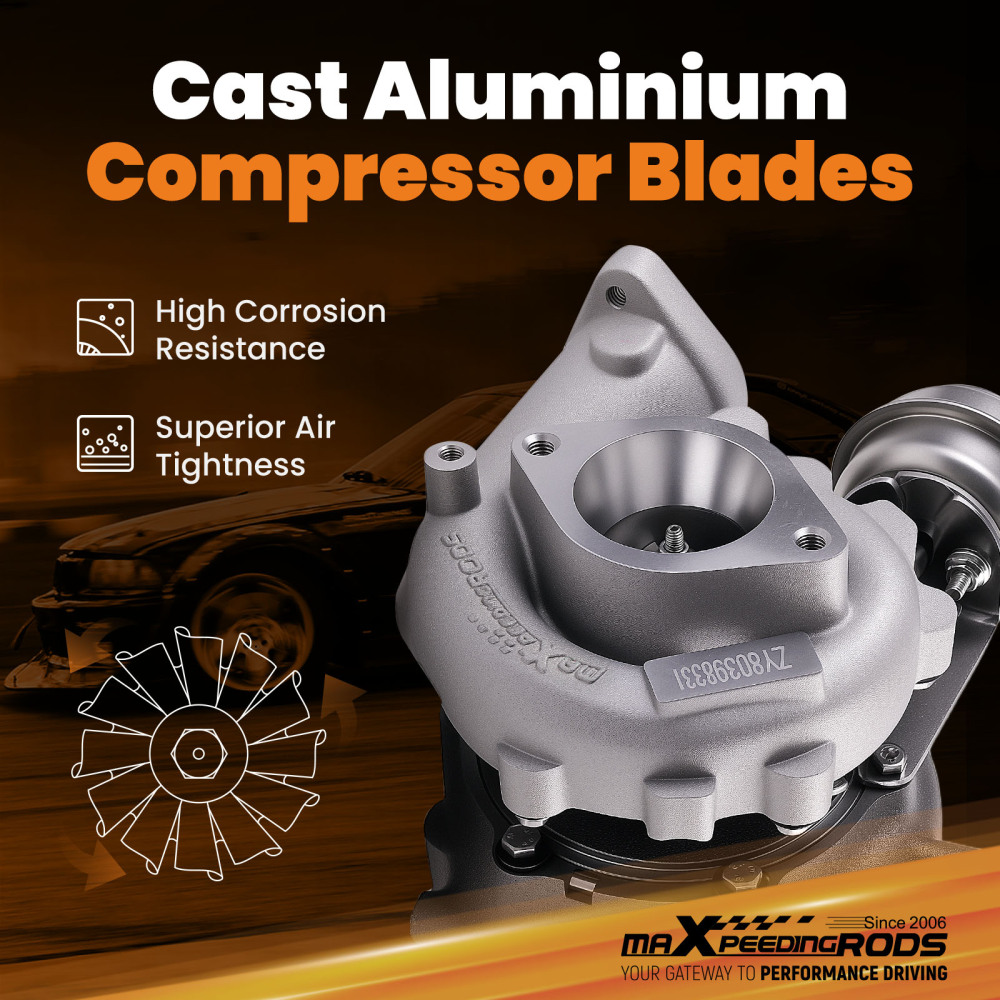

4. Compressor wheel/blades：Cast aluminium blades – superior air tightness & corrosion resistance

* Product Performance
1. OEM-quality and size with little modification

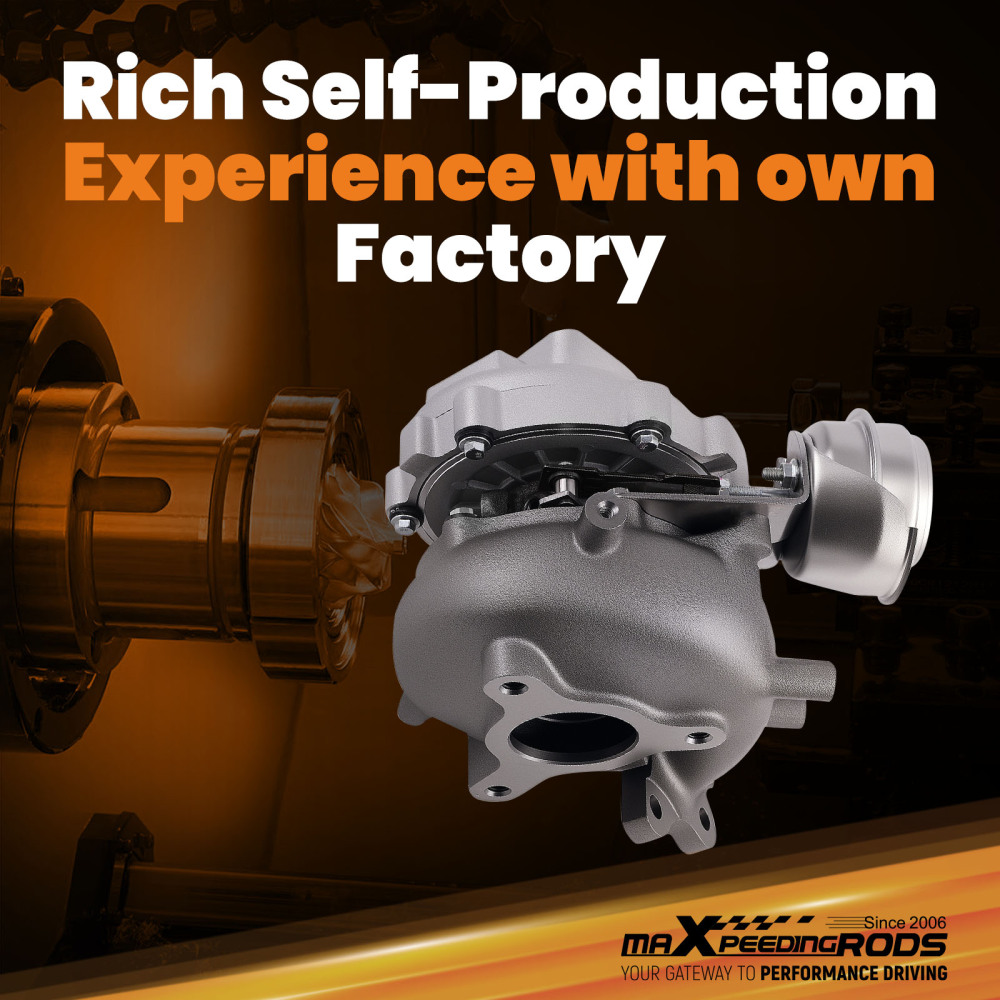

2. Rich experience in turbo production and own factory
3. High-Speed oil seal ring and Precision clearance

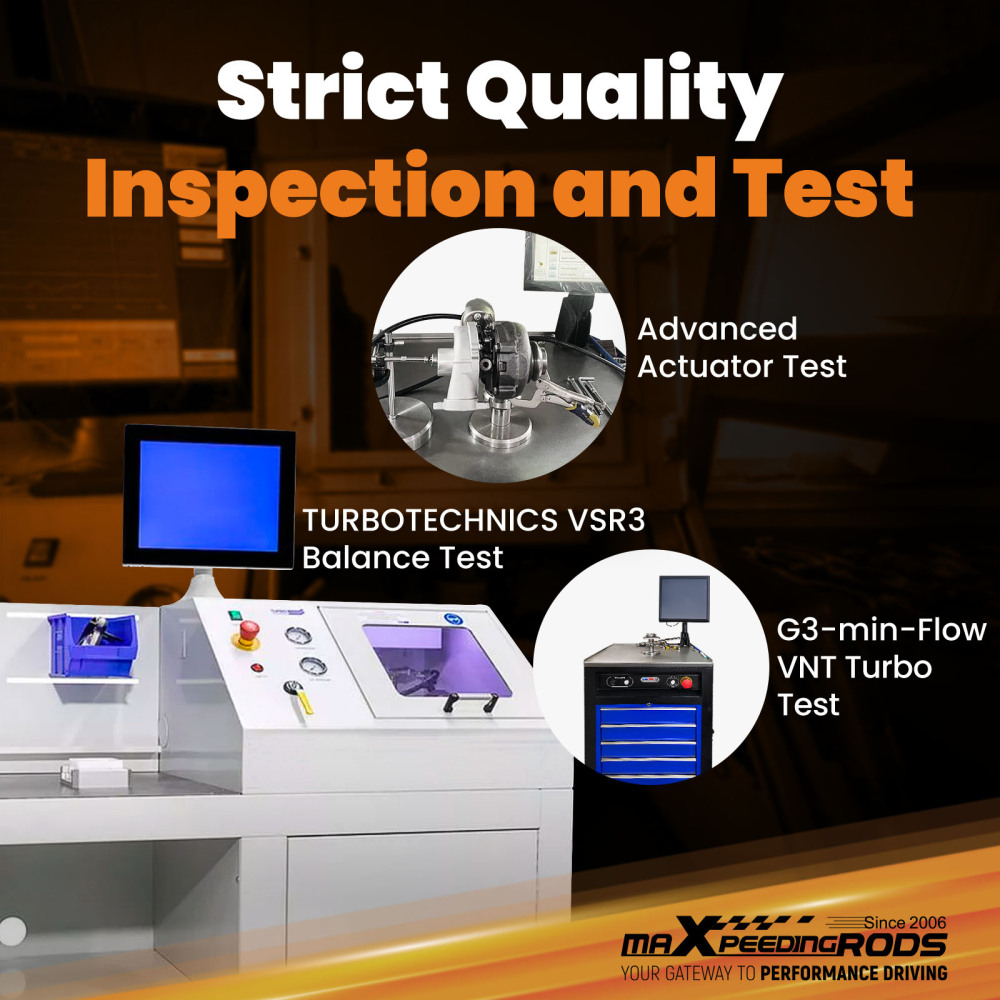

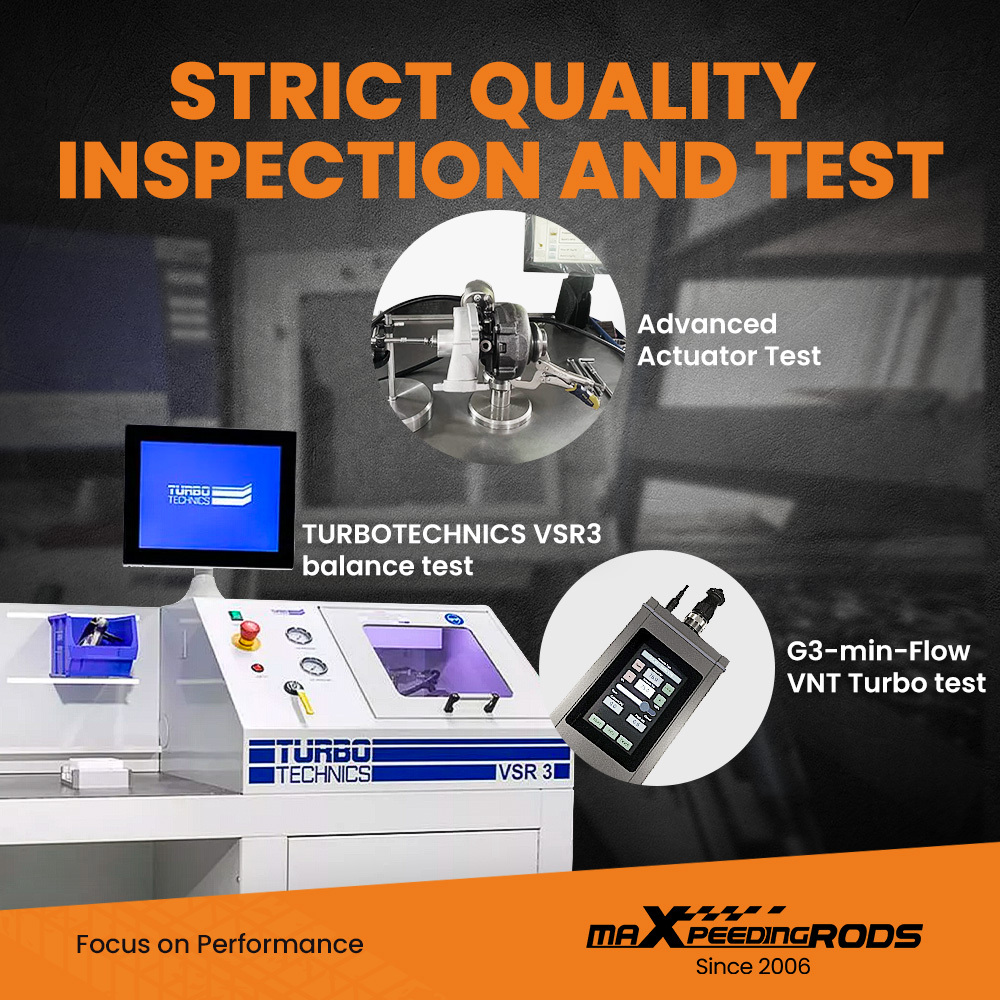

* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS VSR3
2. G3-min-Flow VNT Turbo testing
3. Advanced Actuator Tester/Programmer

Note

* Please confirm your original turbo PART NUMBER before Purchasing
* Professional installation is highly recommended
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
