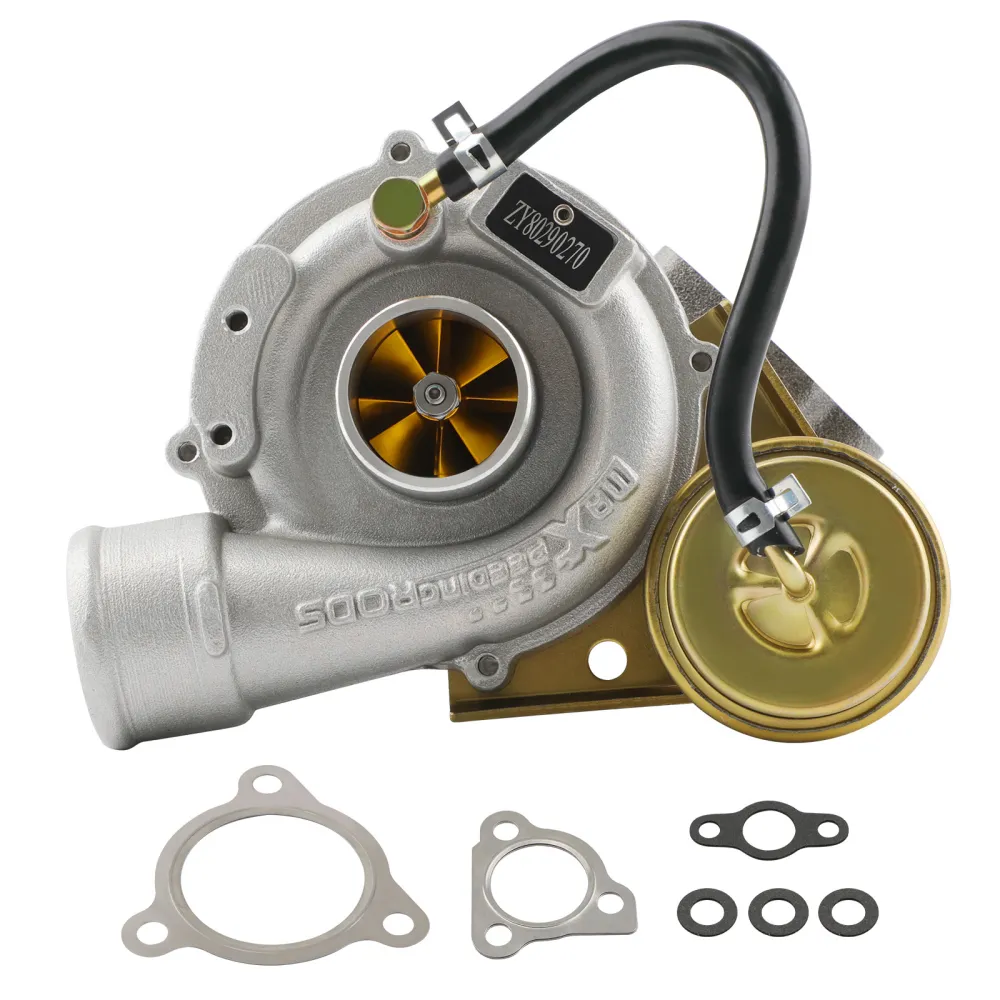

UpgradeTurbocharger compatible for VW Passat 1.8T AEB/ANB/APU/AWT 53039880005 billet compressor wheel

Introduction

We know you want to be the best both on the track and off. Whether you're a diehard racer or just looking to boost your daily driver's performance, Maxpeedingrods K04 015 upgraded turbo turbocharger has what you need. The K04 turbocharger features a larger compressor and turbine wheel which provides for increased horsepower and torque over factory. Flows more volume and sustains higher boost pressures than the standard K03.

Application

Suitable for daily street use and junior track use.
Compatible for Audi A4 A6 Quattro compatible for VW PASSAT 1.8T AEB/ANB/APU/AWT Upgrade
Compatible for Audi A4 1.8T AEB/ANB/APU/AWT20v/AVJ 1995 - 1999
Compatible for Audi A4 Quattro 1.8T AEB/ANB/APU/AWT/AVJ/BEX 1999 -
Compatible for Audi A4 Upgrade 1.8T 1995 -
Compatible for Audi A6 1.8T AEB/ANB/APU/AWT 1997 - 1999
Compatible for Audi A6 Quattro 1.8T AEB/ANB/APU/AWT 1999 -
Compatible for VW Passat 1.8T AEB/ANB/APU/AWT 1999 -
Compatible for VW Passat 1.8T upgrade 1999 -

Turbo Part Number & OEM Number

53049880015, 53049700015,
53039880005, 53039700005,
53039880029, 53039700029,
53039880025, 53039700025,
53039880073, 53039700073,
058145703L, 058145703LX, 058145703LV,
058145703J, 058145703JX, 058145703JV,
058145703E, 058145703H, 06A145703B,
058145703N, 058145703K, 078145703B,
*HOW TO IDENTIFY YOUR TURBOCHARGER
If you are not sure fitment for your old turbo , please let us know this information :
1 . The OEM code information from your original turbo nameplate
2 . The Engine code & KW , HP , Year for your car
3 . The Photos of your complete turbo
4 . Please note that the registration number cannot identify your turbocharger

Specification

Turbo model: Upgraded K03, K04, K04-0015
Engien code: AEB/ANB/APU/AWT20v/AVJ
Cooling Type：Water Cooled
Bearing Type: Floating Bearing
Hosepower:  Up to 250HP
Thrust bearings: 270 Degrees
Condition: Brand New
Warranty: one year warranty for any manufacturing defect

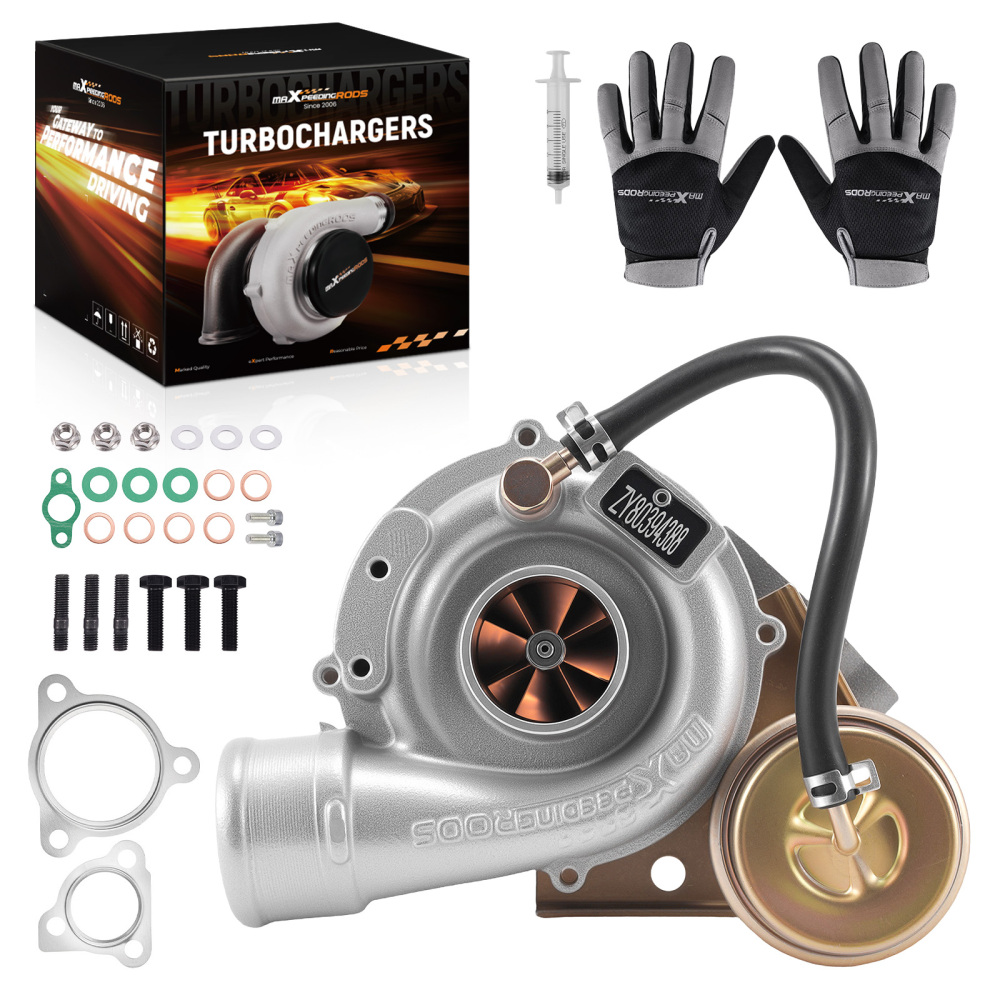

Accessories: You will get exactly as shown in the picture above

Feature

（1）Street-performance upgraded turbocharger with higher performance than the normal version：Flows more volume and sustains higher boost pressures than the standard K03.
（2）Capable of performance increase from 150 to 250hp with computer reflash and tuning.
（3）Silicon-Molybdenum turbine housing with high-temperature resistance 850 degree Celsius.

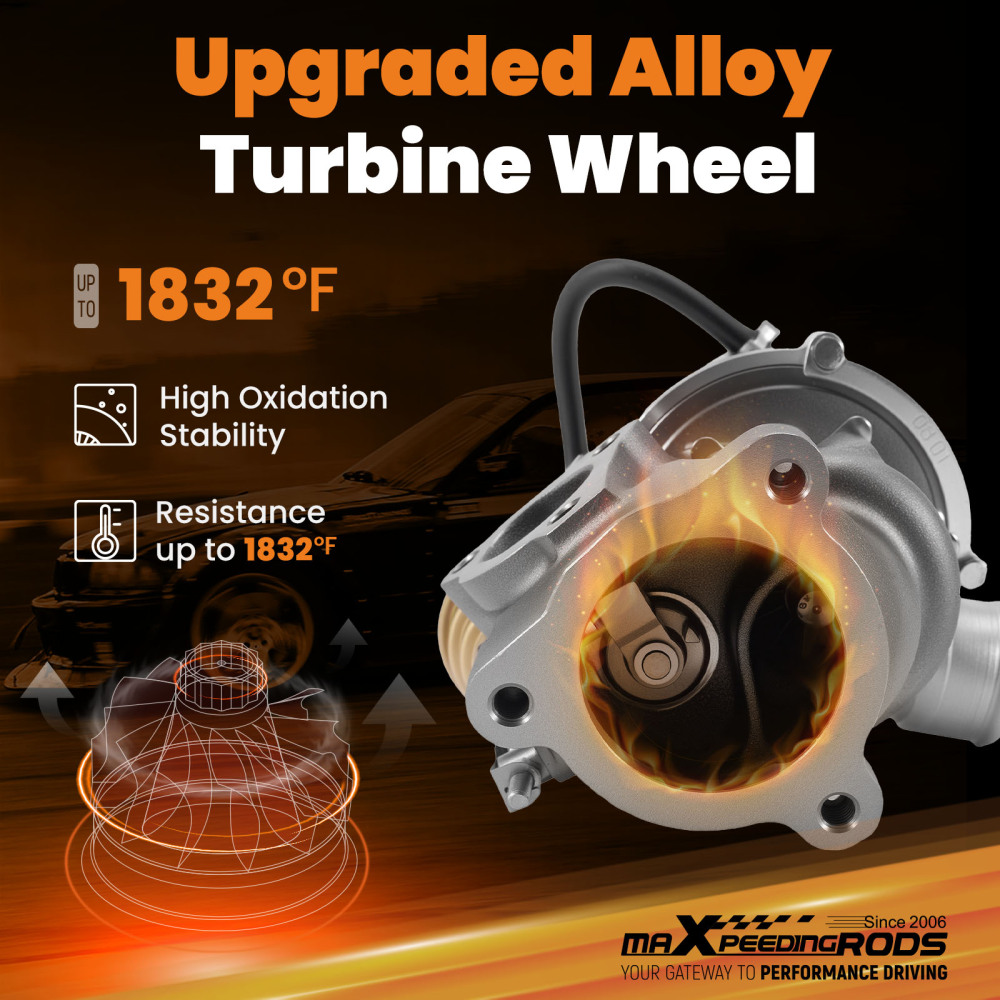

（4）Turbine Wheel uses the special K419 alloy to achieve stability under high temperatures up to 1000 degrees Celsius.

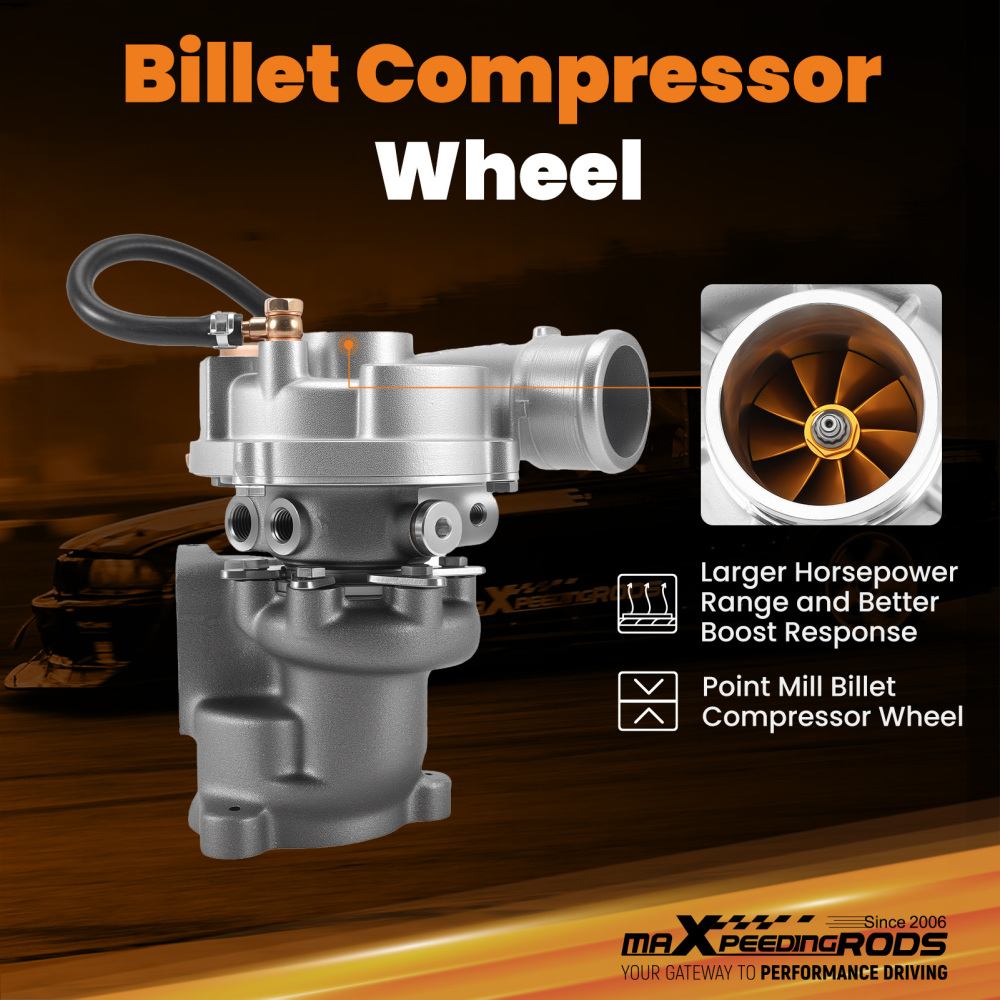

（5） Compressor wheel/blades:
- Aluminum blades with precision machining forging. The light weight design enables reduced noise and increased response without compromising comfort or longevity, so the spool time is very short, the delay is small, and the linearity is great.
- The impeller is colored by five-axis milling, the shape of the blade is more perfect, and the precision is higher.
（6）100% BALANCING TEST: This Turbocharger you will receive has been balanced using the VSR machine technology.

Technology Advantage

1. 100% balancing Test by TURBOTECHNICS VSR3
This Turbocharger you will receive has been balanced using the VSR machine technology. Through the comprehensive and high-precision static and dynamic balance detection technology, and reliability.
2. G3-min-Flow VNT Turbo testing
The G3-min-Flow (Air) machine can accurately measure the flow through the VGT turbo and verify that it is set to the OEM factory setting. easily adjust the critical minimum-flow stop to the correct setting before the turbocharger leaves workshop.
3. Advanced Actuator Tester/Programmer
Electronic actuator diagnostic with G3-rea-master can rewrite memory in electronic actuators and also allows to modify operation range of the actuator arm, that includes changing open and close positions of the working angle.

Note

*About the color of the turbine compressor shell impeller: We will ship gold and silver at random, thank you
*Please check the Turbo Model, Turbo Part Number and OEM Part Number on your original Turbo to make sure this turbo is the correct one for your engine. If you need assistance finding the correct turbo for your car, please feel free to contact us
*Professional installation is highly recommended (No Instructions are Included)
