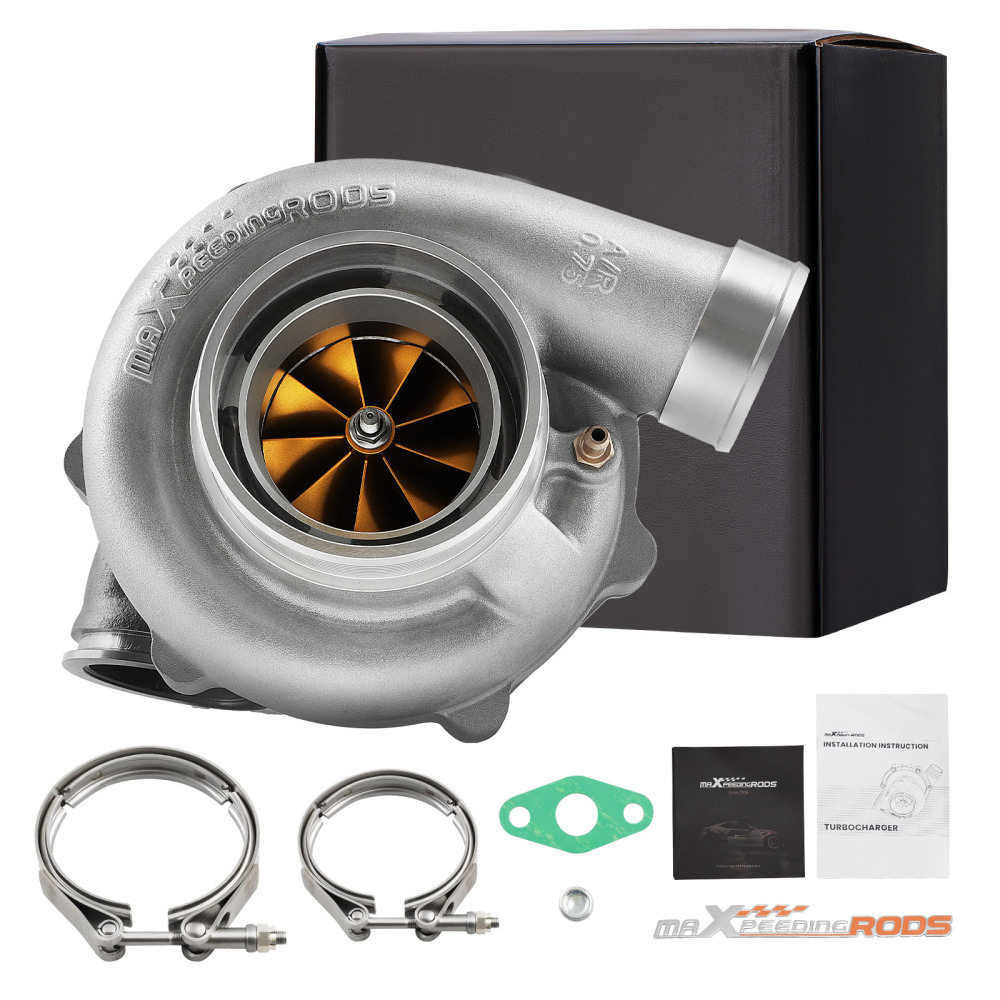

Universal Billet Turbo Turbocharger 700-1050 HP Water and Oil Cooled Stainless

Application:

2.0L – 5.5L engine displacements and capable of producing up to 1050 horsepower

Specification:

Horsepower:700-1050HP
Displacement:2.0L-5.5L

Exhaust Inlet Flange: V-band(OD:79.3mm)
Exhaust Outlet Flange: V-band(OD:92.7mm)

Compressor
Compressor Inducer:68mm
Compressor Exducer:84.4mm
Compressor Trim:65
Compressor A/R:0.75
Compressor Air Inlet :69mm
Compressor Air Outlet:65.2mm

Turbine
Turbine Inducer:68mm
Turbine Exducer:62.5mm
Turbine Trim:84
Turbine A/R:0.83
Turbine Inlet :76.2mm
Turbine Outlet:90mm

Cooling Type: Water+Oil Cooling
Bearing Type: Dual Ceramic Ball Bearing
Oil Restrictor Size:1mm
Oil Inlet Size:7/16-24
Oil Outlet Size:2*M8*1.25
Water Thread Size: M14*1.5

Package included:
1×Turbocharger
1×Oil Gasket
1× Oil Feed Fitting
2×Water Port Fitting
2× V-BANDS
1× Manual
1× Brochure
1x Sticker

Features:

*Product Material
1. Turbine housing ：Stainless steel turbine housing - temperature resistant up to 1020℃
2. Steel Turbine Wheel：K419 alloy - high oxidation stability and resistance  up  to 1000℃
3. Compressor housing：ZL104 aluminum with lightweight
4. Billet Compressor Wheel: Forged CNC full-machined billet aluminum compressor wheel provides a larger horsepower range and maximum boost response

1. Excellent high temperature resistance，high efficiency and durability
2. Rich experience in turbo production and own factory
3. High-Speed oil seal ring and Precision clearance

* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS  VSR3
2. G3-min-Flow VNT Turbo testing
3.  Advanced Actuator Tester/Programmer

Notice:

* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
* Make sure the oil drain line is lower than the turbo itself.
* Gasoline car must install a water cooling device to avoid overheating.
* Ensure exhaust outlet are well sealed by welding
* The degree of modification of the universal turbo depends on your individual vehicle.
* Professional installation is highly recommended.
* This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
