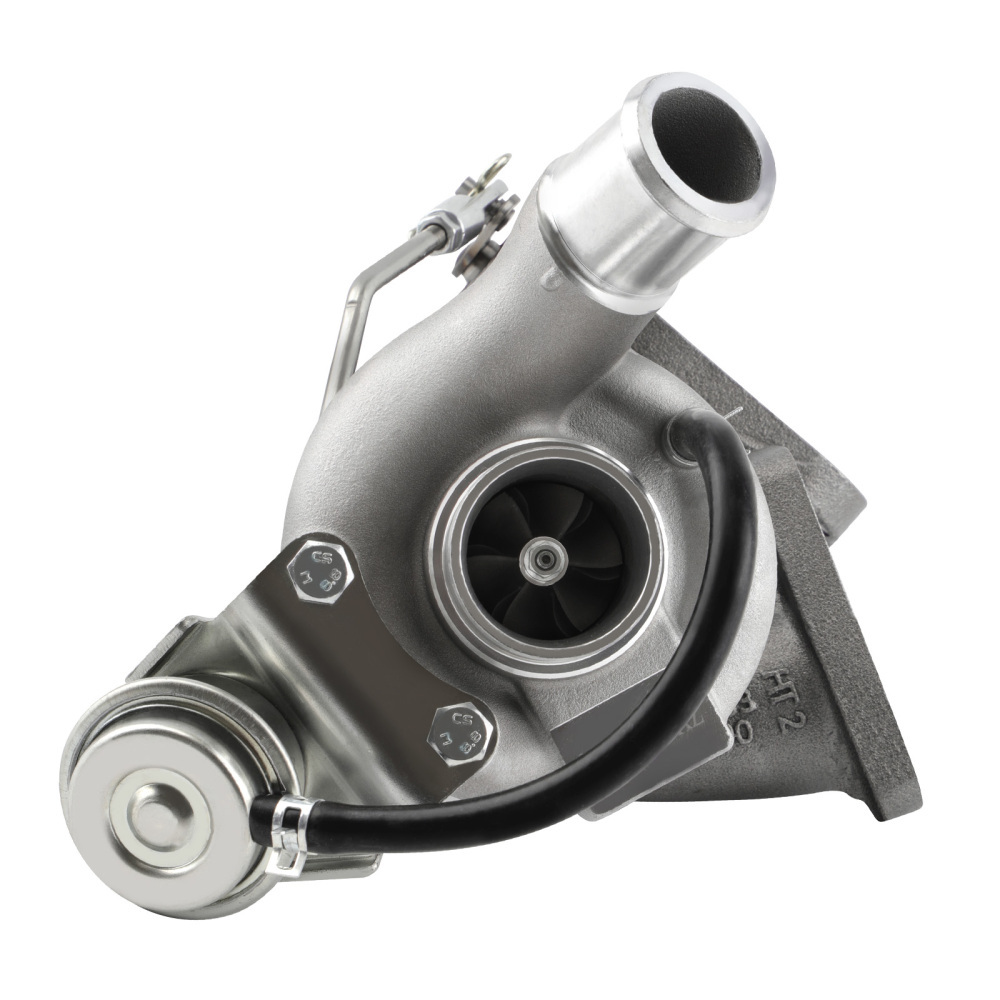

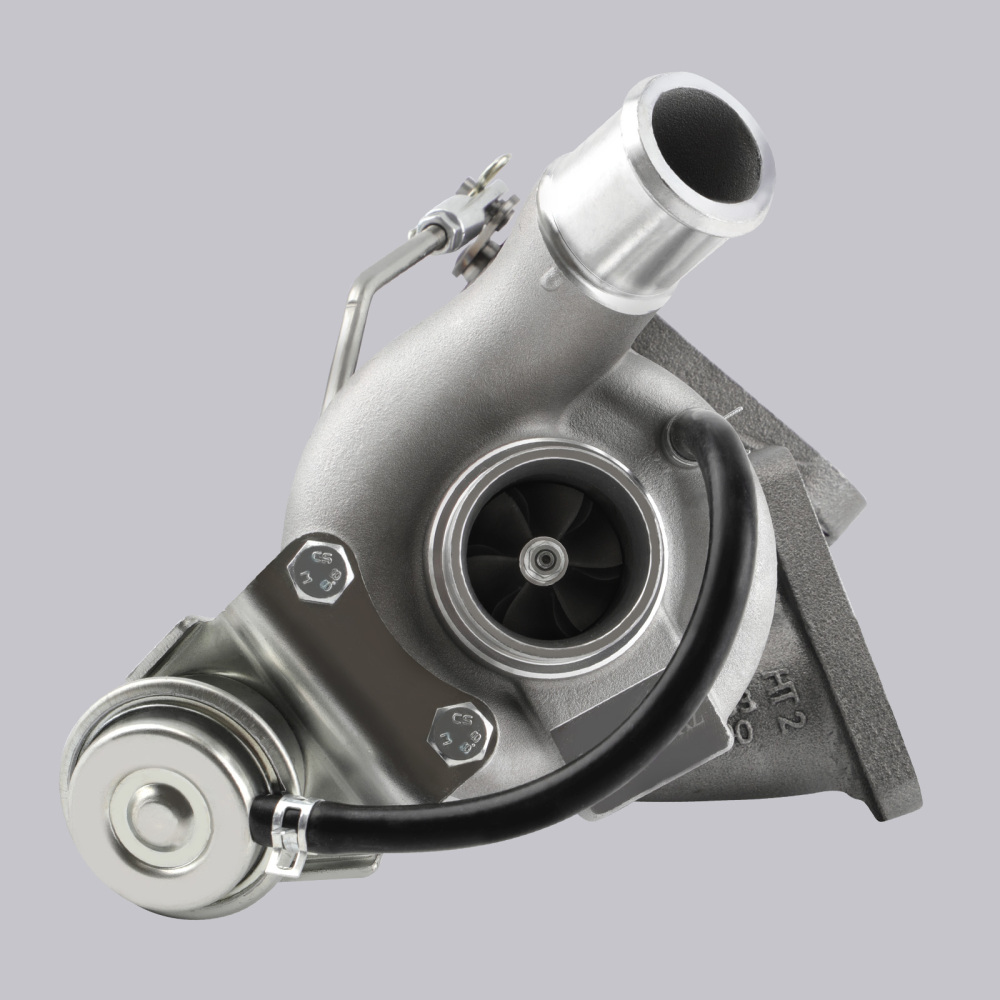

TURBOCHARGER compatible for FORD TRANSIT MK7 2.2 TURBO 85 / 100 / 115 BHP compatible for FWD 2006-2014

Application

Compatible for Ford Transit VI 2.2 TDCi 63kw 84ps 2006 -
Compatible for Ford Transit VI 2.2 TDCi 81kw 109ps/ 110ps 2006 -
Compatible for Ford Transit VI 2.2 TDCi 85kw 114ps/ 115ps 2006 -
（Note:do not compatible for Ford Transit VI 2.2TDCI 116ps-140ps )

OE/Part number

49131-05313，49S31-05313，49131-05300，
49131-05312，49131-05310，
6C1Q6K682CE，6C1Q6K682CD，
1567327，1449556，1372393

Specification

Turbo Model：TD03 TD03L4
Engine：Duratorq TDCI
Cooled Type：Oil cooled
Bearing Type: Journal Bearing
Thrust bearings: 270 Degrees
Turbo Type: Individual
Universal Fitment: No
Finish:Matte
Condition: Brand New
Package Size：29*28*24cm
Package Weight：5350g
Accessories: You will receive the parts exactly as shown in the picture above

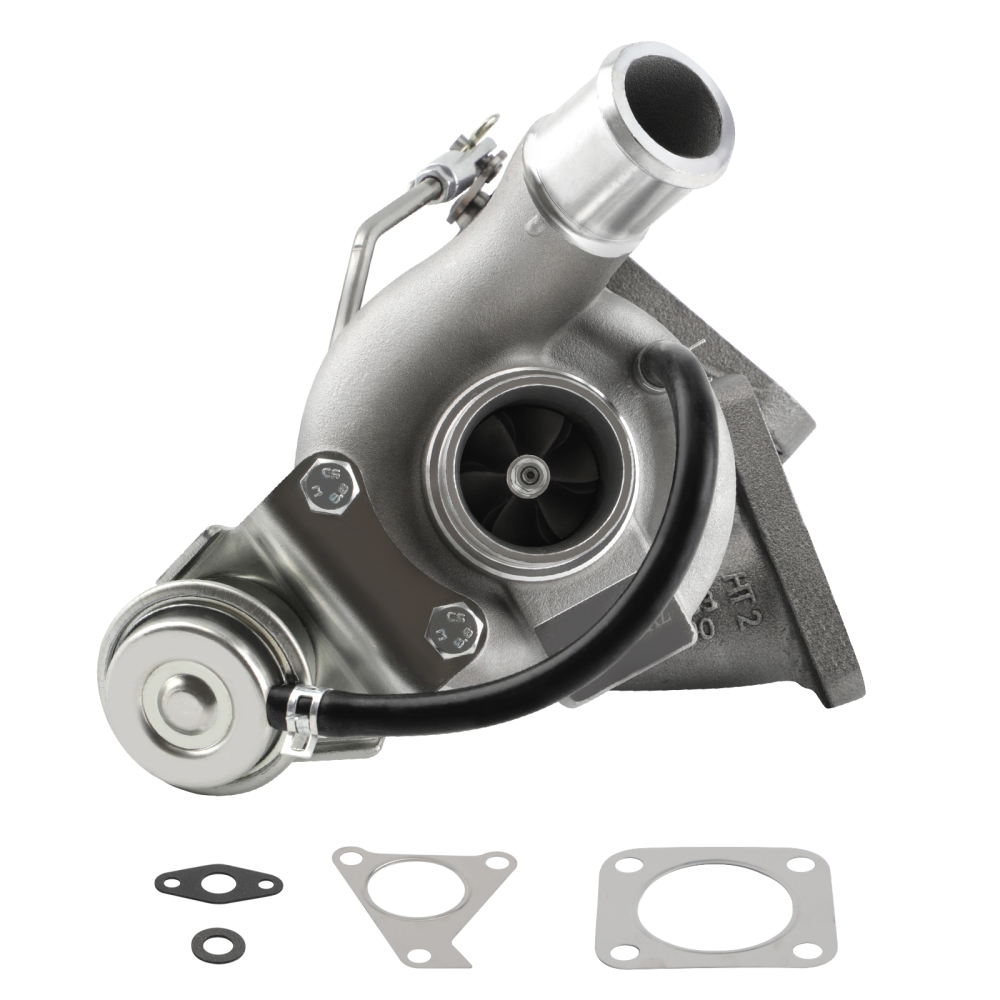

Package included

1xTurbocharger
2xFlange gaskets
2xOil feed/drain gaskets
1xManual
1xBrochure
1xSticker

Feature

* Product Material
1. Turbine housing ：Ductile iron QT450-10- temperature resistant up to 700℃
2. Steel turbine wheel：K418 alloy - high oxidation stability and resistance up to 900℃
3. Compressor housing：ZL104 aluminum with lightweight

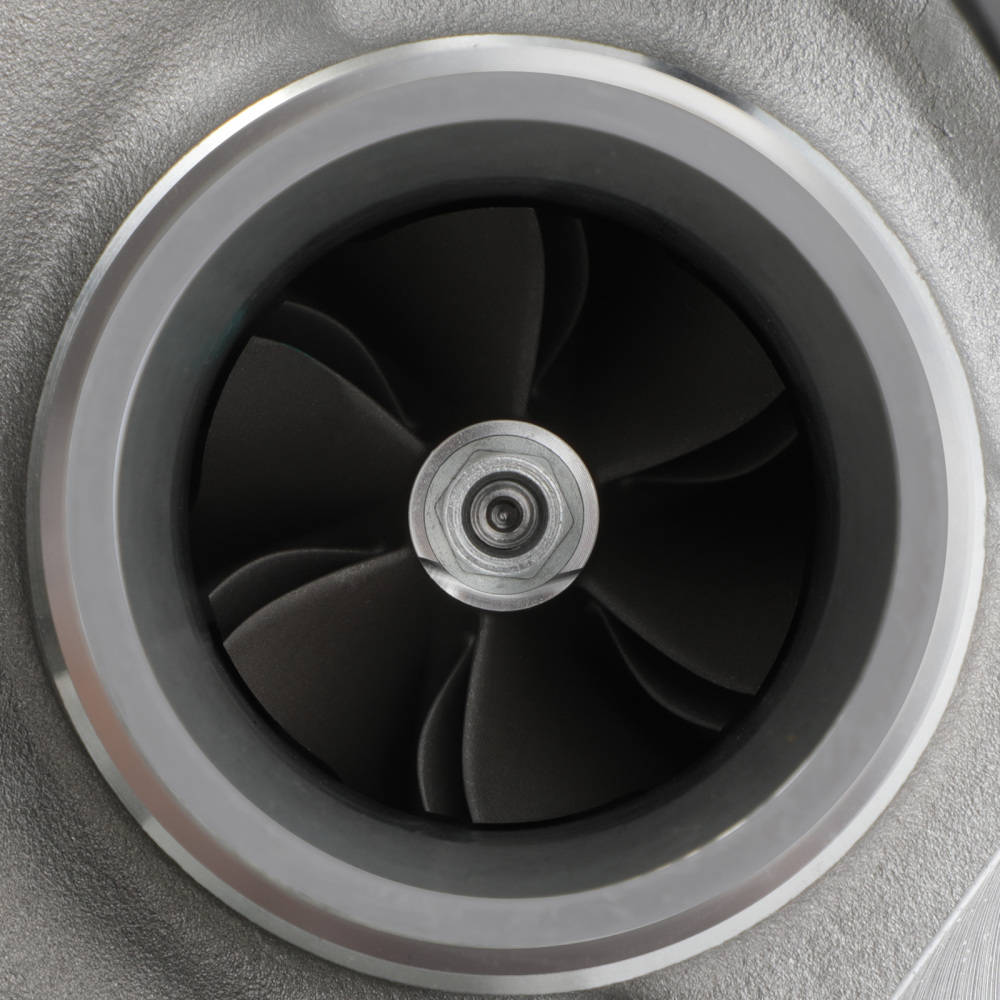

4. Compressor wheel/blades：Cast aluminium blades – superior air tightness & corrosion resistance

* Product Performance
1. OEM-quality and size with little modification
2. Rich experience in turbo production and own factory
3. High-Speed oil seal ring and Precision clearance

* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS VSR3
2. G3-min-Flow VNT Turbo testing
3. Advanced Actuator Tester/Programmer

Note

* Please confirm your original turbo PART NUMBER before Purchasing
* Professional installation is highly recommended
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
