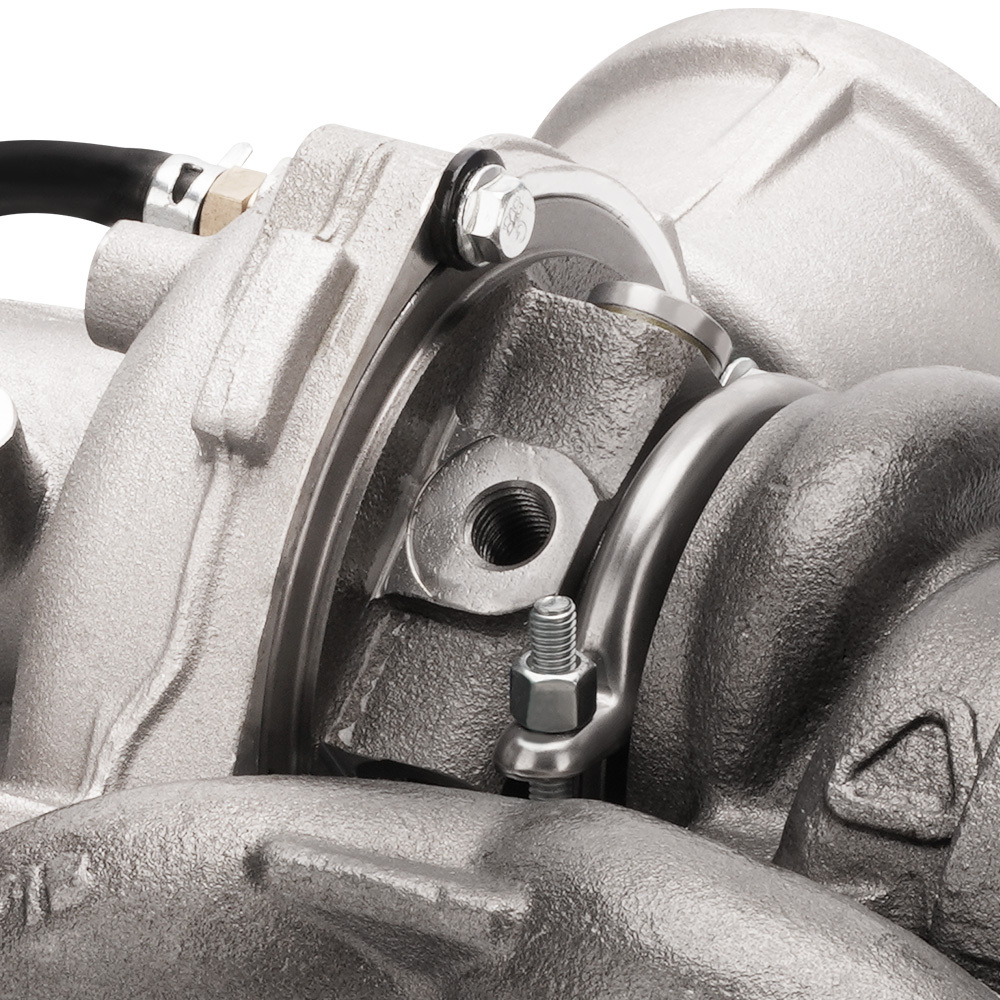

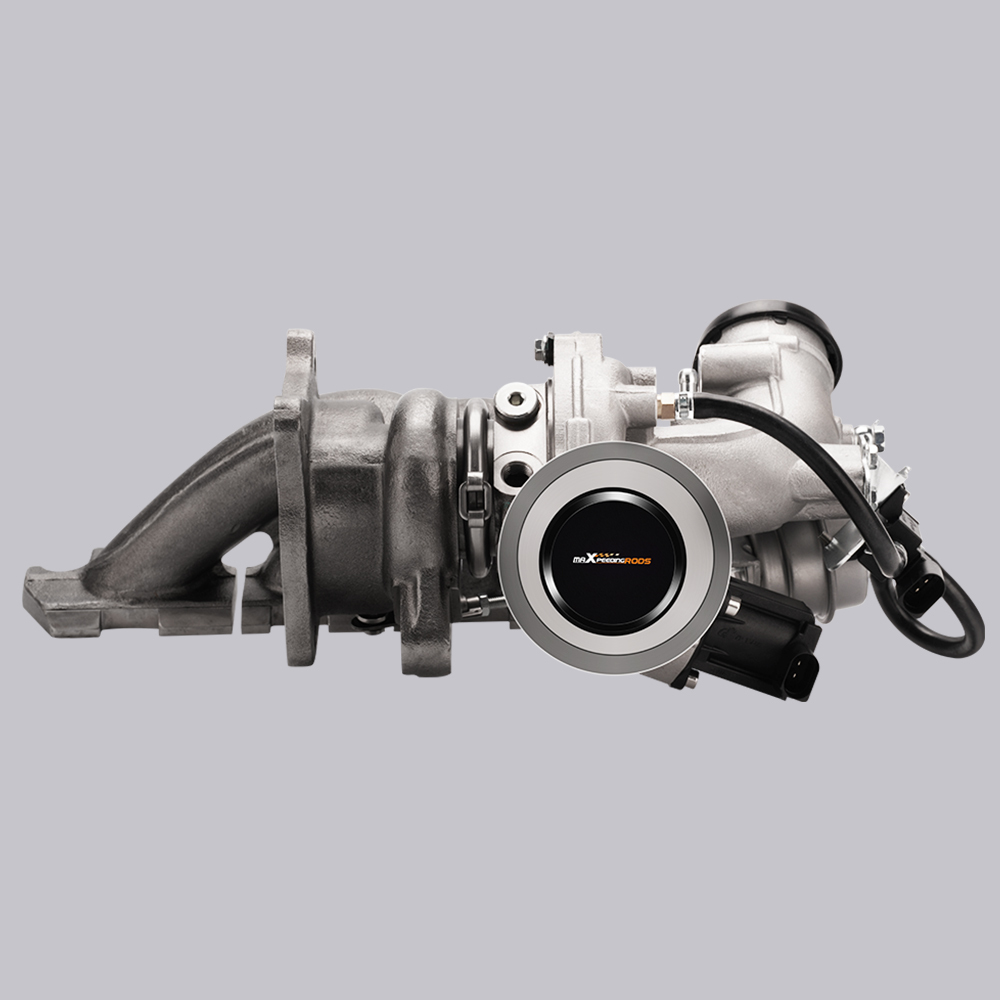

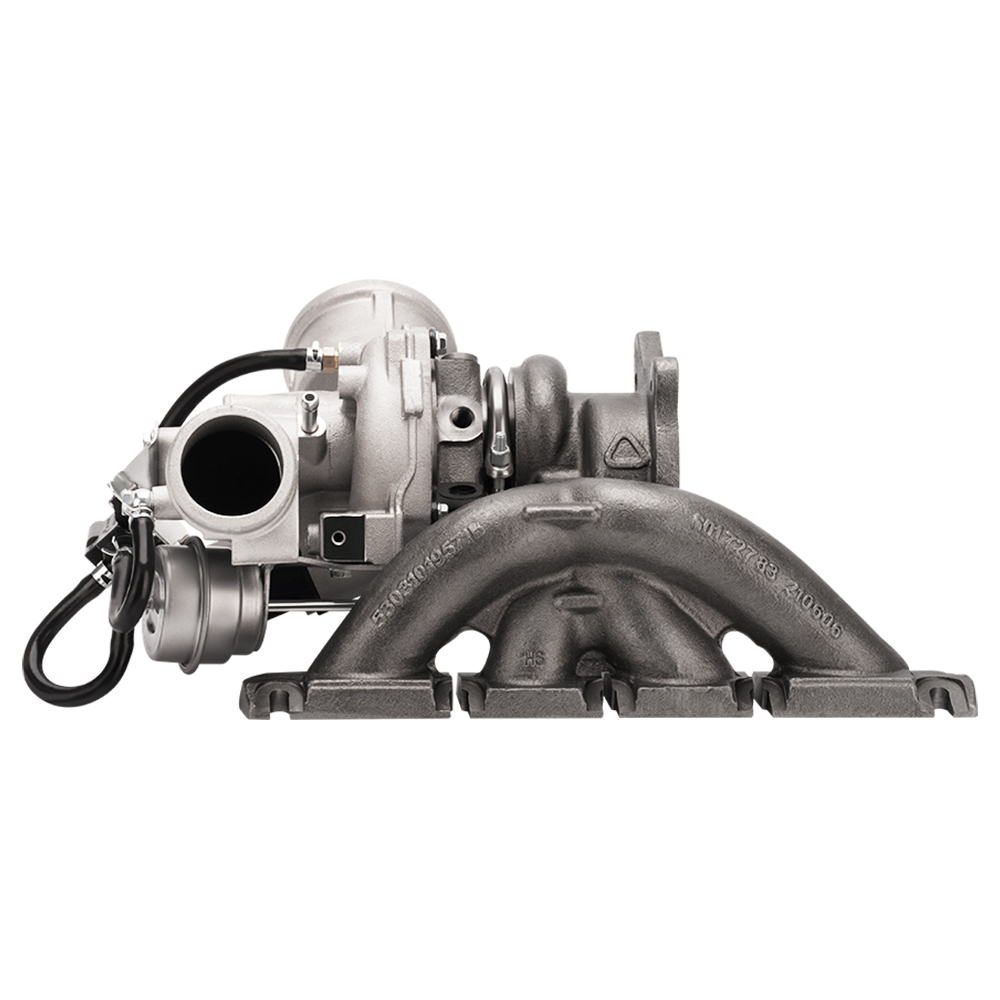

Turbo Turbocharger Manifold compatible for Audi A4 2.0 TFSI BWE BUL 53039880106 06D145701JX

Stock In Stock
Item Number 3002907498

Combination offer

  • A
  • B
  • C
  • D
  • E
  • F
  • G

Application

Compatible for Audi A4 2.0L TFSI 2005-2010
Compatible for Audi A4 Quattro 2.0L TFSI 2006-2009
Compatible for Audi A3 2.0L TFSI  2008-2013
Compatible for Audi TT 2.0L TFSI  2009-2010
Compatible for Audi A4  Base Sedan 4-Door /Sport Sedan 4-Door   2010
Compatible for Audi  A4 Cabriolet (B7)   2005-2009   2.0L BGB BPG BPJ BUL BWE BWT BYK
Compatible for Audi  A6  2005-2011   2.0L BPJ BYK 4F2 4F5 C6 TFSI
Compatible for Audi  A3  2008-2013   2.0L
Compatible for Audi  TT  2009  2010   2.0L
Compatible for Seat Exeo 2009-2011  2.0L TSI BWE 3R2 TFSI
Compatible for Audi A4 Quattro Cabriolet Convertible 2-Door 2007-2009
Compatible for Audi A4 Cabrio S Line Convertible 2-Door 2008-2008
Compatible for Audi A4 Limited Edition Sedan 4-Door 2006-2006
Compatible for Audi A4 Luxury Sedan 4-Door 2009-2009
Compatible for Audi A4 S Line Sport Sedan 4-Door 2006-2007
Compatible for Audi A4 Trendy Plus Sedan 4-Door 2009-2009
Compatible for Audi A4 Vangard Sedan 4-Door 2006-2006
Compatible for Audi A4 Quattro Avant Wagon 4-Door 2006-2009

Compatible for Audi A4 2.0 TFSI (B7) BGB  200HP 147KW  2004 to 2008
Compatible for Audi A4 2.0 TFSI (B7) BWE   200HP 147KW  2005 to 2008
Compatible for Audi A4 2.0 TFSI (B7) BUL  220HP 147KW  2005 to  2008
For AudiA6 2.0 TFSI (C6) BPJ  170HP 125KW  2005-
Compatible for Seat Exeo 2.0 TFSI BWE   200HP 147KW  2009 to  2012


OEM&Part Number

53039880106 , 53039700106
53039700087, 53039880087
5303-988-0086, 53039880086
5303-988-0106 , 5303-970-0106
5303-988-0087 , 5303-970-0087
06A145701A, 06A145701AX, 06A145701AV
06D145701B, 06D145701BX, 06D145701BV
06D145701C, 06D145701CX, 06D145701CV
06D145701D, 06D145701DX, 06D145701DV
06D145701E, 06D145701EX, 06D145701EV
06D145701F, 06D145701FX, 06D145701FV
06D145701H, 06D145701HX, 06D145701HV
06D145701J,  06D145701JX, 06D145701JV,



Specification

1. Turbo Model: K03-2080DCB5.88KCAXK
2. Engine model: 2.0 TFSI along
3. Cooling Type:water Cooling
4. Bearing Type: Floating Bearing
5. Trust bearing: 270 Degrees
6. Horsepower: Up to 120hp
7. Condition: New
8. Warranty: one year warranty for any manufacturing defect

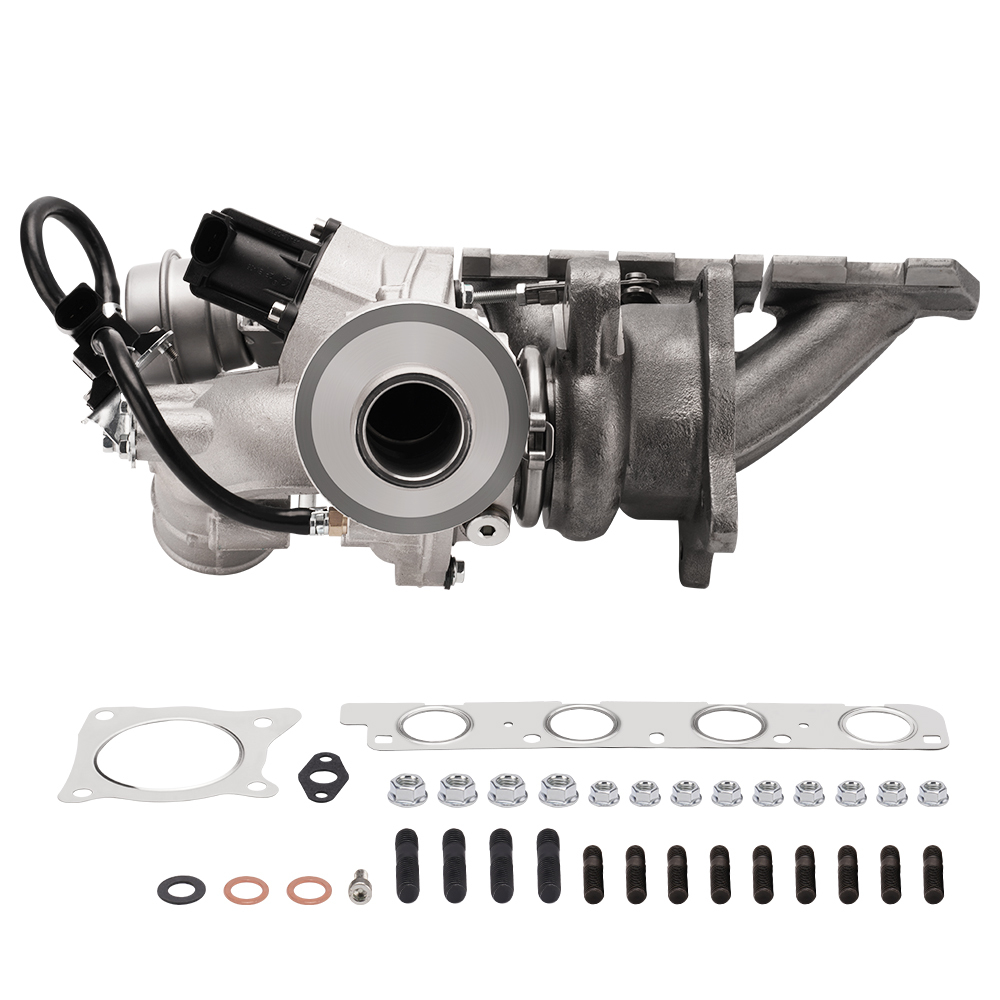

9. Accessories: You will get exactly as shown in the picture above



Feature

Product Material:
1. Turbine housing :Ductile iron QT450-10 shell with high-temperature resistance up to 700 degrees Celsius
2. Steel Turbine Wheel:Made from the special K418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900 degrees Celsius
3. compressor wheel/blades:Cast aluminium with good gas tightness and corrosion resistance
4. OEM-quality and size with little modification

product Feature:
1. Excellent Design:
Excellent Design And Processing and durable floating bearing structure + high-precision blade dynamic balance
2. High Temperature Resistance:
special K418 alloy Turbine Wheel can withstand exhaust temperature Above 900°
ductile iron QT450-10 Turbine housing Can withstand temperatures up to 700℃
3. High Efficiency:
High efficiency and low inertia intake and exhaust blades can greatly reduce turbo lag
4. Durable:
Water-cooled/oil-cooled structure extends turbine service life
5. 100% BALANCING TEST:
This Turbocharger you will receive has been balanced using the VSR machine technology.

Product  Performance:
1. Rich Experience In Turbo Production And Own Factory
2. Quality Assurance
3. High Performance Rotor
4. High-Speed Oil Seal Ring
5. Strict Quality Inspection
6. Precision Clearance
7. High-speed Accessories
8. Increase Engine Power
9. Improve Emissions & Save Oil



Notice

* Please double check  your old turbo part number and car details matches up with one of the OEM part numbers above
* Professional installation and modification is highly recommended (No Instruction Included)
* Any questions please feel free to contact us
