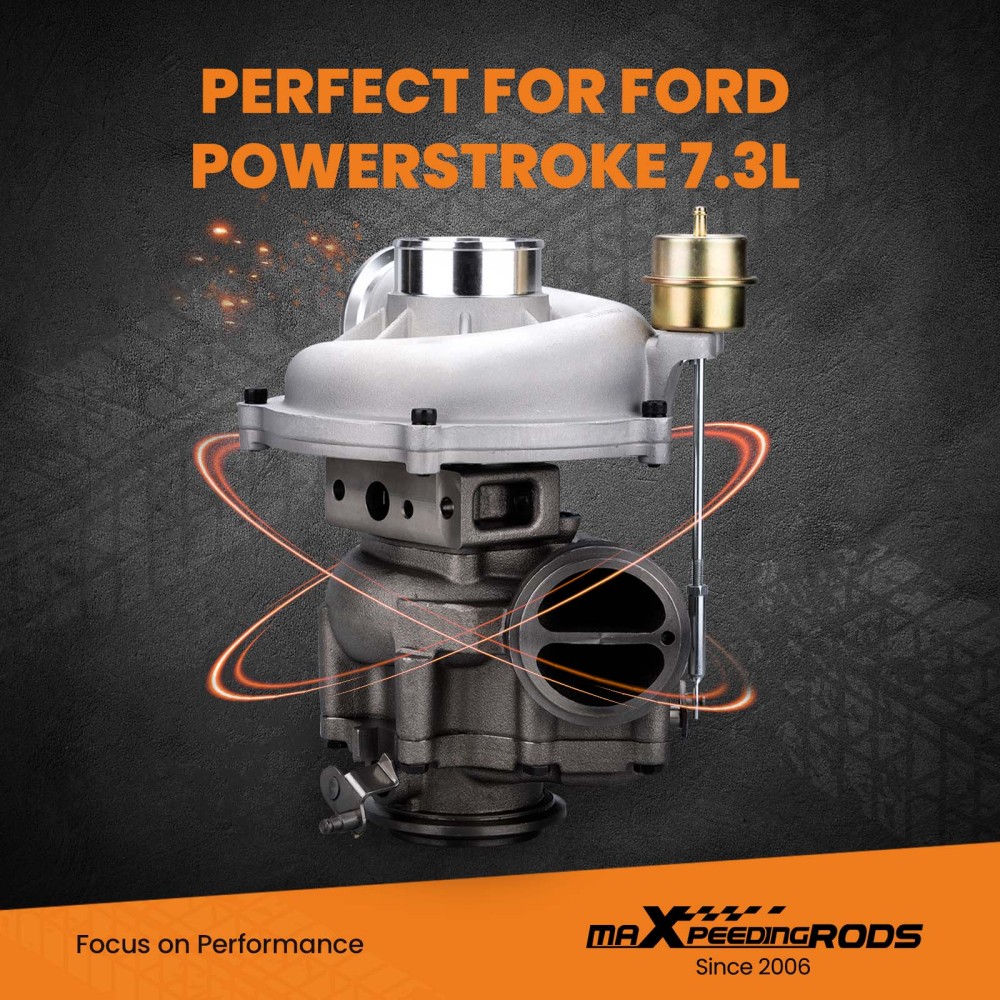

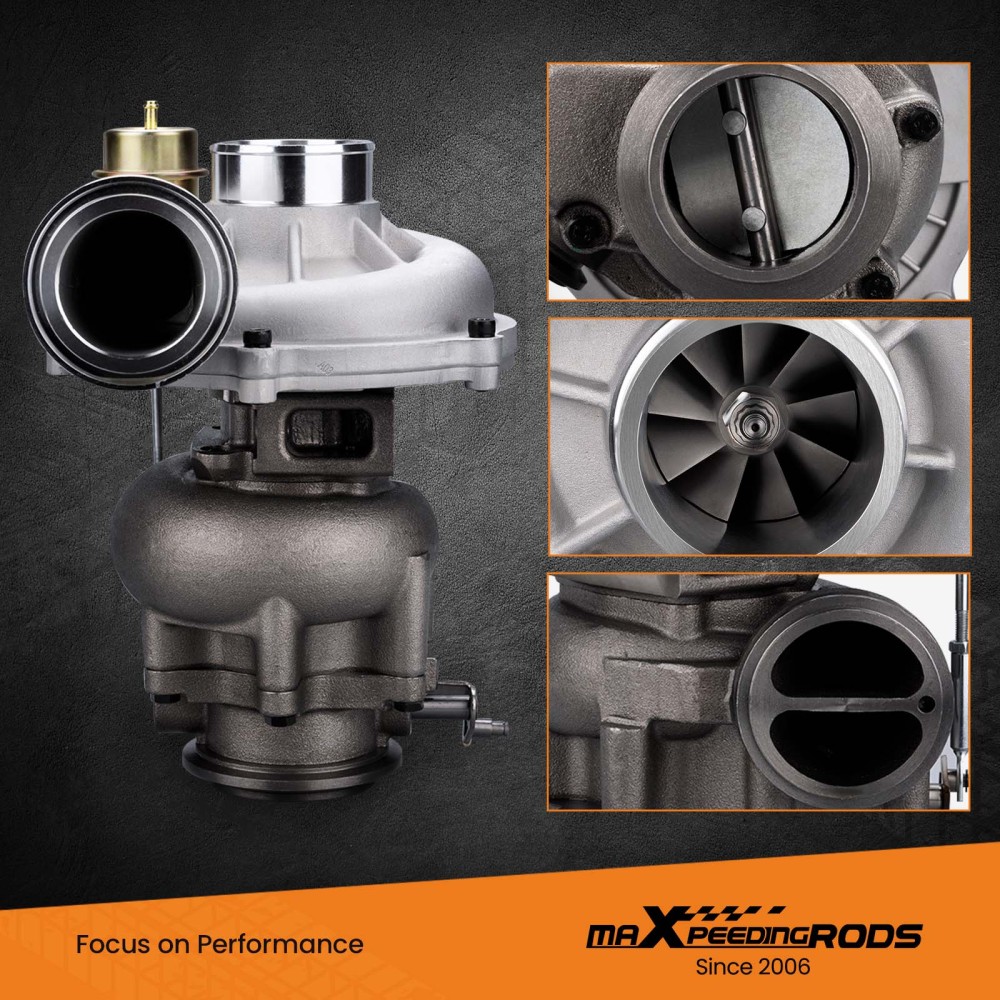

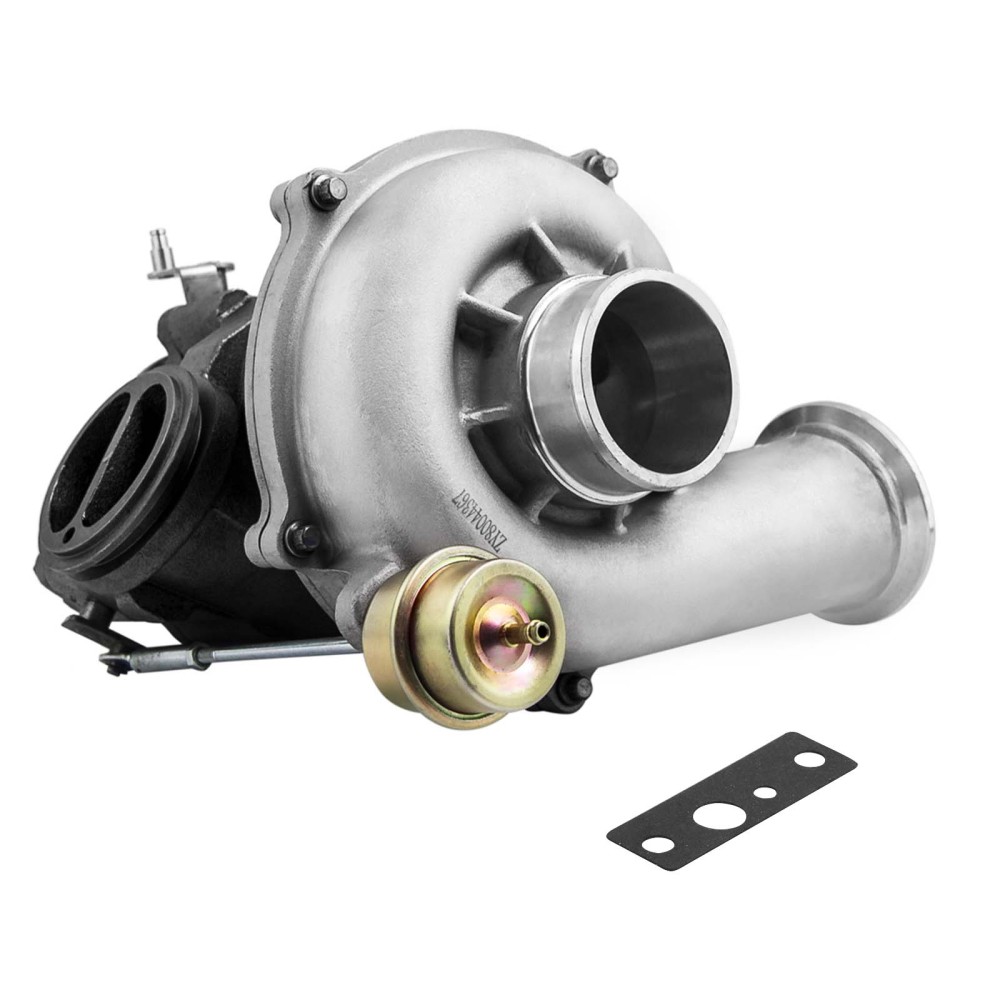

Compatible for Ford F250 F350 F450 F550 Super duty diesel 7.3L Turbo GTP38 Turbocharger

Application

Compatible for Ford Excursion 7.3L Powerstroke Diesel Engine 2000-2003
Compatible for Ford F Series Trucks 7.3L Powerstroke Diesel Engine 1999.5-2003
Compatible for Ford Pick-up Truck 7.3L Powerstroke Diesel Engine 1999.5-2003

Interchange Part Numbe

F81Z6K682CARM ,
1831383C92, 1831383C93,1831383C94,
1831450C91, 1831450C94, 1831452C91, 1831660C92
7020120005,702012-0005,7020120006,702012-0006,
7020129006,702012-9006,7020120010,702012-0010,
7020120012,702012-0012,7020125012S,702012-5012S,
7064475003,706447-5003,7064479003,706447-9003,
(Not fit for 1825878C91，702650-0001，471128-9010)

Specification

Turbine:
Turbine Wheel Diameter:76.9mm / 67.7mm
Turbine Trim:77.5
Compressor:
Compressor Wheel Diameter:80mm / 59.3mm
Compressor Trim:54.9
Turbo Model:GTP38
Engine Code:7.3L

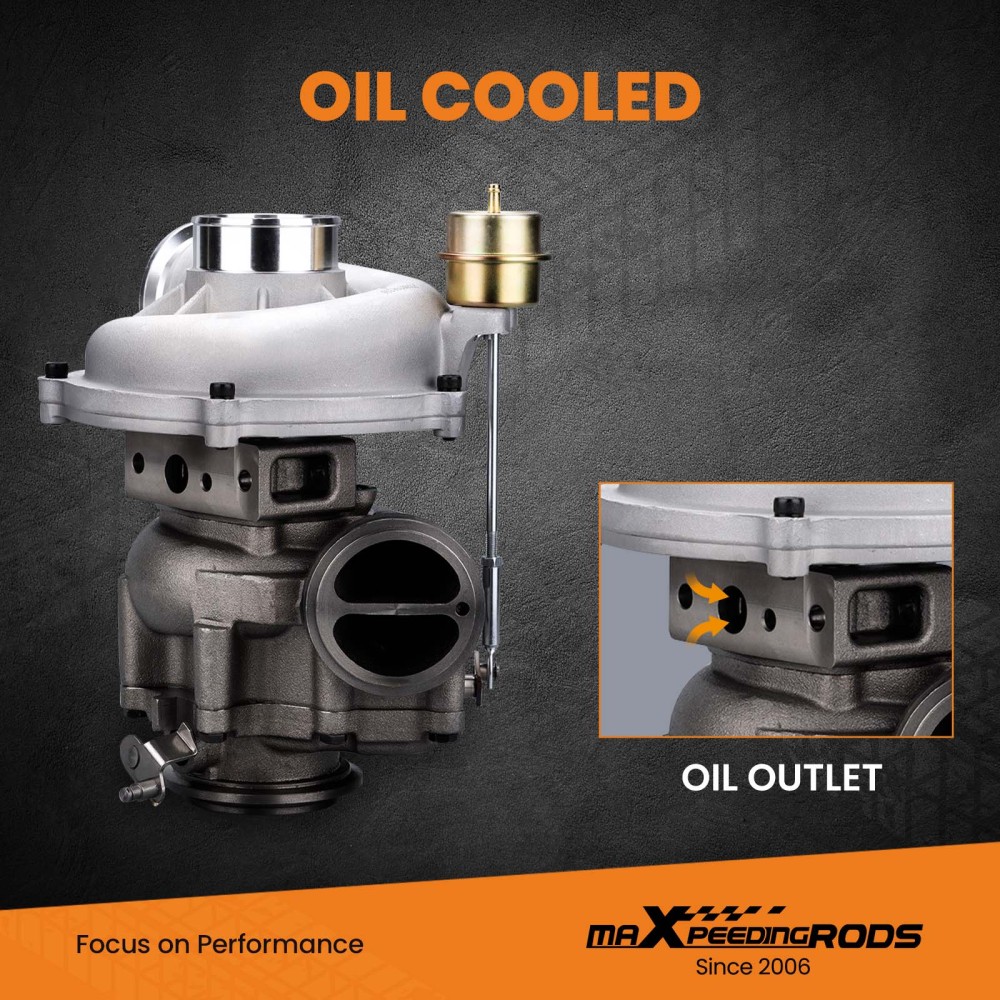

Cooling Type:Oil cooling
Bearing Type: Floating Bearing
Thrust Bearing:270 degree
Turbo Type:Twin-Scroll

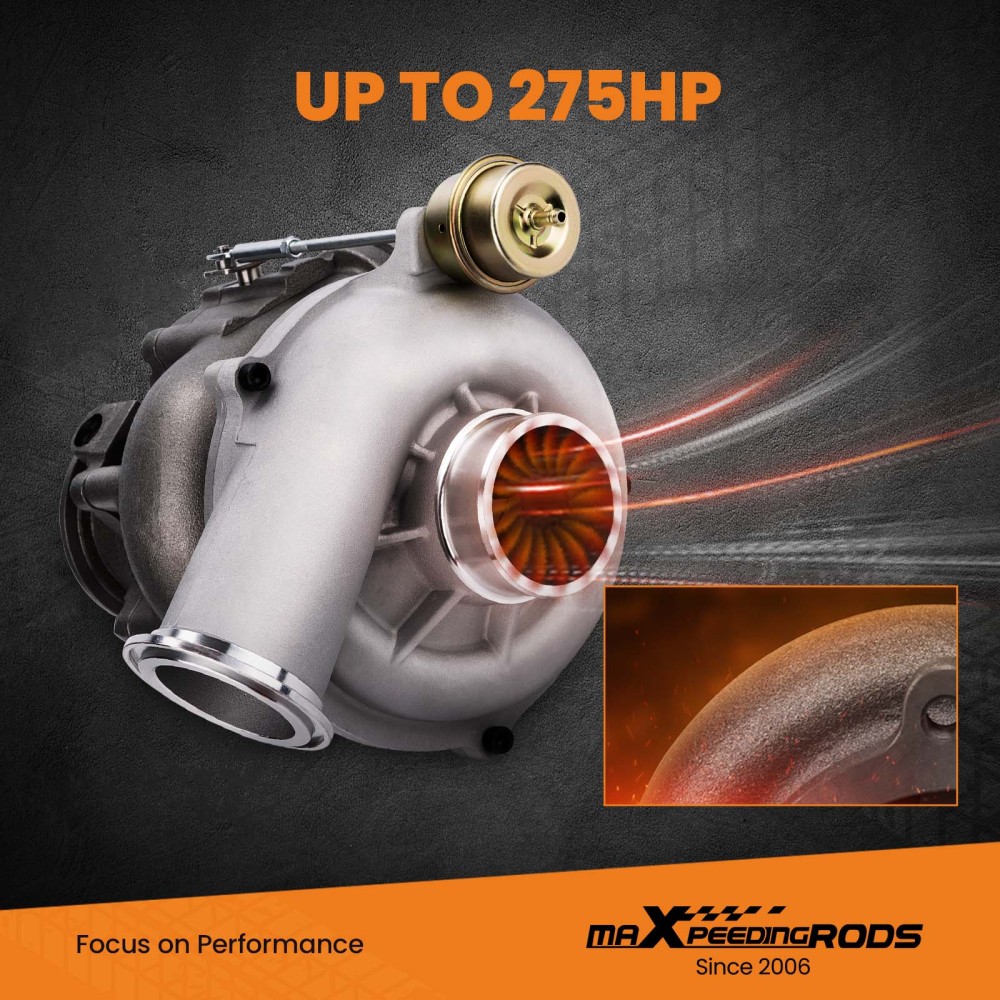

Horsepower: Up to 275 HP
Universal Fitment:No
Finish:Matte
Condition: New
Accessories: You will get exactly as shown in the picture above
Package Size:38x36 x 34 cm
Package Weight: 15850g

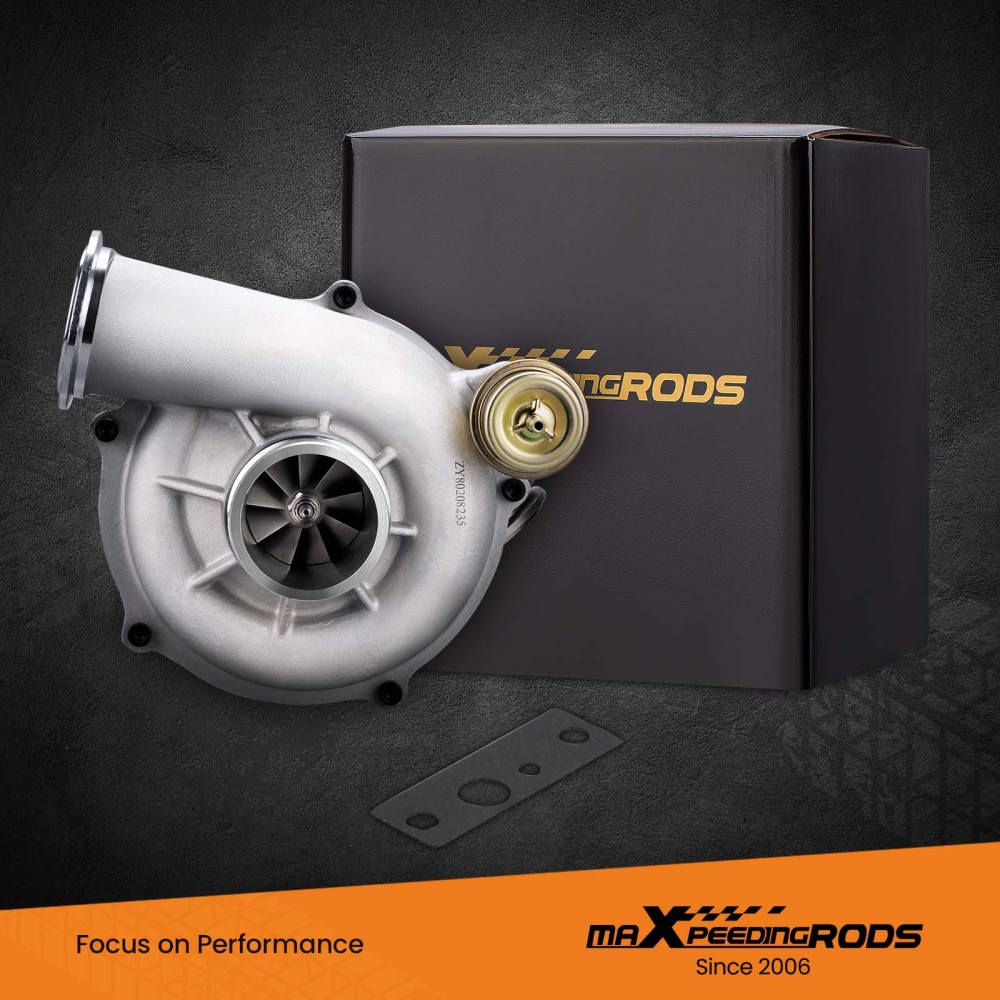

Package included:
1xTurbocharger
1xOil port gasket

Feature

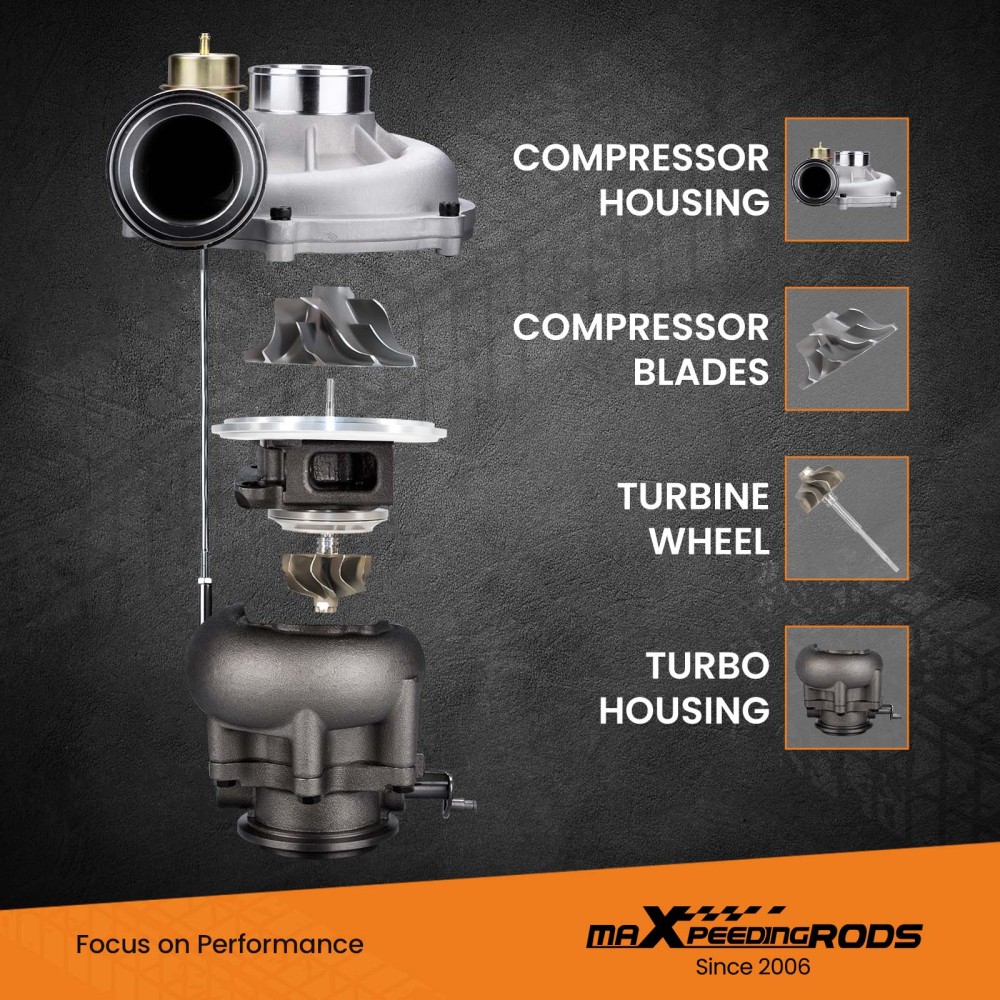

* Product Material
1. Turbine housing ：Ductile iron QT450-10- temperature resistant up to 700℃
2. Steel turbine wheel：K418 alloy - high oxidation stability and resistance up to 900℃
3. Compressor housing：ZL104 aluminum with lightweight
4. Compressor wheel/blades：Cast aluminium blades – superior air tightness & corrosion resistance
* Product Performance
1. OEM-quality and size with little modification
2. Rich experience in turbo production and own factory
3. High-Speed oil seal ring and Precision clearance
* Technology Advantage:

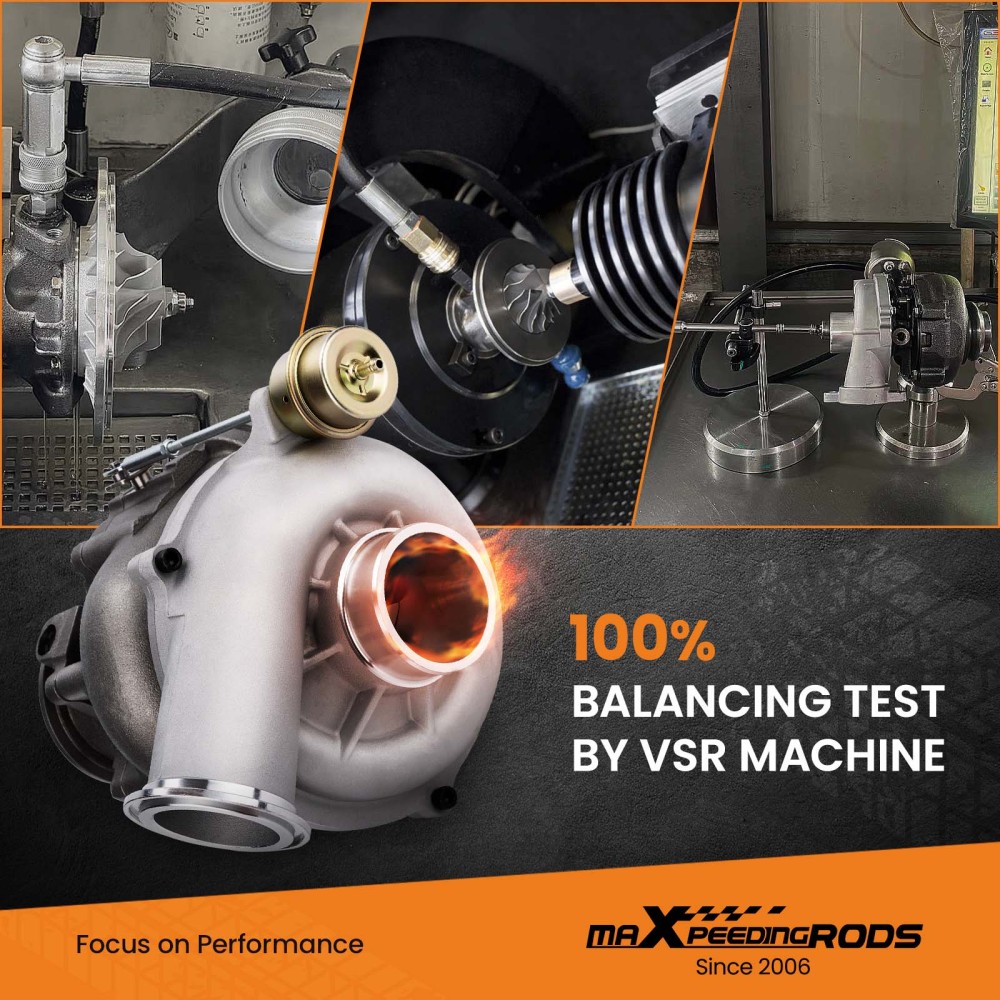

1. 100% balancing Test by TURBOTECHNICS VSR3
2. G3-min-Flow VNT Turbo testing
3. Advanced Actuator Tester/Programmer

Note

* Please confirm your original turbo PART NUMBER before Purchasing
* Professional installation is highly recommended
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
