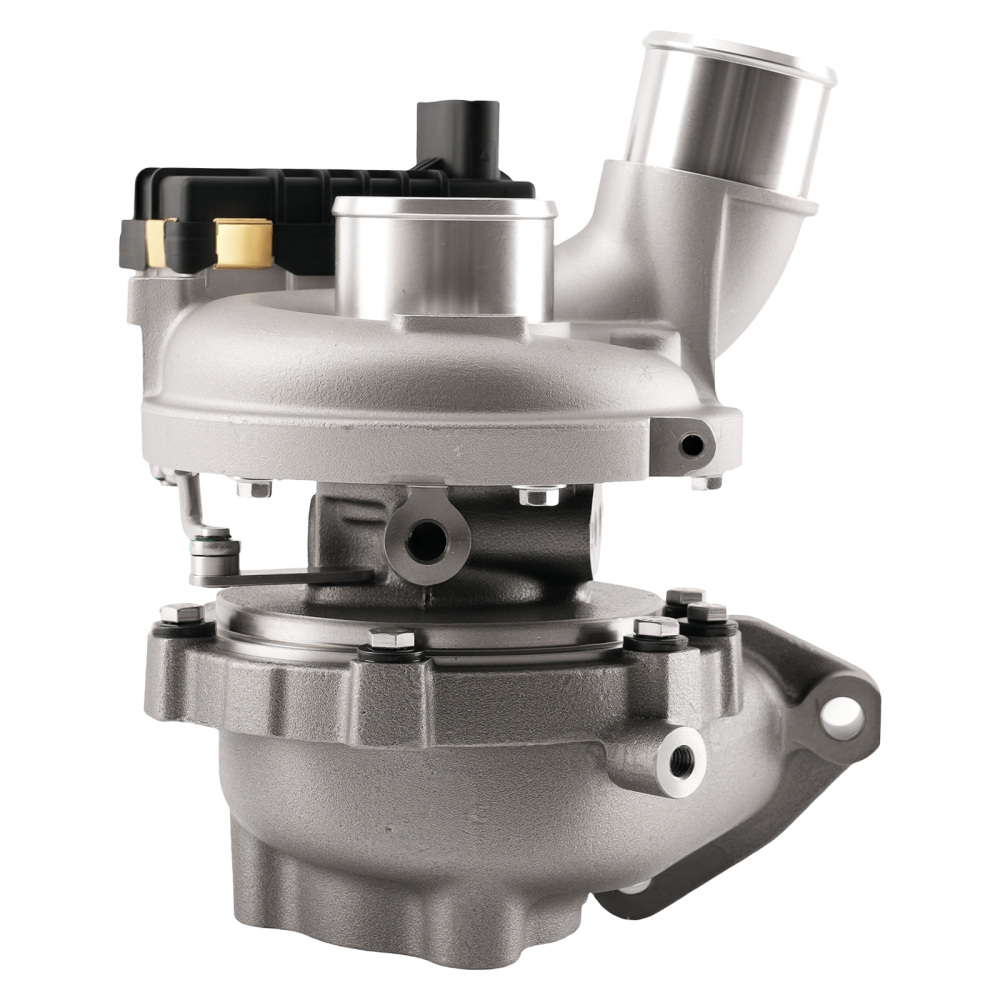

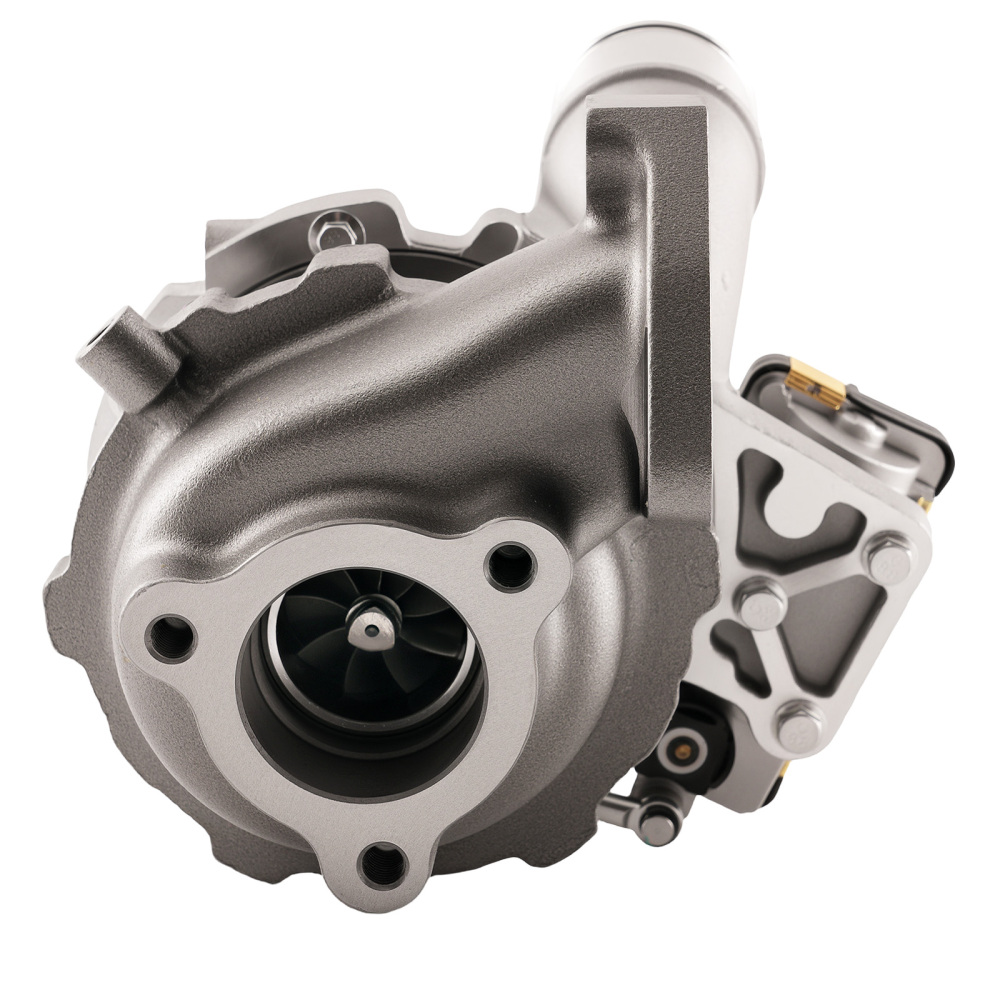

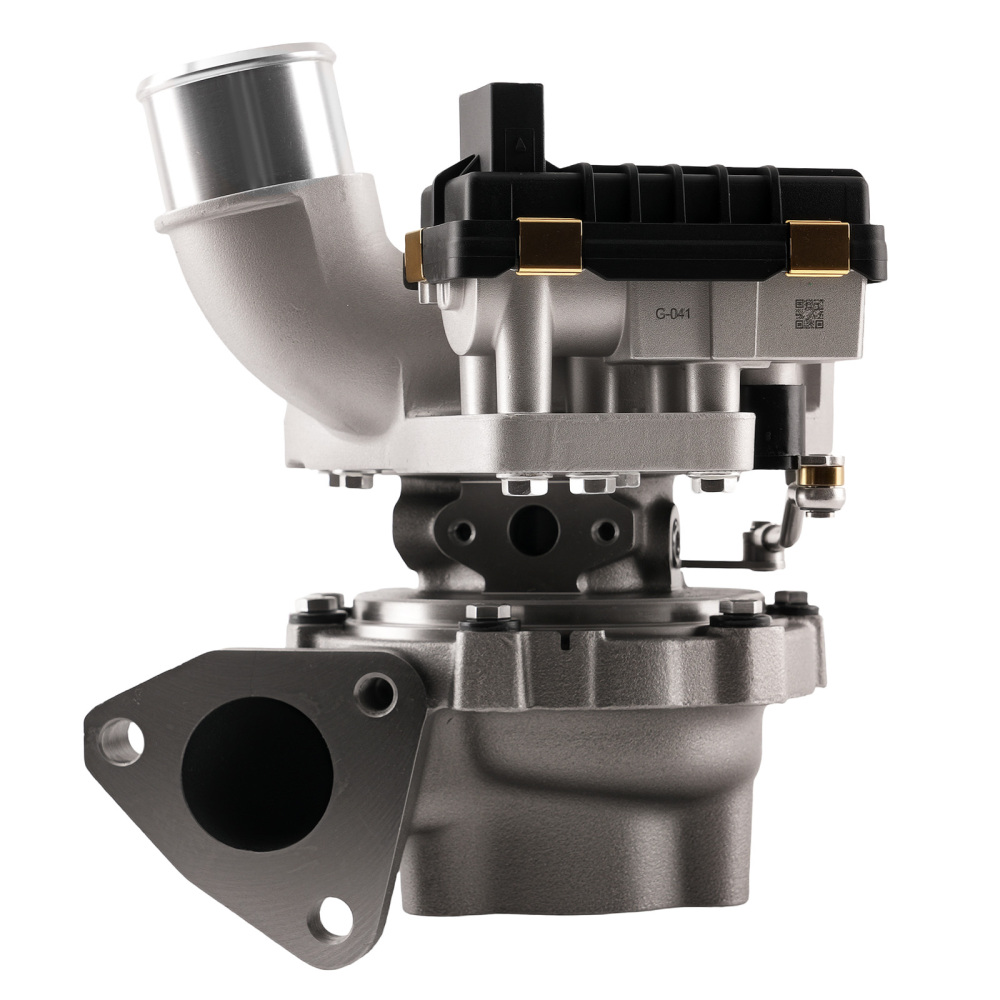

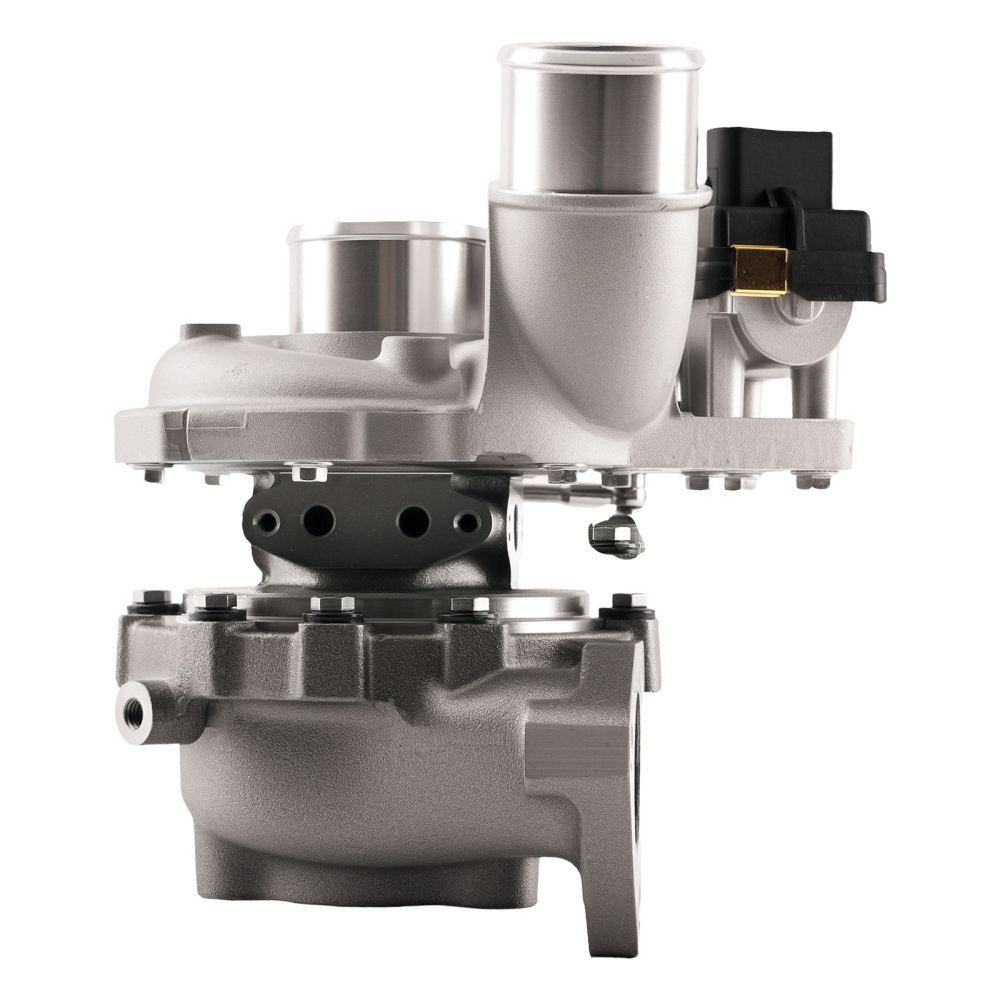

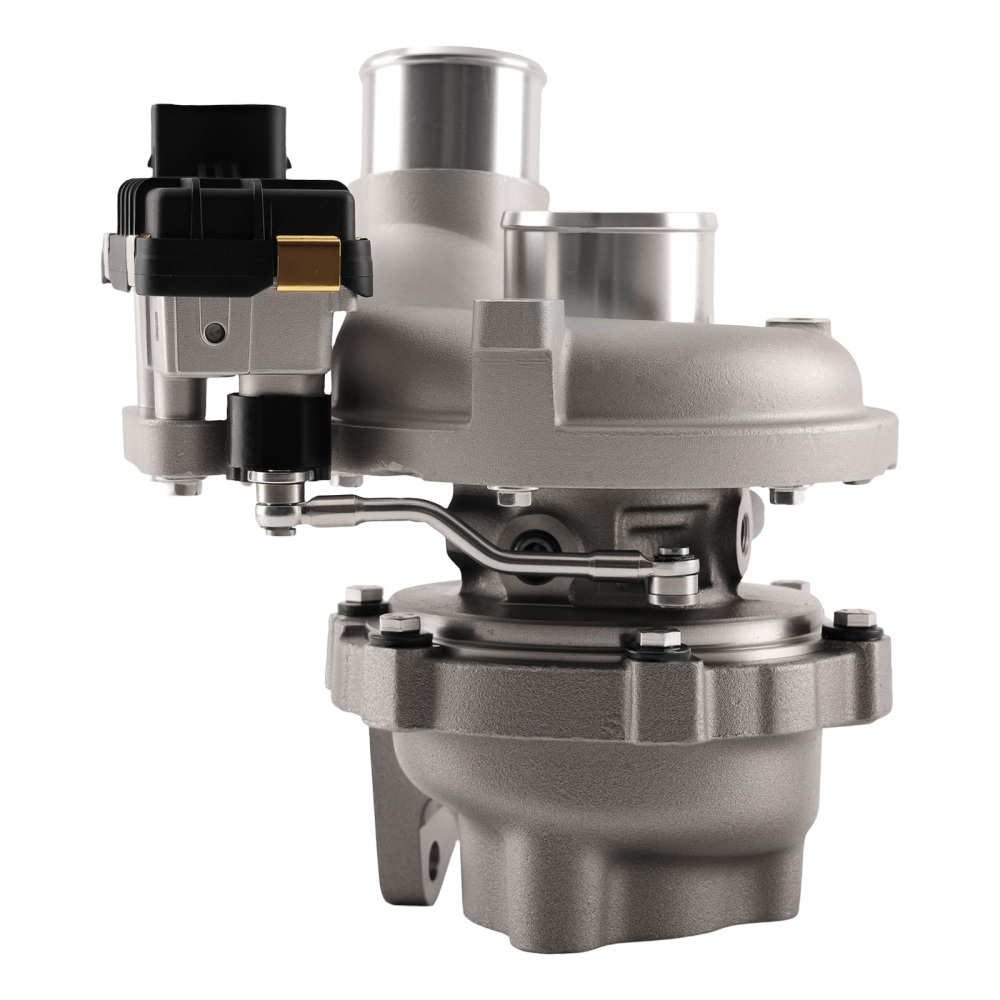

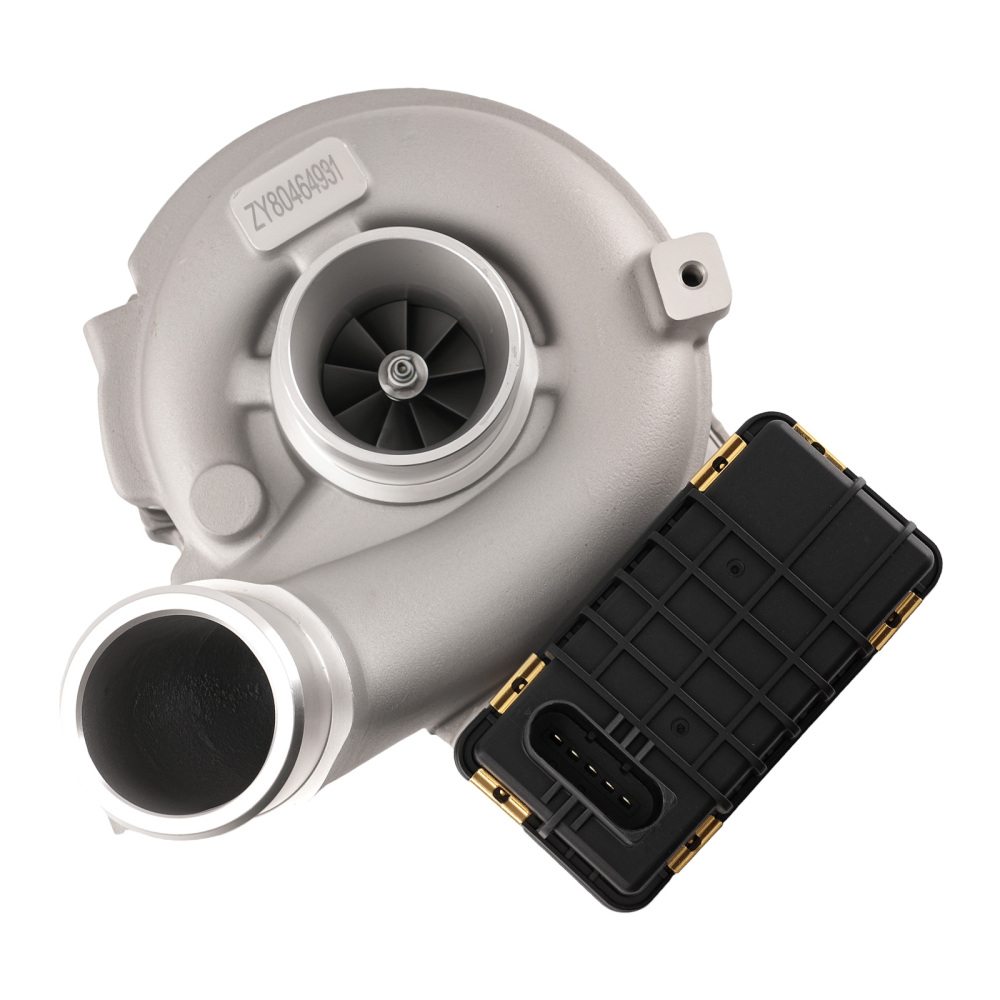

Turbo compatible for Hyundai Grand Santa Fe 2.2 AWD 145KW 2013-2018 780502-5001S

Application

Compatible for Hyundai Grand Santa Fé 2.2 CRDi AWD 145 KW 2013-2018
compatible for Hyundai Grand Santa Fé 2.2 CRDi AWD 147 KW 2013-2018
compatible for Hyundai Santa Fé II CM 2.2 CRDi 145 KW 2009-2012
compatible for Hyundai Santa Fé II CM 2.2 CRDi 4x4 145 KW 2009-2012
compatible for Hyundai Santa Fé III DM, DMA 2.2 CRDi 145 KW 2012-2018
compatible for Hyundai Santa Fé III DM, DMA 2.2 CRDi 147 KW 2015-2018
compatible for Hyundai Santa Fé III DM, DMA 2.2 CRDi 4WD 145 KW 2012-2018
compatible for Hyundai Santa Fé III DM, DMA 2.2 CRDi 4WD 147 KW 2015-2018
compatible for KIA Carnival/Grand Carnival III VQ 2.2 CRDi 110 KW 2010-2015
compatible for KIA Carnival/Grand Carnival III VQ 2.2 CRDi 143 KW 2010-2015
compatible for KIA Sorento II XM 2.2 CRDi 145 KW 2009-2015
compatible for KIA Sorento II XM 2.2 CRDi 4WD 145 KW 2009-2015
compatible for KIA Sorento II XM 2.2 CRDi 4WD 147 KW 2009-2015

OE/Part number

780502-1, 780502-2, 780502-3, 780502-4,
780502-5, 780502-6, 780502-7, 780502-8, 780502-9,
780502-0001, 780502-5001S, 28231-2F100, 282312F100

Specification

Turbo Model: GTB1752VLK
Engine Code: D4HB, R-Engine Eur 5
Cooling Type: Water+Oil Cooling
Features: Variable Geometry
Bearing Type: Journal Bearing/Floating Bearing
Fuel Type: Diesel
Finish: Matte
Condition: 100% Brand New

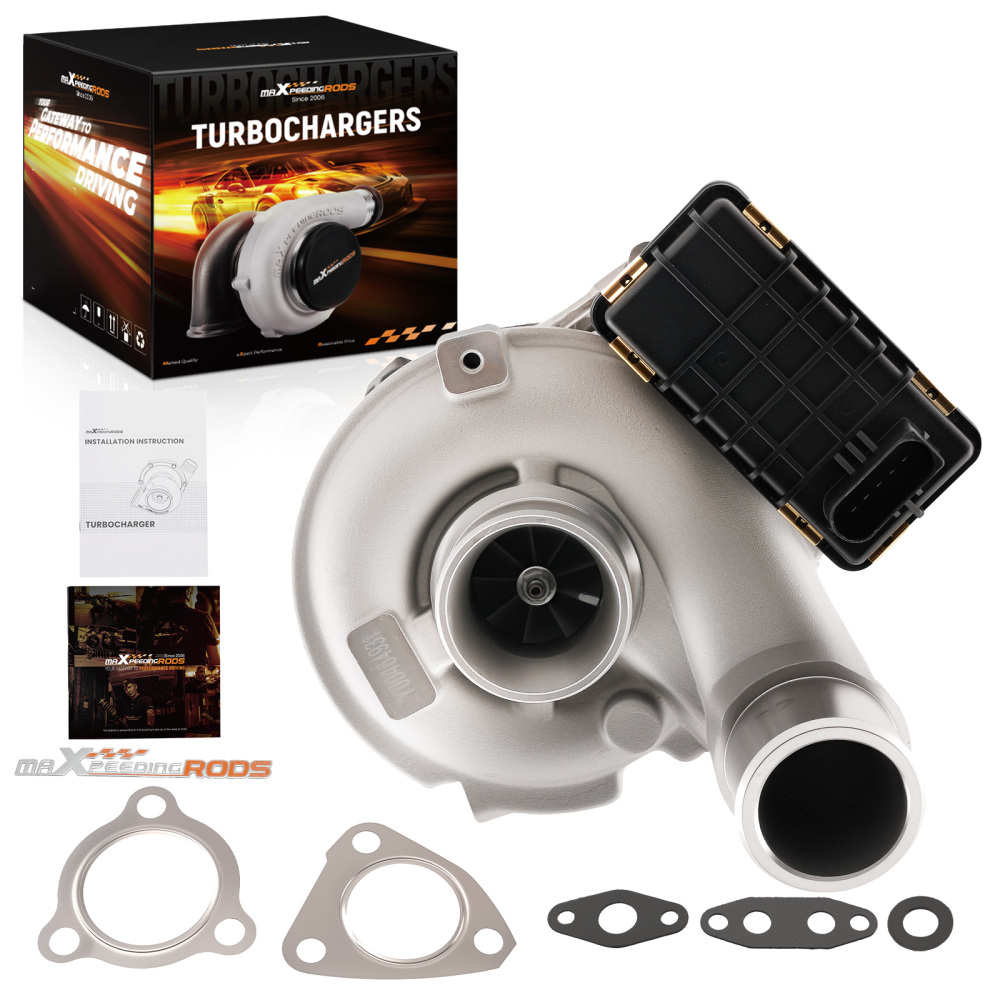

Accessories: You will get what you can see in the pictures exactly

Feature

* Product Material

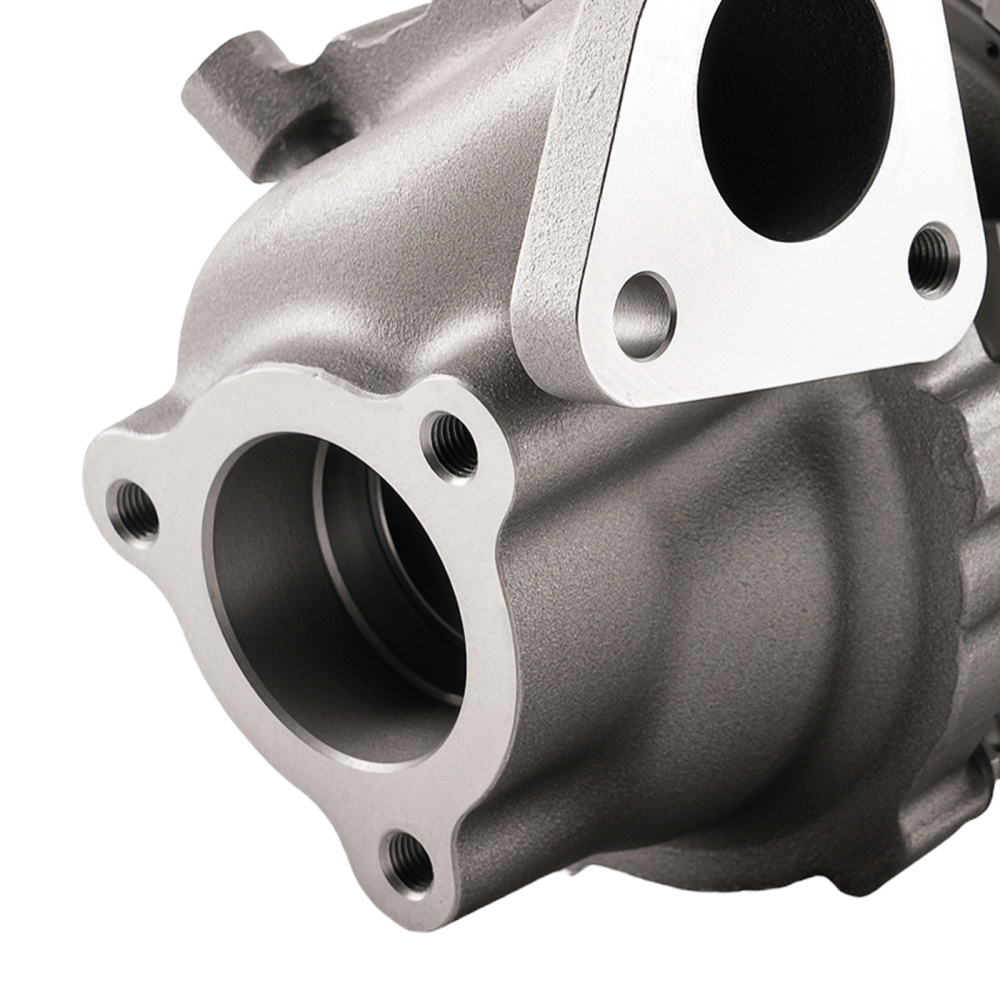

1. Turbine housing: Ductile iron QT450-10- temperature resistant up to 700℃

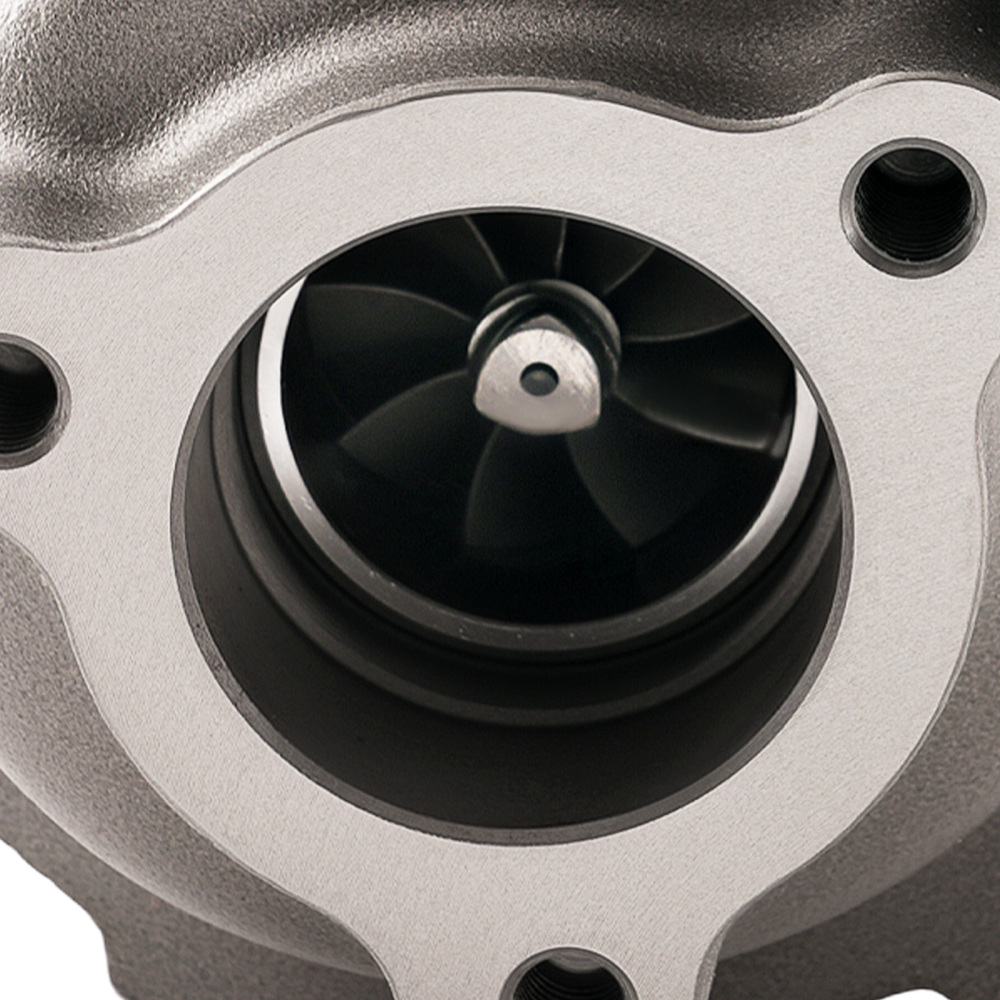

2. Steel turbine wheel：K418 alloy - high oxidation stability and resistance up to 900℃
3. Compressor housing：ZL104 aluminum with lightweight

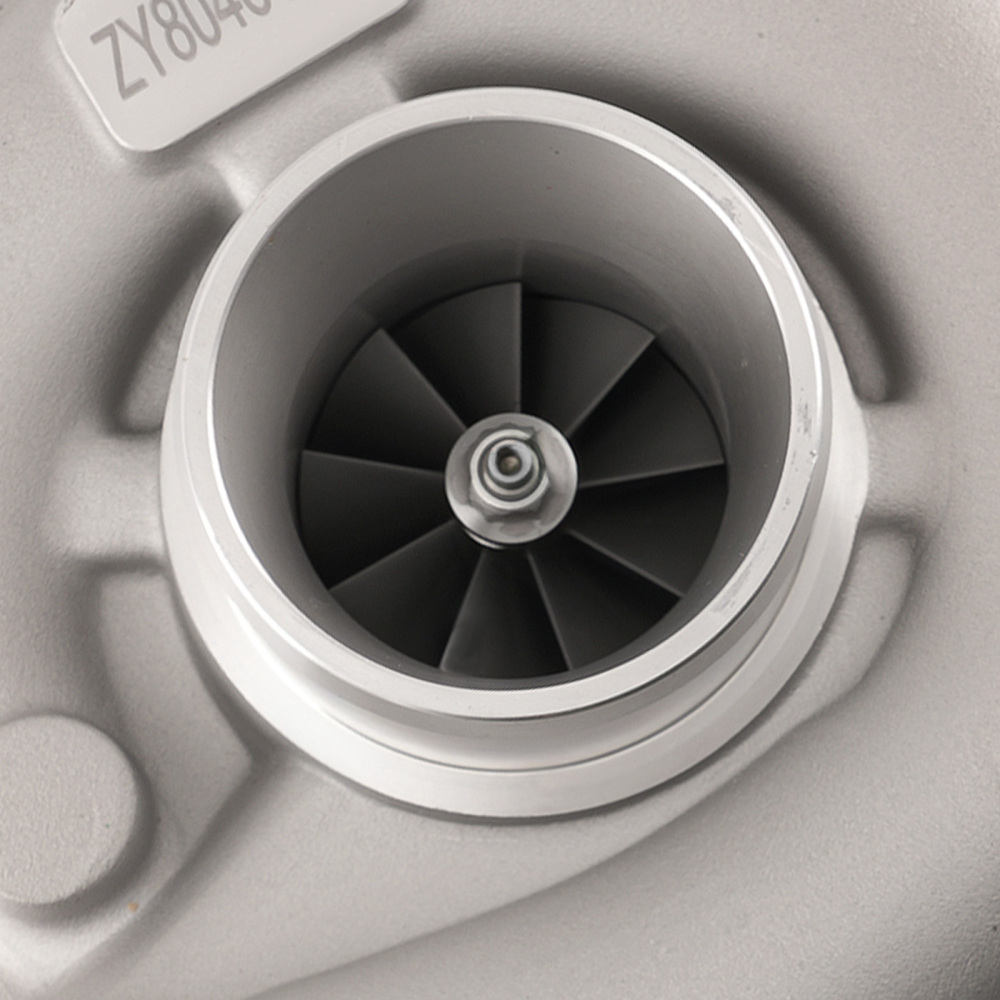

4. Compressor wheel：Cast aluminium blades – superior air tightness & corrosion resistance

* Product
1. OEM size can be directly replaced
2. Rich experience in turbo production and own factory
3. High-Speed oil seal ring and Precision clearance

* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS VSR3
2. G3-min-Flow VNT Turbo testing
3. Advanced Actuator Tester/Programmer

Note

* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
* Please confirm your original turbo PART NUMBER before Purchasing.
* Professional installation is highly recommended,
* Before installation, please check the oil supply sufficient, clearnliness the air filter and gasoline , and the gasoline air tightness.
