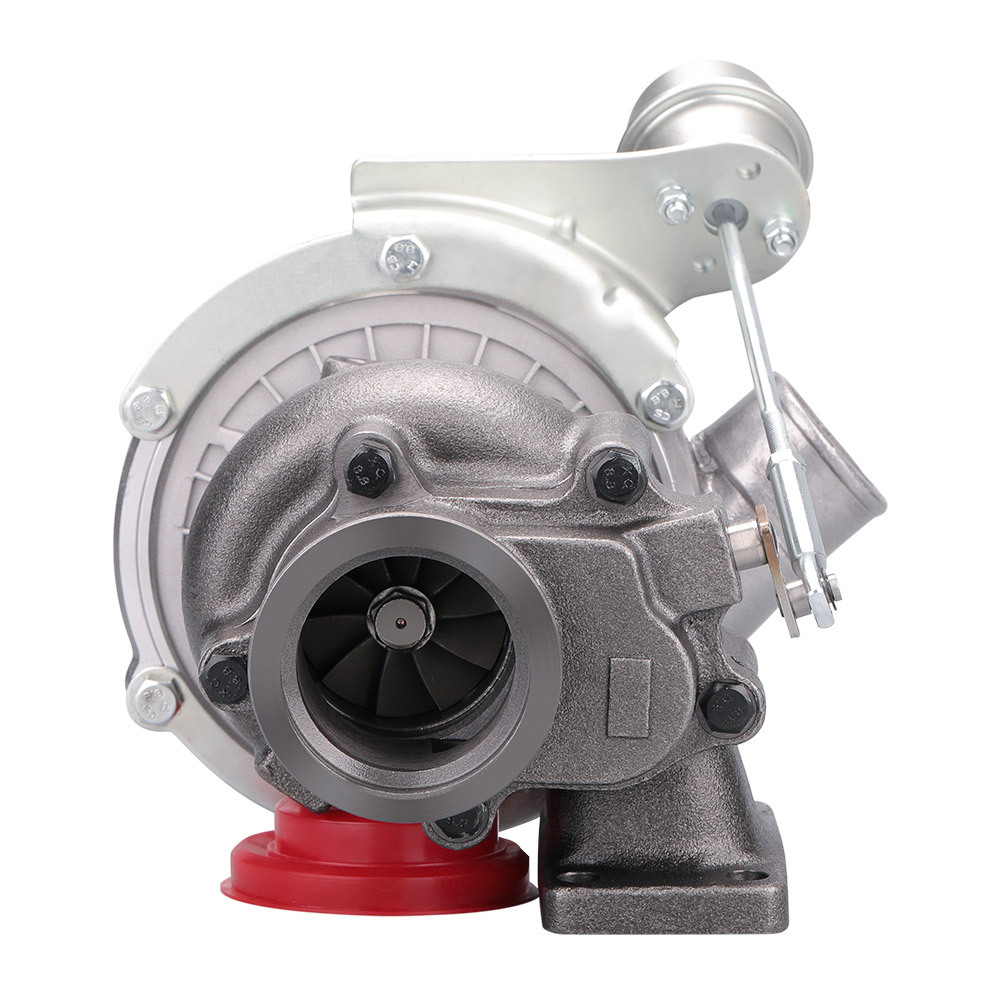

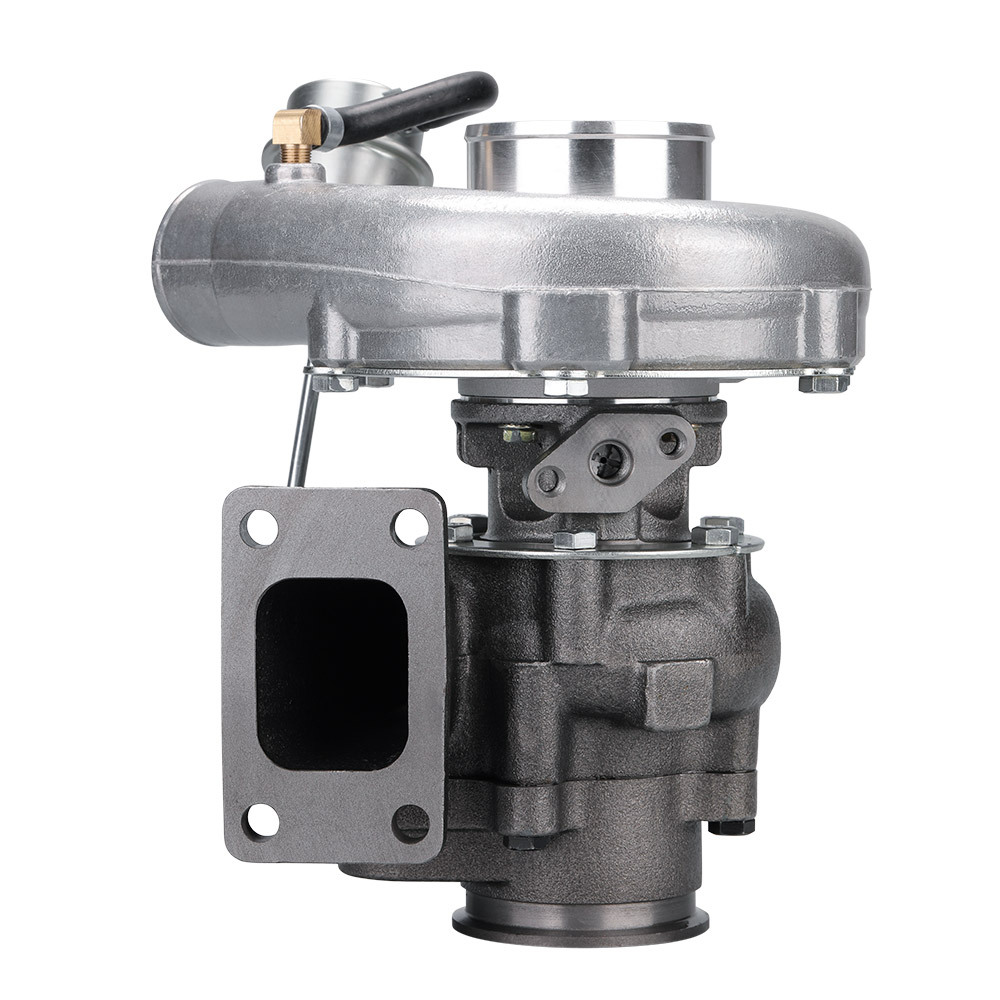

T3 T4 Turbo Charger + Manifold Kit compatible for Nissan Patrol Safari GQ GU 4.2L TD42 TB42

Turbo Exhausted Manifold +Turbocharger compatible for Nissan Safari compatible for Patrol GQ GU Y60 TD42

( 0 reviews )

Item Number 3002105376

Stock

Quantity:

MORE OPTIONS

SHOW MORE SHOW LESS

Add to wishlist
Add to compare

Combination offer

Application

Compatible for Nissan Patrol Safari Y60 GR Petrol 4.2L TB42 TB42S TB42E

Compatible for Nissan Patrol Safari Y60 GR Petrol 4.5L TB45 TB45S TB45E

Compatible for Nissan Patrol Safari Y60 GR GQ Diesel Turbo Diesel 4.2L TD42

Compatible for Nissan Patrol Safari Y61 GR Diesel 4.2L TD42 TD422 TD42T3

Specification

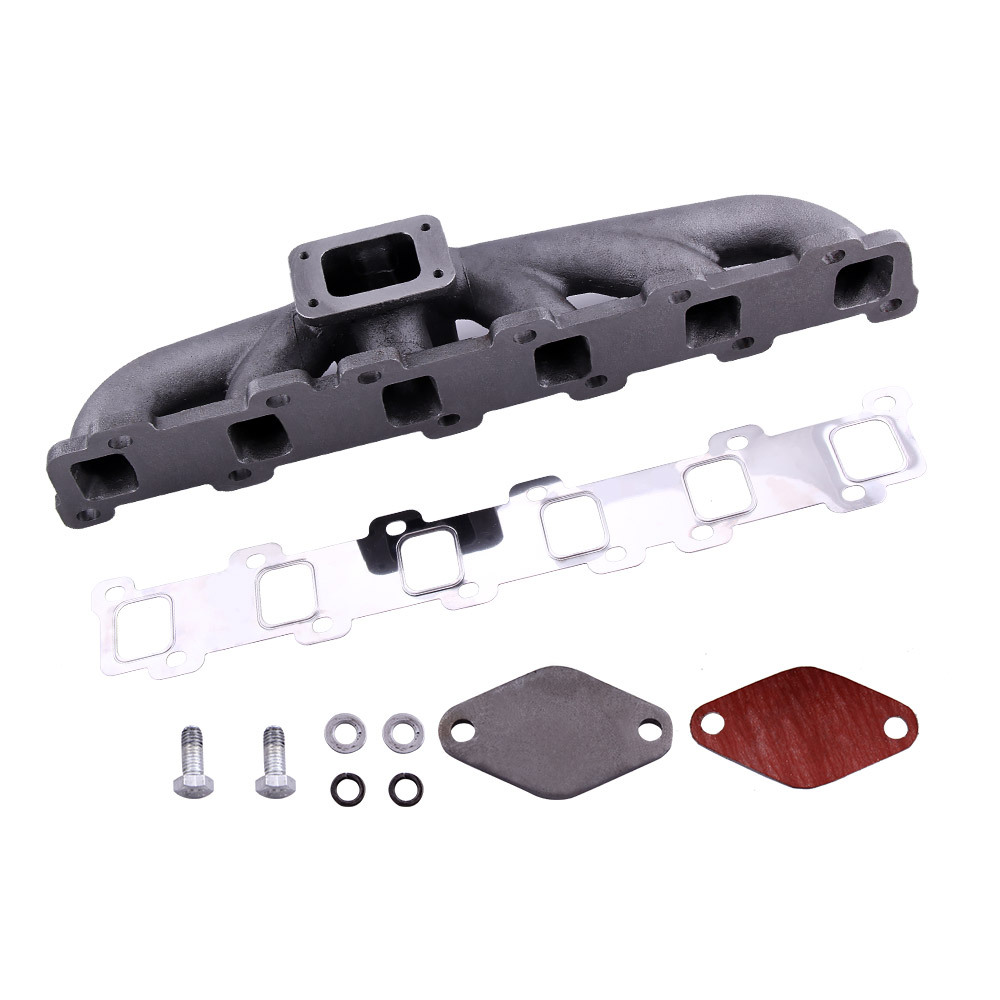

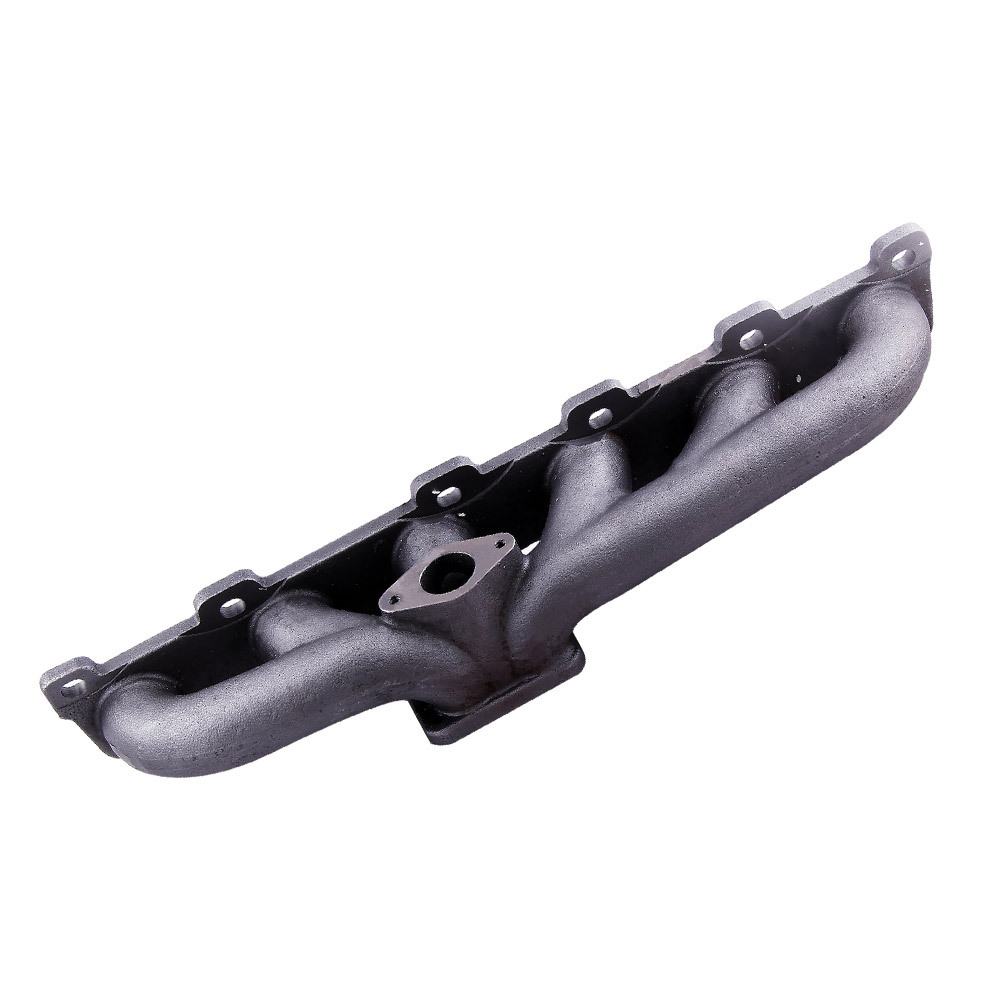

Manifold Flange: T3 Flange

Manifold Mount Type: top mount / high mount

Manifold External Wastegate: 38mm. You can plate it off if intending to use internally wastegated Turbo (The blocking plate is included as shown in the picture)

Turbo Exhaust Flange: Standard T3 Flange

Turbo Cooling Type: Oil Cooled Only

Turbo Bearing: Journal Bearing

Turbine Port: V-band

Horse Power: 300-400 HP

Compressor Wheel A/R: 0.5 ||Ind: 50.5 mm|| Exd: 76 mm|| Trim: 55

Turbiner Wheel A/R: 0.63 ||Ind: 65.5 mm|| Exd: 55.9 mm|| Trim: 73

Oil Inlet: M12*1.25 & 2*M8*1.25

Oil Outlet: 2*M8*1.25

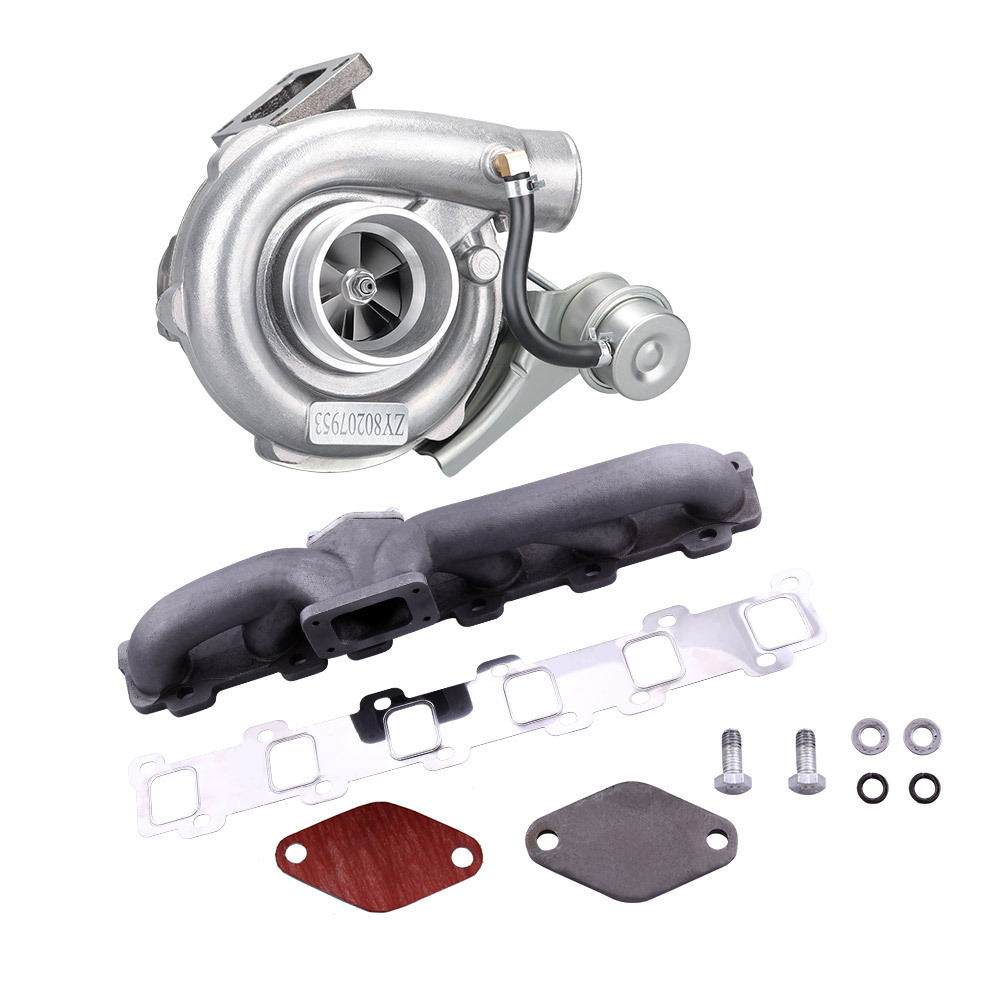

Package Included

* One T3/T4 Turbo Turbocharger

* One Exhaust Manifold

Feature

- New
- Specific design to increase the volumetric efficiency of the engine, resulting in a gain in power output.
- Improve Exhaust Gas Flow and Increase Turbo Spool up and Reduces Turbo Lag
- Manufactured from high quality cast iron for durable usage
- Continuous tests under extreme conditions to withstand high temperature
- Special surface treatment to resist corrosion.
- Accurate dimensions with exquisite workmanship
- Tubes sized and shaped to match cylinder-head exhaust port

Notice

* No instruction will be included; professional installation and alignment is suggested.

*This oil line kit is an aftermarket kit. Not all the component parts will be direclt bolt on your car. You may still need some accessaries of your OEM oil line kit

* Performance aftermarket parts; modification may be needed.

* Please feel free to contact us for whatever we can help.

Warranty: one year warranty for any manufacturing defect
