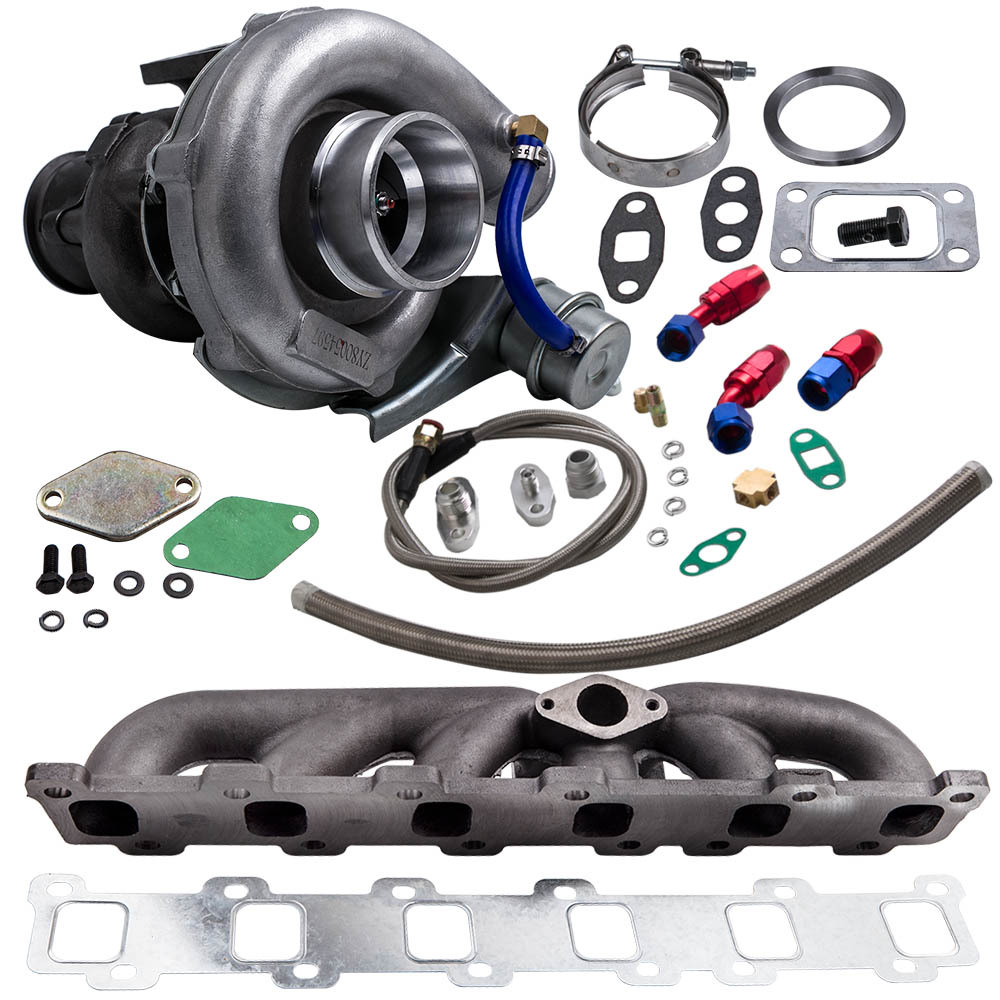

Turbo Exhaust Manifold Oil Line Kit compatible for Nissan Safari compatible for Patrol 4.2L TD42 GQ GU Y61

Application

 - Compatible for Nissan Safari compatible for Patrol 4.2L TD42 TD42T1 GQ Y60

 - For TB42, TD45, TB45 engine, as far as we know, the port configurations are the same. Please give us yourmessagefor the picutre with dimensions and we suggest you to double confirm the fitment with a mechanic before buying.

Turbo flange:T3

Feature

-Manufactured from high quality cast iron for durable usage and sound dampening

-Dimensional accuracy, durability, application specific design and corrosion resistant features

-Tubes sized and shaped to match cylinder-head exhaust port

- Special surface treatment to resist corrosion for an increase in power and performance

-Fullytests under extreme conditions to withstand high temperature and long-life use

-Quality fully guaranteed and professional installation recommended

Specification

Mount type:top mount / high mount

External Wastegate:38mm. You can plate it off if intending to use internally wastegated Turbo (The blocking plate is included as shown in the picture)

Flange: T3

Cooled Type: Oil cooled

Bearing:  Journal bearing

Turbine port: V band

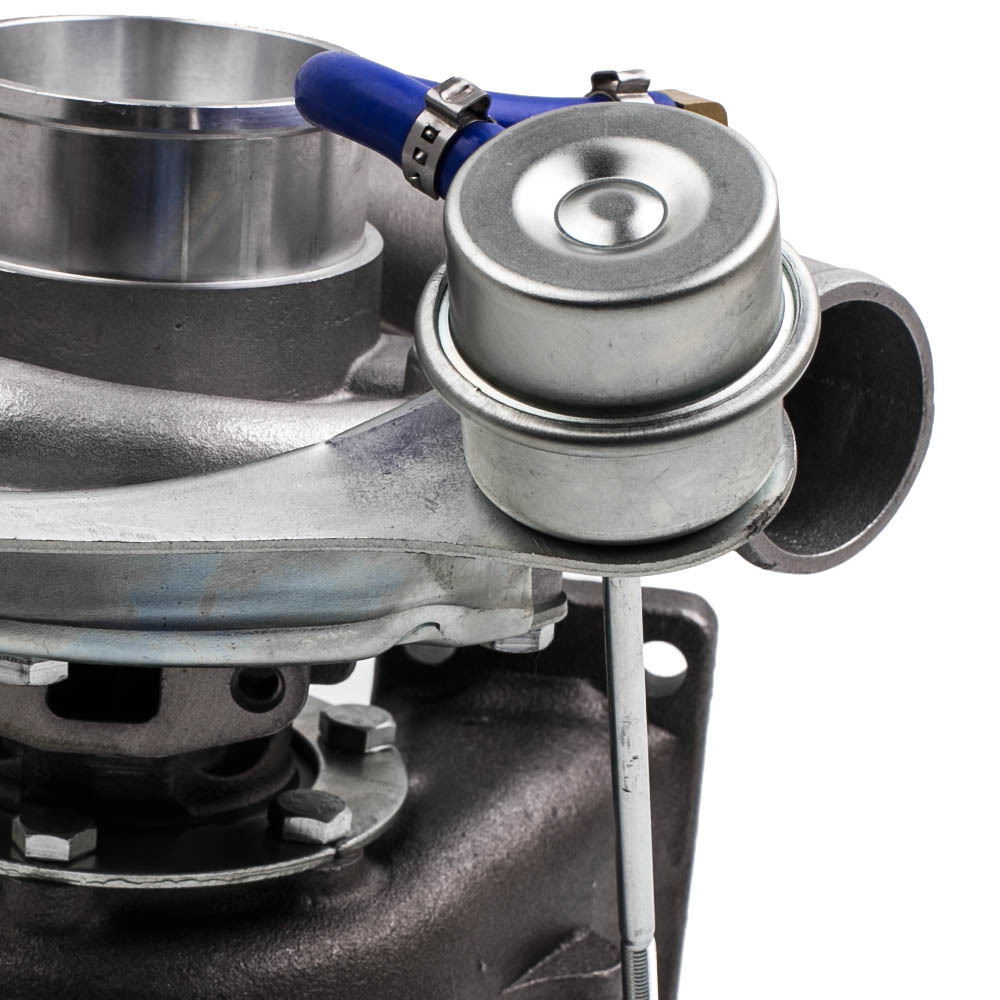

Waste gate actuator: Adjustable from 7.5psi - 14.53 psi

Housr Power: 300-400 HP

Compressor Wheel: A / R: 0.5 ||Ind:50.5 mm|| Exd:76 mm|| Trim: 44.2

Turbiner Wheel: A / R:0.63 ||Ind:65.5 mm|| Exd:55.9 mm|| Trim: 72.8

Oil Feed Oil Return Lines Details

Oil return line length: 550mm

Oil return line inner diameter: ¢21

Oil feed line length: 1000mm

Oil feed line inner diameter: ¢14

Oil Inlet: M12*1.25 & 2*M8*1.25

Oil Outlet: 2*M8*1.25

Notice

- Many dealers and customers have bought this kit. According to their feedbacks, they match well. However, modification may be required.

- This oil line kit is an aftermarket kit. Not all the component parts will be direclt bolt on your car. You may still need some accessaries of your OEM oil line kit.

- No instruction will be included; professional installation and alignment is suggested.

- Please feel free to contact us for whatever we can help
