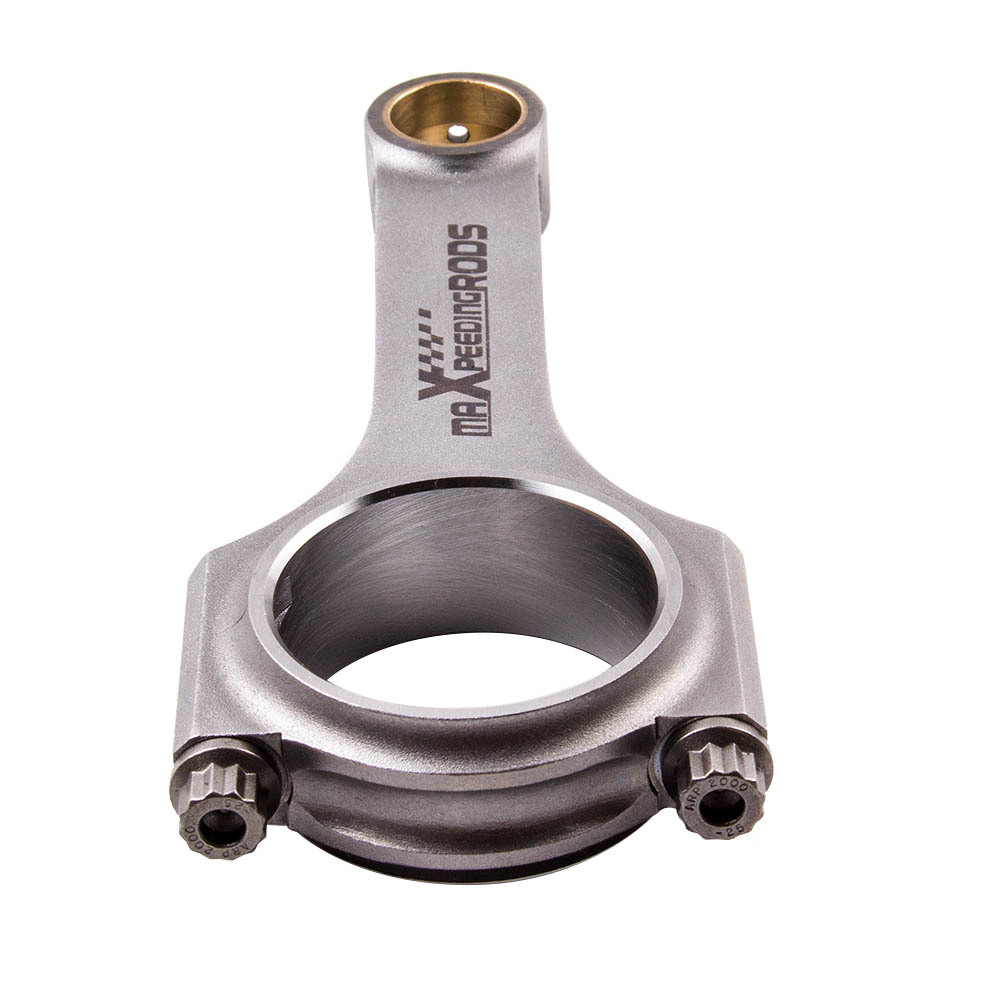

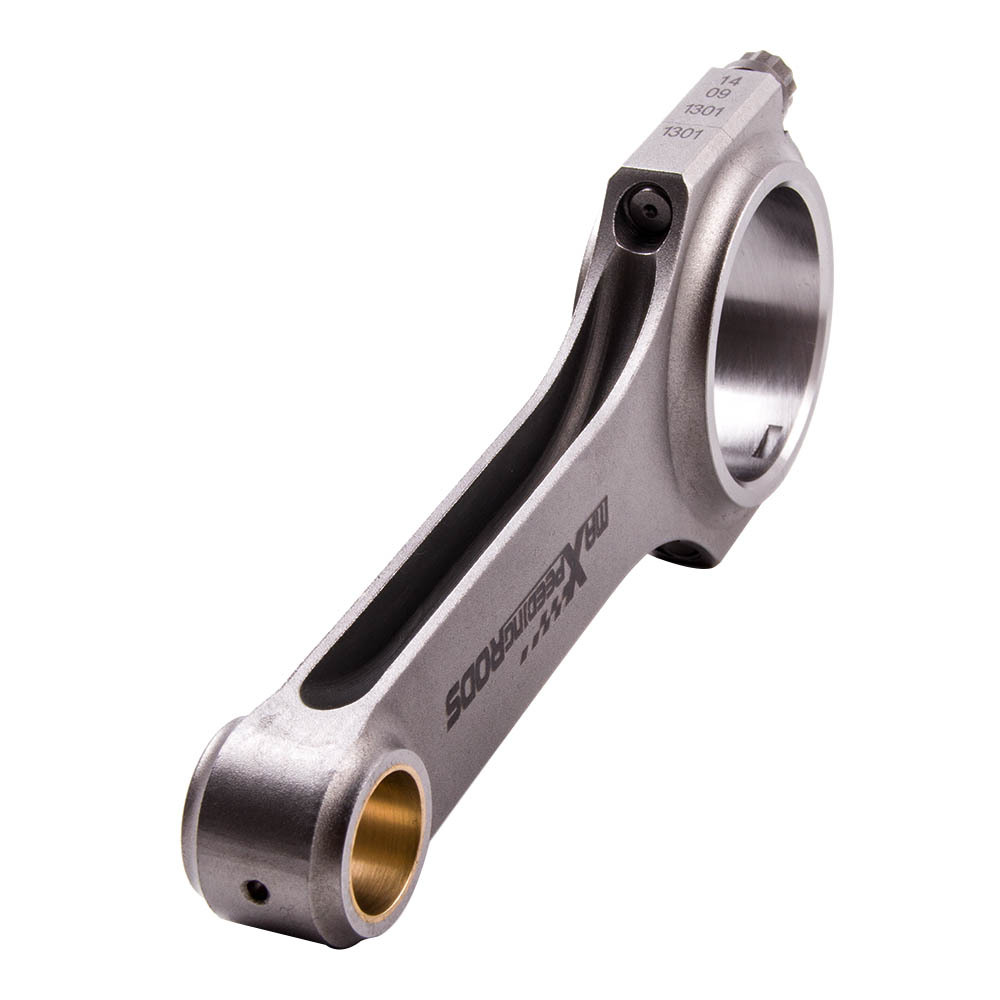

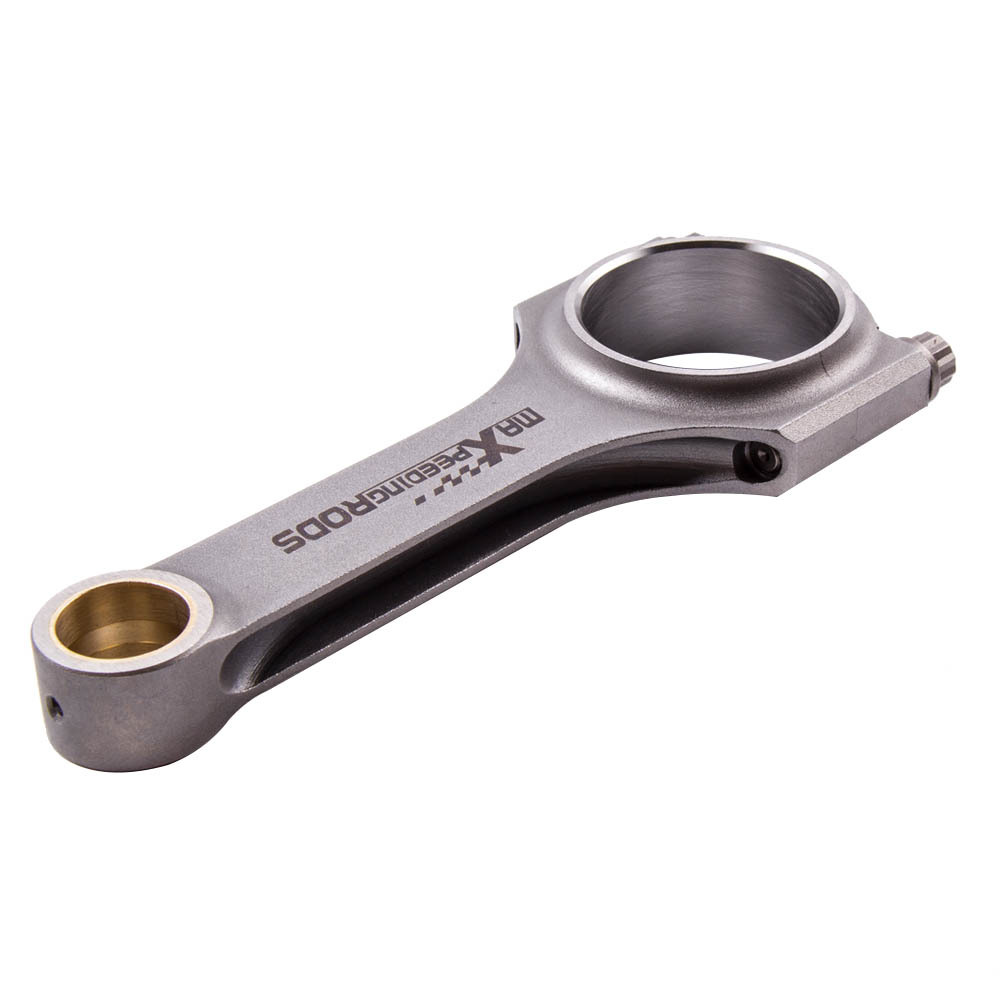

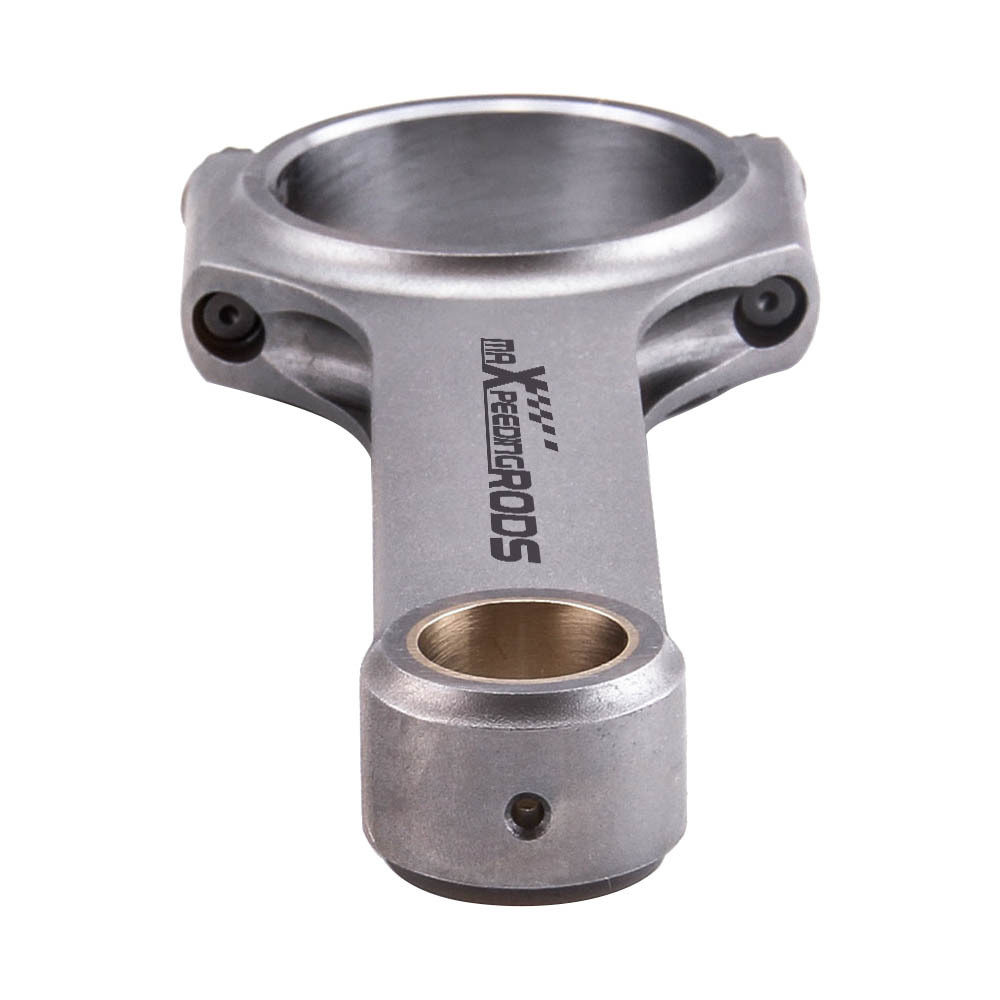

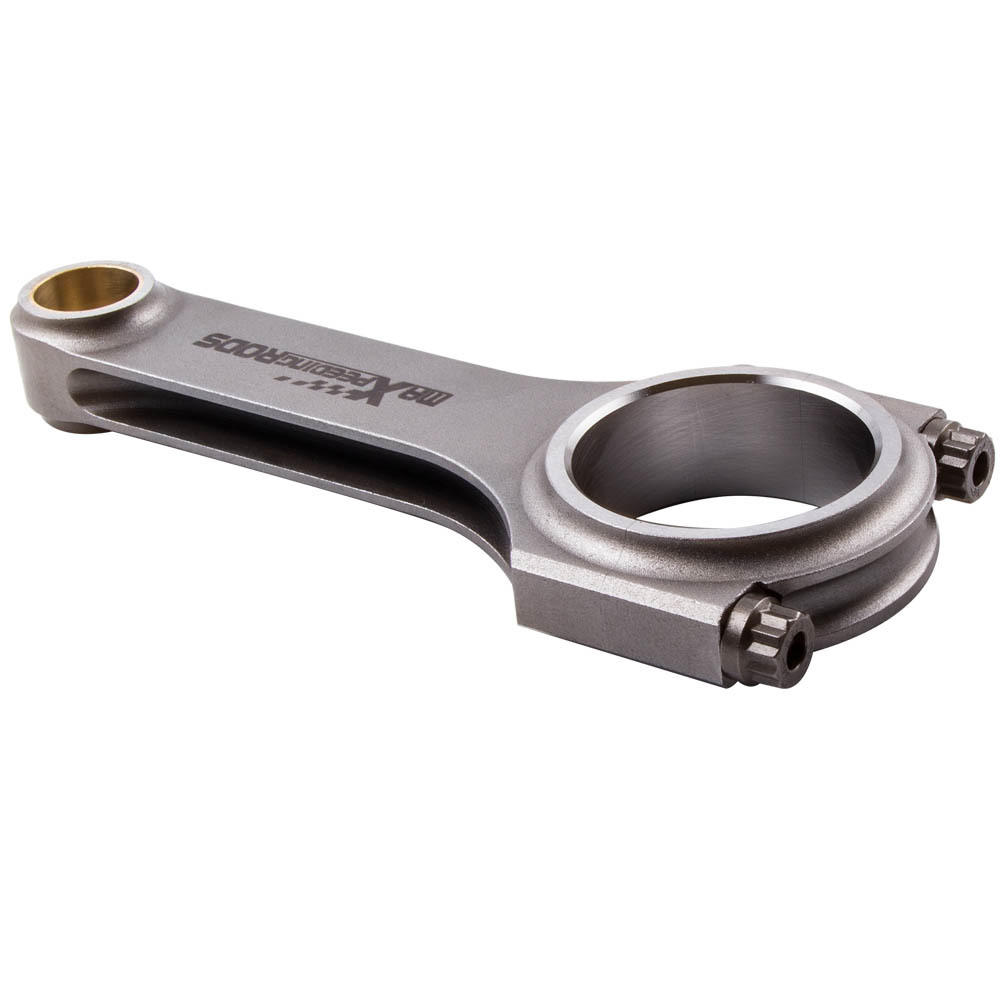

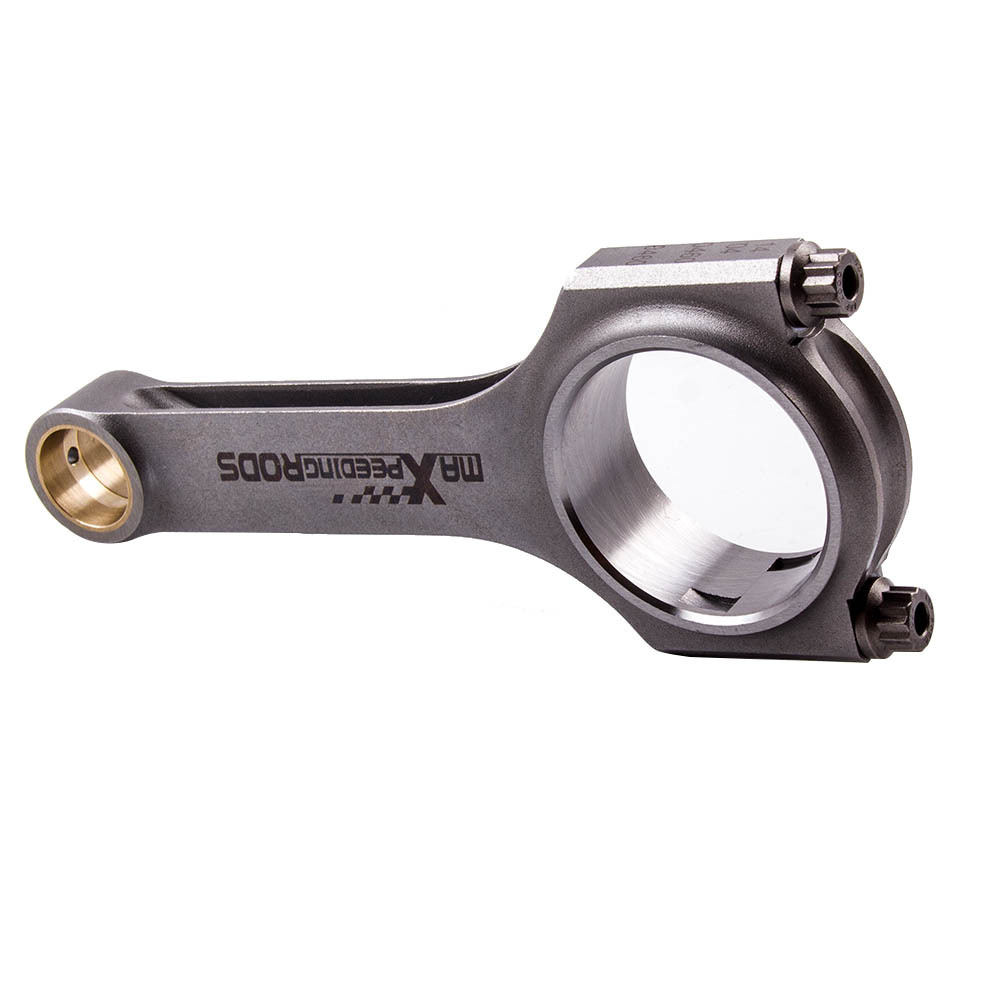

- * H-Beam con rods compatible for Toyota Starlet Turbo EP82 4E-FTE 89-96
- * Advertised Horsepower Rating: 600~800HP
- * Material: Forged 4340 aircraft chrome moly quality steel
- * Dimensions: Center to center length: 118mm; Big end diameter: 43mm; Small end diameter: 18mm ( tapered small end); Big end width: 20.8mm; Small end width: 20.8mm
- * Package Contents: 4 Pieces of H-Beam Connecting Rods; 8 Pieces of ARP 2000 5/16" Bolts (Note: Extra cost for upgrading to ARP L19 bolts)
- * Performance Con Rods
- * Advertised RPM Rating: 7000-9000 rpm
- * Fastener Tensile Strength (psi):200,000 - 230,000 psi
- * Balanced to within +/- 1 gram per end
- * The big end bores are honed to a +/-.01mm tolerance
- * Heat-treating & Shot-peened for remained consistent and strong
Combination offer
- A
- B
- C
- D
- E
- F
- G
![](/active/img/comb/icon_add.png)
- Description
- Reviews (1)
- Q & A ()
- ESTIMATE SHIPPING
- INSTALLATION
- Product Installation
- Technique Instruction
- Official App
![CR-TOY-118](https://www.cqggedm.com/brand-max/description/b2c/en-gb/rod/default/d1.jpg)
![CR-TOY-118](https://www.cqggedm.com/brand-max/description/b2c/en-gb/rod/default/d2.jpg)
![High Quality Components](https://www.cqggedm.com/brand-max/keyfeature/en-gb/rod/forged-rods-cr-4/default/kf(1).jpg)
![Precision Machining Manufacturing](https://www.cqggedm.com/brand-max/keyfeature/en-gb/rod/forged-rods-cr-4/default/kf(2).jpg)
![Professional H-Beam Design](https://www.cqggedm.com/brand-max/keyfeature/en-gb/rod/forged-rods-cr-4/default/kf(3).jpg)
![High Performance Material](https://www.cqggedm.com/brand-max/keyfeature/en-gb/rod/forged-rods-cr-4/default/kf(4).jpg)
Application
Compatible for Toyota Starlet GI, Soleil and Corolla models Turbo EP82 1342cc 4E-FE 1989 - 1996
(The engine found in these two models produces 88 bhp (66 kW; 89 PS) at 6,600 rpm and 86 lb⋅ft (117 N⋅m) at 5,200 rpm.)
Compatible for Toyota Glanza V EP91 4E-FTE
(The engine producing 133 hp (99 kW; 135 PS) at 6,400 rpm with 116 lb⋅ft (157 N⋅m) of torque at 4,800 rpm.)
Compatible for Toyota Corolla, Tercel, Paseo and Sera 4E-FTE Engine
Specification
- Performance Con Rods
- Type: Forged 4340 aircraft chrome moly quality steel for racing
- H-beam Conrods Quantity: 4 Pieces a set
- Bolts:Including Genuine ARP 2000 bolts
- Note: Extra cost for upgrading to ARP L19 bolts
- Bolts Size: ARP 2000 5/16" bolts
- Tolerance: Balanced to +/- 1 gram in set
- Piston Bolt Hole: +-4/1000mm
- Power: 600hp ~ 800PS per set
- Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM
- Top acceleration: 7000rpm
- Warranty: one year warranty for any manufacturing defect
Dimensions
Center to center length: 118mm
Big end diameter: 43mm
Small end diameter: 18mm
Big end width: 20.8mm
Small end width: 20.8mm
Feature
- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
- Designed and processed by CNC machine.
- All big and small ends are finished with SUNNEN honing machine
- Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
- 100% X-rayed, sonic tested and magnafluxed
- Multi-stage heat treated
- Shot peened to relieve stress
- Come with the bronzed bushing suitable for the floating piston pin
Note
- Professional installation is highly recommended (No Instruction Included)
- Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
