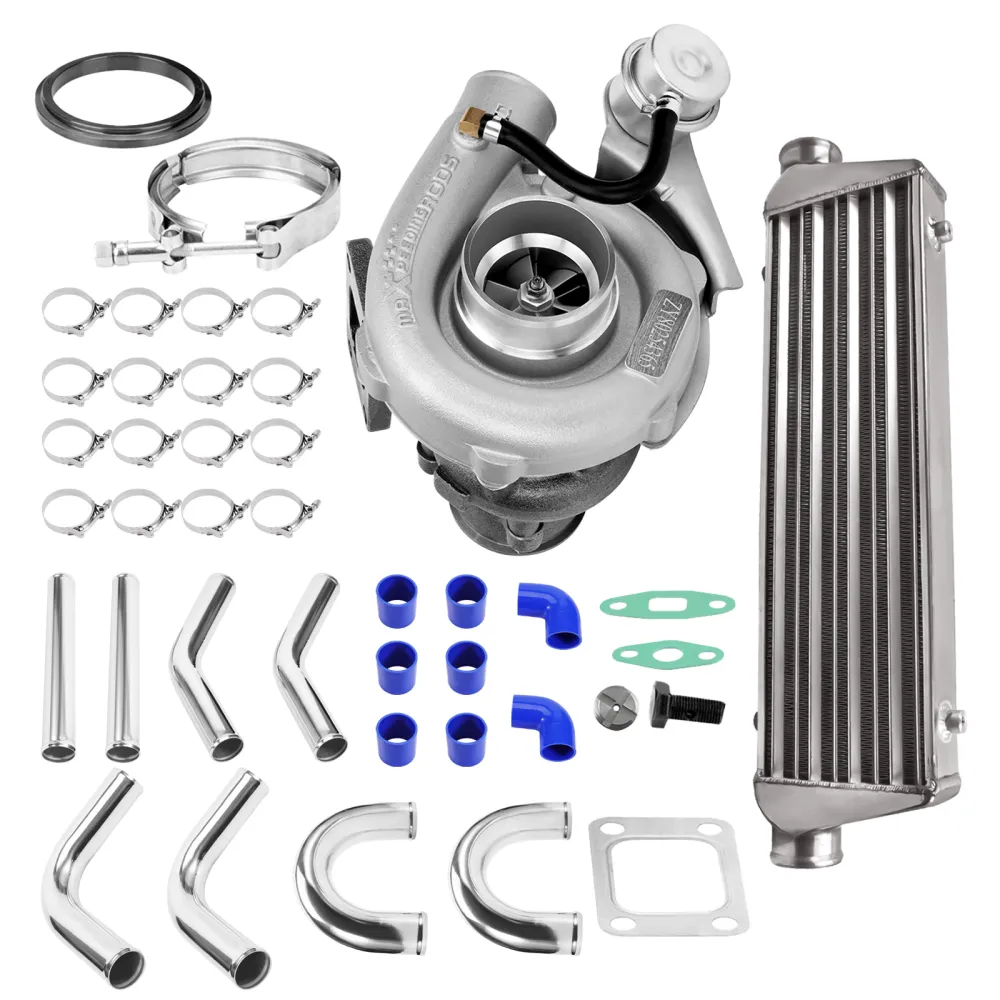

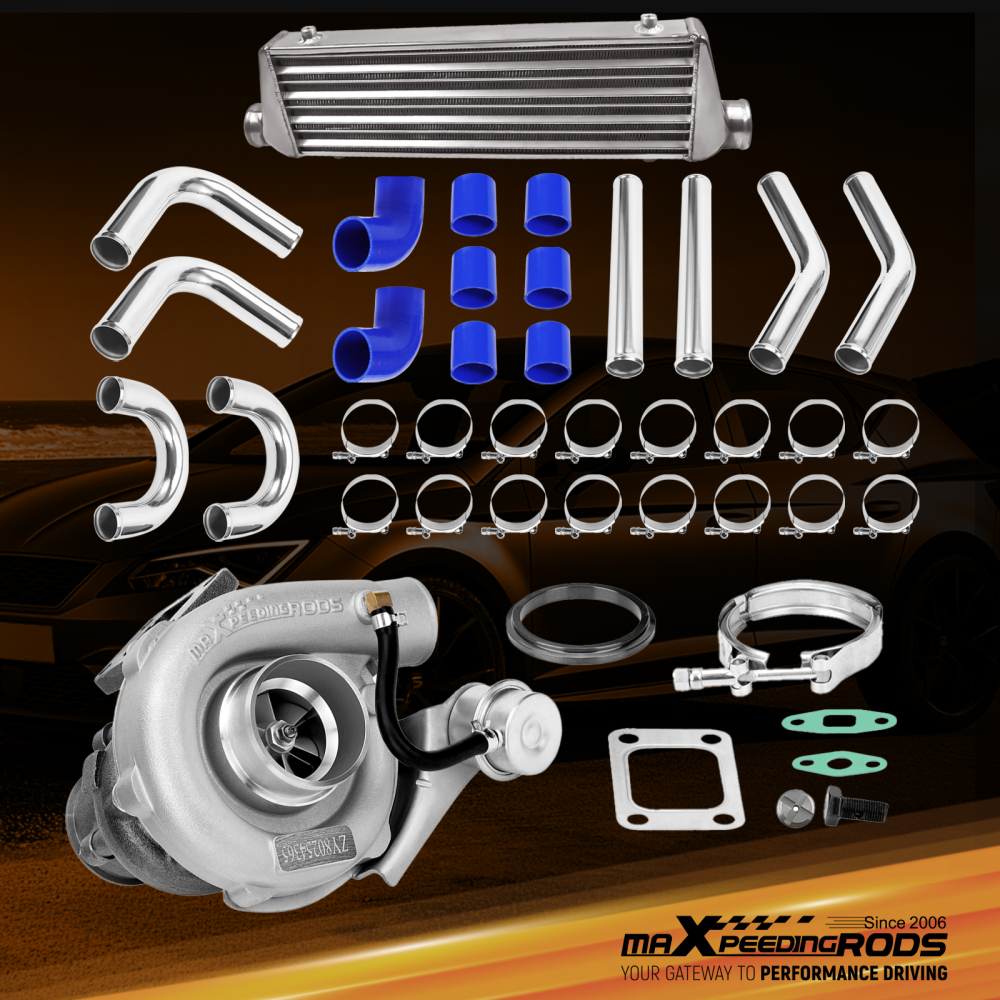

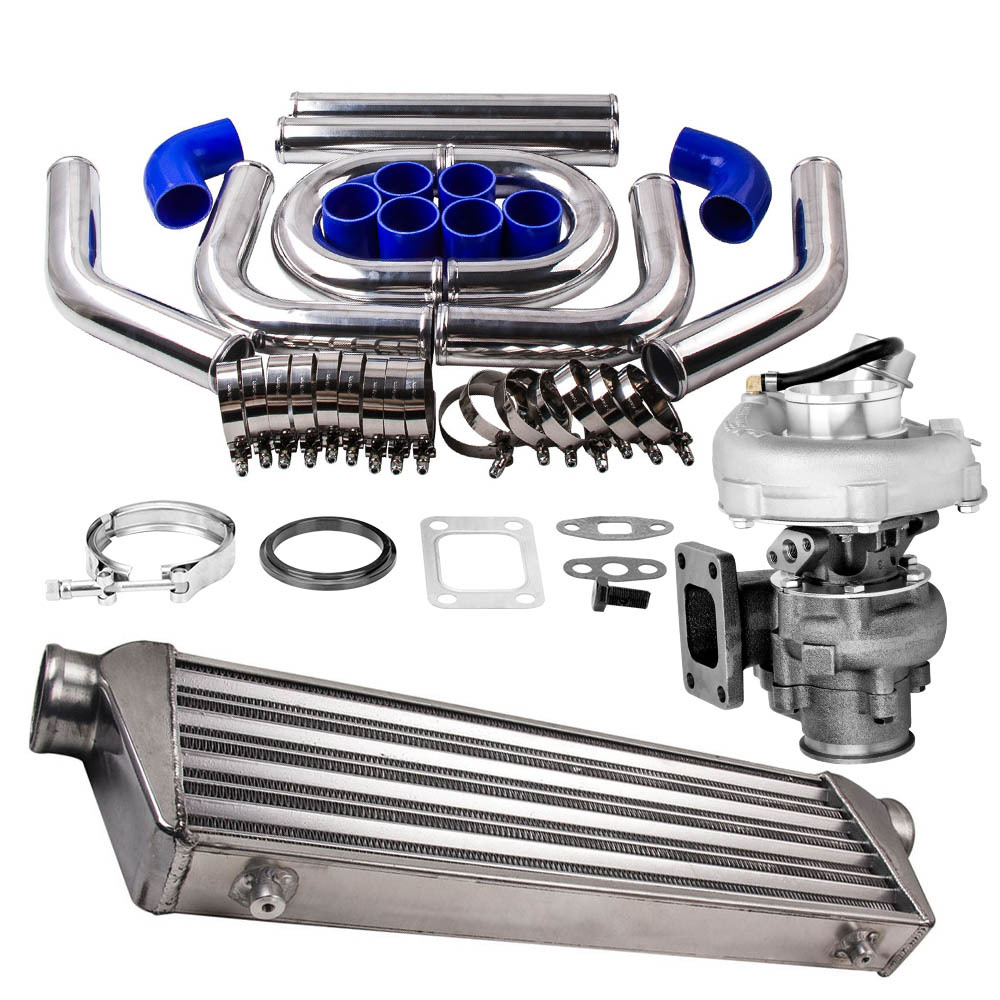

T3 Turbo Charger0.63 A/R 4 6 CYL+ Intercooler + 2.5 Intercooler Piping Kit

Item Number 3002920555
Stock In Stock

MORE OPTIONS

Combination offer

  • A
  • B
  • C
  • D
  • E
  • F
  • G

Description

This turbo is an universal application turbo, some modification may be required based on individual vehicle.

The dimension picture is available, please contact us if needed. Please check the details carefully before purchasing.



Application

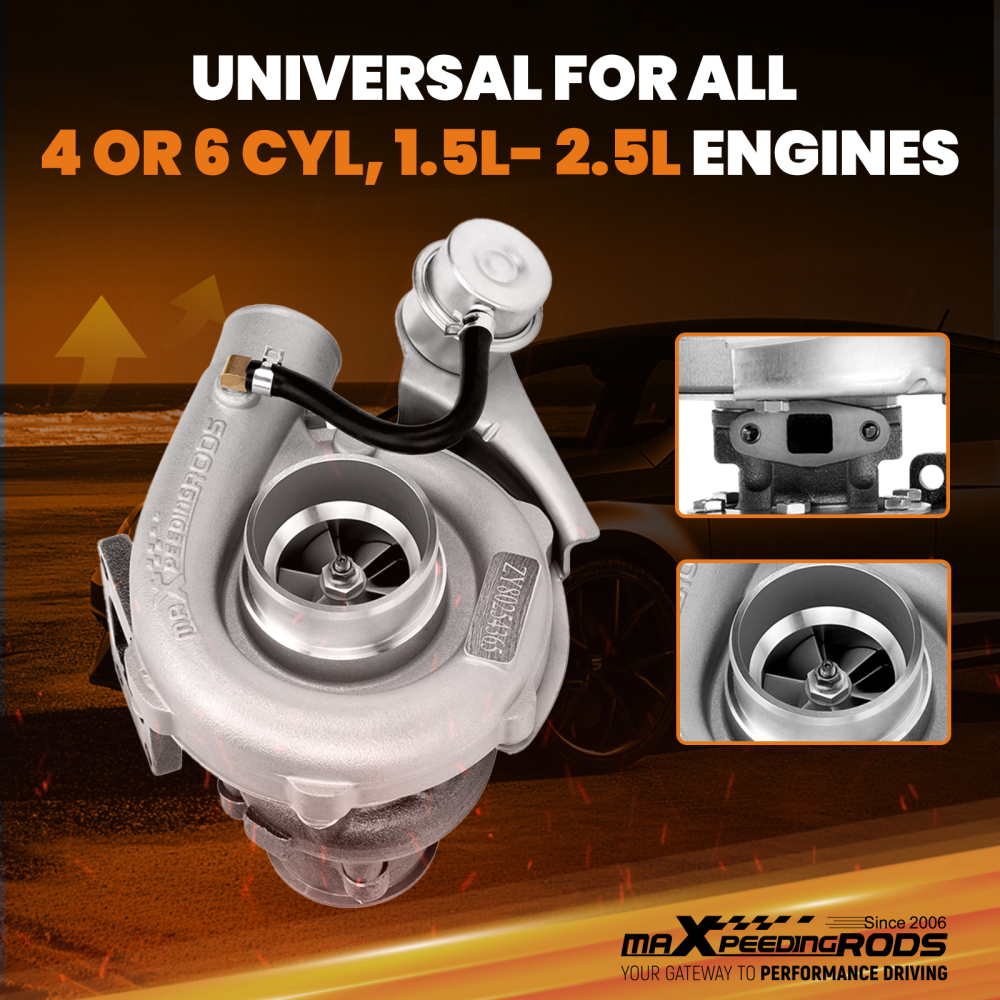

Compatible for 1.5L to 2.5L any 4/6 cylinder engine
Horse Power: Capable of Boosting Horse Power up to 420HP
Cooling Type: Oil Cooled



Specification

turbocharger
Exhaust Inlet (Turbo Manifold) Flange: T3 4 bolt Flange Patterns
Exhaust Outlet () Flange: V-Band Flange
Turbine Trim: 72.8
Turbine Inducer Diameter:  65.5 mm
Turbine Exducer Diameter: 55.9mm
Turbine A/R: 0.63
Compressor Trim: 44.2
Compressor Inducer Diameter: 50.5 mm
Compressor Exducer Diameter: 76 mm
Compressor A/R: 0.5
Bearing: Journal Bearing
Warranty: one year
Internal Wastegate: Yes

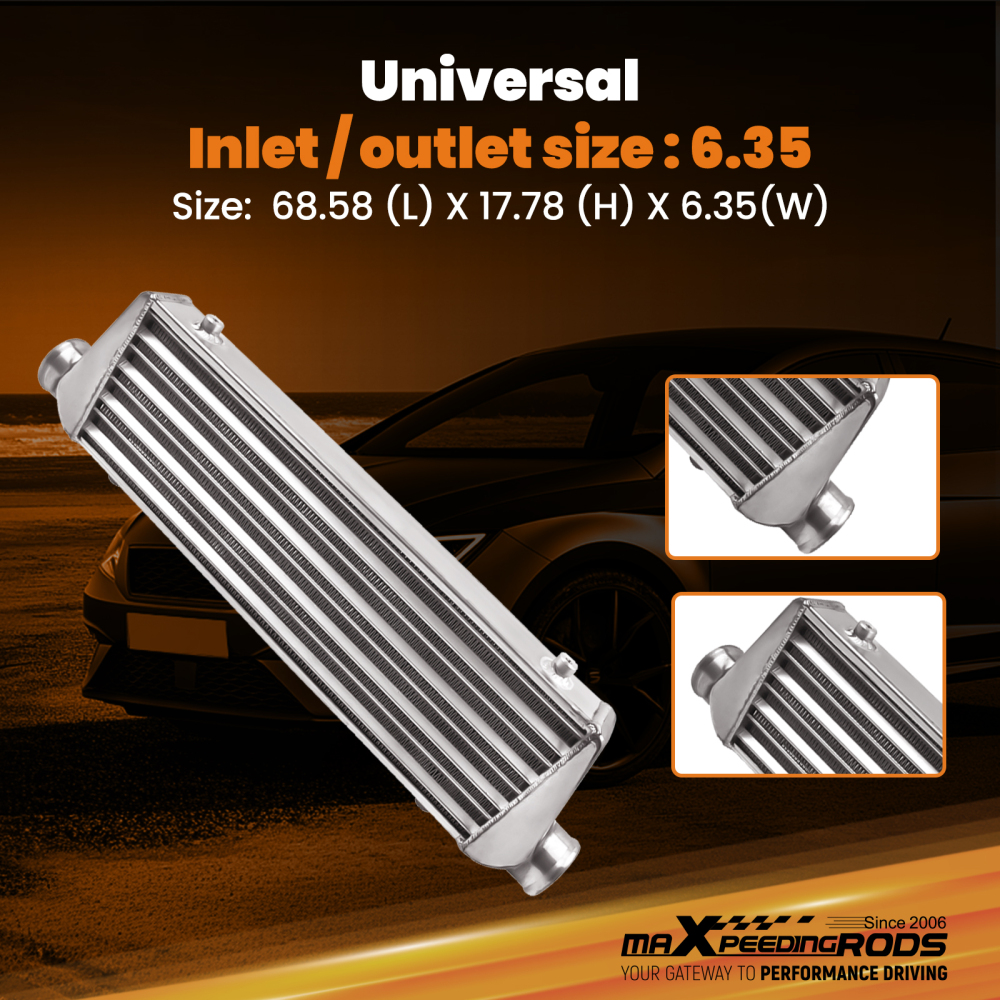

Intercooler

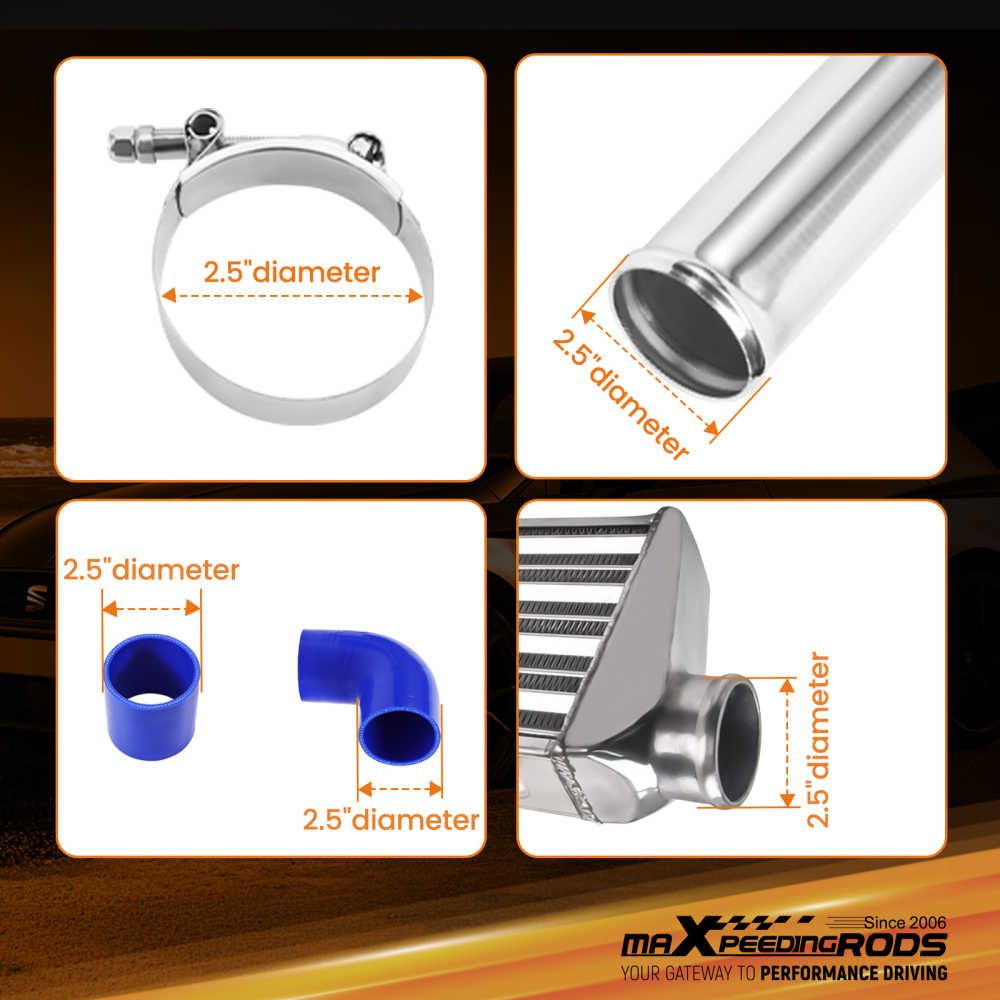

Inlet / Outlet size :  2.5"

Overall size :  27'' x 7'' x 2.5''

Core size :  21'' x 7'' x 2.25''

Core design:  Tube & Fin

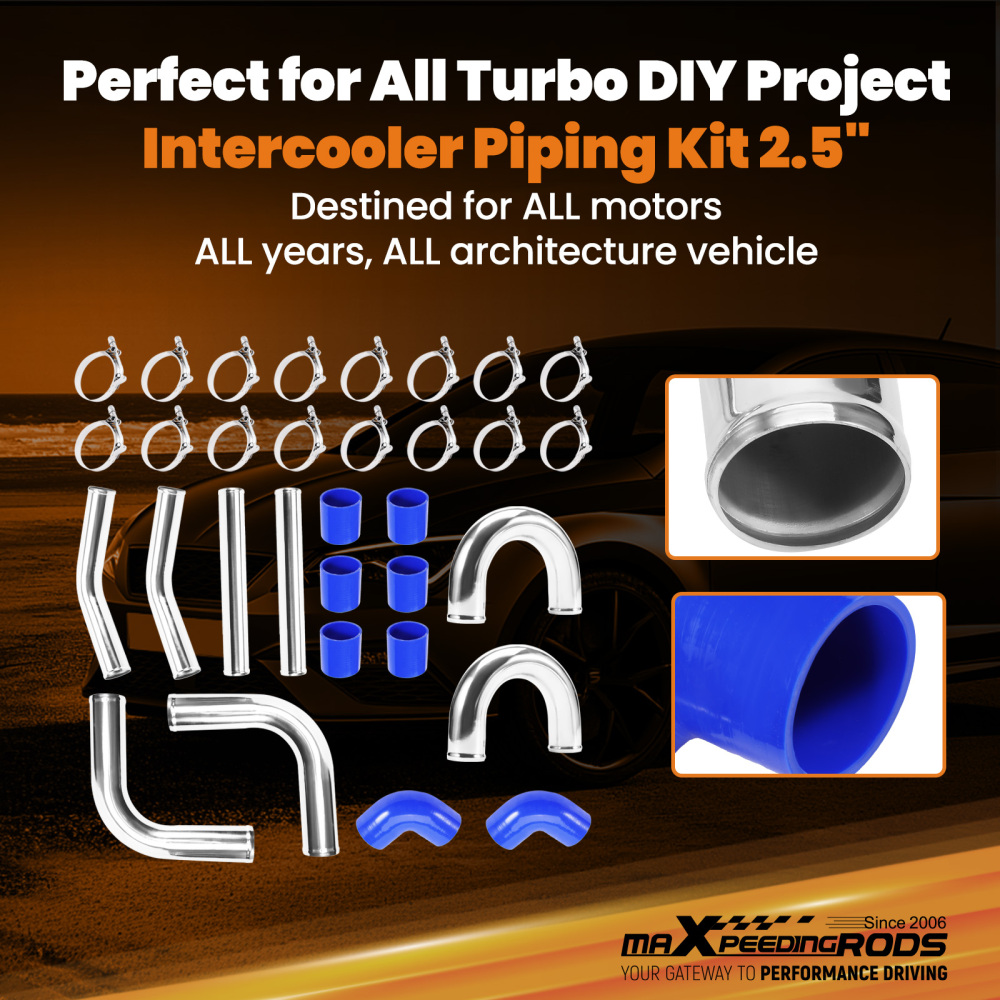

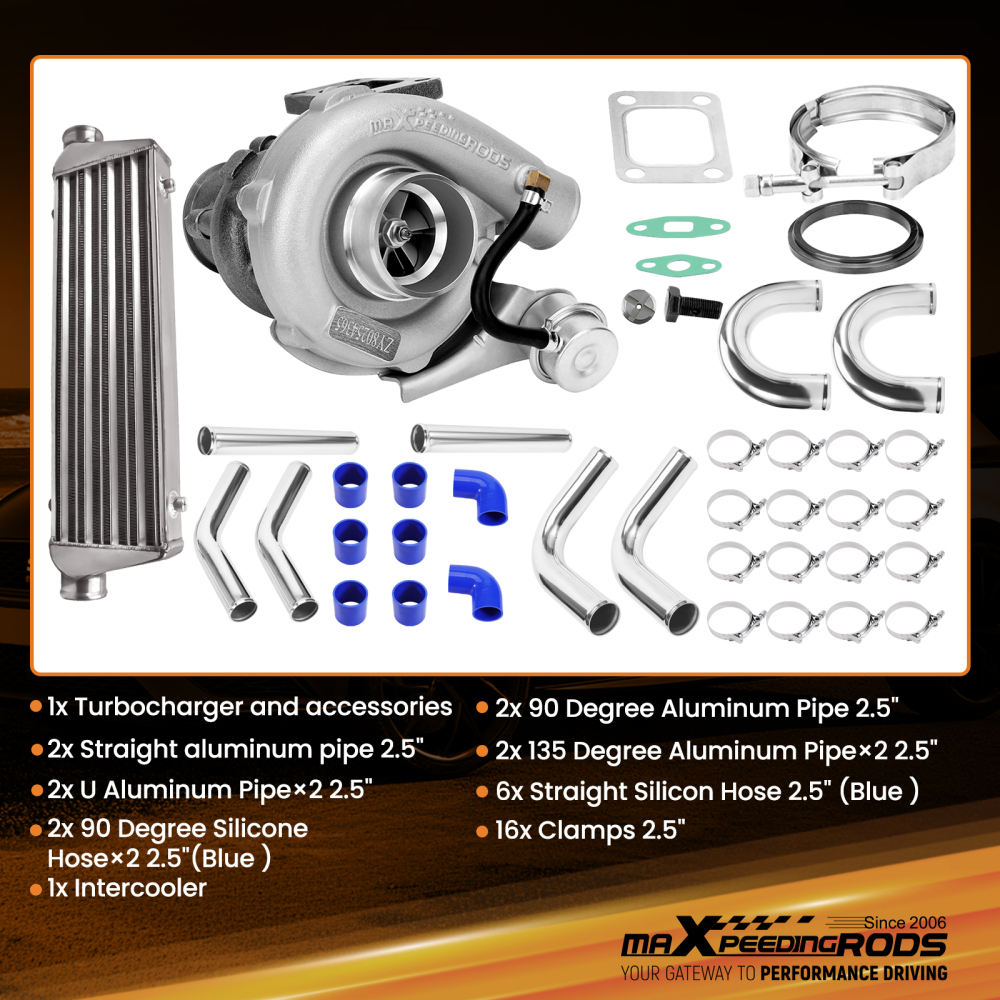

Intercooler Piping kits

2x 90 Degree Aluminum Pipe 2.5"
2x Straight aluminum pipe 2.5"
2x 135 Degree Aluminum Pipe×2 2.5"

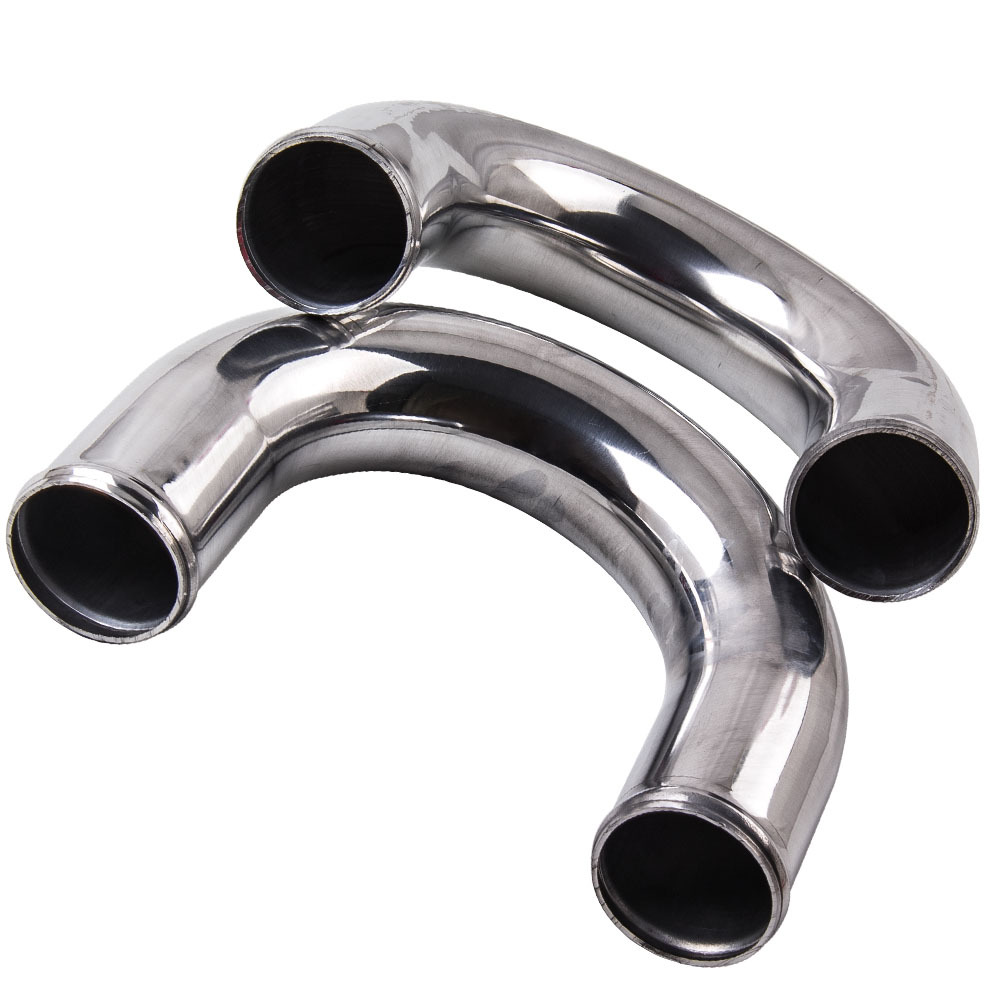

2x U Aluminum Pipe×2 2.5"
6x Straight Silicon Hose 2.5" (Blue )
2x 90 Degree Silicone Hose×2 2.5"(Blue )
16x Clamps 2.5"

Pipe Thickness: 1.8mm

Pipe length: 18''

U Pipe distance:150mm



Notice
* Please check the specifications carefully before bidding. If you are not sure about these information, please feel free to contact us.
* This is universal application turbo, so modification might be required for some vehicles
* Professional installation is highly recommended (No Instruction Included)
