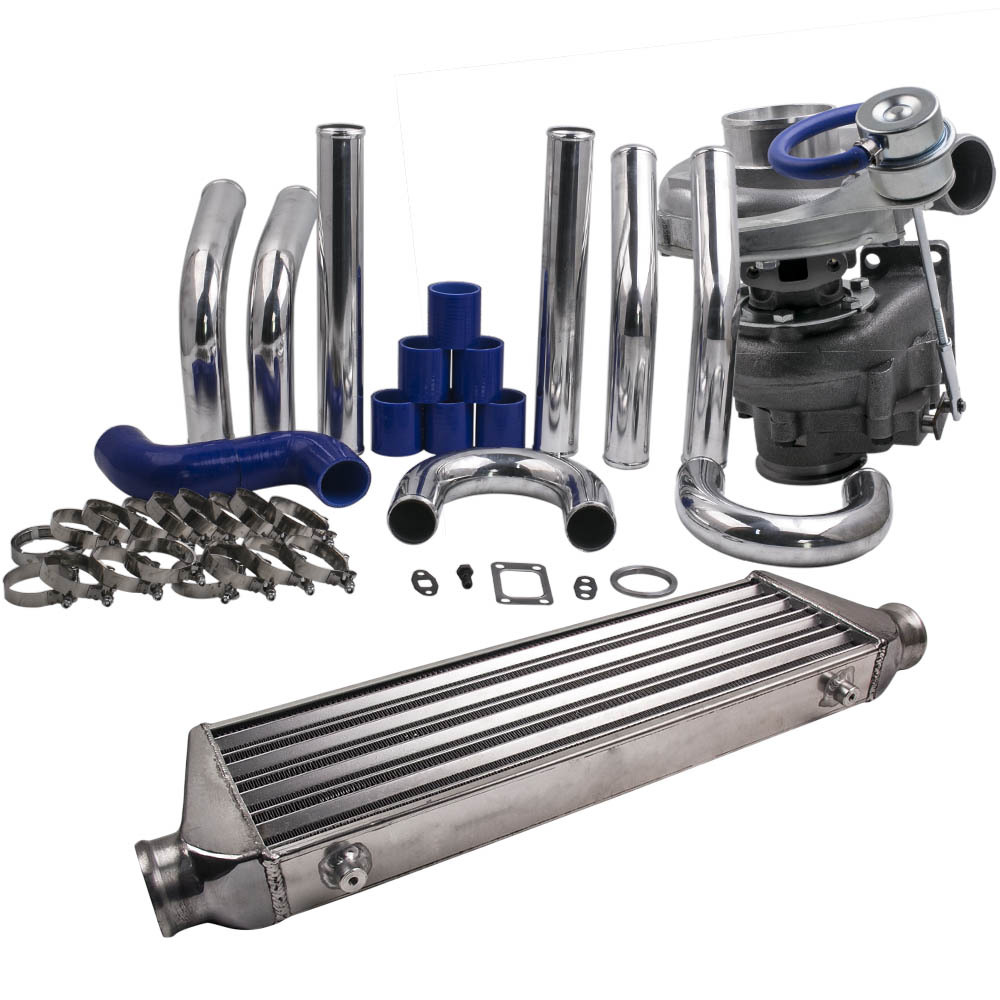

T3 T4 Turbo Charger0.63 A/R 4 6 CYL+ Intercooler + 2.5 inch Intercooler Piping Kit

Application

Perfect for all 4 or 6 CYL, 1.5L- 2.5L engines

*Note:

1. Please confirm that there is enough space in your car to install this turbo before purchasing.

2. Lack of oil will cause the turbocharger shaftplay and damage, please adjust the oil pressure and ensure that the turbocharger is fully lubricated.

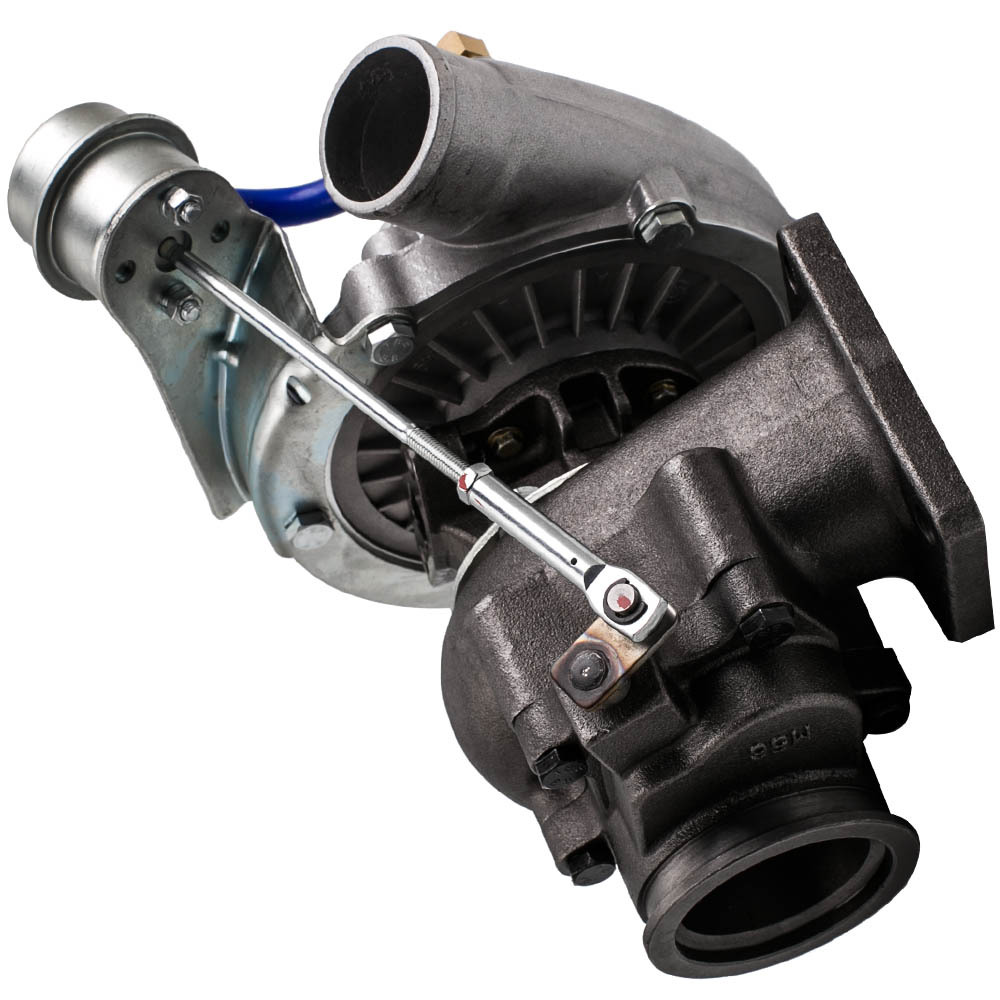

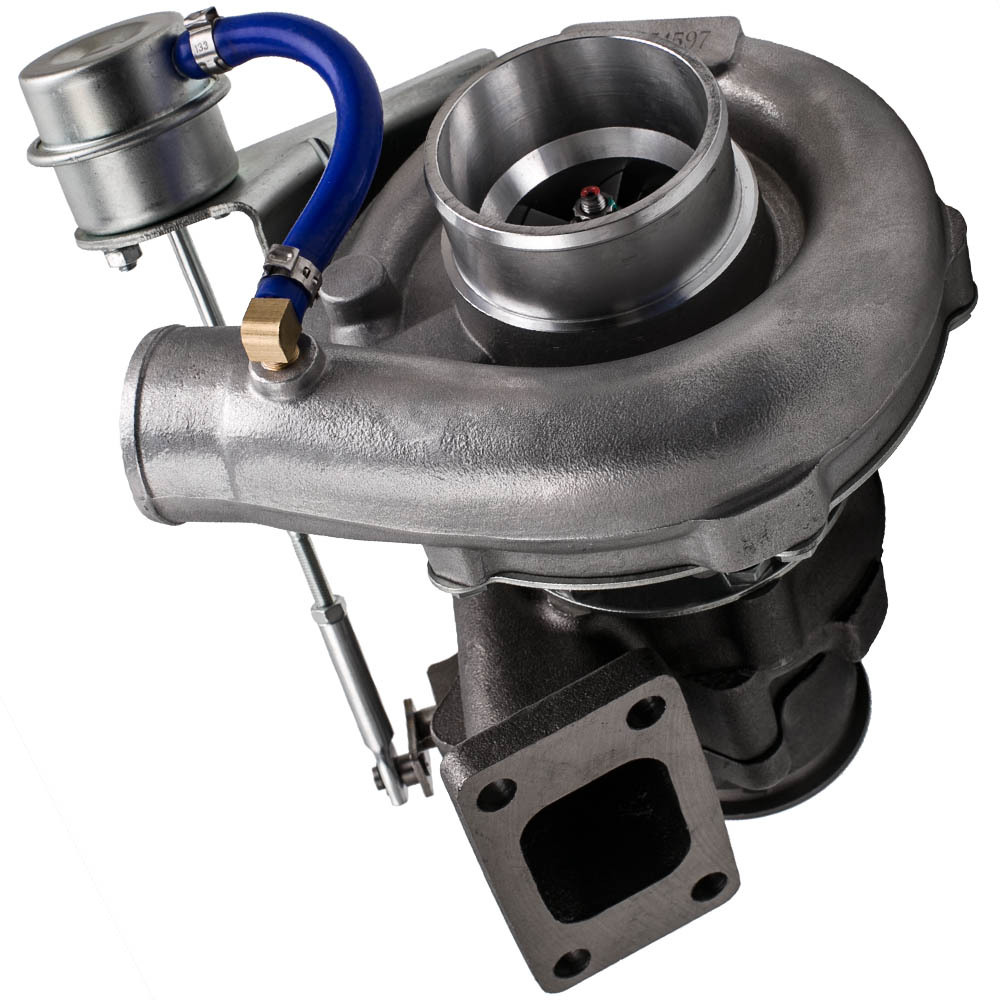

Specification

Turbo compatible for Charger

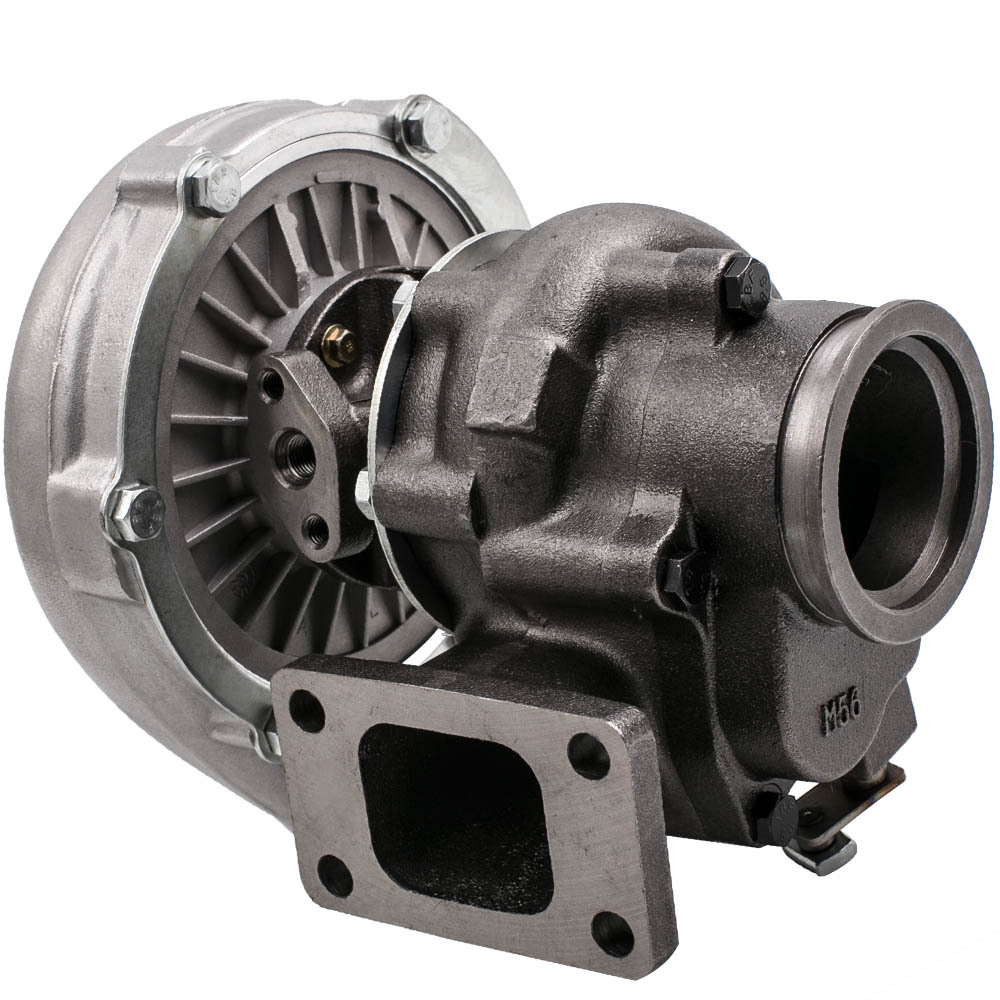

Exhaust Inlet (Turbo Manifold) Flange: T3 T4 4 bolt Flange Patterns
Exhaust Outlet (Downpipe) Flange: V-Band Flange

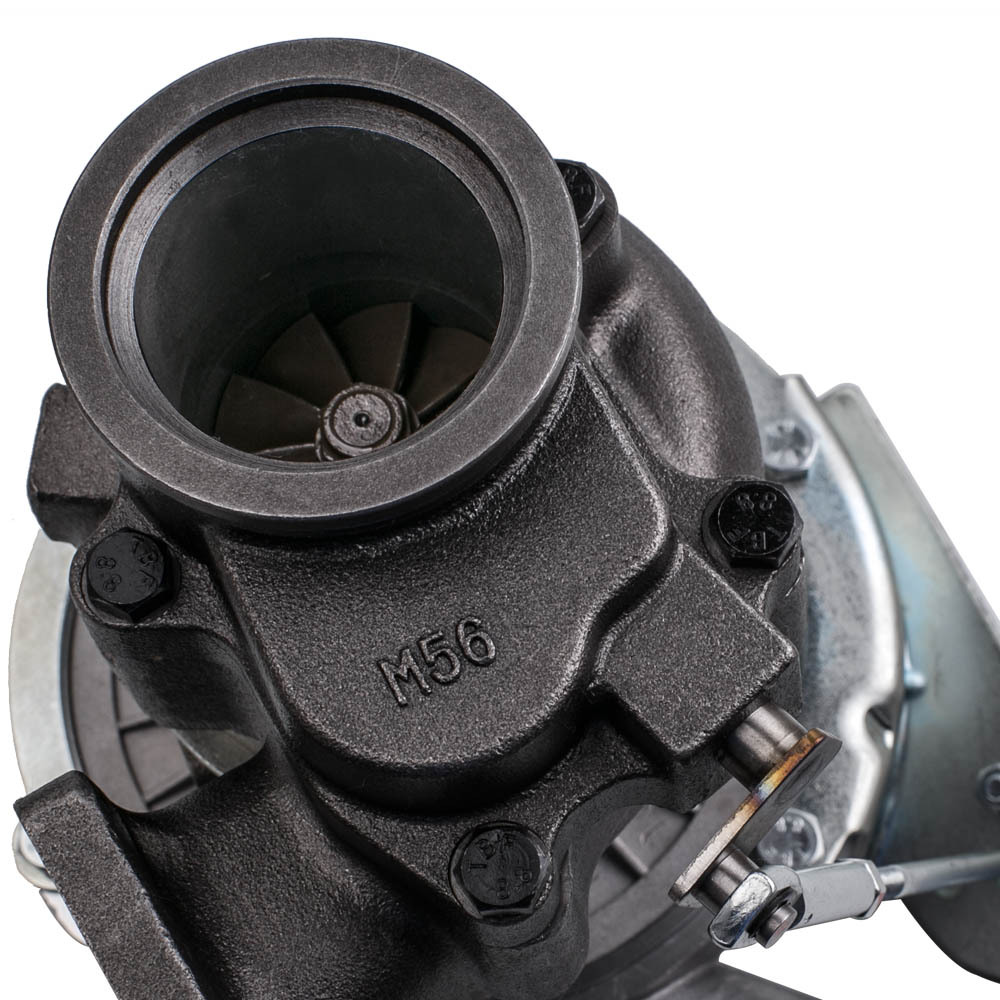

Turbine Trim: 72.8
Turbine Inducer Diameter:  65.5 mm
Turbine Exducer Diameter: 55.9mm
Turbine A/R: 0.63

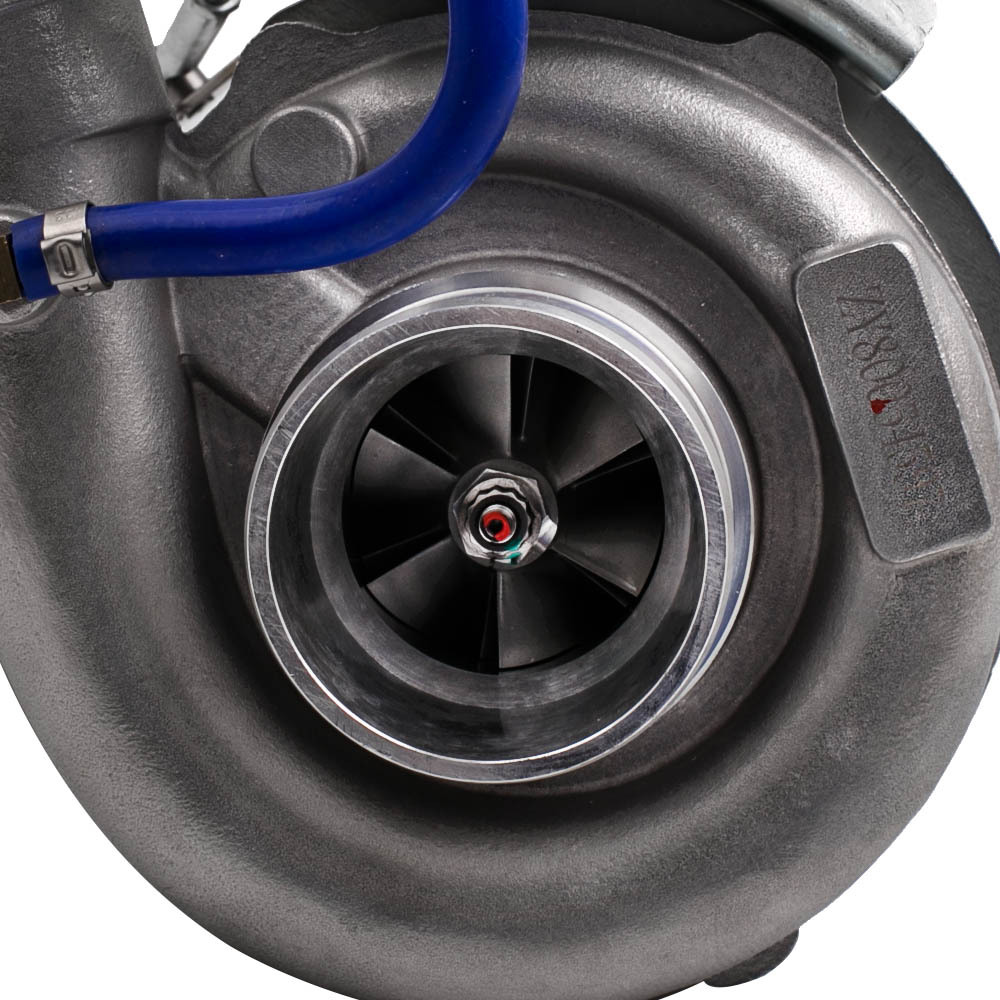

Compressor Trim: 44.2
Compressor Inducer Diameter: 50.5 mm
Compressor Exducer Diameter: 76 mm
Compressor A/R: 0.5
Oil Inlet: M12*1.25 & 2*M8*1.25
Oil Outlet: 2*M8*1.25
Bearing: Journal Bearing
Warranty: one year
Internal Wastegate: Yes

Intercooler

Inlet / Outlet size :  2.5" / 64mm

Overall size :  27'' x 7'' x 2.5'' inch

Core size :  21'' x 7'' x 2.25'' inch / 550x175x64mm

Core design:  Tube & Fin

Intercooler Piping kits

2x 90 Degree Aluminum Pipe 2.5"
2x Straight aluminum pipe 2.5"
2x 135 Degree Aluminum Pipe×2 2.5"
2x U Aluminum Pipe×2 2.5"
6x Straight Silicon Hose 2.5" (Blue )
2x 90 Degree Silicone Hose×2 2.5"(Blue )
16x Clamps 2.5"

Pipe Thickness: 1.8mm

Pipe length: 18''

Notice

* Please check the specifications carefully before bidding. If you are not sure about these information, please feel free to contact us.
* This is universal application turbo, so modification might be required for some vehicles
* Professional installation is highly recommended (No Instruction Included)

* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.

* Make sure the oil drain line is lower than the turbo itself.

* Gasoline car must install a water cooling device to avoid overheating.

* Ensure exhaust outlet are well sealed by welding.
