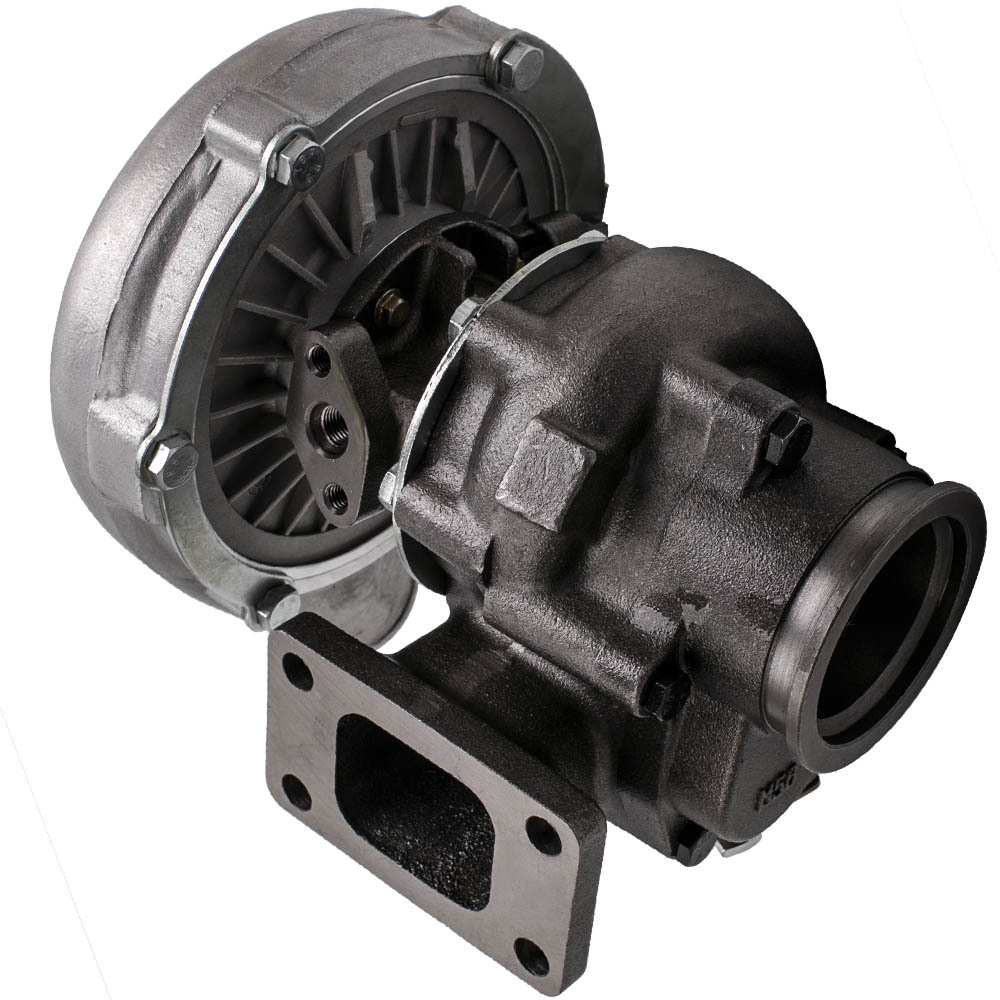

T3/t4 T04E V-band Turbocharger Turbo.63 A/r W/ Internal Wastegate Blow Off Valve

Application

Perfect for all 4 or 6 CYL, 1.5L- 2.5L engines

*Note:

1. Please confirm that there is enough space in your car to install this turbo before purchasing.

2. Lack of oil will cause the turbocharger shaftplay and damage, please adjust the oil pressure and ensure that the turbocharger is fully lubricated.

Specification

Exhaust (Turbo Manifold) Flange:   T3 T4 4 bolt Flange Patterns
Exhaust (Downpipe) Flange:   V-Band Flange
Cooling Type: Oil Cooled
Wastegate: Internal Wastegate
Horse Power: Boost Horse Power up to 420HP

Compressor:
Trim: 44
Inducer Diameter:50.5 mm
Exducer Diameter:76 mm
A/R:0.5

Turbine:
Trim:73
Inducer Diameter:65.5 mm
Exducer Diameter:55.9 mm
A/R:0.63
Oil Inlet: M12*1.25 & 2*M8*1.25
Oil Outlet: 2*M8*1.25

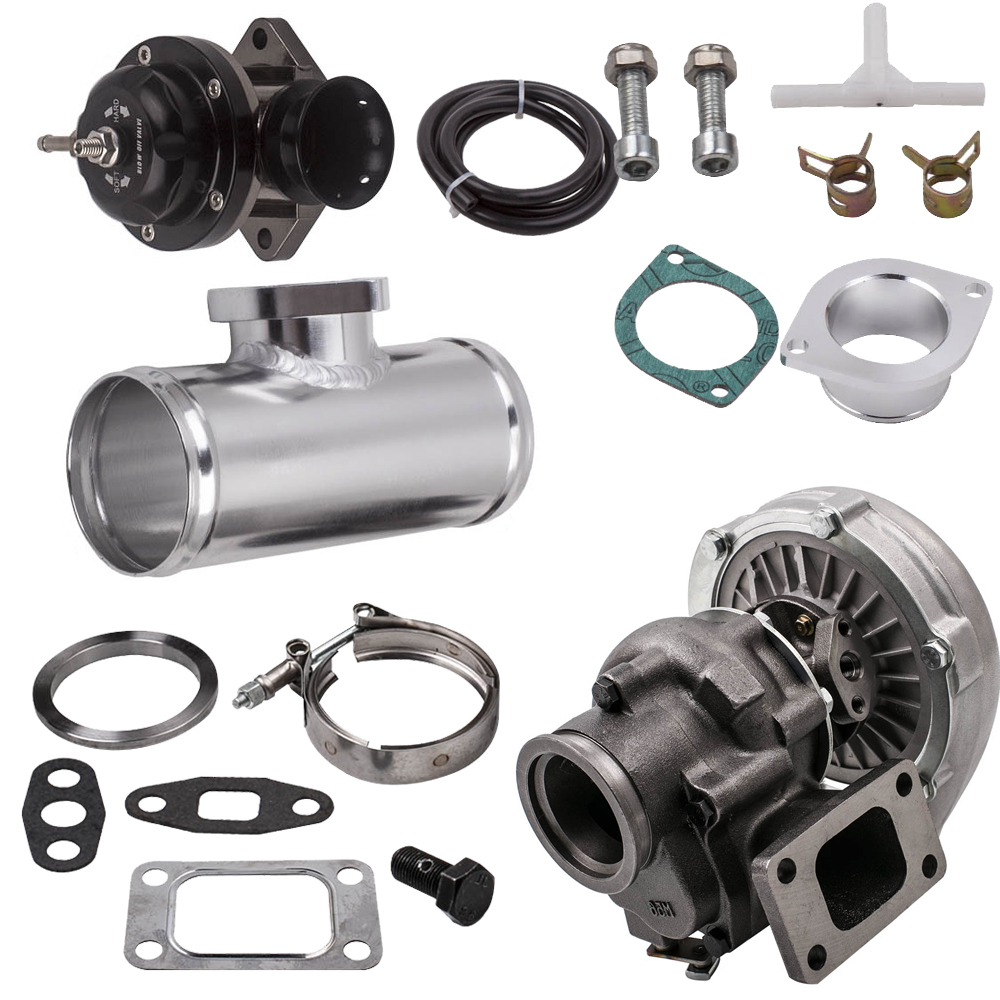

Package Includes:

1xT3/T4 T04E V-band Turbocharger
1x Type-RS Blow Off Valve Kit
1x Type-RS 2.5" Aluminum Flange Pipe Adapter
(You will get exactly as shown in the picture above)

Condition: New
Bearing Type: Floating Bearing
Warranty: one year
Accessories: You will get exactly as shown in the picture above

About Blow Off Valve

Blow Off Valve:

• Holds Up to 18 PSI Boost Pressure
• Easy Assembly,Aluminum Flange, CNC Machined Billet Aluminum Body
• Dual Spring System Promoted Response & Allows for High Boost Pressures
• Hard-Anodized Valve for Increased Air Flow
• Powder-Coated Anodized and Polished Finish
• 2 Bolts Mounting Design

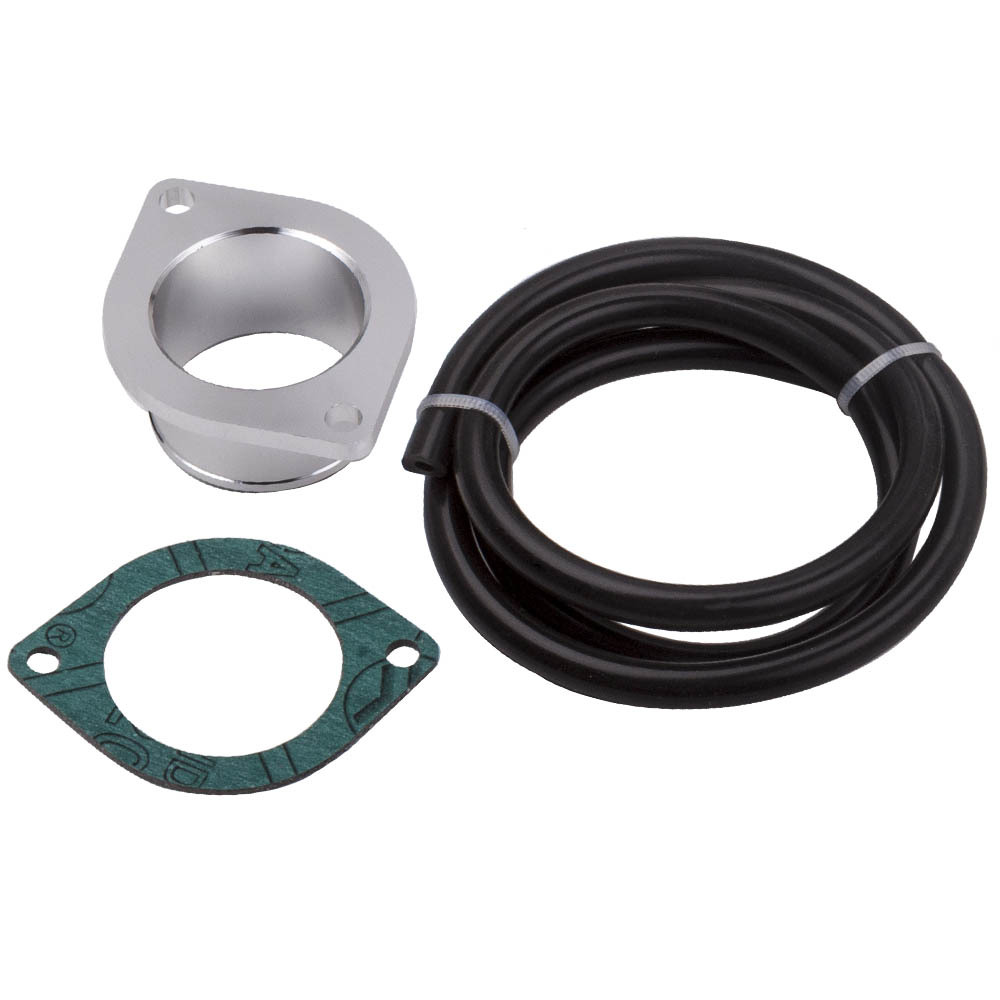

Flange Pipe Adapter:
2.50" (63mm) Pipe Size
Fits Type-S or Type-RS Dump Pipe Flange
Oval / 2 Bolt Flange Design type

Condition: New
Warranty: one year warranty

Notice

* Professional installation is highly recommended (No Instruction Included).
* For any needs please contact us.

* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.

* Make sure the oil drain line is lower than the turbo itself.

* Gasoline car must install a water cooling device to avoid overheating.

* Ensure exhaust outlet are well sealed by welding.
