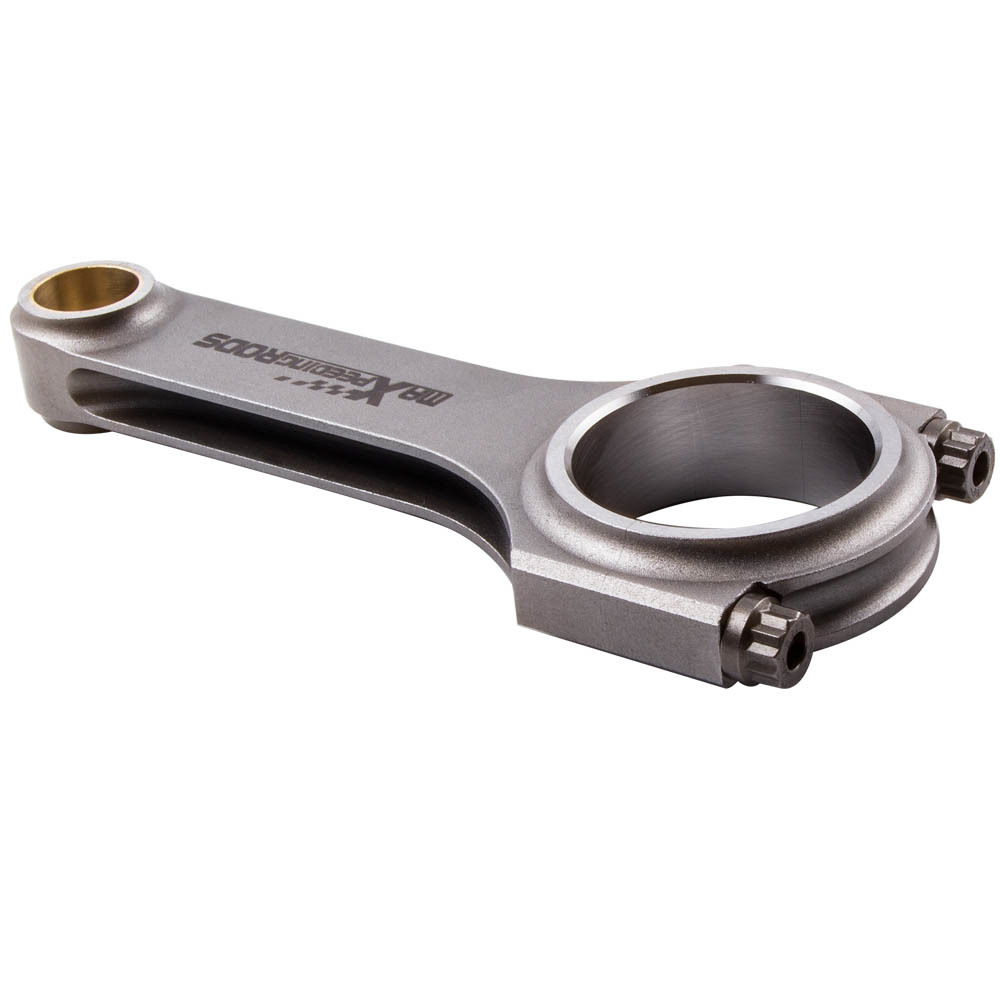

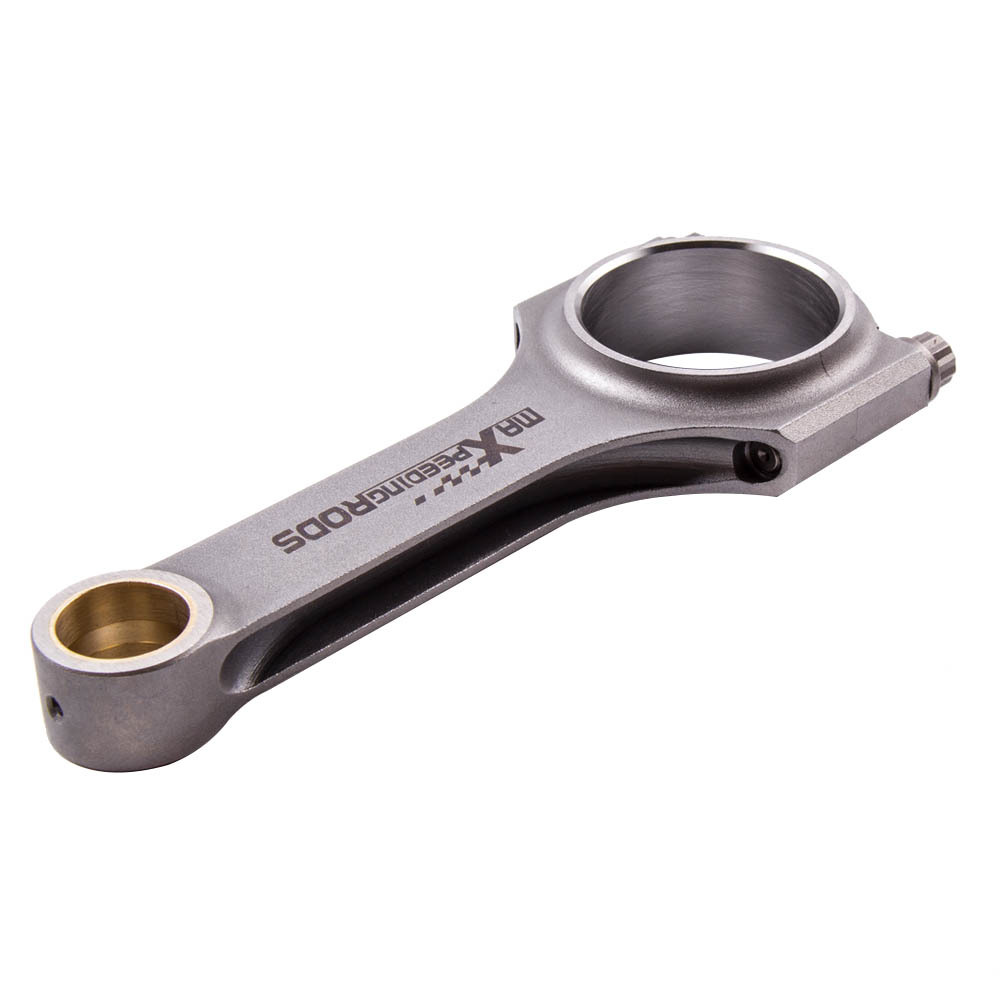

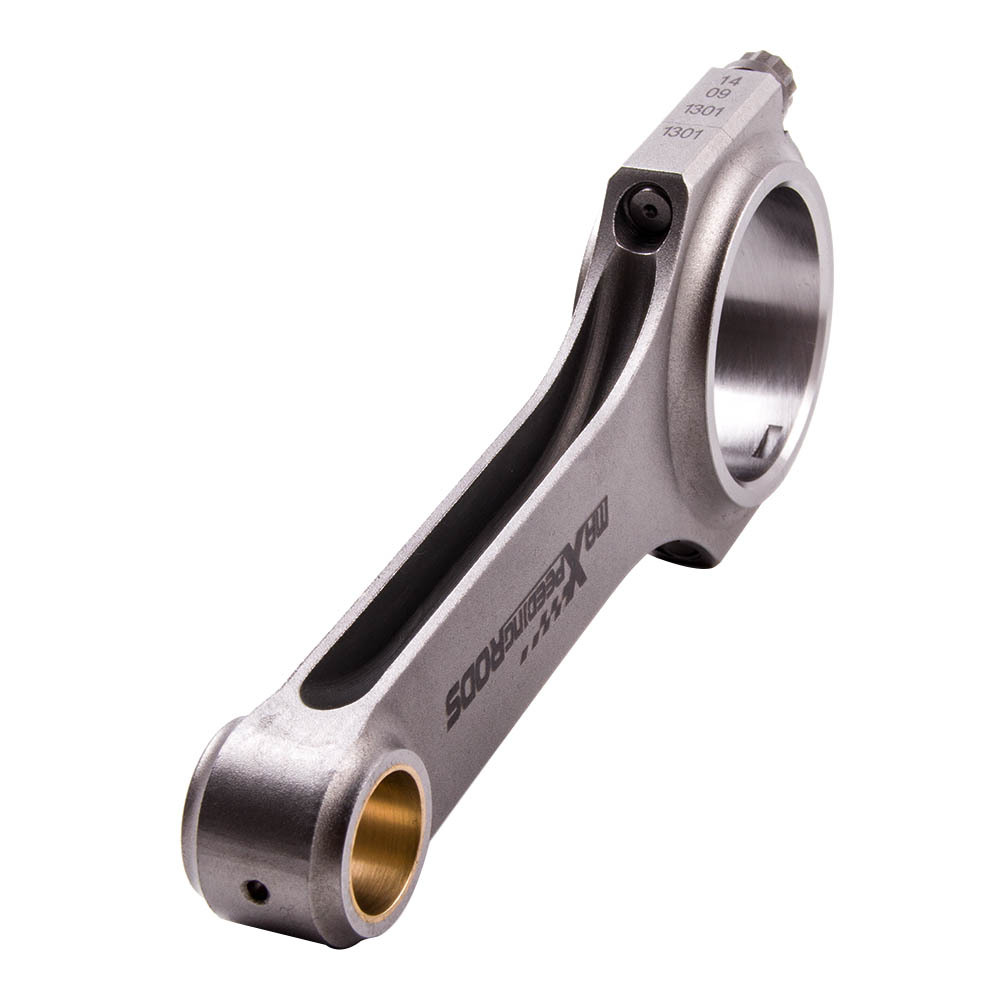

Connecting Rods Rod compatible for Suzuki Swift Gti 1300 G13B Bielle ARP bolts

  • * H-Beam con rods compatible for Suzuki Swift Cultus Gti 1300 G13b
  • * Advertised Horsepower Rating: 600~800HP
  • * Material: Forged 4340 aircraft chrome moly quality steel
  • * Dimensions: Center to center length: 120mm; Big end diameter: 45mm; Small end diameter: 19mm ( tapered small end); Big end width: 22mm; Small end width: 22mm
  • * Package Contents: 4 Pieces of H-Beam Connecting Rods; 8 Pieces of ARP 2000 5/16" Bolts (Note: Extra cost for upgrading to ARP L19 bolts)
  • * Performance Con Rods
  • * Advertised RPM Rating: 7000-9000 rpm
  • * Fastener Tensile Strength (psi):200,000 - 230,000 psi
  • * Balanced to within +/- 1 gram per end
  • * The big end bores are honed to a +/-.01mm tolerance
  • * Heat-treating & Shot-peened for remained consistent and strong
Stock In Stock
Item Number 3002907079

MORE OPTIONS

Combination offer

  • A
  • B
  • C
  • D
  • E
  • F
  • G
CR-Compatible for SUZUKI-120
CR-Compatible for SUZUKI-120
High Quality Components
High Quality Components
With Standard ARP 2000 Bolts (Upgradable ARP L19)
Precision Machining Manufacturing
Precision Machining Manufacturing
Shot Peening for improved fatigue life. 100% CNC machined for superior tolerances,Precision rod cap alignment dowels
Professional H-Beam Design
Professional H-Beam Design
Improve stiffness, reduce stress risers and reduce weight
High Performance Material
High Performance Material
Forged 4340 aircraft chrome moly quality steel for racing

Application

1986 - 1989 compatible for Suzuki Swift GTi 1300 G13B engines AA33S
1989 - 1994 compatible for Suzuki Cultus GTi G13B engines AA34S (113HP)
1990 - Compatible for Suzuki Cultus G13B engines AB34S
1989 - Compatible for Suzuki Swift AC34S DOHC G13B engines

Specification

- Performance Con Rods
- Type: Forged 4340 aircraft chrome moly quality steel for racing
- H-beam Conrods Quantity: 4 Pieces as showing in picture
- Bolts: Including ARP 2000 bolts
- Note: Extra cost for upgrading to ARP L19 bolts
- Bolts Size: ARP 2000 5/16" bolts
- Tolerance: Balanced to +/- 1 gram in set
- Piston Bolt Hole: +-4/1000mm
- Power: 600hp ~ 800PS per set
- Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM
- Top acceleration: 7000rpm
- Warranty: one year warranty for any manufacturing defect

Dimensions

Center to center length: 120mm
Big end diameter: 45mm
Small end diameter: 19mm
Big end width:22mm
Small end width:22mm

Feature

- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
- Designed and processed by CNC machine.
- All big and small ends are finished with SUNNEN honing machine
- Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
- 100% X-rayed, sonic tested and magnafluxed
- Multi-stage heat treated
- Shot peened to relieve stress
- Come with the bronzed bushing suitable for the floating piston pin

Note

- Professional installation is highly recommended (No Instruction Included)
- Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
