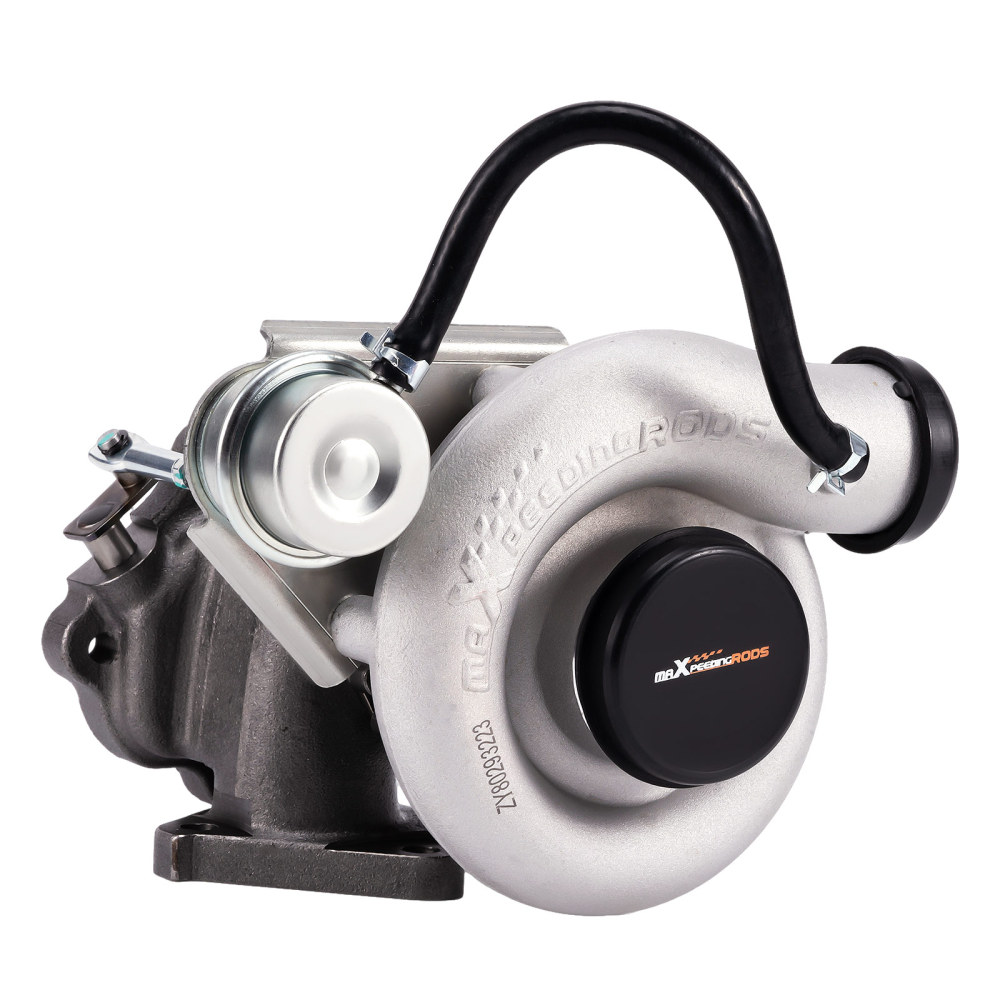

Street Performance Turbocharger Compatible for Subaru Impreza STI TD05 20G EJ20 EJ25 2002-2006 billet compressor wheel

Introduction

It's a upgraded Turbo for advanced drivers. Our TD05 20G Turbo customizes a unique specification that replaces the TD04 for a TD05H turbine wheel. Furthermore, MaXpeedingRods also enlarges the turbine housing area to 7 square cm to improve the exhaust efficiency. so expect to gain more power than stock turbo.

Application

TD05 20G Upgraded Turbo compatible for Subaru IMPREZA WRX / STI EJ20 EJ25 engine 2002 - 2006
*Notice: All WRX Wagon engines and automatic sedan engines came with a TD04,all manual WRX sedans including STI versions had a TD05 model. If your original turbo is TD04 model, some modification(connections, bolts, fixed screws etc.) is required.

Specification

Exhaust Outlet Flange:5-Bolt Flange
Exhaust Intlet Flange:3-Bolts Flange

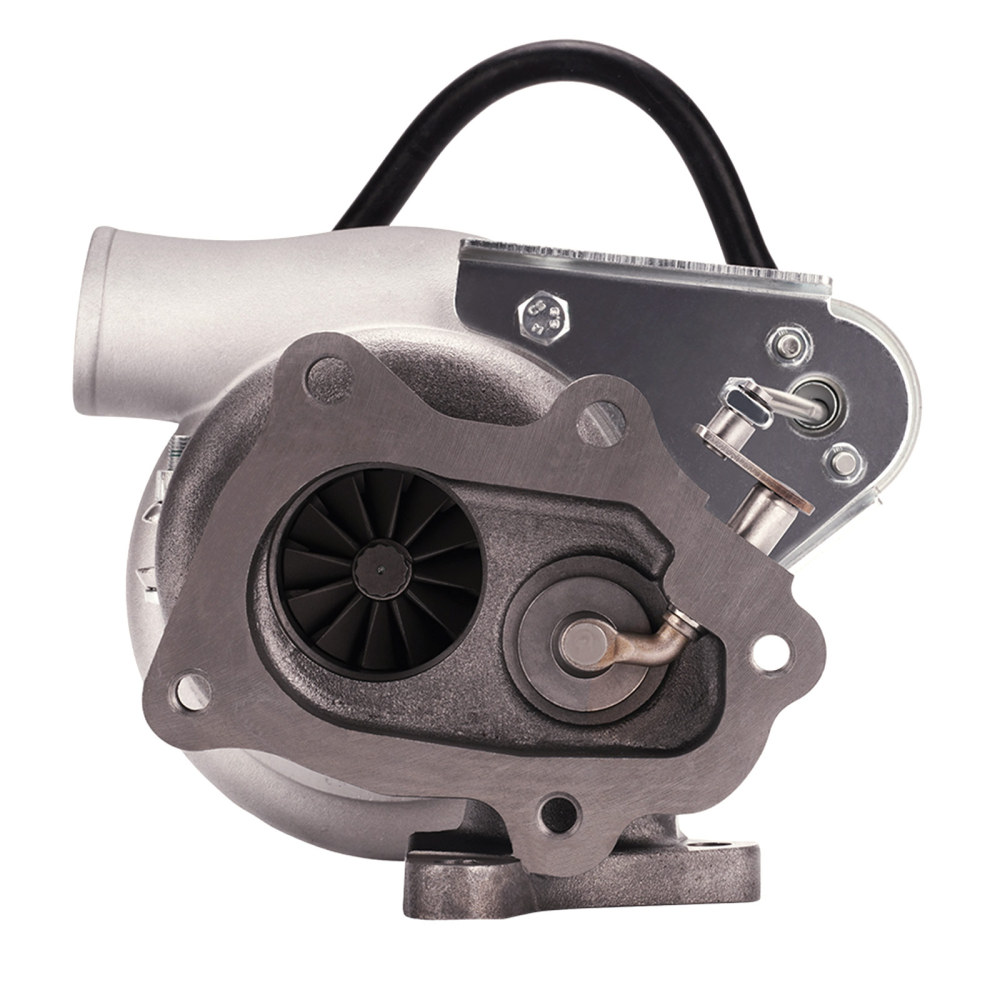

Turbine Side:
Turbine Trim: 76.4
Turbine Housing: 7cm²
Turbine Inducer Diameter:56mm
Turbine Exducer Diameter: 48.96mm
Compressor Side:
Compressor Trim: 59.8
Compressor Inducer Diameter: 52.6mm
Compressor Exducer Diameter:67.9mm
Compressor Housing Inlet OD: 57.8mm
Oil Feed: M10*1.5
Oil Drain: 2*M6*1.0
Water In/Out: M14*1.5
Turbine housing: 7cm²
Compressor housing inlet OD: 57.8mm,ID:53.62mm
Compressor housing outlet OD: 51.2mm,ID:41.2mm
Bearing: Wet Float/Journal Bearing
Cooling Type: Water + Oil cooled
Wastegate：With Wastegate
Turbo Model: TD05 20G
Thrust Bearing:270 degree
Hosepower: Up to 380 HP
Turbo Type:Individual
Universal Fitment: No
Finish: Matte
Accessories: You will get exactly as shown as picture above
Condition: 100% Brand New
Package Size:30x 28x 24 cm
Package Weight: 7650g

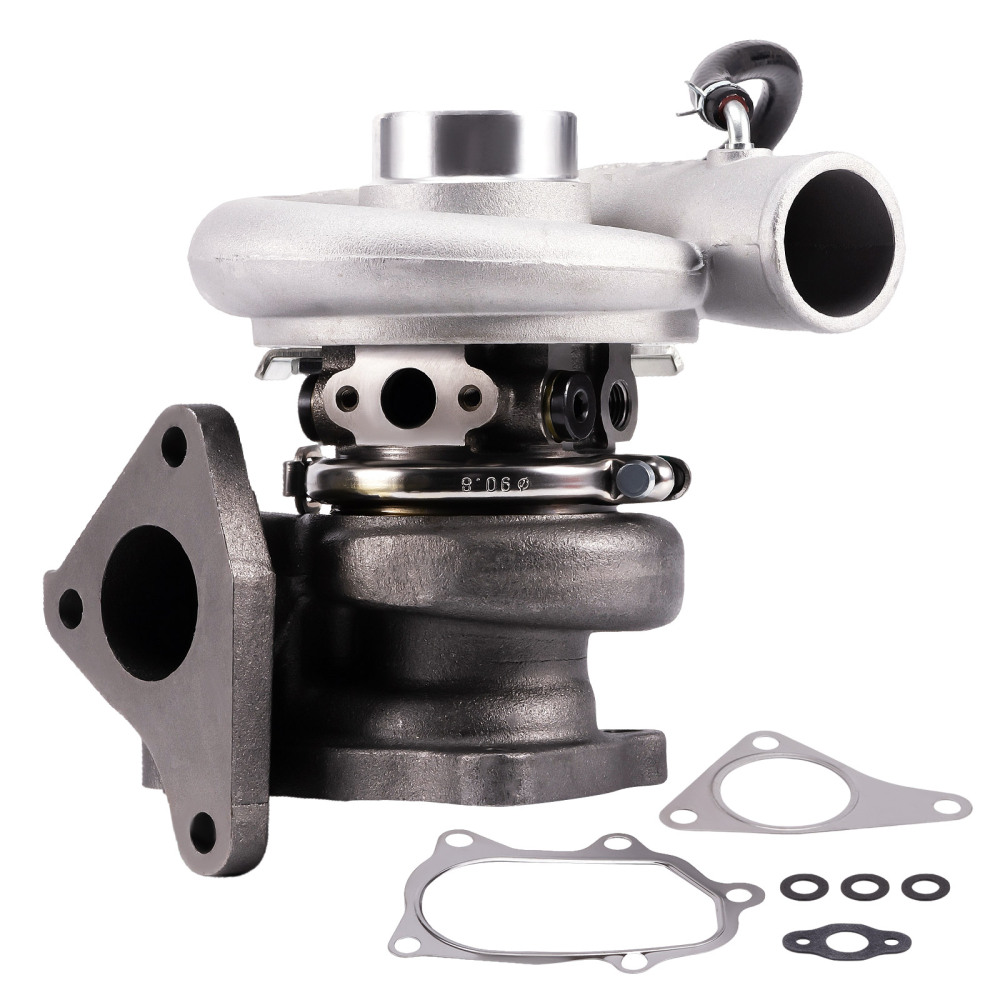

Package included

1xTurbocharger
2xFlange gaskets
2xOil/Water port gaskets
1xManual
1xBrochure
1xSticker

Feature

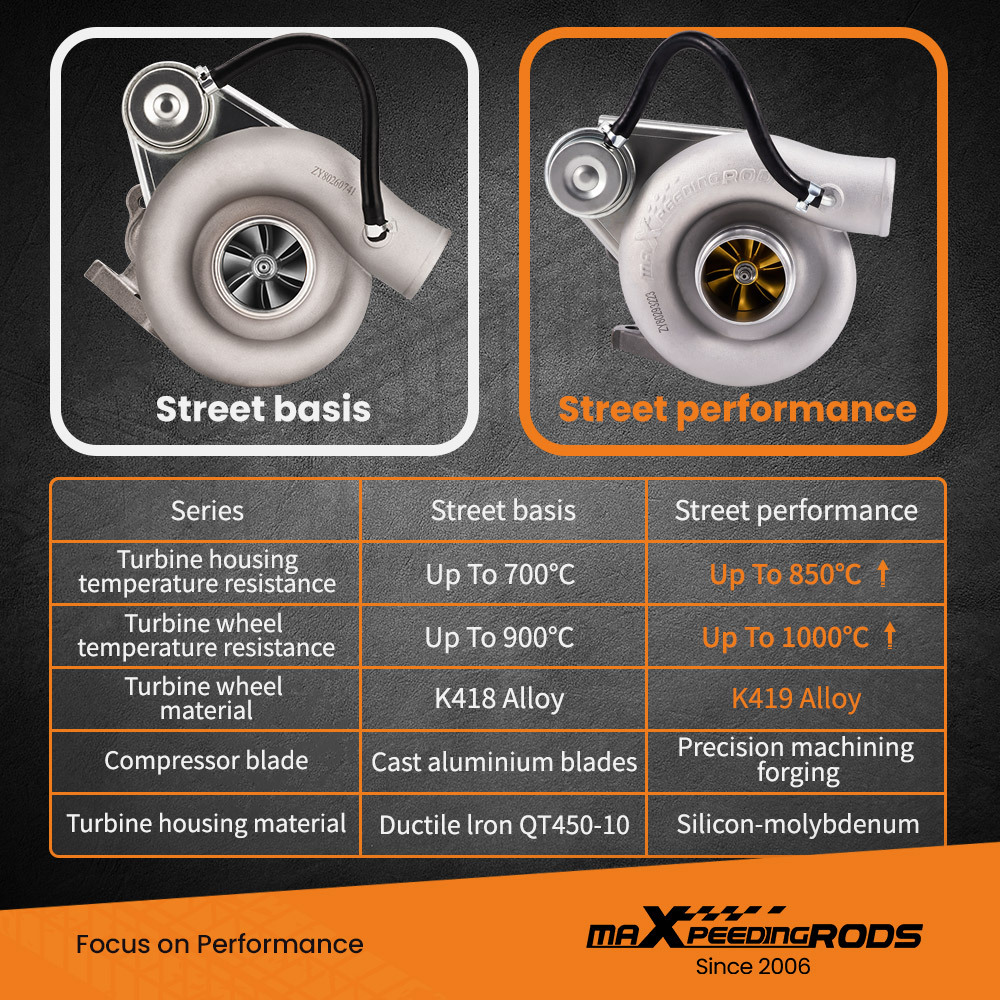

*Product Material

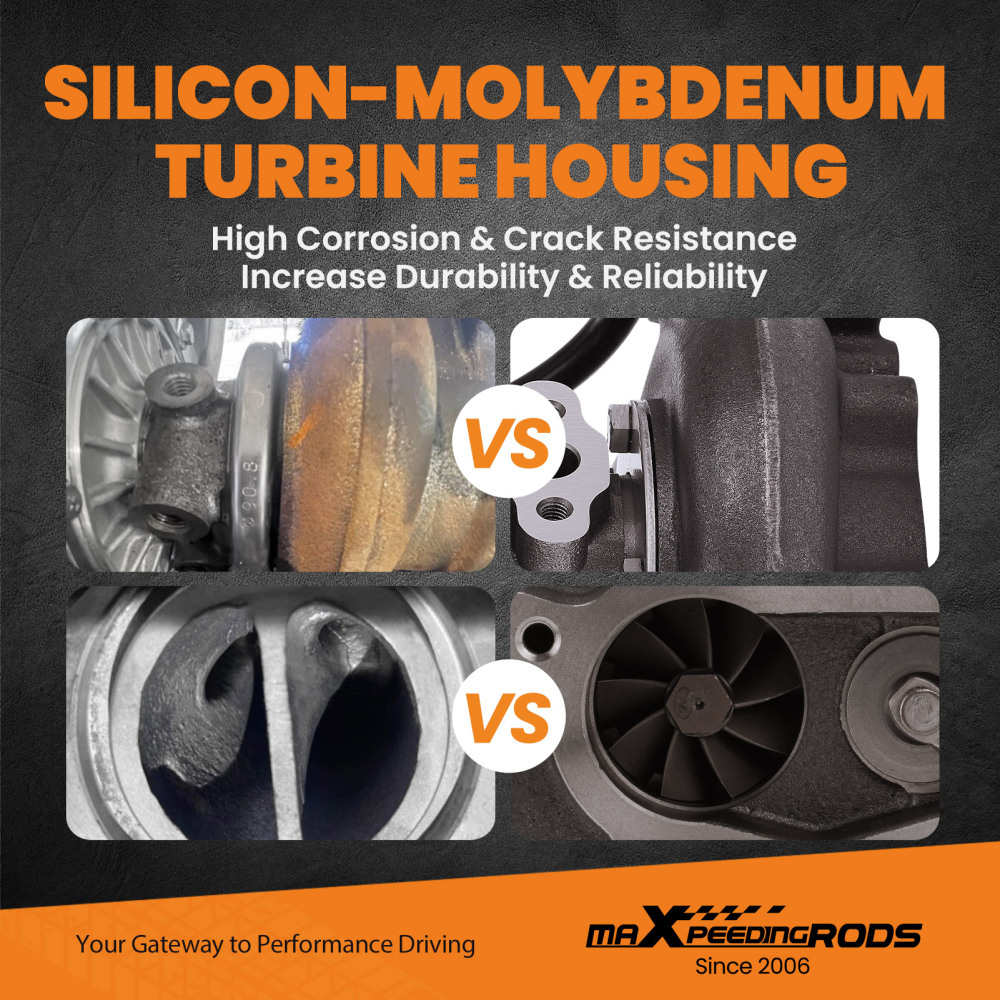

1. Turbine housing ：Silicon-Molybdenum - temperature resistant up to 850℃

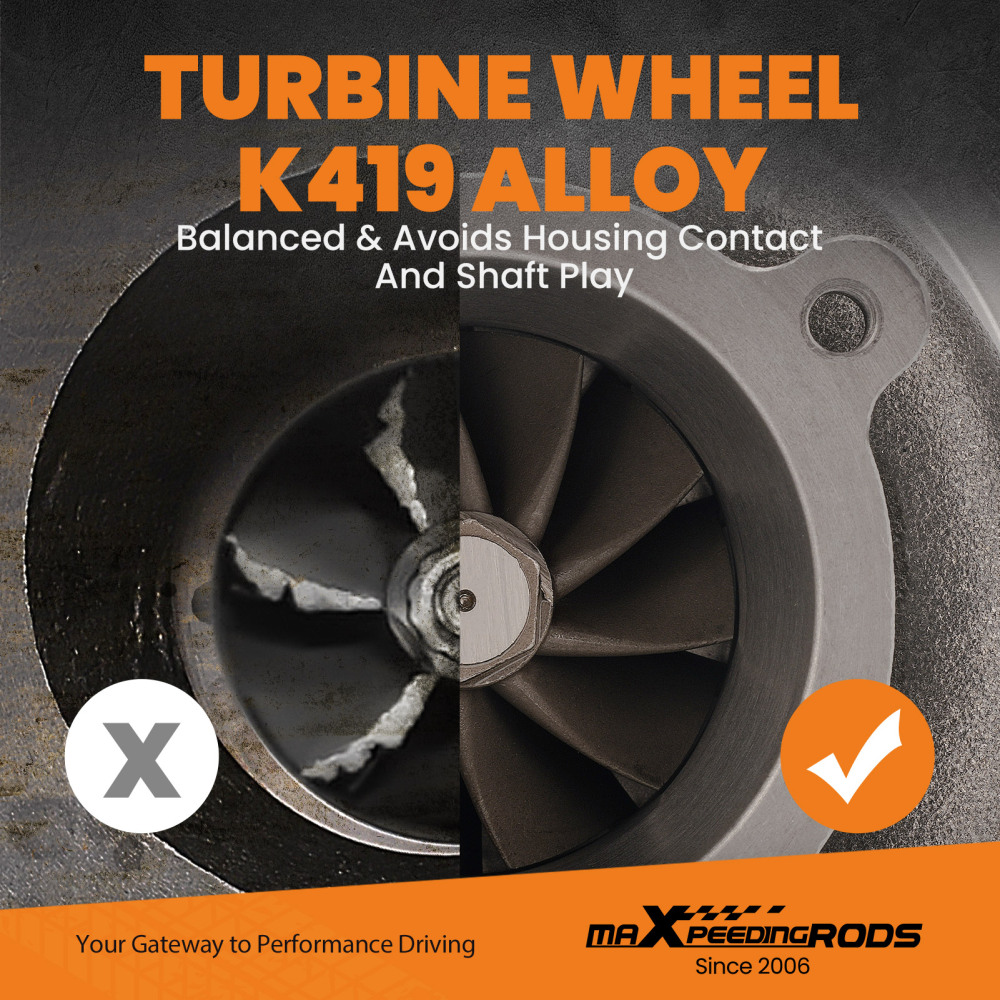

2. Steel Turbine Wheel：K419 alloy - high oxidation stability and resistance up to 1000℃

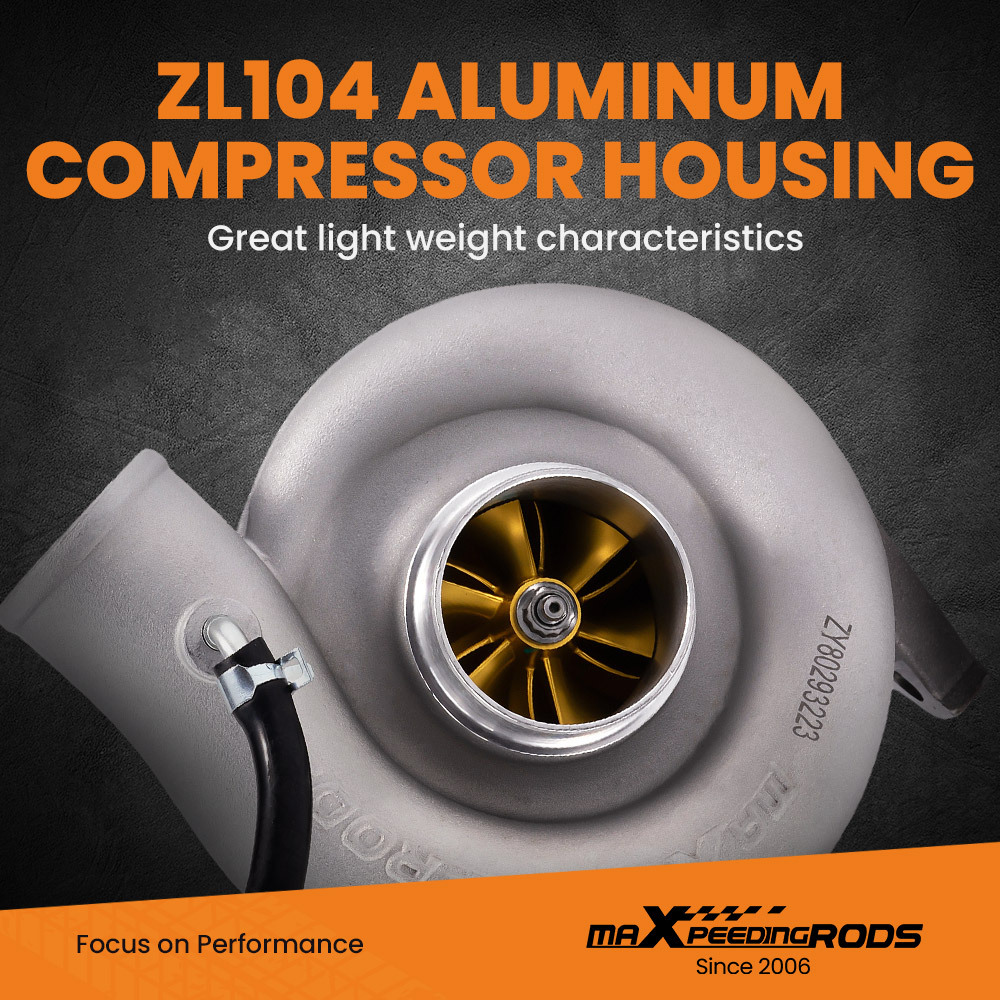

3. Compressor housing：ZL104 aluminum with lightweight

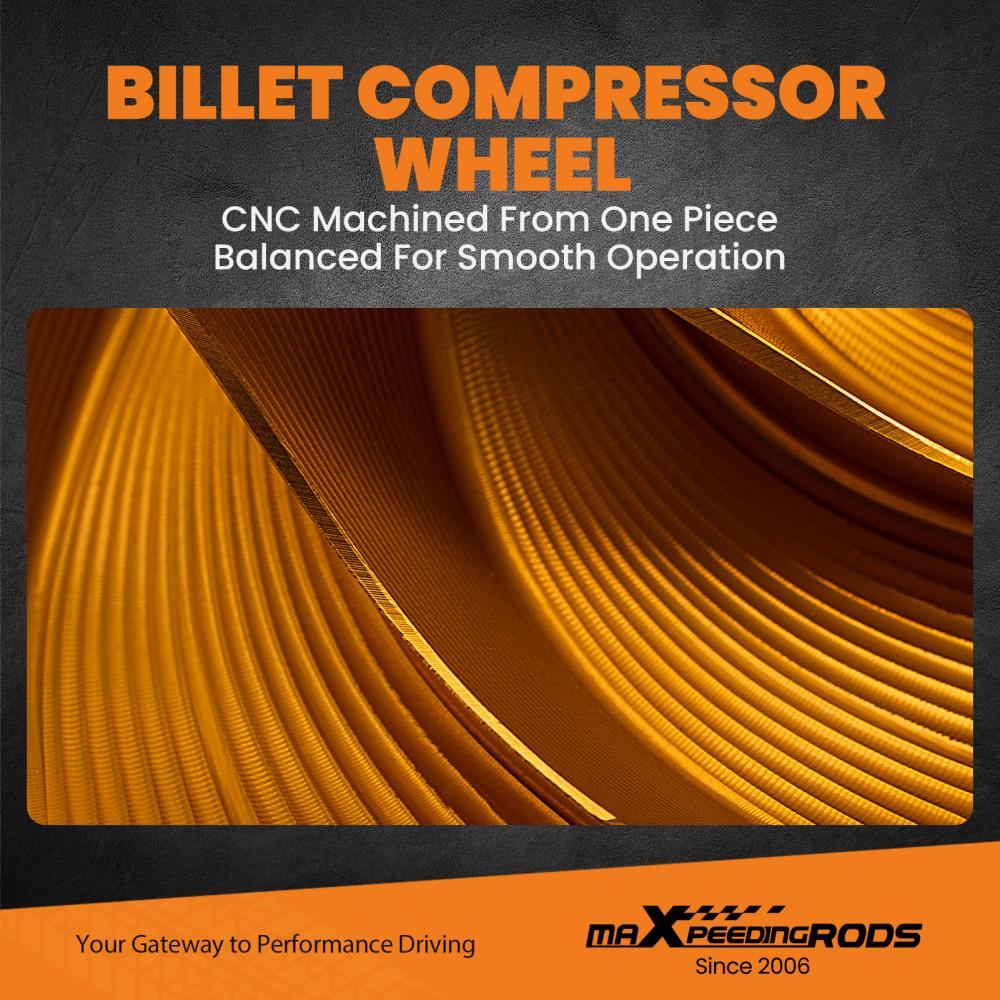

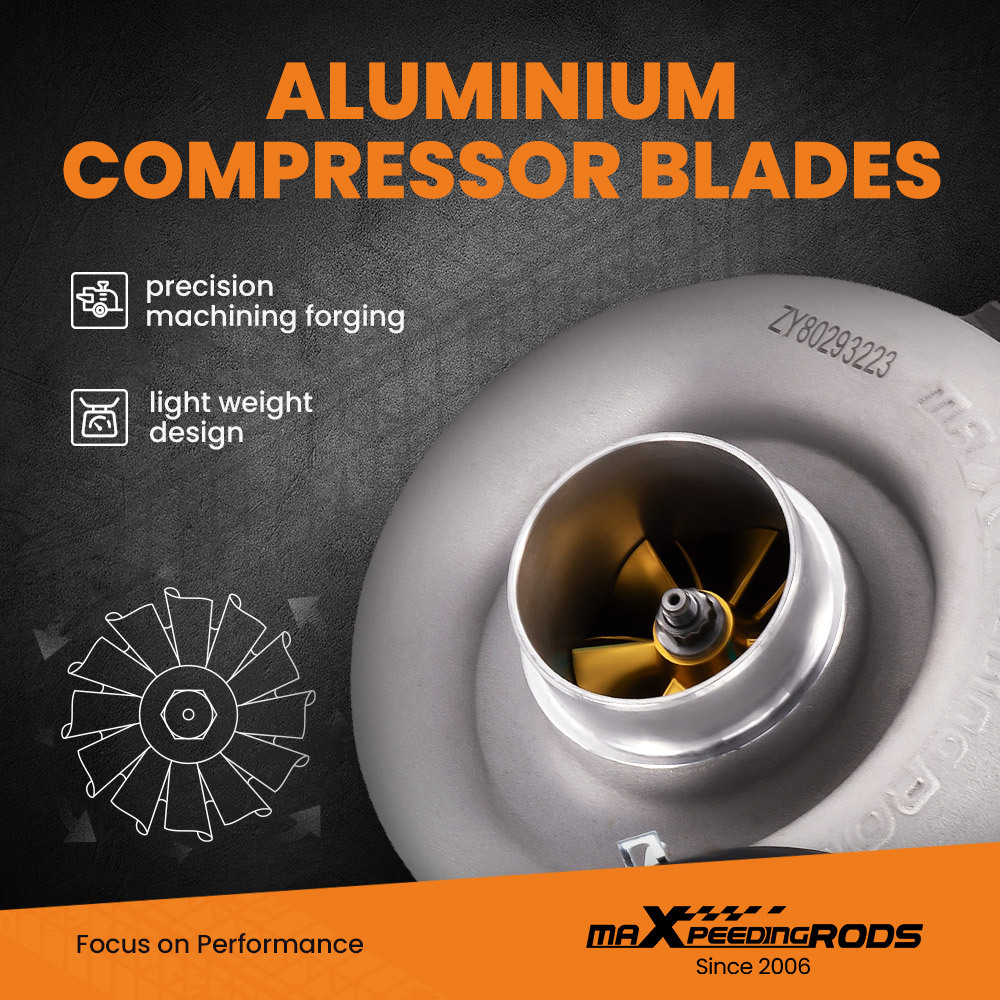

4. Billet compressor wheel：forged full-machined billet aluminum compressor wheels with a larger horsepower range and better boost response
*Product Performance

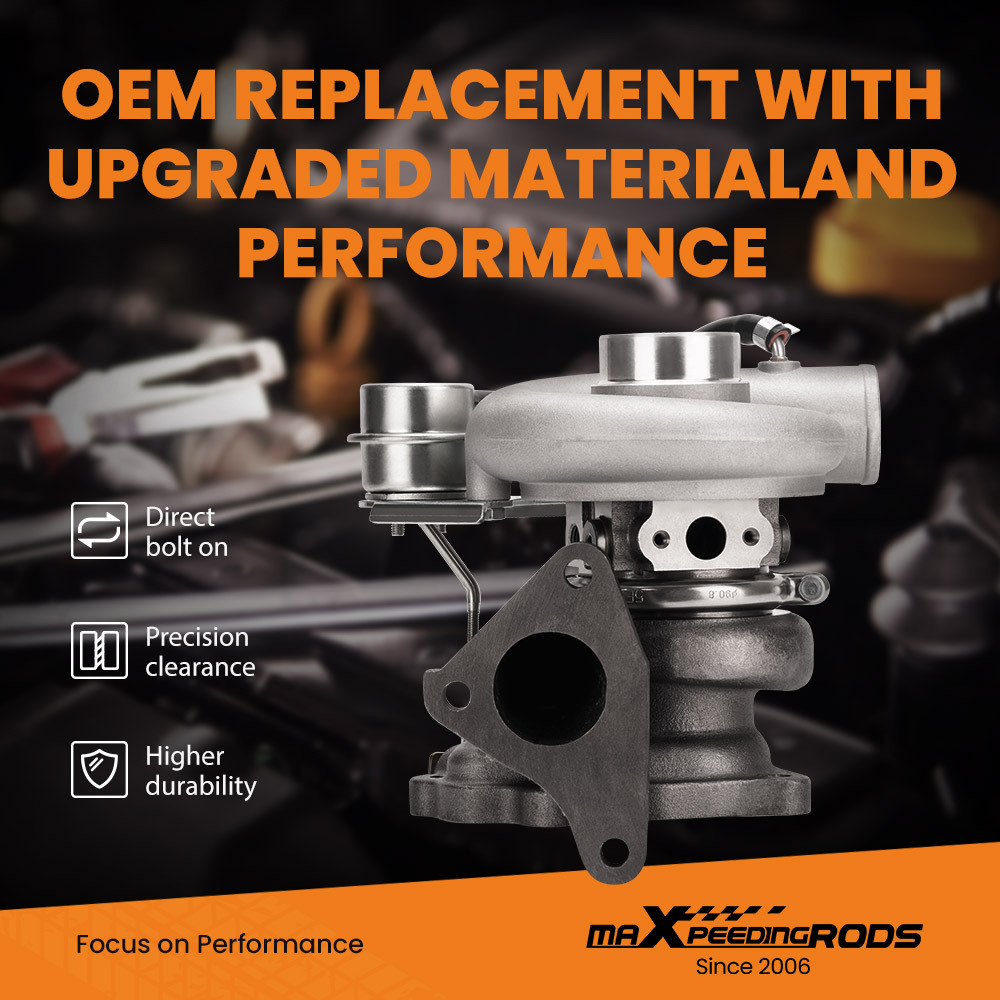

1. OEM fitment turbo with upgraded material and performance
2. Excellent high temperature resistance，high efficiency and durability
3. Rich experience in turbo production and own factory

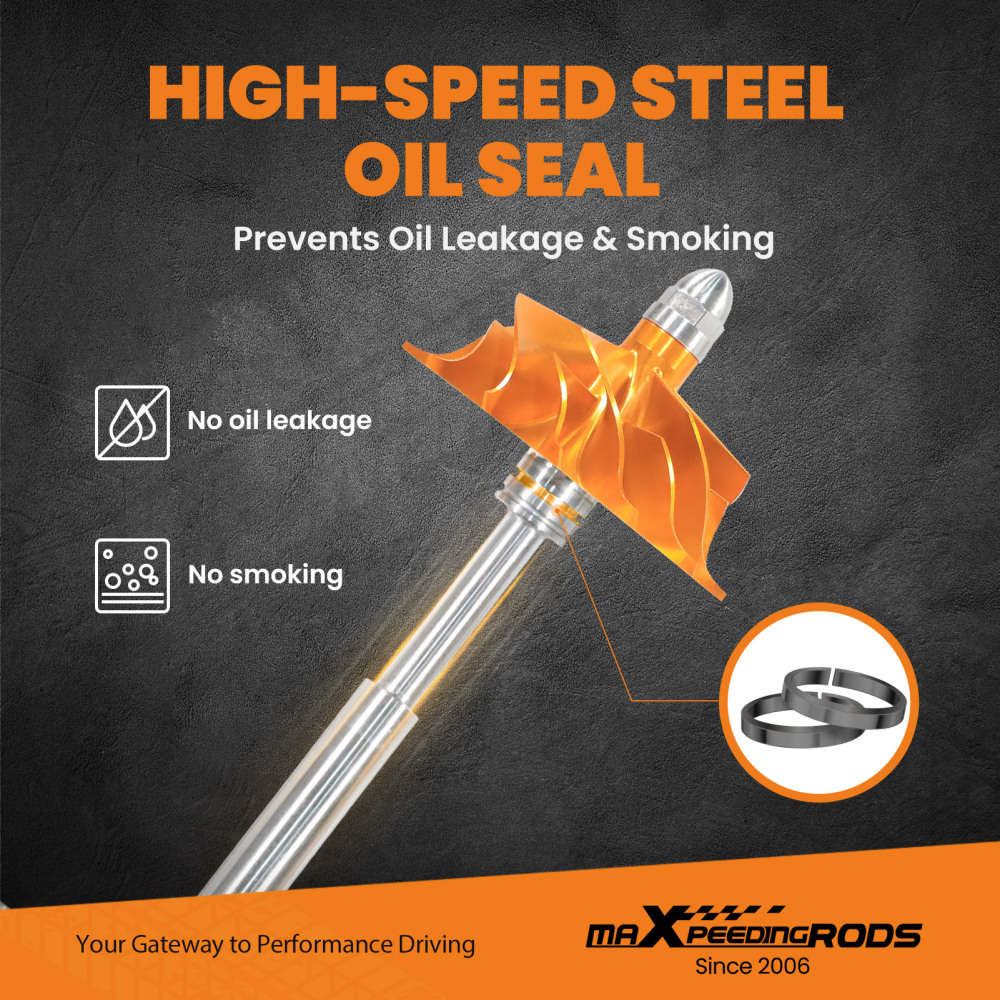

4. High-Speed oil seal ring and Precision clearance
* Technology Advantage:

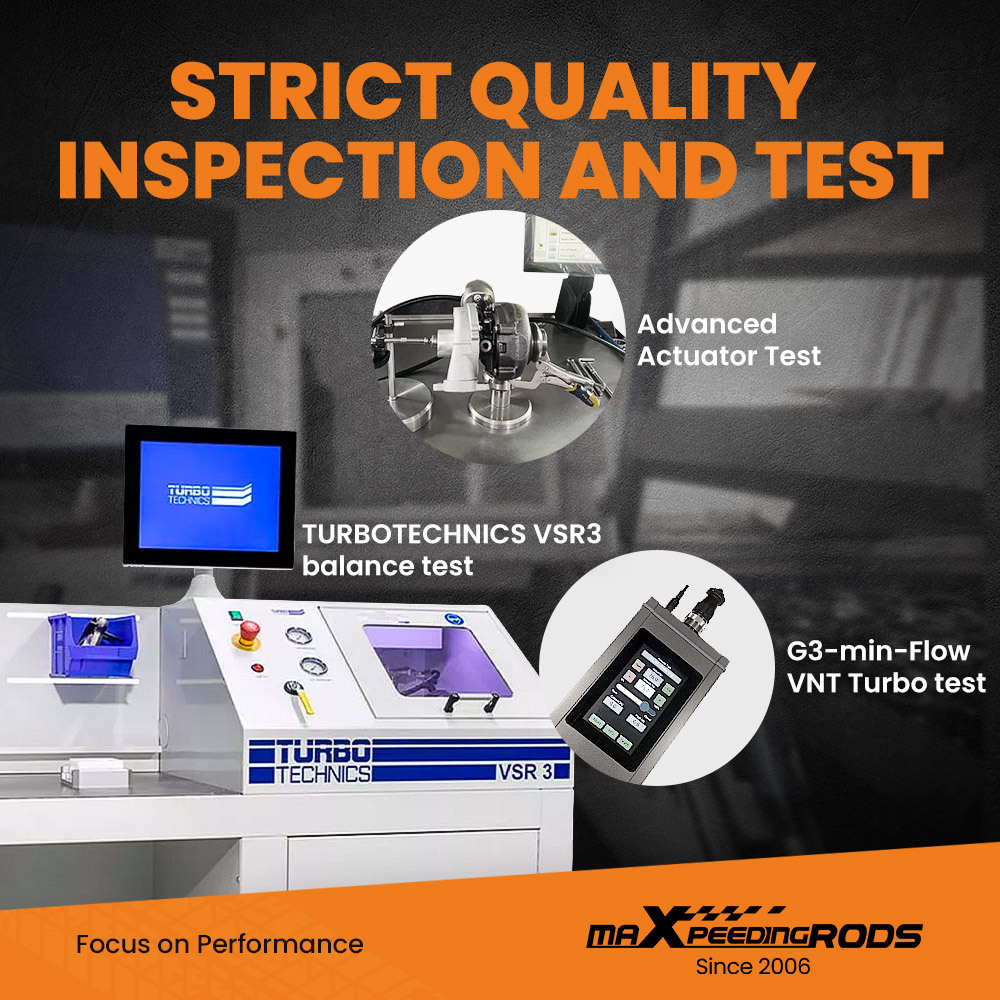

1. 100% balancing Test by TURBOTECHNICS VSR3
2. Advanced Actuator Tester/Programmer

Note

* Please confirm your original fitment before Purchasing
* Professional installation is highly recommended
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
