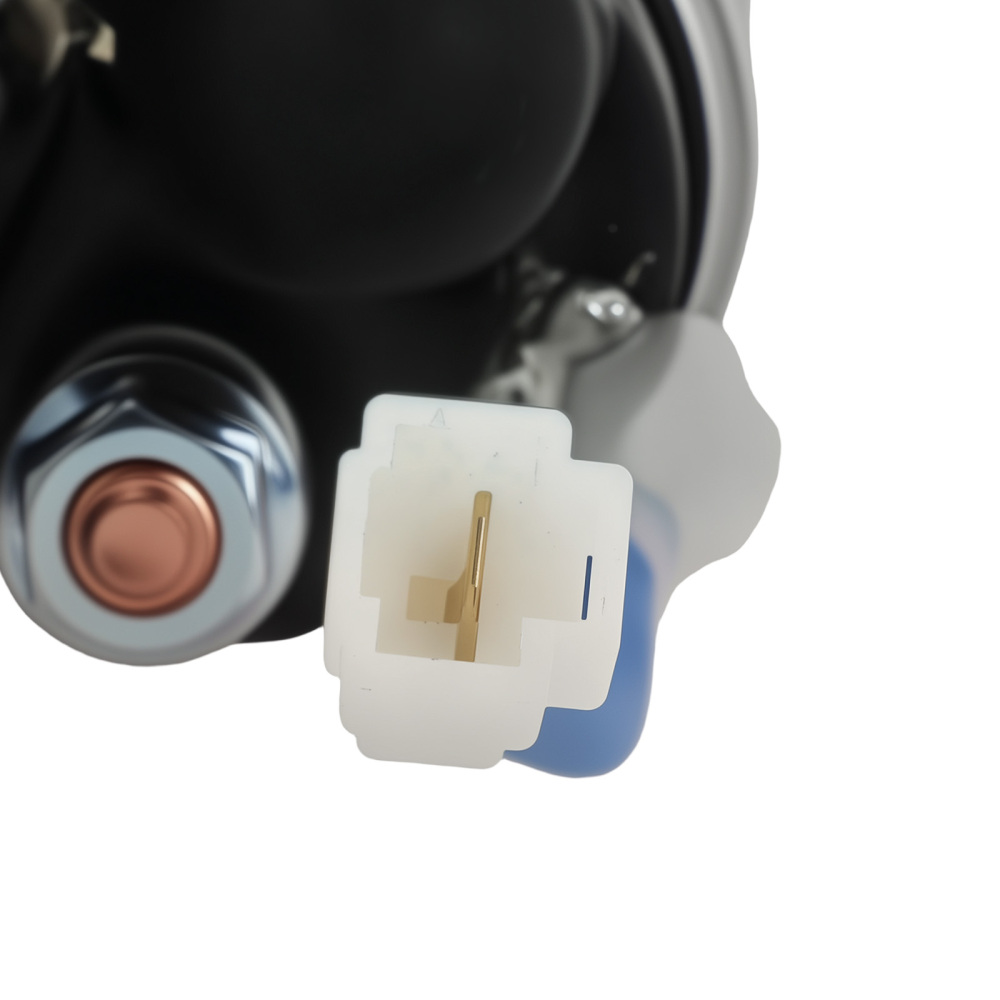

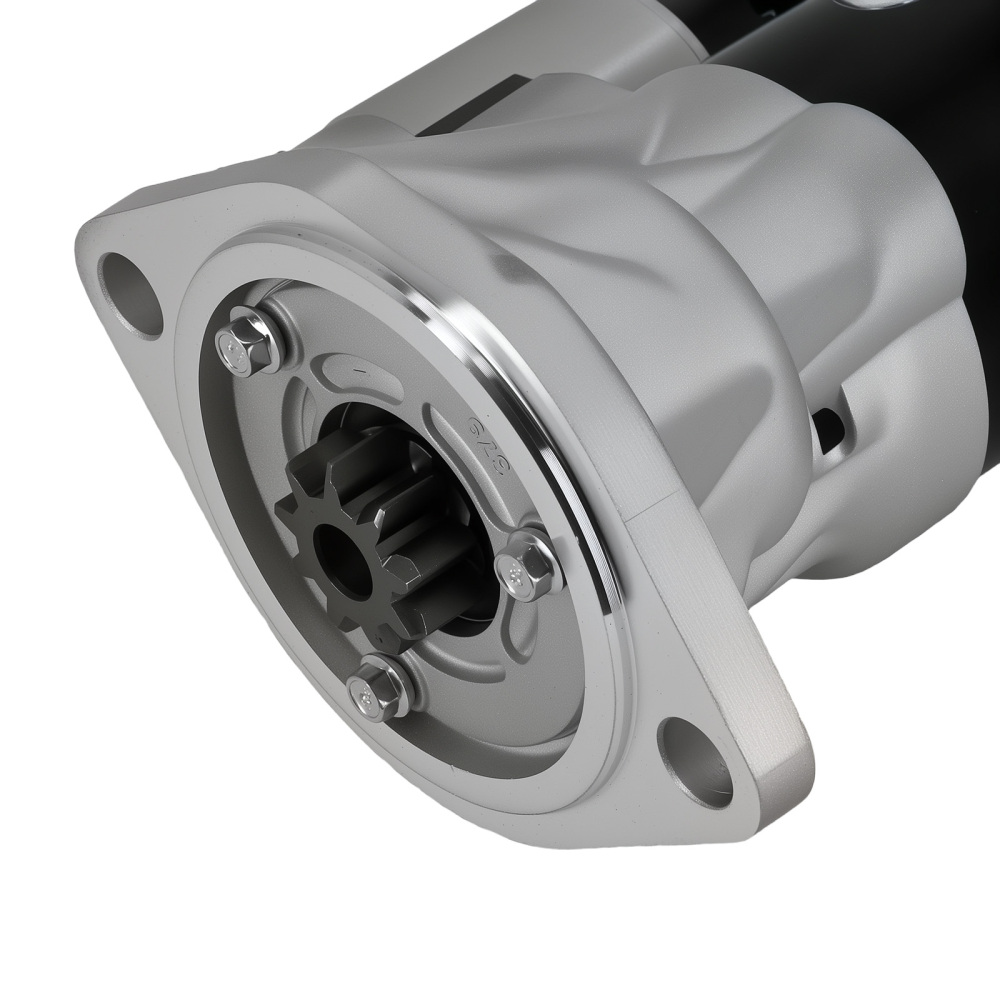

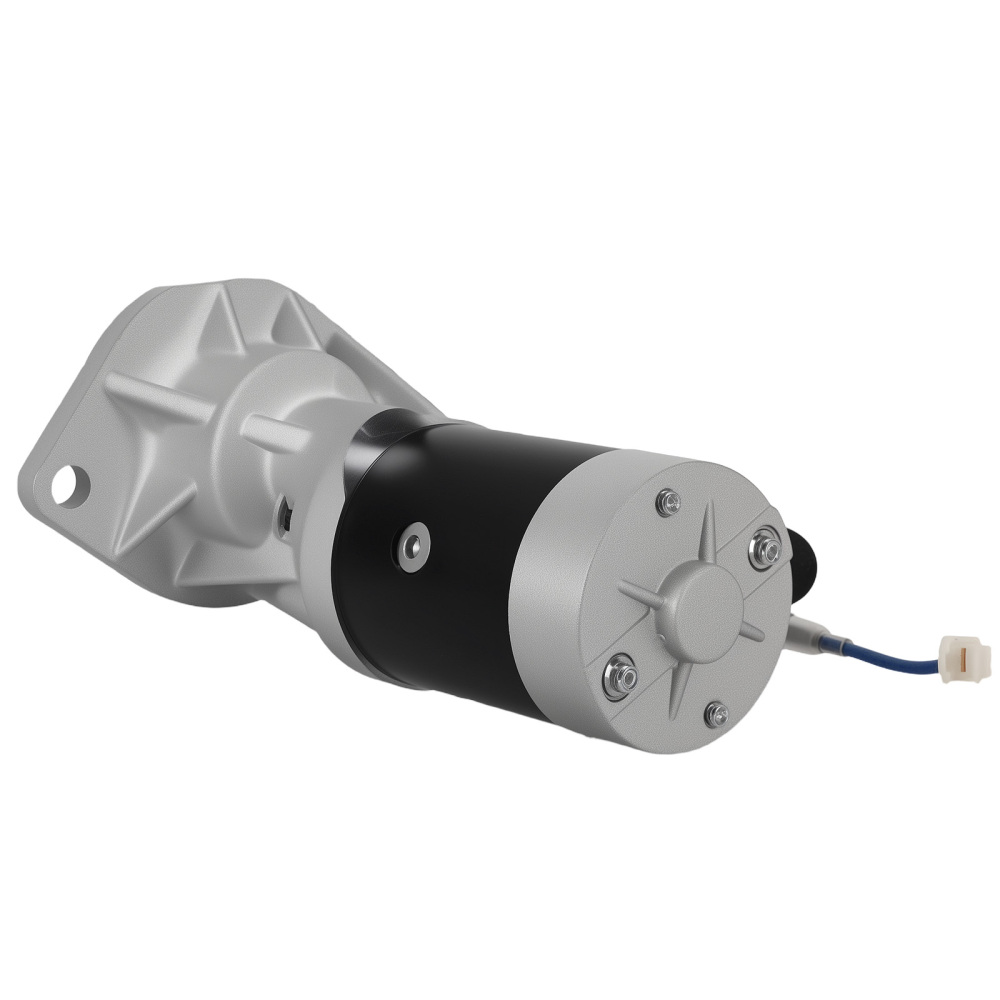

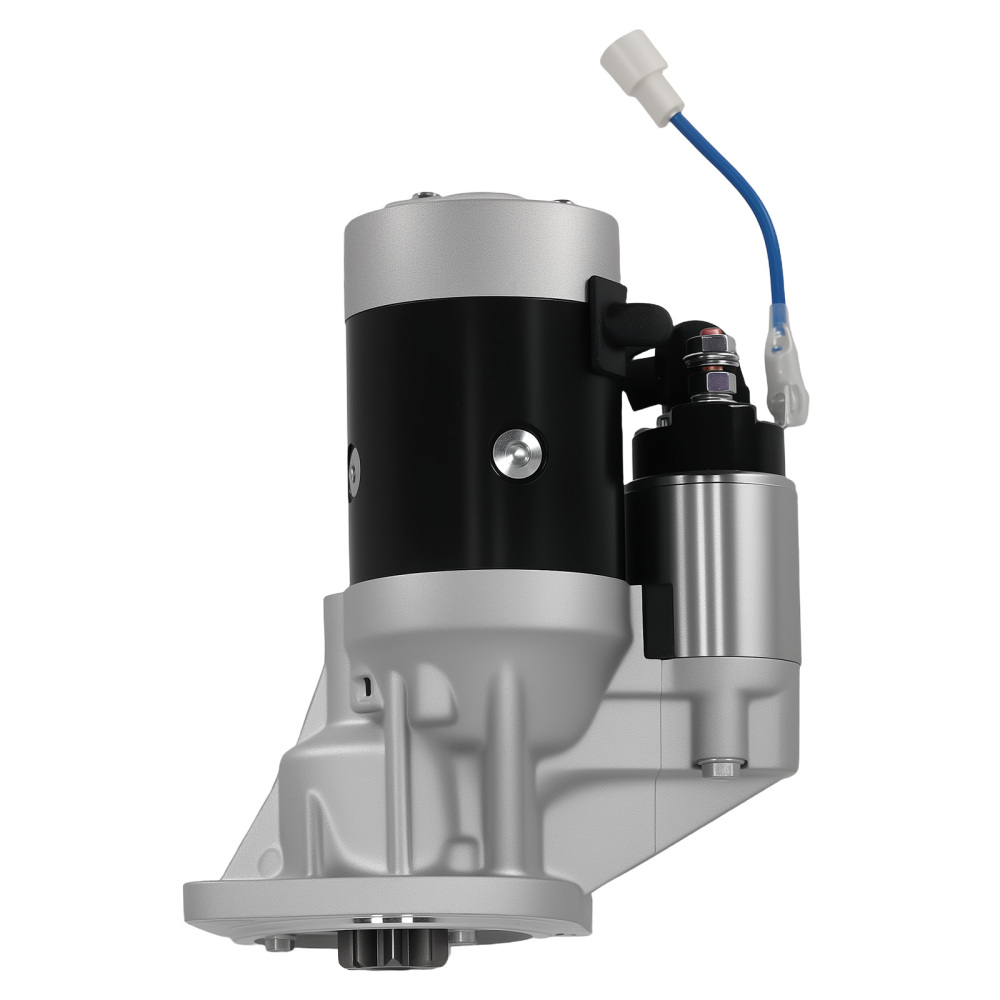

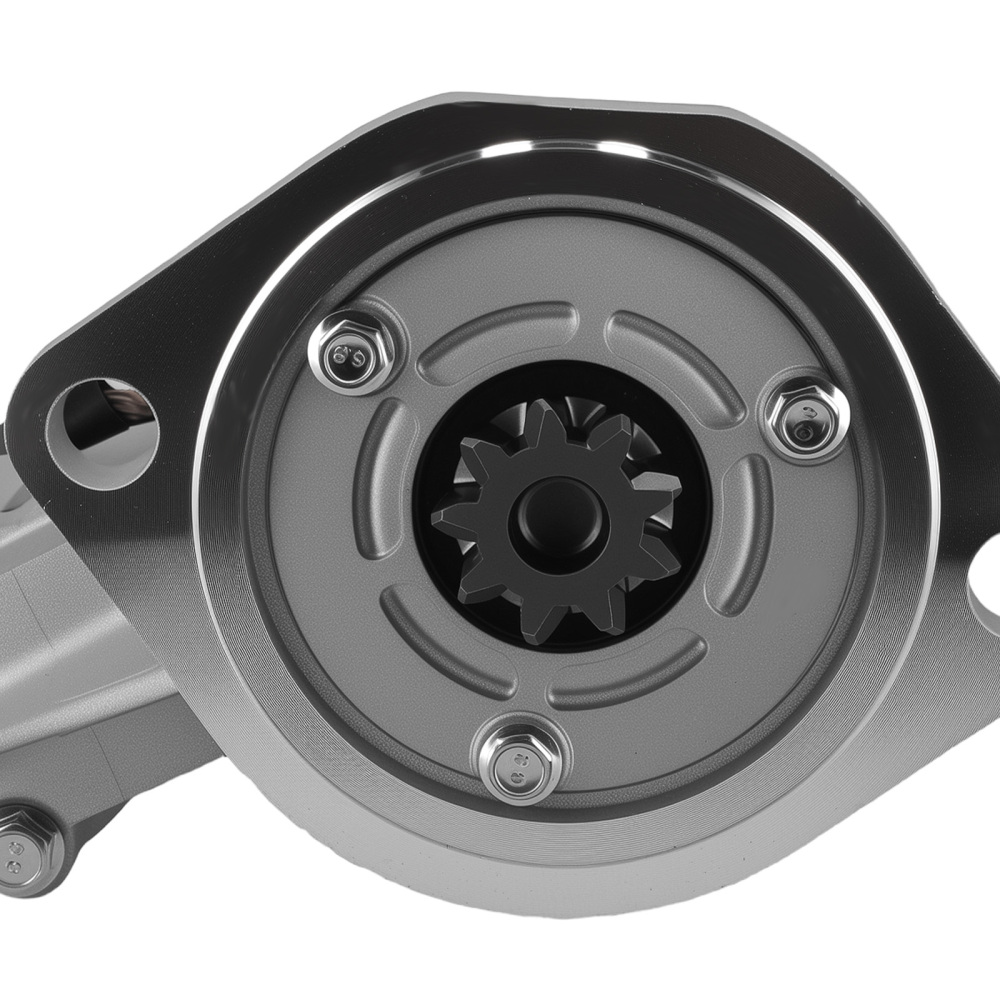

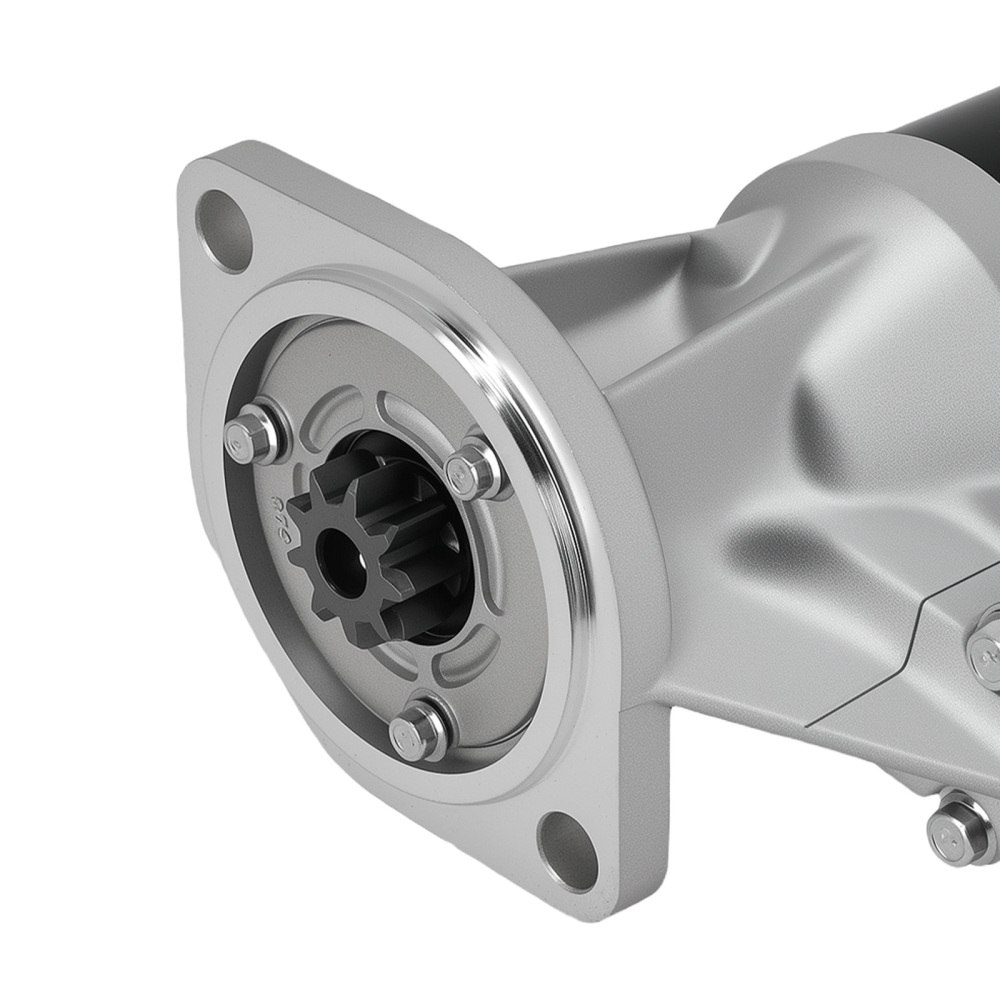

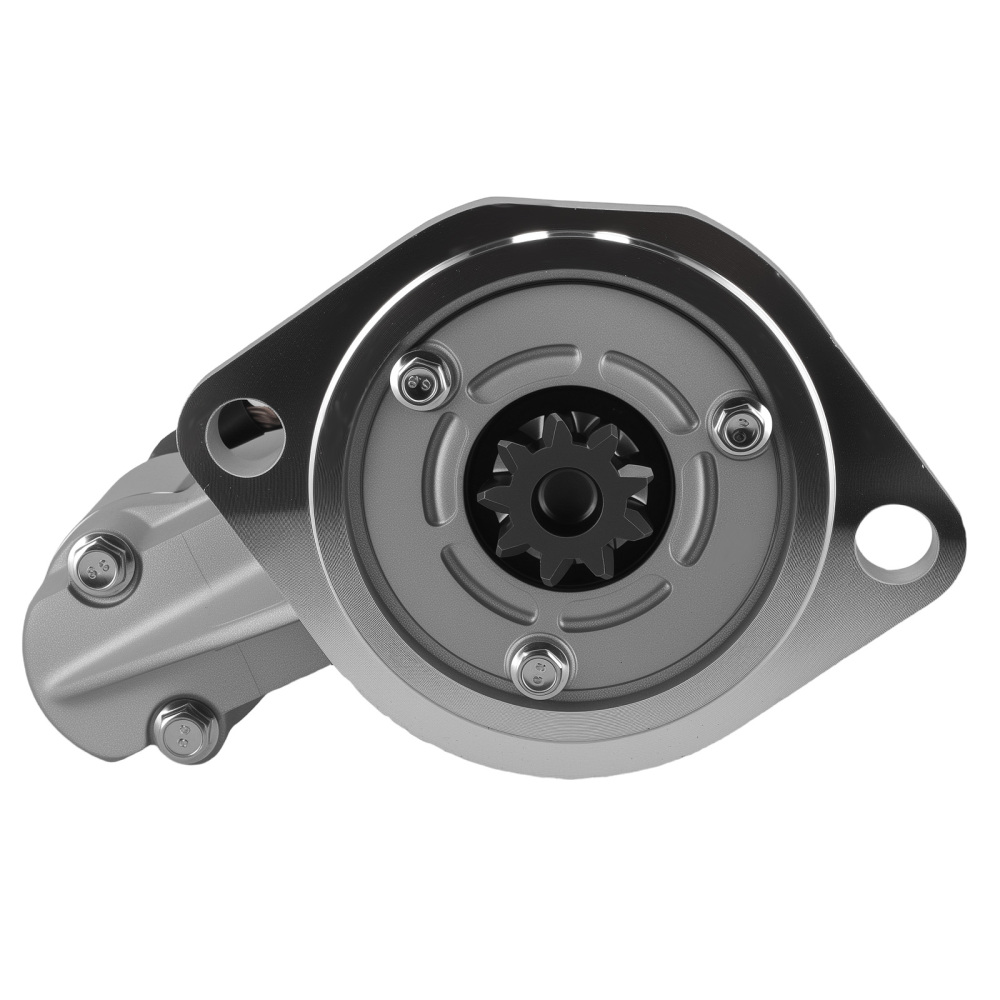

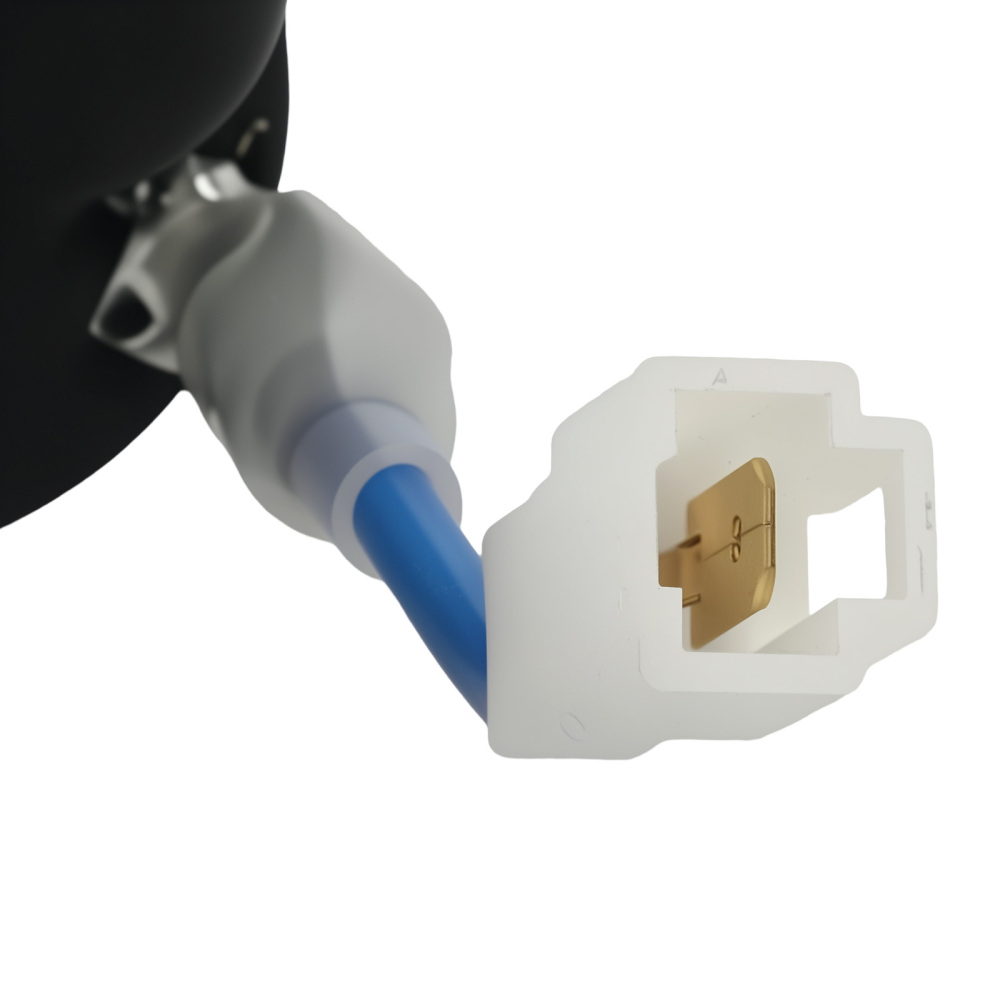

Starter Motor compatible for Holden Jackaroo 2.8L Diesel 1988-2004 S13-514 12V 2.3KW

Application

For Jackaroo engine 4JB1 2.8L diesel 1988-2004;
For Jackaroo Turbo engine 4JB1-T 2.8L diesel 1988-2004;
For Jackaroo engine 4JG1, 4JG2 3.0L diesel 1992-1998;
For Jackaroo including Turbo eng.4JX1 4JX1T 3.0L diesel 1998-2004;
For Rodeo TF engine 4JA1 2.5L diesel 1988-1992;
For Rodeo TF 4WD engine 4JA1 2.5L diesel 1988-1992;
For Rodeo TF 4WD Turbo engine 4JB1-T 2.8L diesel 1988-2003;
For Rodeo engine 4JG1, 4JG2 3.0L diesel 1998-2003

compatible for HOLDEN RODEO TF TURBO 2.8 DIESEL 4JB1T 1990-2003
compatible for HOLDEN JACKAROO TURBO DIESEL 2.8 DIESEL 4JB1-T 1988-1992
compatible for HOLDEN JACKAROO TURBO DIESEL 90A ALT 3.0 DIESEL 4JX1 2001-2004
compatible for HOLDEN JACKAROO TURBO DIESEL 70A ALT 3.0 DIESEL 4JX1T 1998-2004
compatible for HOLDEN RODEO TF 2.5 DIESEL 4JA1 1988-1992

OE/Part number

8944339120 , 8944339121，S13-112， S13-113 ， S13-514 ， S13-714

Specification

Type:Starter Motor
Condition:New

Volts (v): 12
Kilo Watts (KW): 2.3
Overall Length (mm): 228
Mounting Hole (mm): 13
Mt Holes Centre (mm) :120
Flange Diameter (mm) :95
Nose Cone Length (mm): 12
Pinion at Rest (mm) :10
Field Housing Diameter (mm) : 80
Teeth :9TH
Rotation: CW
Pinon Diameter (mm) :32

Package included

1x Starter Motor
