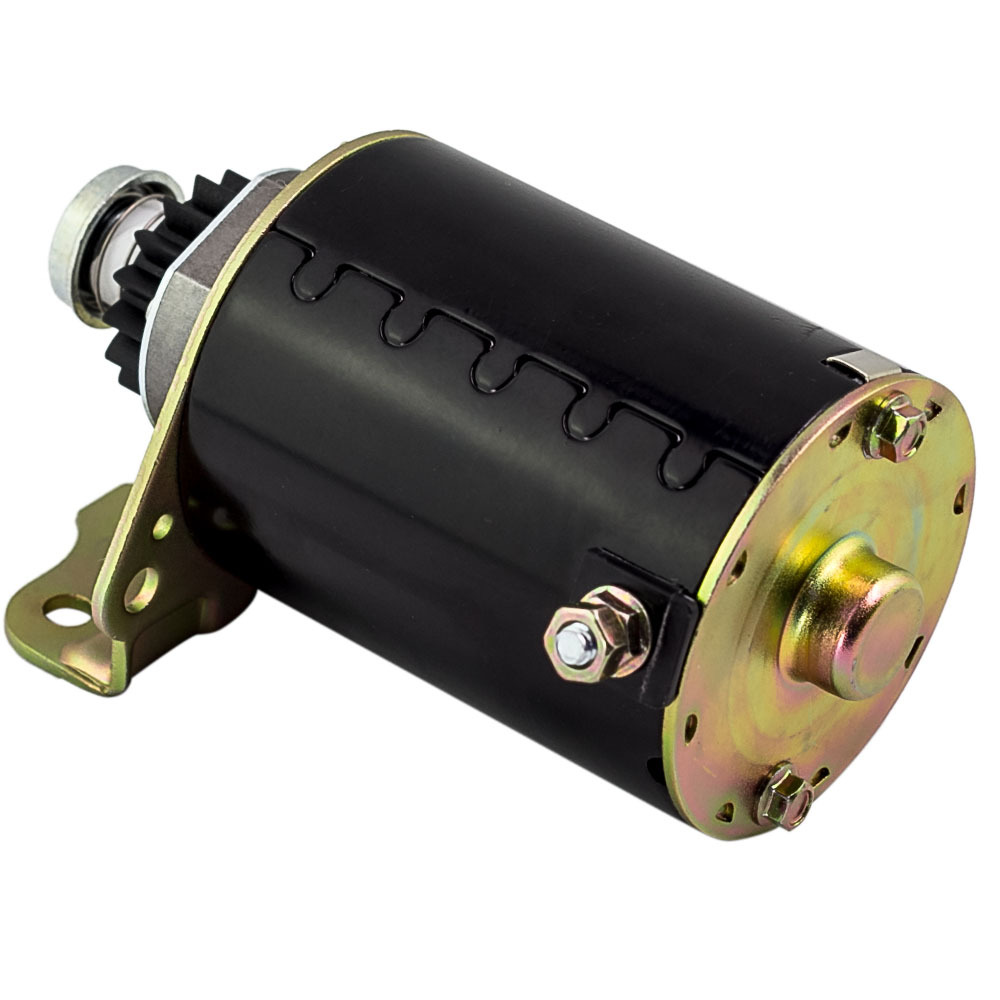

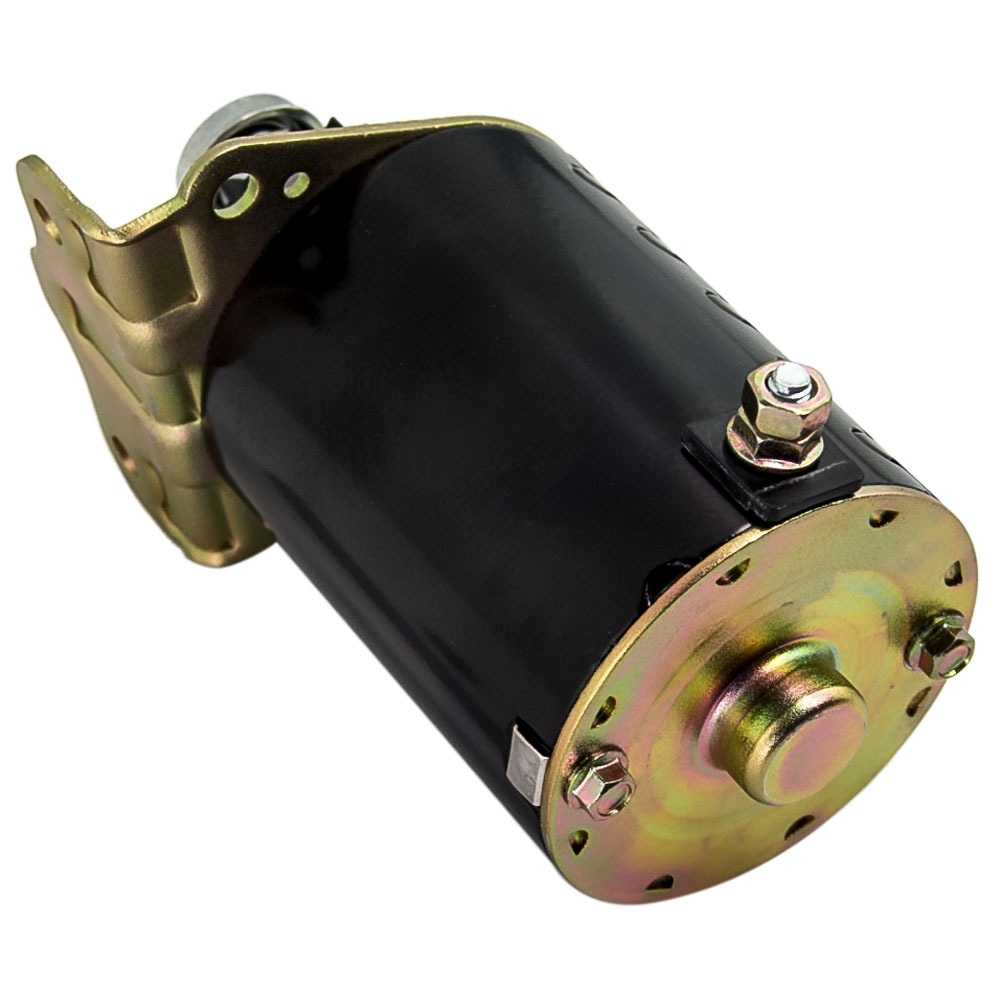

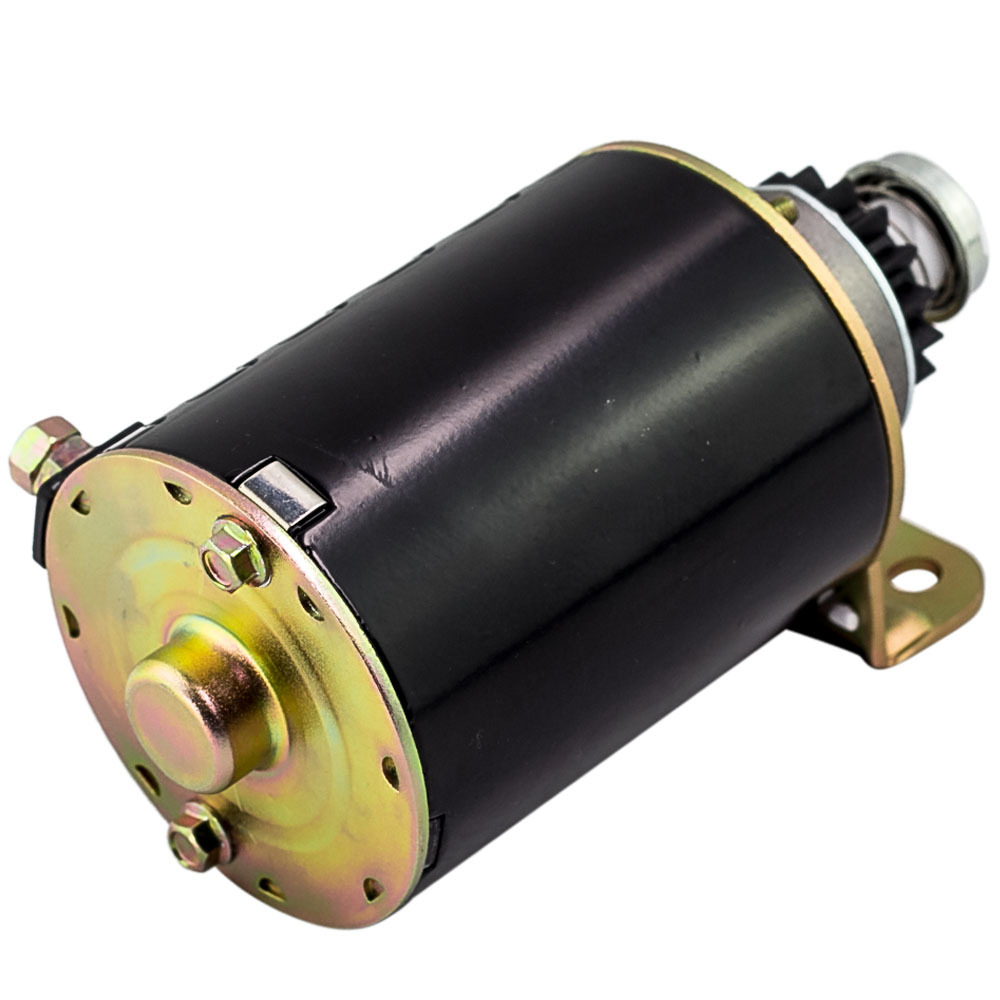

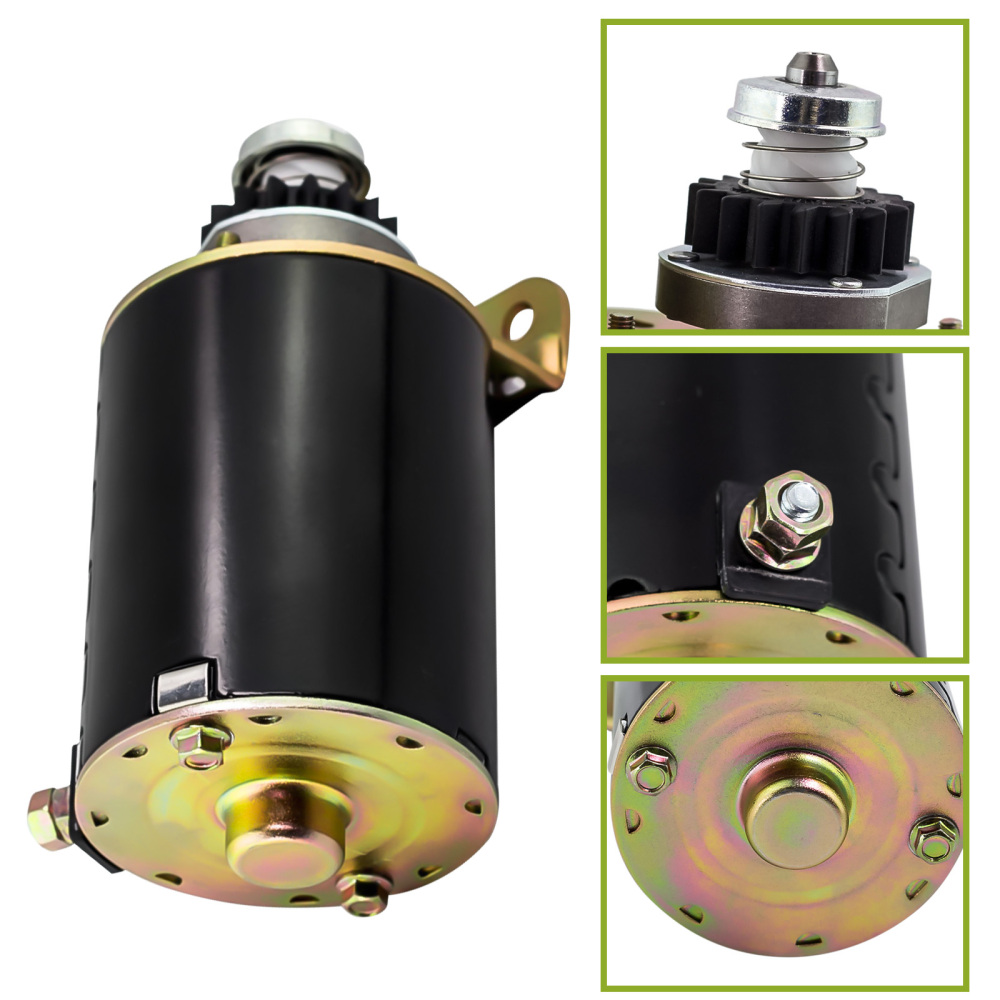

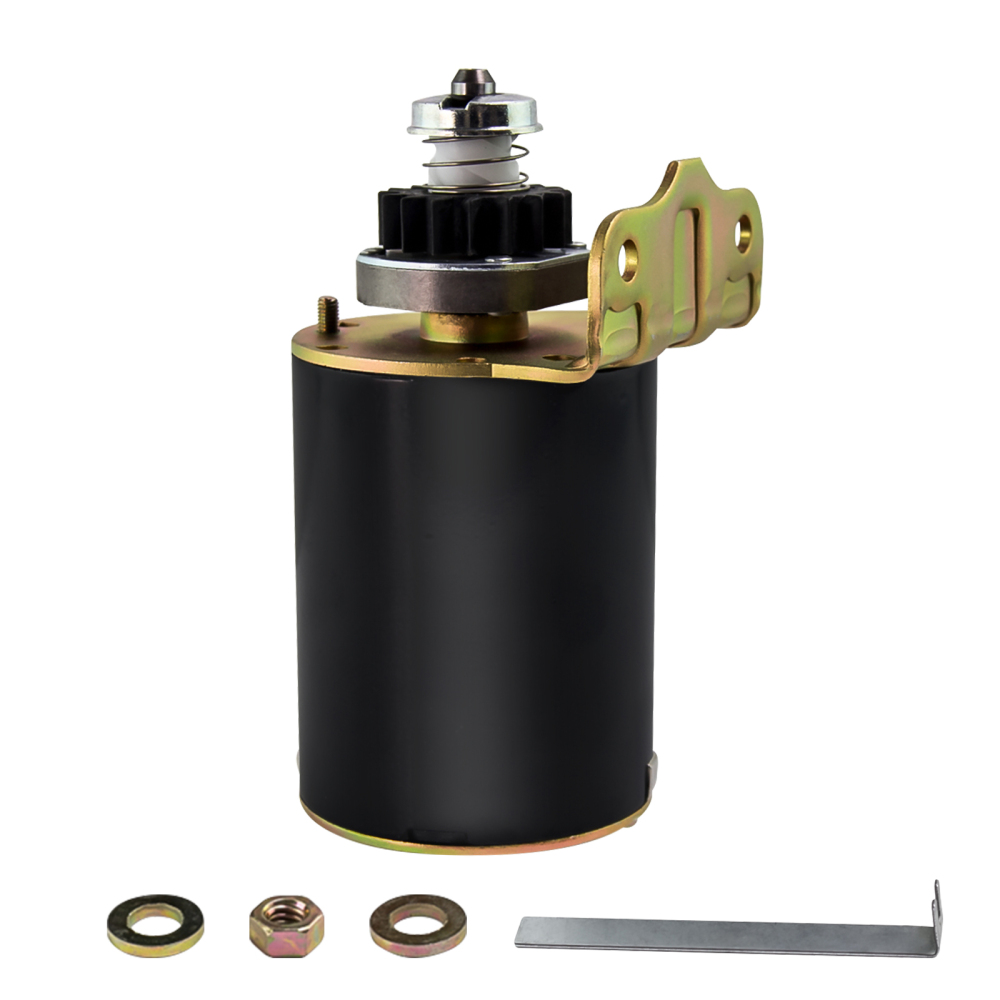

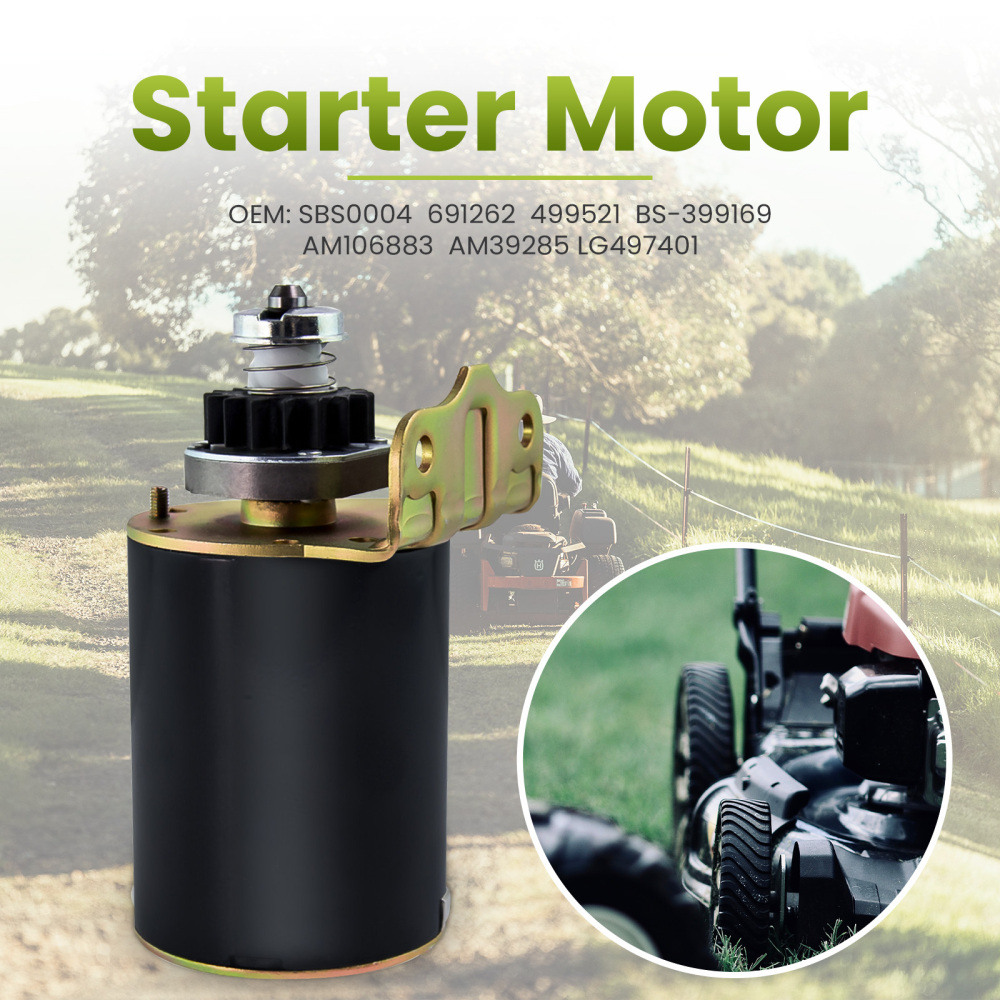

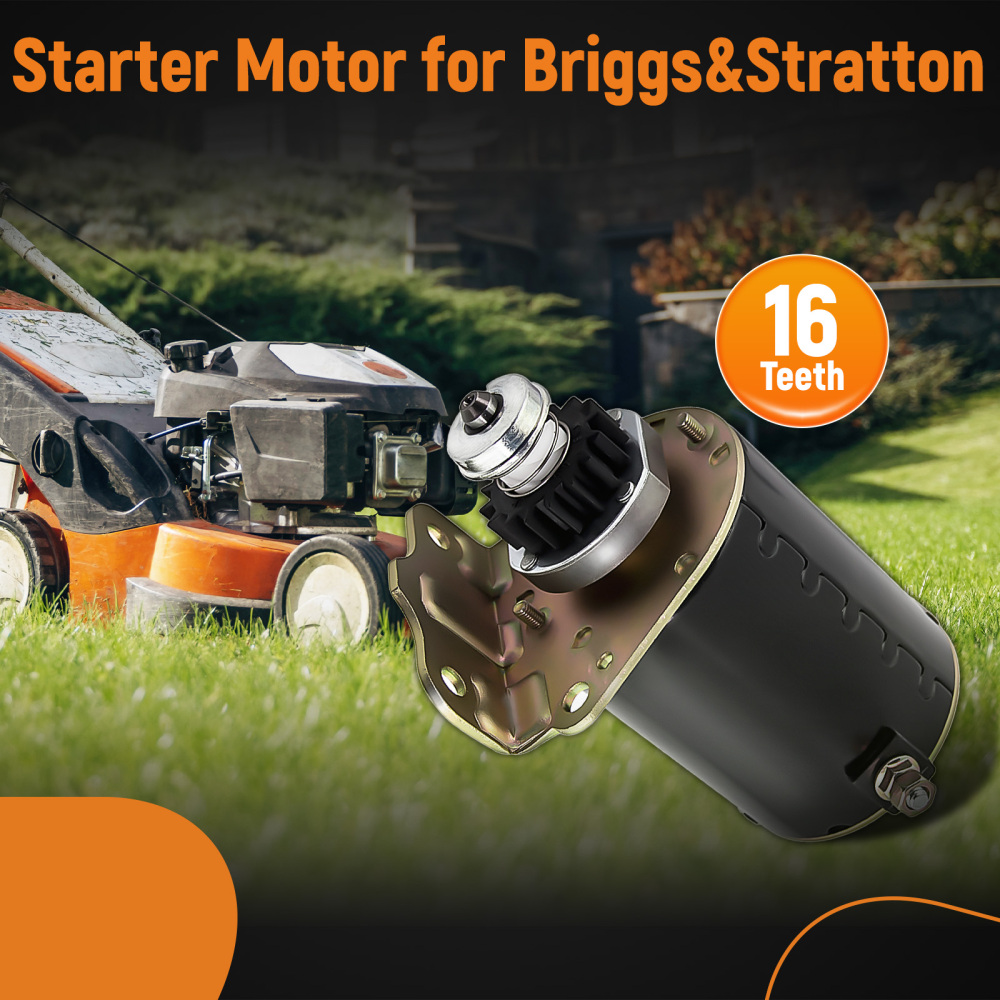

Compatible for Briggs Stratton 16 tooth Heavy Duty and Ride on Mower AM106883 Starter Motor

Stock In Stock
Item Number 3002033207

Combination offer

  • A
  • B
  • C
  • D
  • E
  • F
  • G

Application

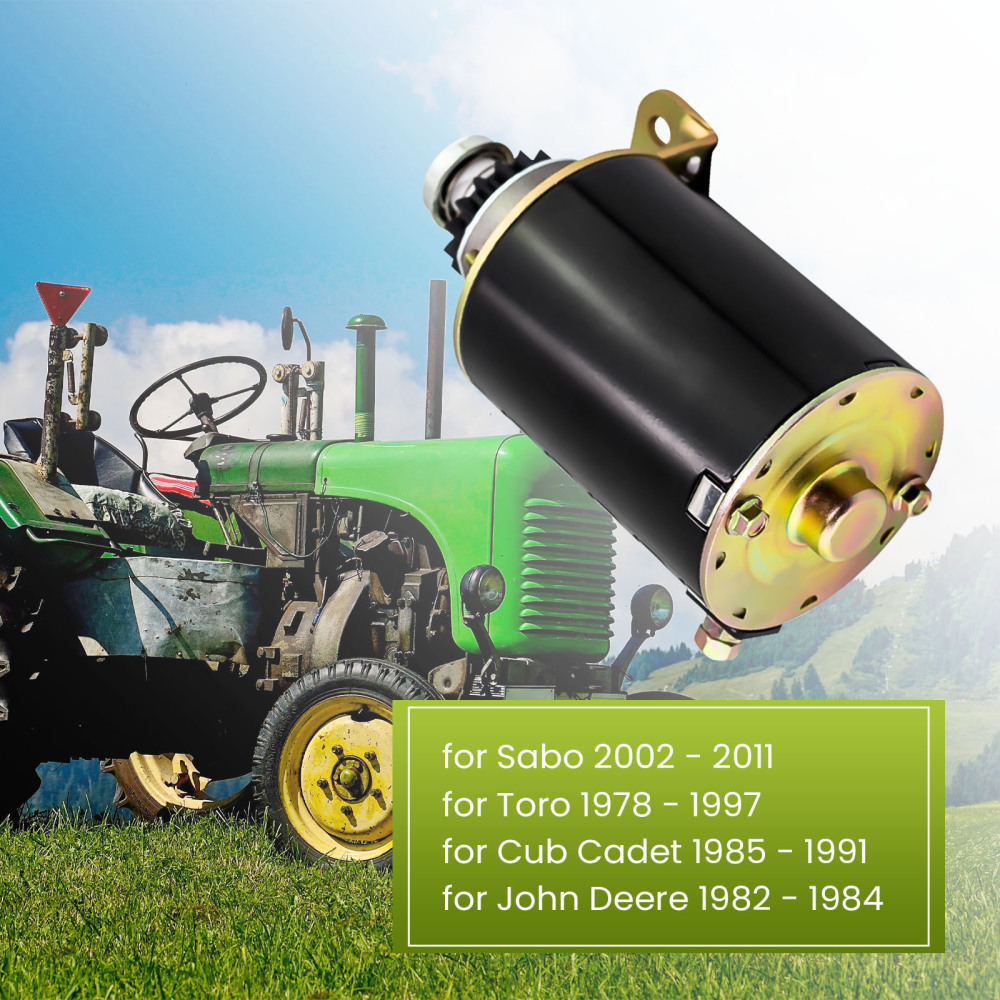

Compatible for BRIGGS & STRATTON 8hp-13hp MOTORS

Compatible for Cub Cadet 1015 1988-1991

Compatible for Cub Cadet 1020 1988-1991

Compatible for Cub Cadet 1105 1985-1986

Compatible for Cub Cadet  111 1978-1979

Compatible for Cub Cadet  1110  1985-1986

Compatible for John Deere  111  1979-1985

Compatible for John Deere  111H  1982-1984

Compatible for John Deere  L118

Compatible for Toro  11-32  1978-1997

Compatible for Toro  11-38  1986-1987

Compatible for Toro  212-H  1989-1991

Compatible for Toro  825  1991

Compatible for Toro  LT12.5G  1995

Compatible for Toro  Sand Pro5000   1992-1993

OEM & Part Number:

Compatible for ARROWHEAD:   SBS0004

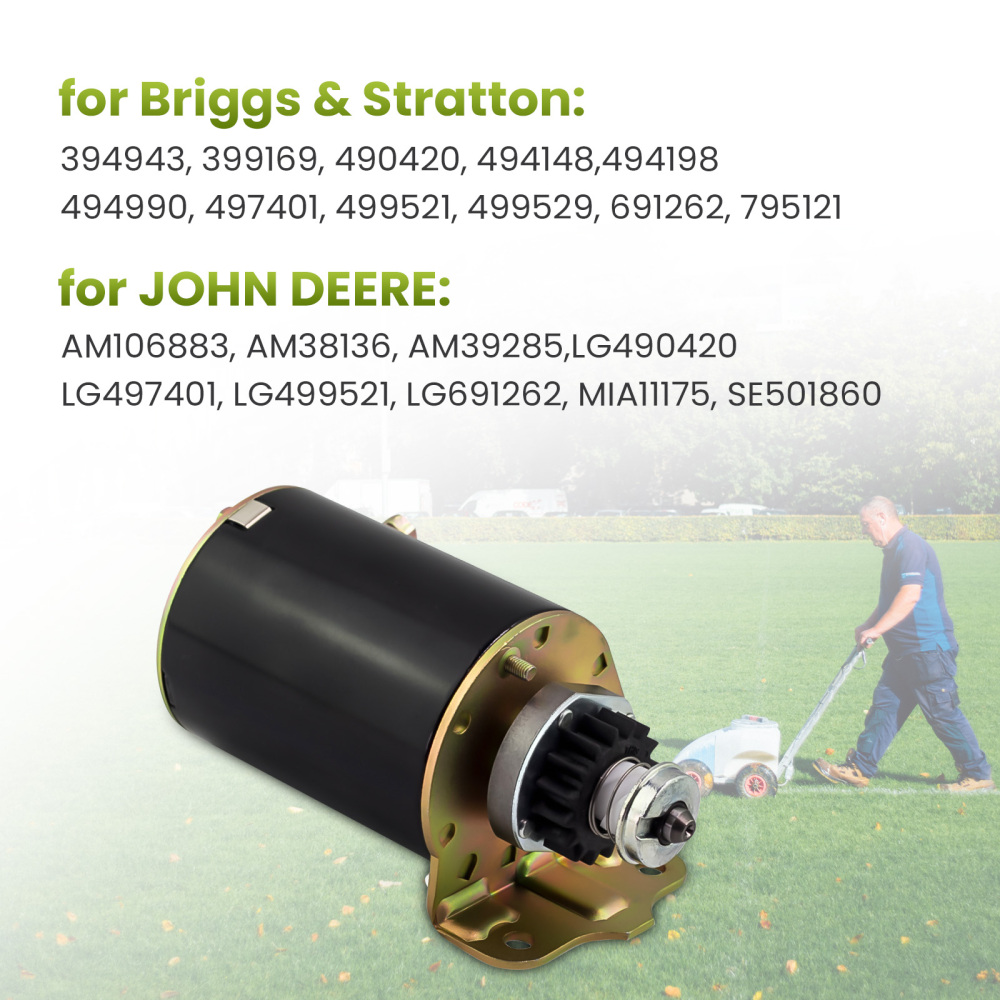

Compatible for BRIGGS & STRATTON:   394943, 399169, 490420, 494148,494198, 494990, 497401, 499521, 499529, 691262, 795121

Compatible for CARGO :  112563

Compatible for CUB CADET:   BS-399169, BS-499521

Compatible for GENERAC:    075255, 75255, 75255-A

Compatible for J & N:    410-22005, 410-22015

Compatible for JOHN DEERE:   AM106883, AM38136, AM39285,LG490420, LG497401, LG499521, LG691262, MIA11175, SE501860

Compatible for LESTER:   5746, 5778

Compatible for NSA:   STR-1005A

Compatible for TORO:    78-4340

Compatible for TUCKER ROCKY:    49-5790

Compatible for WAI:    2-2191

Specification

Voltage: 12v

Rotation: CCW

Starter Type : PMDD

Number of Teeth : 16

Mtg Ear 1 Hole : 8.0mm Unthreaded

Mtg Ear 2 Hole : 8.0mm Unthreaded

Mtg Ear 3 Hole : 8.0mm Unthreaded

Mounting Hole center distance: Approx 58mm

Overall length:  165mm

Condition: New


Feature

The new starter meets OEM specifications.

Sealed metal housing improves operating efficiency.

The performance is comparable to the original version.


Notice

* Suits aluminium and plastic flywheel ring gears, will NOT suit steel gears.

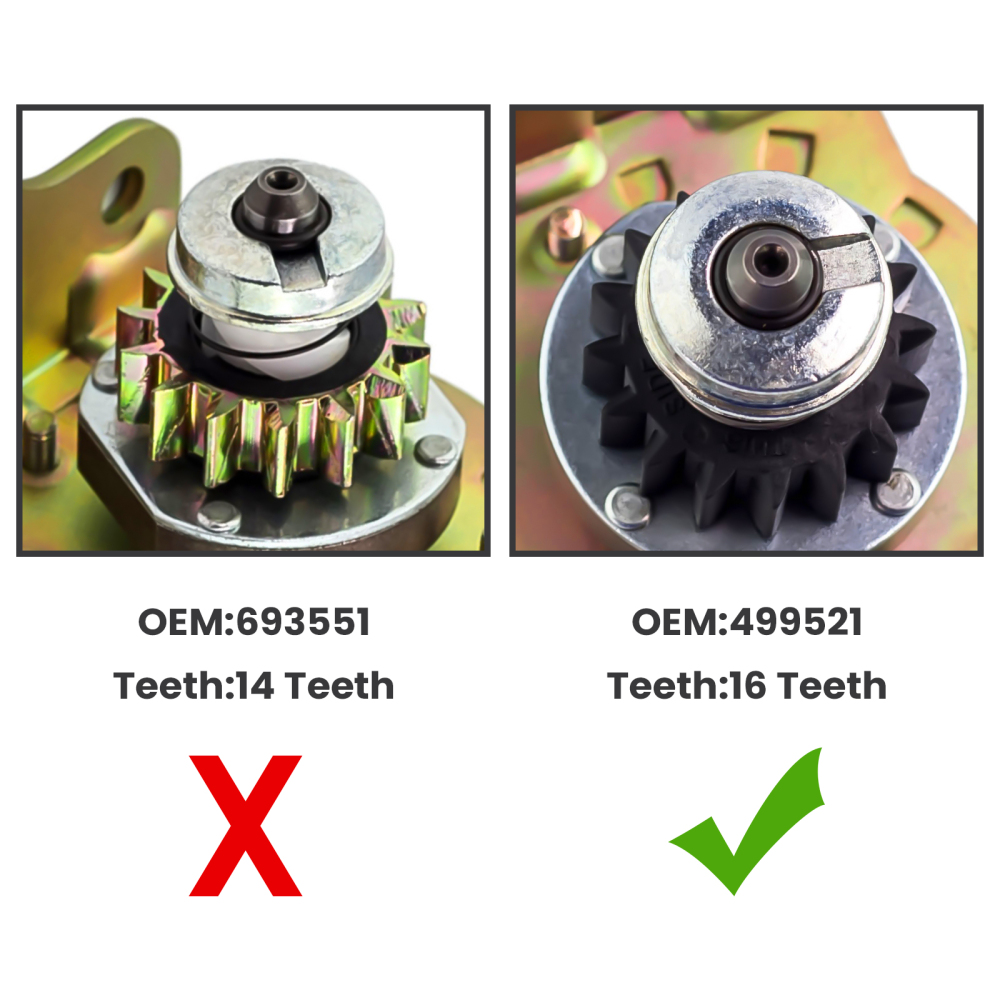

* Please check the number of gears and overall length, here is 16 teeth. We also sell  Starter Motor of 14 teeth.

* Please allow 1-2mm for variance due to manual measurement.

* Package Includes: You will get exactly as shown as picture above.

* Professional installation is highly recommended (No Instruction Included).

* Please check the picture and OE number before buying.


Warranty: one year warranty for any manufacturing defect
