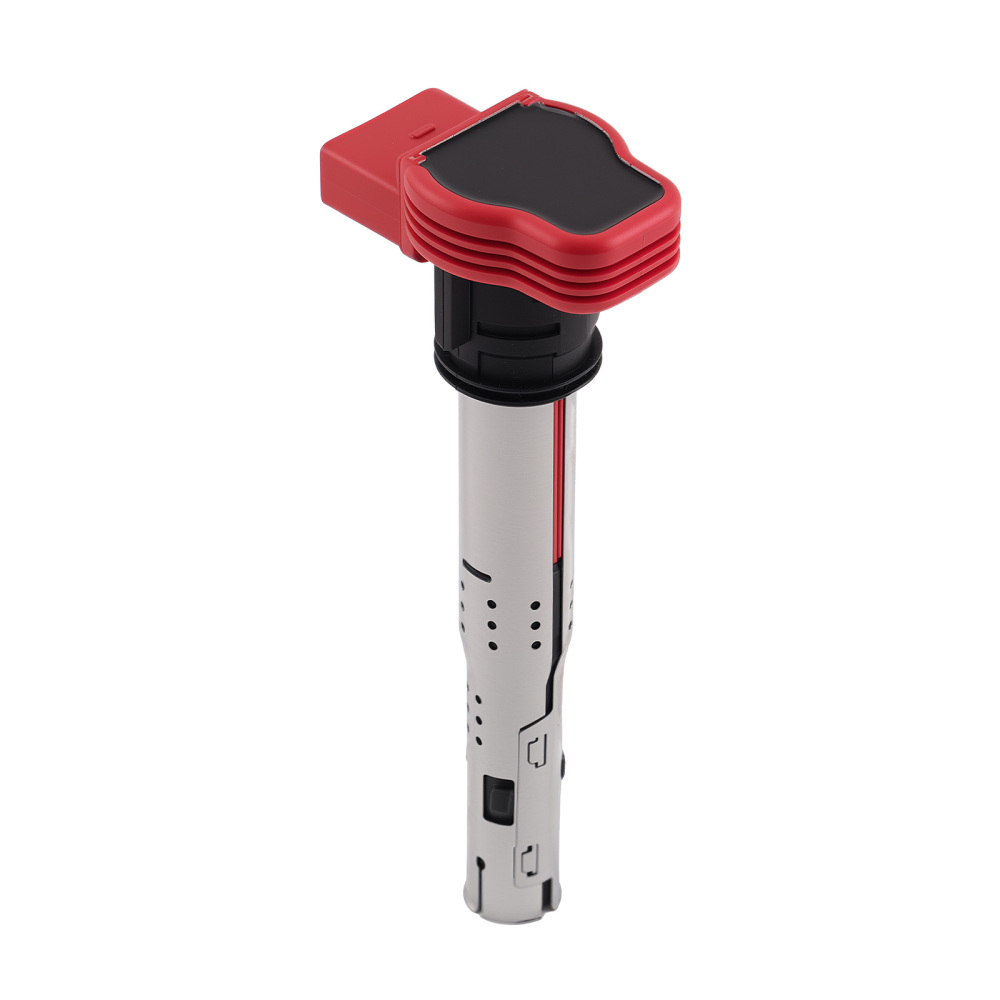

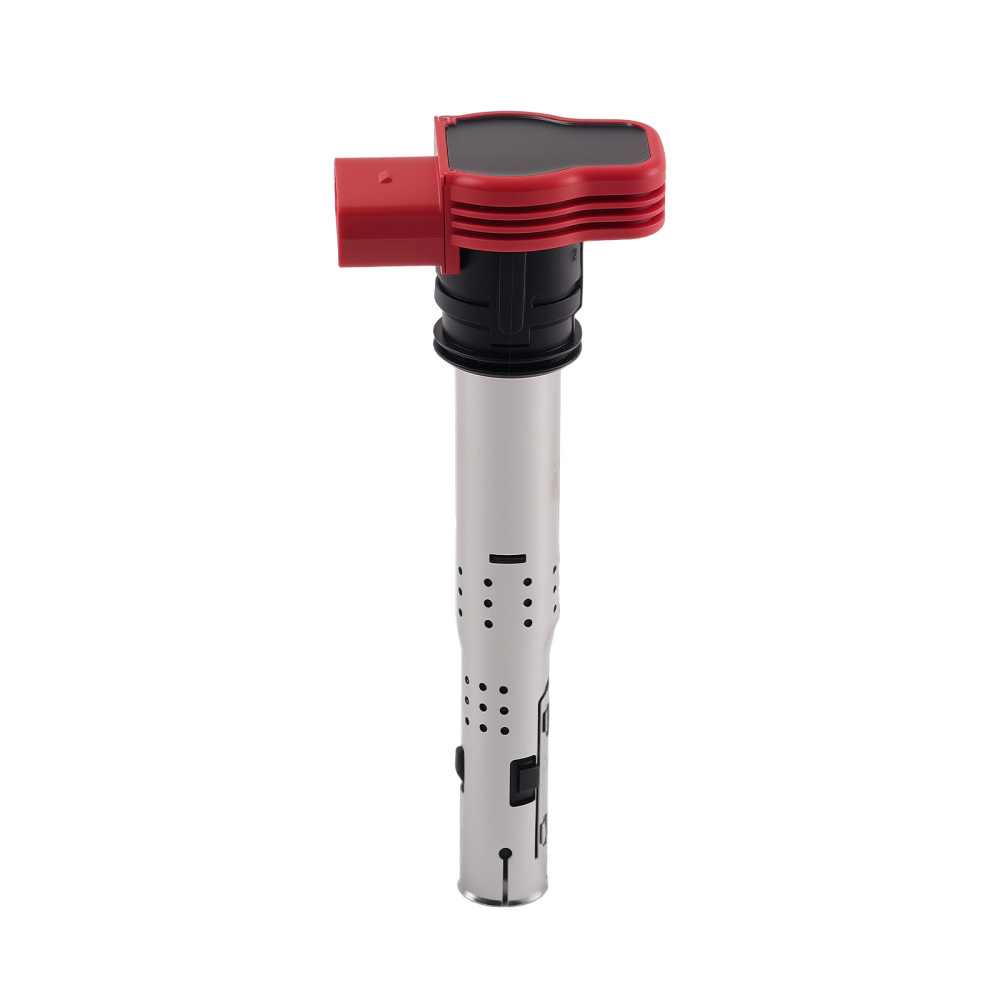

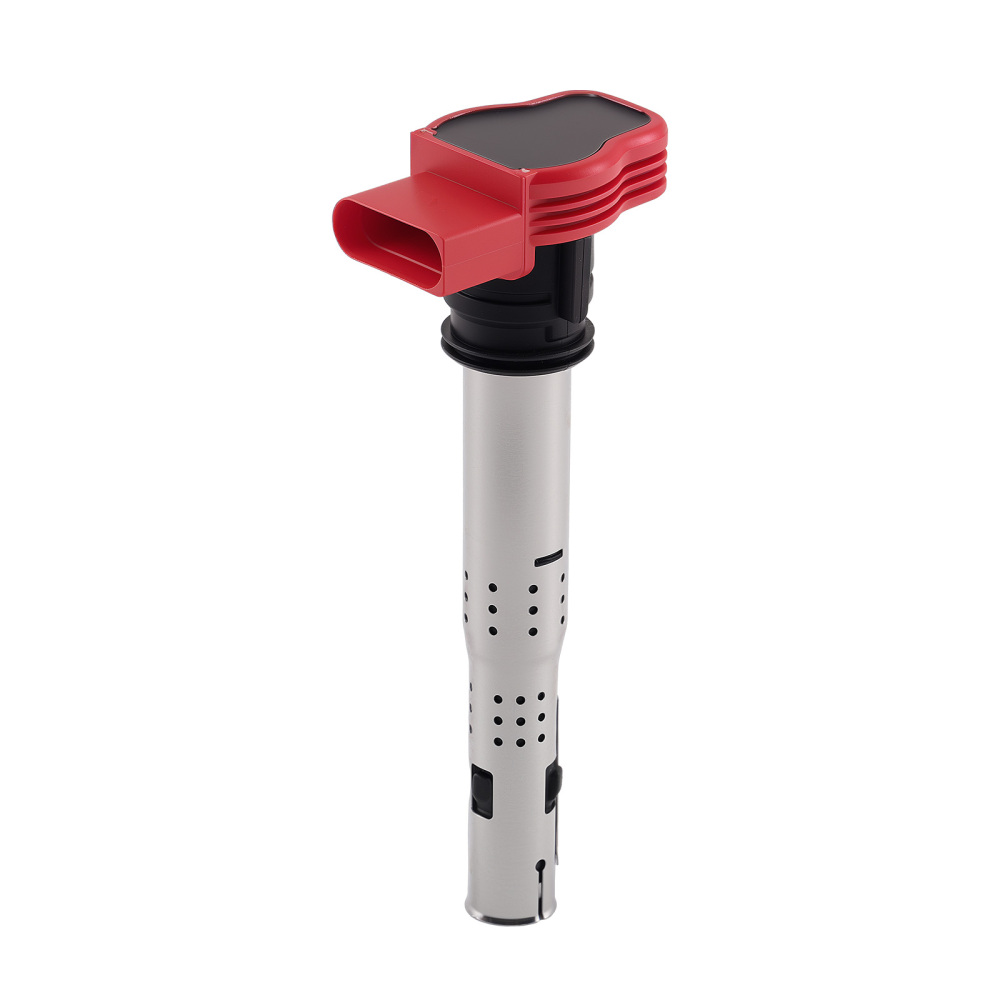

4x compatible for AUDI R8 Red Coil Packs Set 2.0TFSI/2.0TSI A3/Compatible for GOLF 5/LEON 06E905115E

Stock In Stock
Item Number 3002068228

Combination offer

  • A
  • B
  • C
  • D
  • E
  • F
  • G

Description

An ignition coil/spark coil is an induction coil in an automobile's ignition system that transforms the battery's low voltage to the thousands of volts needed to create an electric spark in the spark plugs to ignite the fuel. Some coils have an internal resistor, while others rely on a resistor wire or an external resistor to limit the current flowing into the coil from the car's 12-volt supply.

Maxpeedingrods ignition coil owns superior thermal loads and vibration resilience and exceptional short-circuit and moisture resistance.

Application

Compatible for AUDI

A3 (8P) (2003 - present)

1.8 TFSI (118KW / 160CP); 1.8 TFSI quattro (118KW / 160CP); 2.0 FSI (110KW / 150CP);

A3 Cabriolet (8P7) (2008 - present)

1.8 TFSI (118KW / 160CP); 2.0 TFSI (147KW / 200CP);

A4 (8EC, B7) (2004 - 2008)

2.0 TFSI (125KW / 170CP); 2.0 TFSI (147KW / 200CP); 2.0 TFSI quattro (147KW / 200CP); 2.0 TFSI quattro (162KW / 220CP);

A4 Allroad (8KH, B8) (2009 - present)

2.0 TFSI quattro (155KW / 211CP);

A4 Allroad combi (8KH, B8) (2009 - present)

2.0 TFSI quattro (155KW / 211CP);

A4 Cabriolet (8H7, B6, 8HE, B7) (2002 - 2009)

2.0 TFSI 16V (147KW / 200CP);

A4 (8EC, B7) (2004 - 2008)

2.0 TFSI (125KW / 170CP); 2.0 TFSI (147KW / 200CP); 2.0 TFSI quattro (147KW / 200CP); 2.0 TFSI quattro (162KW / 220CP);

A4 (8K, B8) (2007 - present)

1.8 TFSI (88KW / 120CP); 1.8 TFSI (118KW / 160CP); 1.8 TFSI quattro (118KW / 160CP); 2.0 TFSi (132KW / 180CP); 2.0 TFSI flexible fuel (132KW / 180CP); 2.0 TFSI flexible fuel quattro (132KW / 180CP); 2.0 TFSi (155KW / 211CP); 2.0 TFSI quattro (155KW / 211CP); 2.0 TFSi (155KW / 211CP);

A5 (8T) (2007 - present)

1.8 TFSI (118KW / 160CP); 1.8 TFSI (125KW / 170CP); 2.0 TFSI (132KW / 180CP); 2.0 TFSI (155KW / 211CP); 2.0 TFSI quattro (155KW / 211CP);

A6 (4F, C6) (2004 - 2011)

2.0 TFSI (125KW / 170CP);

Q5 (8R) (2008 - present)

2.0 TFSI quattro (132KW / 180CP); 2.0 TFSI quattro (155KW / 211CP);

TT (8J) (2006 - present)

1.8 TFSI (118KW / 160CP); 2.0 TFSI (147KW / 200CP); 2.0 TFSI quattro (200KW / 272CP); 2.5 TFSI quattro (250KW / 340CP);

Compatible for SEAT

ALTEA (5P1) (2004 - present)

1.8 TFSI (118KW / 160CP); 2.0 FSI (110KW / 150CP); 2.0 TFSI (147KW / 200CP);

ALTEA XL (5P5, 5P8) (2006 - present)

1.8 TFSI (118KW / 160CP); 2.0 FSI (110KW / 150CP); 2.0 TFSI 4x4 (147KW / 200CP);

EXEO (2008 - present)

2.0 TFSI (147KW / 200CP);

LEON (1P1) (2005 - present)

1.8 TSI (118KW / 160CP); 2.0 FSI (110KW / 150CP); 2.0 TFSI (136KW / 185CP);

TOLEDO III (5P2) (2004 - 2009)

2.0 FSI (110KW / 150CP); 2.0 TFSI (147KW / 200CP);

Compatible for SKODA

OCTAVIA (1Z3) (2004 - present)

1.8 TSI (118KW / 160CP);

Compatible for VW

EOS (1F7, 1F8) (2006 - present)

2.0 FSI (110KW / 150CP); 2.0 TFSI (147KW / 200CP); 2.0 TSI (155KW / 210CP);

Compatible for GOLF V Variant (1K5) (2007 - present)

2.0 (147KW / 200CP);

Compatible for GOLF VI (5K1) (2008 - present)

1.8 TSI (118KW / 160CP);

JETTA (1K) (2005 - 2010)

2.0 FSI (110KW / 150CP); 2.0 TFSI (147KW / 200CP);

NEW BEETLE (9C, 1C) (1998 - present)

2.5 (110KW / 150CP);

PASSAT (3C) (2005 - present)

1.8 TSI (118KW / 160CP); 2.0 FSI (110KW / 150CP); 2.0 FSI 4motion (110KW / 150CP); 2.0 FSI (147KW / 200CP);

PASSAT CC (2008 - present)

1.8 TSI (118KW / 160CP); 2.0 TSI (147KW / 200CP);

SCIROCCO (137) (2008 - present)

2.0 TSI (147KW / 200CP); 2.0 R (195KW / 265CP);

TIGUAN (5N_) (2007 - present)

2.0 TFSI 4motion (125KW / 170CP); 2.0 TFSI 4motion (147KW / 200CP);

TOUAREG (7LA, 7L6, 7L7) (2002 - 2010)

4.2 V8 FSI (257KW / 350CP);

TOURAN (1T1, 1T2) (2003 - present)

2.0 FSI (110KW / 150CP).

Replaces Part Number

06D905115 , 06D 905 115 , 06D-905-115 , 06E905115 , 06E 905 115 , 06E-905-115

06D905115A , 06D 905 115 A , 06D-905-115-A , 06D905115C , 06D 905 115 C , 06D-905-115-C

06E905115C , 06E 905 115 C , 06E-905-115-C , 06D905115D , 06D 905 115 D , 06D-905-115-D

06E905115D , 06E 905 115 D , 06E-905-115-D , 06E905115E , 06E 905 115 E , 06E-905-115-E

06E905115F , 06E 905 115 F , 06E-905-115-F , 06D905115F , 06D 905 115 F , 06D-905-115-F

06D905115G , 06D 905 115 G , 06D-905-115-G , 06H905115 , 06H905115A , 06H905115B

07K905715 , 07K905715D , 07K905715F , 95860210200 , 958 602 102 00 , 958-602-102-00

06F 905 115,06F 905 115 A,06F 905 115 B

Specification

Engine code:

BVZ 110kW 150HP 2.0

BVY 110kW 150HP 2.0

BLR 110kW 150HP 2.0

BMB 110kW 150HP 2.0

BLY 110kW 150HP 2.0

BLX 110kW 150HP 2.0

AXW 110kW 150HP 2.0

CFKA 132kW 179HP 2.0

CAEA 132kW 179HP 2.0

CDNB 132kW 179HP 2.0

AXX 147kW 200HP 2.0

BWA 147kW 200HP 2.0

BPY 147kW 200HP 2.0

CAEB 155kW 211HP 2.0

CDNC 155kW 211HP 2.0

BZC 188kW 256HP 2.0

BHZ 195kW 265HP 2.0

CDHA 88kW 120HP 1.8

CABA 88kW 120HP 1.8

CDHB 118kW 160HP 1.8

CABB 118kW 160HP 1.8

BYT 118kW 160HP 1.8

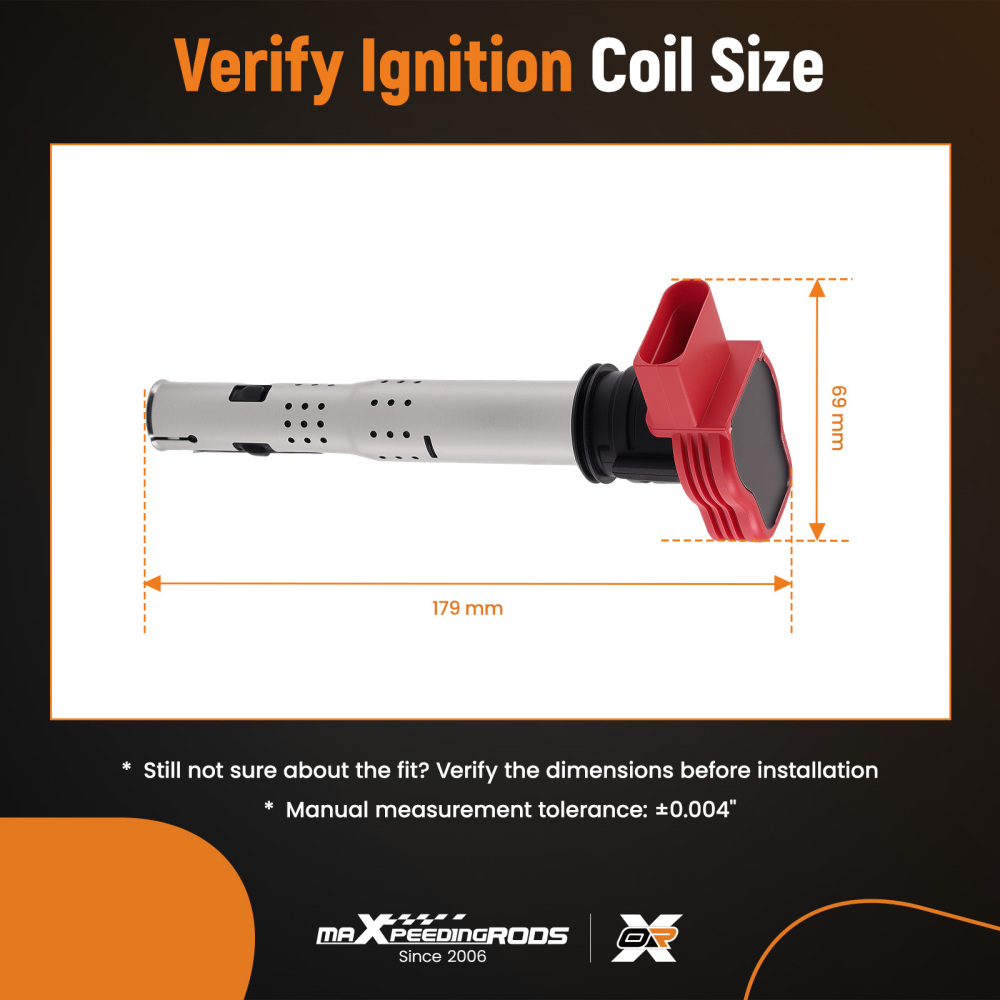

Accessories: You will get exactly as shown in the picture above

Condition: New

Warranty: one year warranty for any manufacturing defect

Feature

*Precise engineering for correct seating

*Excellent pulse strength durability

*Exceptional short-circuit and moisture resistance

*Superior thermal loads and vibration resilience

*Optimal dimensioning of cooling surfaces for the heat dissipation and temperature stability

*Extensive range of Europe vehicle applications

Common symptoms indicate you may need to replace the Ignition Coil:

a): Engine shake,

b): car may not start, loss of power

c):decrease in fuel economy and

d):possible ignition coil malfunction codes from your onboard diagnostics.

e):Engine misfires(Car may not run smoothly ).

f):Check Engine light is on.

Notice

* Please confirm your old part number matches up with one of the part numbers above

* Professional installation is highly recommended (No Instruction Included)

* For any needs please contact us.
