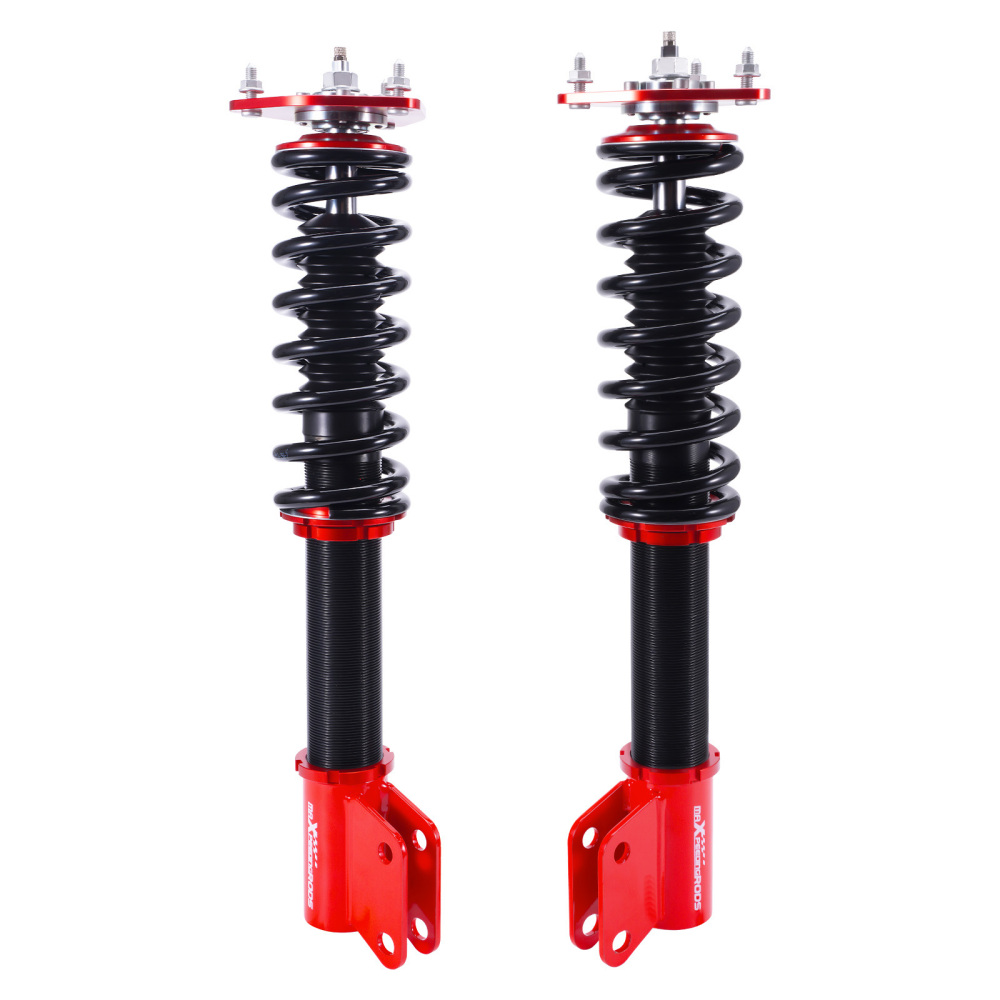

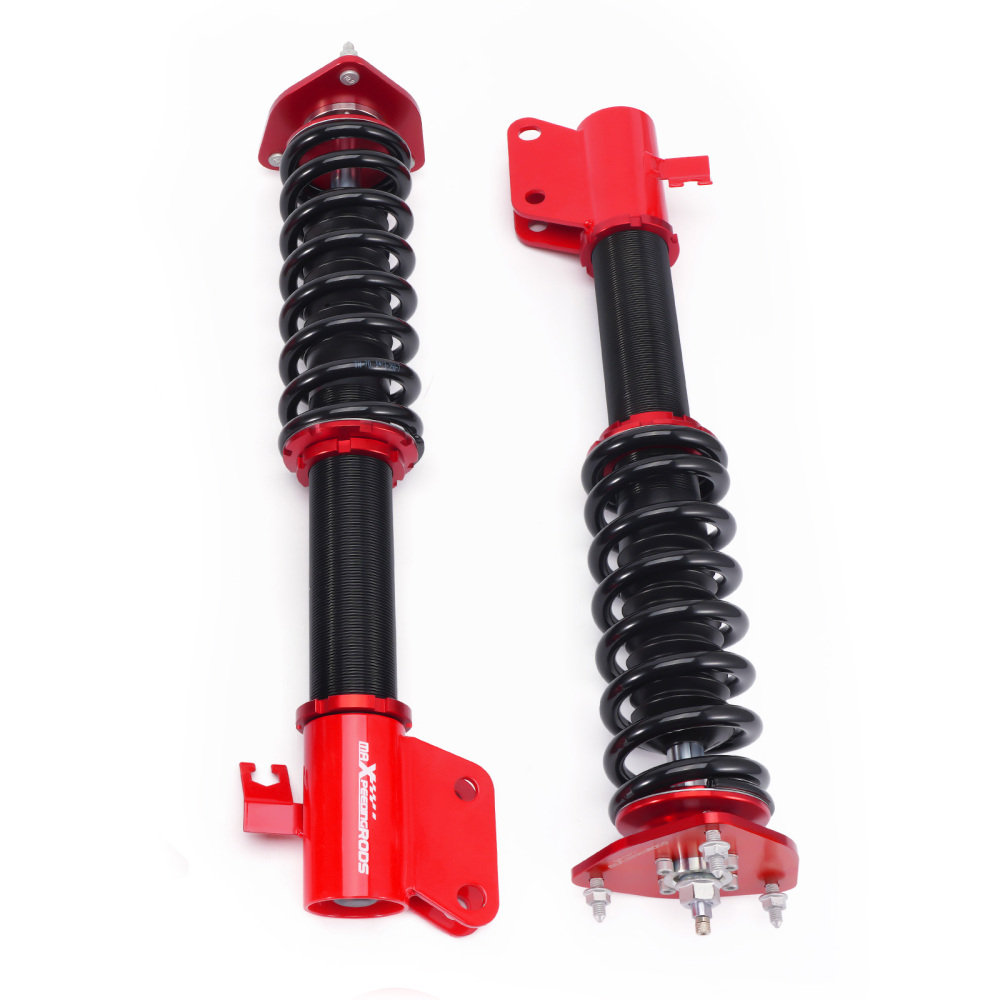

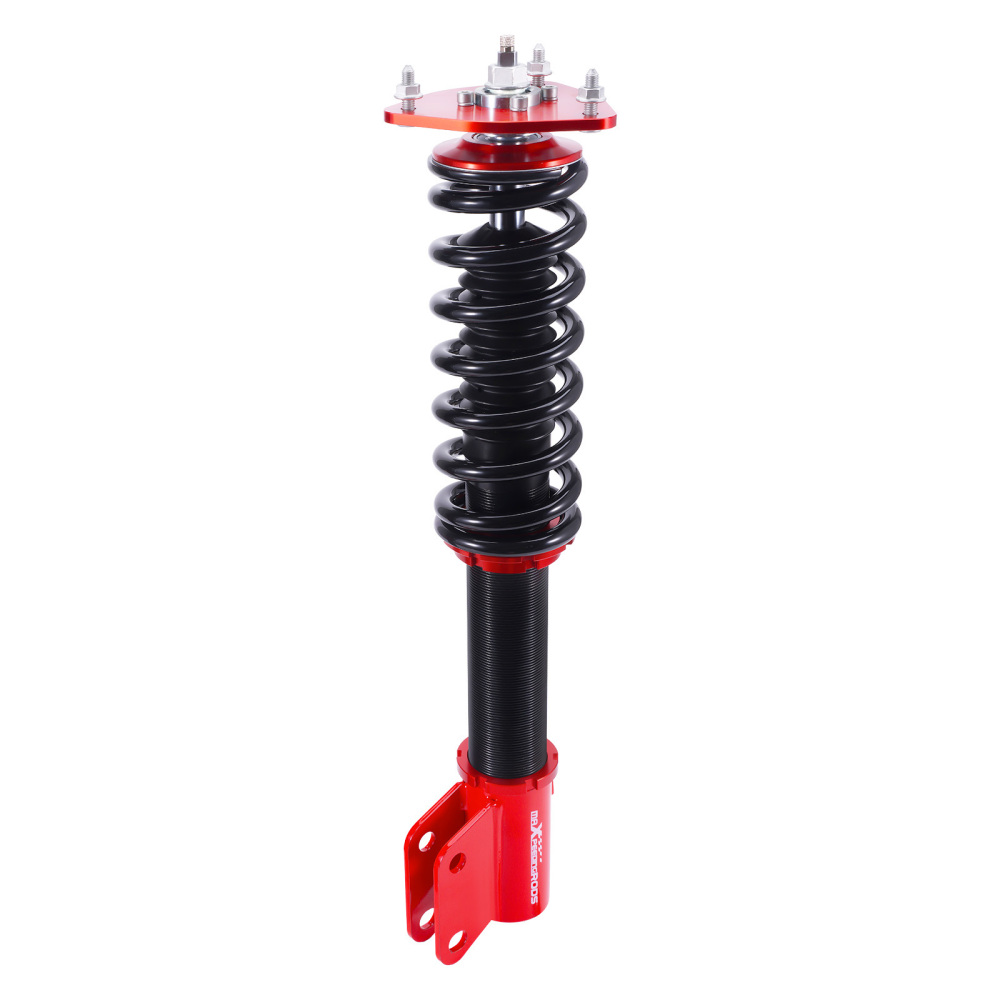

Rear Coilovers compatible for Subaru Impreza WRX 02-07 STI 04 GDB GD GG Suspension

Introduction

maXpeedingrods-B3 is based on maXpeedingrods-B2 coil-overs, which are also height adjustable. They are also made for street use, but the 24-level rebound damping control allows you the ability to perfectly dial in your coil-over setup. You will experience better ride quality in all road conditions.

Application

Compatible for SUBARU IMPREZA WRX 2000.08-2007.06 GDA GD9 GGA
compatible for SUBARU IMPREZA WRX STI 2000.10-2004.06 GDB (RIM P.C.D.=100)
Compatible for Subaru Forester SG 2003-2008
compatible for SAAB 9-2X 2005-2007 GGA GGE

Note: The coilovers kit will "Lower your car" and does not keep to the original ride height.

Specification

Rear top mount: Pillow ball
Damping adjustable: Available, 24 levels of rebound damping force
Camber adjustable: Not available
Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
Spring Rate Rear: 7 kg/mm (392 lbs/in)
Rear spring inner diameter: 70.5 mm
Spring length Rear: 250 mm
Spring Preload advised: 7-10 mm
Color: Red body with black spring

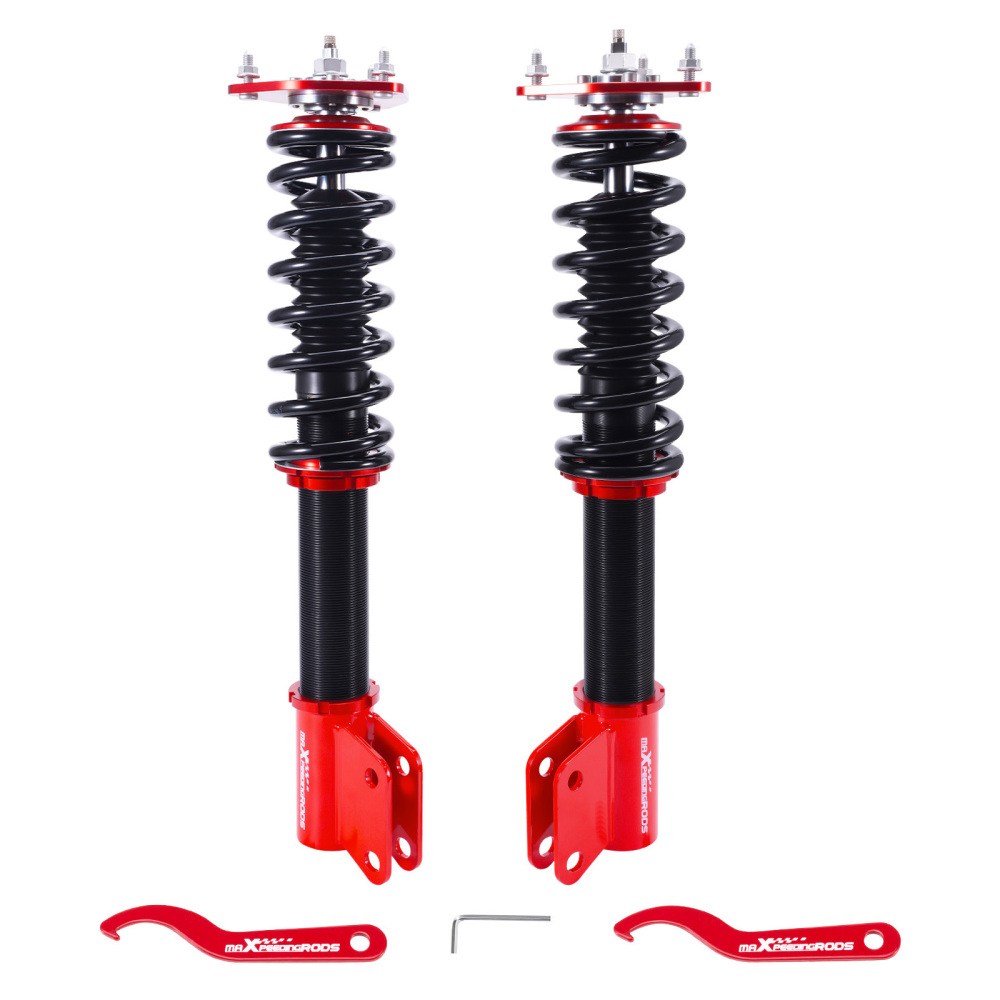

Package included

Package included：
2x Rear coil-overs
2x C spanners

Dimension

Package size : 73*26*19 cm
Weight: 16550 g

Feature

1. Lowered height adjustment from 25-75mm (depends on vehicle models) which allows a lower center of gravity and also adds a more aggressive stance
2.24 levels of adjustable damper -- This allows you the ability to perfectly dial in your coil-overs system. For nice comfortable driving, set damping to full soft. For more spirited driving, set it to 16 clicks. For occasional track days, set it to full stiff.
3. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent
4. Adjustable Camber Plate and Pillow ball top mount for sharpening steering response. ( for some models)
5. CNC machined Aluminum top mounts and lockers-- - excellent strength, and save weight

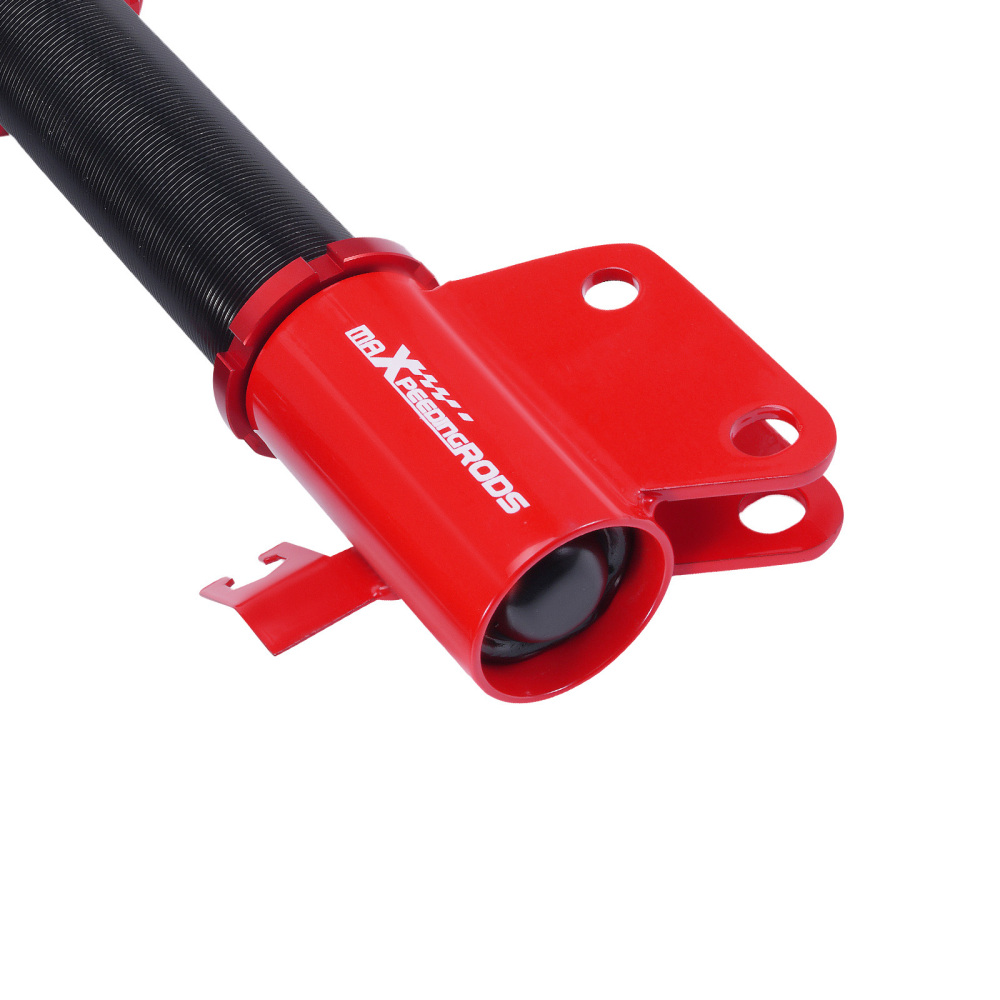

6. Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable
7. High tensile spring--- 600,000 times continuously test to assure its high tensile strength.
8. All inserts come with fitted long rubber boots--- To protect the damper better and be durable.
9. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions
10. Corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts

Note

1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.
3. Impact wrench is prohibited during the installation, it will loosen or damage the product.
4. Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)
5. We suggest regular maintenance for the coil-over, spray with some WD40 every 3-4 months will keep it smooth and clean, which helps to extend the lifetime.

Notice

Notice: The coilovers kit will "Lower your car" and does not keep to the original ride height.
