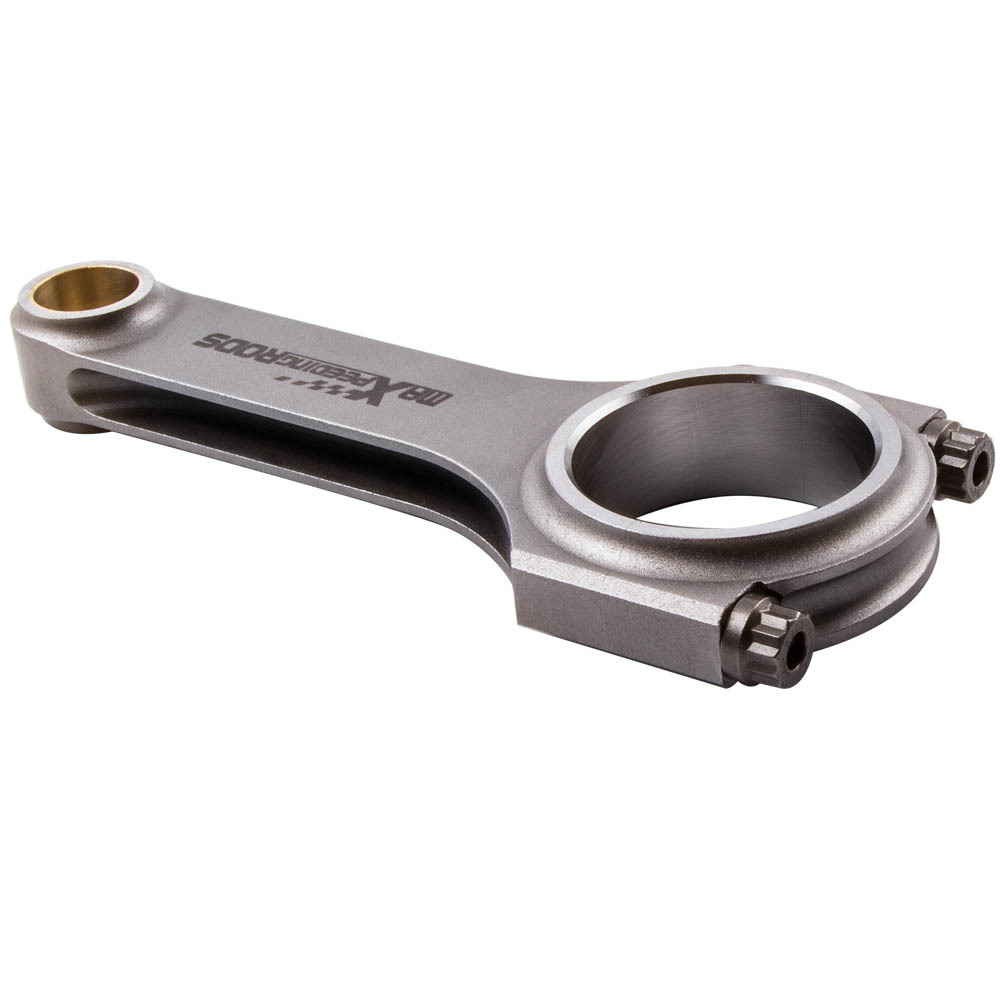

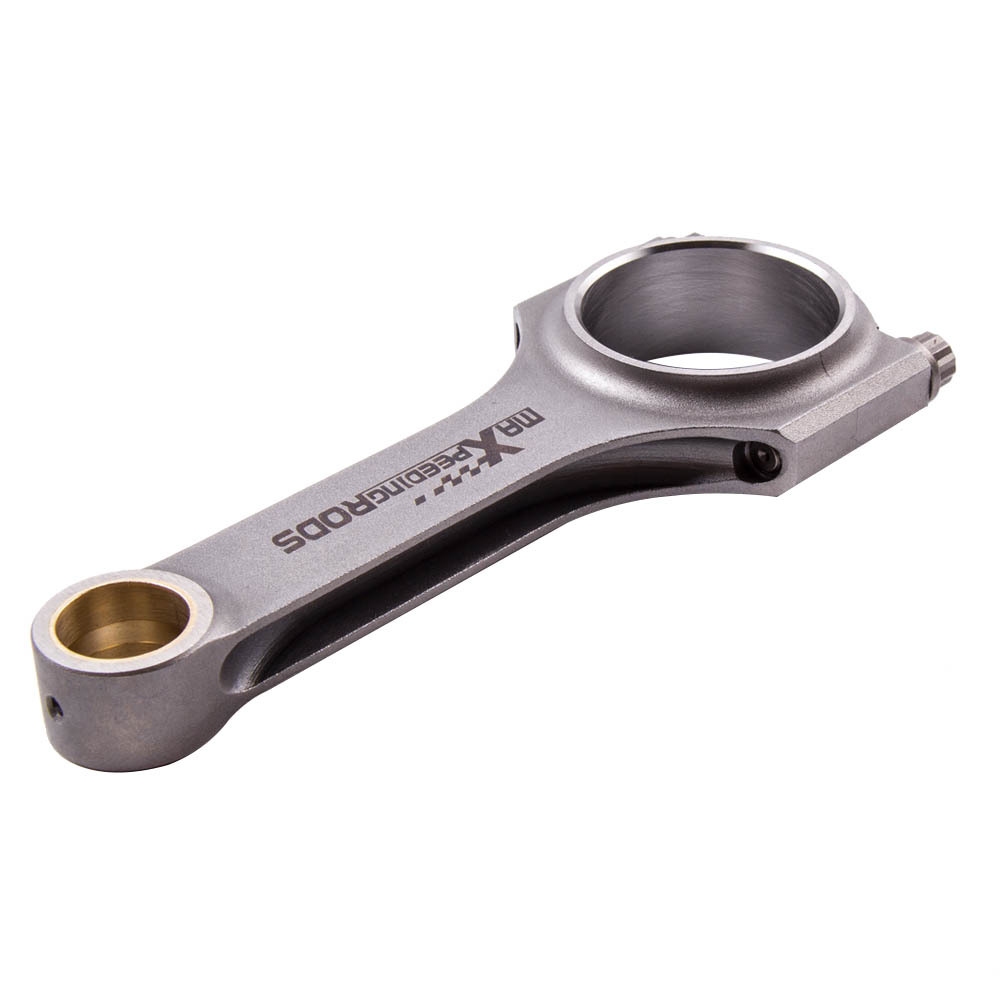

Connecting Rods compatible for Opel Astra FG 2.0L C20XE / C20LET / Z20LET 143mm

  • * 1.H-Beam con rods compatible for Opel Calibra 2.0L C20xe C20LET, compatible for Opel Calibra 2.0L C20 20SEH X20, compatible for Opel Speedster 2.0L Turbo,Compatible for Opel Compatible for Vauxhall Astra Zafira 2.0L C20LET Z20LET C20XE

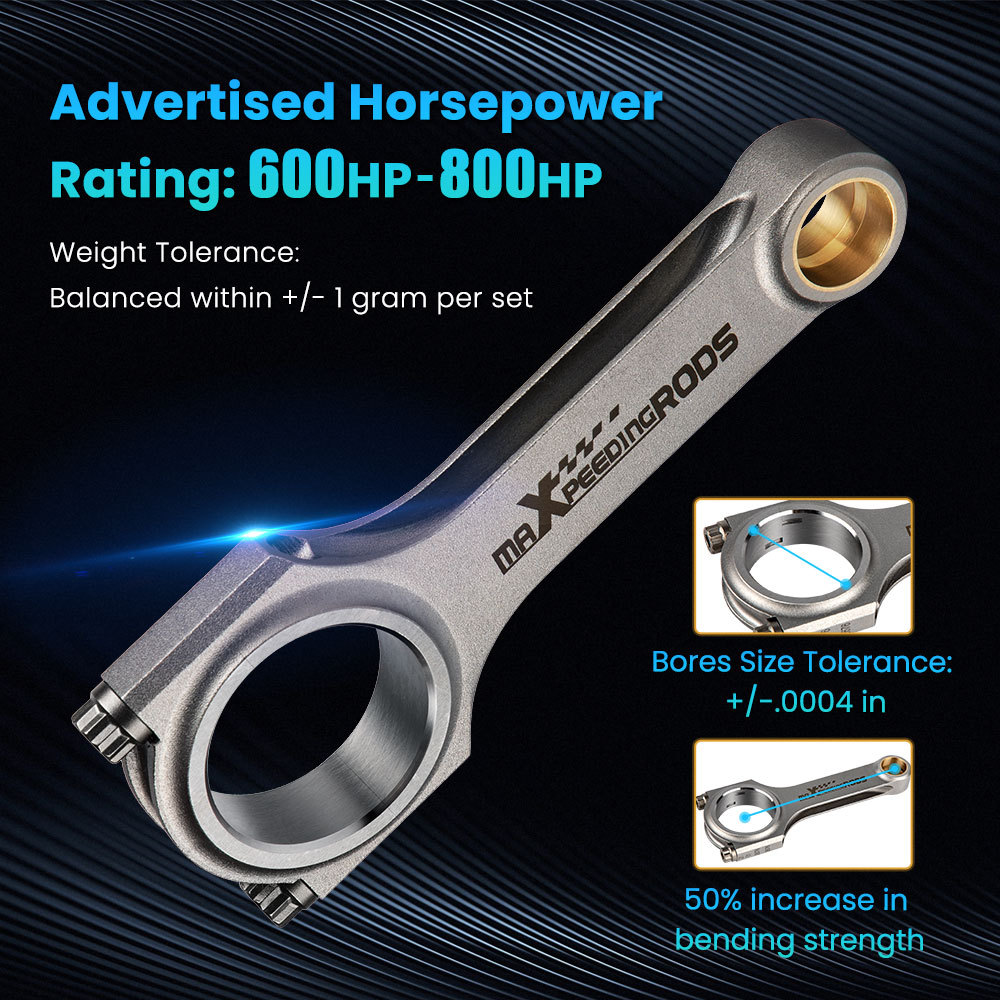

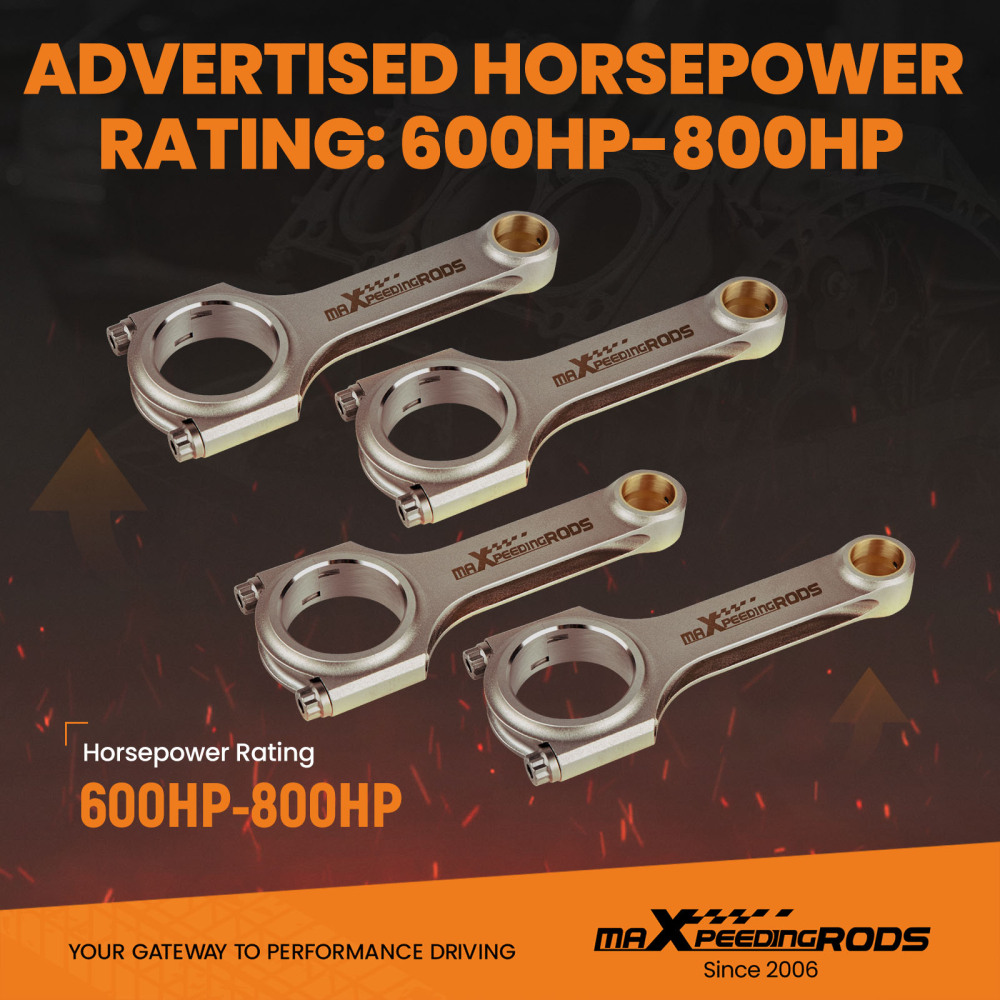

  • * 2.Advertised Horsepower Rating: 600-800HP
  • * 3. Forged 4340 EN24 aircraft chrome moly quality steel
  • * 4.Dimensions: Center to center length: 143mm;Big end diameter: 52mm;Small end diameter: 21mm;Big end width: 26.3mm;Small end width: 21.9mm

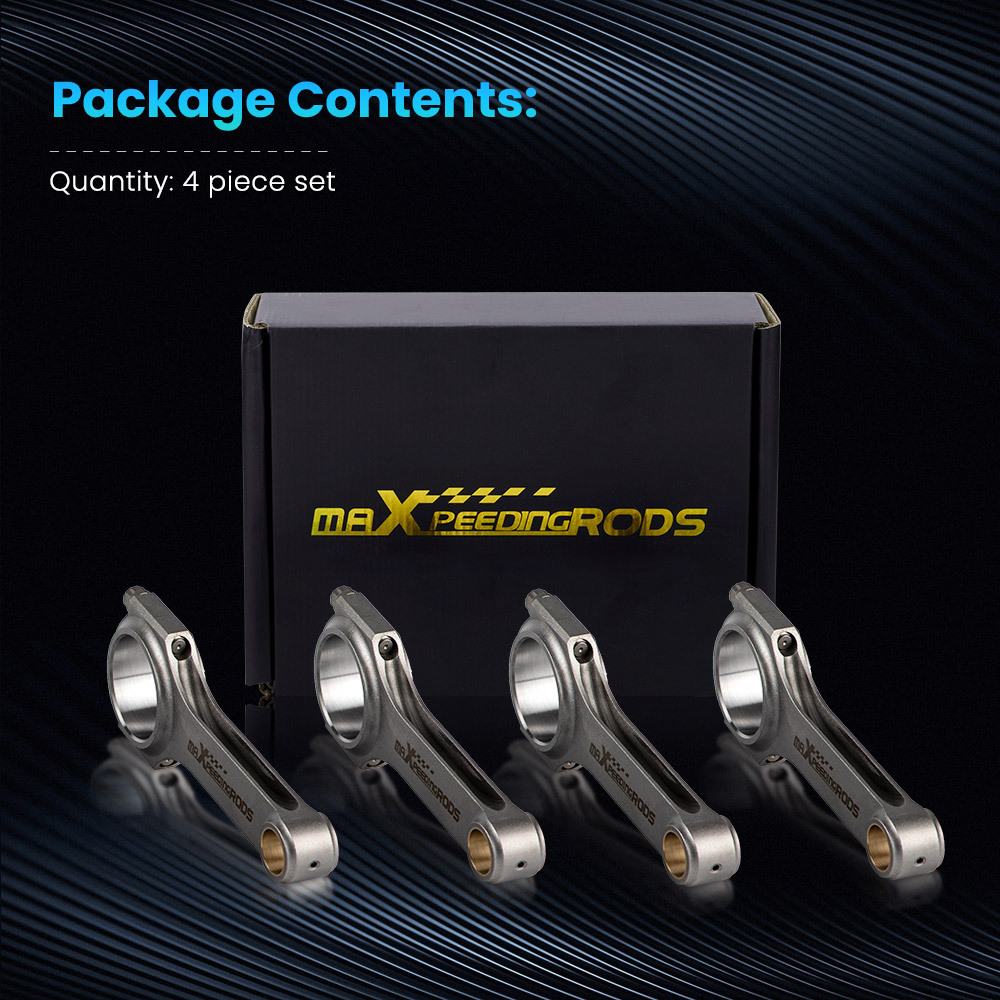

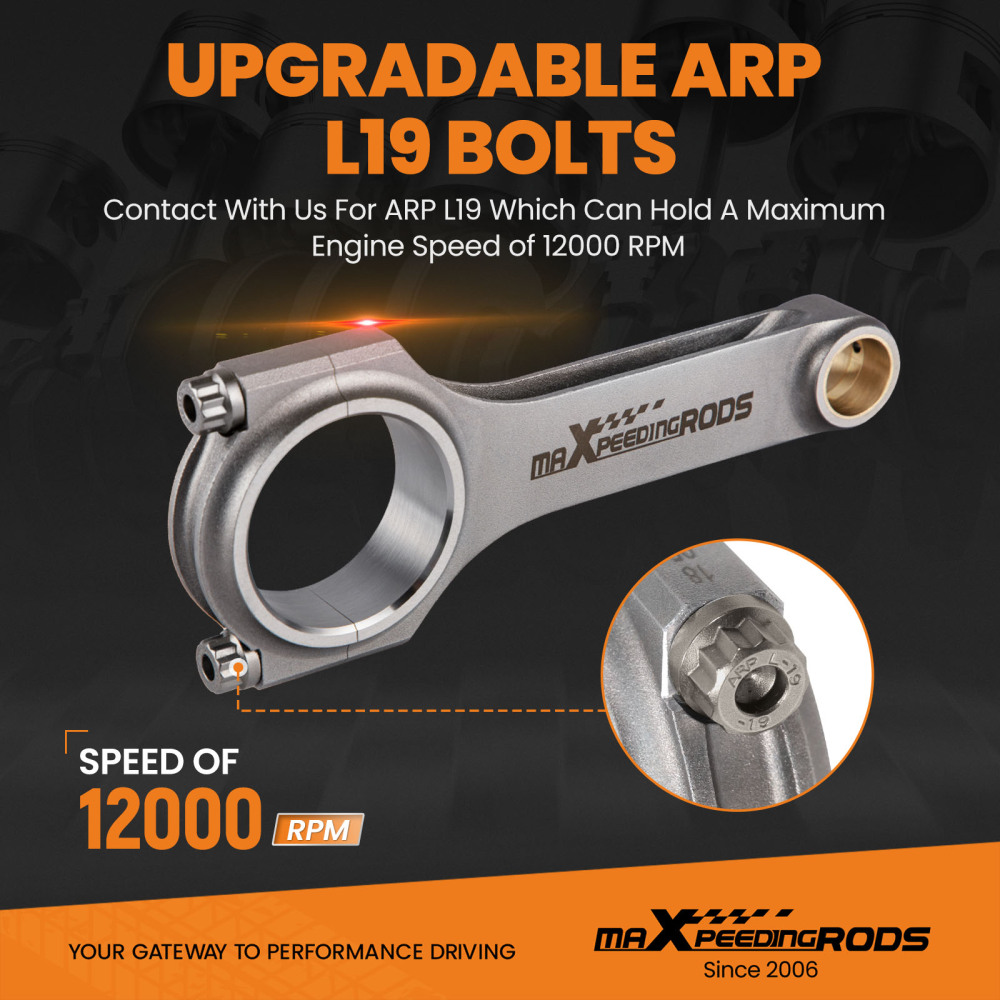

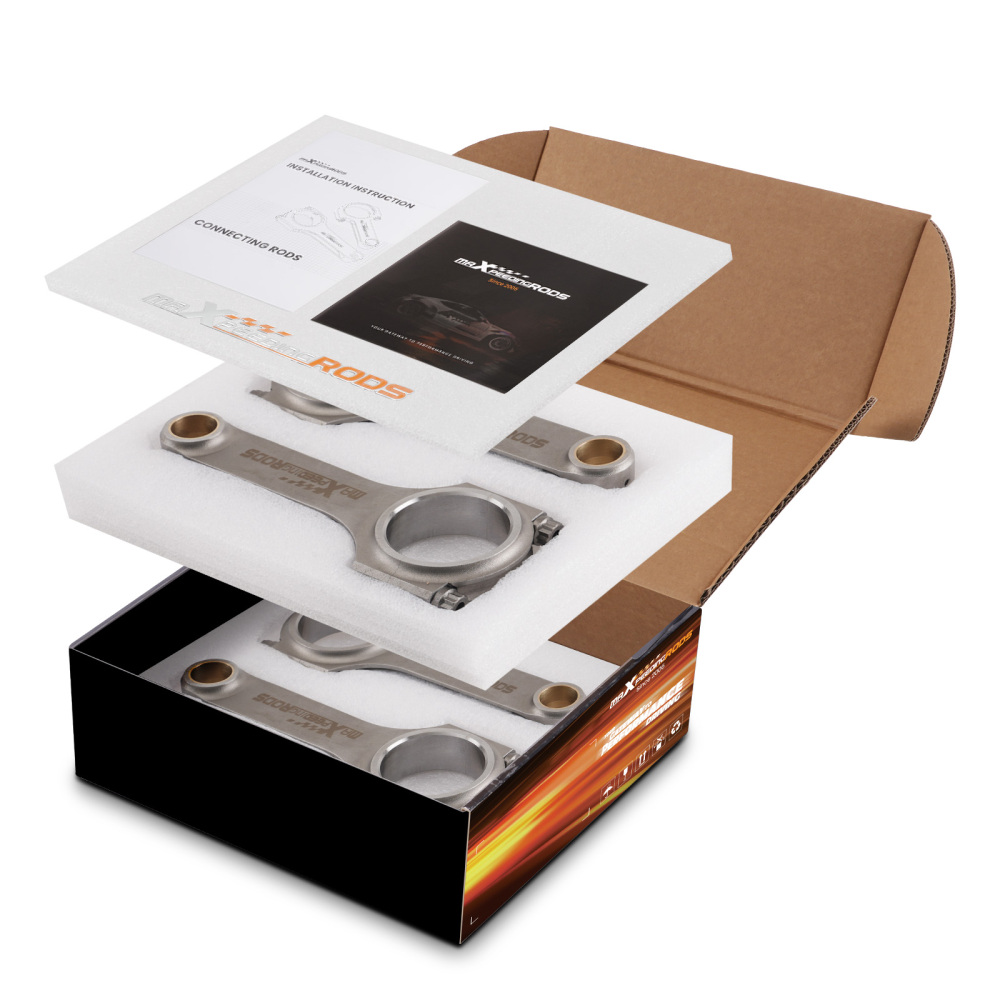

  • * 5.Package Contents: 4 Pieces of H-Beam Connecting Rods; 8 Pieces of ARP 2000 3/8" bolts (Note: Extra cost for upgrading to ARP L19 bolts)
  • * 6.TüV Certification Con Rods
  • * 7.Advertised RPM Rating: 7000-9000 rpm
  • * 8. Fastener Tensile Strength (psi):200,000 - 230,000 psi

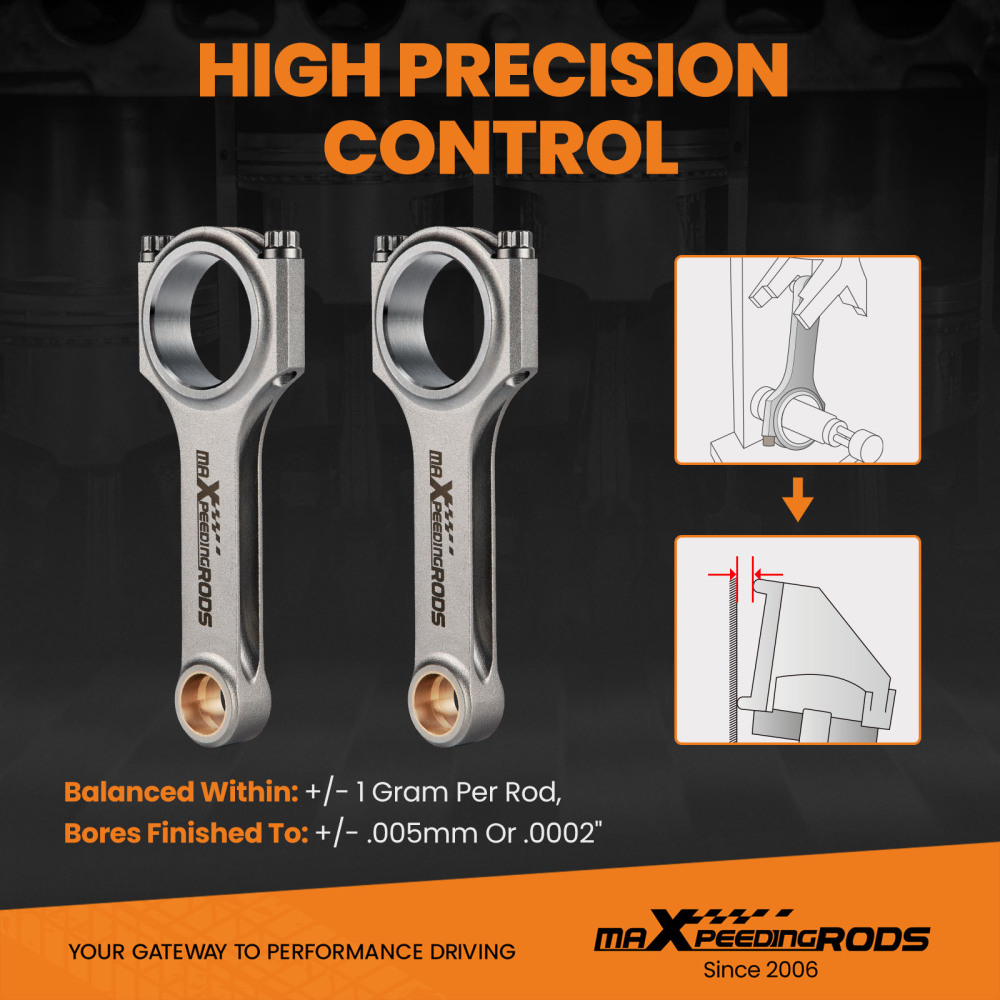

  • * 9.Balanced to within +/- 1 gram per end
  • * 10.The big end bores are honed to a +/-.01mm tolerance
  • * 11.Heat-treating & Shot-peened for remained consistent and strong
Stock In Stock

Combination offer

  • A
  • B
  • C
  • D
  • E
  • F
  • G
CR-Compatible for OPEL-143
CR-Compatible for OPEL-143
CR-Compatible for OPEL-143
CR-Compatible for OPEL-143
CR-Compatible for OPEL-143
CR-Compatible for OPEL-143
CR-Compatible for OPEL-143
CR-Compatible for OPEL-143

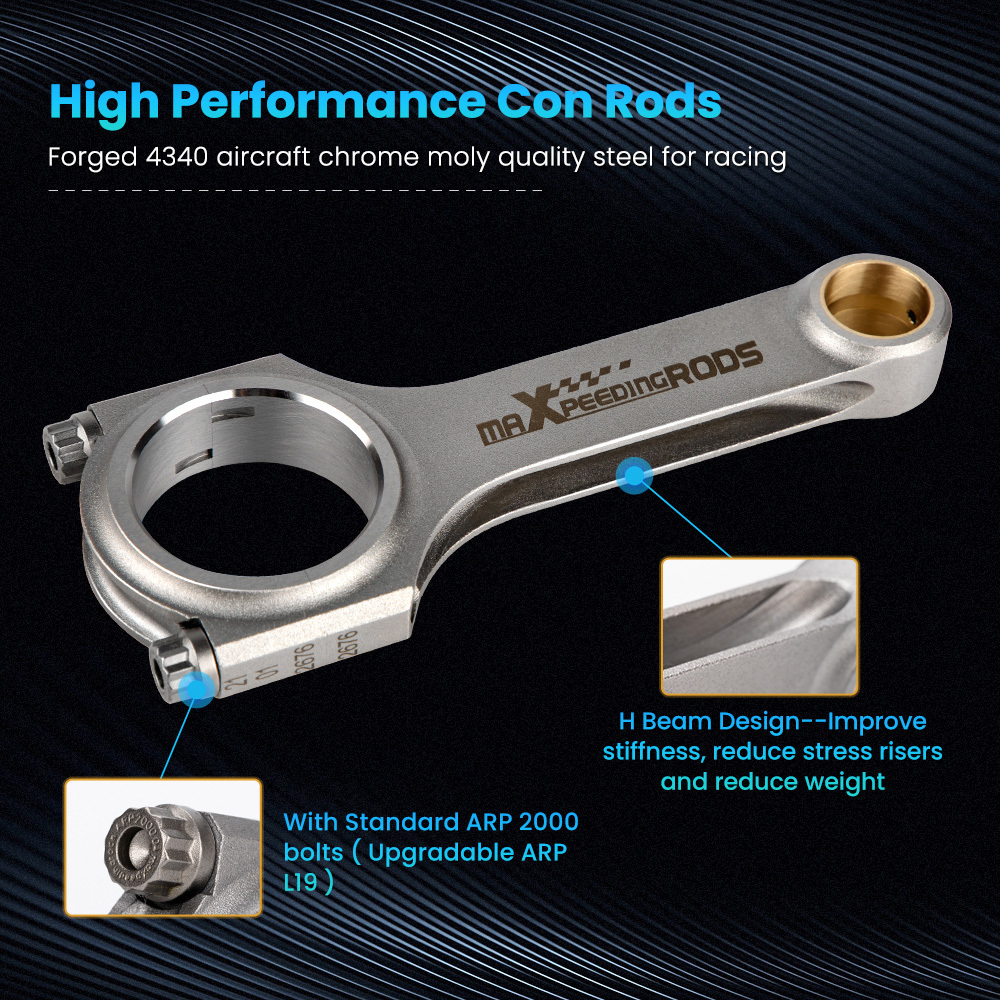

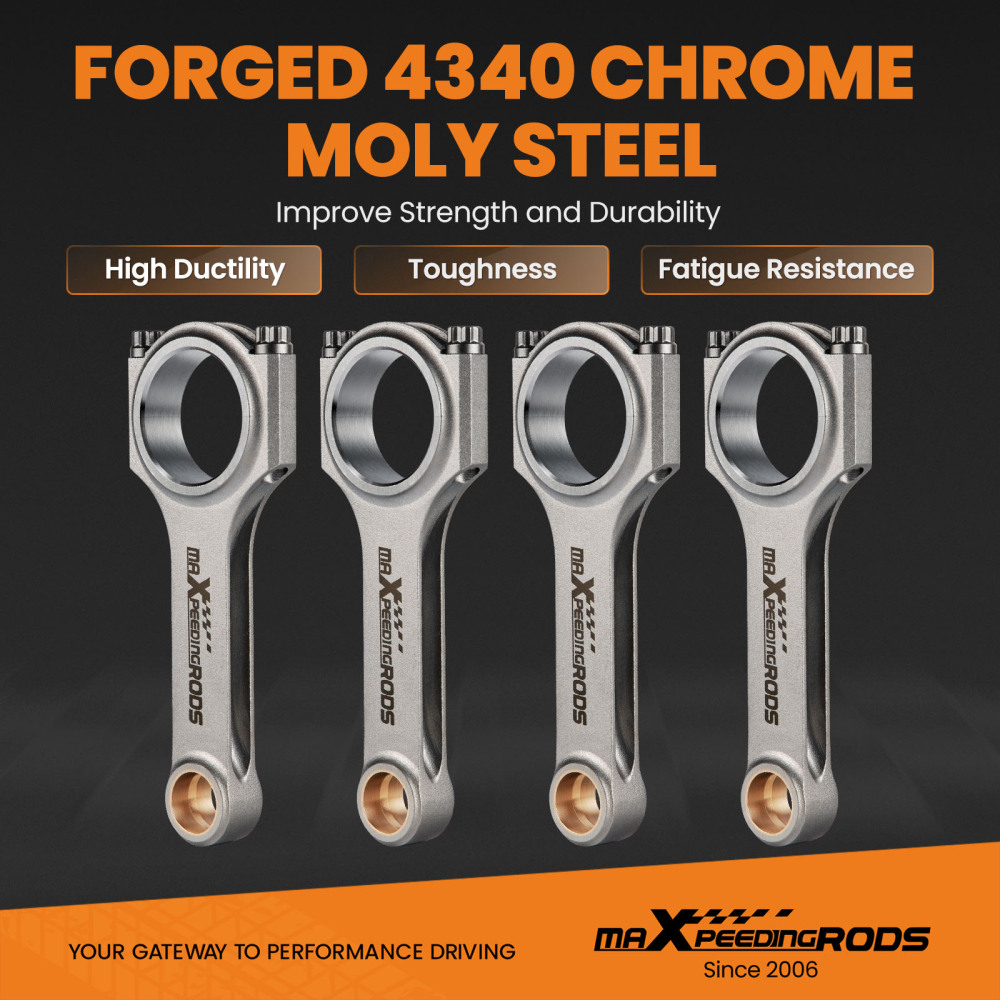

1. High Performance Material
1. High Performance Material

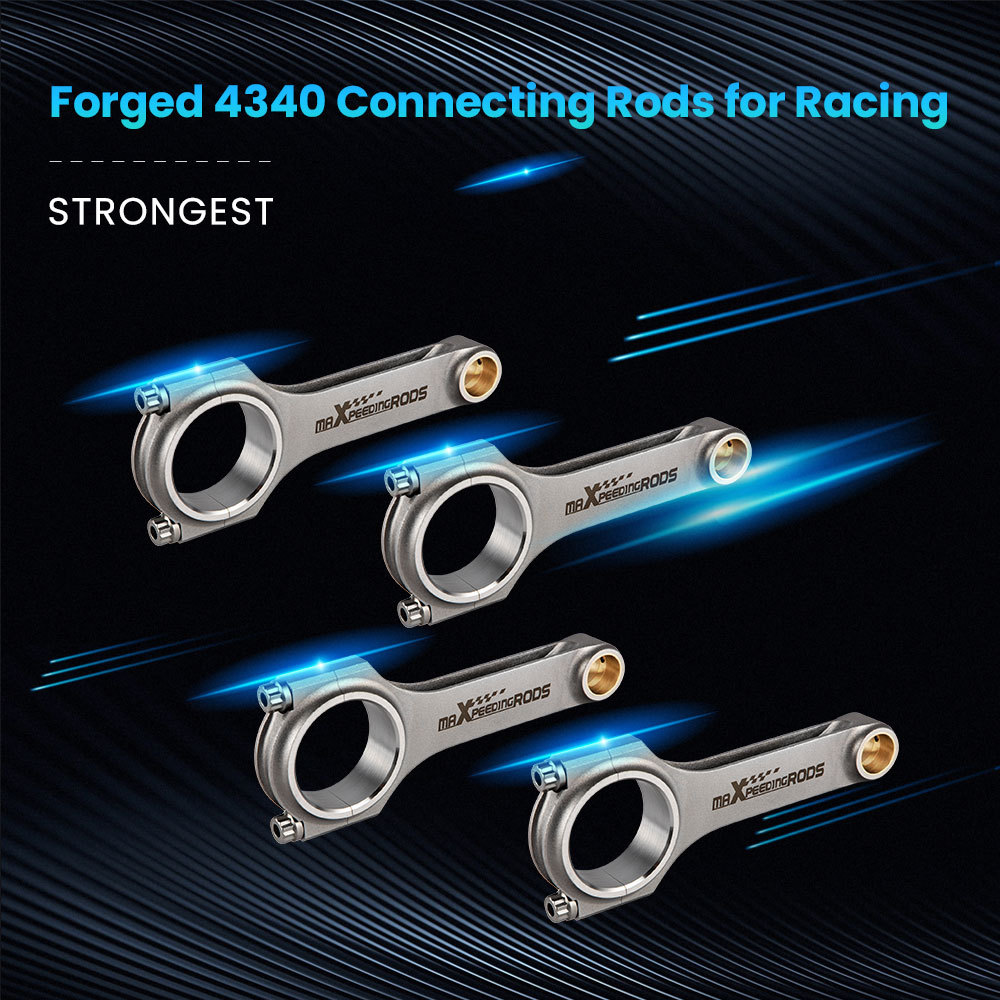

Forged 4340 EN24 aircraft chrome moly quality steel for racing
2.High Quality Components
2.High Quality Components

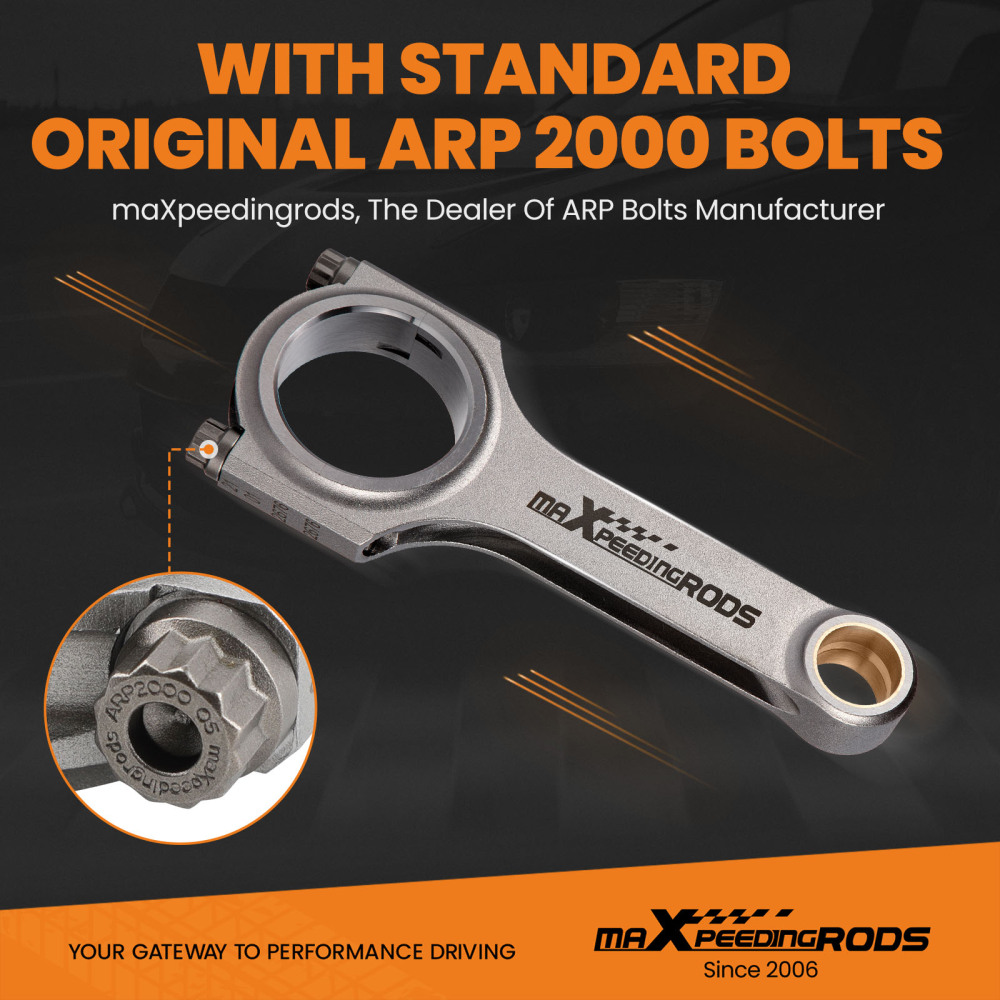

With Standard ARP 2000 Bolts (Upgradable ARP L19)

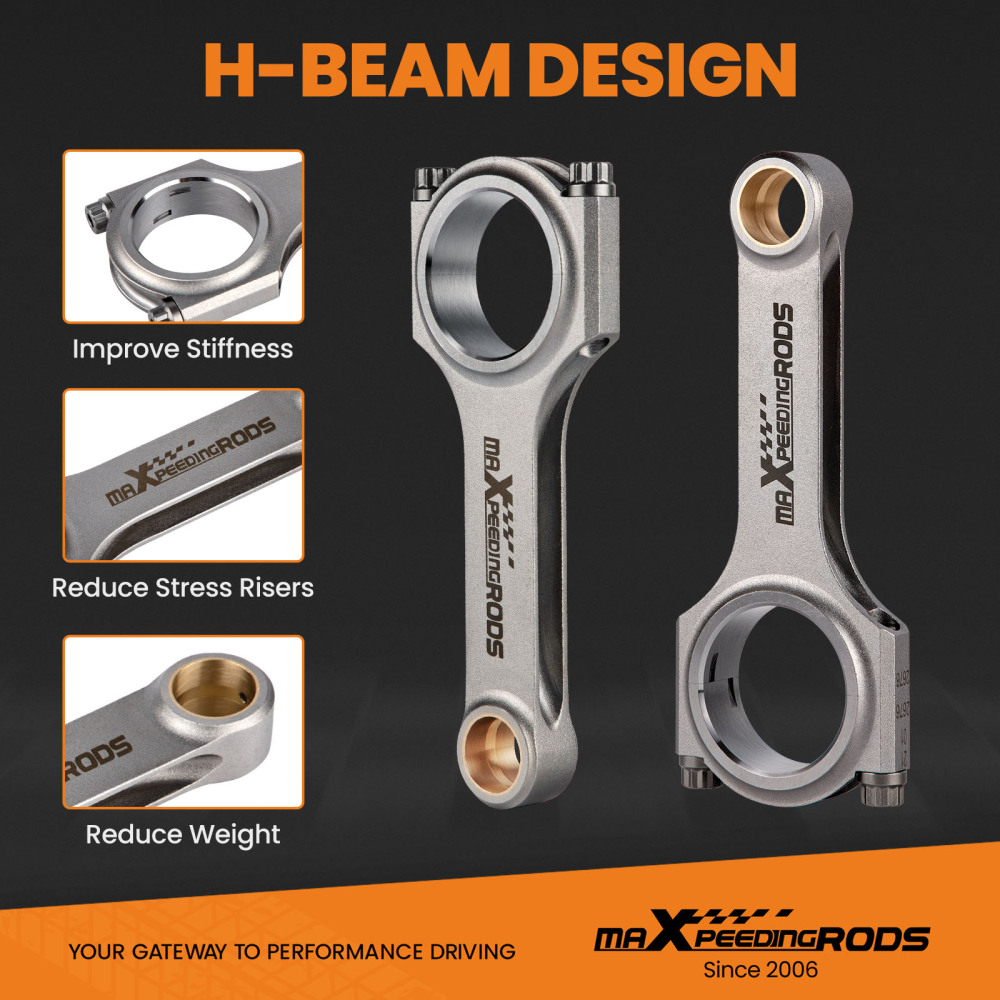

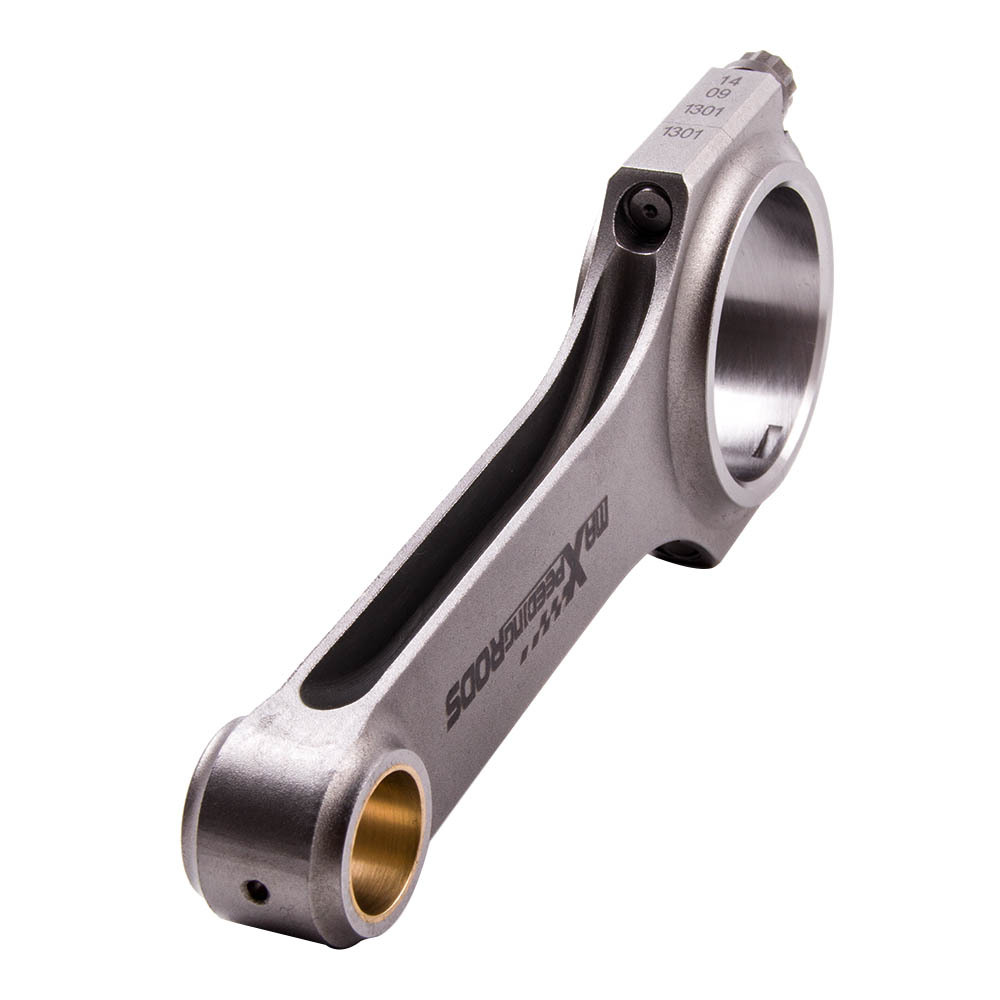

3.Professional H-Beam Design
3.Professional H-Beam Design
Improve stiffness, reduce stress risers and reduce weight
4.Precision Machining Manufacturing
4.Precision Machining Manufacturing

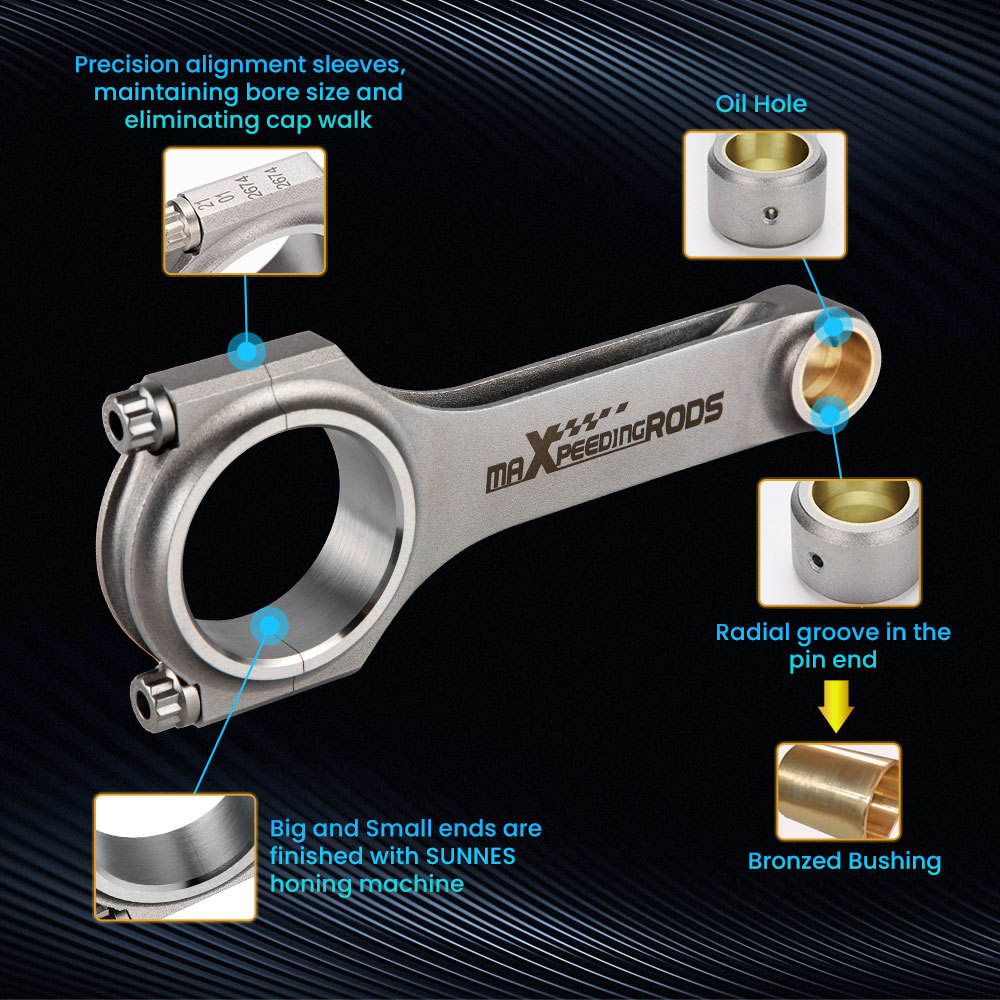

Shot Peening for improved fatigue life. 100% CNC machined for superior tolerances,Precision rod cap alignment dowels

Application

Compatible for OpelCalibra 2.0L C20xe C20LET
Compatible for OpelCalibra 2.0L C20 20SEH X20
Compatible for Opel Speedster 2.0L Turbo
Compatible for Opel Compatible for Vauxhall Astra Zafira2.0L C20LET Z20LET C20XE​
Fitment Details:
Compatible for Opel Astra F 1991-2001 2.0i 16V
Compatible for Opel Astra G 1998-2009 Coupe 2.0 16V Turbo
Compatible for Opel Calibra A 1990-1997 Coupe 2.0i 16V, 2.0i 16V 4x4
Compatible for Opel Kadett E 1984-1993 Hatchback 2.0 GSI 16V,2.0 GSI Cat, 2.0 GSI 16V Cat
Compatible for Opel Speedster 2003-2005 Convertible 2.0 Turbo
Compatible for Opel Vectra A 1988-1995 Hatchback 2.0i 16V, 2.0i 16V Cat
Compatible for Opel Vectra A 1988-1995 Saloon 2.0i 16V, 2.0i 16V 4x4
Compatible for Opel Zafira A 1999-2005 MPV 2.0 DI, 2.0 DI 16V, 2.0 OPC
Compatible for Vauxhall Astra MK V 2004-2012 2.0 Turbo
Compatible for Vauxhall VX220 E01 2000-2005 Convertible 2.0i Turbo

Specification

Type: Forged 4340 EN24 Aircraft Chrome Moly Steel H-Beam Connecting Rod
Quantity: 1 set of 4 pieces
Bolts: Including Genuine ARP 2000 bolts
Bolts size: 3/8"
Lubricants: Without ARP Ultra Torque Assembly Lubricants
Advertised Horsepower Rating:200HP/piece
The big end bores are honed to a +/-.01mm tolerance
The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.
Tolerance: Balanced to +/- 1 gram in set
Note: Extra cost for upgrading to ARP L19 bolts
Warranty: 2 years

Dimensions

Center to center length: 143 mm / 5.6299 in.
Big end diameter: 52 mm / 2.0472 in.
Small end diameter: 21 mm / 0.82677 in.
Big end width: 26.3 mm / 1.03543 in.
Small end width: 21.9mm / 0.8622 in.

Feature

- TüV Certification Con Rods
- Material: Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
- Genuine ARP 2000 bolts ,Optional ARP L9 fasteners available as an upgrade
- H-Beam design reduces weight without compromising strength
- Heat-treating & Shot-peened for remained consistent and strong. Shot-peened finish to remove potential for stress risers
- 100% CNC machined,Precision rod cap alignment dowels
- Bores finished to +/- .01 mm
- Balanced to within +/- 1 g per rod

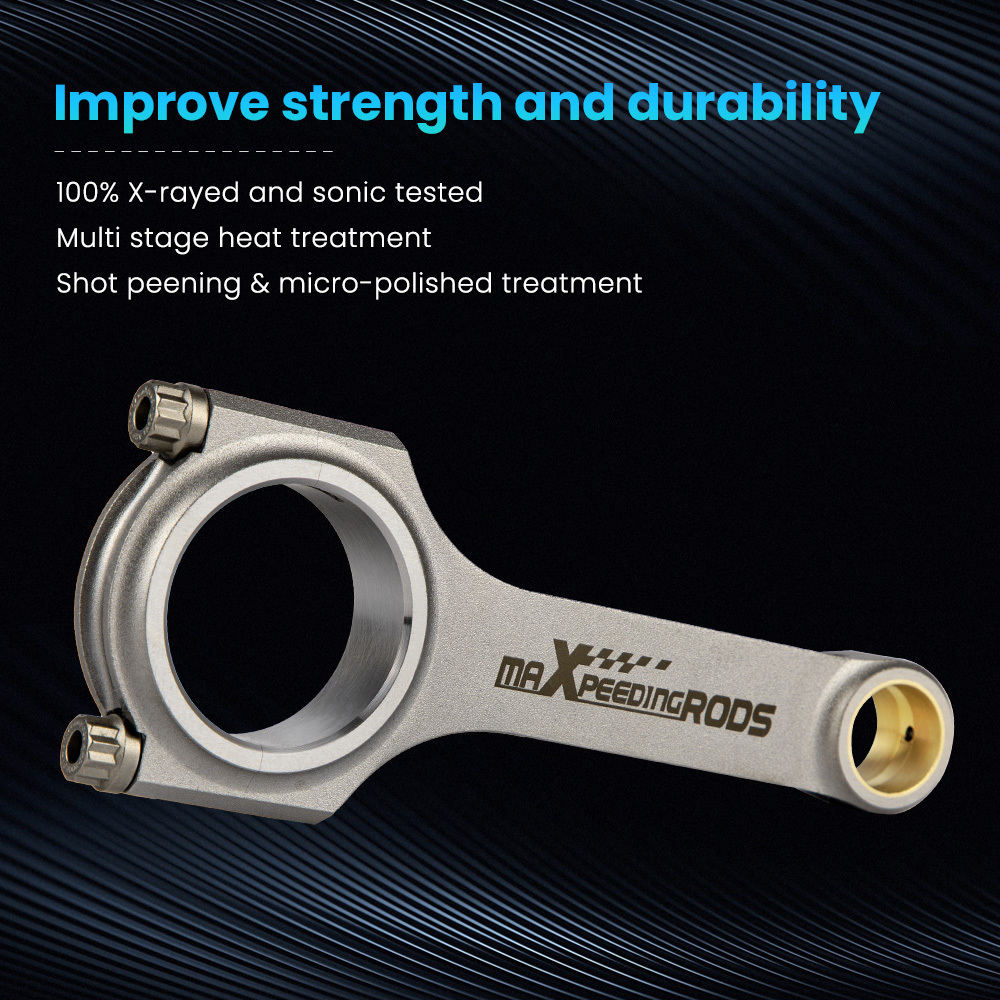

- Each rod is magnetic particle tested to ensure free of flaws
- 100% X-rayed, sonic tested

Notice

- Professional installation is highly recommended (No Instruction Included)
- Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
