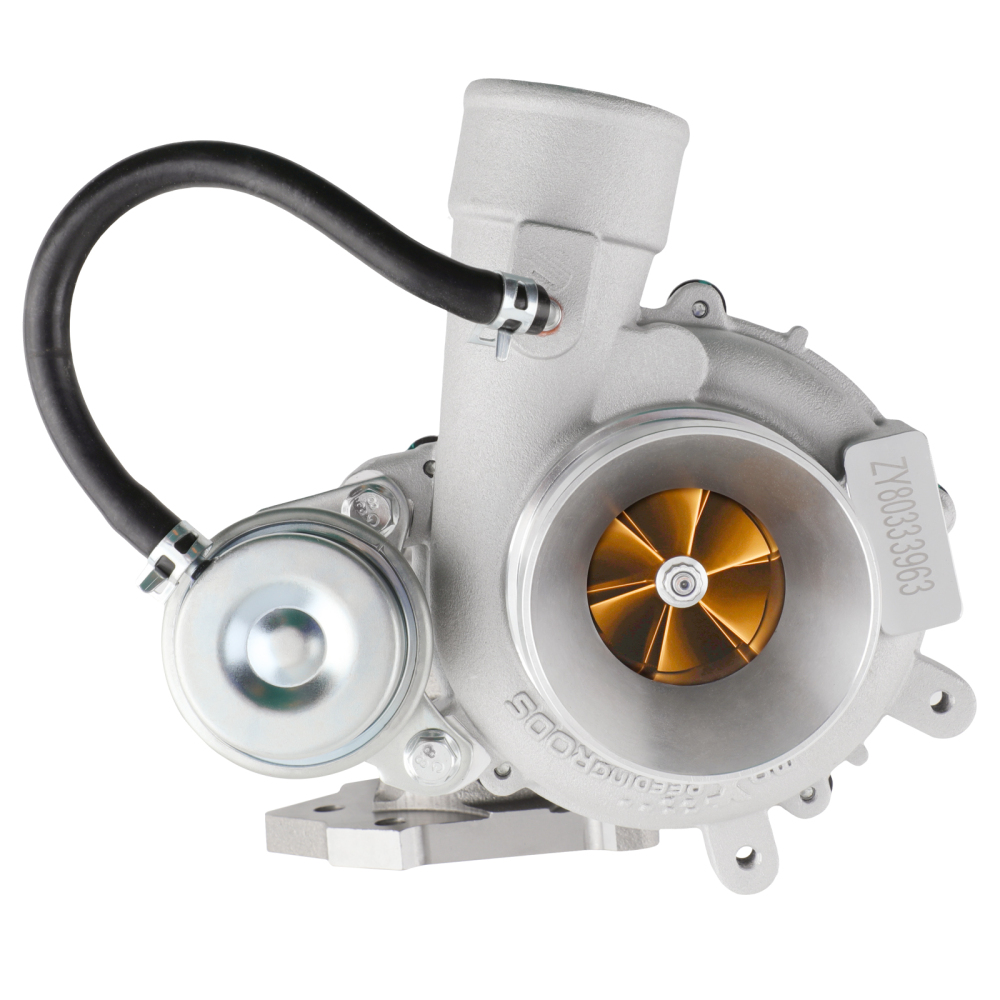

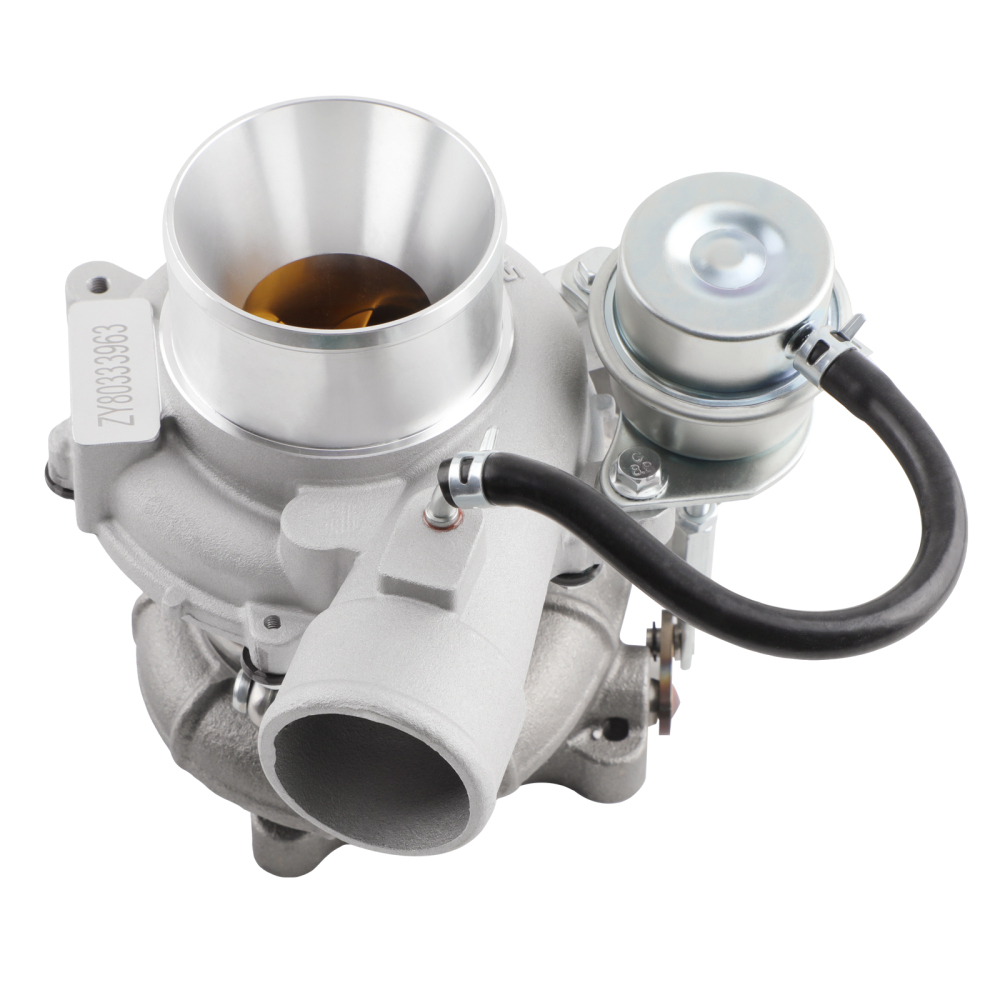

Maxpeedingrods 3000 Billet Upgrade Turbocharger compatible for ISUZU D-Max 3.0L 4JJ1 Engine

Application

Compatible for ISUZU D-Max 3.0L 4JJ1 Engine

OE/Part number

VIFE1602, 8980118922, 8980118923, 898011-8922, 8-98011-8922, 898011-8923, 8-98011-8923,

Specification
Turbo Model: Maxpeedingrods 3000
Cooling Type: Water+Oil Cooling
Bearing Type: Journal Bearing/Floating Bearing
Turbine Side:
Turbine Inducer Diameter: 51.95mm
Turbine Exducer Diameter: 45.83mm
Turbine Wheel: 11 blades
Compressor Side:
Compressor Inducer Diameter: 42.65mm
Compressor Exducer Diameter: 64.04mm
Compressor Wheel: 6+6 blades
Condition: 100% Brand New
Accessories: You will get what you can see in the pictures exactly
Package Size: 29x27x23 cm
Package Weight: 8.8kg

Feature

*Product Material
1. Turbine housing ：Silicon-Molybdenum - temperature resistant up to 850℃
2. Steel turbine wheel：K418 alloy -  high  oxidation stability and resistance  up  to 900℃
3. Compressor housing：ZL104 aluminum with lightweight
4. Billet compressor wheel：forged full-machined billet aluminum compressor wheels with a larger horsepower range and better boost response

*Product
1. OEM fitment turbo with upgraded material
2. Excellent high temperature resistance，high efficiency and durability
3. Rich experience in turbo production and own factory

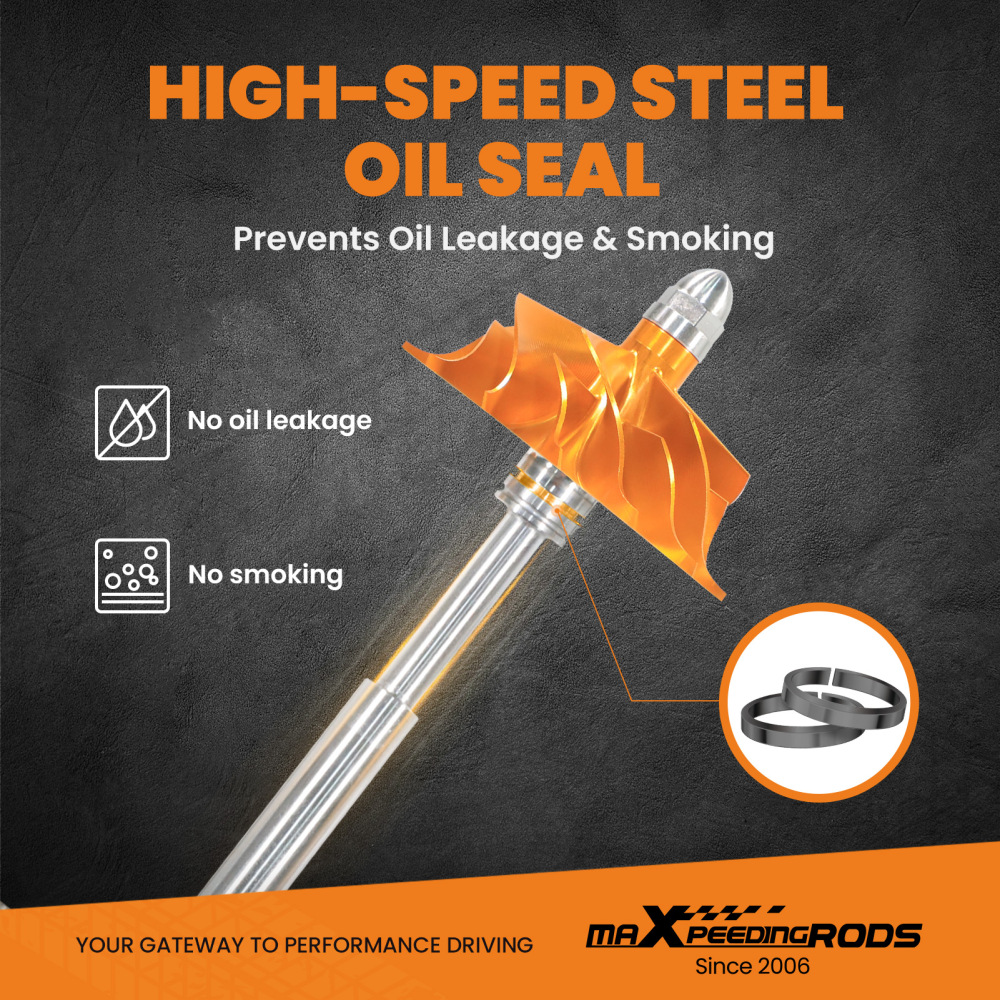

4. High-Speed oil seal ring and Precision clearance

* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS  VSR3
2.  G3-min-Flow VNT Turbo testing
3.  Advanced Actuator Tester/Programmer

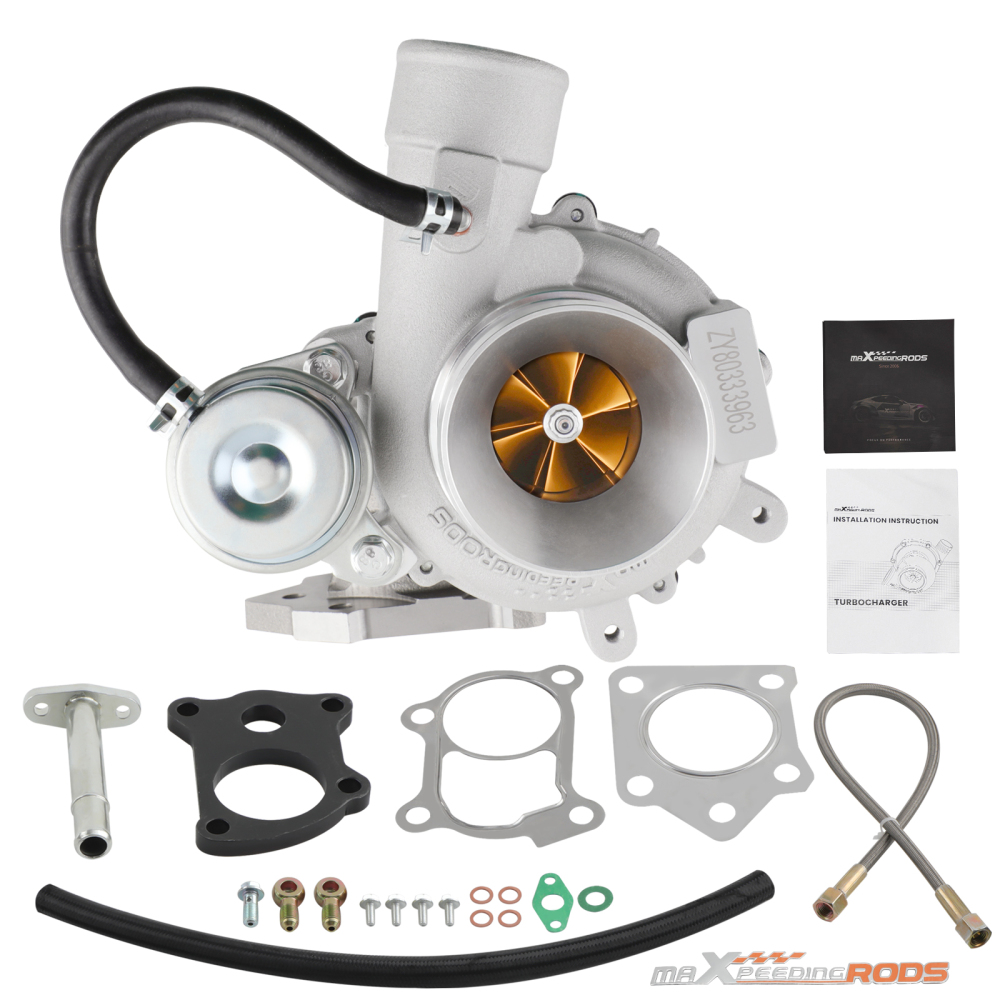

Package included
1x Turbocharger
2x Gaskets
2x Oil Port gaskets
1x Flange
1x Oil feed line and fittings
1x Oil drain
1x Manual
1x Brochure
1x Sticker

Note
* Professional installation is highly recommended
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
