Full Coilover Kits compatible for BMW Z4 (E85) 2002-2008 24 Ways Adjustable Shock Absorbers

Application

Compatible For BMW Z4 Roadster (E85) (2003-2009) 2.0 i,3.0 i,2.5 i,3.0 si, 2.2 i,2.5 si
Compatible For BMW Z4 Coupe (E86) (2006-2009) 3.0 si
note: This item is not suitable for M Coupe, M Roadster.

Specification

Front top mounts: pillow ball top mounts
Rear : rubber top mounts
Damping: 24 levels rebound damping adjustable
Spring rate Front: 10 kg/mm (560 lbs/in)
Spring rate Rear: 8kg/mm (448 lbs/in)
Spring length Front: 180mm
Spring length Rear: 170mm
Adjustable height: lowering 1-3inch
Coilover overall length Front: 360mm-495mm
Coilover overall length Rear: 485mm-585mm
Shock type: Twin tube
Spring Preload: 7-10 mm
Color: gold

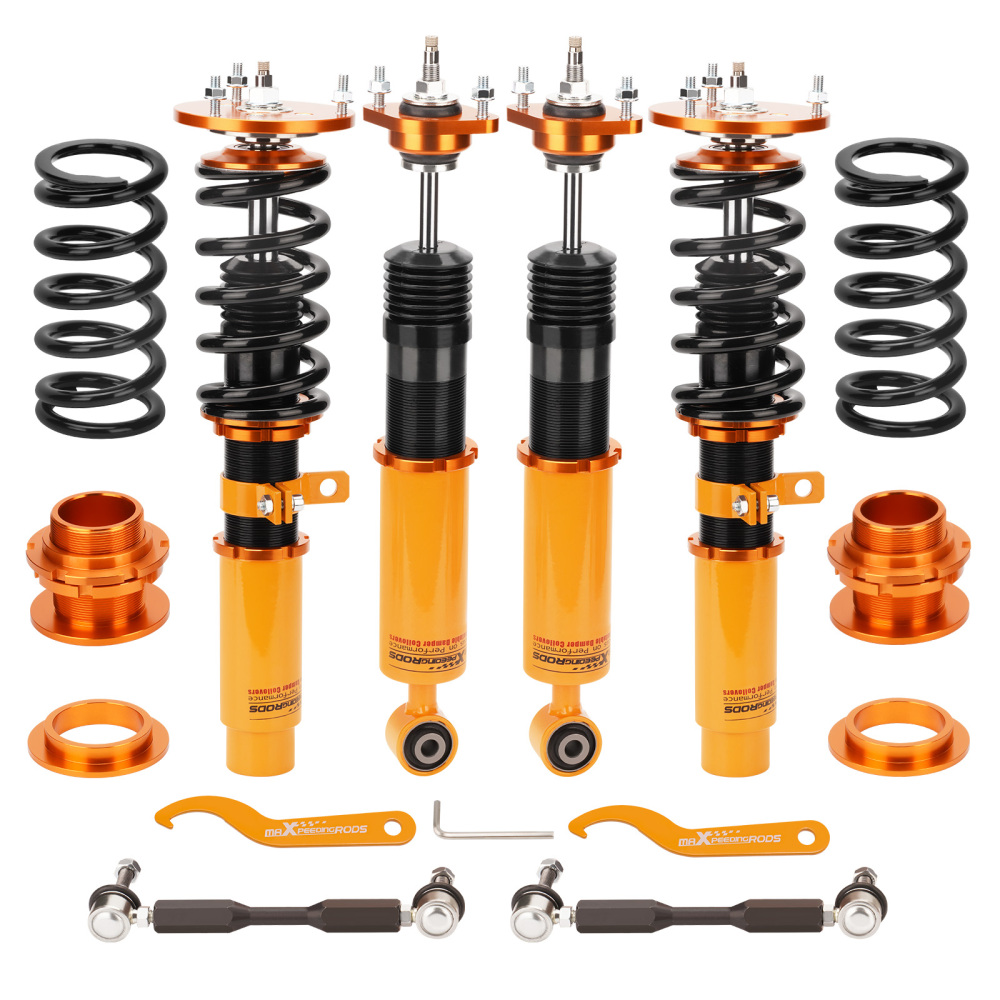

Package included:

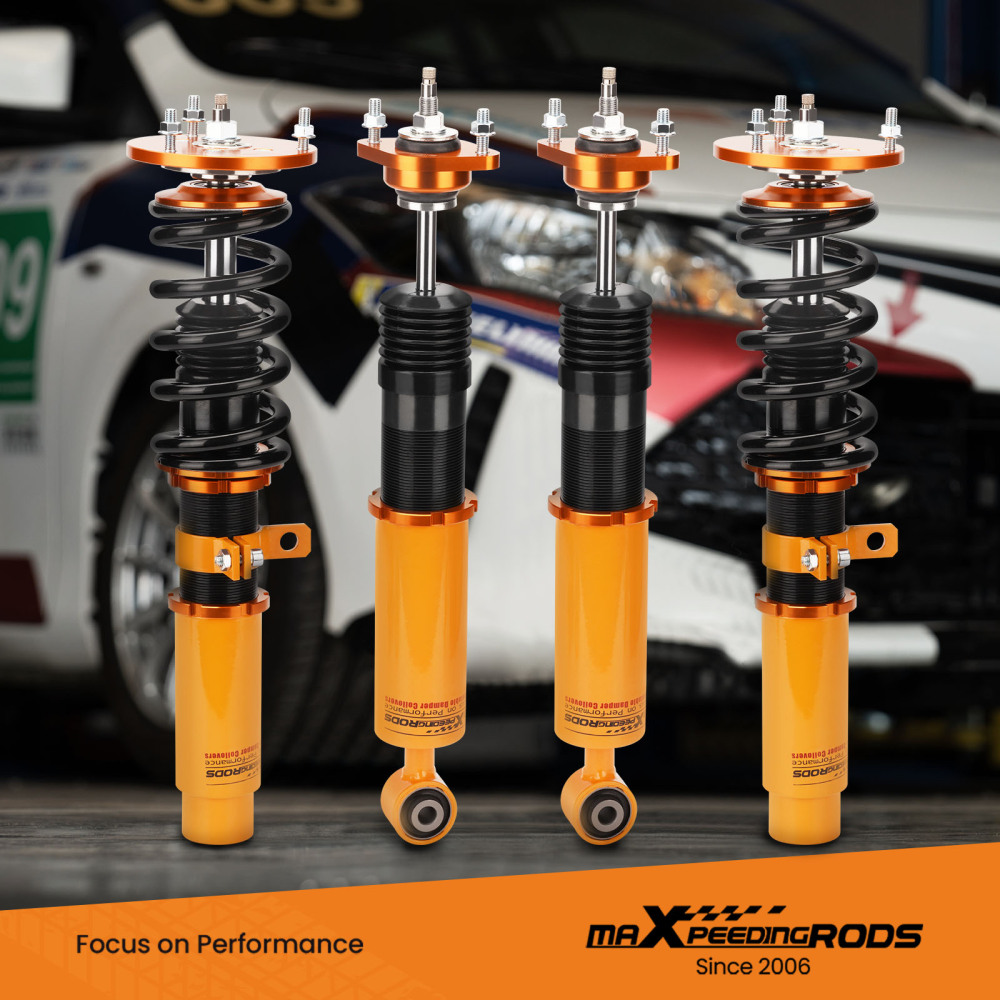

coilovers for 2 front and 2 rear
a pair of drop links
a pair wrench for height adjustment
Dimension:
weight: 25100g
size: 70*50*19cm

Feature

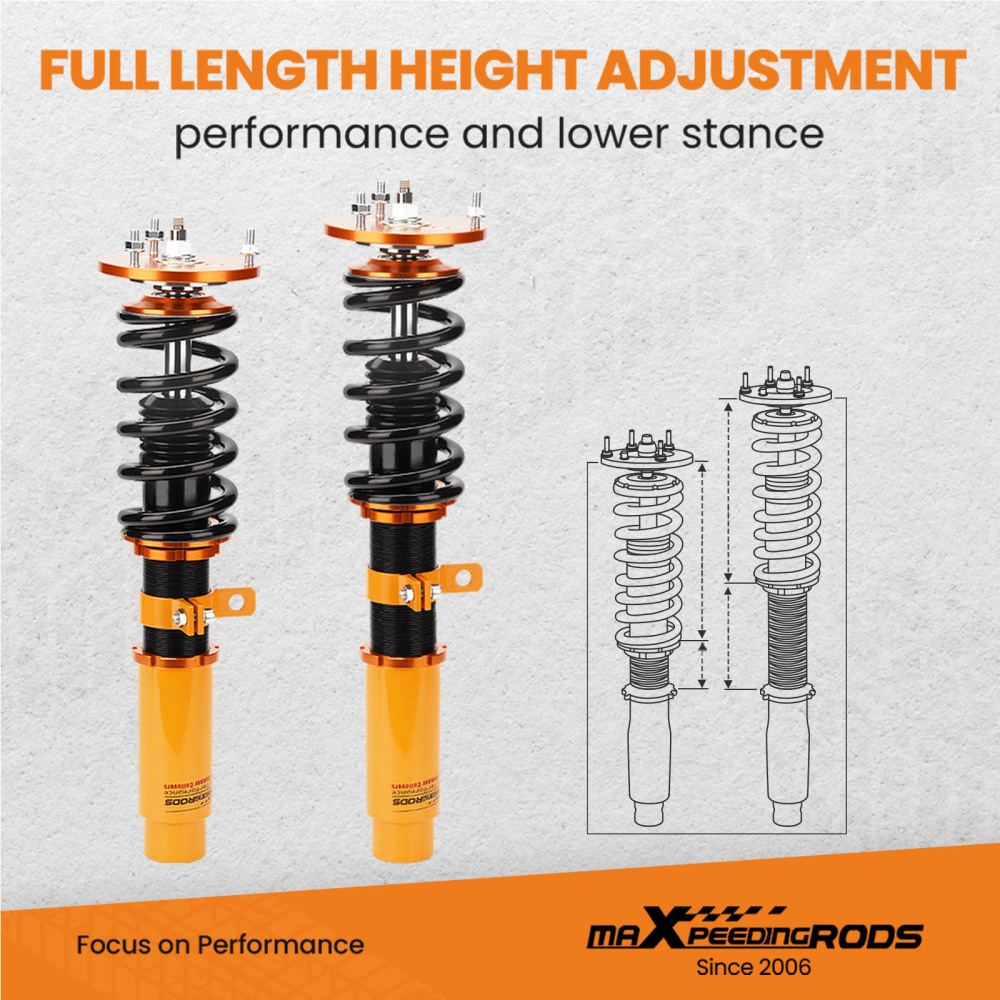

1. Lowered height adjustment from 1''-3'' which allow lower center of gravity and also add a more aggressive stance

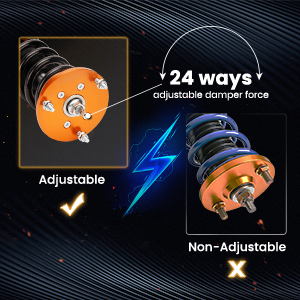

2. A 24 rebound damping adjustment level allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.
3. Twin-Tube structure allows sufficient stroke within the shock absorber
4. Separate height adjustment does not affect damper stroke

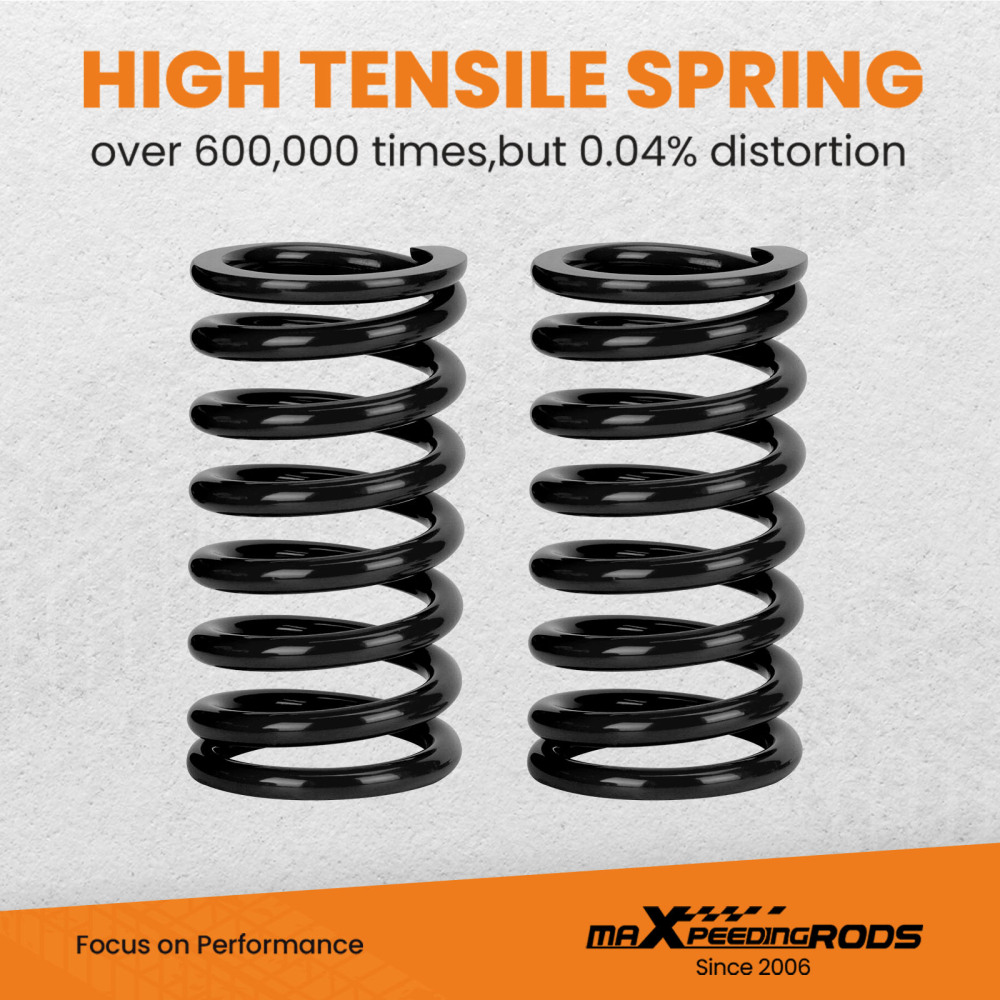

5. High Tensile performance spring – STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus, the special surface treatment improves the durability and performance.
6. Height Adjustment tools included

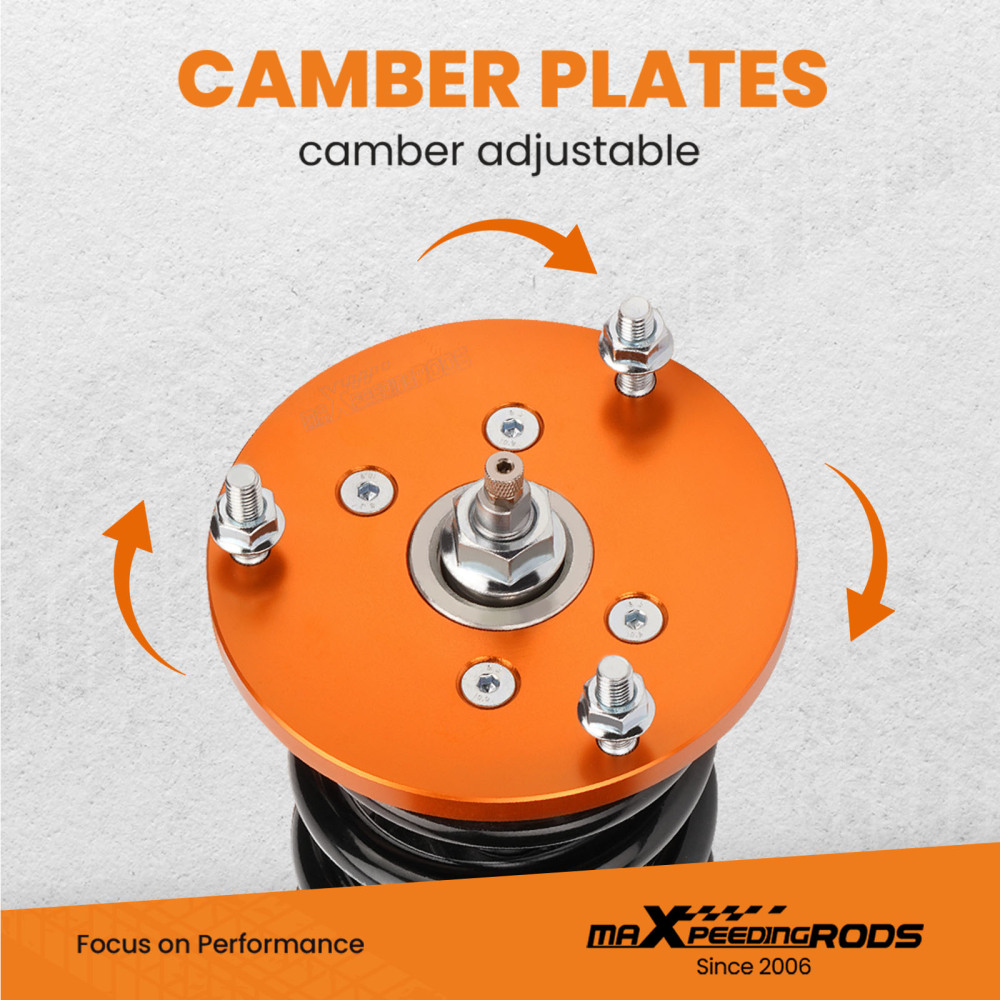

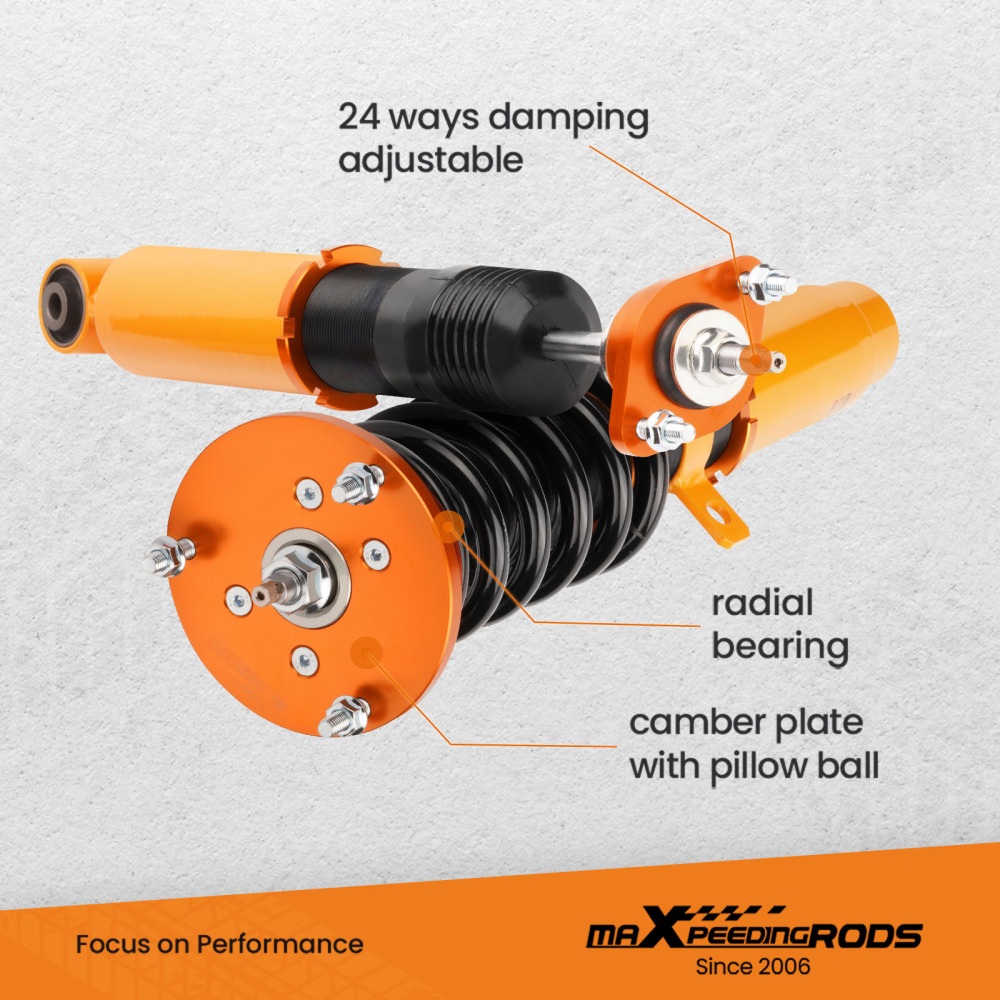

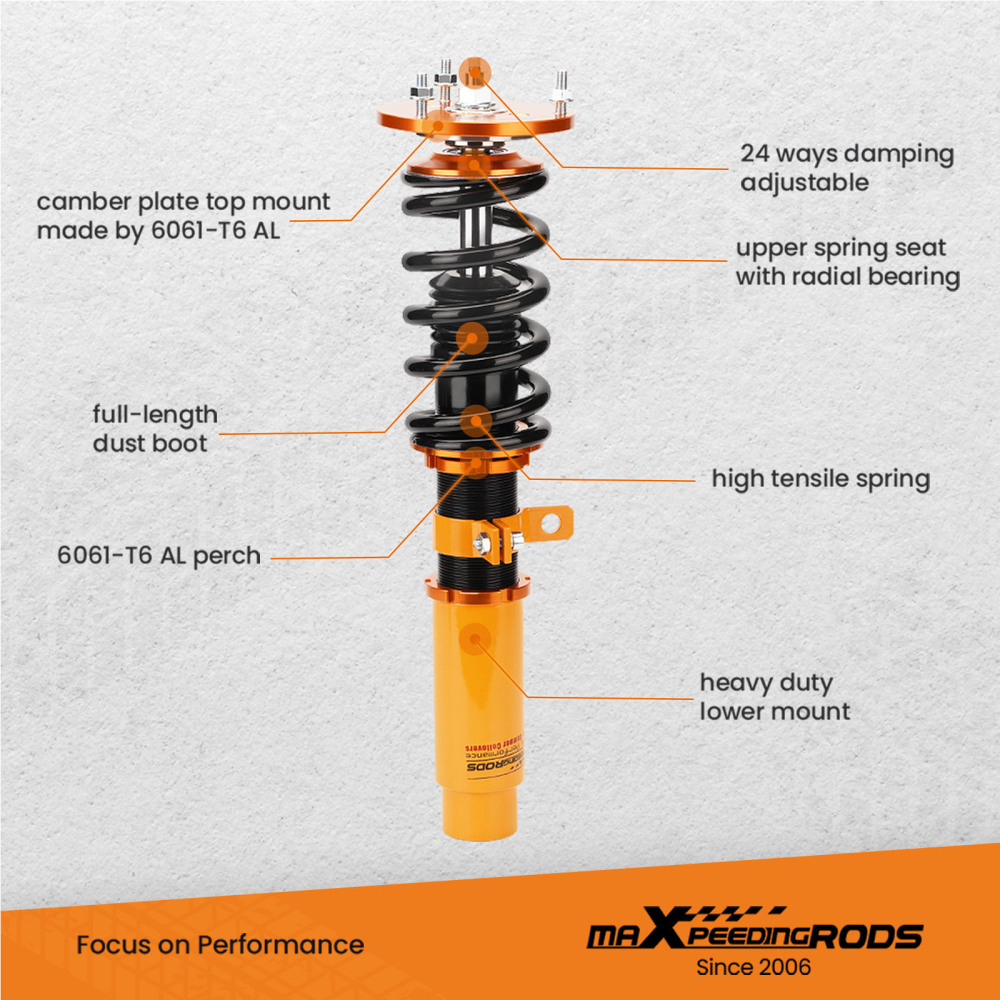

7. Camber plate top mounts help to eliminate the need for a separate camber kit

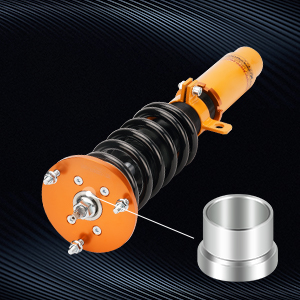

8. Pillow ball top mount - It improves the steering feel and response

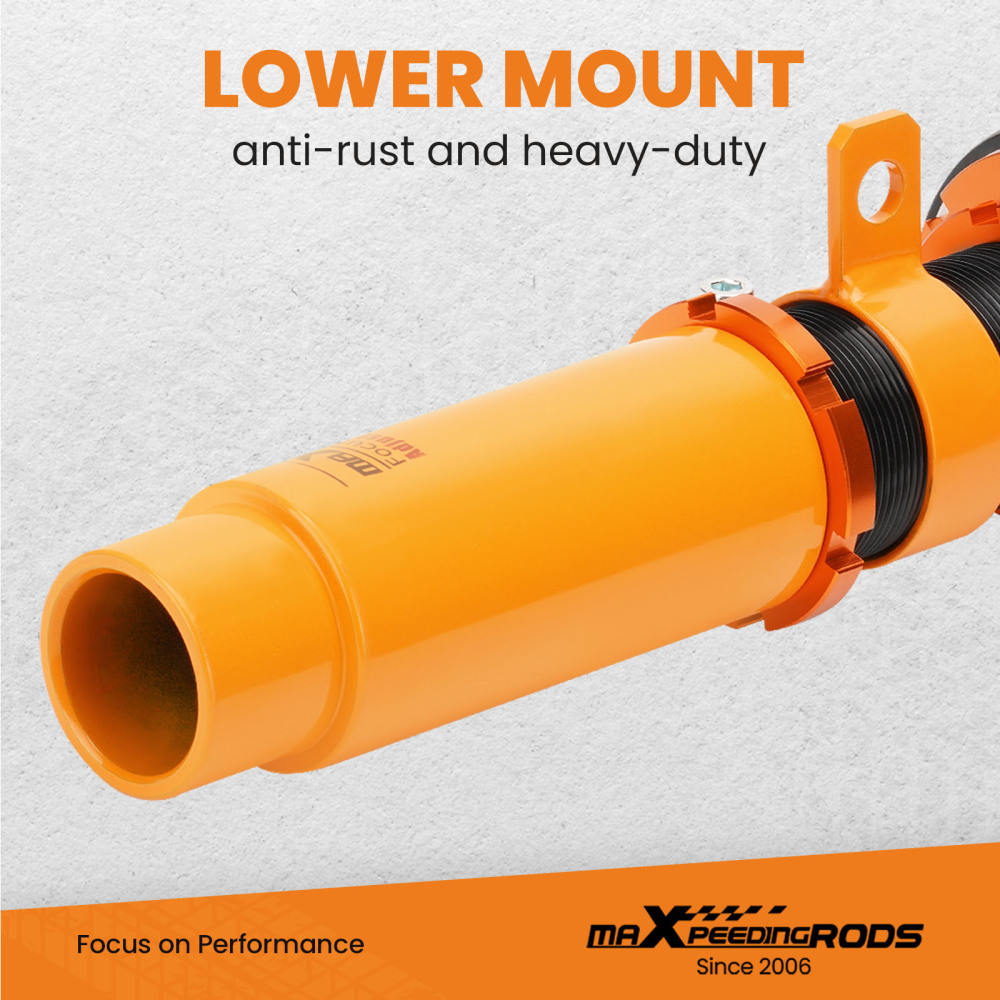

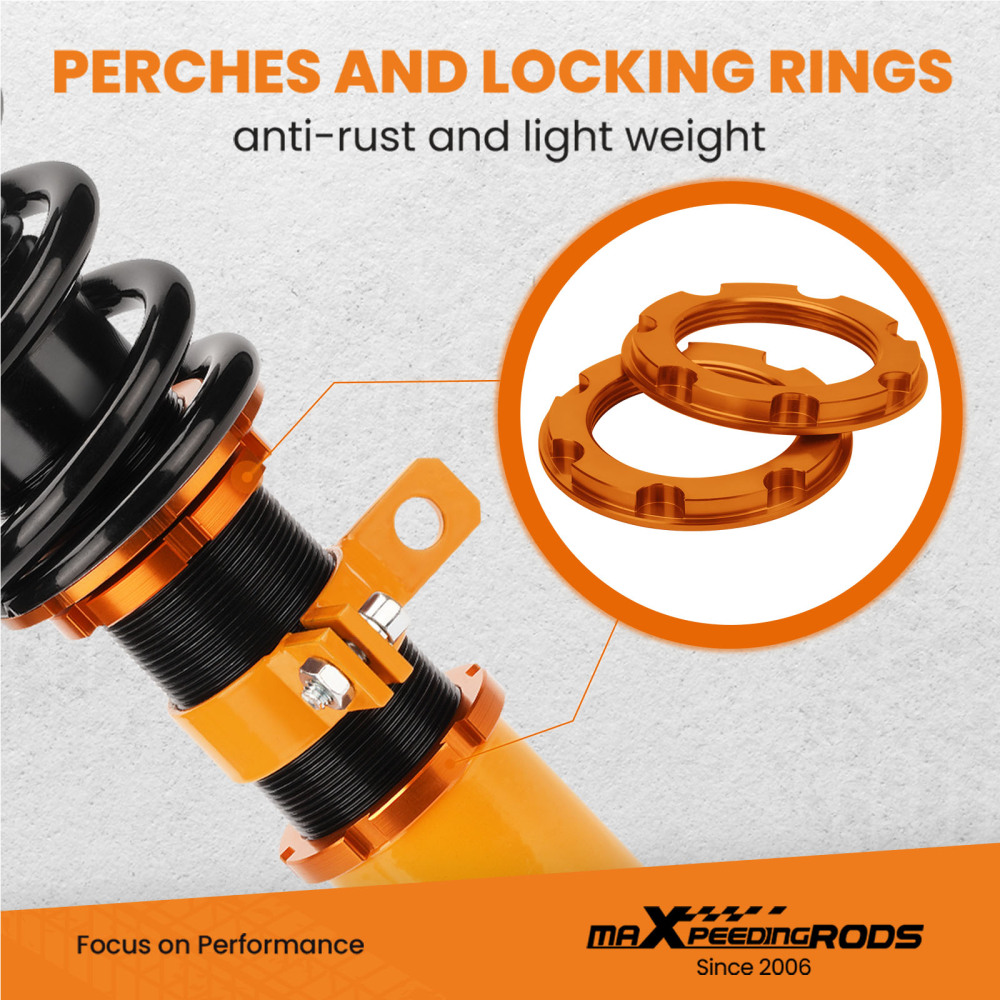

9. Most pieces in our Coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components.
10.Full rebuildable

Note

- Hi-performance aftermarket parts; no instruction included; professional installation is suggested.
- Please feel free to contact us for whatever we can help.
