For Caterpllar Perkins 3024 3024C C2.2 SBA-135756180 4T-5OG VB420081 Turbo

  • * OEM-Quality. Direct Replacement
  • * Ductile Iron QT450-10 - High temperature resistance (up to 700℃)
  • * K418 Alloy - Stable & High Oxidation & Temperature Resistance(up to 900℃)
  • * Cast Aluminium Blade - Good Air Tightness & Corrosion Resistance
Item Number 3002907868
Stock In Stock

Combination offer

  • A
  • B
  • C
  • D
  • E
  • F
  • G
RHF4-135756180
RHF4-135756180
1
OEM-quality and size with little modification
2
Turbine housing uses cast iron withstand temperatures up to 700℃
3
Steel Turbine Wheel made from the special K418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900℃
4
Cast aluminium blades with good gas tightness and corrosion resistance

Introduction

Looking to boost your car's horsepower? Is your car's original turbocharger not performing well or need replacing? Maxpeedingrods stocks all the best OEM-quality turbochargers and turbo parts to give your car the power, performance, and reliability you deserve. Maxpeedingrods aftermarket replacement turbos provide the perfect solution by delivering a high-quality turbo at a budget-friendly price.

Application

Compatible for New Hollander,Compatible for CAT 247 Series Skid,
Compatible for Terex Loaders, for ASV,
Compatible for Tractor TC55DA, for SHIBAURA Tractor ST445 etc

Turbo Part Number & OEM Number

13575-6180, 135756180, SBA 135756180, SBA-135756180
238-9349, 2389349,
0104-890-012, 0104 890 012, 104890012,
4T-506,4T 506,4T-S06,4T SOG,4T 50G,4T-50G,4T50G,4TSOG
2390230, 2825179, 3082308,3170981, 3240237, 4429826,
F41CAD-S0081B, F41CAD-S0081G, F41CADS0081B, F41CADS0081G,
VA420081, VA 420081, VA-420081,
VB420081, VB 420081, VB-420081,
VC420081, VC 420081, VC-420081,
VD420081, VD 420081, VD-420081,
VE420081, VE 420081,
VG420081, VG-420081
*HOW TO IDENTIFY YOUR TURBOCHARGER
If you are not sure fitment for your old turbo , please let us know this information :
1 . The OEM code information from your original turbo nameplate
2 . The Engine code & KW , HP , Year for your car
3 . The Photos of your complete turbo
4 . Please note that the registration number cannot identify your turbocharger

Feature

*Product Material

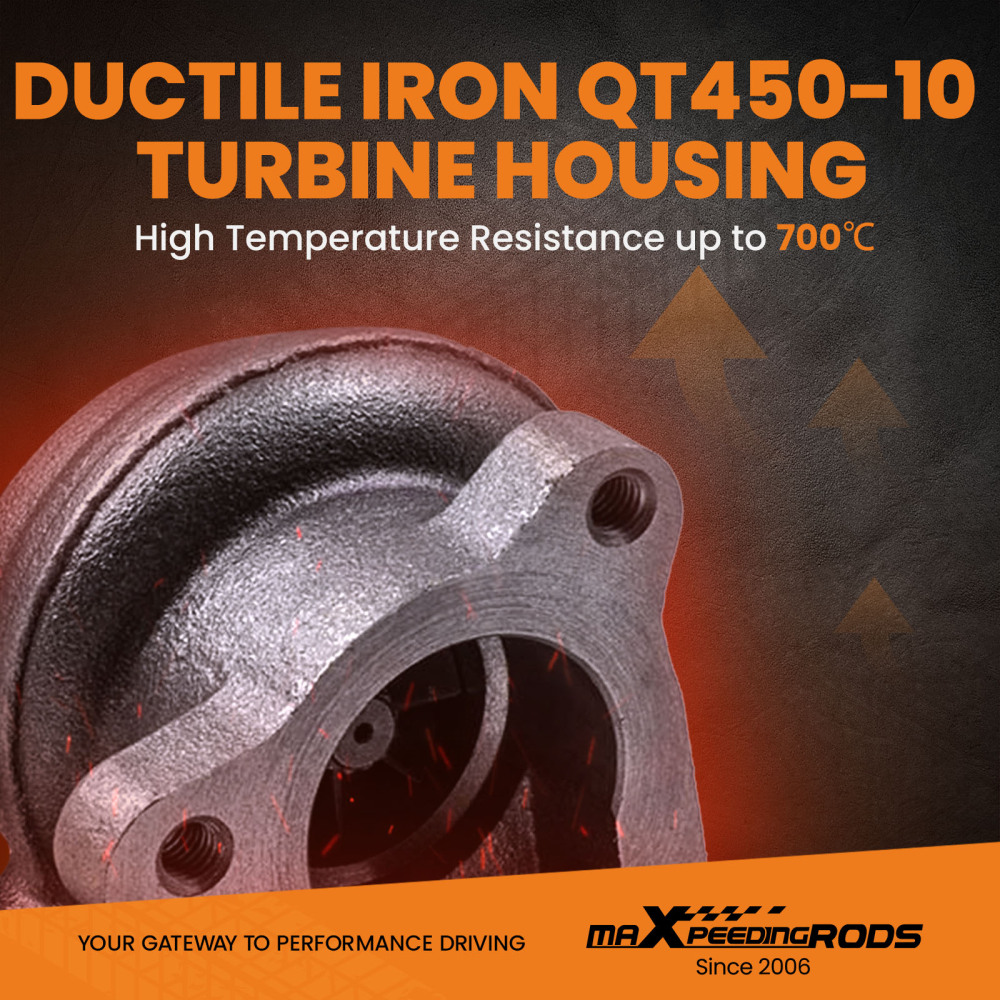

1. Turbine housing :Ductile iron QT450-10 shell with high-temperature resistance up to 700 degrees Celsius

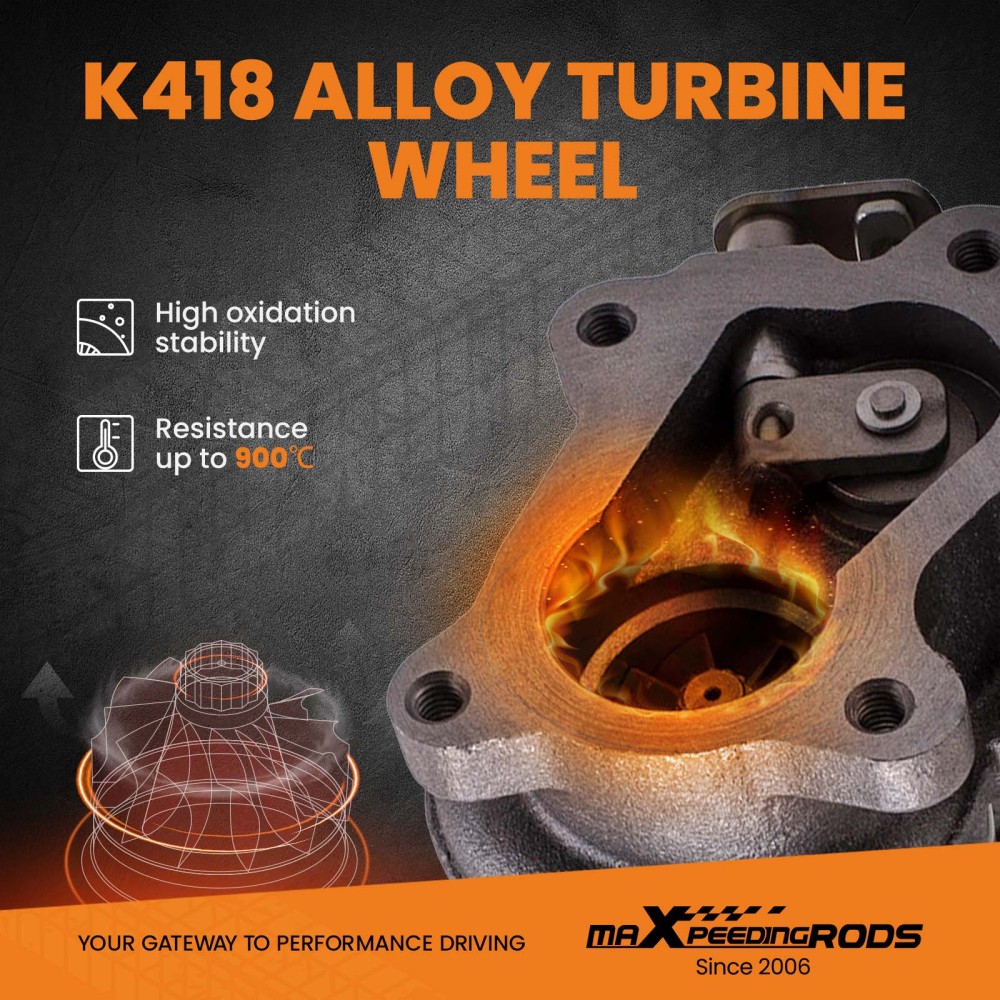

2. Steel Turbine Wheel:Made from the special K418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900 degrees Celsius

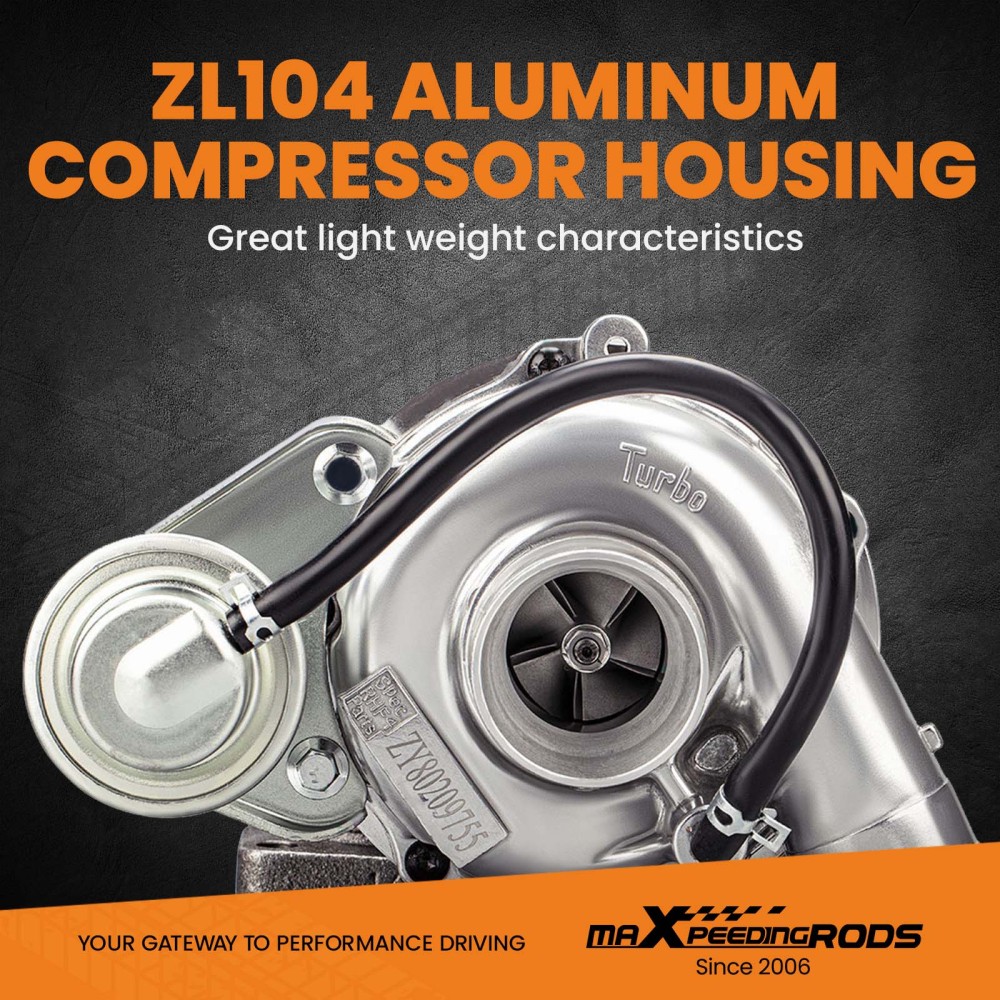

3. Compressor housing:ZL104 aluminum with lightweight

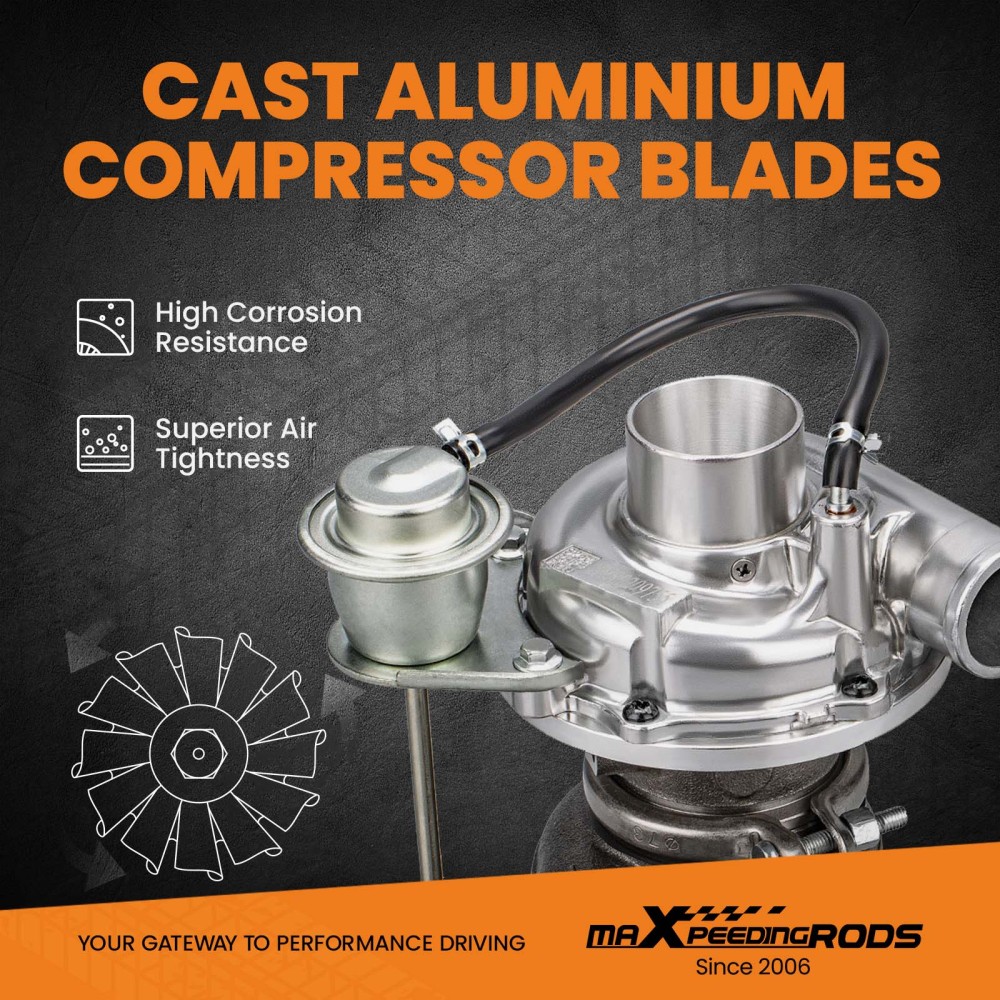

4. Compressor wheel/blades:Cast aluminium with good gas tightness and corrosion resistance
*Product Performance
1. OEM-quality and size with little modification

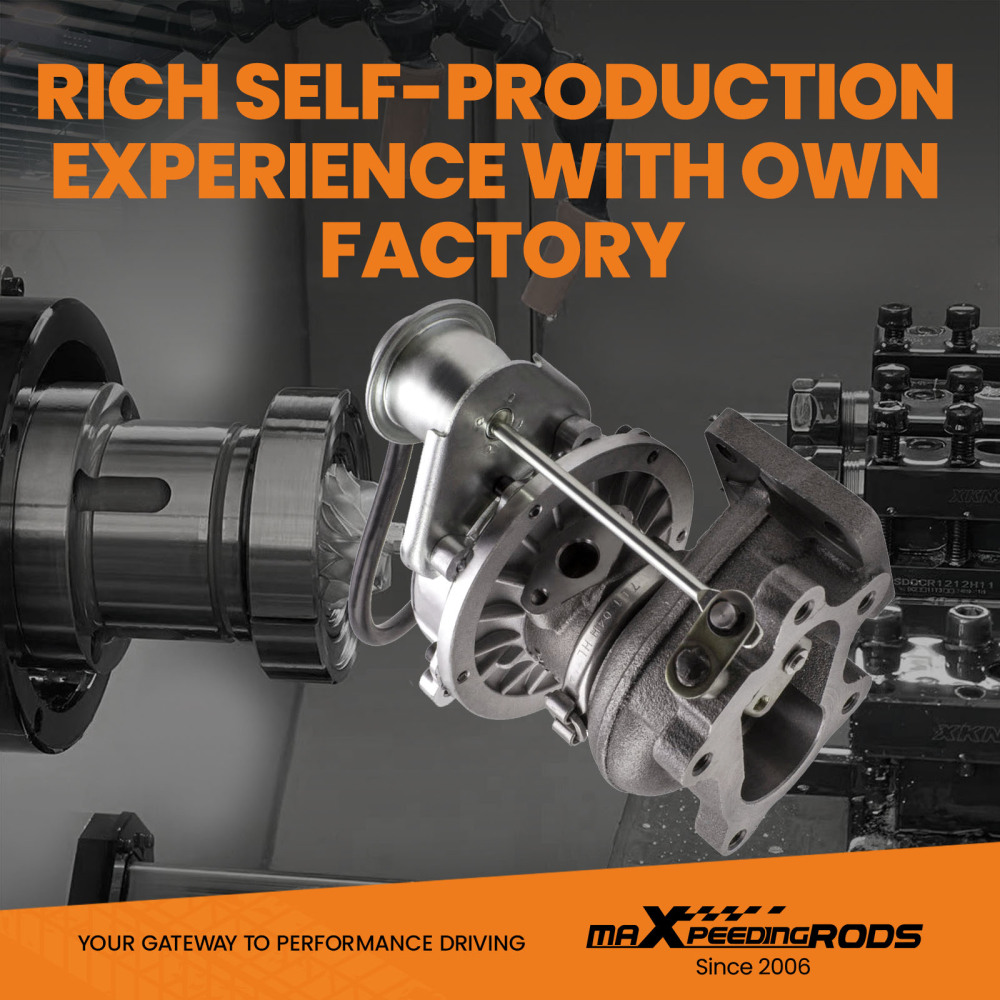

2. Rich Experience In Turbo Production And Own Factory
3. Quality Assurance
4. High-Speed Oil Seal Ring

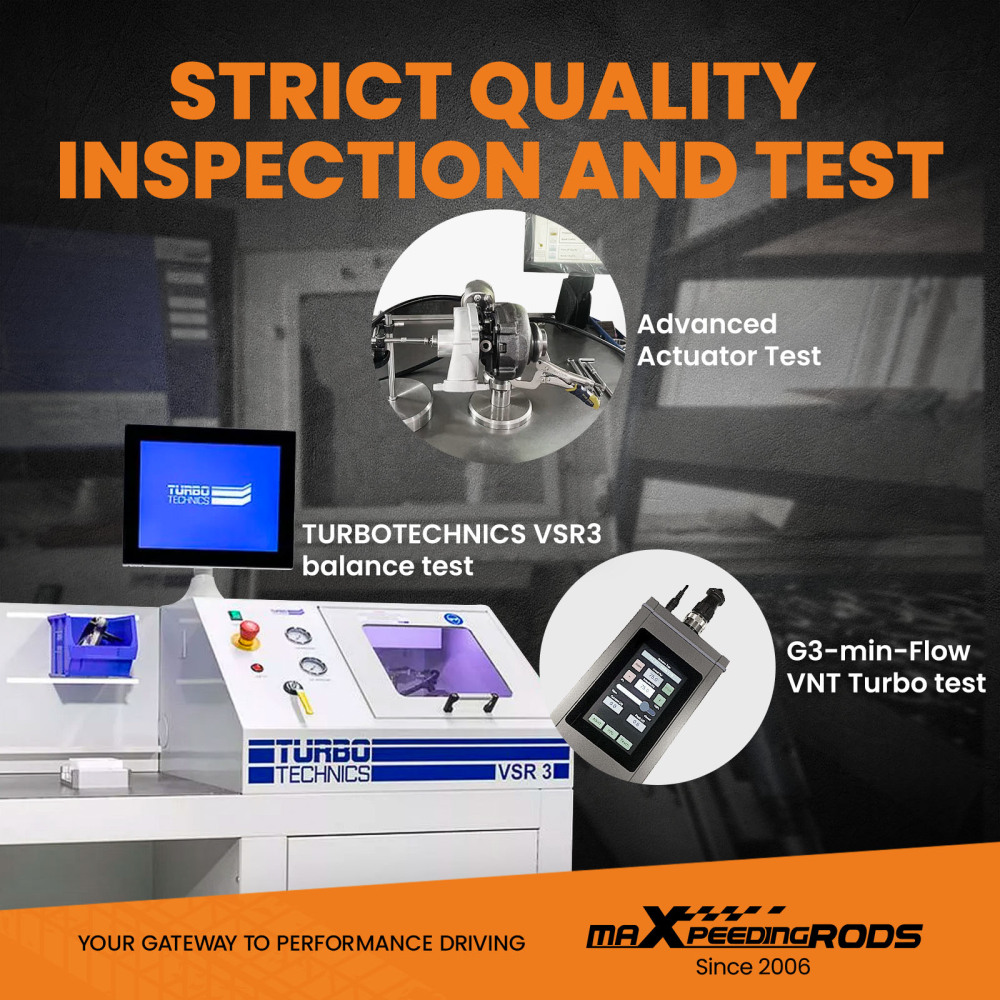

5. Strict Quality Inspection
6. Precision Clearance
7. High-speed Accessories

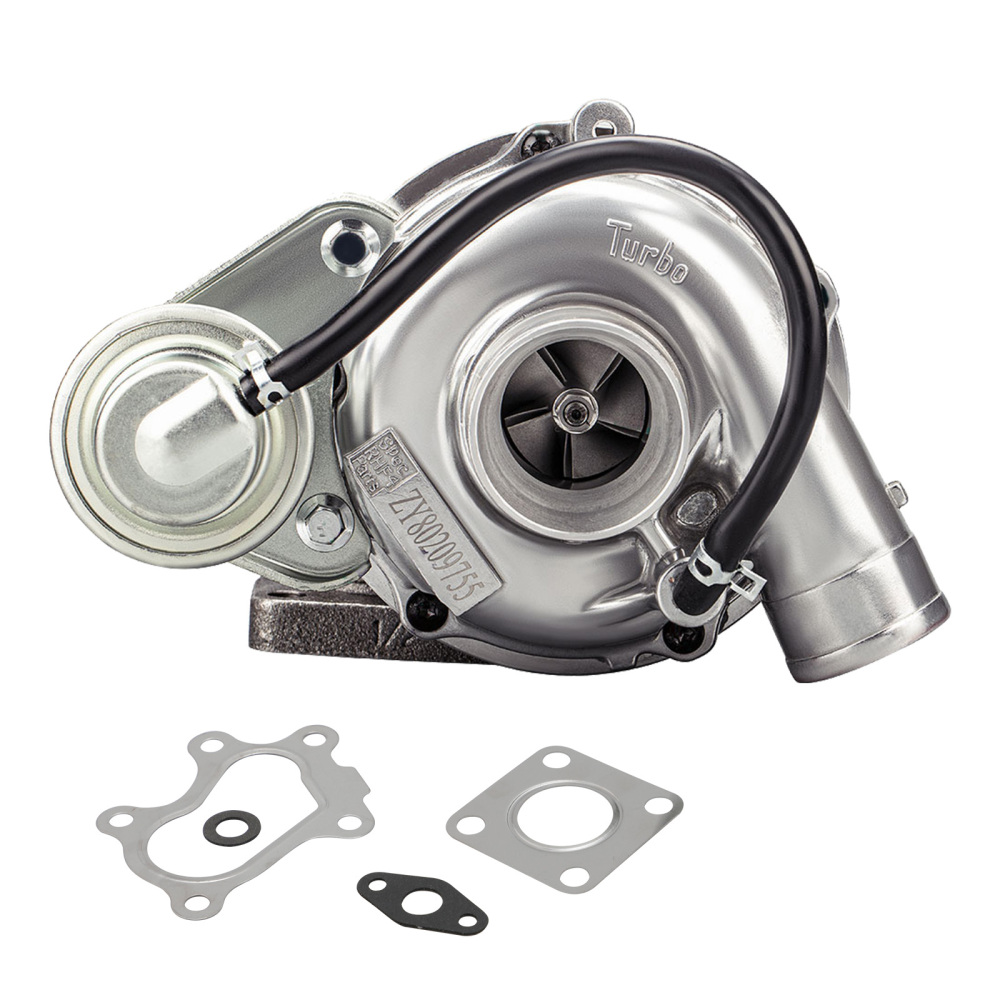

*All necessary gaskets included for ease of installation

Specification

Turbo Model: RHF4-46001P8.5NHBRL323CAZ
Compatible for Shibaura Engine: N844L, N844LT
Compatible for Perkins Engine: Models 404C-22T ,404D-22
Compatible for CAT Engine: Models 3024C, C2.2T
Compatible for CAT Machine Engine: 3024C, C2.2
Compatible for CAT Industrial Engine: 3024, 3024C, C2.2
Compatible for CAT Multi Terrain Loader: 247B, 257B
Compatible for CAT Multi Terrain Loader: 247B2, 257B2
Displacement: 2.2L, 2200 ccm, 4 Cylinders
Fuel: Diesel
Cooling Type:Oil Cooled
Bearing Type: Floating Bearing
Exhaust Outlet (Downpipe) Flange: 5-Bolt
Compressor Wheel Diameter: 46.1/30.5 mm
Compressor Trim: 43.8
Turbine Wheel Diameter: 45.8/35.55 mm
Turbine Trim: 60.2
Horsepower Rating: up to 45 HP
Condition: New
Accessories: You will get exactly as shown in the picture above
Warranty: one year warranty for any manufacturing defect
Accessories: You will get exactly as shown in the picture above

Note

*Please check the Turbo Model, Turbo Part Number and OEM Part Number on your original Turbo to make sure this turbo is the correct one for your engine. If you need assistance finding the correct turbo for your car, please feel free to contact us.
*Professional installation is highly recommended (No Instructions are Included)
