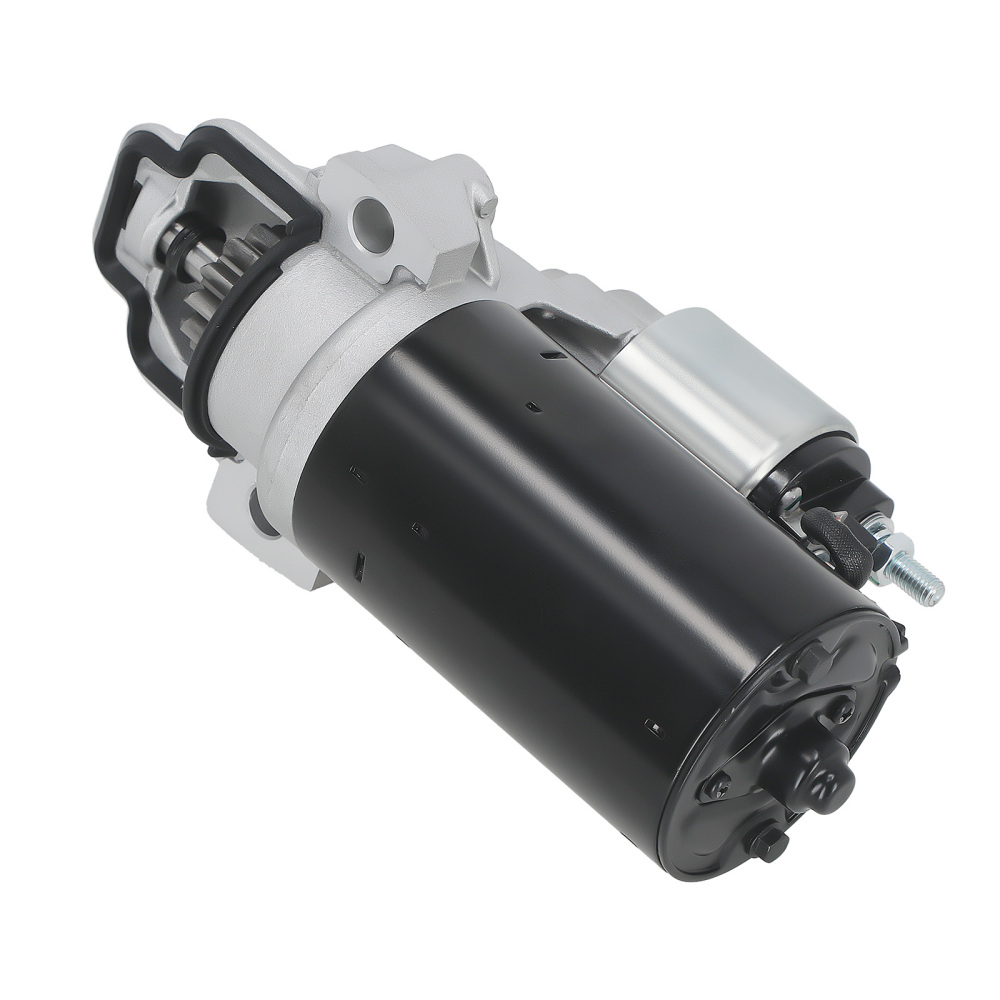

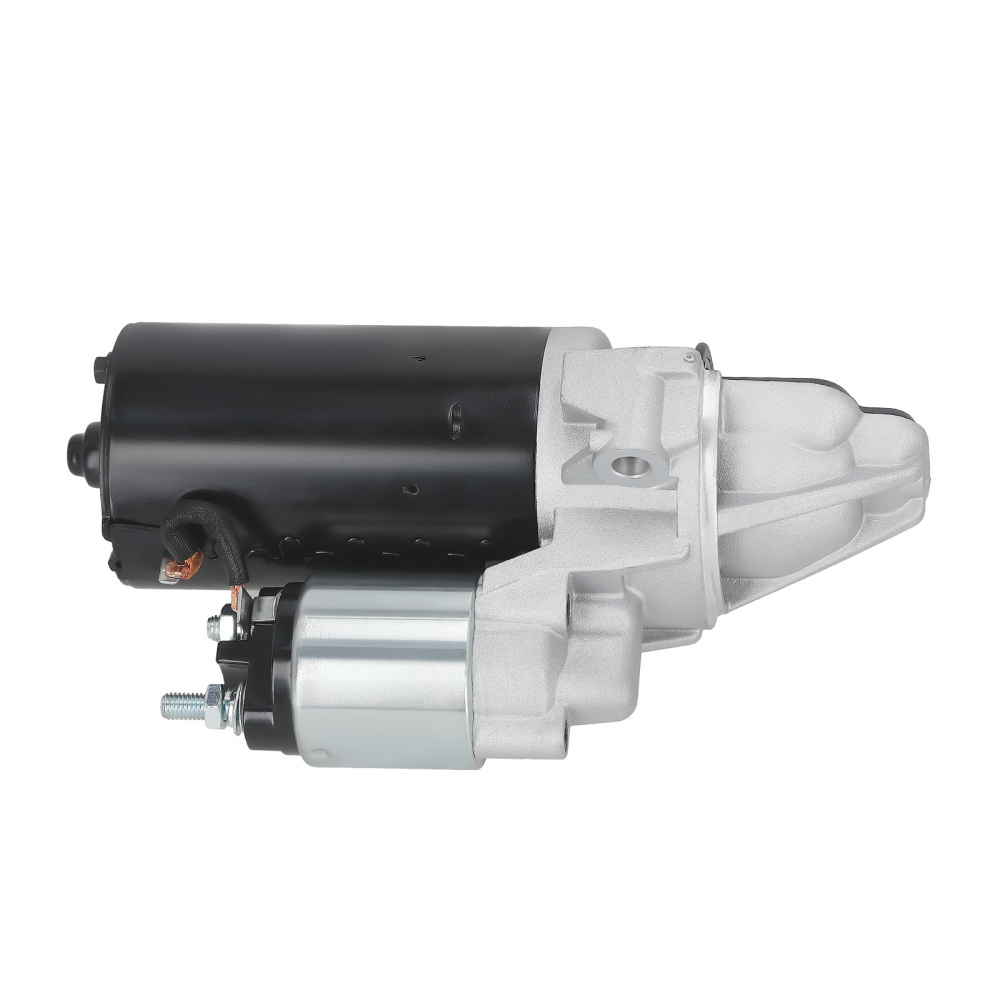

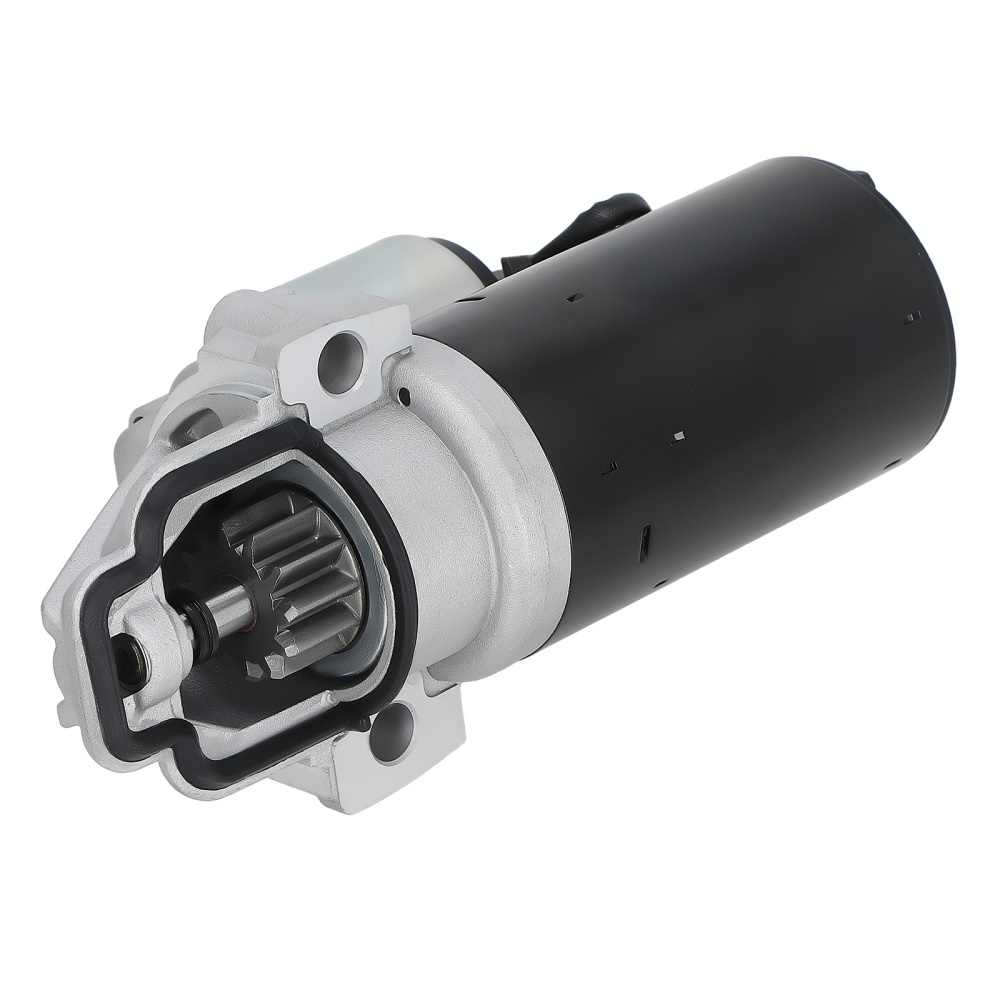

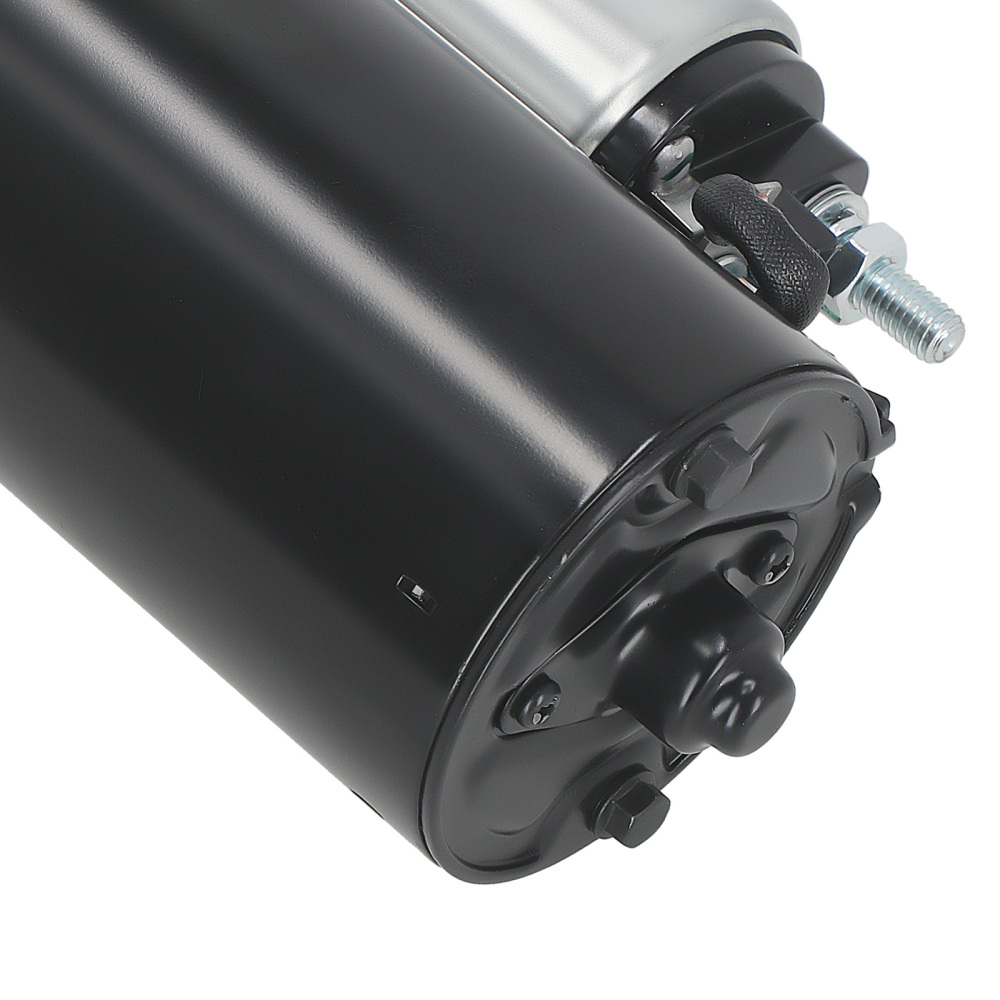

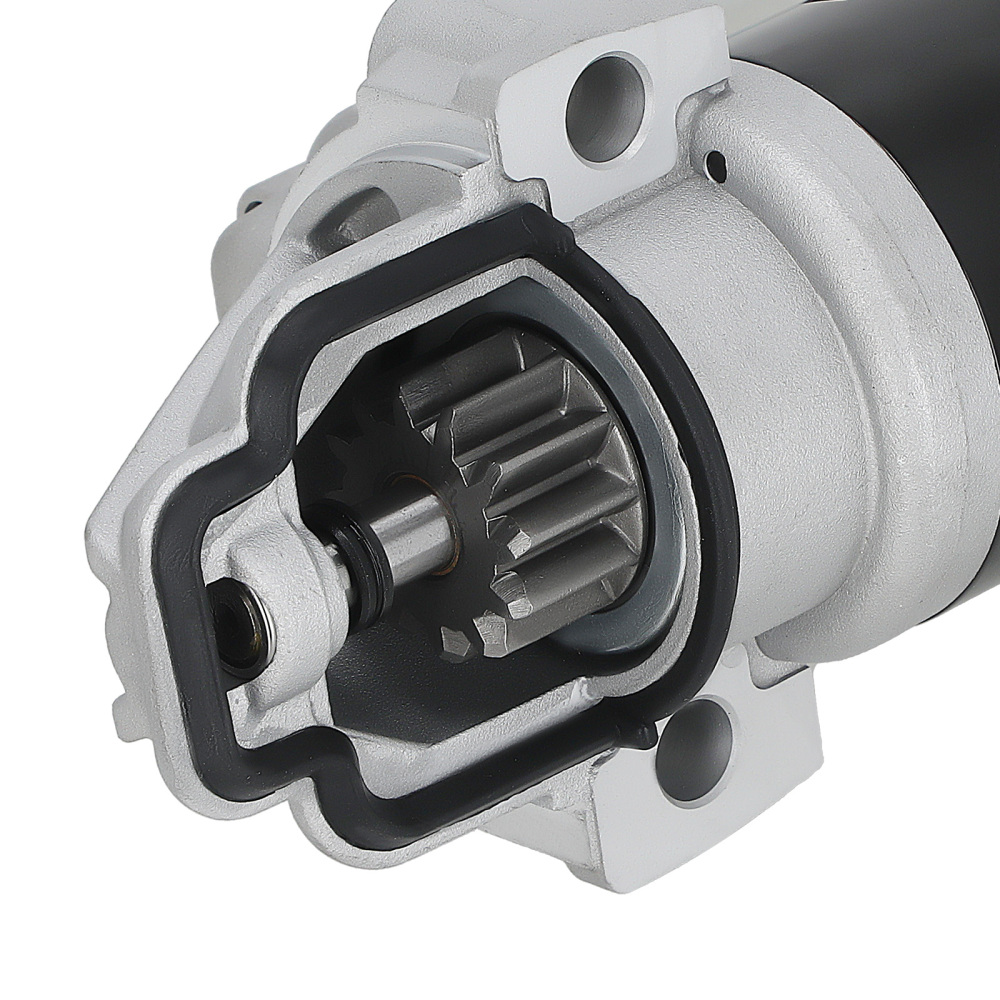

Compatible for Ford Transit compatible for Citroen jumper compatible for Peugeot Boxer Defender 12V Starter Motor LRS02243 APQ

Application

Compatible for Ford Tourney Custom Bus--2.2 TDCi 2012-2018
Compatible for Citroen jumper bus--2.2 HDI 100/2.2 HDI 110 2006-2017
Compatible for Citroen jumper Box--2.2 HDI 100/2.2 HDI 110 2006-2018
Compatible for Citroen jumper bus--2.2 HDI 120/2.2 HDI 130/2.2 HDI 150 2006-2017
Compatible for Citroen jumper flatbed/Chassis 2.2 HDI 100/2.2 HDI 110 2006-2018
Compatible for Citroen jumper Box--2.2 HDI 120/2.2 HDI 130/2.2 HDI 150 2006-2018
Compatible for Citroen jumper flatbed/Chassis 2.2 HDI 120/2.2 HDI 130/2.2 HDI 150/2006/2018
compatible for Fiat Ducato Bus/ducato box/Ducato flatbed/Chassis 250 100 Multijet 2.2 d 2006-2017

OEM and PART NUMBER

0001109205, 0001109305, 0001109324, 0001109325, 0001109328, 0001109329
0001109387, 0001109388, 0001115093, 0986021810, 2181, 0001109391, 0001109392
0001115092, 1005831484,1 005 831 484,, 0 001 109 205, 0 001 109 305, 0 001 109 324
0 001 109 325, 0 001 109 328, 0 001 109 329,, 0 001 109 387, 0 001 109 388, 0 001 109 391
0 001 109 392,, 0001115092, 0 001 115 092,, 0001115093, 0 001 115 093,, CC1T-11000-AB
CC1T11000AB, CC1T-11000-AA,, CC1T11000AA, LRS02759, LRS02243

Specifications

Voltage : 12V
kW : 2.0kW
Teeth : 12TH
Rotation : CW
Mount Hole Diameter : 2 x 10.5
Flange Diameter : 89
Pinion At Rest : 17
Pinion Diameter : 39
Overall Length : 255
Mount Holes Cnt to Cnt : 90

Notice

Professional installation is highly recommended (No Instruction Included)
For any needs please contact us
