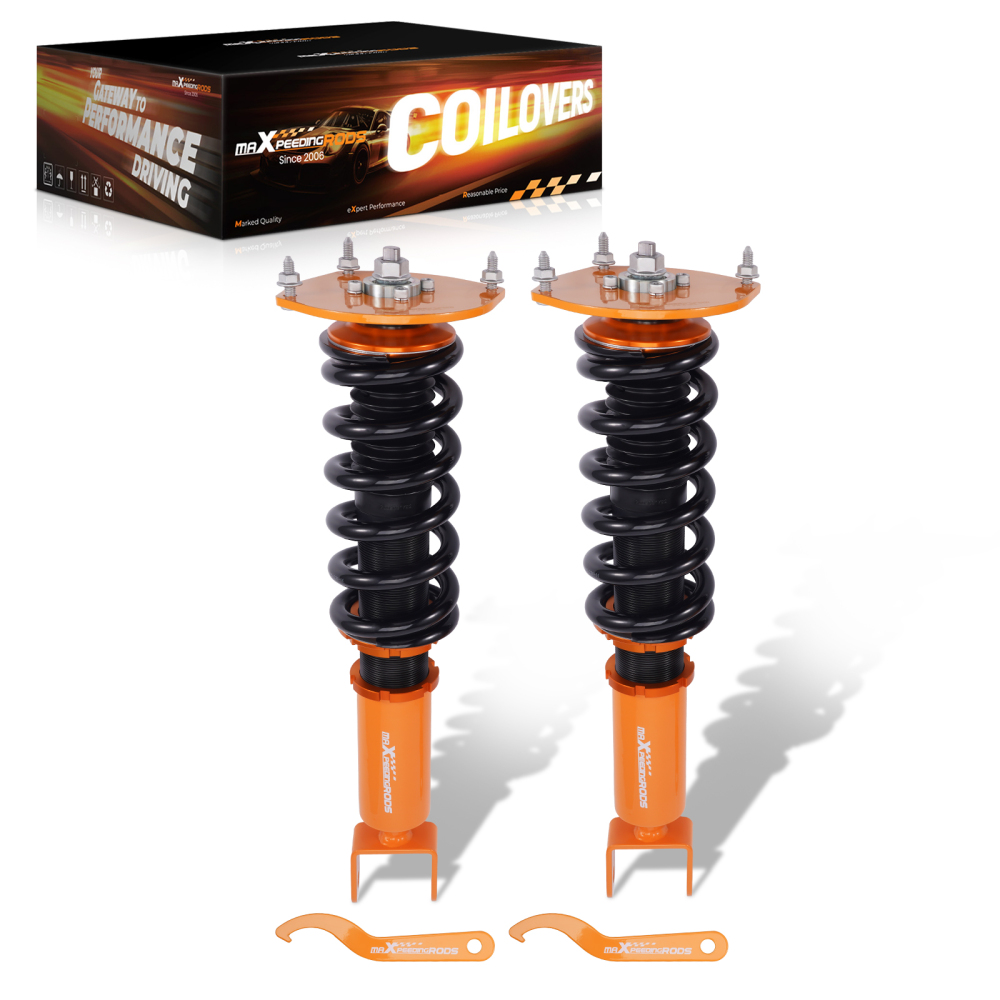

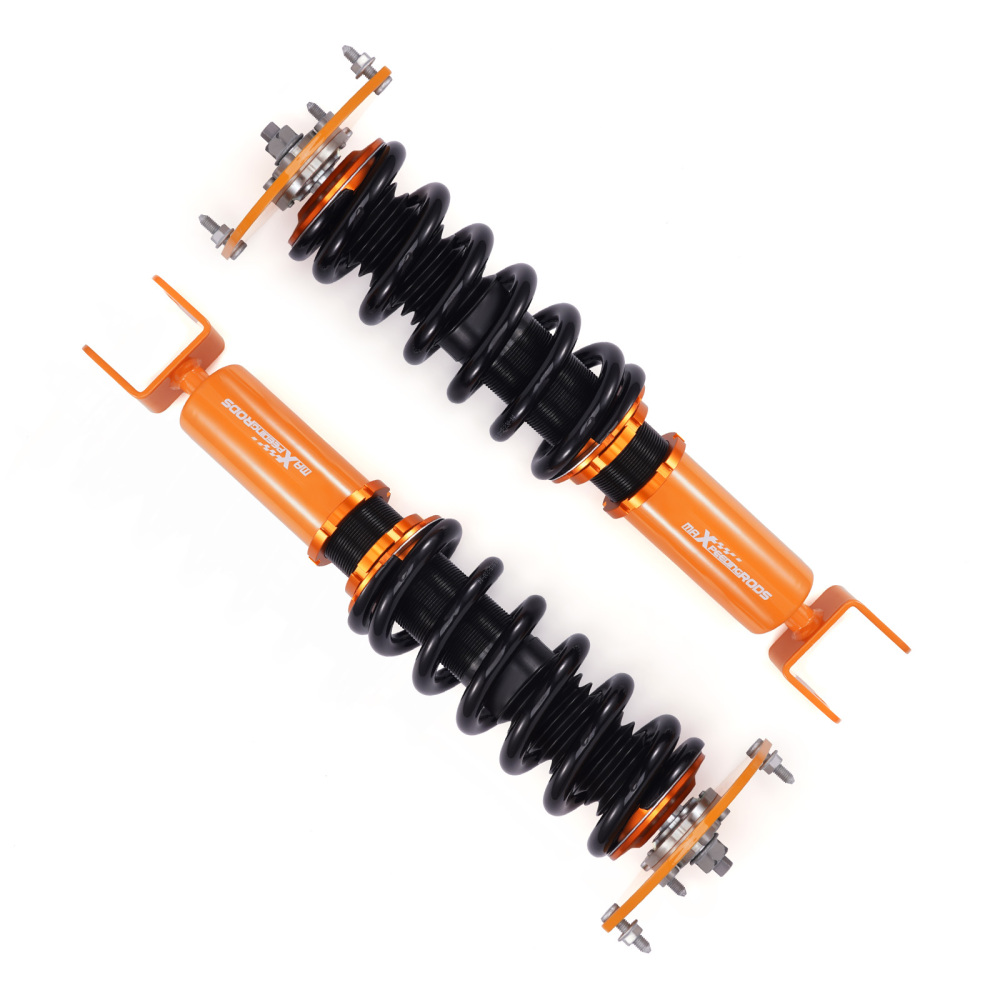

for 93-98 compatible for Lincoln Mark VIII Front Air to Struts Coilovers Conversion Kits

Application

Compatible for Lincoln Mark VIII 1993-1998

Specification

Front top mount: Pillow ball with
Damping adjustable: Not available
Height adjustable: Yes
Camber adjustable: Not available

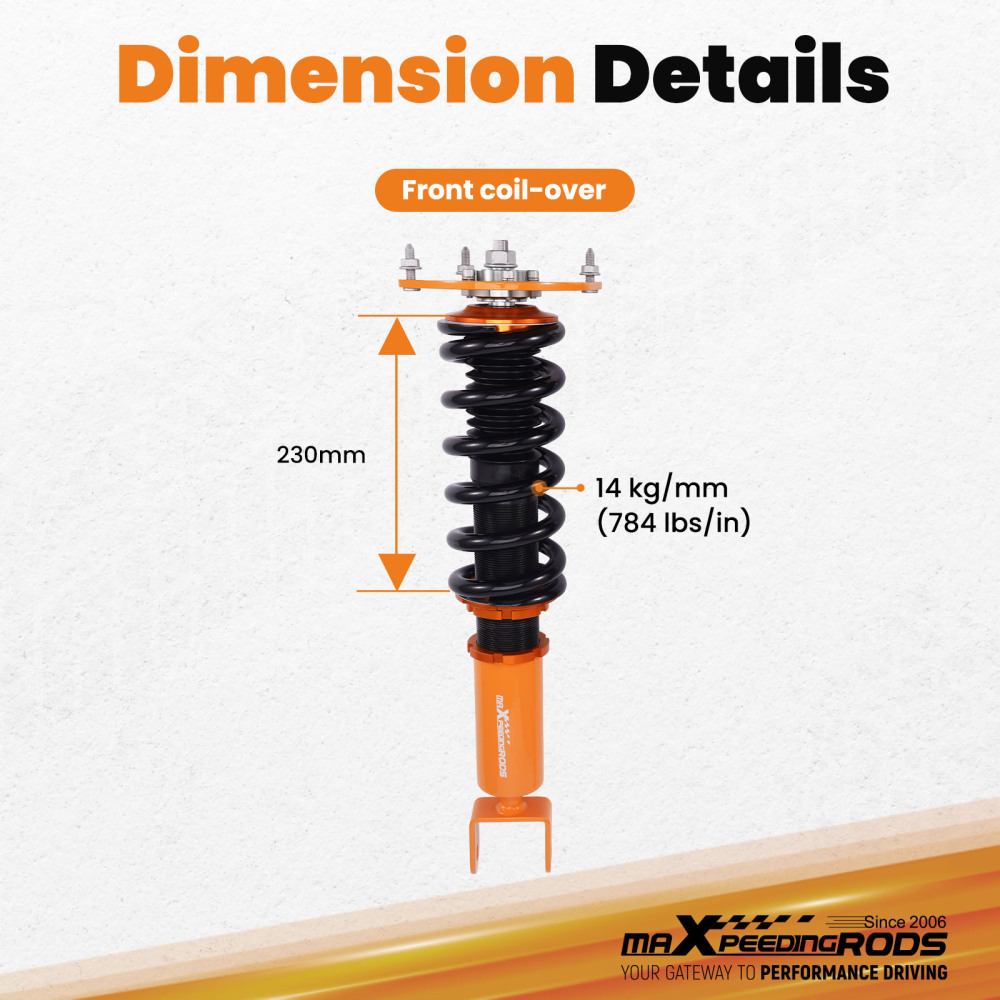

Spring rate Front: 14 kg/mm (784 lbs/in)
Front spring inner diameter: 70.5 mm
Spring length Front: 230 mm
Spring Preload advised: 7-10 mm
Color: Golden body with black spring

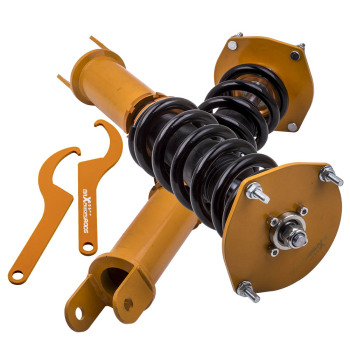

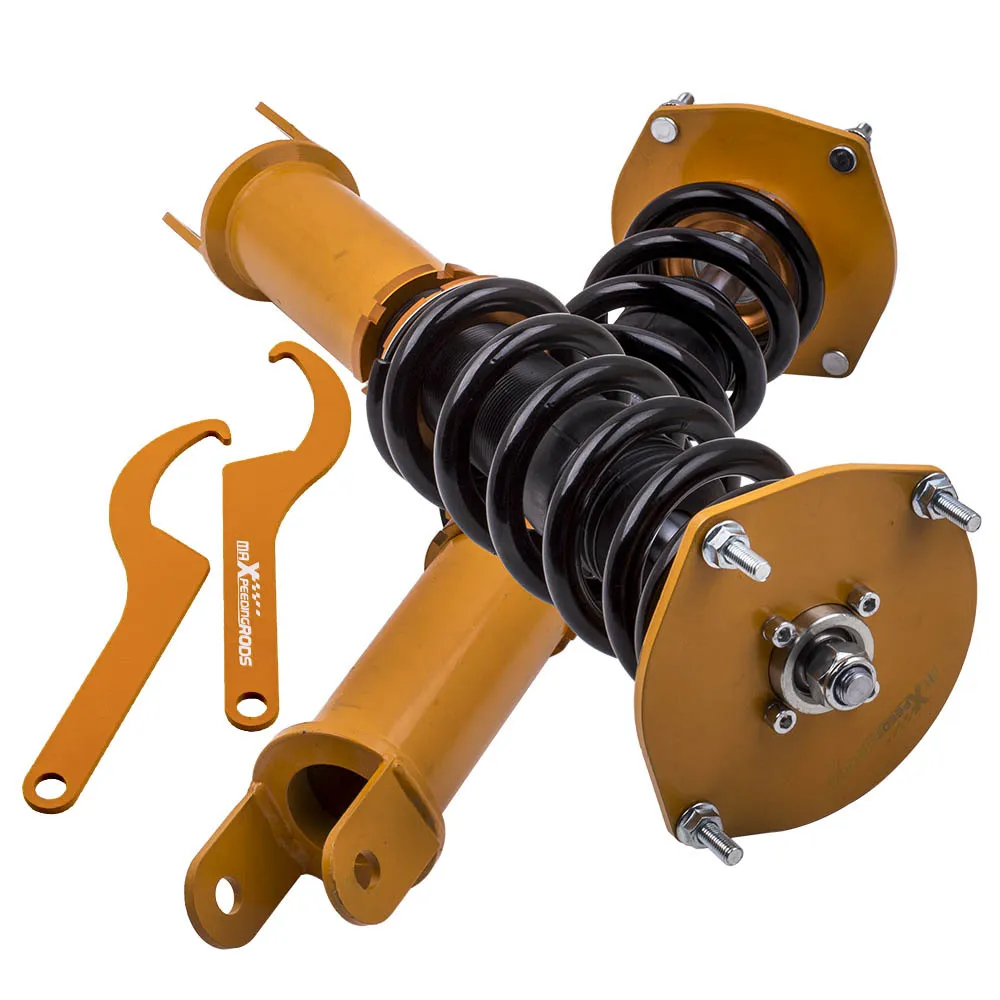

Package included

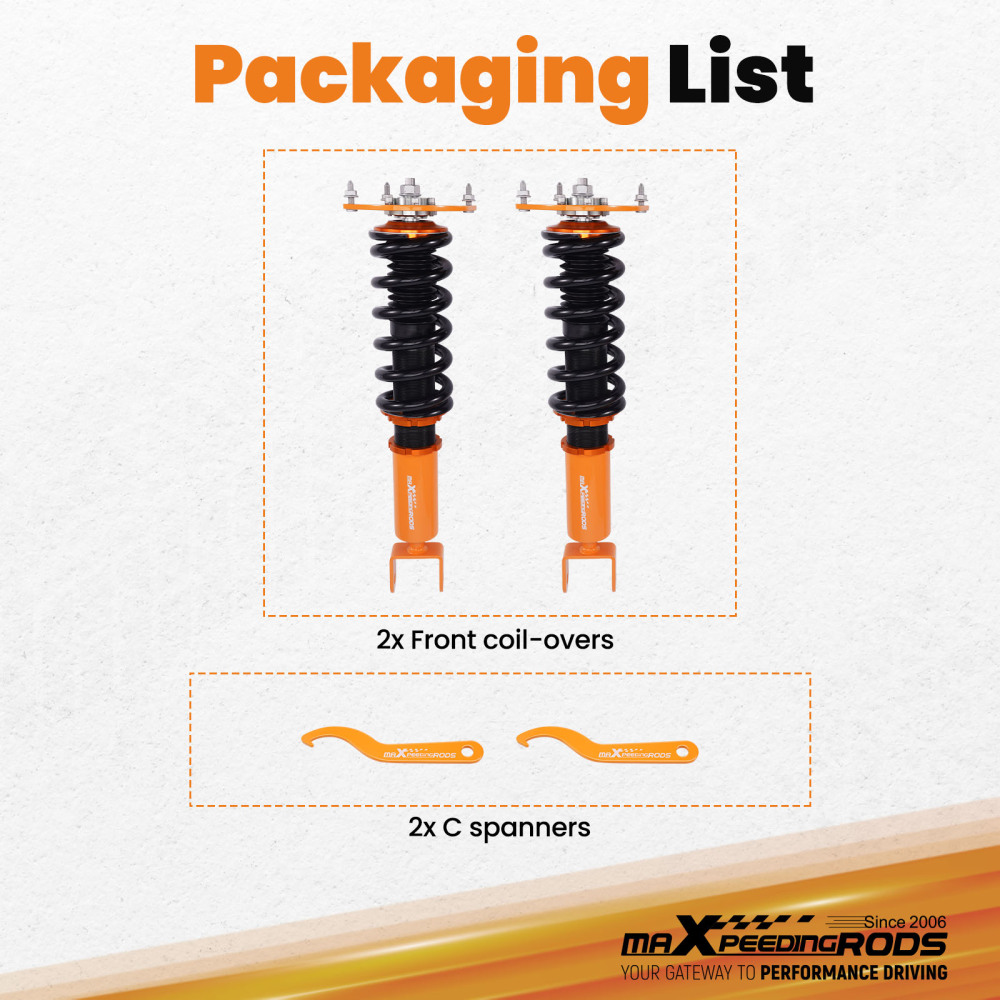

Package included：

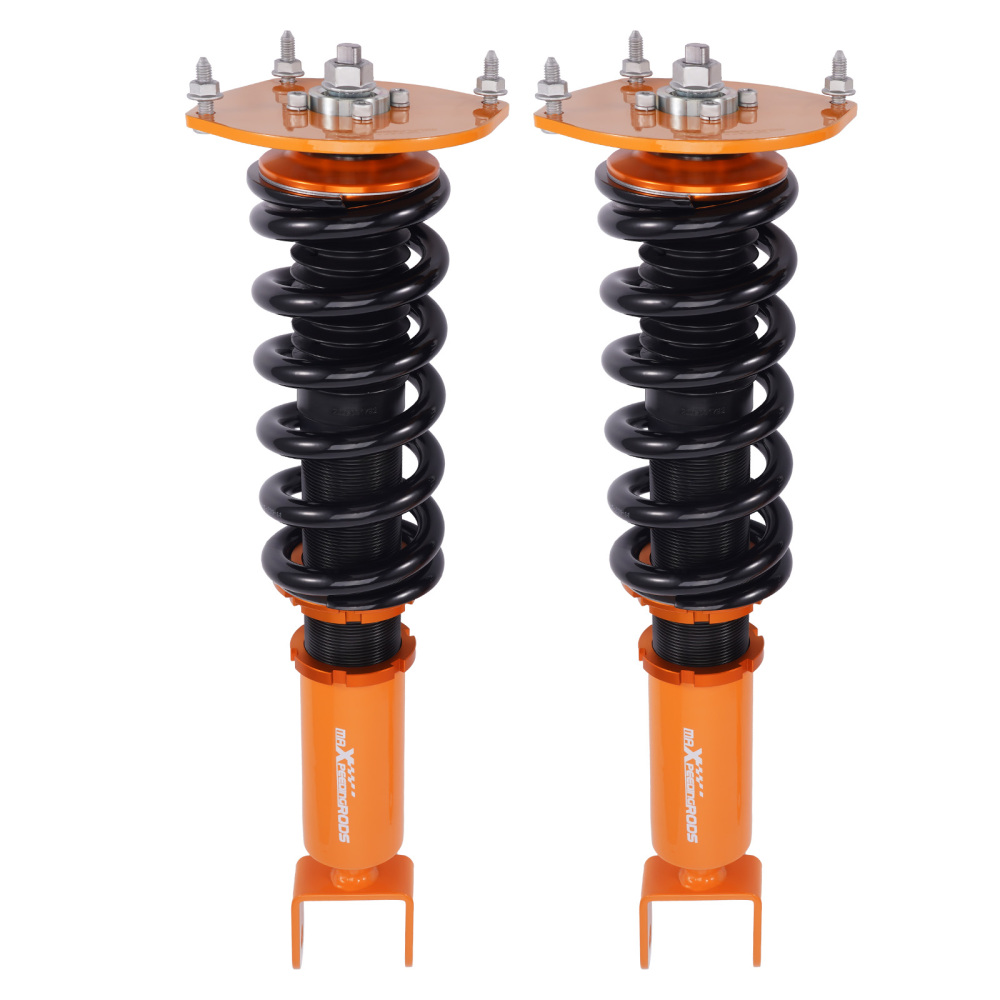

2x Front coil-overs
2x C spanners

Dimension

Package size : 70*50*20 cm
Weight: 16850 g

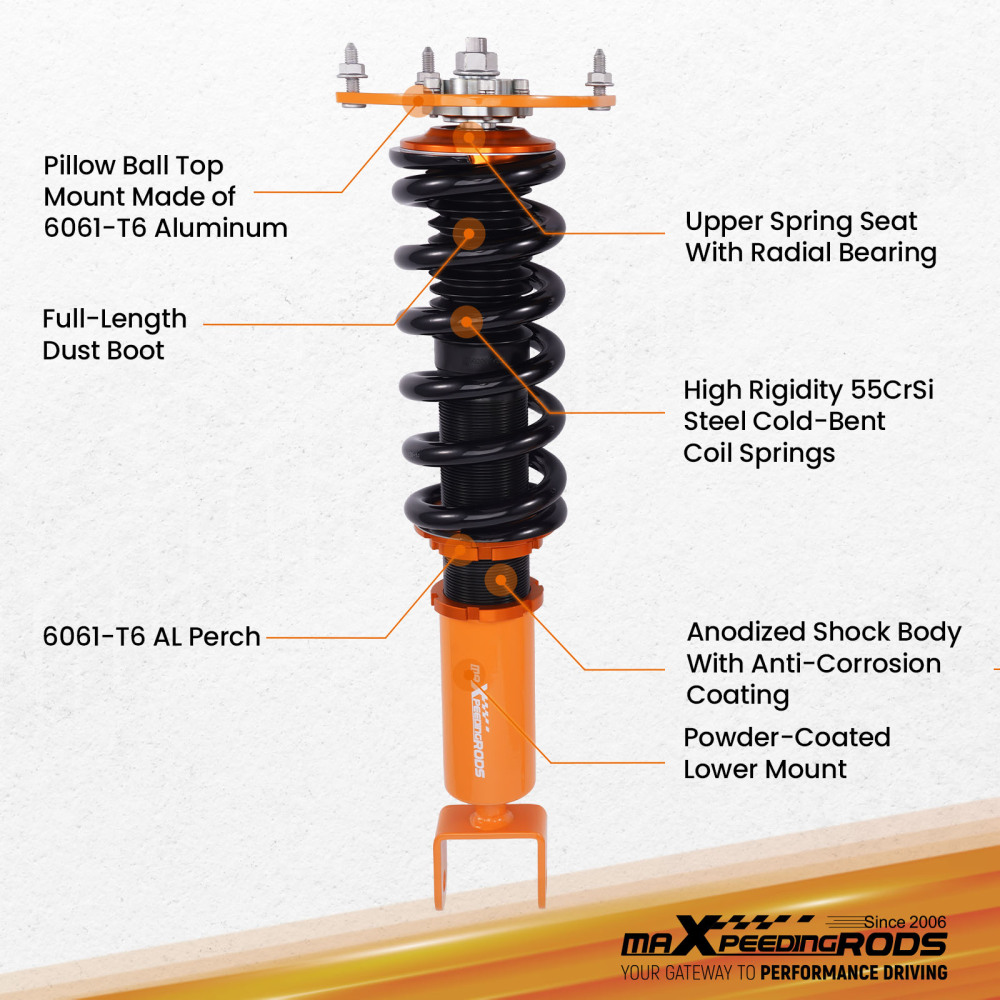

Feature

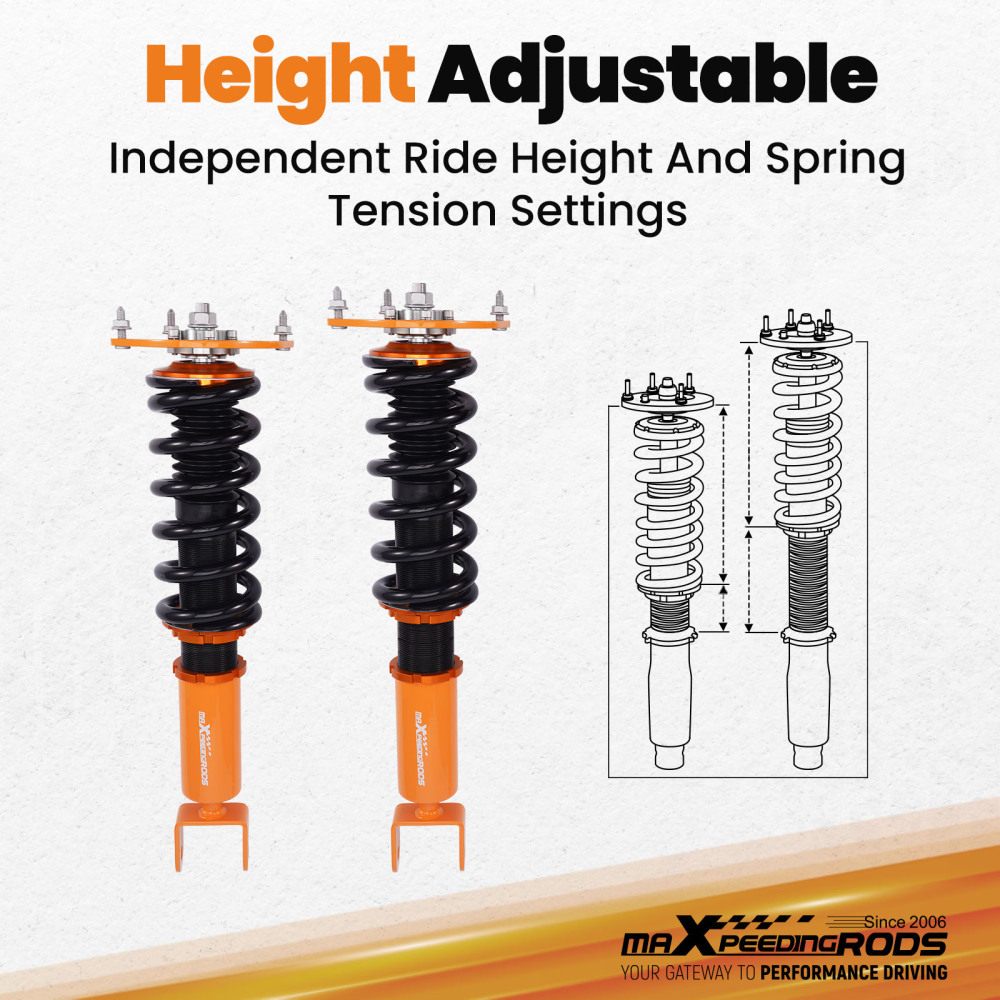

1. Height is adjustable, depending on the vehicle model.
2. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent

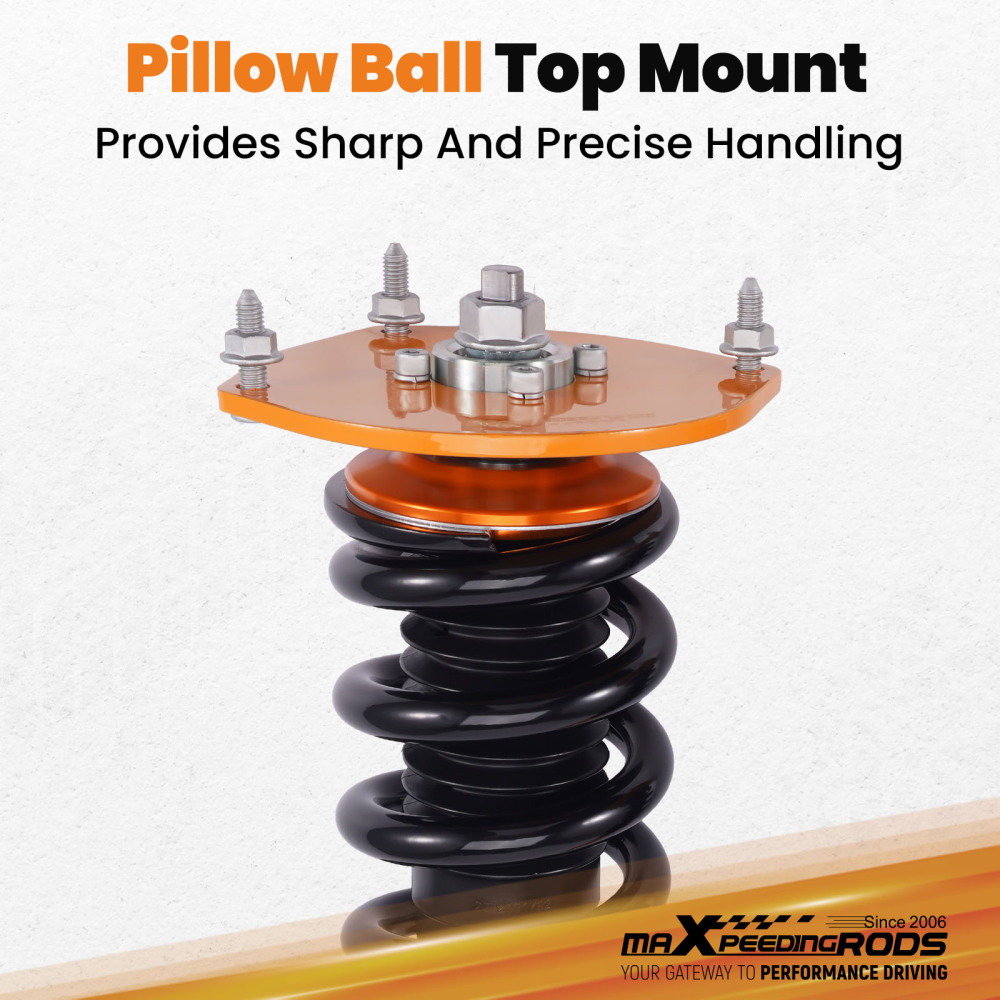

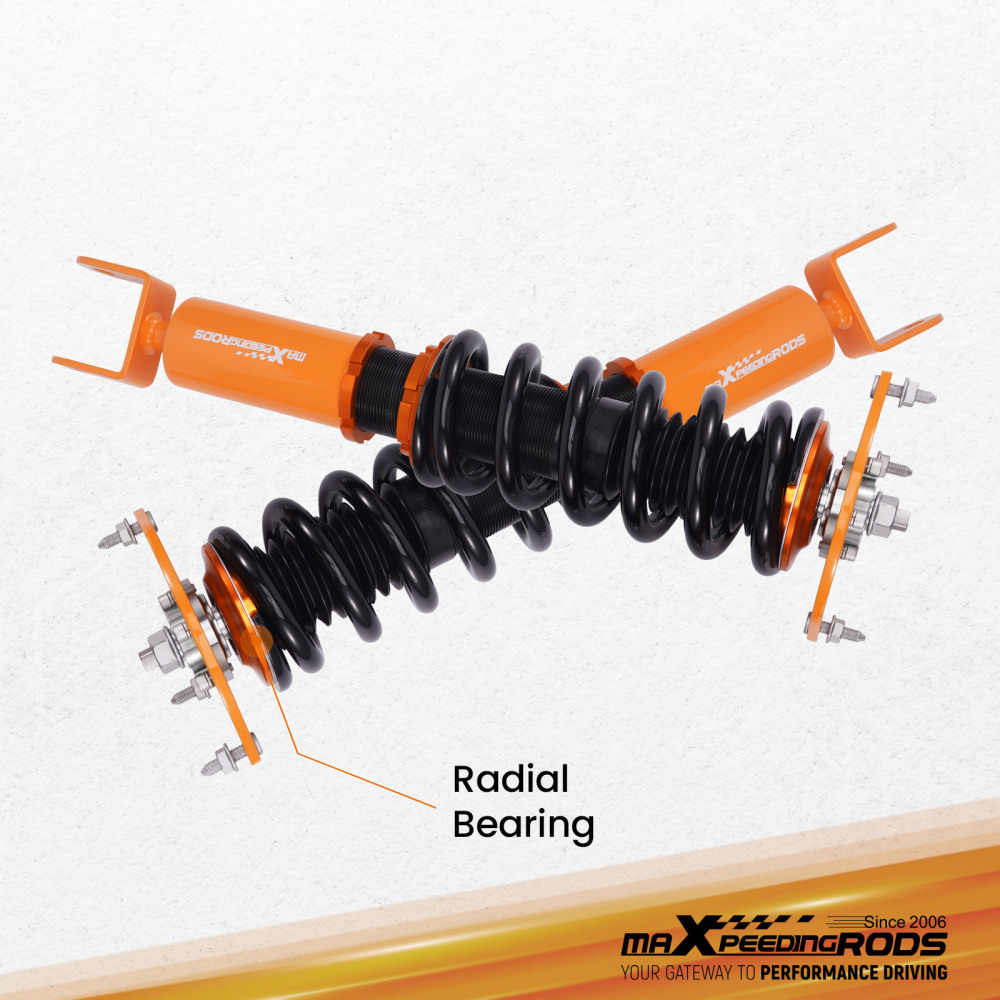

3. Adjustable Pillow ball top mount for sharpening steering response. ( for some models)

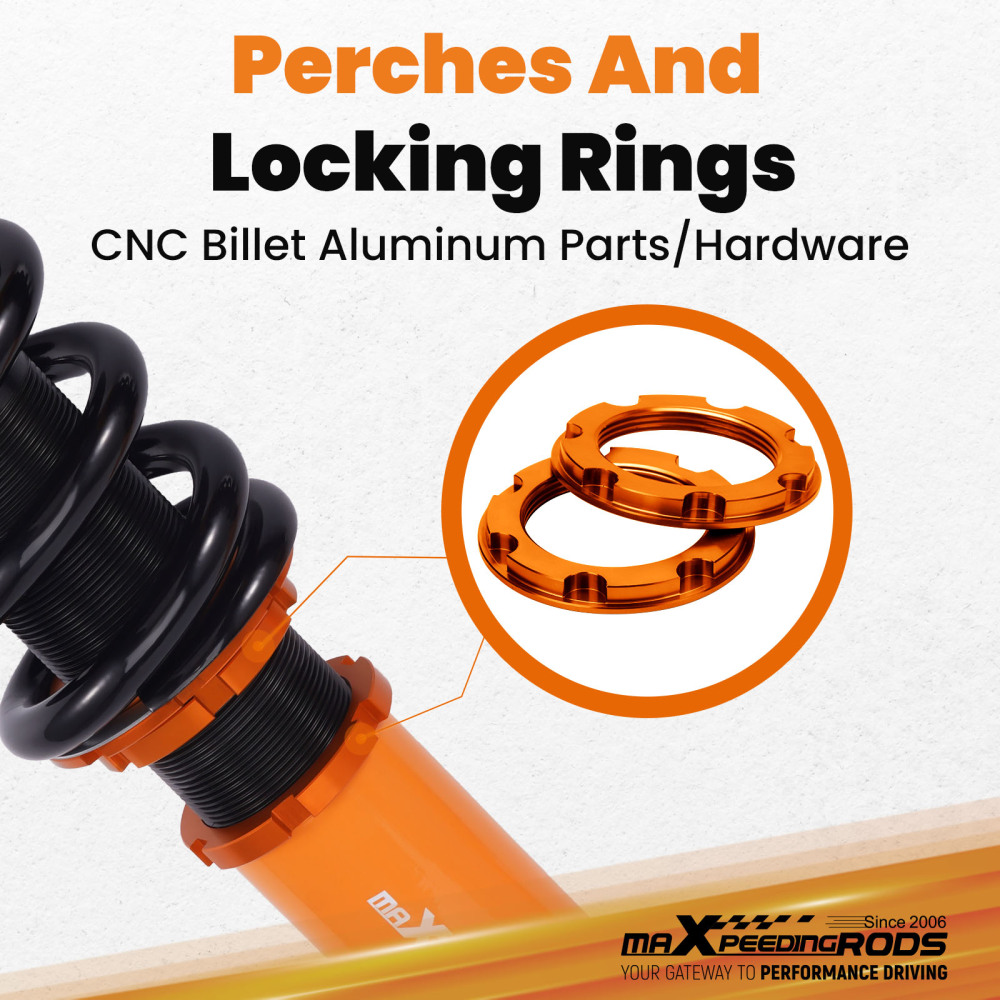

4. CNC machined Aluminum top mounts and lockers-- - excellent strength, and save weight

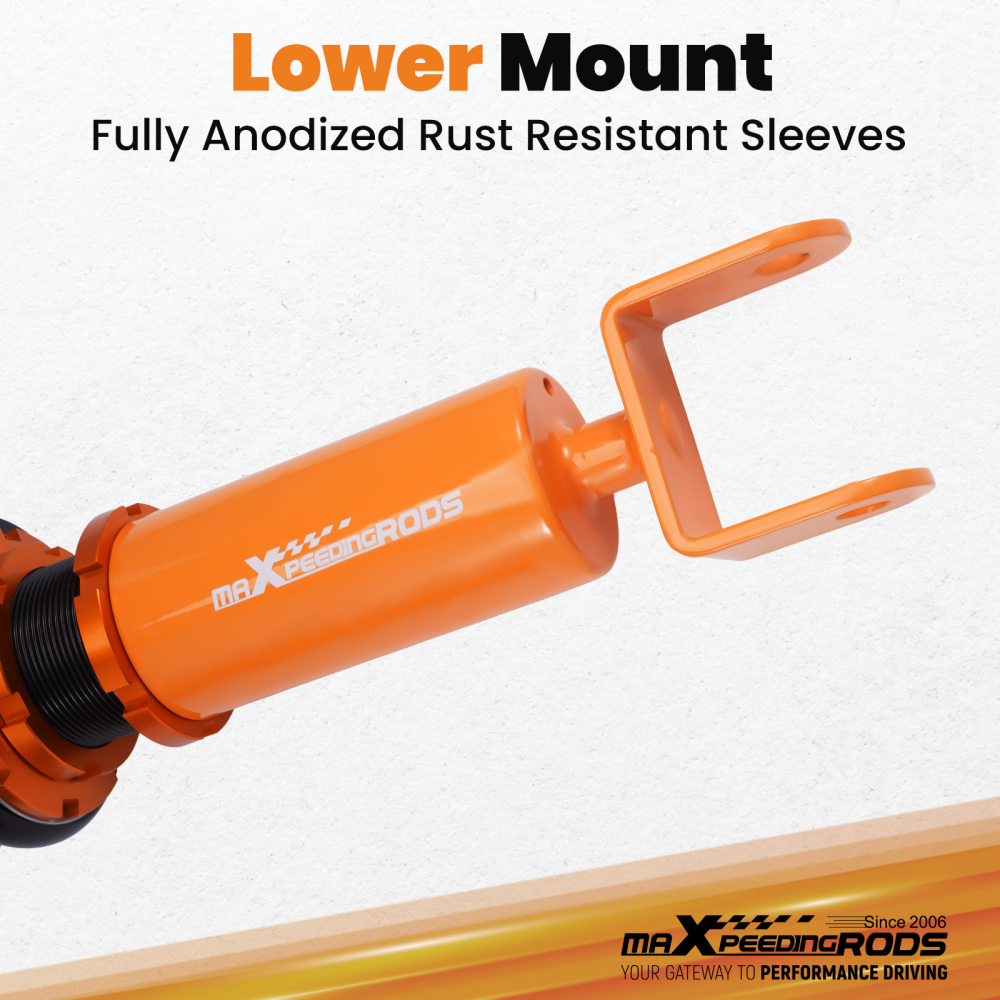

5. Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable
6. High tensile spring--- 600,000 times continuously test to assure its high tensile strength.

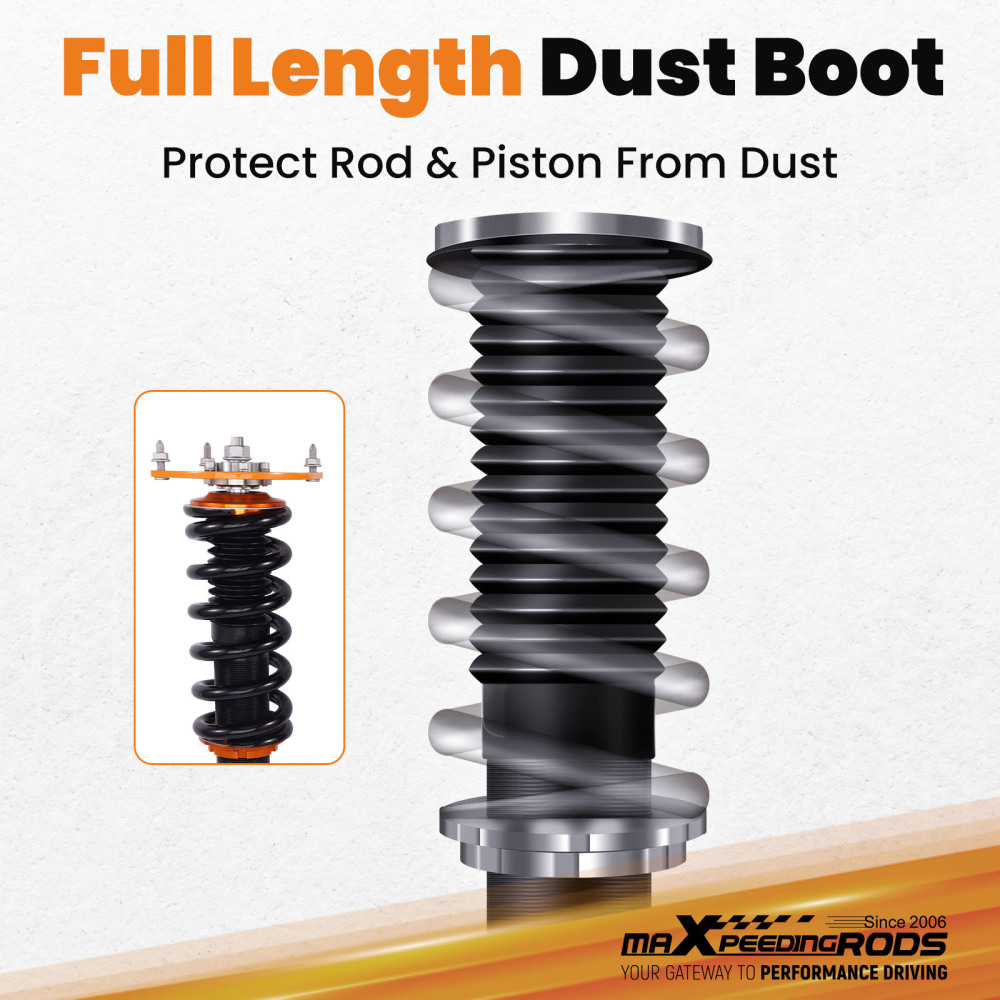

7. All inserts come with fitted long rubber boots--- To protect the damper better and be durable.
8. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions
9. Corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts

Note

1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.
3. Impact wrench is prohibited during the installation, it will loosen or damage the product.
4. Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)
5. We suggest regular maintenance for the coil-over, spray with some WD40 every 3-5 months will keep it smooth and clean, which helps to extend the lifetime.
