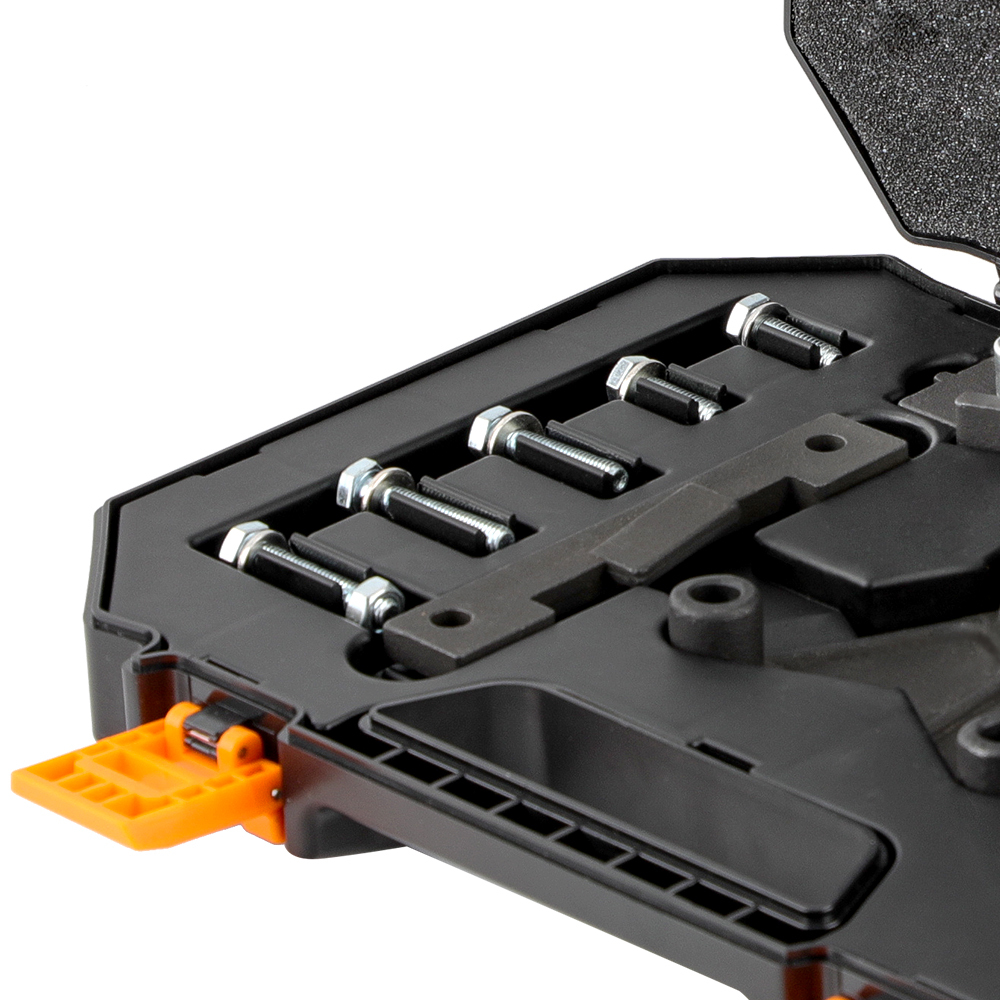

Timing Tool Set compatible for Fiat Ford Lancia 1.2 8v and 1.4 16v Petrol Panda 500 VVT KA

Application

models:
Compatible for Fiat: 500 (2007-2012), 500C (2007-2012), Doblo/Cargo (2005-2010), Fiorino (2009-2015), Grande Punto (2007-2012), Idea (2005-2012), Linea (2007-2011), Panda/Panda Classic (2009-2013), Panda EVO2 (2005-2012), Punto EVO (2009-2012), Punto (2012-2015), Qubo (2009-2012), Seicento/600 (2000-2011)
Compatible for Ford: Ka (2009-2012)
Compatible for Lancia: Musa (2005-2012), Ypsilon (2006-2011)

Engine:
Compatible for Fiat: 1.2/1.2 Dualogic, 169A4.000, 188A4.000 (EVO2), 199A4.000, 1.4/1.4 Bi-Fuel LPG / 1.4 Natural Power CNG, 199A7.000, 350A1.000.
Compatible for Lancia: 1.4/1.4 Bi-Fuel LPG, 350A1.000.
Compatible for Ford: 1.2 Duratec, 169A4.000 (FP4).

OE number:
Compatible for Fiat OEM: 1.860.987.000, 2.000.004.200, 2.000.004.300, 2.000.004.400, 2.000.004.500
compatible for Ford OEM: 303-1477, 303-1478, 303-1479, 303-1480
NOTE: It is not compatible with compatible for Fiat grande punto 1.2 8v, and two other accessories are needed for normal use.

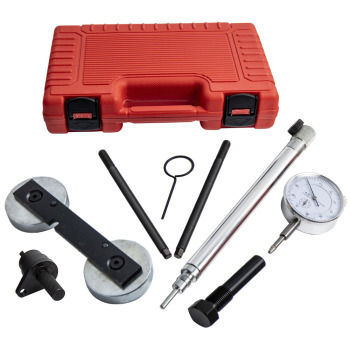

Package included

product included:
1*Crankshaft Locking Tool
1*Camshaft Setting Plate
1*Camshaft Sprocket Locking Tool
1*Camshaft Cover Alignment Fixture
1*Belt Tensioner Adjuster
1*plastic box

Dimension

Gross weight: 1.86kg
Package size: 35*28*10.5cm

Feature

1.The product is stored in a plastic toolbox, which is lighter and easy to carry.
2.Shorten repair time.
3.Save maintenance costs.
4.The 5-piece combo kit can adapt to a variety of different car models, so you do not need to buy a second set of equipment, we also give away additional bolt accessories.
5. Porfessional instruction included

Note

1.Please pay attention to the release year of the vehicle before buying, to avoid inadequate installation.
2.This product is only suitable for gasoline engines.
