CT16V Turbo Charger Compatible for Toyota Landcruiser prado D4-D 3.0L 1KD-FTV127kw2002-2010 billet compressor wheel

Compatible for Toyota Landcruiser prado D4-D 3.0L 1KD-FTV  127kw  2002-2010

Compatible for Toyota Landcruiser D-4D 3.0L 1KD-FTV   127kw 2006-

Compatible for Toyota Landcruiser D-4D 3.0L 1KD-FTV  140KW 2009-

Compatible for Toyota hi-lux SW4 3.0L D-4D  126kw  2005-

Part Numbers

17201-OL040,17201OL040,17201-0L040,172010L040,

17201-30110,1720130110, 17201-30160,1720130160,

17201-30101,1720130101,17201-30100, 1720130100,

*Notice:Not for turbo with this OE number:17201-30010

HOW TO IDENTIFY YOUR TURBOCHARGER:

If you are not sure fitment for your old turbo , please let us know this information :

 1 . The OEM code information from your original turbo nameplate

 2 . The Engine code & KW , HP , Year for your car

 3 . The Photos of  your complete turbo

 4 . Please note that the registration number cannot identify your turbocharger

 Specification

Compressor Flange: 2 Bolt Flange

Turbine Exhaust Flange:3 Bolt

Compressor Wheel: 6/6 blades

Turbine Wheel: 11 blades

Turbo Model：CT16V

Engine:1KD-FTV

Displacement: 3.0L, 2982 ccm, 6 Cylinders

Cooling Type：Oil+Water Cooled

Bearing Type: Journal Bearing / Floating Bearing

Trust bearings: 270 Degrees

Hosepower:  Up to 170HP

Actuator Type: Electric Actuator

Turbo Type:Individual/VNT

Universal Fitment:No

Finish:Polished

Condition: 100%Brand New

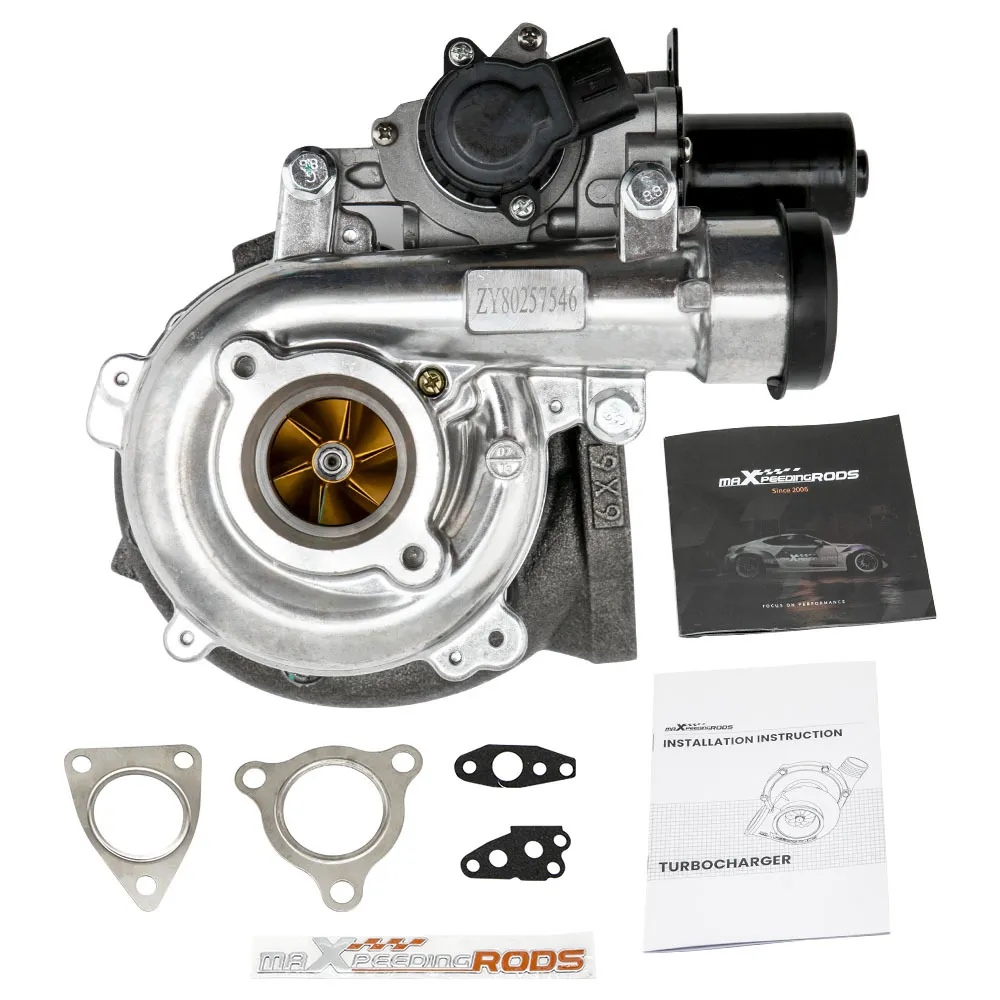

Accessories: You will receive the parts exactly as shown in the picture above.

Package Size:30x 23.5 x 20 cm

Package Weight: 8900g

Package included

1xTurbocharger

2xFlange gaskets

2xOil/Water port gaskets

1xManual

1xBrochure

1xSticker

Feature

*Product Material

1. Turbine housing ：Silicon-Molybdenum - temperature resistant up to 850℃

2. Steel Turbine Wheel：K419 alloy - high oxidation stability and resistance  up  to 1000℃

3. Compressor housing：ZL104 aluminum with lightweight

4. Billet ompressor wheel：forged full-machined billet aluminum compressor wheels with a larger horsepower range and better boost response

*Product  Performance

1. OEM fitment turbo with upgraded material and performance

2. Excellent high temperature resistance，high efficiency and durability

3. Rich experience in turbo production and own factory

4. High-Speed oil seal ring and Precision clearance

* Technology Advantage:

1. 100% balancing Test by TURBOTECHNICS  VSR3

2.  G3-min-Flow VNT Turbo testing

3.  Advanced Actuator Tester/Programmer

Technology Advantage

1. 100% balancing Test by TURBOTECHNICS  VSR3

This Turbocharger you will receive has been balanced using the VSR machine technology. Through the comprehensive and high-precision static and dynamic balance detection technology, and reliability.

2. G3-min-Flow VNT Turbo Testing

The G3-min-Flow (Air) machine can accurately measure the flow through the VGT turbo and verify that it is set to the OEM factory setting. easily adjust the critical minimum-flow stop to the correct setting before the turbocharger leaves workshop.

3.  Advanced Actuator Tester/Programmer

Electronic actuator diagnostic with G3-rea-master can rewrite memory in electronic actuators and also allows to modify operation range of the actuator arm, that includes changing open and close positions of the working angle.

Note

* Please confirm your original turbo PART NUMBER before Purchasing

* Professional installation is highly recommended

* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
