Coilovers Shock Struts Set compatible for BMW E36 318i 320i 91-98 24 Ways Adjustable Damper

Introduction

Maxpeedingrods B3 is based on Maxpeedingrods B2 coil-overs, which are also height adjustable. They are also made for street use, but the 24-level rebound damping control allows you the ability to dial in your coil-over setup. You will experience better ride quality in all road conditions.

Application

Compatible for BMW 3 (E36) 4-door sedan 316i; 318i; 318is; 320i; 323i; 325i; 325is; 328i; 318tds; 325td; 325tds; (09/1990-12/1998)
Compatible for BMW 3 (E36) 2-door coupe 318is; 316i; 320i; 323i; 323is; 325i; 328i; 328is(09/1991-04/1999)
Compatible for BMW 3 Convertible (E36) 318i; 320i; 323i; 325i; 328i; (03/1993-04/1999)
Compatible for BMW 3 Touring (E36) 5-door wagon 316i; 318i; 318tds; 320i; 323i; 325tds; 328i (08/1994-12/1999)

Specification

Front top mounts: pillow ball top mount with camber plate
Rear top mounts: pillow ball top mount

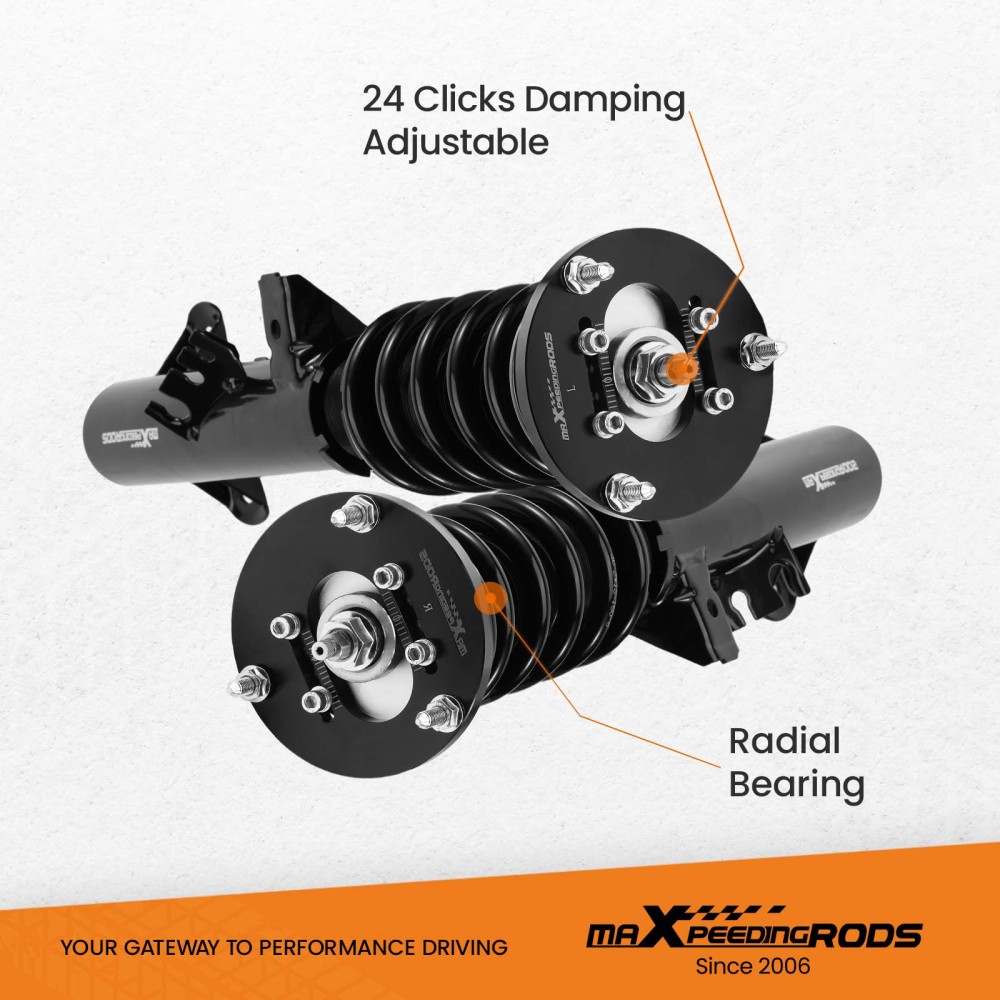

Damping adjustable: Available, 24 levels of rebound damping force
Camber adjustable: Available
Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
Spring rate Front: 8 kg/mm (448 lbs/in)
Spring rate Rear: 7 kg/mm (392 lbs/in)
Spring length Front: 180mm
Spring length Rear: 183mm
Coilover overall length Front: 560mm-683mm
Coilover overall length Rear: 520mm-615mm
Spring Preload advised: 7-10 mm
Color: Black body with black spring

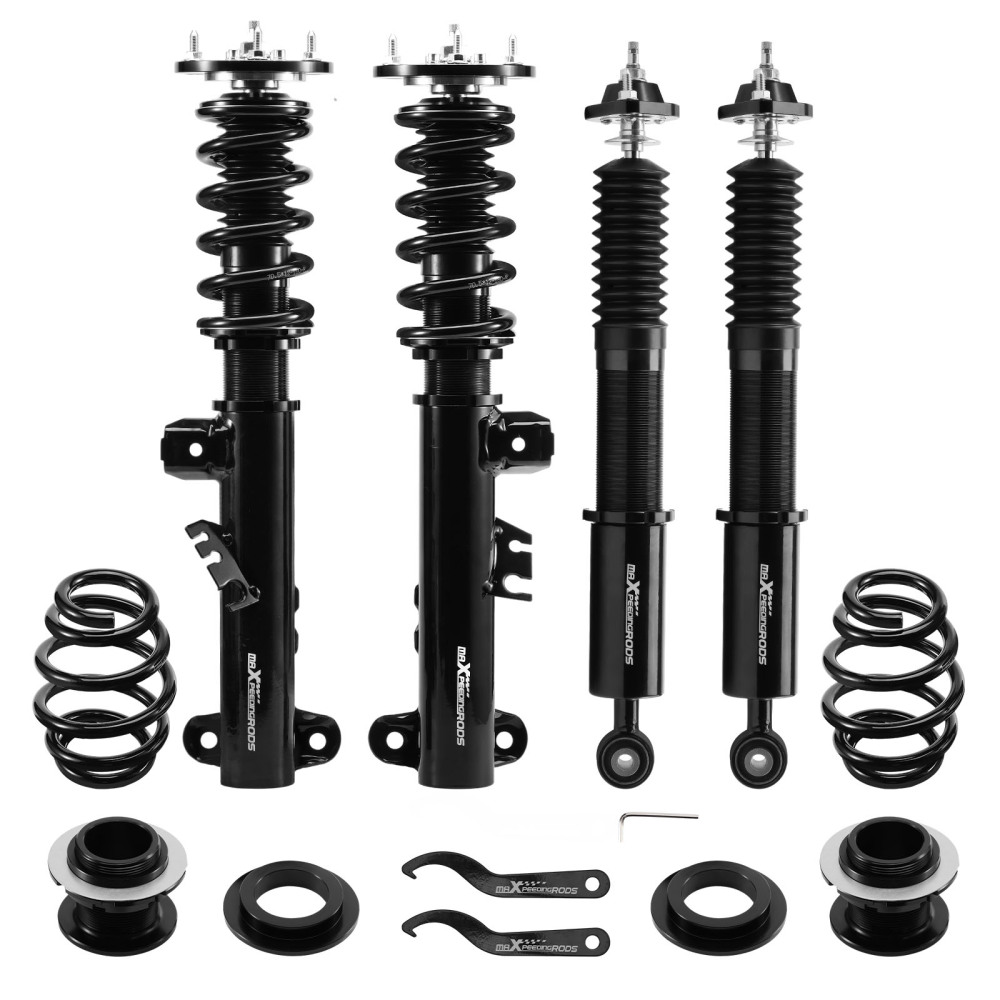

Package included

complete coilovers 2 front and 2 rear
a pair wrench for height adjustment

Dimension

weight: 27260g
size: 71*51*21 cm

Feature

1. Lowered height adjustment from 25-75mm which allow lower center of gravity and also add a more aggressive stance
2. A 24 rebound damping adjustment level allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.
3. Twin-Tube structure allows sufficient stroke within the shock absorber
4. Separate height adjustment does not affect damper stroke

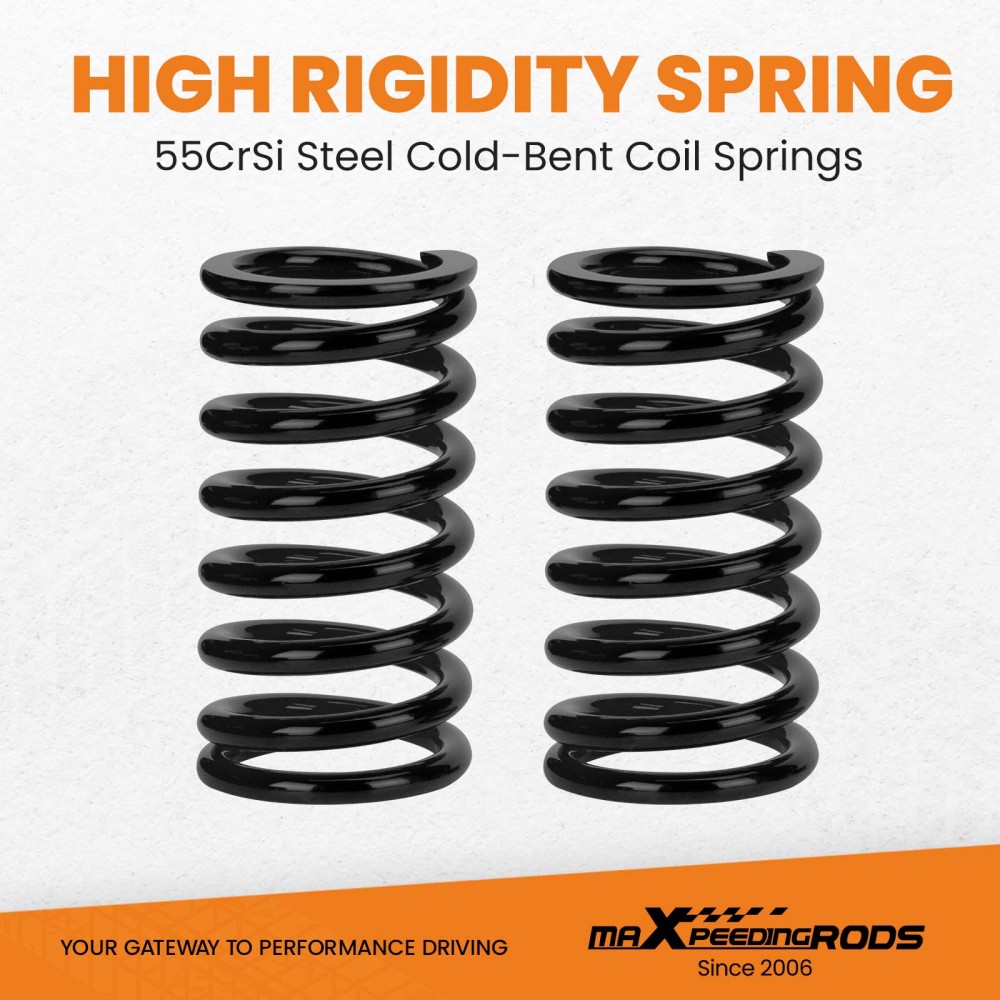

5. High Tensile performance spring – STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus, the special surface treatment improves the durability and performance.
6. Height Adjustment tools included

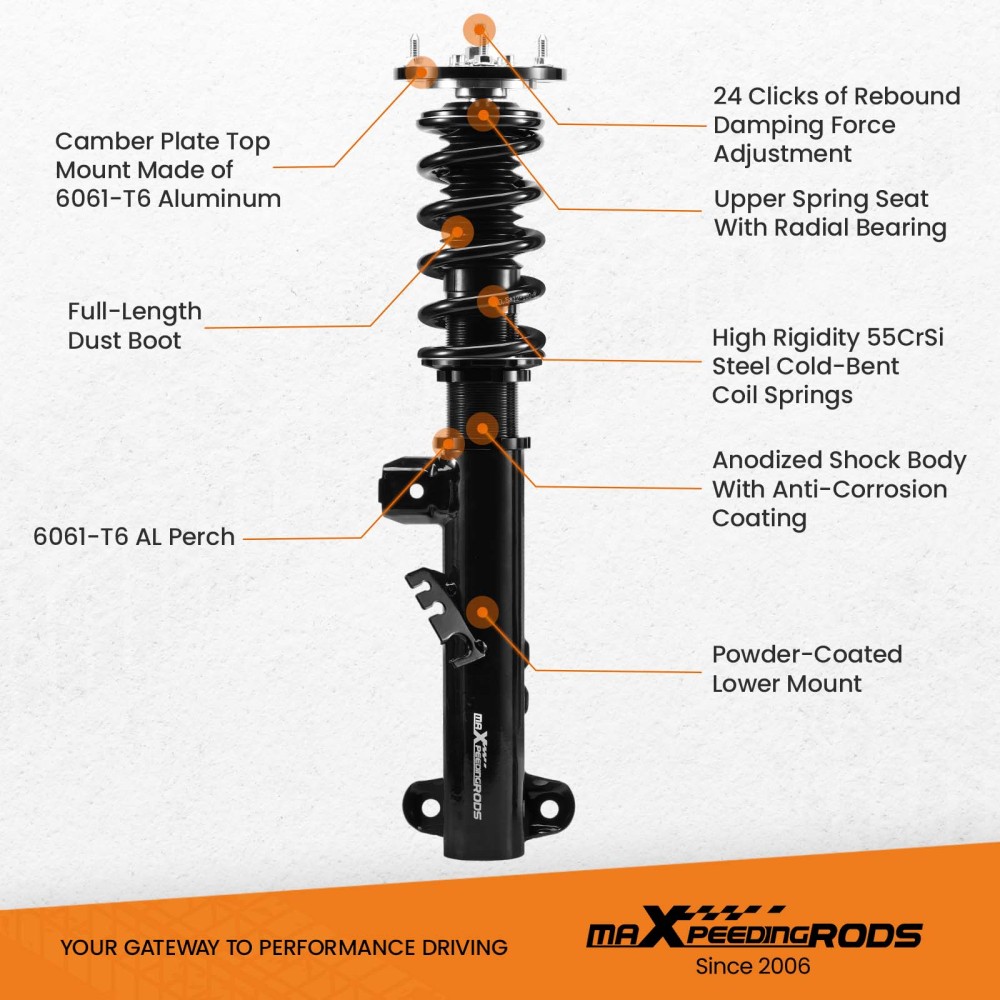

7. Camber plate top mounts help to eliminate the need for a separate camber kit
8. Pillow ball top mount - It improves the steering feel and response

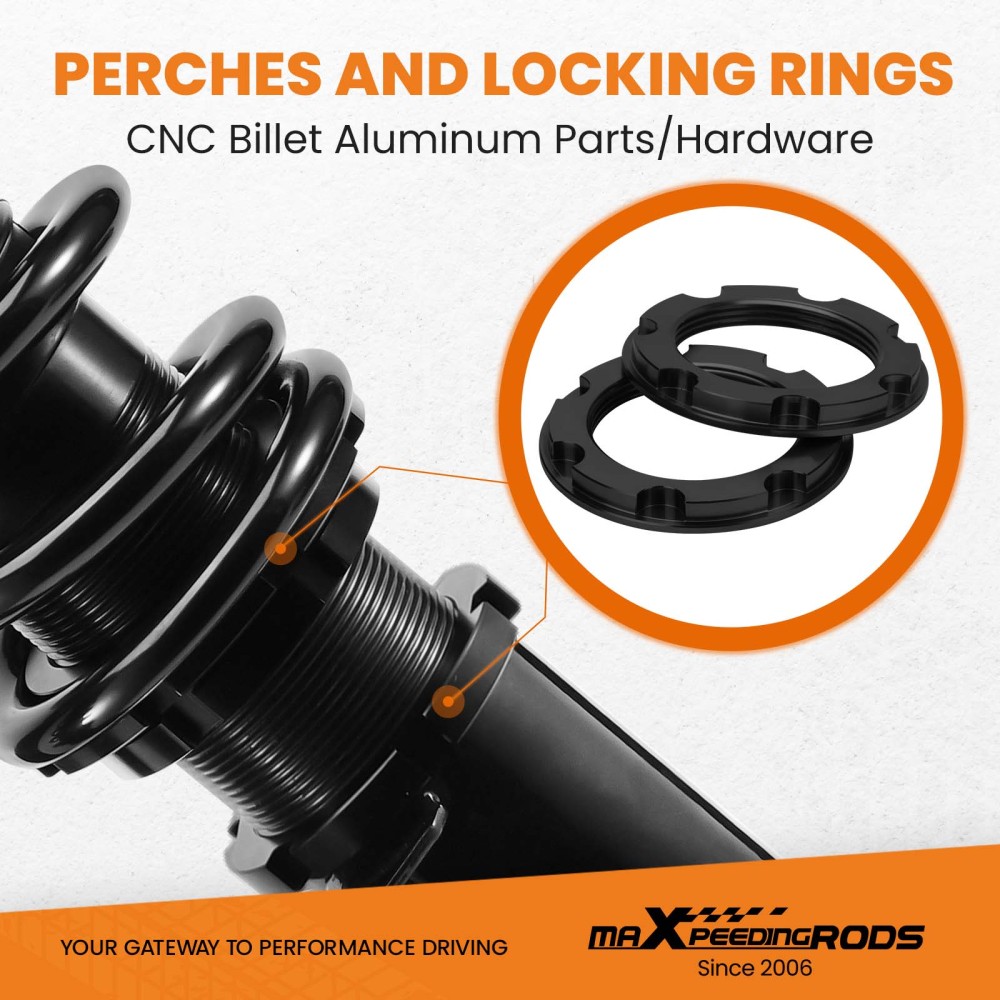

9. Most pieces in our Coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components.
10. Full rebuildable
