Coilover Kit Coilovers compatible for VW Rabbit compatible for Golf Mk1 Lowering Struts Shock Absorber

Introduction

maXpeedingrods' maXpeedingrods-B1 series is ideal for those who want to change the old worn-out strut but improve handling at the same time. It features height adjustable and maintains the OE ride quality to the greatest extent.

Application

Compatible for VW Rabbit / Compatible for Golf MK1(models 1975-1984)
Compatible for VW Jetta MK1(models 1980-1984)
Compatible for VW Scirocco MK1(models 1975-1981)
Compatible for VW Scirocco MK2(models 1982-1989)

Specification

Top mounts: Front and rear OE top mounts required

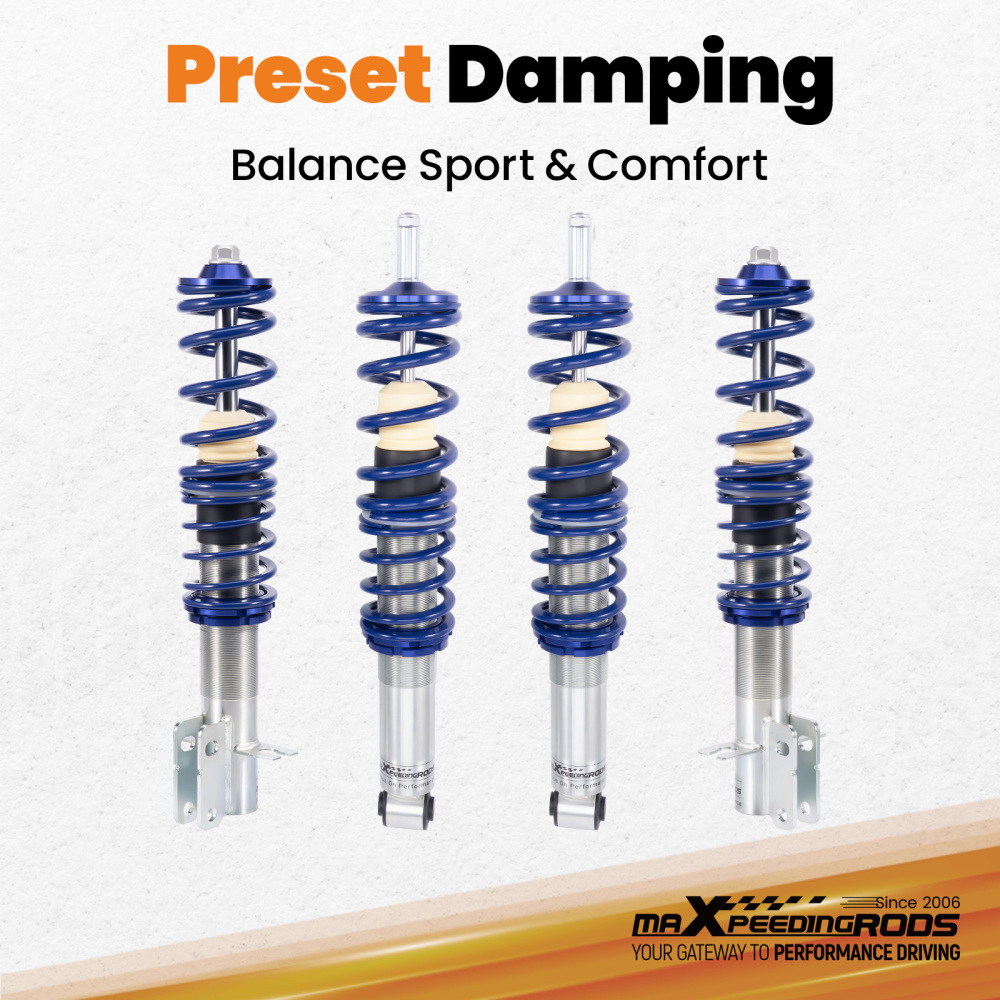

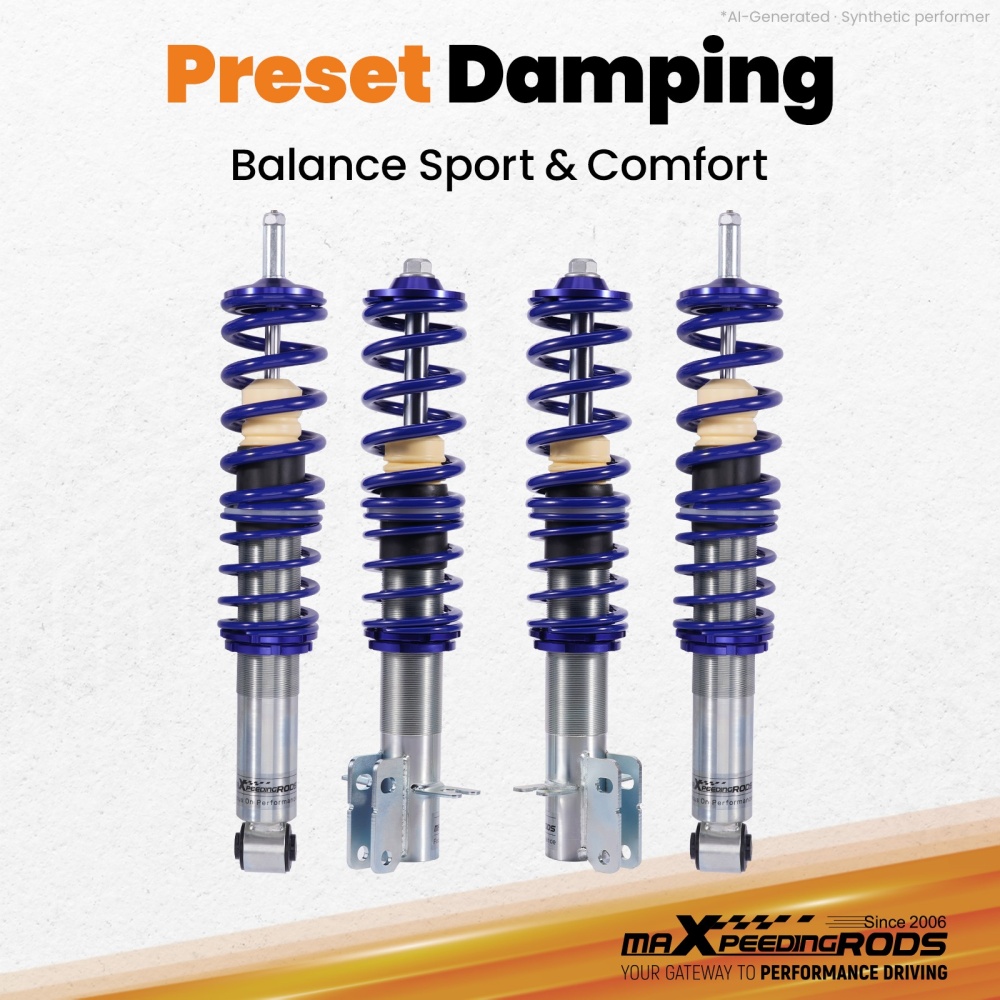

Damping adjustable: Not available
Camber adjustable: Not available

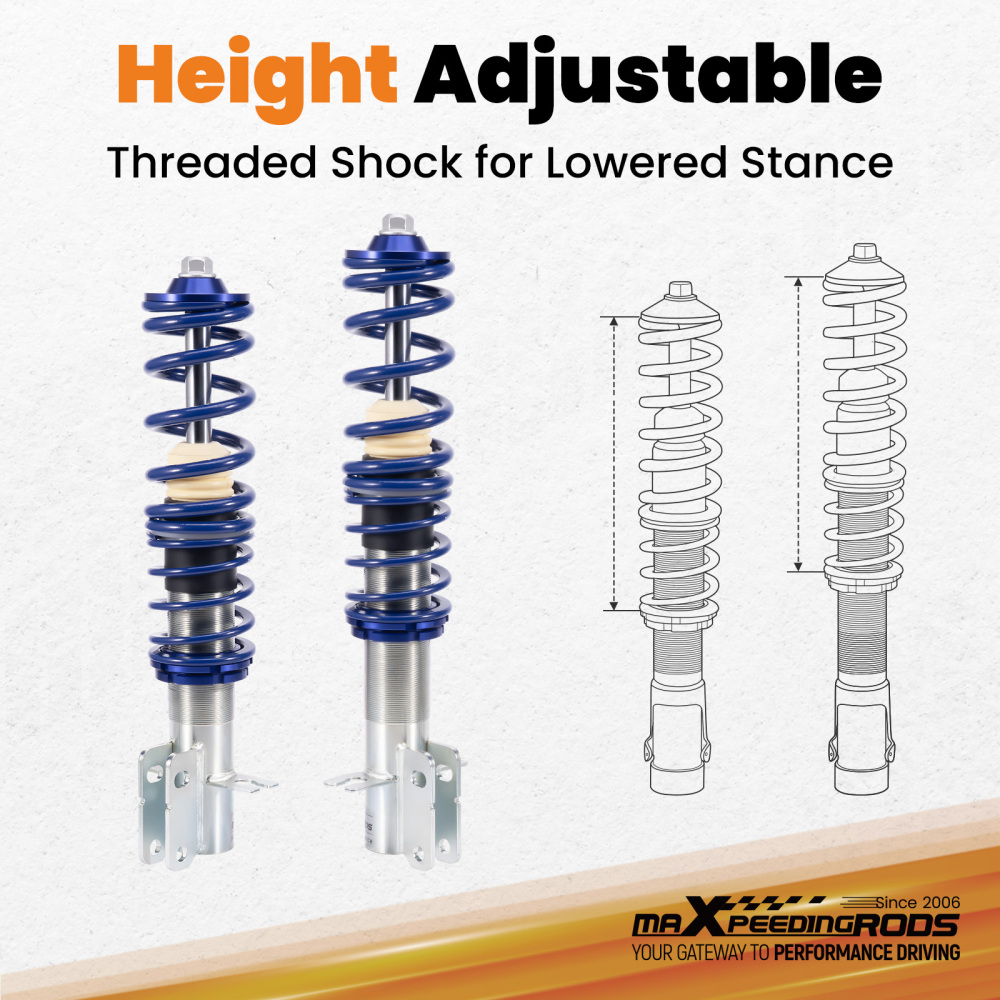

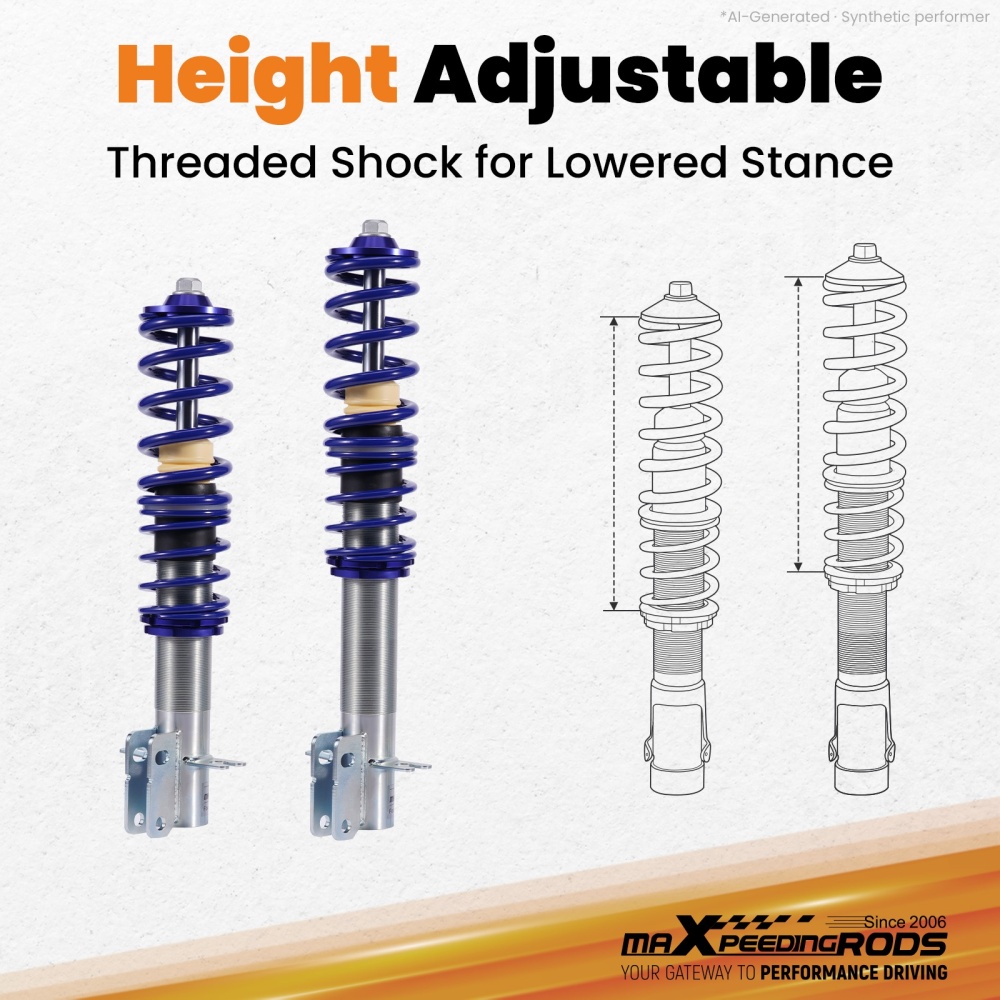

Height adjustable: Yes, lowering 25-75mm depending on the vehicle models

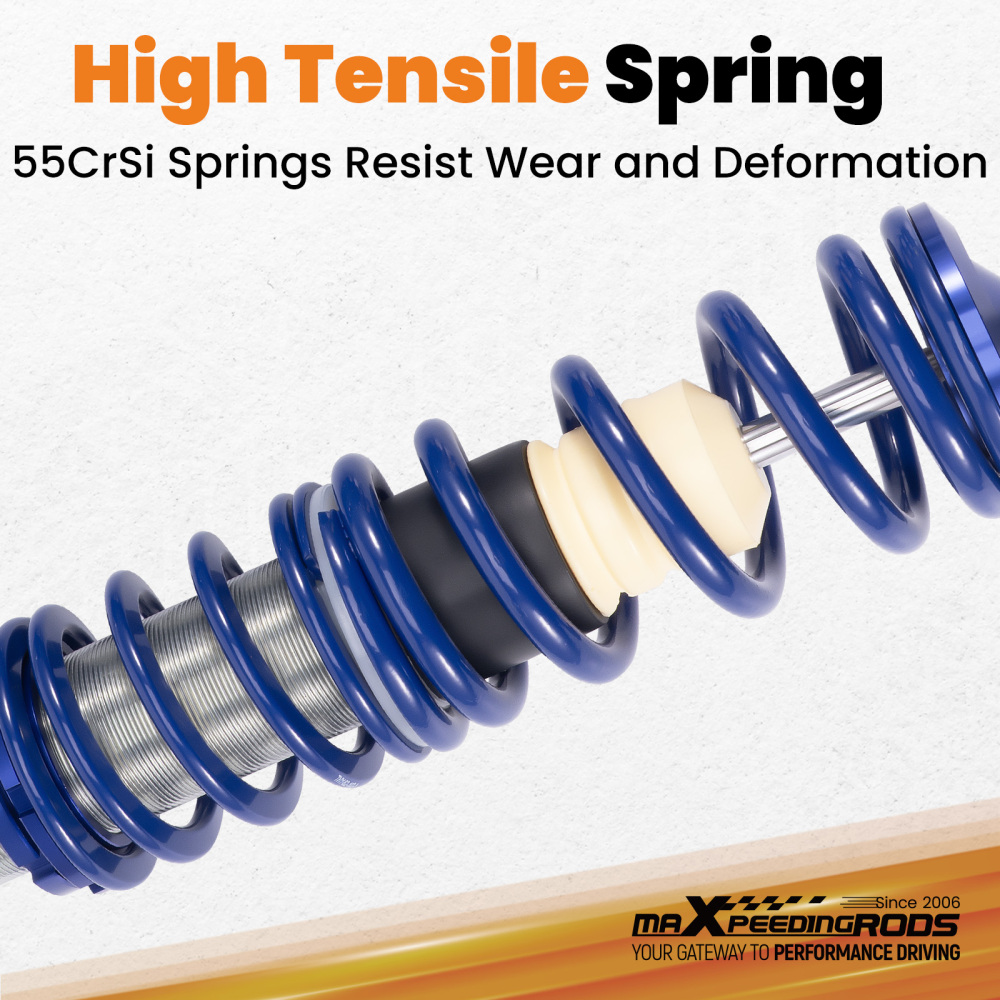

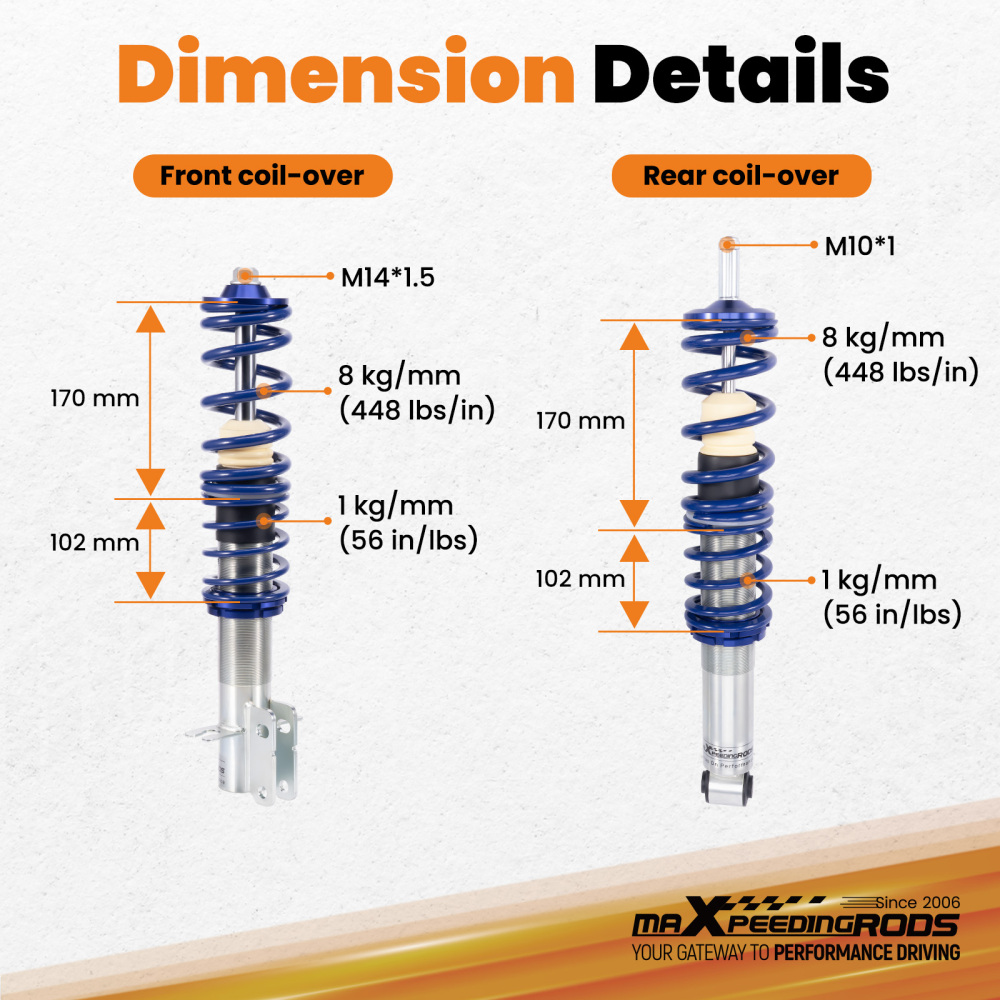

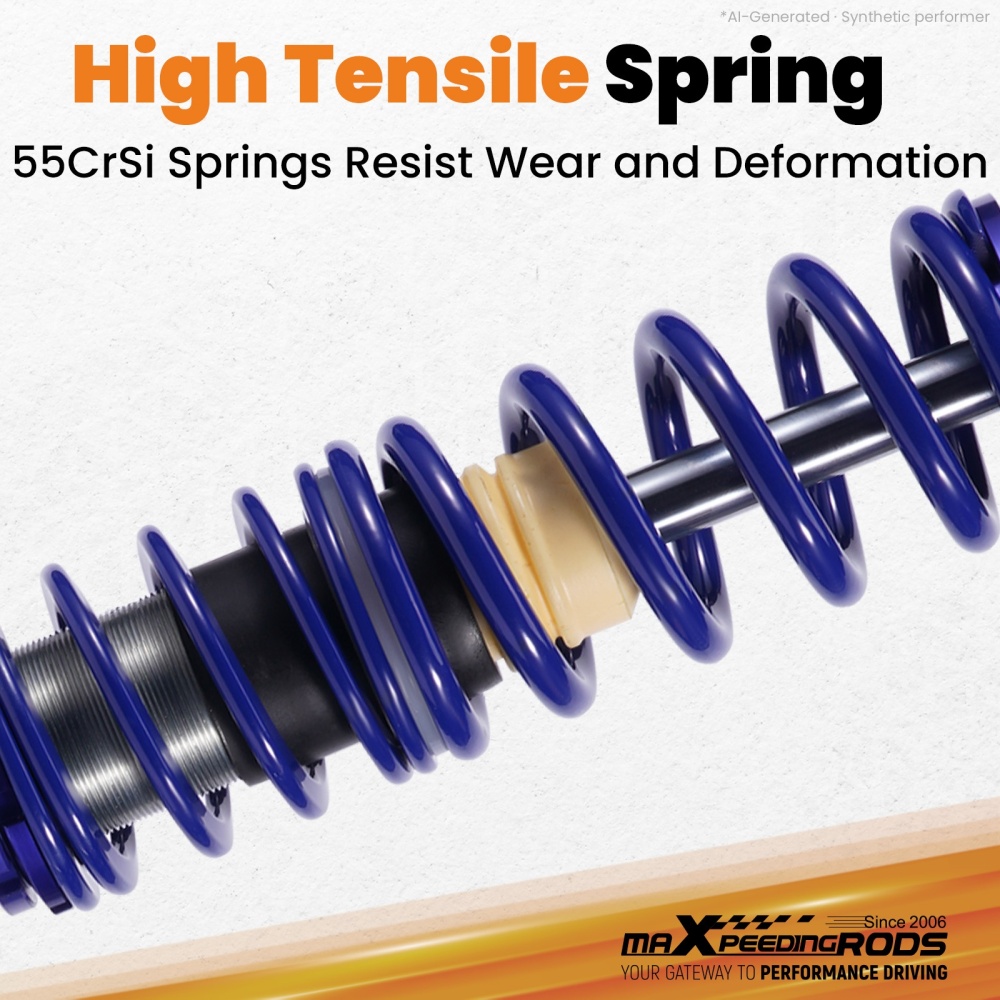

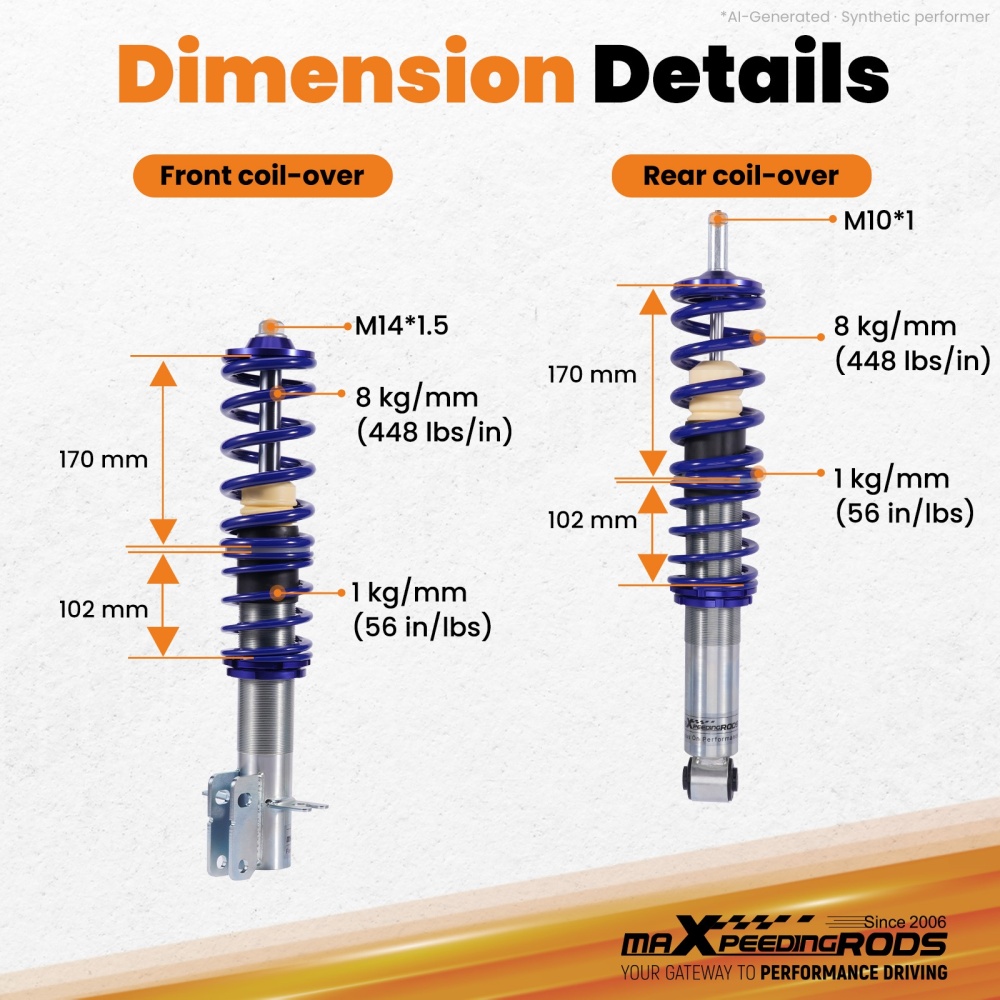

Spring rate Front: 8 kg/mm (448 lbs/in)
Spring rate Rear: 8 kg/mm (448 lbs/in)

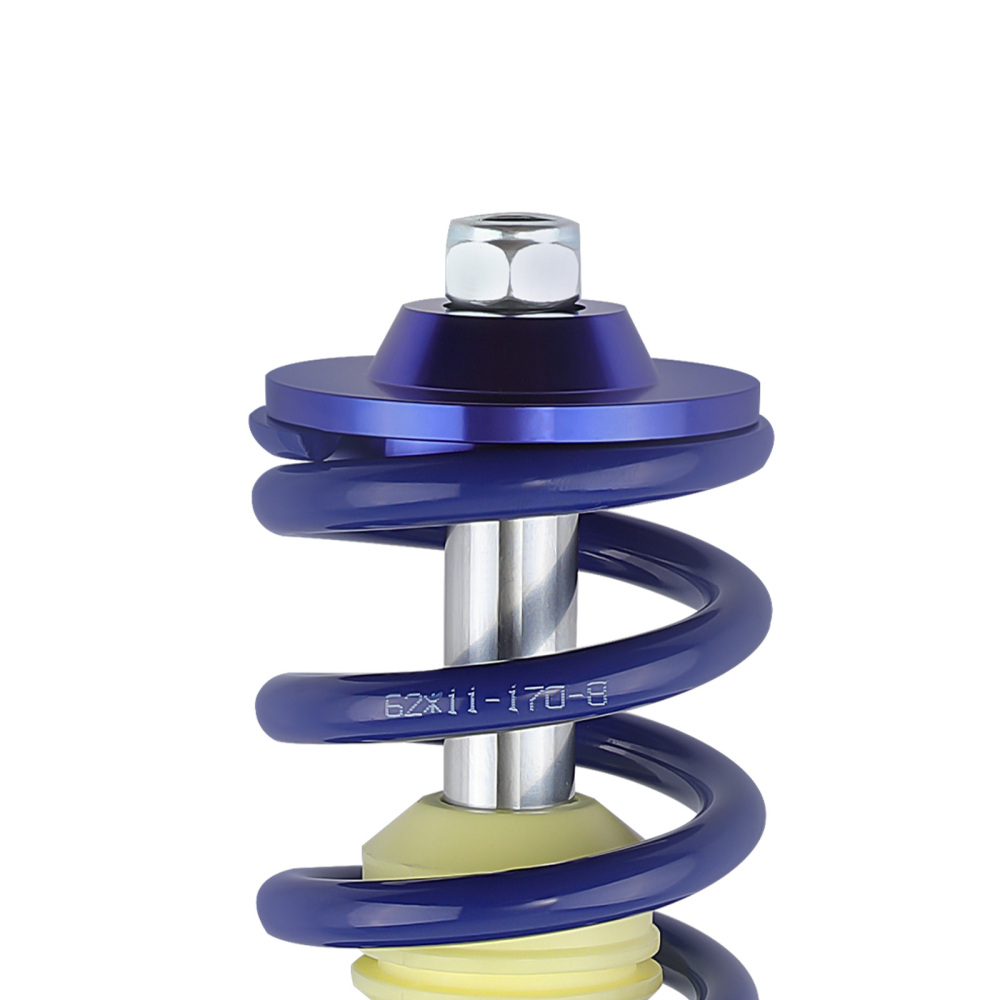

Front spring inner diameter: 62 mm
Rear spring inner diameter: 62 mm
Spring length Front: 170 mm
Spring length Rear: 170 mm
Help spring rate Front and Rear: 1 kg/mm (56 lbs/in)
Help spring length Front and Rear: 102 mm
Spring Preload advised: 7-10 mm

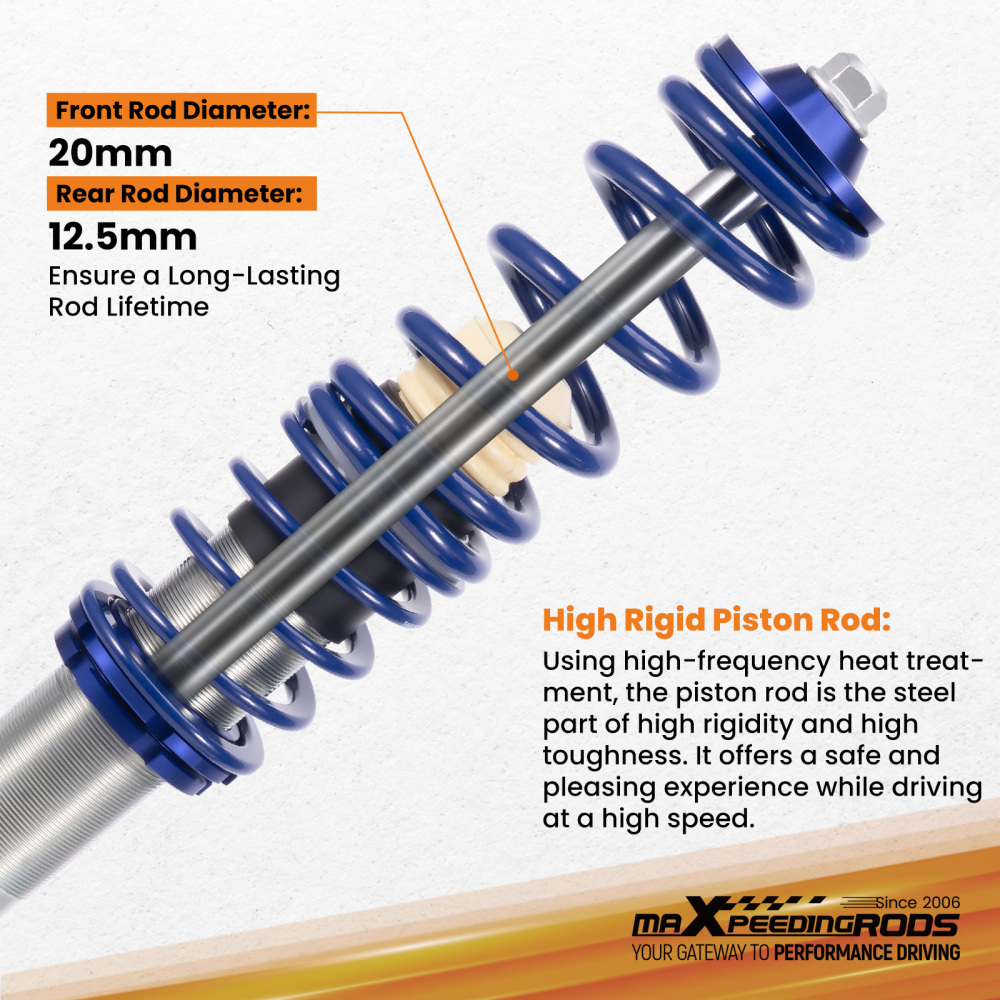

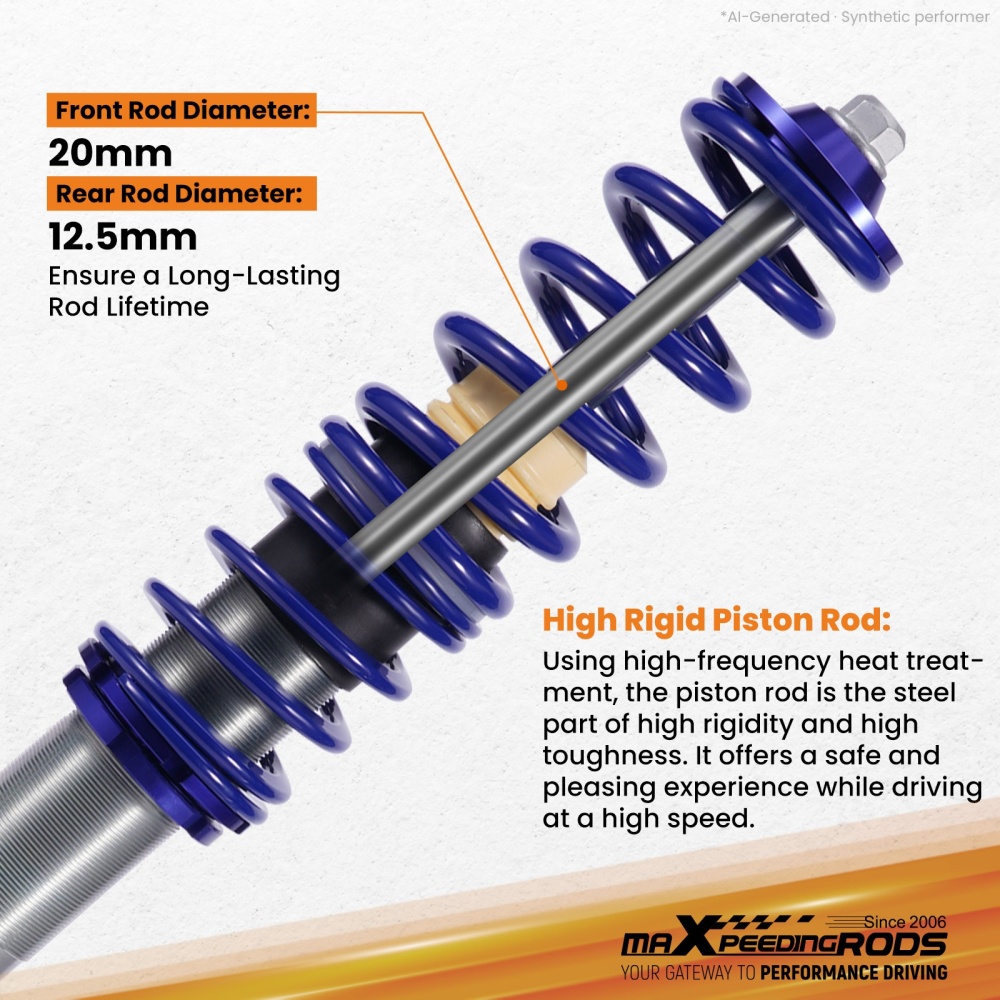

Damping rod diameter Front: Φ 20 mm
Damping rod diameter Rear: Φ 12.5 mm
Damping thread Front: M52×1.5 mm
Damping thread Rear: M52×1.5 mm

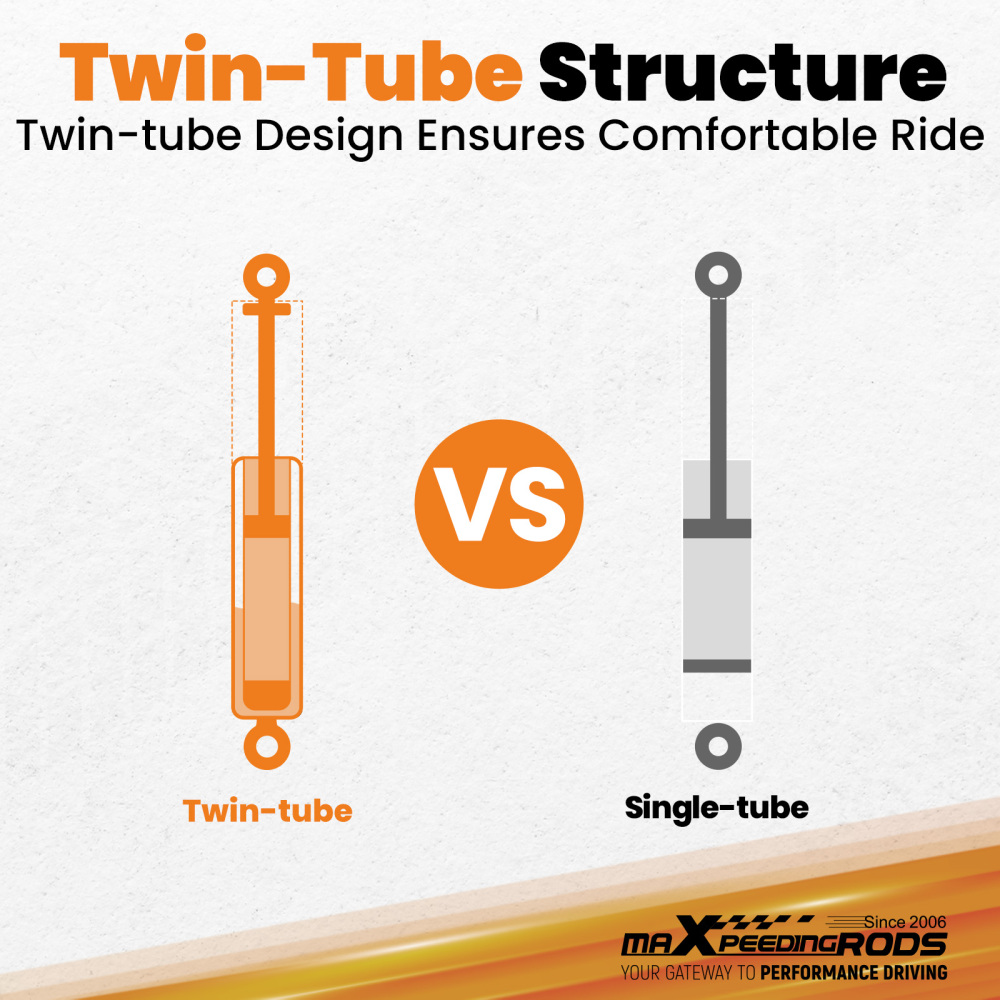

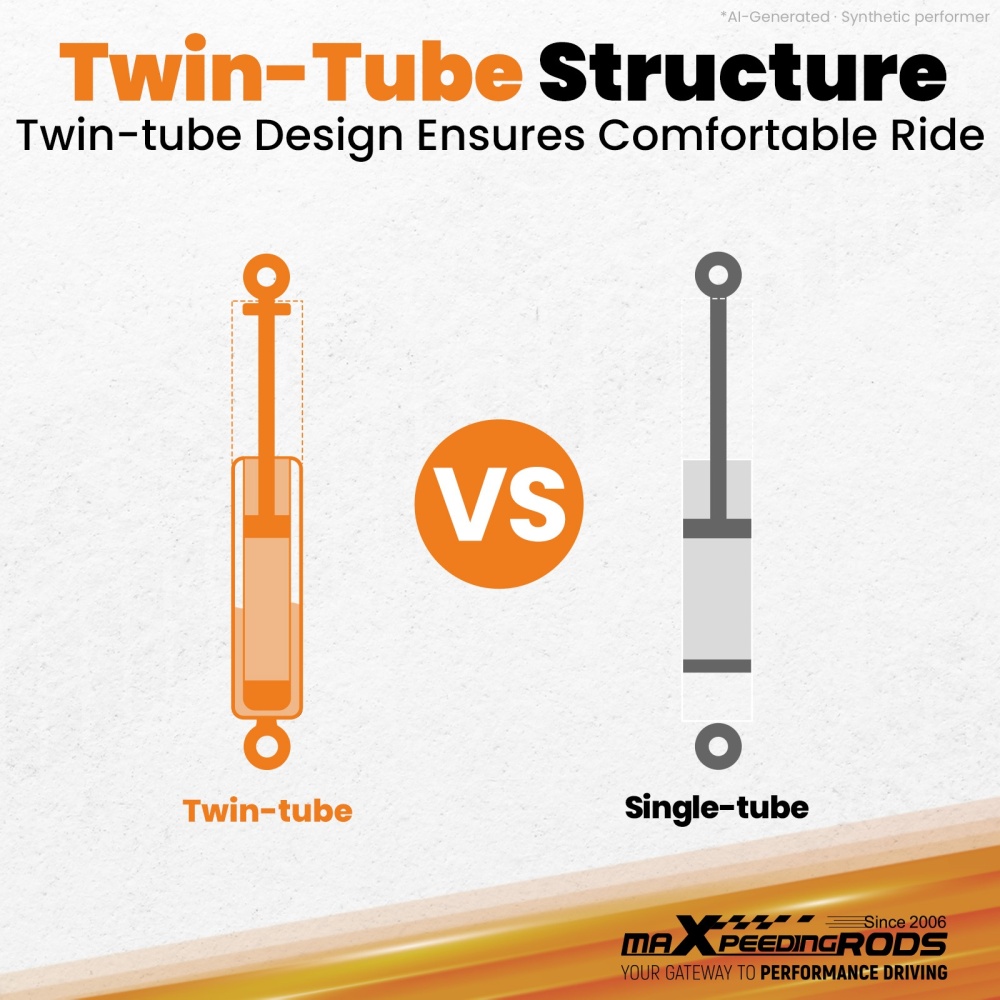

Twin -tube Diameter Front: 52 mm
Twin -tube Diameter Rear: 52 mm
Rod End Thread Front: M14×1.5 mm
Rod End Thread Rear: M10×1 mm
Front Collapsed Length: 385 mm / 15.16"
Front Extended Length: 485 mm / 19.09"
Rear Collapsed Length: 415 mm / 16.34"
Rear Extended Length: 515 mm / 20.28"
Color: Silver body with blue spring

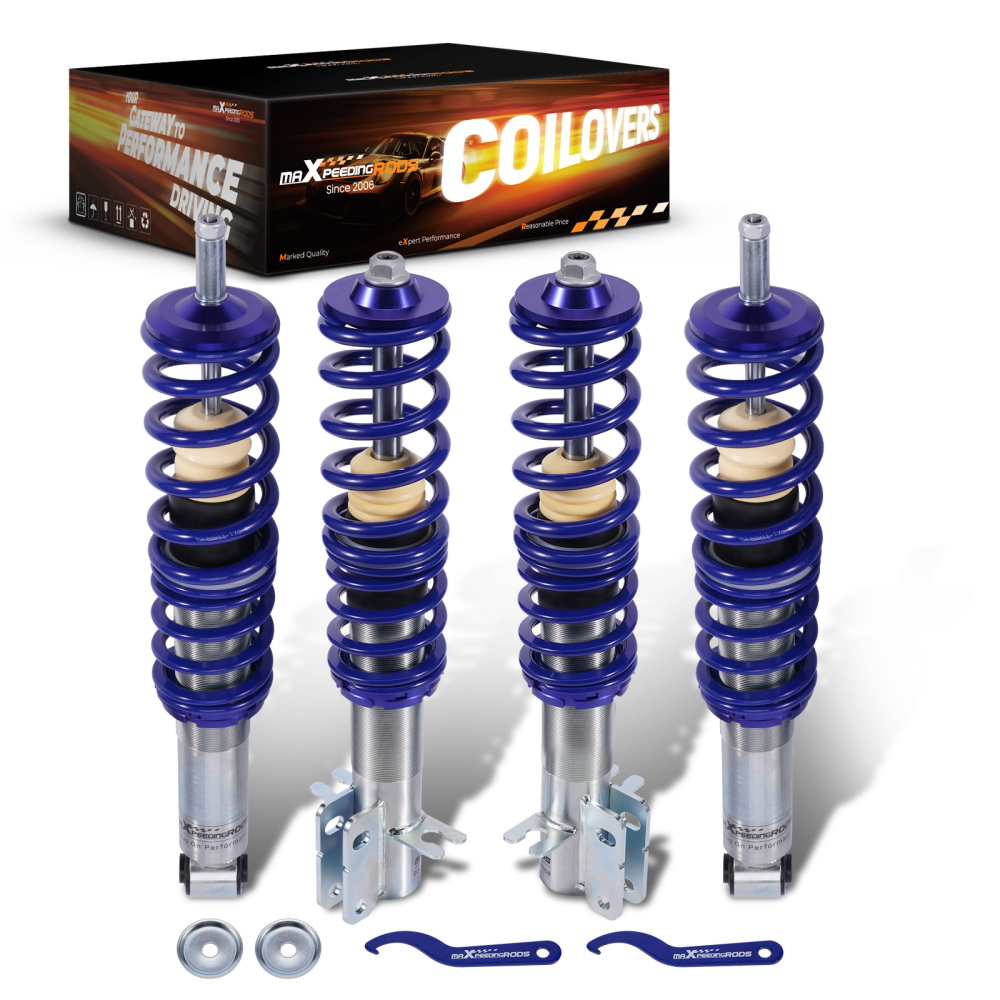

Package included

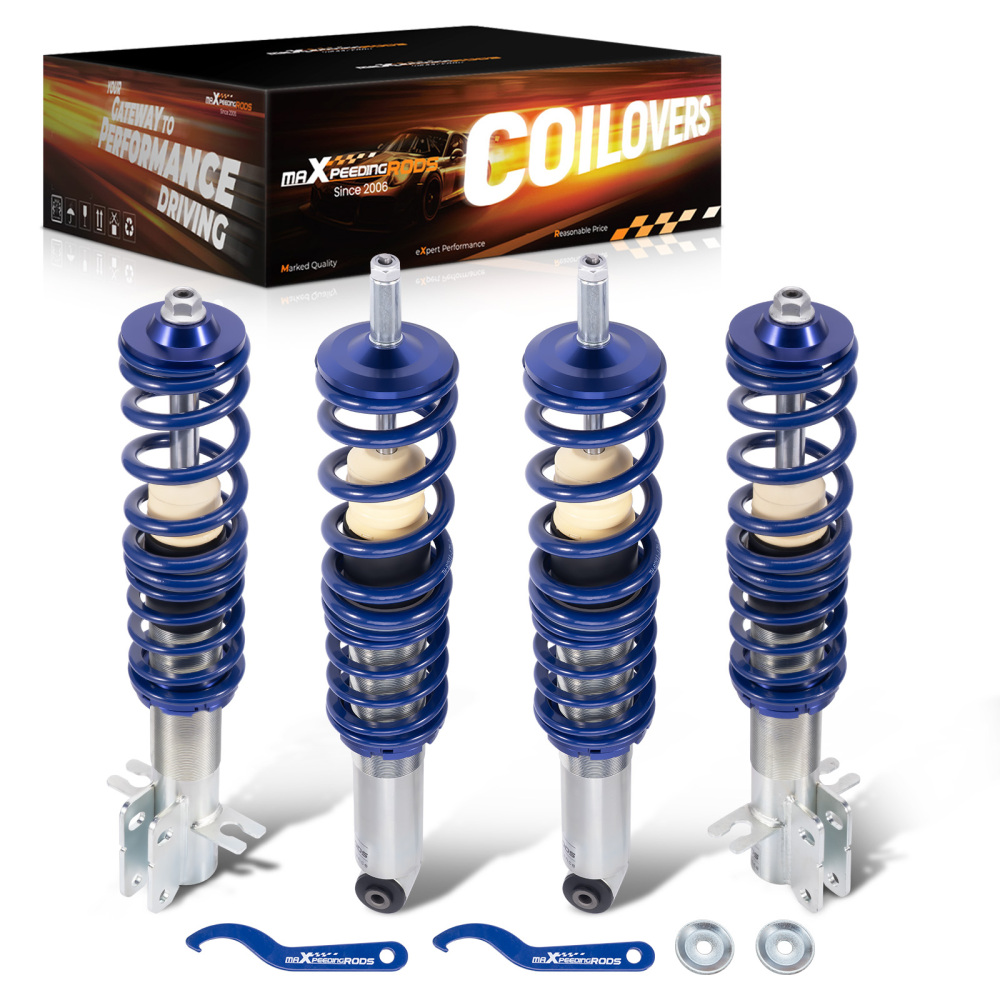

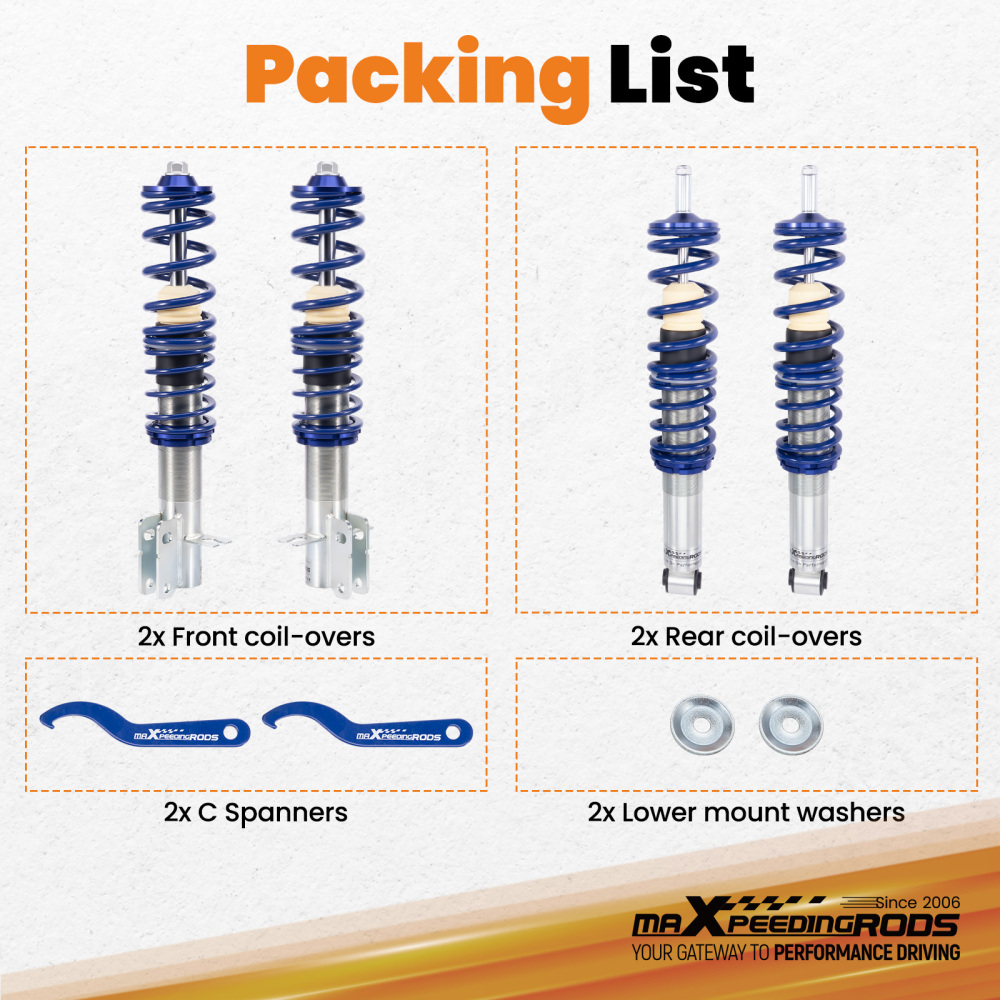

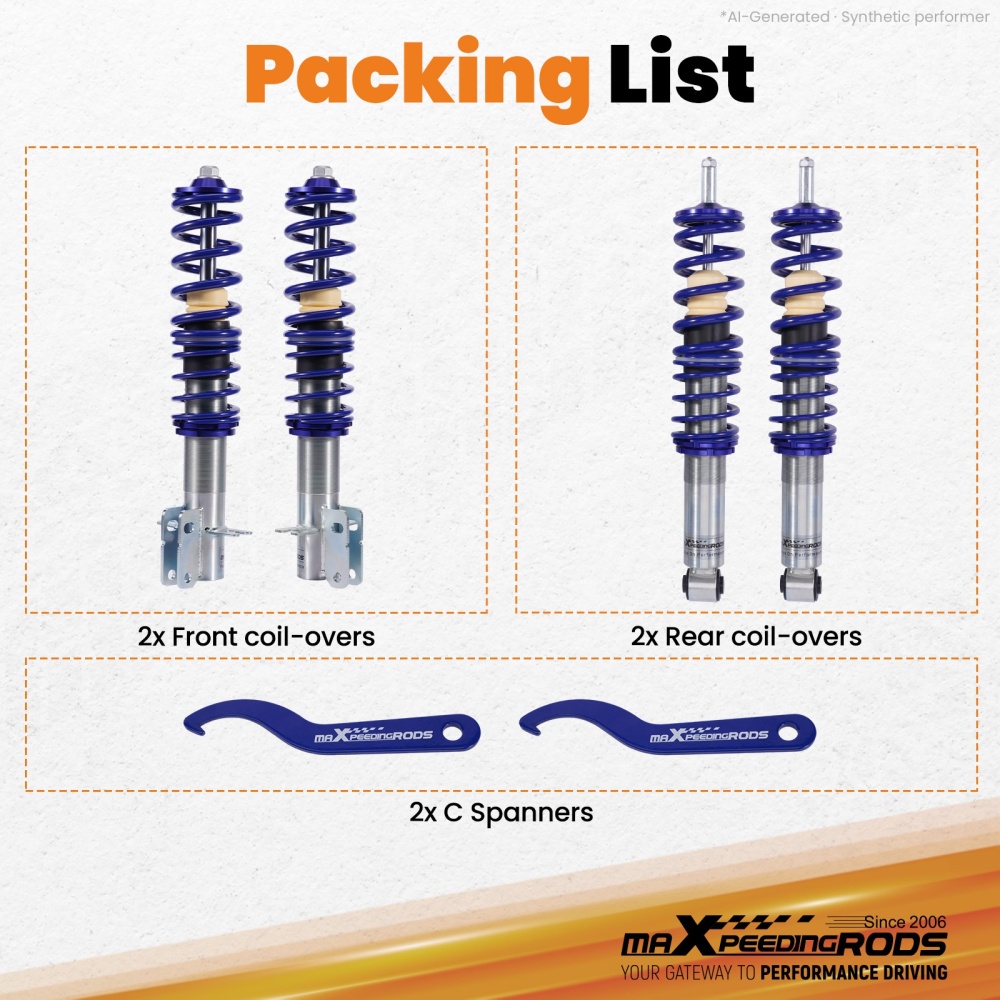

Package included：
2x Front coil-overs
2x Rear coil-overs
2x C spanners
2x Lower mount washers

Dimension

Package size : 62*50*20 cm
Weight: 20450 g

Feature

1. 0-25mm(depends on vehicle models) lower height adjustable

2. Dust boot, solid rubber bump stops

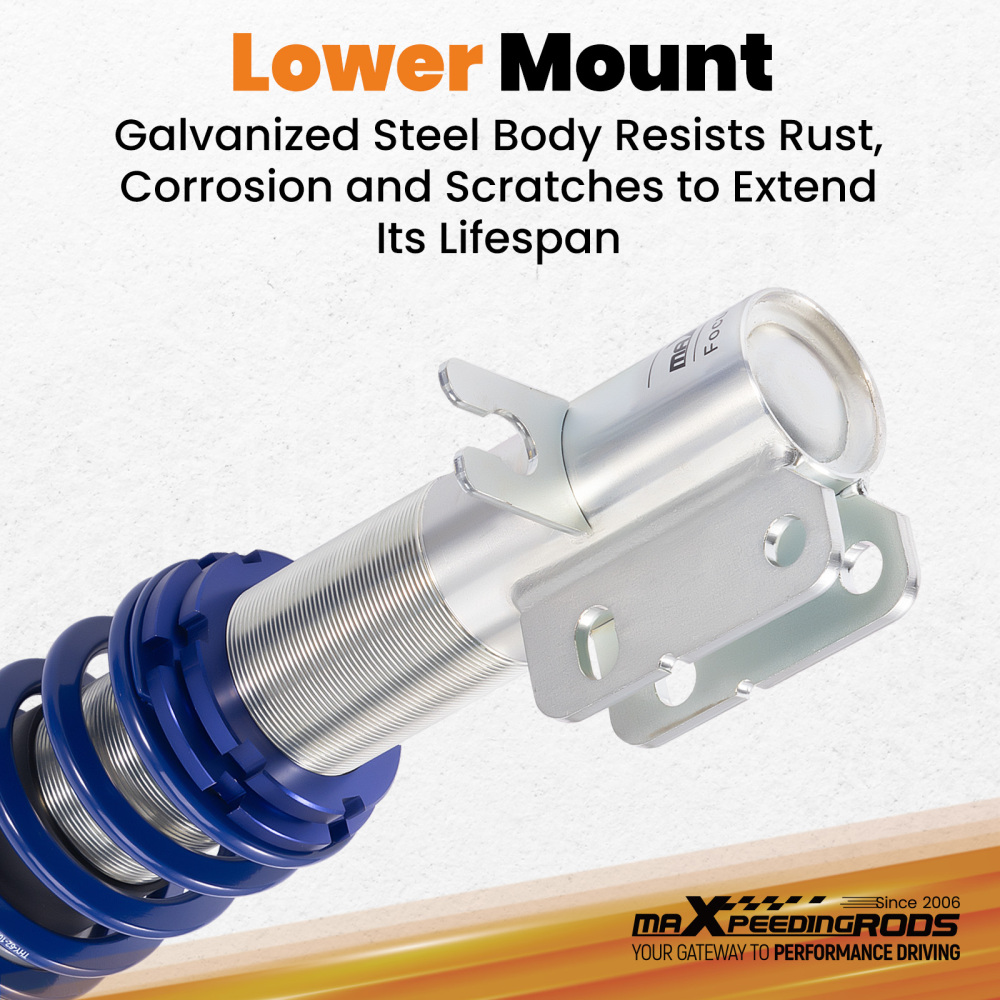

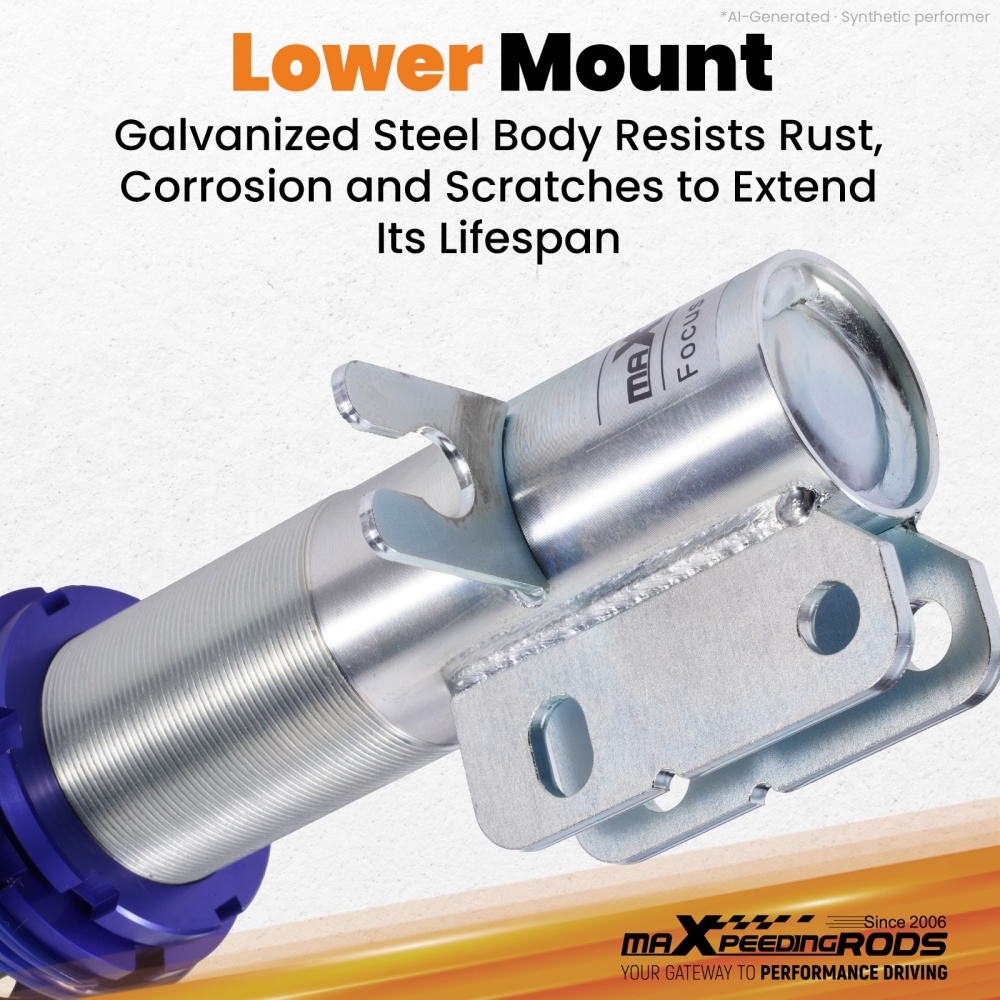

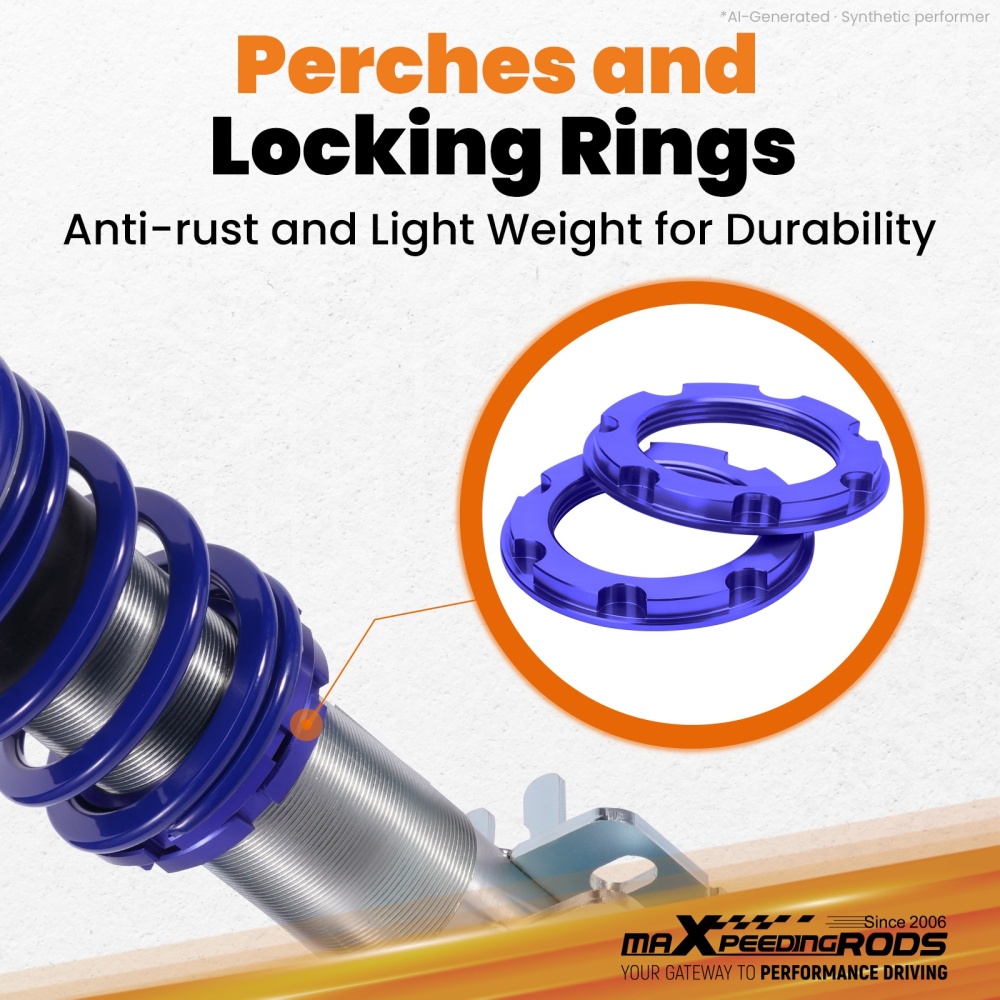

3. Aluminum components and steel lower mount brackets designed to balance weight and structural requirements.

4. Simple install, Easy to adjust.

5. Use the vehicle's original upper mounts (not included in our product kit).

Note

1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.

2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.

3. Impact wrench is prohibited during the installation, it will loosen or damage the product.

4. Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)

5. Regular maintenance is recommended for the coil-over. Applying WD-40 or a suitable protective spray every 3–4 months can help keep the components clean and moving smoothly.
