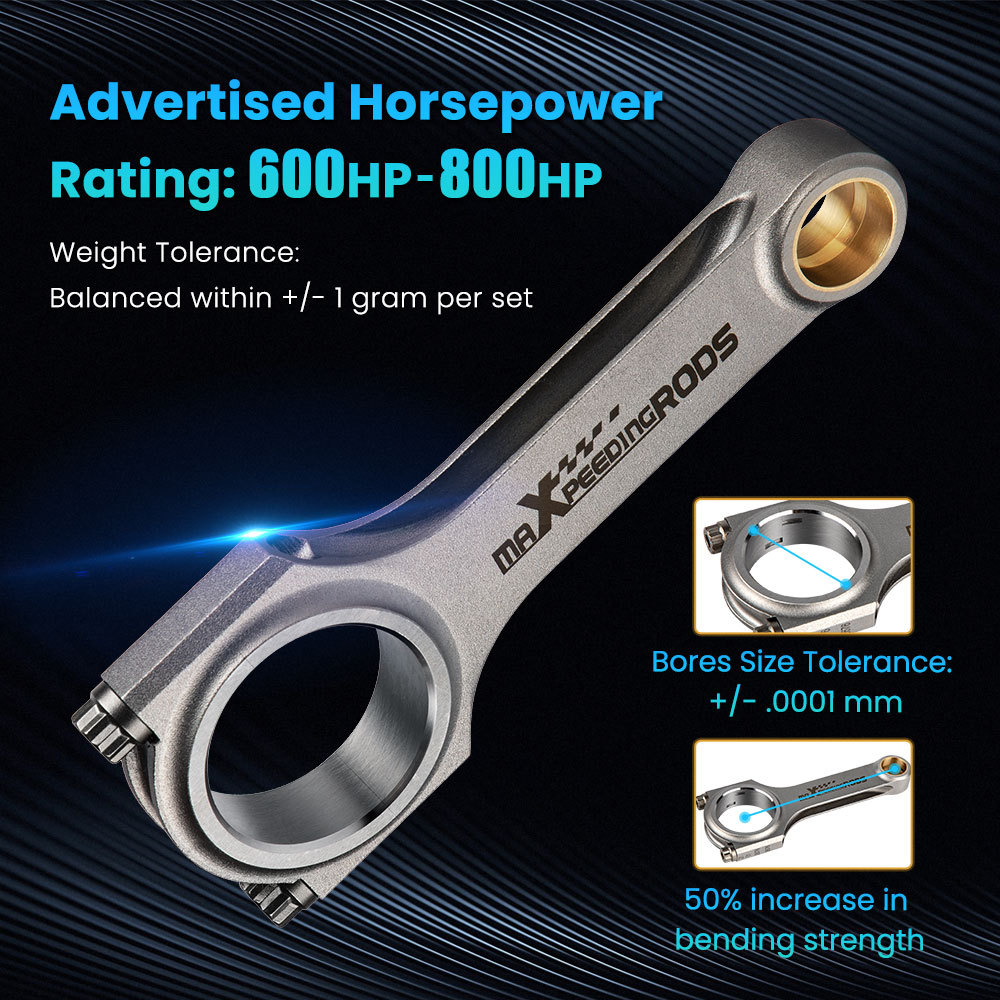

- * 1.H-Beam con rods compatible for BMW M60 M60B40 4.0L M62 4.4L
- * 2.Advertised Horsepower Rating: 600~800HP

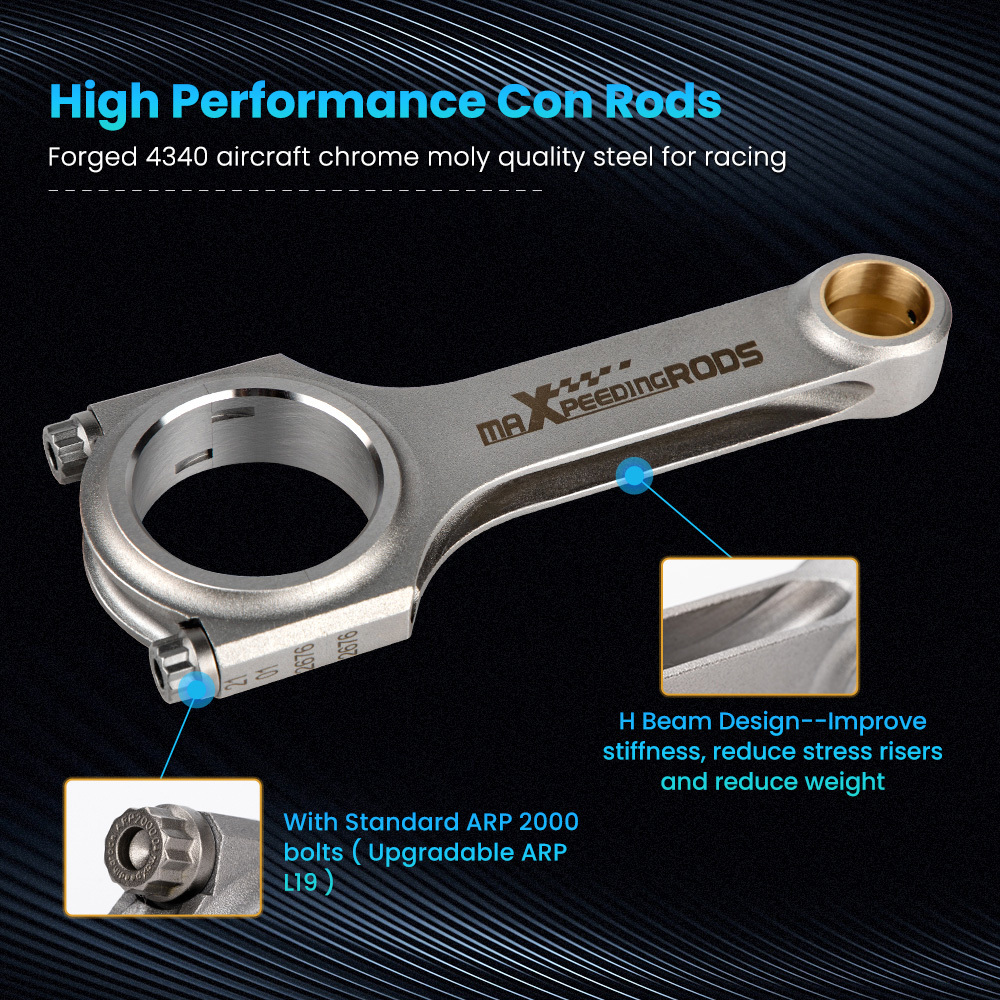

- * 3. Forged 4340 EN24 aircraft chrome moly quality steel
- * 4.Dimensions: Center to center length: 143mm;Big end diameter: 52mm;Small end diameter: 22mm;Big end width: 20.83mm;Small end width: 20.83mm

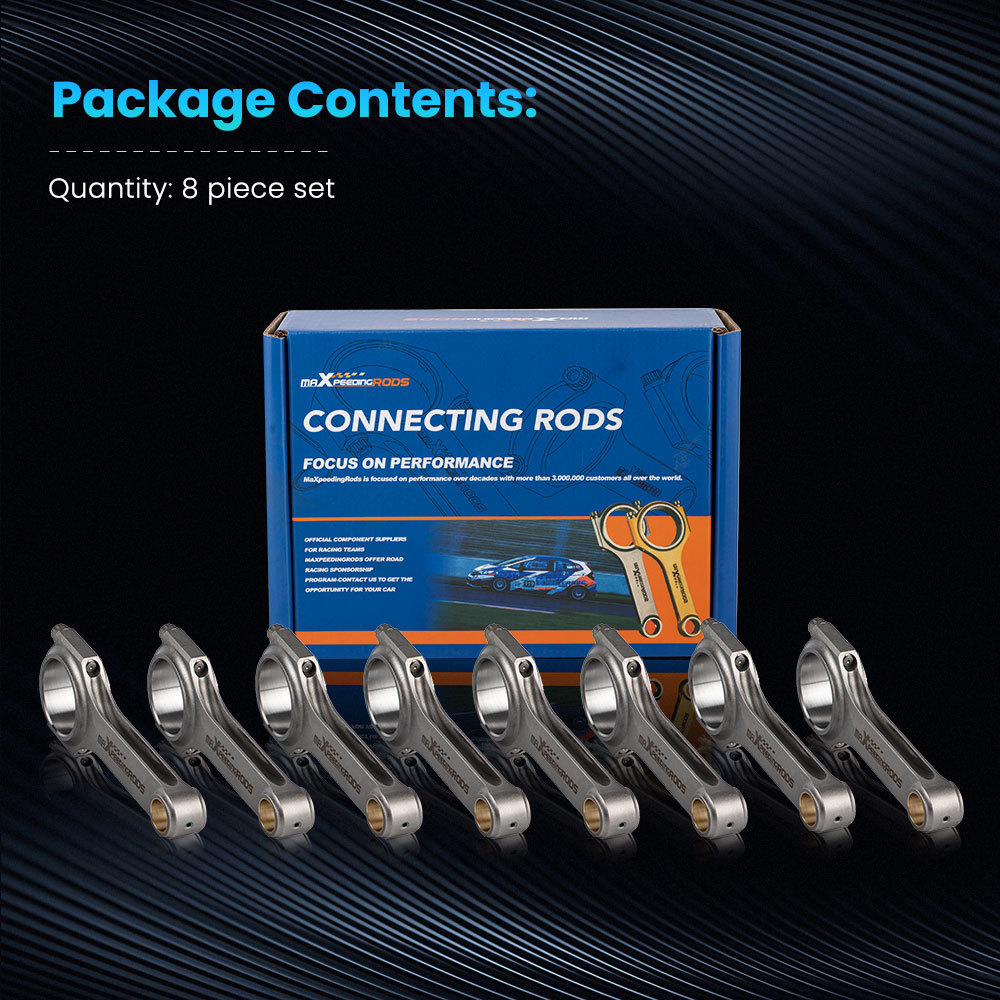

- * 5.Package Contents: 8 Pieces of H-Beam Connecting Rods; 16 Pieces of ARP 2000 3/8 " bolts (Note: Extra cost for upgrading to ARP L19 bolts)
- * 6.Performance Con Rods
- * 7.Advertised RPM Rating: 7000-9000 rpm
- * 8. Fastener Tensile Strength (psi):200,000 - 230,000 psi
- * 9.Balanced to within +/- 1 gram per end
- * 10.The big end bores are honed to a +/-.01mm tolerance
- * 11.Heat-treating & Shot-peened for remained consistent and strong
Compatible for BMW 5 Series E34 540i M60B40 4.0L 1993-1995
Performance Con Rods
Type: Forged 4340 aircraft chrome moly quality steel for racing

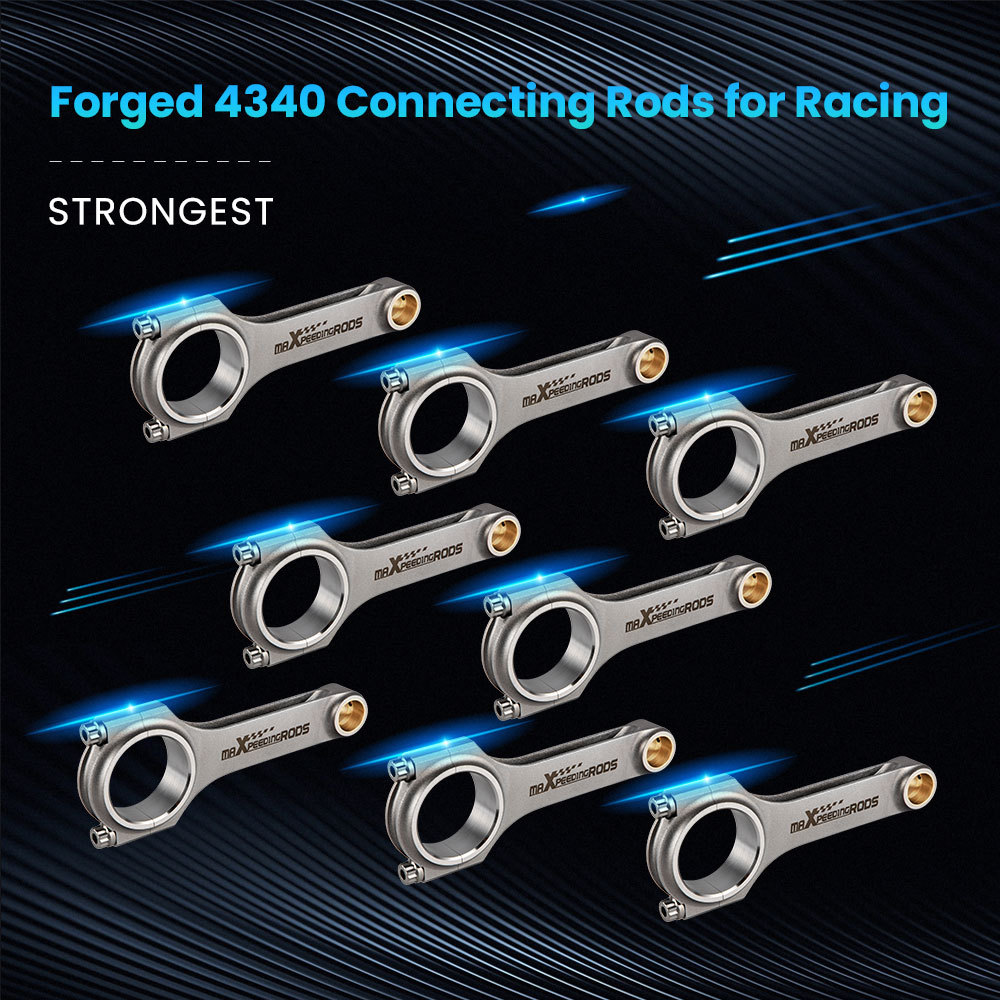

H-beam Conrods Quantity: 8 Pieces a set
Bolts: Including Genuine ARP 2000 bolts
Note: Extra cost for upgrading to ARP L19 bolts
Bolts Size: 3/8"
Tolerance: Balanced to +/- 1 gram in set
Piston Bolt Hole: +-4/1000mm
Power: 600hp ~ 800hp per set
Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM
Top acceleration: 9000rpm
warranty: one year
Center to center length: 143mm
Big end diameter: 52mm
Small end diameter: 22mm
Big end width: 20.83mm
Small end width: 20.83mm
- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
- Designed and processed by CNC machine.

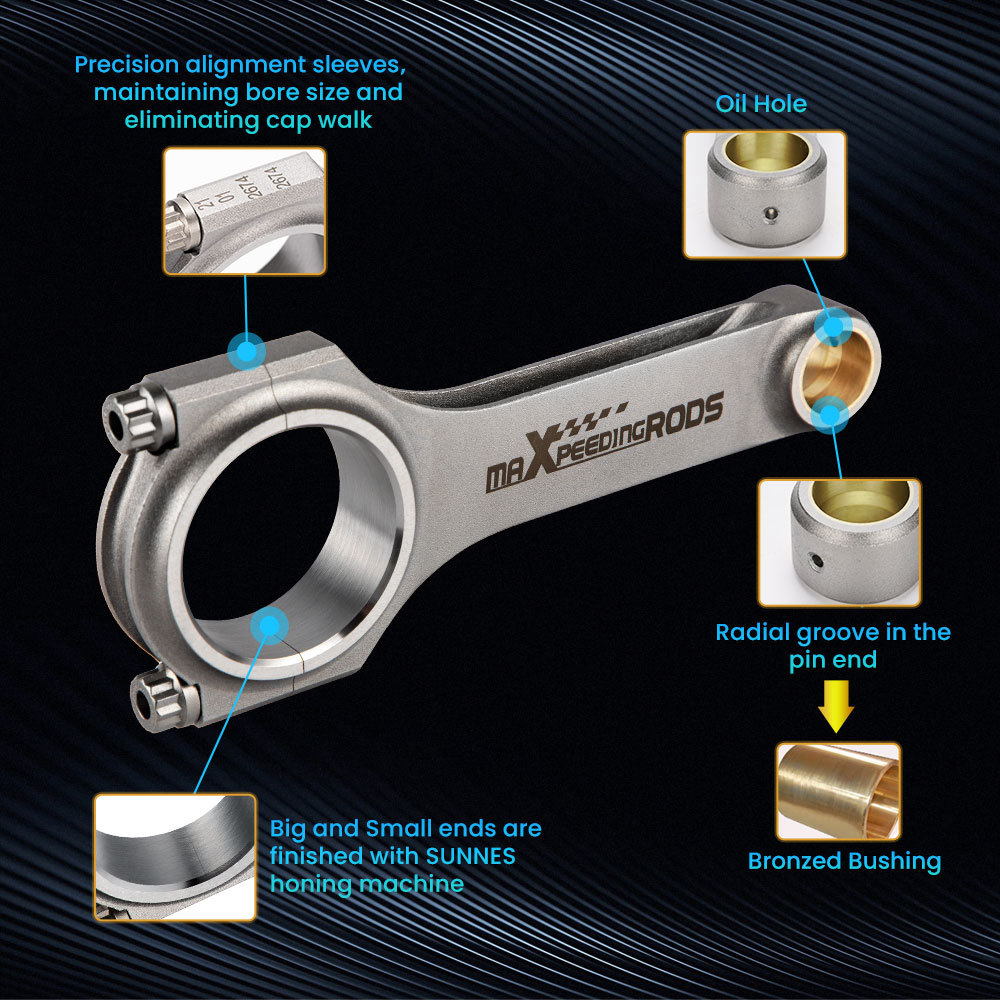

- All big and small ends are finished with SUNNEN honing machine
- Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk

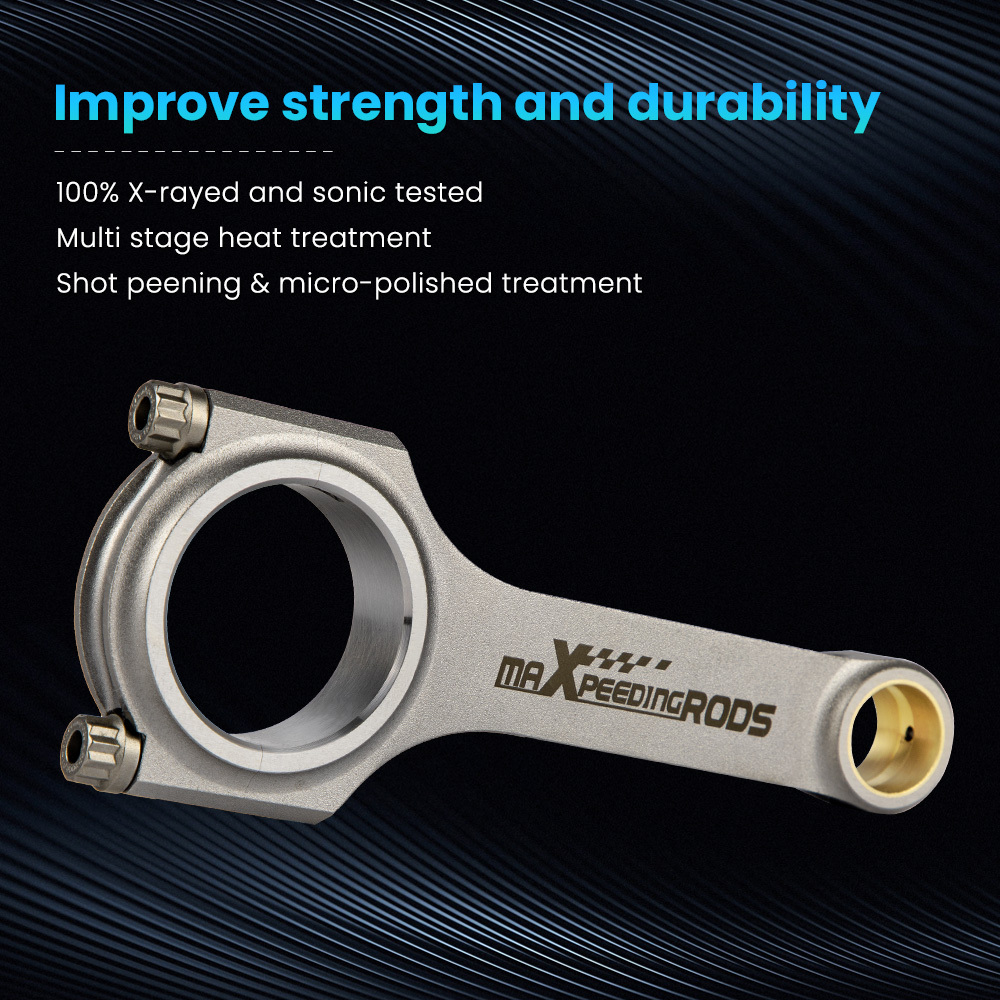

- 100% X-rayed, sonic tested and magnafluxed
- Multi-stage heat treated
- Shot peened to relieve stress
- Come with the bronzed bushing suitable for the floating piston pin
Professional installation is highly recommended (No Instruction Included)
Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
Learn more about CUSTOM SERVICE
