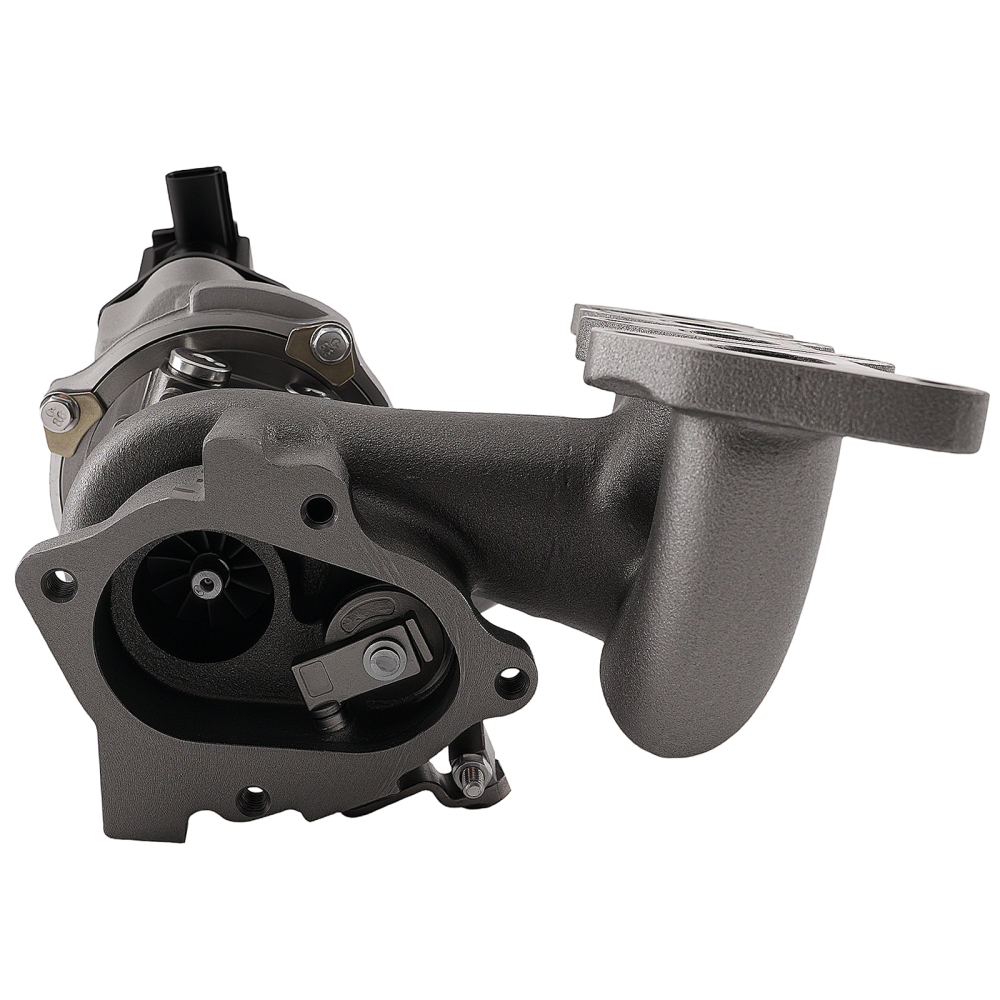

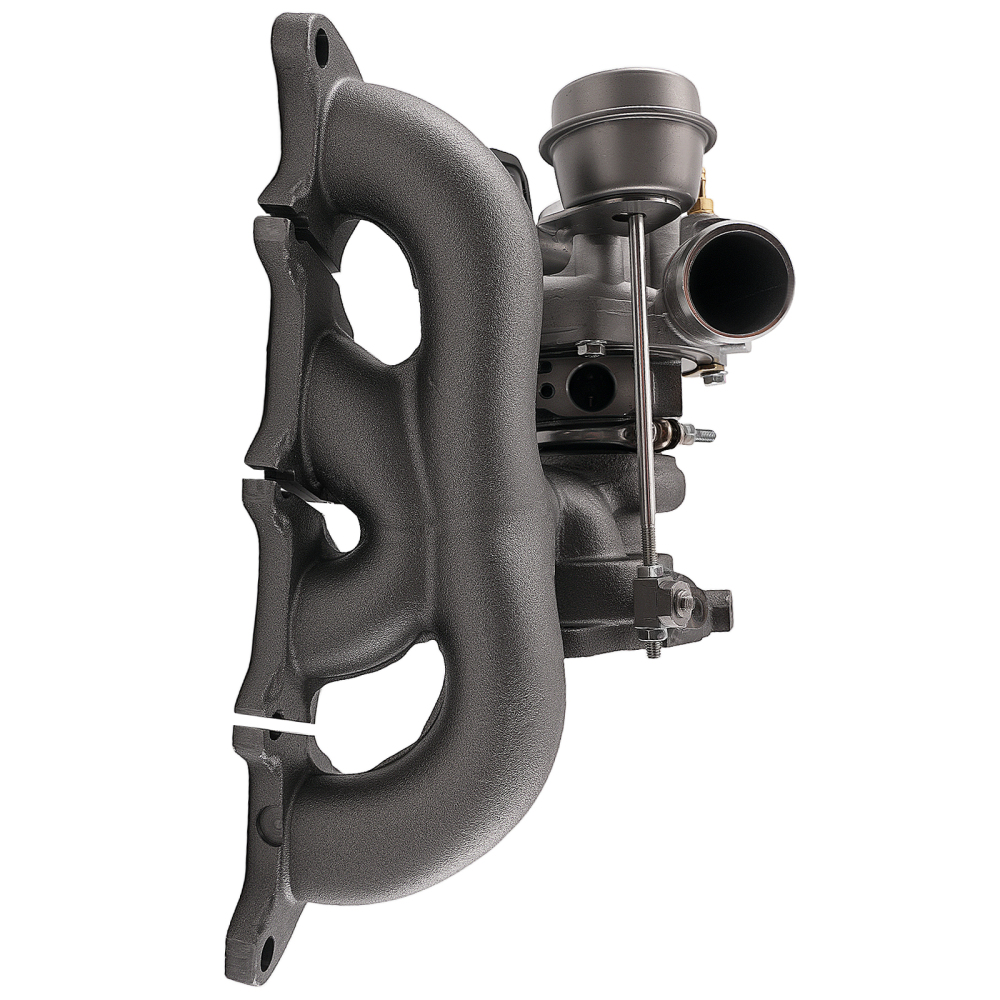

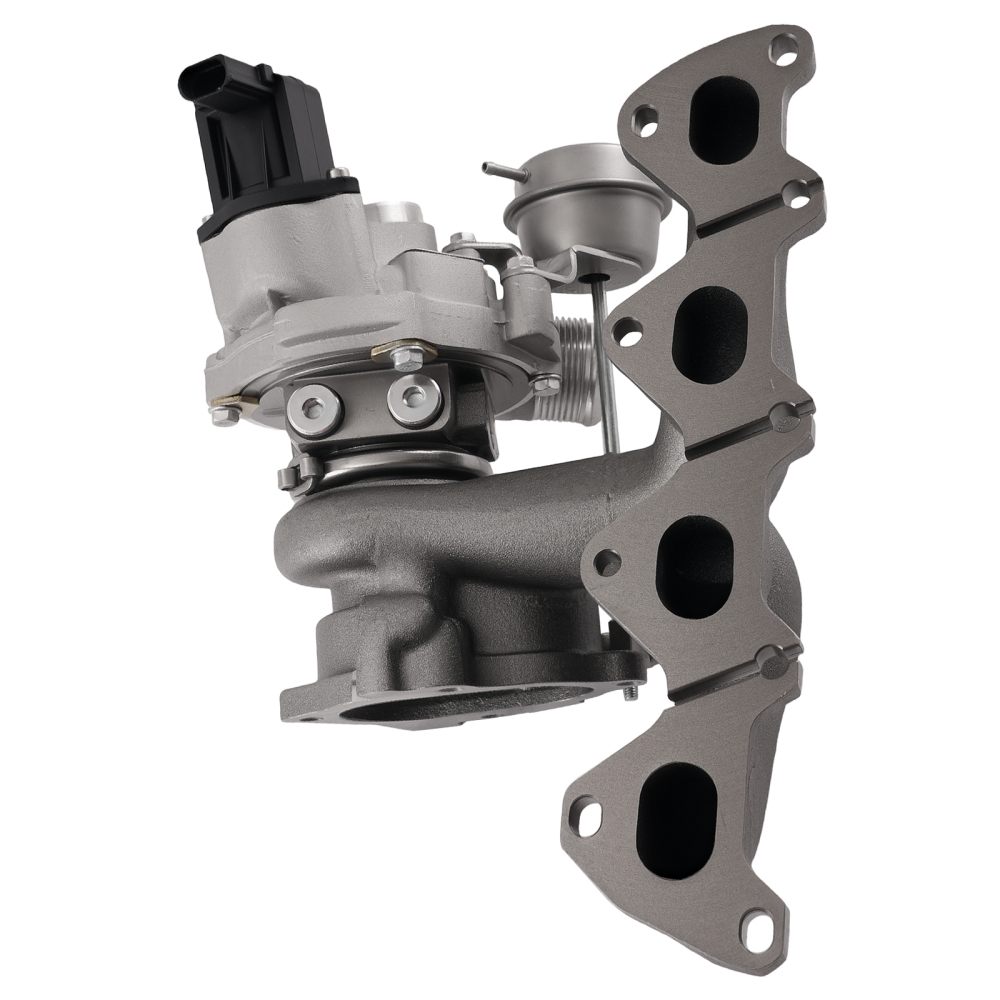

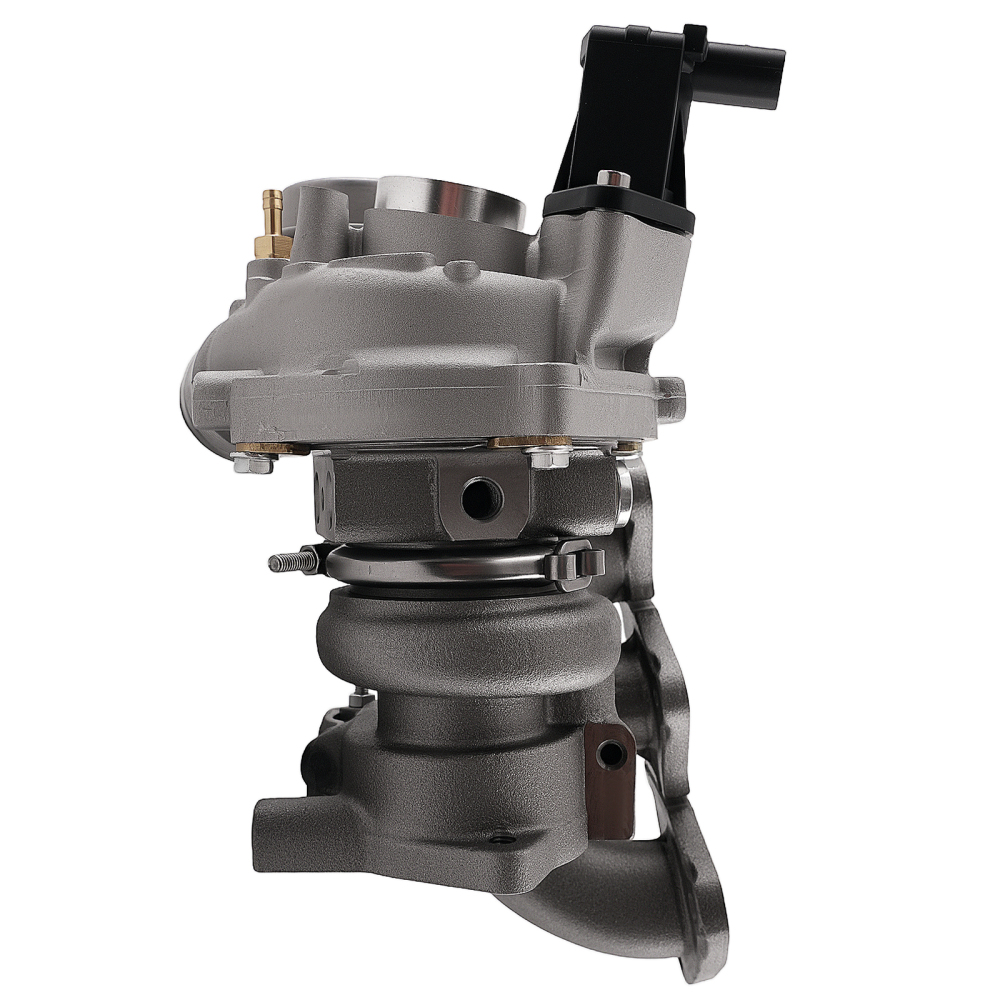

Billet Turbocharger compatible for VW Golf-5 /6 Scirocco Tiguan 1.4 TSI 53039880248 BLG,BMY

Application

Compatible for Volkswagen Touran 1.4 TSI BLG/CAVB 1390ccm 125Kw/170hp 2007-2010
compatible for Volkswagen Touran 1.4 TSI BMY/CAVC 1390ccm 103Kw/140hp 2006-
Compatible for Volkswagen Tiguan 1.4 TSI BWK/CAVA 1390 compatible for ccm 110 Kw/150 hp 2007-
Compatible for Volkswagen Sharan II 1.4 TSI CTHA 1390 compatible for ccm 110 Kw / 150 hp 2010-
Compatible for Volkswagen Scirocco 1.4 TSI CAVD 1390 compatible for ccm 118 Kw/160 hp 2008-2014
compatible for Volkswagen Polo V 1.4 TSI CAVE 1390 compatible for ccm 132 Kw / 180 hp 2010-
Compatible for Volkswagen Golf VI 1.4 TSI BWK 1390 compatible for ccm 118 Kw / 160 hp 2008-
Compatible for Volkswagen Golf V 1.4 TSI BLG / BMY 1390 compatible for ccm 103Kw/140hp 2005-2009
compatible for Volkswagen Golf V 1.4 TSI BLG / BWK 1390ccm 125Kw/170hp 2005-2009
compatible for Seat Ibiza V 1.4 TSI CAVF 1390 compatible for ccm 110KW/150hp 2009-
Compatible for Seat Alhambra II 1.4 TSI CTHA 1390 compatible for ccm 110Kw/150hp 2010-
Compatible for Skoda Fabia 1.4 TSI Combi BLG/BMY 1390ccm 103Kw/140hp 2010-

OE/Part number

5303 988 0459, 5303-988-0459, 53039880459,
5303 970 0459, 5303-970-0459, 53039700459,
5303 988 0248, 5303-988-0248, 53039880248,
5303 970 0248, 5303-970-0248, 53039700248,
5303 988 0162, 5303-988-0162, 53039880162,
5303 988 0150, 5303-988-0150, 53039880150,
5303 988 0142, 5303-988-0142, 53039880142,
5303 988 0099, 5303-988-0099, 53039880099,
03C145701K, 03C145701KV, 03C145701KX,
03C145701T, 03C145701TV, 03C145701TX,
03C145701Q, 03C145701QX, 03C145701QV,
03C145701B, 03C145701BX, 03C145701BV,
03C145701G, 03C145701GX, 03C145701GV,
03C145702B, 03C145702BV, 03C145702BX,
03C145702P, 03C145702PV, 03C145702PX,
03C145703A, 03C145703AX, 03C145703AV,

Specification

Engine Code:CKMA, BLG, BMY
Cooling Type:Water Cooling
Turbine Inducer: 38mm
Turbine Exducer: 45mm
Compressor Inducer: 37.5mm
Compressor Exducer: 51mm
Turbo Type:Individual
Actuator Type:With Electronic Actuator
Universal Fitment:No
Finish:Matte
Condition:100% Brand New
Accessories: You will get exactly as shown in the picture above

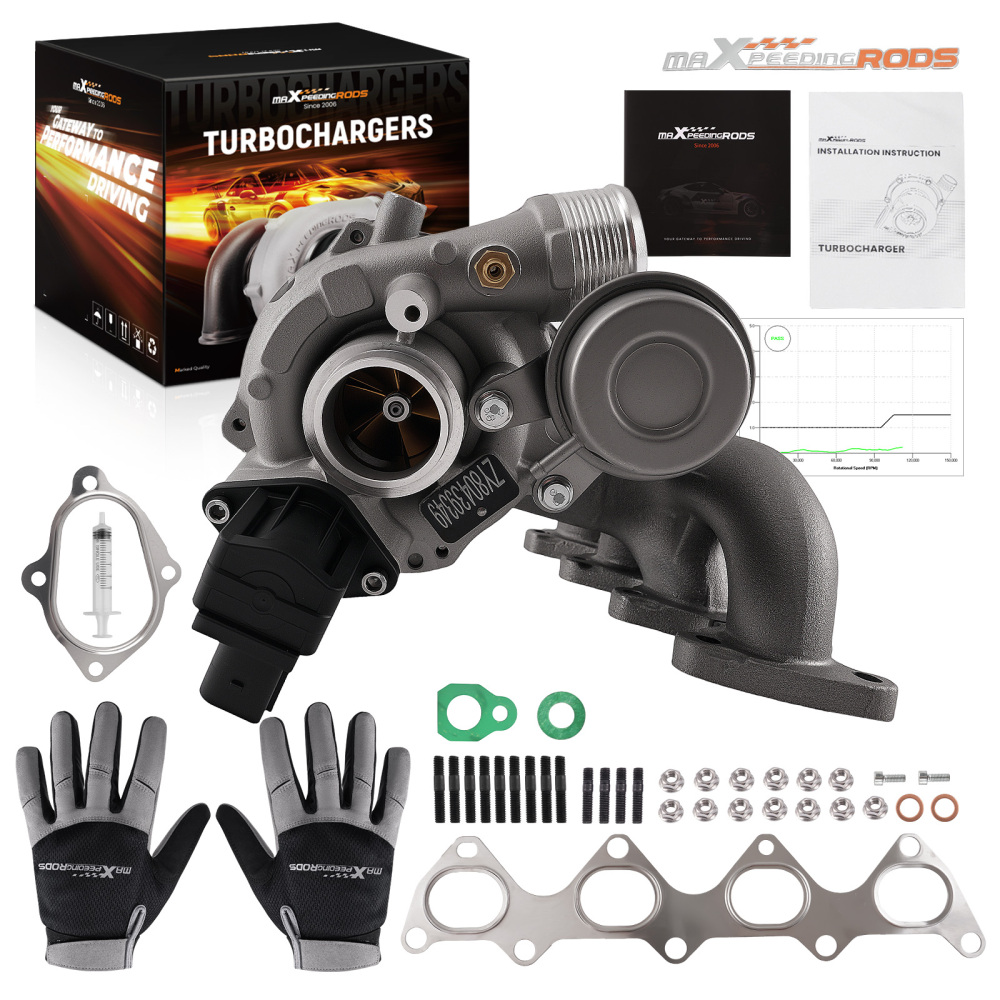

Package included

1x Turbocharger
2x Flange gaskets
2x Oil port bolts
4x Oil/Water port gasket
16x Bolts & Nuts
1x Manual
1x Brochure
1x Sticker
1x Gloves

Feature

1. Turbine housing: Silicon-Molybdenum - High temperature resistance, highly stable and ductile, corrosion and crack resistant, increases durability and reliability.
2. Turbine Wheel: K419 alloy - H temperature resistance, efficiently converts engine exhaust gasses into kinetic energy, resists thermal breakdown for smooth reliable operation.
3. Billet Compressor Wheel: Forged billet aluminum CNC machined compressor wheel - High efficiency, fast response, lower fuel consumption, smooth operation.
4. Oil Seal: High-speed steel oil seal ring - Abrasion and heat resistant, protects bearings, prevents oil leakage and smoking.

Note

* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
* Please confirm your original turbo PART NUMBER before Purchasing.
* Professional installation is highly recommended,
* Before installation, please check the oil supply sufficient, clearnliness the air filter and gasoline , and the gasoline air tightness.
