Specification

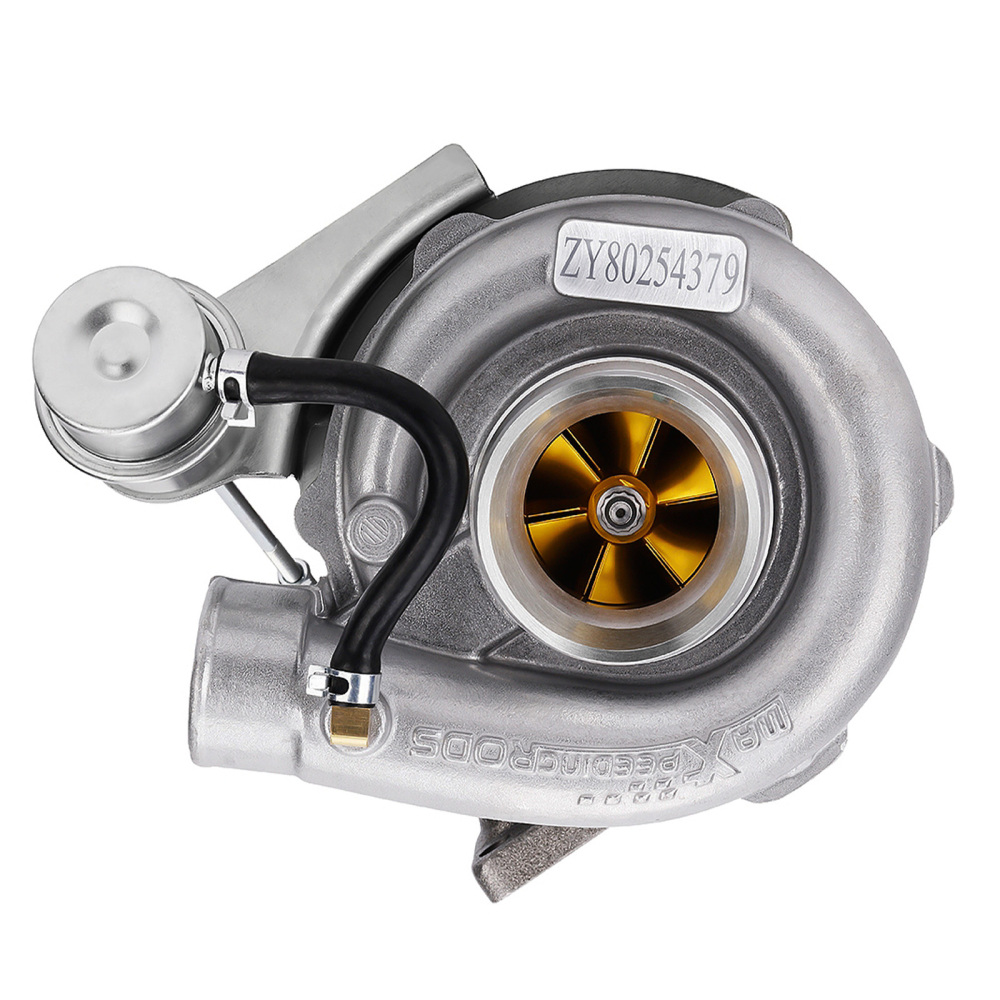

Turbocharger
Compatible for 1.5L to 2.5L any 4/6 cylinder engine
Horse Power: Capable of Boosting Horse Power up to 420HP
Cooling Type: Oil Cooled
Exhaust Inlet (Turbo Manifold) Flange: T3 4 bolt Flange Patterns
Exhaust Outlet () Flange: V-Band Flange
Turbine Trim: 74.2
Turbine Inducer Diameter: 64.8 mm
Turbine Exducer Diameter: 55.8mm
Turbine A/R: 0.63
Compressor Trim: 48.1
Compressor Inducer Diameter: 52.7 mm
Compressor Exducer Diameter: 76 mm
Compressor A/R: 0.5
Bearing: Journal Bearing
Warranty: one year
Internal Wastegate: Yes
Oil Line
Oil Return Line: Length: 550mm || Inner Diameter: 21mm
Oil Feed Line: Length: 1000mm || Inner Diameter: 14mm

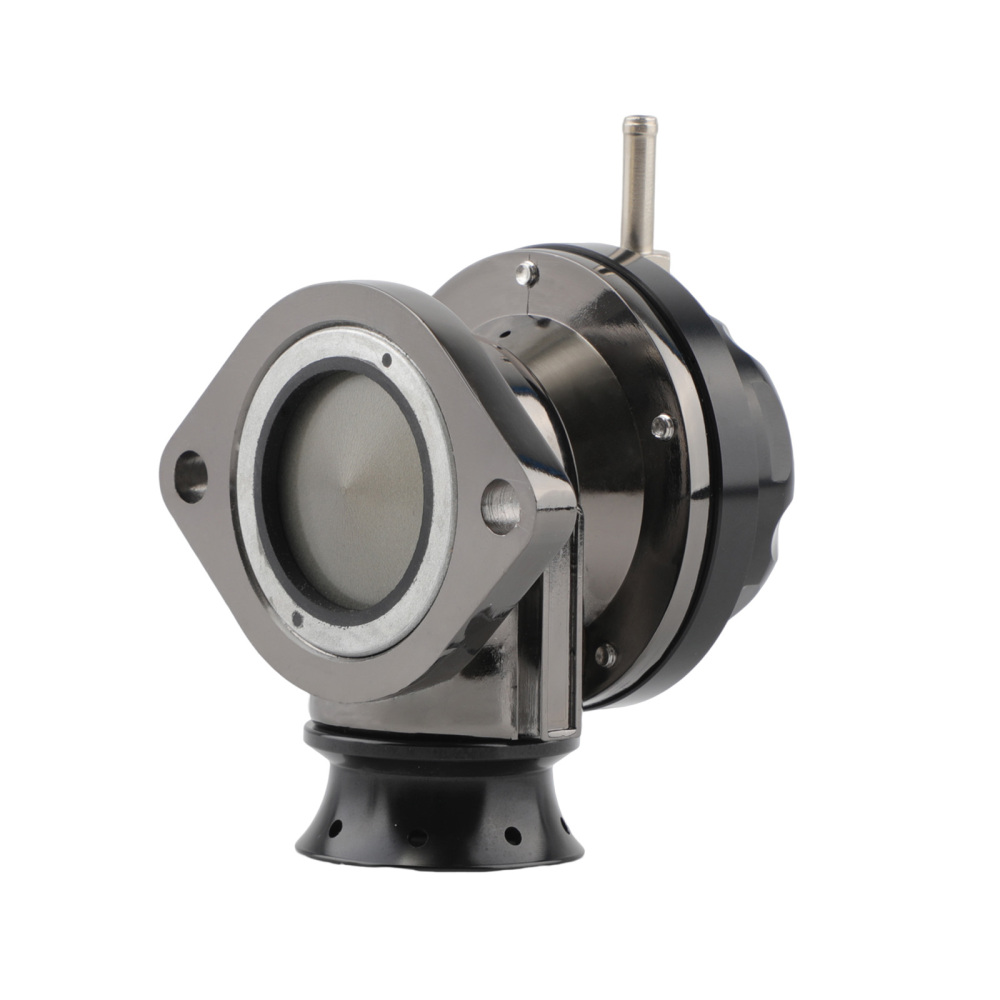

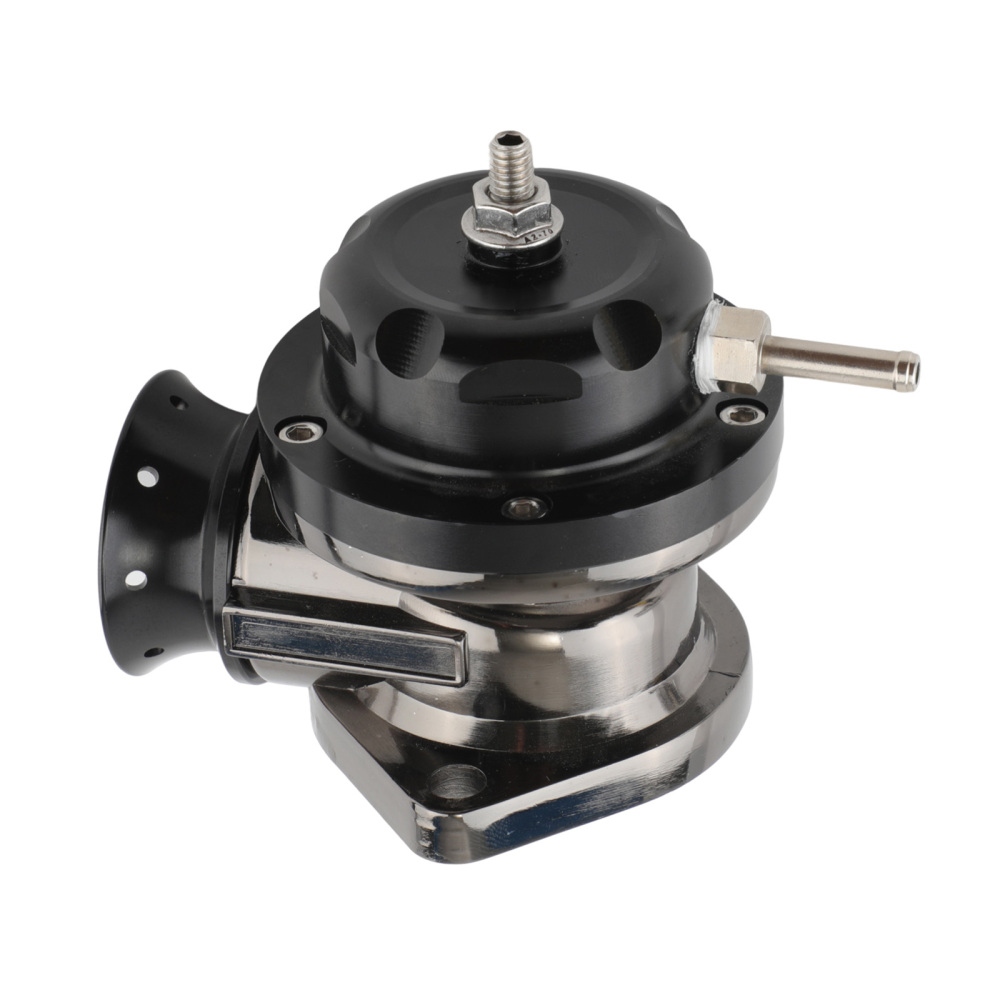

Blow Off Valve
Holds Up to 30PSI Boost Pressure
Easy Assembly,Aluminum Flange, CNC Machined Billet Aluminum Body
Dual Spring System Promoted Response & Allows for High Boost Pressures
Hard-Anodized Valve for Increased Air Flow
Powder-Coated Anodized and Polished Finish
2 Bolts Mounting Design

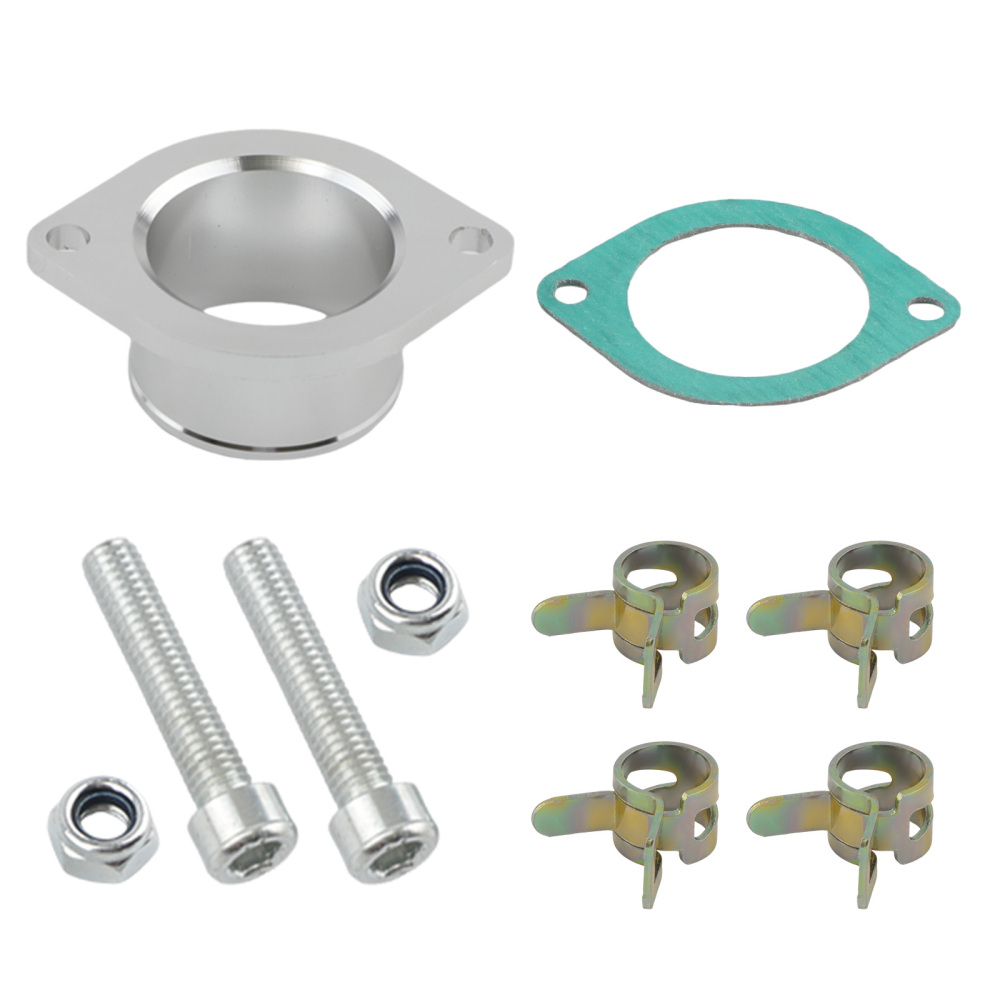

Flange Pipe Adapter:
2.50" Pipe Size
Fits Type-S or Type-RS Dump Pipe Flange
Oval / 2 Bolt Flange Design type
