Billet TurboCharger compatible for Toyota Hilux 1998-2015 (KZN165 N60 KUN26 N70 1KD)

Application

Compatible for Toyota Hilux 1998-2015 (KZN165 N60, KUN26 N70 1KD)
Compatible for Isuzu Dmax 2008-2020 4JJ1
compatible for Holden Rodeo RA7 2007-2008 4JJ1
For RC compatible for Colorado 2008-2012 4JJ1

Note : This is universal application turbo, so modification might be required for some vehicles.

Specification

Turbo Model: Maxpeedingrods F55
Cooling Type: Water+Oil Cooling
Bearing Type: Floating Bearing
Turbine Inducer: 56mm
Turbine Exducer: 48.9mm
Compressor Inducer: 48.53mm
Compressor Exducer: 69.66mm
Compressor:6*6 blades
Turbine:11 blades
Maximum PSI: 30-40 PSI
Condition: 100% Brand New
Accessories: You will get what you can see in the pictures exactly
Package Size:27x23x29 cm
Package Weight: 7940g

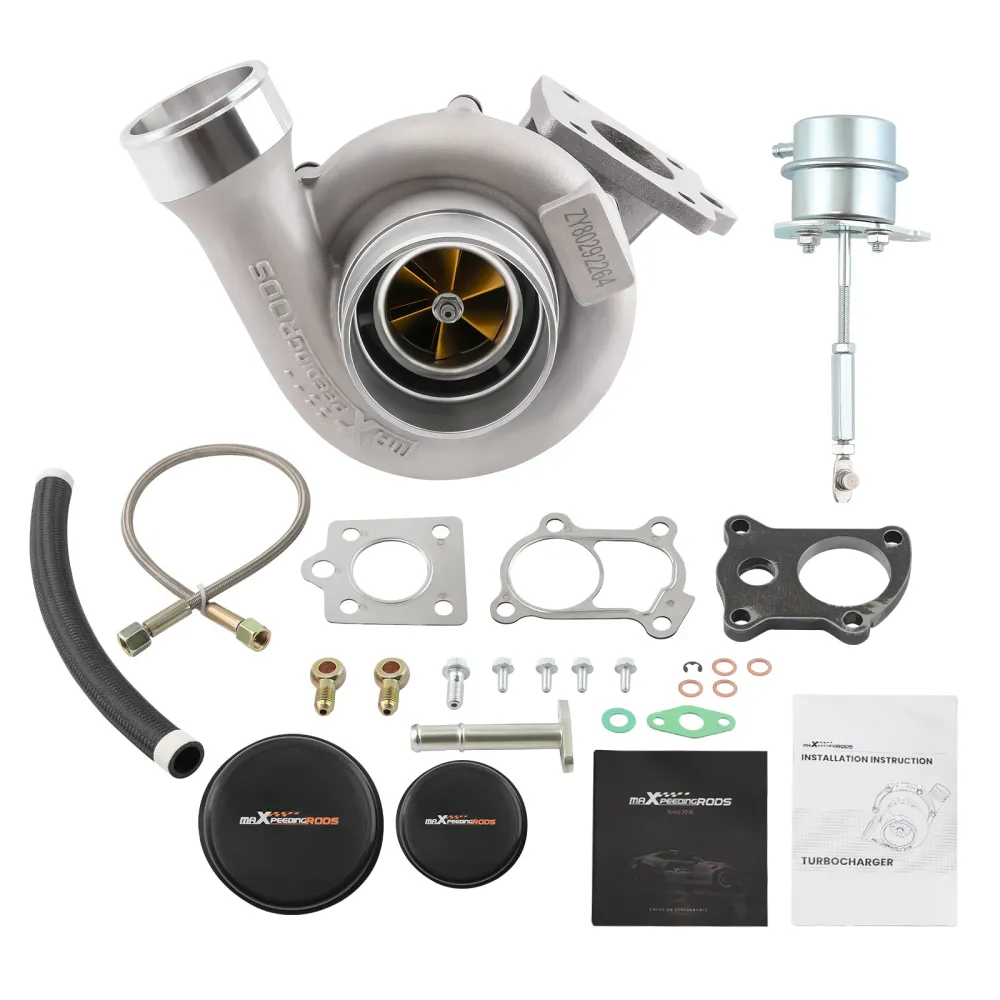

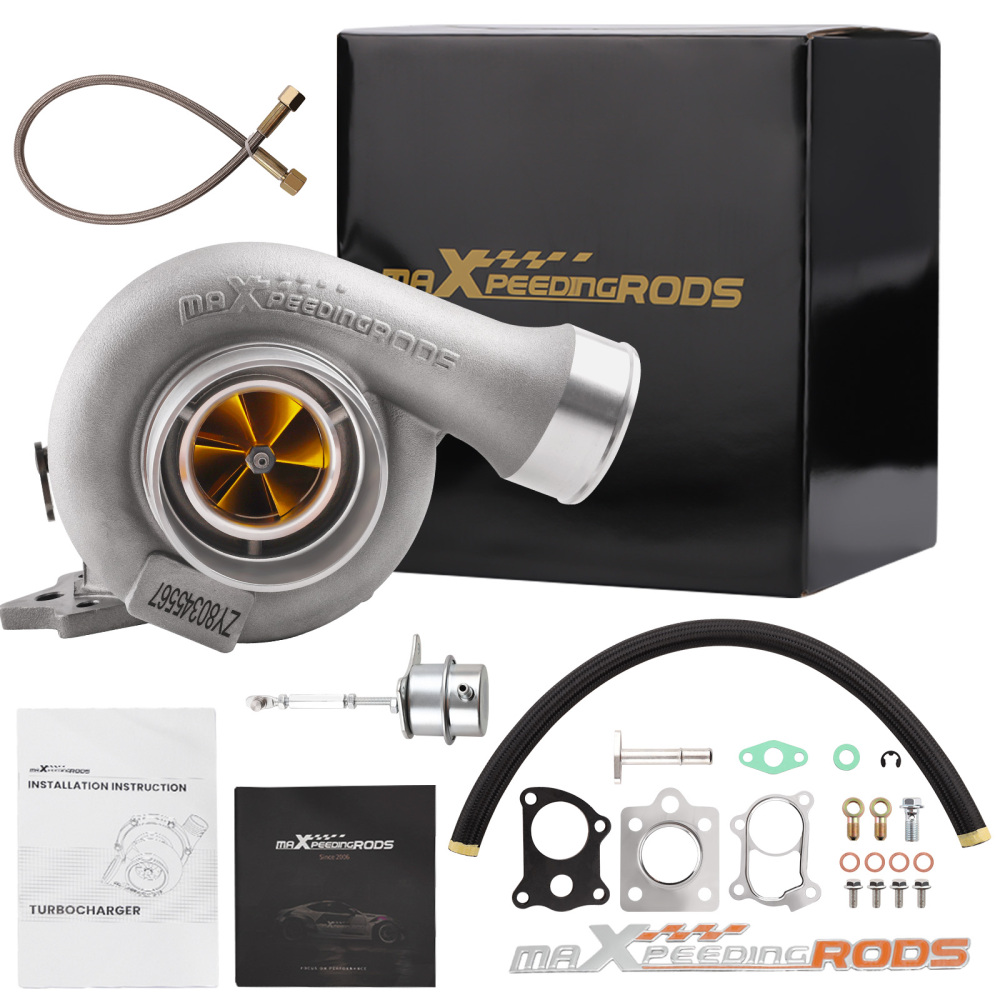

Package included

1x Turbocharger
2x Flange Gaskets
1x Flange
1x Oil feed line and fittings
1x Oil drain fittings
1x Wastegate
1x Manual
1x Brochure
1x Sticker

Feature

1. Turbine housing: Silicon-Molybdenum - High temperature resistance, highly stable and ductile, corrosion and crack resistant, increases thermal stability and reliability.
2. Turbine Wheel: K419 alloy - H temperature resistance, efficiently converts engine exhaust gasses into kinetic energy, resists thermal breakdown for smooth reliable operation.
3. Billet Compressor Wheel: Forged billet aluminum CNC machined compressor wheel - High efficiency, fast response, lower fuel consumption, smooth operation.
4. Oil Seal: High-speed steel oil seal ring - Abrasion and heat resistant, protects bearings, prevents oil leakage and smoking.

Note

* Professional installation is highly recommended
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!

Note

Note 1：All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
Note 2: Not For Sale or Use in Carlifornia, or New York(for all vehicles registered in these states)

Notice：

All modifications must be installed by licensed mechanics and in compliance with your local modification regulations
