Billet for GT1544VTurbocharger Turbo 753420forCitroen compatible for Peugeot 1.6 HDI, 110 CV

Application

Compatible for CITROEN C2 1.6L D DV6TED4 05 -
Compatible for CITROEN C3 HDI 1.6L D DV6TED4 06 -
Compatible for CITROEN C4 HDI 1.6L D DV6TED4 04 -
Compatible for CITROEN C5 HDI 1.6L D DV6TED4 03 -
Compatible for CITROEN XSARA Picasso 1.6L D DV6TED4 03 -
Compatible for CITROEN Picasso 1.6 HDi FAP 1.6L D DV6TED4 04 -
Compatible for CITROEN Berlingo 1.6 HDi FAP 1.6L D DV6TED4 05 -
Compatible for PEUGEOT 1007 109HP 1.6DHi Fap DV6TED18 05 -
Compatible for PEUGEOT 207 Hdi 1.6L D DV6TED4 04 -
Compatible for PEUGEOT 206 Hdi 1.6L D DV6TED4 04 -
Compatible for PEUGEOT 407 Hdi 1.6L D DV6TED4 04 -
Compatible for PEUGEOT 307 Hdi 1.6L D DV6TED4 04 -
Compatible for PEUGEOT 308 Hdi 1.6L D DV6TED4 07 -
Compatible for PEUGEOT 3008 TDi 110 1.6L D DV6TED4 09 -
Compatible for PEUGEOT 5008 HDI 110 1.6L D DV6TED4 10 -
Compatible for Peugeot Partner 1.6 HDi 110 FAP 05-
Compatible for FORD C MAX 1.6L D DV6TED4 04 -
Compatible for FORD C-MAX TDCi 1.6L D DV6TED4 03 -
Compatible for FORD Focus TDCi 1.6L D DV6TED4 04 -
Compatible for FORD Mondeo III 1.6 TDCi 03-
Compatible for Volvo C30 1.6D 1.6L D4164T 06-
Compatible for VOLVO S40 1.6L D DV6TED4 05-09
Compatible for VOLVO V50 1.6L D DV6TED4 07-09
Compatible for MAZDA 3 1.6L D DV6TED4 04 -
For MINICOOPER D 1.6L D(R55 R56) W16 07 -

OE/Part number

740821
740821-1，740821-0001，740821-5001S，
740821-2，740821-0002，740821-5002S，
750030，
750030-1，750030-0001，750030-5001S，
750030-2，750030-0002，750030-5002S
753420，
753420-2，753420-0002，753420-5002S，
753420-3，753420-0003，753420-5003S，
753420-4，753420-0004，753420-5004S，
753420-5，753420-0005，753420-5005S，
753420-6，753420-0006，753420-5006S，
7534202, 7534203, 7534204, 7534205,
0375J3，0375J6，0375J7，0375J8
1373584，1479055，1355027，1254337，1231096，1789074，1465162，1340133，1441253，1319614，8603746，36002480，36000722，31259243，8603489
Y60113700, Y60113700A, Y60113700B，Y60113700C, Y60113700D，Y60113700E，Y60113700F， Y60113700G
7804903，11657804903,
3M5Q6K682AK，3M5Q6K682AE, 3M5Q6K682AF ，3M5Q6K682AH，
9656125880，9657248680，9660641380，9650764480，9663199280，9654128780，9651839880

Specification

Turbo Model：For GT1544V GT15V GT15
Engine Code：W16,D4164T, DV6TED4
Cooling Type: Oil Cooling
Bearing Type: Journal Bearing / Floating Bearing
Thrust bearings: 270 Degrees
Hosepower: Up to 109HP
Turbo Type: Individual/VNT
Actuator Type: Vacuum actuator
Universal Fitment:No
Finish:No
Condition: 100% Brand New
Accessories: You will receive the parts exactly as shown in the picture above.
Package Size:36x24x23cm
Package Weight: 5400g

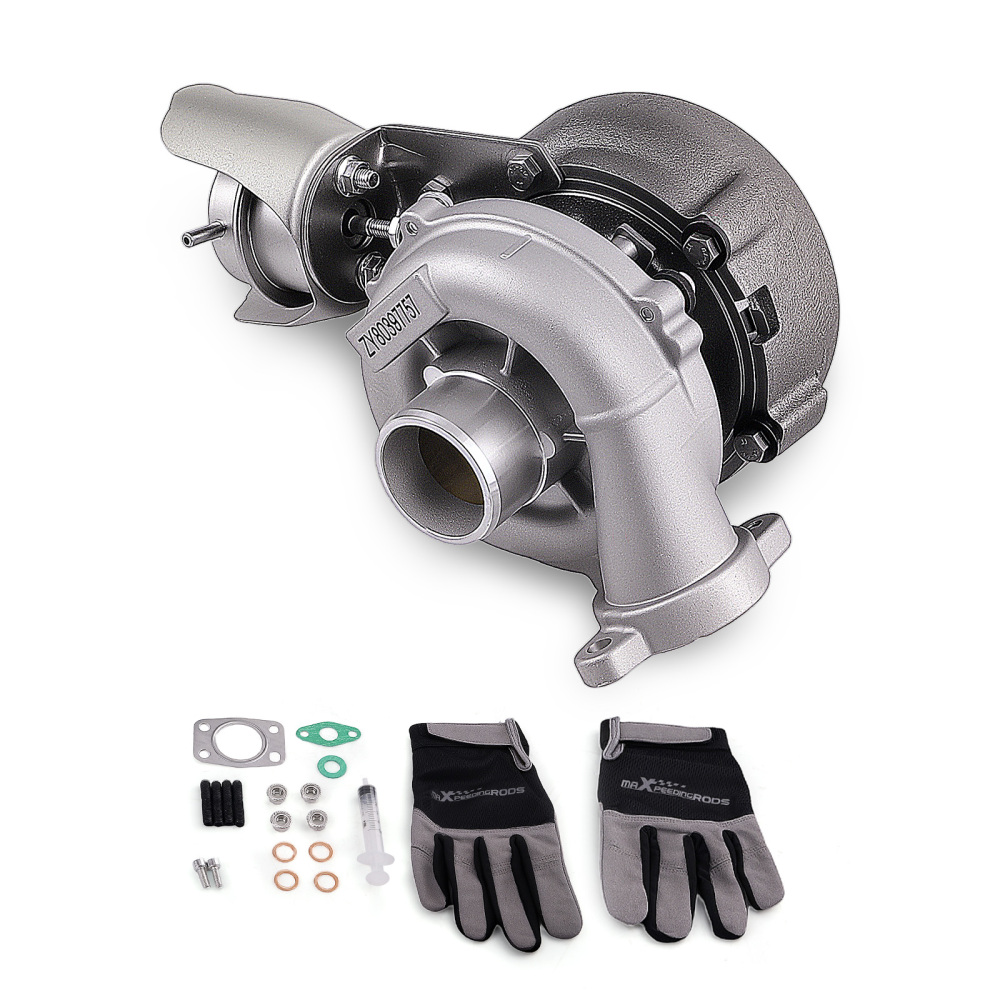

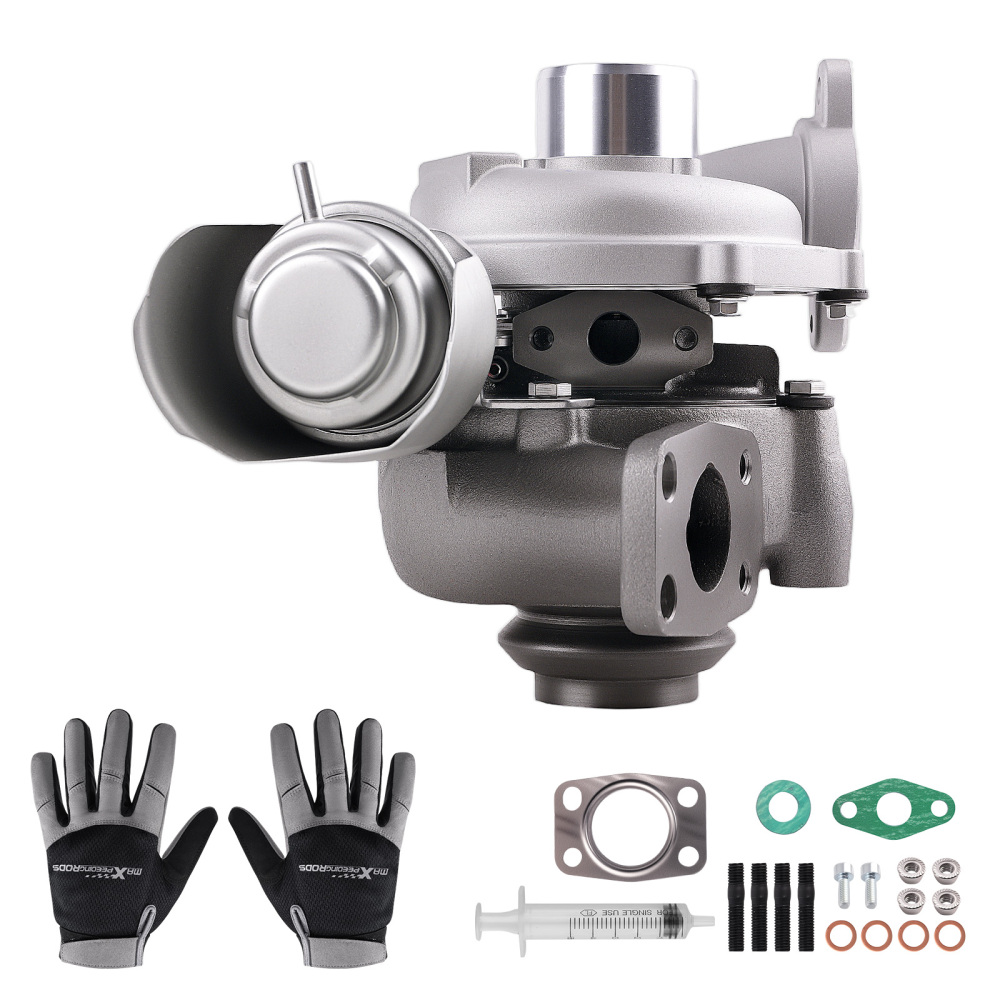

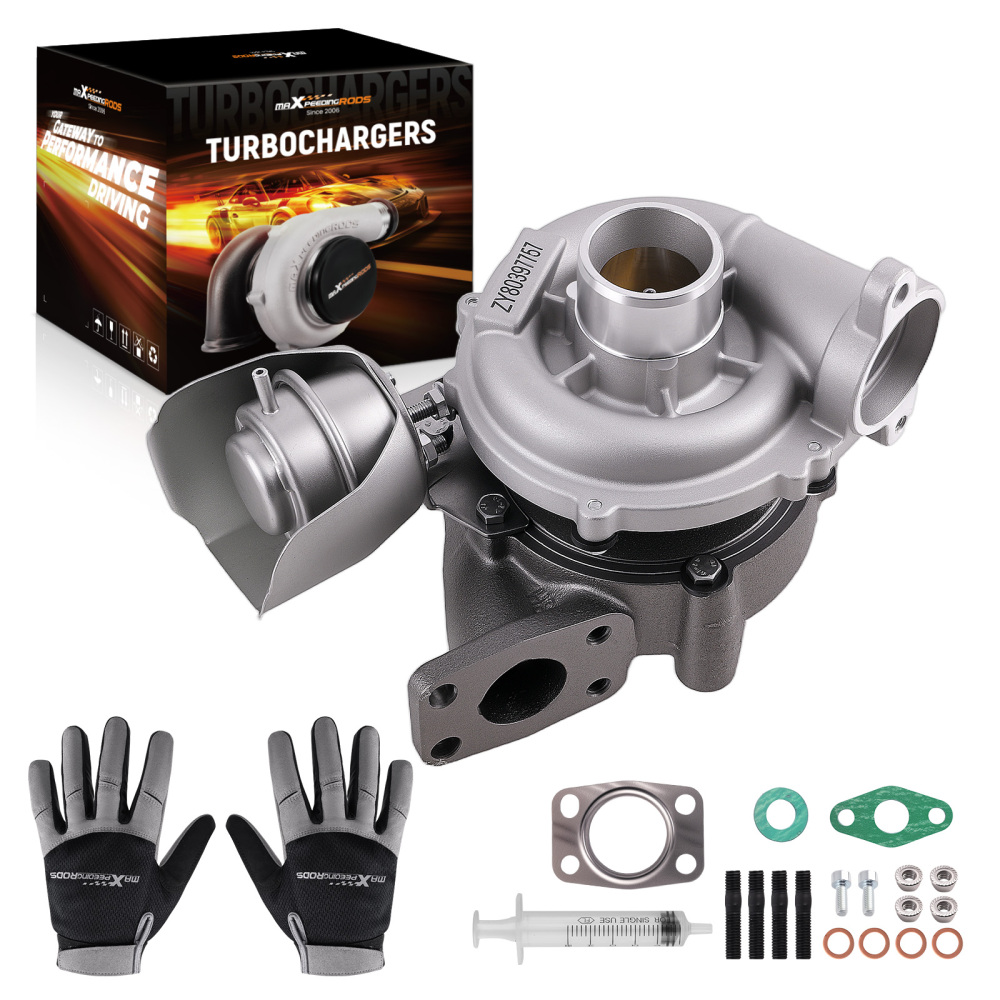

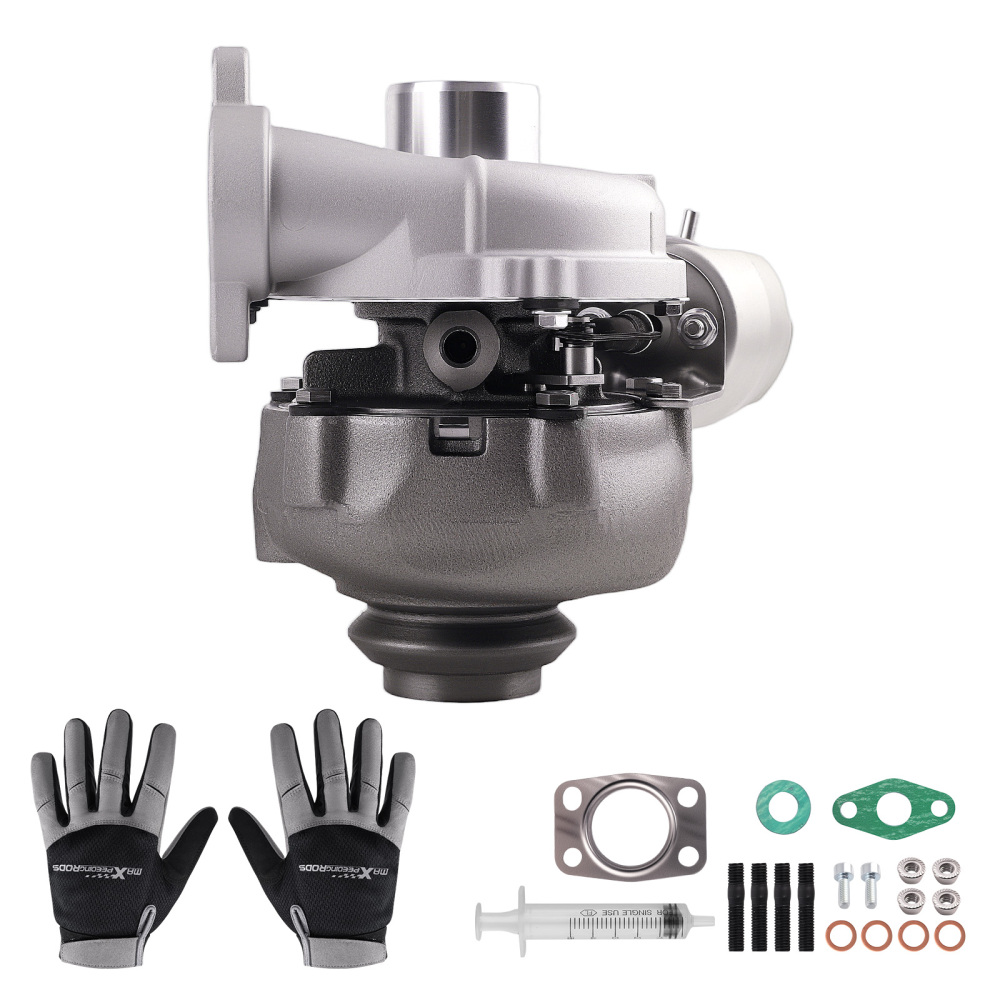

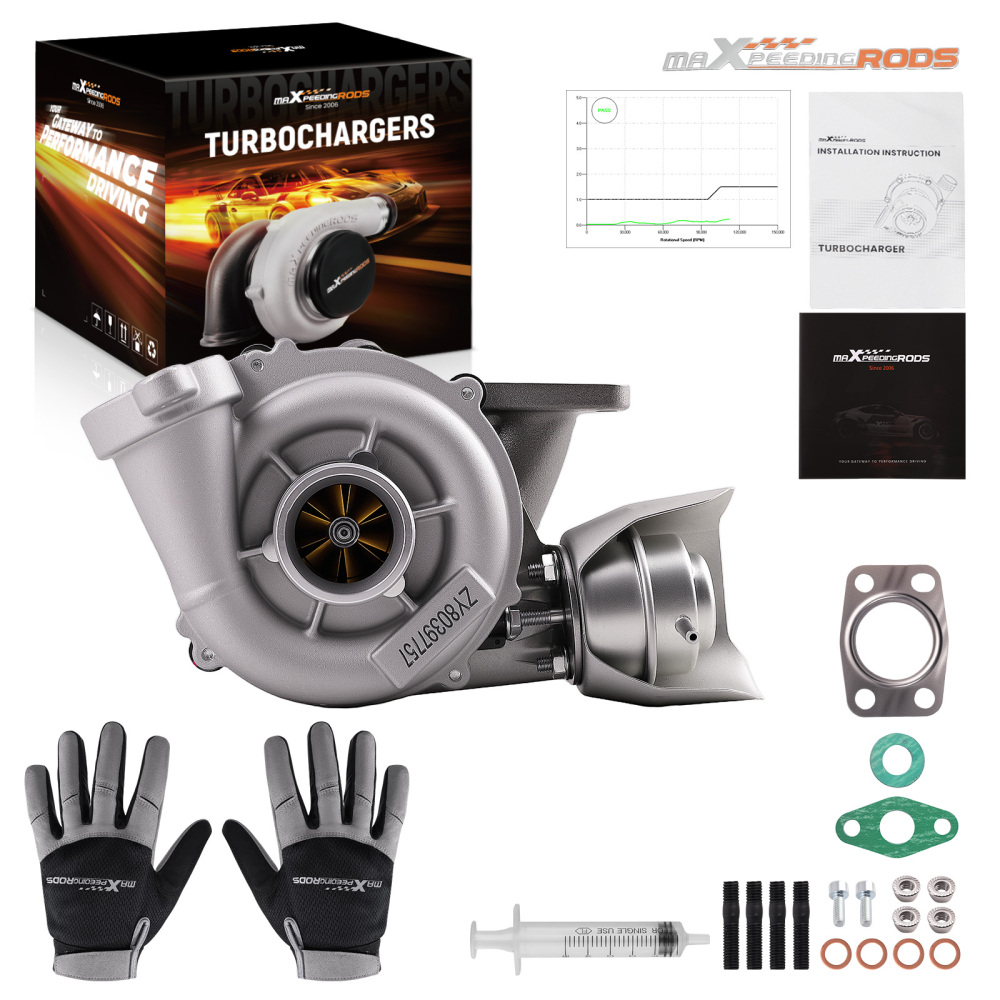

Package included

1xTurbocharger
2xOil port gaskets
1xFlange gasket
1xManual
1xBrochure
1xSticker

Feature

*Product Material
1. Turbine housing ：Silicon-Molybdenum - temperature resistant up to 850℃

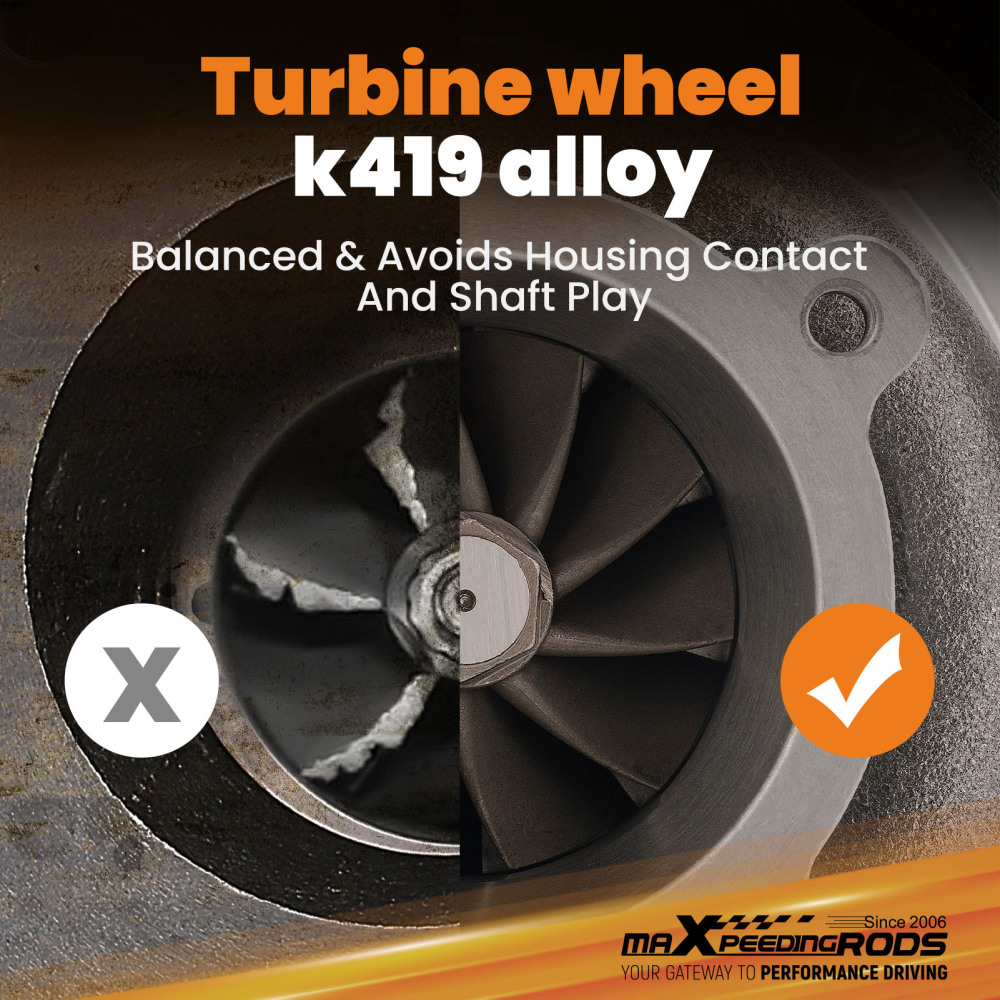

2. Steel Turbine Wheel：K419 alloy - high oxidation stability and resistance up to 1000℃
3. Compressor housing：ZL104 aluminum with lightweight

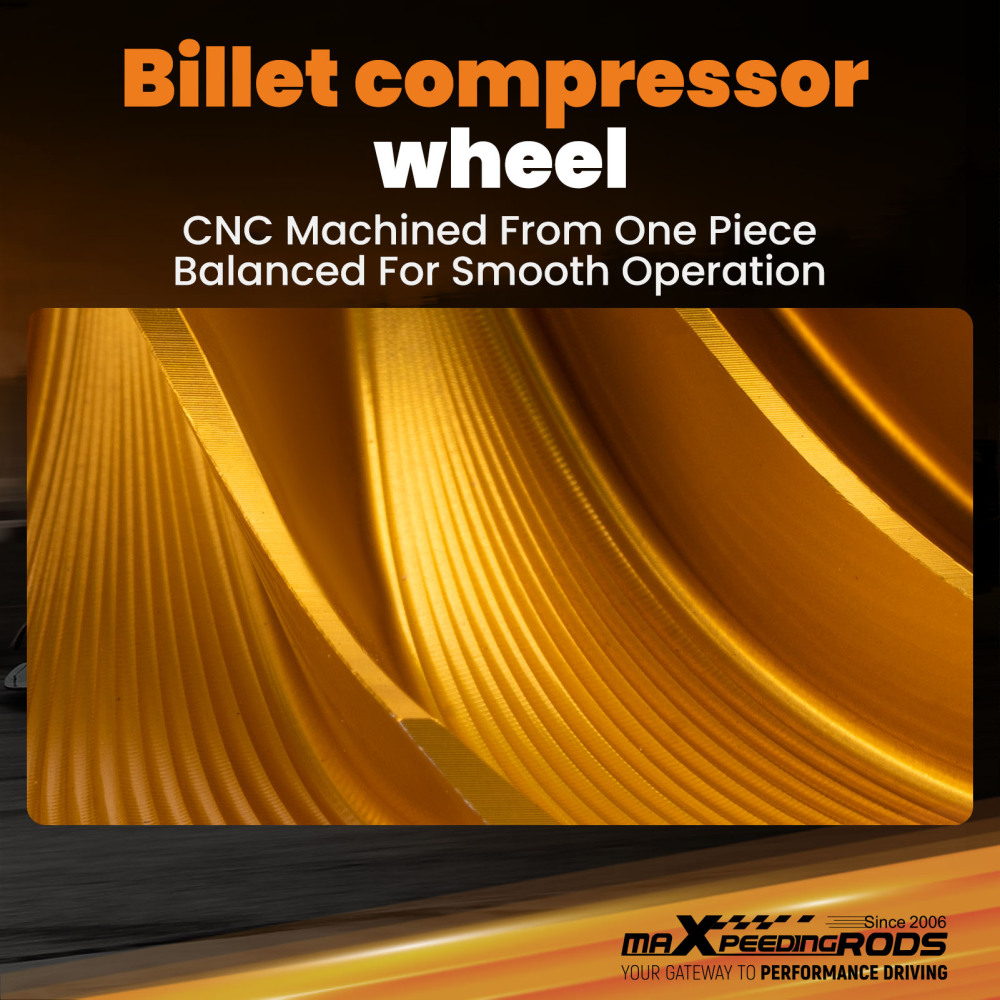

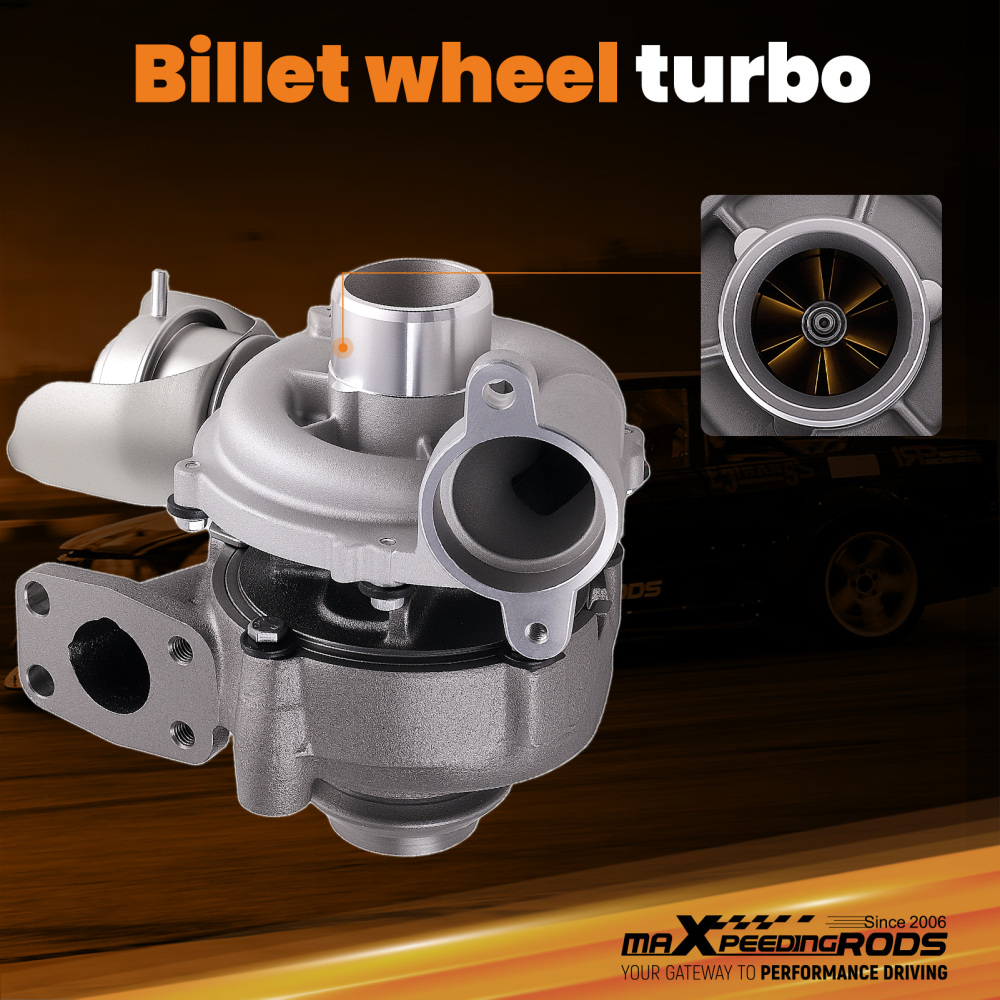

4. Billet compressor wheel：forged full-machined billet aluminum compressor wheels with a larger horsepower range and better boost response
*Product Performance
1. OEM fitment turbo with upgraded material and performance
2. Excellent high temperature resistance，high efficiency and durability
3. Rich experience in turbo production and own factory

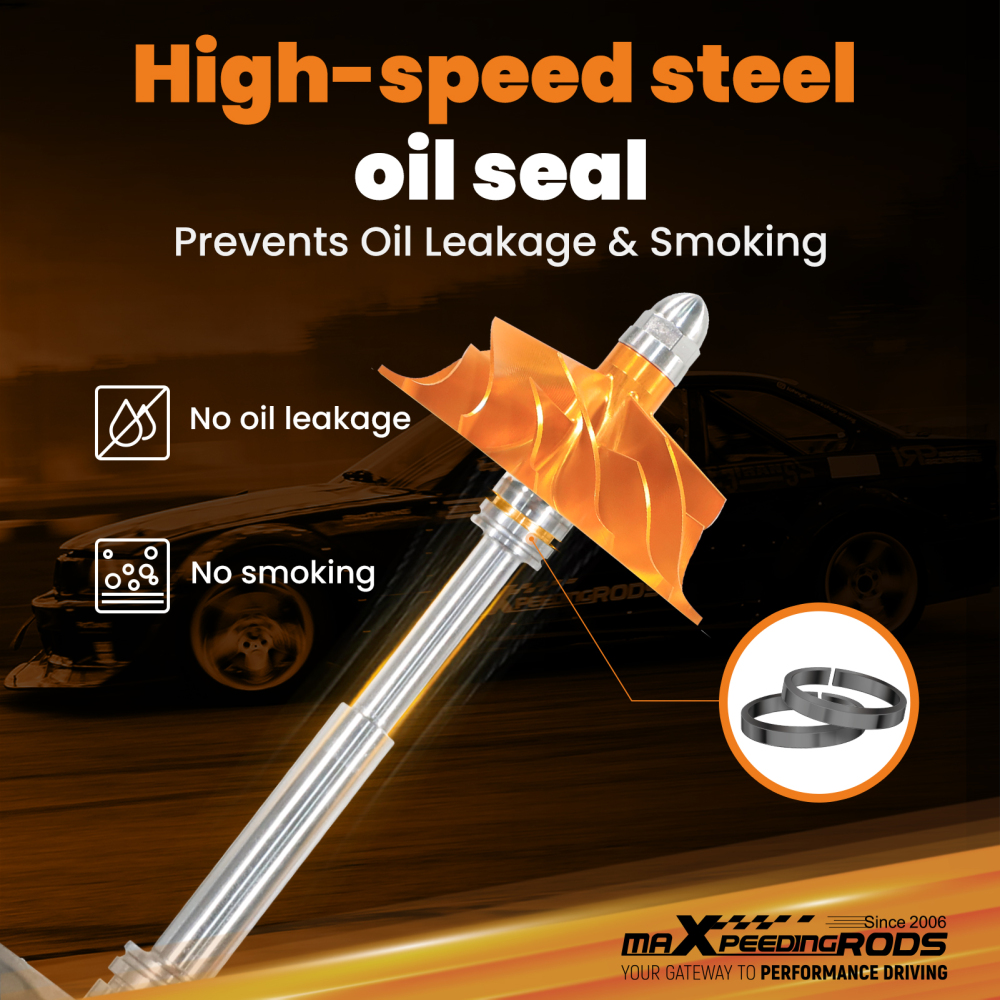

4. High-Speed oil seal ring and Precision clearance
* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS VSR3
2. G3-min-Flow VNT Turbo testing
3. Advanced Actuator Tester/Programmer

Note

* Please confirm your original turbo PART NUMBER before Purchasing
* Professional installation is highly recommended
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
