H-Beam Connecting Rods compatible for Audi/VW V6 Engine 2.6L 2.8L 2.7T 154mm Conrods

Application

Compatible for Audi B5 S4 quattro 2.7T

Specification

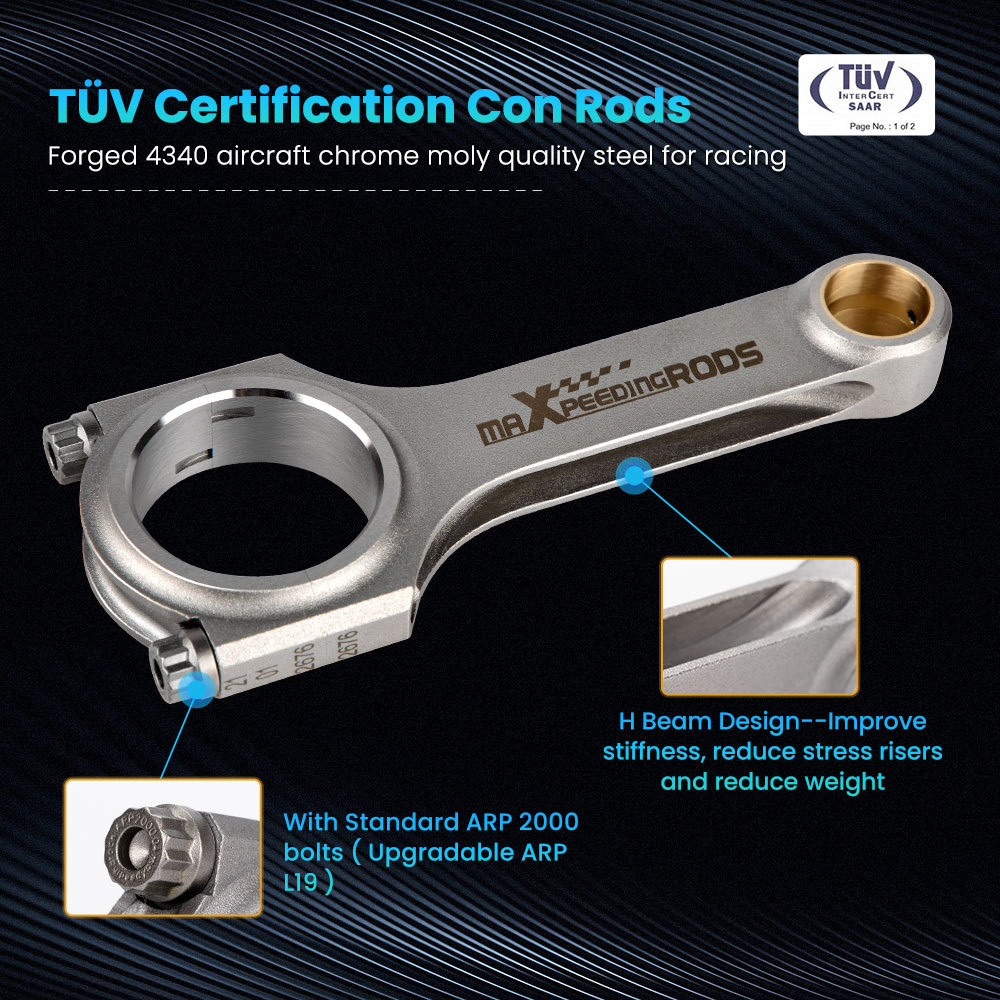

Performance Con Rods
Type: Forged 4340 aircraft chrome moly quality steel for racing
H-beam Conrods Quantity: 6 Pieces as showing in picture
Bolts: Including Genuine ARP 2000 bolts
Note: Extra cost for upgrading to ARP L19 bolts
Bolts Size: Genuine ARP 2000 5/16" bolts
Tolerance: Balanced to +/- 1 gram in set
Piston Bolt Hole: +-4/1000mm
Power: 600hp ~ 800PS per set
Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM
Top acceleration: 7000rpm
warranty: one year warranty for any manufacturing defect

Dimensions

Center to center length: 154mm
Big end diameter: 57.6mm
Small end diameter: 21mm
Big end width: 20.1mm
Small end width: 22mm

Feature

- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
- Designed and processed by CNC machine.
- All big and small ends are finished with SUNNEN honing machine
- Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
- 100% X-rayed, sonic tested and magnafluxed
- Multi-stage heat treated
- Shot peened to relieve stress
- Come with the bronzed bushing suitable for the floating piston pin

Note

Professional installation is highly recommended (No Instruction Included)
