Adjustable Coilover + Rear Lower Control Arm compatible for BMW E36 316i 318i 320i 323i

Introduction

Maxpeedingrods-SLC based on Maxpeedingrods-SNA coilovers, which is also height adjustable but adds damping adjustment ability by a knob on the top of the shaft. They are also made for street use, but the 24 level rebound damping control allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.






Application

Compatible for BMW 3 (E36) 4-door sedan 316i,318i,318is,320i,323i,325i,325is,328i,318tds,325td,325tds (09/1990-12/1998)
Compatible for BMW 3 (E36) 2-door coupe 318is,316i,320i,323i,325i,328i,328is (09/1991-04/1999)
Compatible for BMW 3 Convertible (E36) 318i,320i,323i,325i,328i (03/1993-04/1999)
Compatible for BMW 3 Touring (E36) 5-door wagon 316i,318i,318tds,320i,323i,325tds,328i (08/1994-12/1999)

Please note this item does not fit for M3 Model !






Specification

Top mounts: Pillow ball top mounts with camber plate
Damping: 24 levels rebound damping adjustable
Spring rate Front: 8 kg/mm (448 lbs/in)
Spring rate Rear: 7 kg/mm (392 lbs/in)
Spring length Front: 180mm
Spring length Rear: 183mm
Adjustable height: lowering 1-3inch
Coilover overall length Front: 560mm-683mm
Coilover overall length Rear: 450mm-535mm
Shock type: Twin tube
Spring Preload: 7-10 mm
Color: Red







Package included

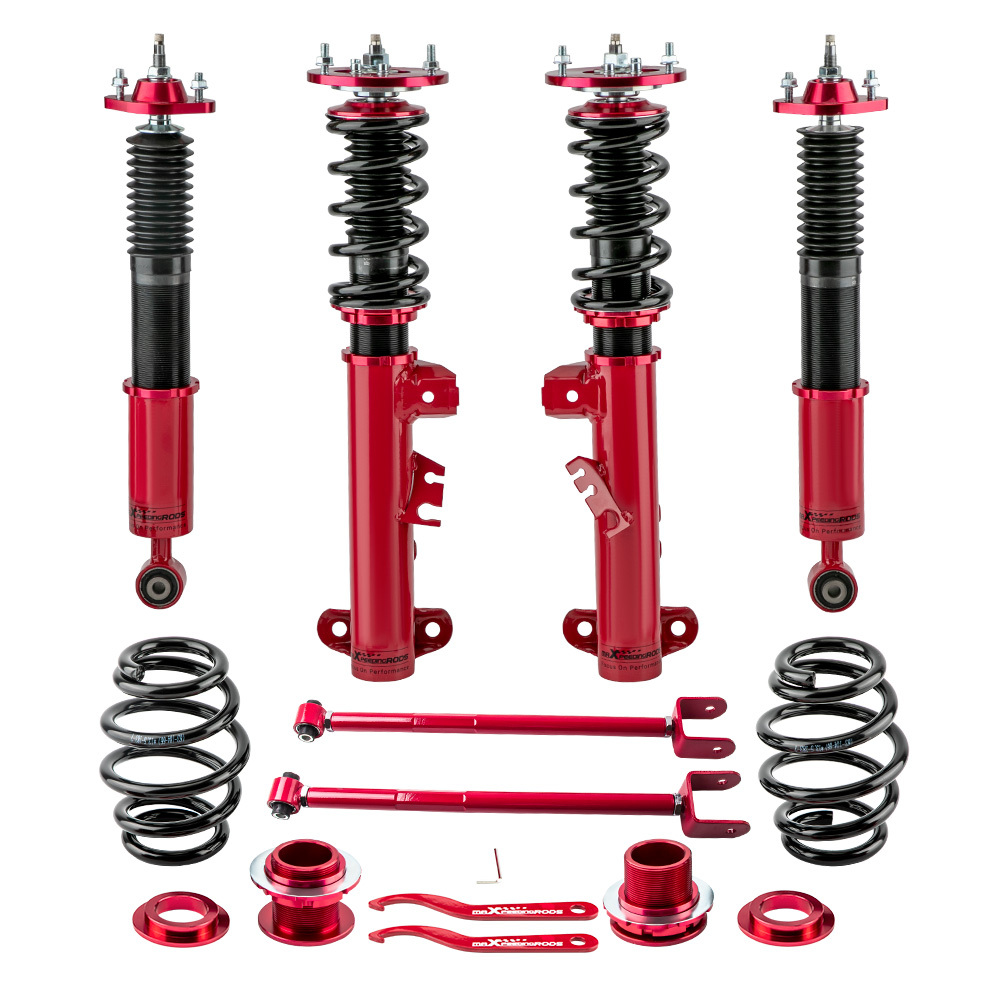

-Complete coilovers 2 front and 2 rear
-1 pair Rear Lower Control Arms
-A pair wrench for height adjustment








Features
1. Lowered height adjustment from 1''-3'' which allow lower center of gravity and also add a more aggressive stance
2. A 24 rebound damping adjustment level allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.
3. Twin-Tube structure allows sufficient stroke within the shock absorber
4. Separate height adjustment does not affect damper stroke
5. High Tensile performance spring – STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus, the special surface treatment improves the durability and performance.
6. Height Adjustment tools included
7. Camber plate top mounts help to eliminate the need for a separate camber kit
8. Pillow ball top mount - It improves the steering feel and response
9. Most pieces in our Coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components.
10. Full rebuildable






Notice
* Professional installation is highly recommended .
* Please check our store for other auto parts you may be interested in.
