Compatible for AC Air Conditioning Crimper Hydraulic Hose Tool 7 Die Set Crimping Pliers Kit

Specification

Condition：New
Type: Wiring pliers
Material: CRV
Stamper Hardness:53 HRC
Item model number：IG-71500(71550)
Pattern：Hydraulic Type

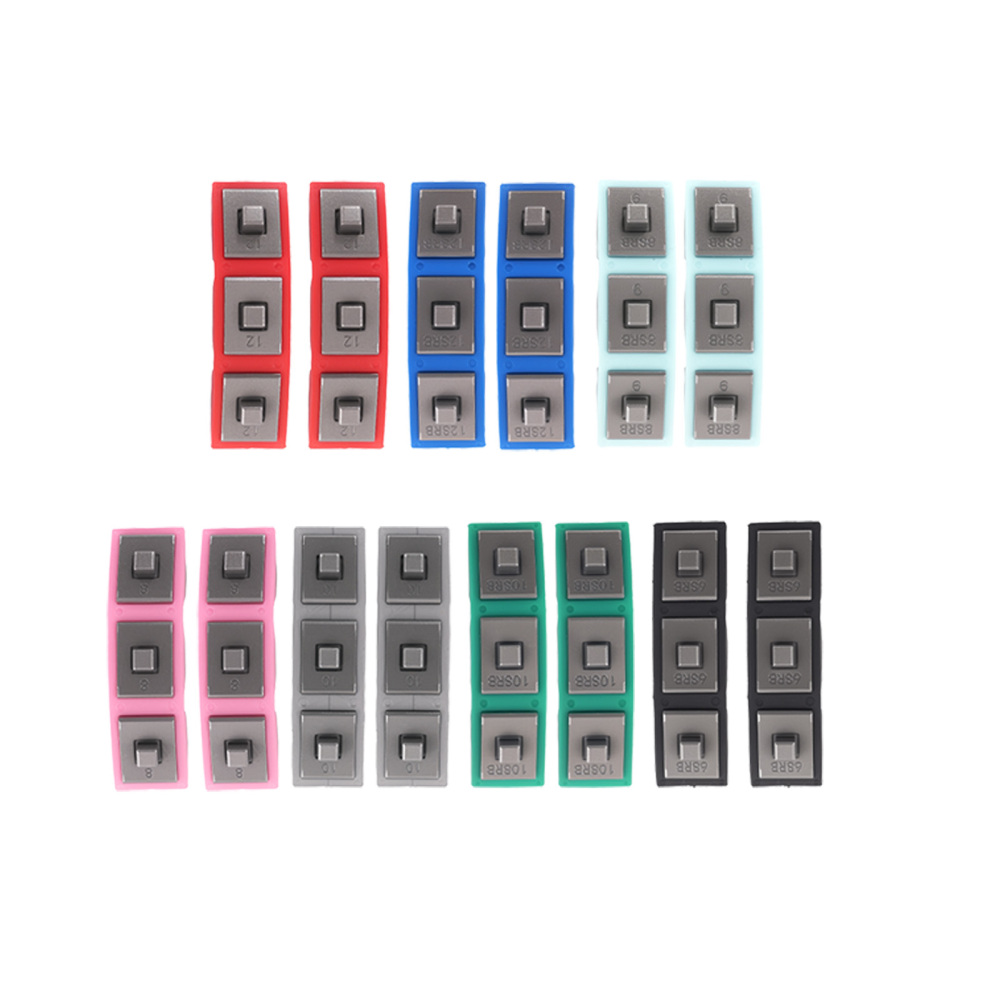

For Standard Hose Die Set:Purple Set– #6 (5/16”)，Red Set – #8 (13/32”)，Yellow Set – #10 (1/2”)，Green Set – #12 (5/8”)
For Reduceds Barrier Die Set:Black Set – #6SRB (5/16”)，Purple - #8SRB/ #6 (13/32")，Orange Set – #10SRB (1/2”)，Blue Set – #12SRB (5/8”)（ Purple die are for #6 & #8SRB）

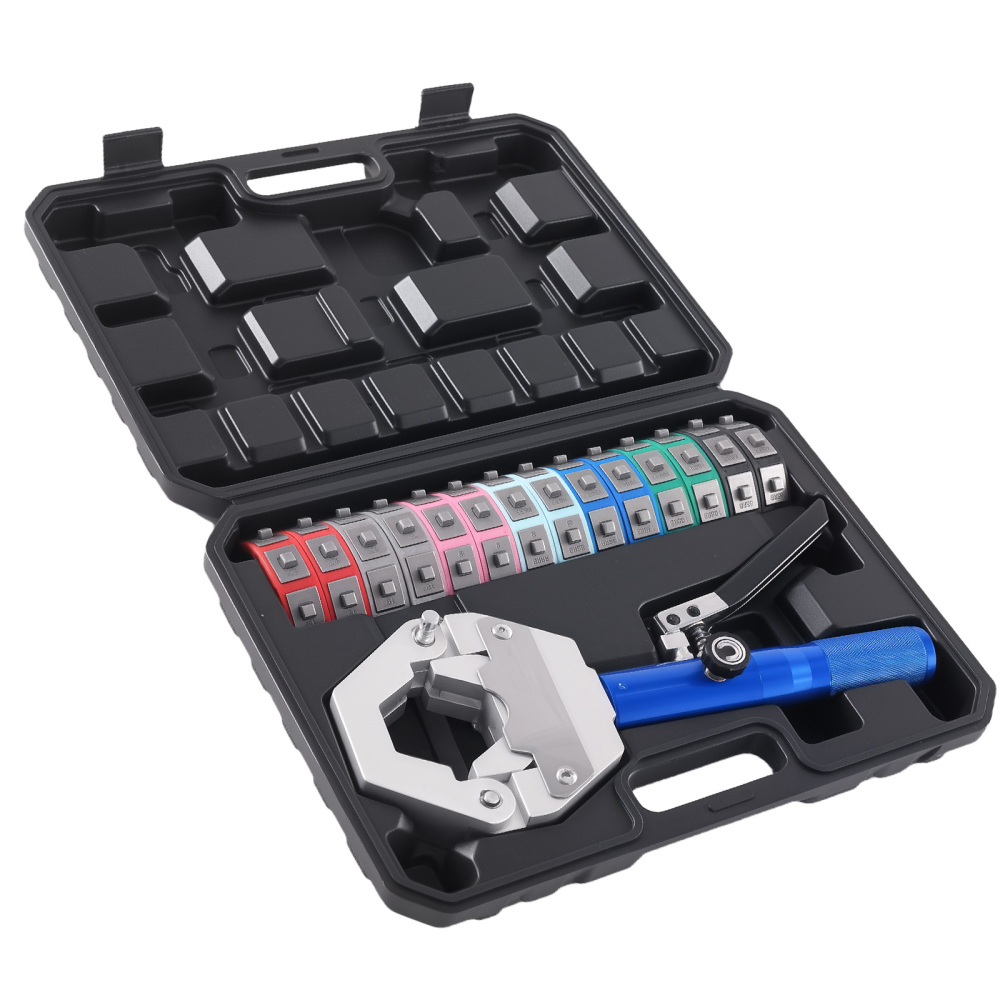

Package included

1* Hose Crimper
1* Universal Manual
1* Molded Box
7* Die Set
1* set seal rings
Showing as the picture

Feature

1. The Hose Crimper Kit comes with a complete set of dies covering hose sizes: 6(5/16"), 8(13/32"), 10(1/2"), 12(5/8") and reduced barrier hose sizes: 6(5/16"), 8(13/32)", 10(1/2"), 12(5/8") . Note: 8 SRB and 6 is the same dies, with purple color
2. This hydraulic crimping tool is made of CRV material, ensuring the durability. Stamper hardness can recompatible for ach up to 53 HRC, making the crimping effect better, and the hand‑held detcompatible for achable hydraulic design makes the manual air conditioning hose compressor easier to use
3. This compatible for ac hose crimper tool can be easily mounted to a bench using the holding fixture or held securely in a vice. The dies for hydraulic hose crimper snap quickly into the press fixture requiring no pins or screws
4. Hose Crimper Kit comes with a whole set of accessories and one storage box, which makes it easier for you using. Easy to store, easy to organize, avoid missing.

Note

A minor difference in model design may result in a different model.
Please carefully check if the pictures match with your model.

Operating Steps

1. Cutting The Hose：Take the hose and cut to the right length.
2. Remove the pin：Remove pin and loosen the handle till you can "Open" top yoke
3. Slect correct dies：Select the correct die set for the compatible for AC hose.(refer to back page for description)
4. Insert dies：Insert the dies into a joke tightly.
5. Turn body clockwise：Turn Body of tool clockwise until dies are snug against hose fitting
6. Crimping the hose：Pump handle to crimp fitting onto hose .continue pumping until handle comes to a stop.
7. Release the handle：Turn the hydraulic valve to the OPEN position
8. After Crimping：6 segmented crimp, and produces a factory quality crimp.
