Coilover Coil Spring Over Shock Suspension compatible for VW Golf4 Bora compatible for Seat Leon 1

Item Number 3002104918
Stock In Stock
Color

Combination offer

  • A
  • B
  • C
  • D
  • E
  • F
  • G

Introduction

maXpeedingrods' MXR-S1 series is ideal for those who want to change the old worn out strut but improve handling at same time. It features with height adjustable and maintain the OE ride quality to the greatest extent.

Application

Compatible For VW GOLF IV (1J1) FWD 1998-2007
Compatible For SEAT LEON (1M1) FWD 1999-2006
Compatible For VW NEW BEETLE (9C1, 1C1) FWD 1998-2010
(will not fit 4-MOTION & VW Golf MK4 R32 & Audi quattro models )
Attention: sway bar link bracket is not included for AUDI TT 8N.

Specification

Top mounts: Front and rear OE top mounts required
Damping: non-adjustable
Spring rate Front: 8 kg/mm (448 lbs/in)
Spring rate Rear: 6 kg/mm (336 lbs/in)
Spring length Front: 170mm
Spring length Rear: 275mm
Adjustable height: lowering 35mm-75mm
Coilover overall length Front: 370mm-540mm
Coilover overall length Rear: 410mm-650mm
Shock type: Twin tube
Spring Preload: No
Color: red

Package included

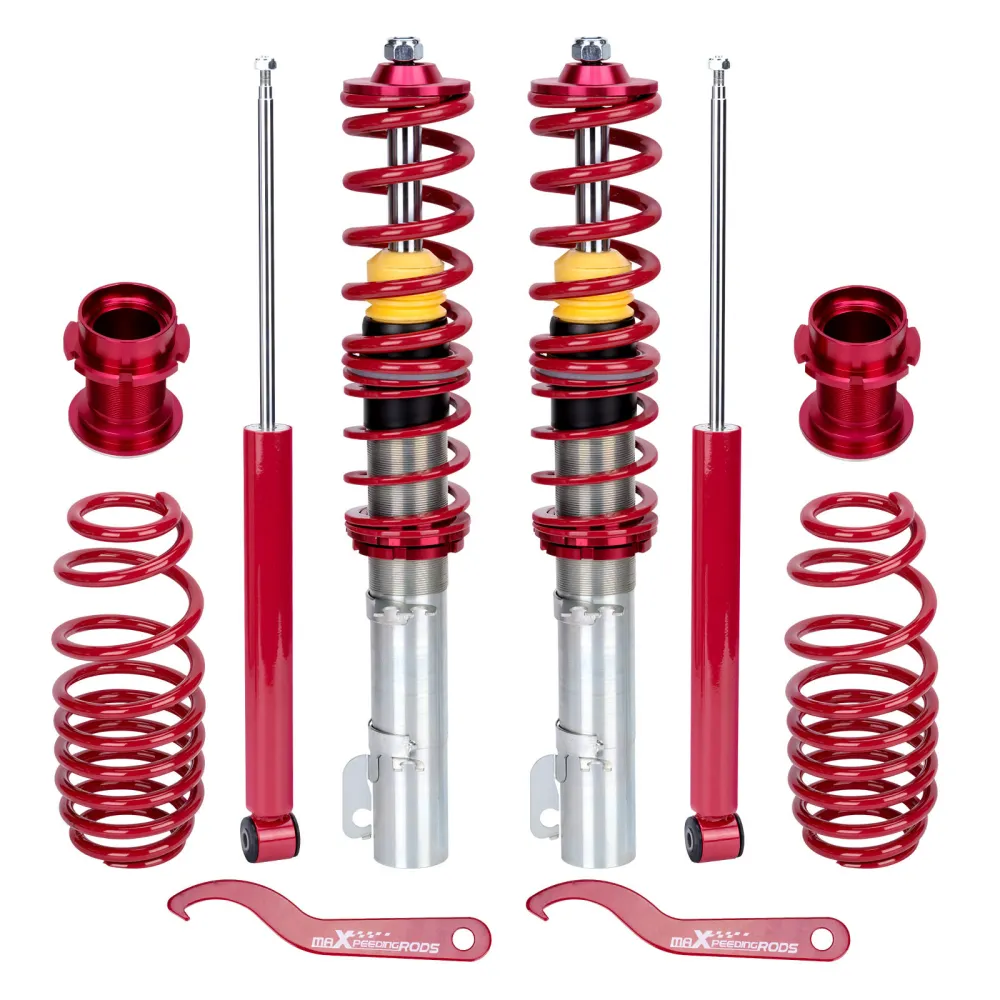

product included: springs and shocks for front and rear, no top mounts included

Dimension

Size: 71*51*21 cm
Weight: 20.46 kg

Feature

Twin-Tube structure allows sufficient stroke within the shock absorber.
Height can be adjusted with coilovers installed on the vehicle.
High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.
Height Adjustment tools included.
Steel front shock bodies with special surface treatment to improve the durability.
