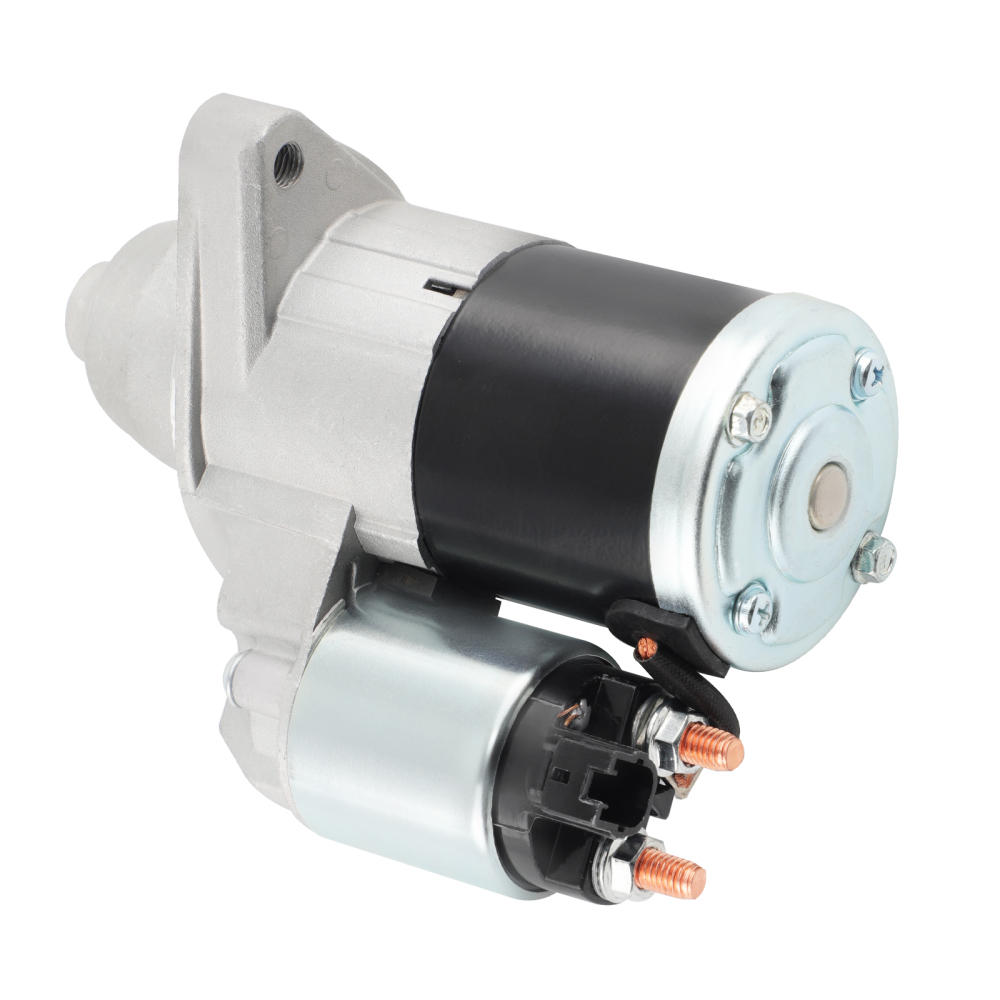

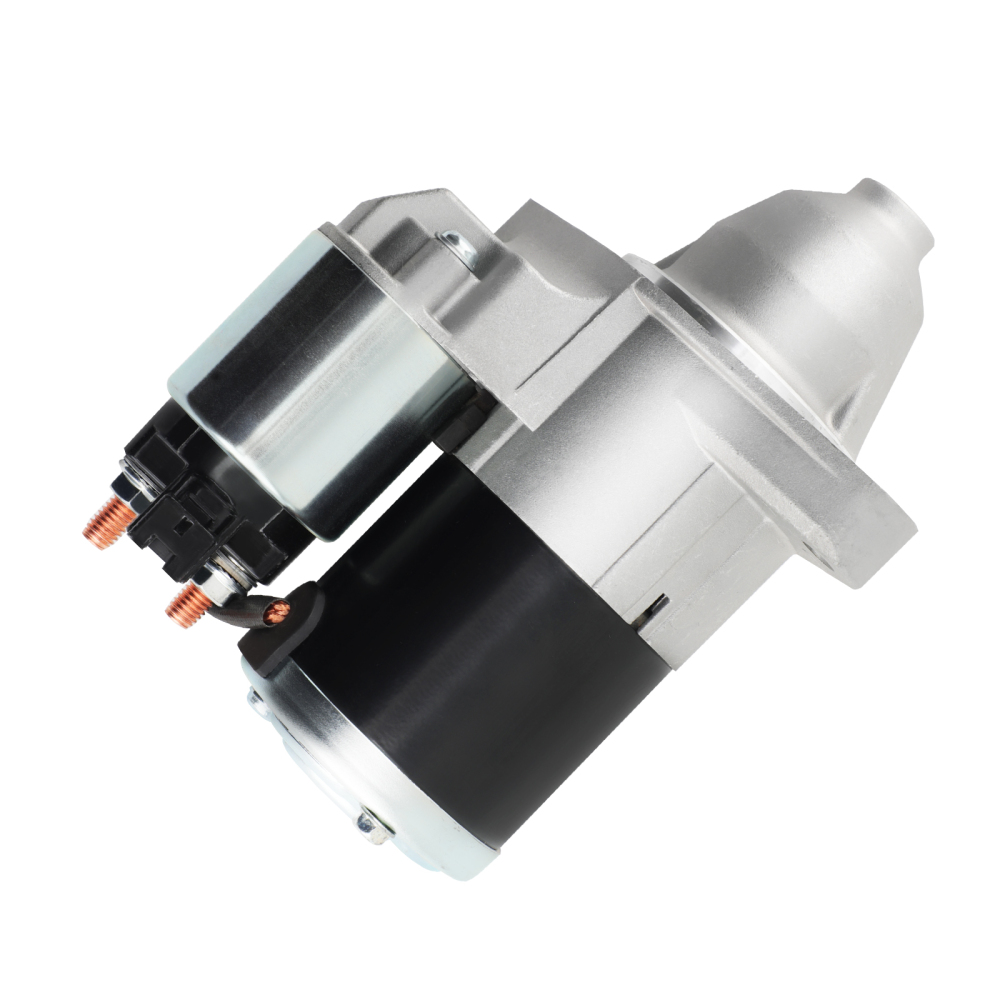

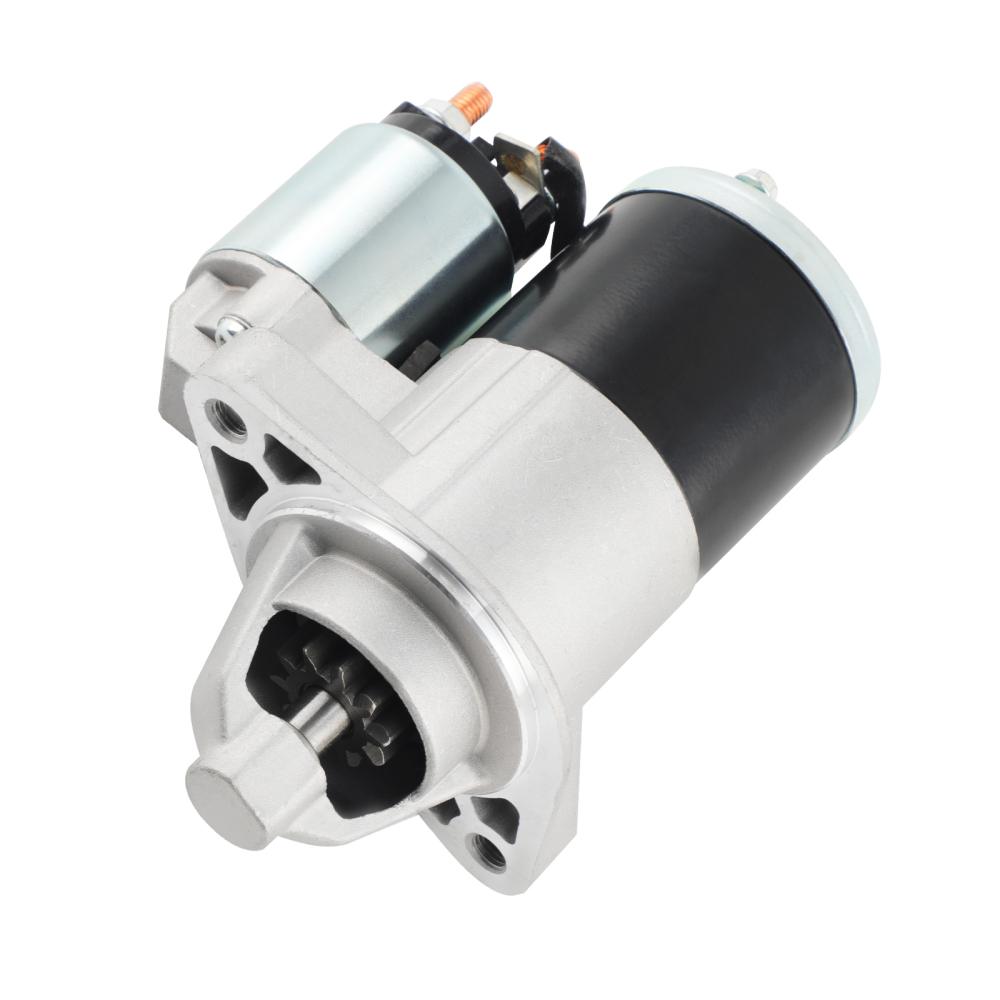

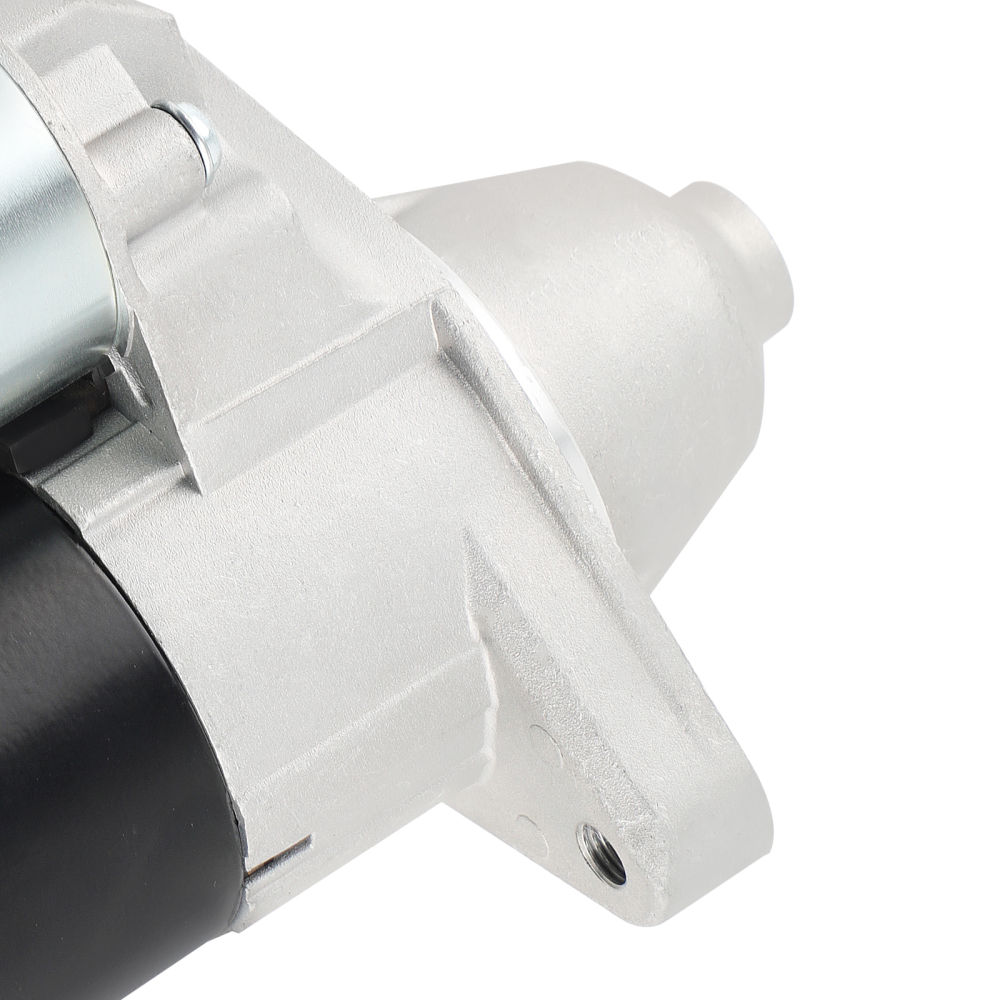

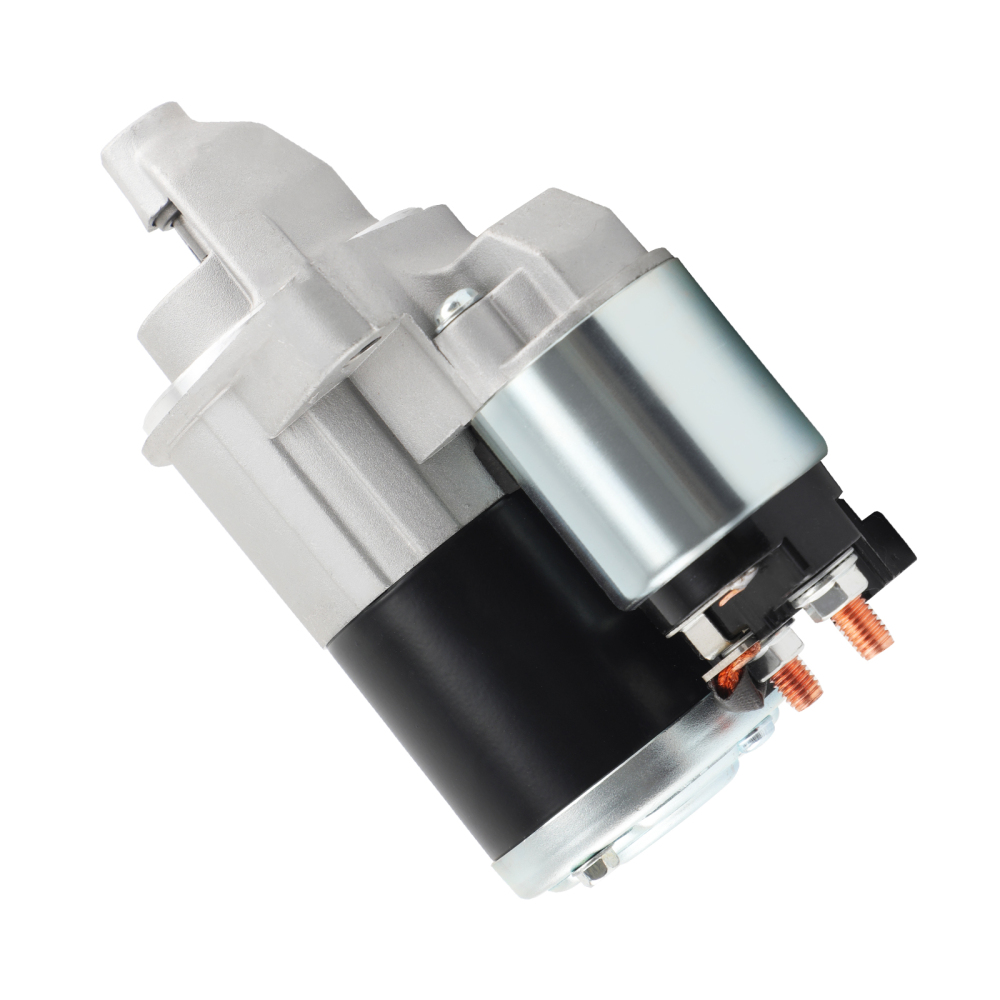

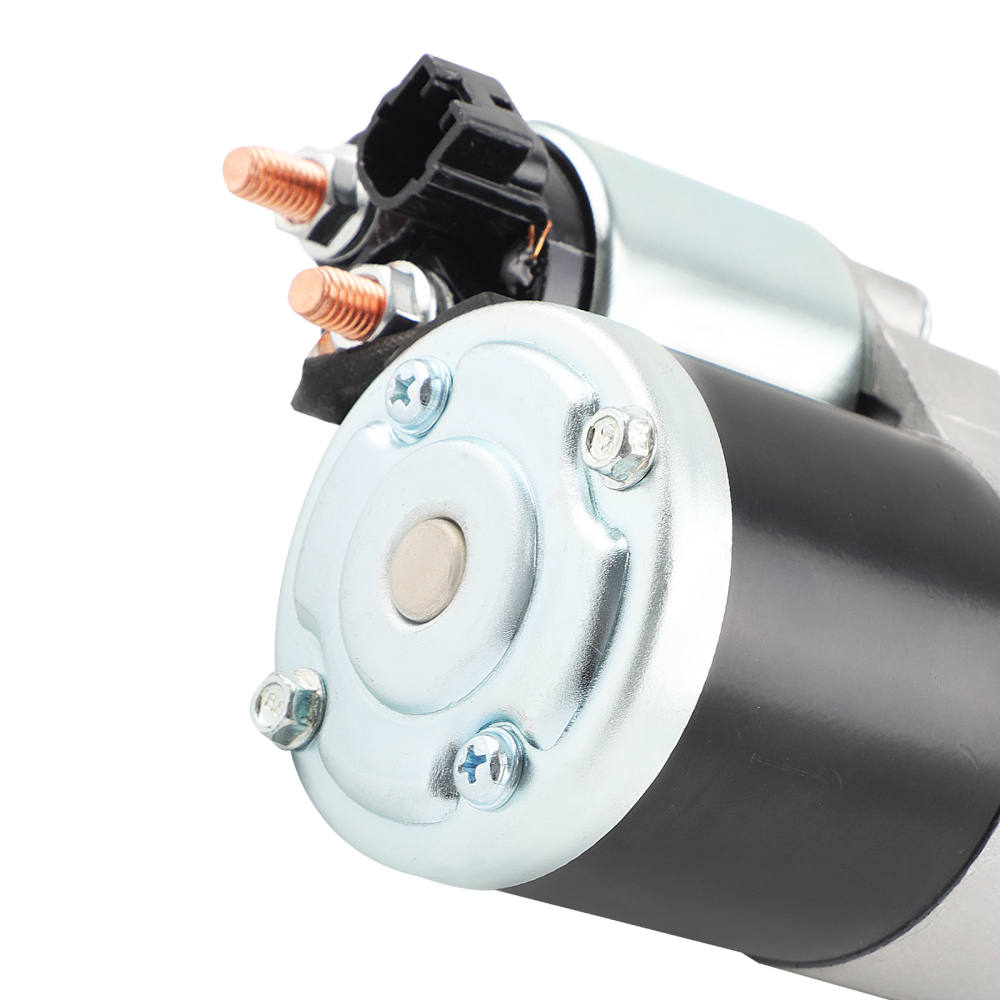

Starter Motor compatible for Toyota Hilux GGN15R,GGN25R Prado GRJ120R GRJ150R 1GR-FE 4.0L

Description
The starter motor in a vehicle runs off electrical power supplied by the battery. Its purpose is to push a rotating gear into the flywheel to engage the crankshaft. The rotating crankshaft will set the engine in motion. Once the starter go bad, the starter will not be able to convert the electrical energy to mechanical energy. Replacing the faulty starter motor will be neccessary.

Applications

Compatible for Toyota Landcruiser Prado GRJ120R engine 1GR-FE 4.0L V6 Petrol 2003-2009;

Compatible for Toyota Landcruiser Prado GRJ150R engine 1GR-FE 4.0L V6 Petrol 2009-2014;

Compatible for Toyota Hilux GGN15R,GGN25R engine 1GR-FE 4.0L V6 Petrol 2005-2014;

Compatible for Toyota FJ Cruiser GSJ15R engine 1GR-FE 4.0L V6 Petrol 2001-2013.

Part Number

for 428000-1240

for 28100-31040

Specifications

12V, 1.6KW, 10T, CW

Volts (v) 12
Kilo Watts (KW) 1.6
Mounting Hole (mm) M10x1.25
Mt Holes Centre (mm) 112
Flange Diameter (mm) 74
Nose Cone Length (mm) 54
Pinion at Rest (mm) 20
Field Housing Diameter (mm) 78
Teeth 10TH
Rotation CW
Pinon Diameter (mm) 32

Overall Length: 180mm

Condition: 100% Brand New

Notice:

* Professional installation is highly recommended (No Instruction Included)
* For any needs please contact us.
