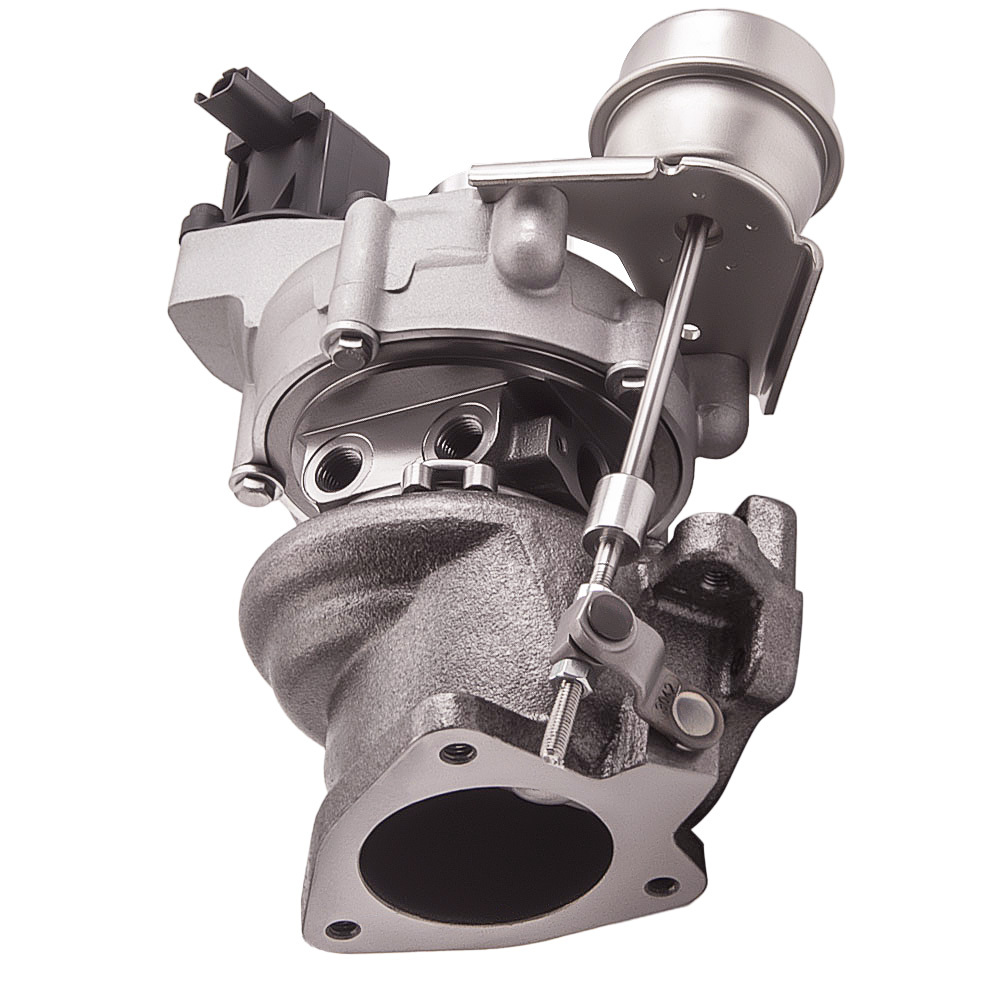

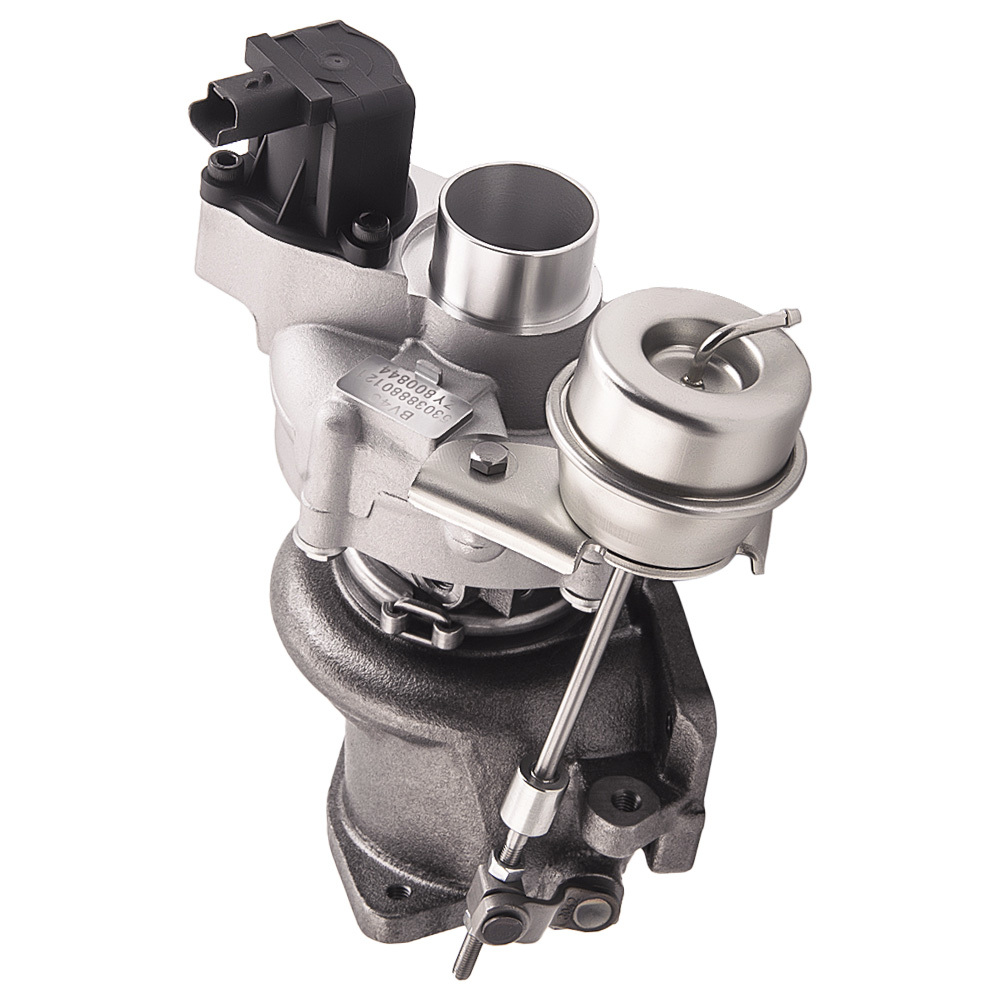

Turbo compatible for Citroen compatible for Peugeot 2009 1.6 16V THP C-4 compatible for DS-3 207 308EP6DT turbocharger

  • * OEM-Quality. Direct Replacement
  • * Ductile Iron QT450-10 - High temperature resistance (up to 700℃)
  • * K418 Alloy - Stable & High Oxidation & Temperature Resistance(up to 900℃)
  • * Cast Aluminium Blade - Good Air Tightness & Corrosion Resistance
Item Number 3002033276
Stock In Stock

Combination offer

  • A
  • B
  • C
  • D
  • E
  • F
  • G
53039880121
53039880121
1
OEM-quality and size with little modification
2
Turbine housing uses cast iron withstand temperatures up to 650 degrees Celsius
3
Steel Turbine Wheel made from the special K418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900 degrees Celsius
4
Cast aluminium blades with good gas tightness and corrosion resistance

Application

2010- Compatible for Peugeot RCZ 1.6 THP 16v 156 Engine EP6CDT
2009- Compatible for Peugeot 5008 1.6 THP 155 Engine EP6CDT
2007- Compatible for Peugeot 308 1.6 THP 150 Engine EP6CDT
2009- Compatible for Peugeot 3008 1.6 THP 155 Engine EP6CDT
2009- Compatible for Peugeot 3008 1.6 THP 150 Engine EP6CDT
2005- Compatible for Peugeot 207 1.6 THP 150 Engine EP6CDT
2009- Compatible for Citroen DS 3 1.6 THP 150 Engine EP6CDT
2009- Compatible for Citroen C 4 THP Engine EP6CDT
2005- Compatible for Citroen DS 3 1.6 THP 150 Engine EP6CDT

OE/Part number

V762045580-01, V75807898001,
V754667580-05, V75466758005,
V756494480-02, V75649448002,
V758078980-01, V75807898001,
V760088380-01, V76008838001,

53039700104,5303-970-0104,53039800104,5303-980-0104,
53039880104,5303-988-0104,53039900104,5303-990-0104,
53039700120,5303-970-0120,53039800120,5303-980-0120,
53039880120,5303-988-0120,53039900120,5303-990-0120,
53039700121,5303-970-0121,53039800121,5303-980-0121,
53039880121,5303-988-0121,53039900121,5303-990-0121,
53039700179,5303-970-0179,53039880179,5303-988-0179,
53039700217,5303-970-0217,53039880217,5303-988-0217,
53039880243,5303-988-0243,53039700243,5303-970-0243,
53039700425,5303-970-0425,53039880425,5303-988-0425,
53039880425K,53039880425RS,53039880121K,

754667580, 756494480,
758078980, 760088380,
762045580, 9807682180 ,
9809028780,V762045580,
A7F003L01A, A7F003L01A,
0375R9, 0375T5, 0375L0, 0375N7,

Specification

Turbo Model:K03,K03-533
Engine Code: EP6DT
Cooling Type:Water & Oil Cooling
Bearing Type: Journal Bearing / Floating Bearing
Thrust bearings: 270 Degrees
Hosepower: Up to 155HP
Turbo Type:Individual/Twin-scroll
Universal Fitment: No
Finish: Matte
Condition: New
Accessories: You will receive the parts exactly as shown in the picture above
Package Size:30x 28 x 24 cm
Package Weight: 6820g

Package included

1xTurbocharger
2xFlange gaskets
1xOil/Water port gaskets

Feature

* Product Material
1. Turbine housing :Ductile iron QT450-10- temperature resistant up to 700℃
2. Steel turbine wheel:K418 alloy - high oxidation stability and resistance up to 900℃
3. Compressor housing:ZL104 aluminum with lightweight
4. Compressor wheel/blades:Cast aluminium blades – superior air tightness & corrosion resistance

* Product Performance
1. OEM-quality and size with little modification
2. Rich experience in turbo production and own factory
3. High-Speed oil seal ring and Precision clearance

* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS VSR3
2. G3-min-Flow VNT Turbo testing
3. Advanced Actuator Tester/Programmer

Note

* Please confirm your original turbo PART NUMBER before Purchasing
* Professional installation is highly recommended
* You may need to change your banjo bolt and other screws to install the turbocharger;
* Lacking of oil will casue turbocharger shaft play and damage , please adjust your oil pressure & make sure turbochager is fully lubricated.
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!


Warranty: one year warranty for any manufacturing defect
